10BBL Brewhouse (Direct Fire)

10BBL Brewhouse (Direct Fire)

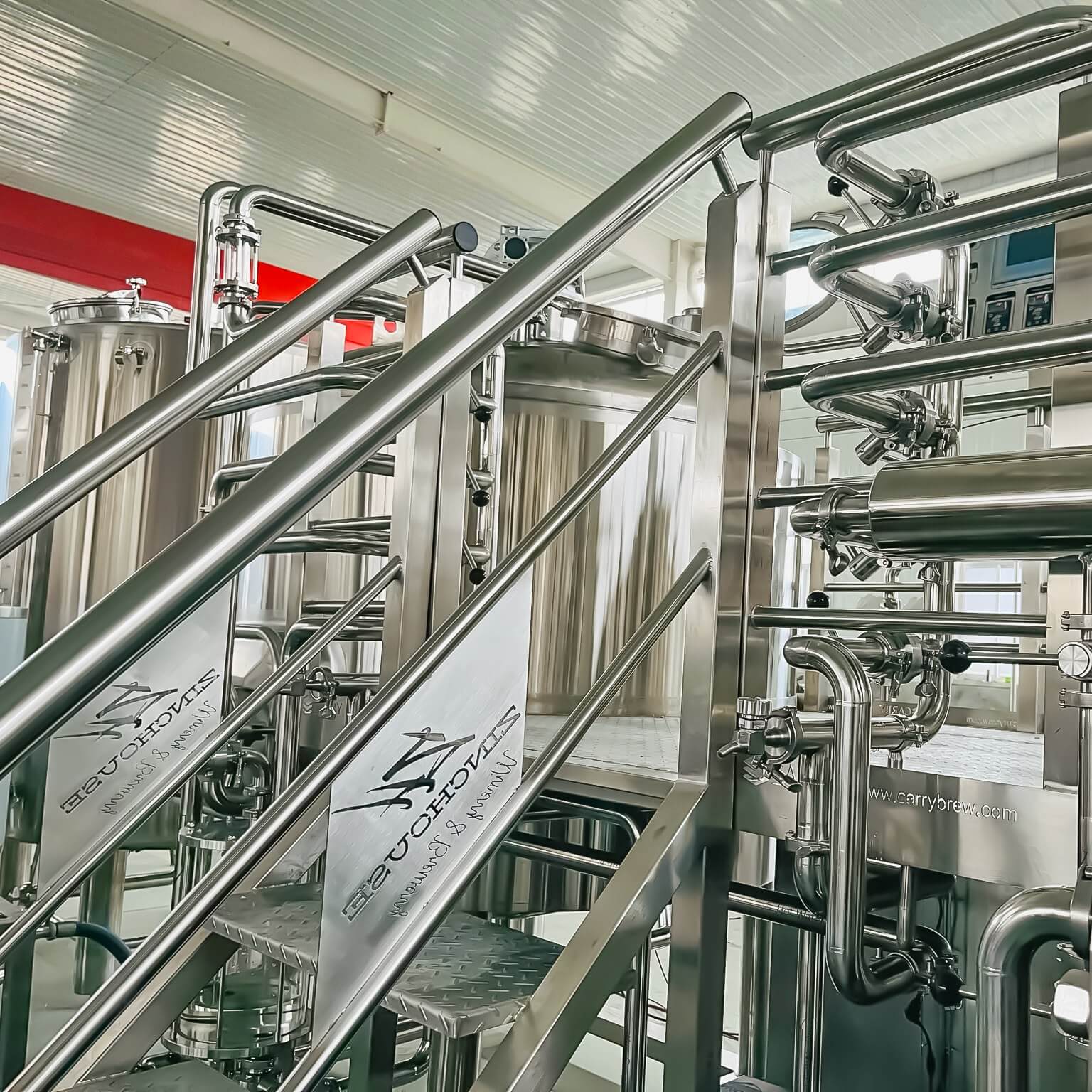

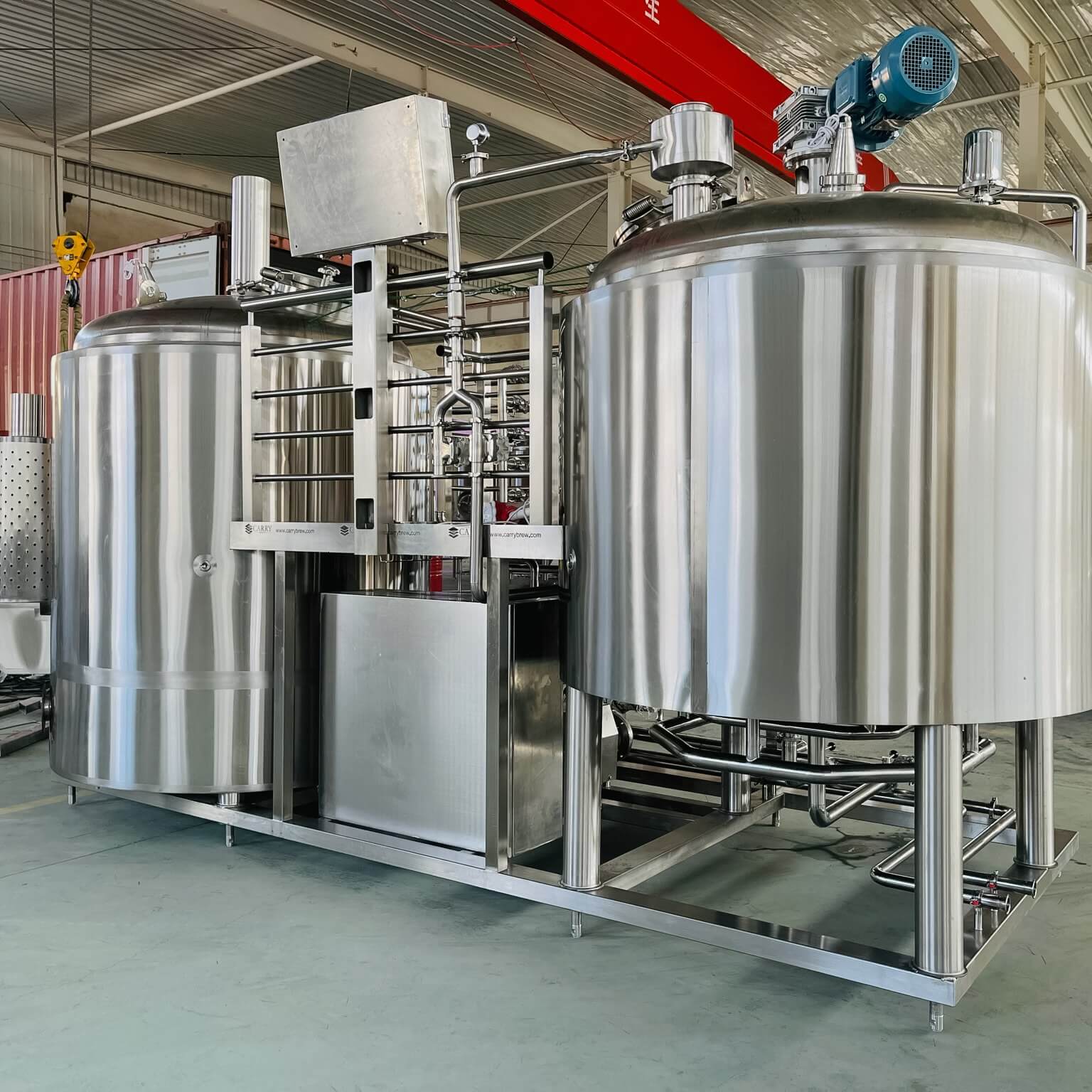

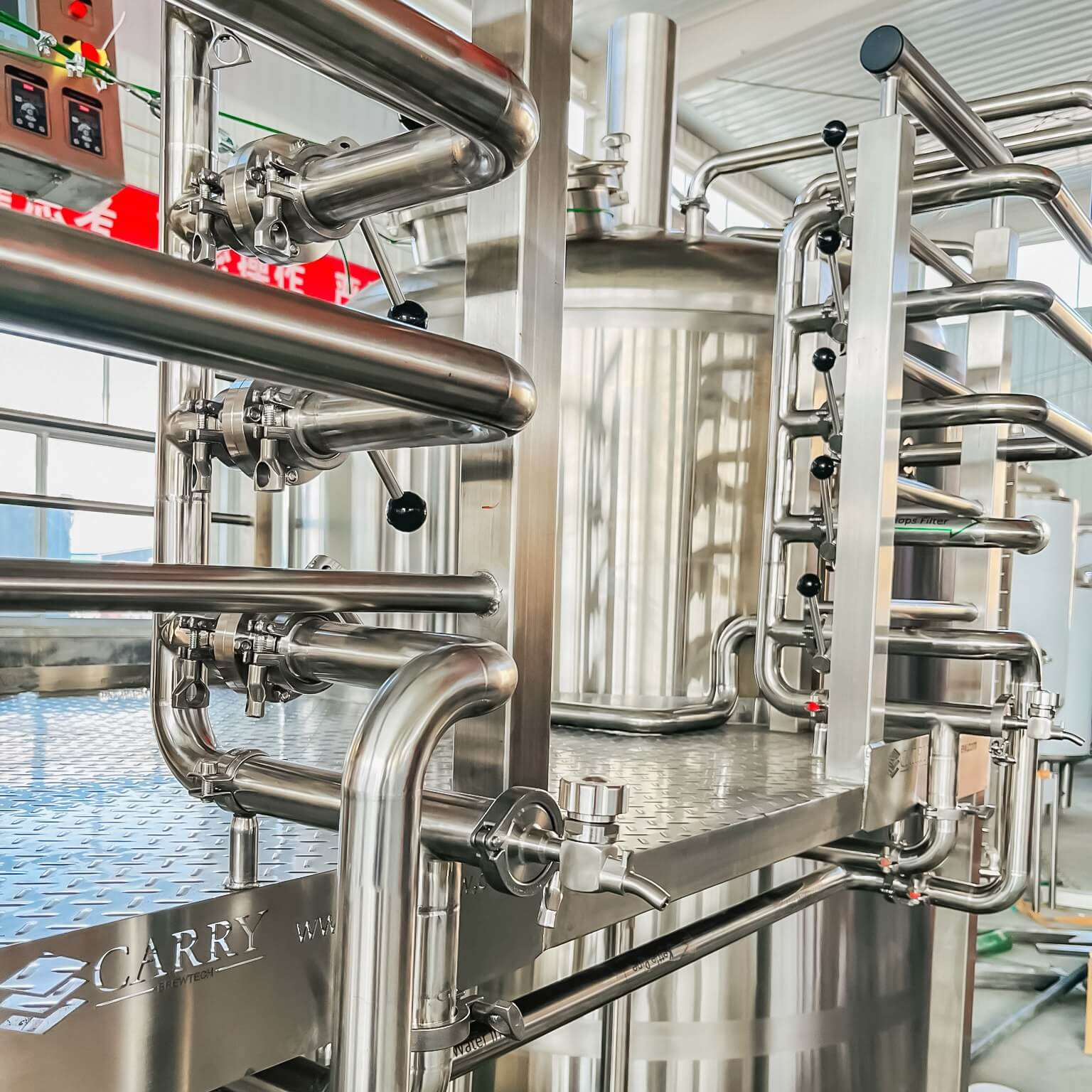

Carry Brewtech 10BBL 2-vessel Brewhouse system is the ideal designed specically for small to medium sized micro-breweries that want to produce on a commercial scale with a relatively compact footprint and have the flexibility to brew a large range of styles.
-+
Add to Basket
Inquire Now

◉ Product Parameters

Carry Brewtech 10BBL 2-vessel Brewhouse system is the ideal designed specically for small to medium sized micro-breweries that want to produce on a commercial scale with a relatively compact footprint and have the flexibility to brew a large range of styles.



Turnkey Solution

Skid-mounted Structure

Fully Sanitary 304 material

10BBL

SPECIFICATION

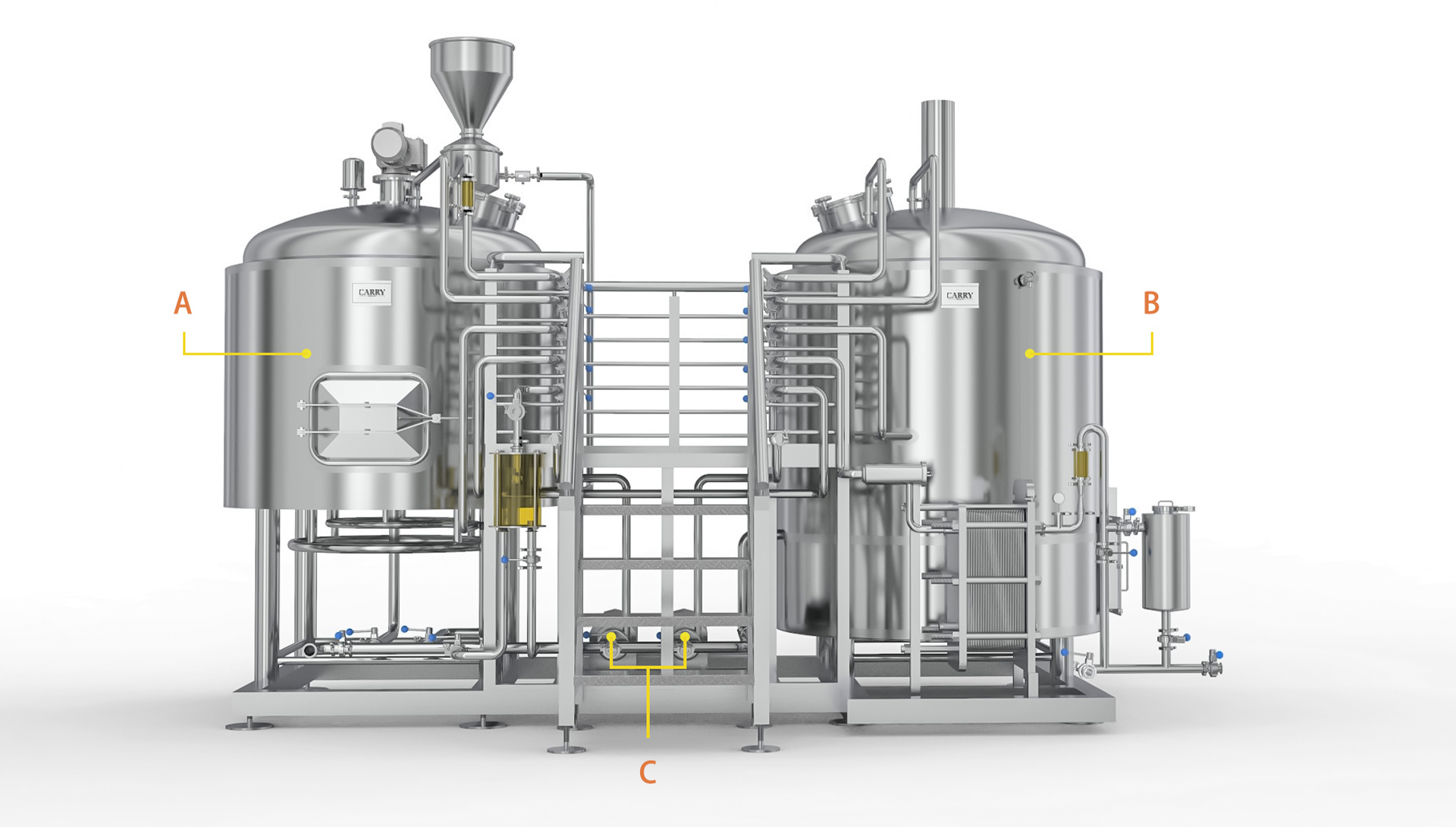

  • A- MASH/LAUTER TANK

  • Mash/lauter tank with extra 20% head space
  • Dish head with top mounted manway
  •  LED Light comes included in the tank, easy inside-checking between batches
  •  CIP Spray Ball equipped with CIP Arm, butterfly valve on the end, easy to attach to your CIP Cart for cleaning ideally
  •  Wort backflow pipeline equipped with sightglass
  •  Hot & Tap water mixing valve trees& temperature gauge for sparging
  •  Built-in Hot water sparging ring
  • Side mounted grain outdoor & grain chute

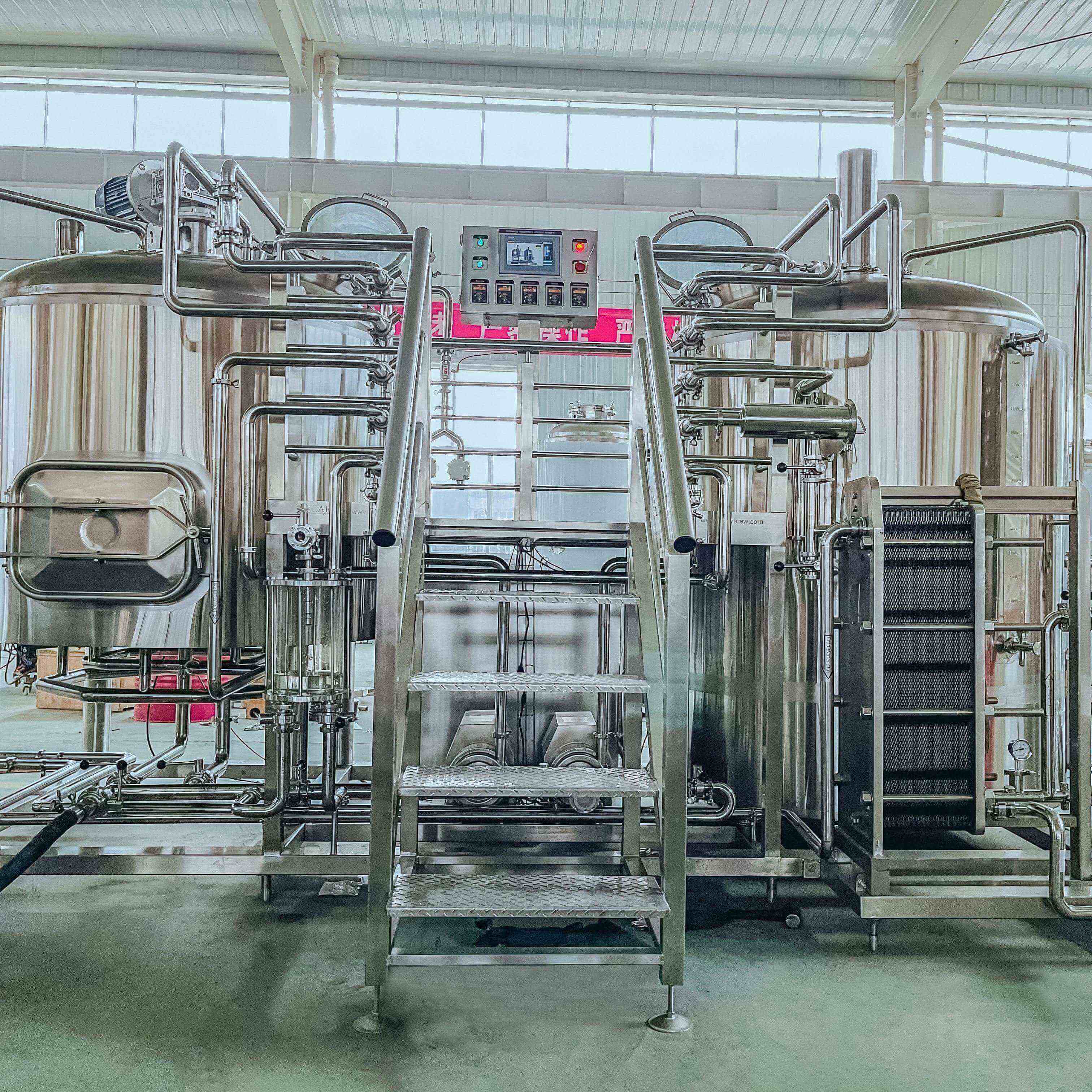

carrybrewtech-10bbl microbrewery (6)

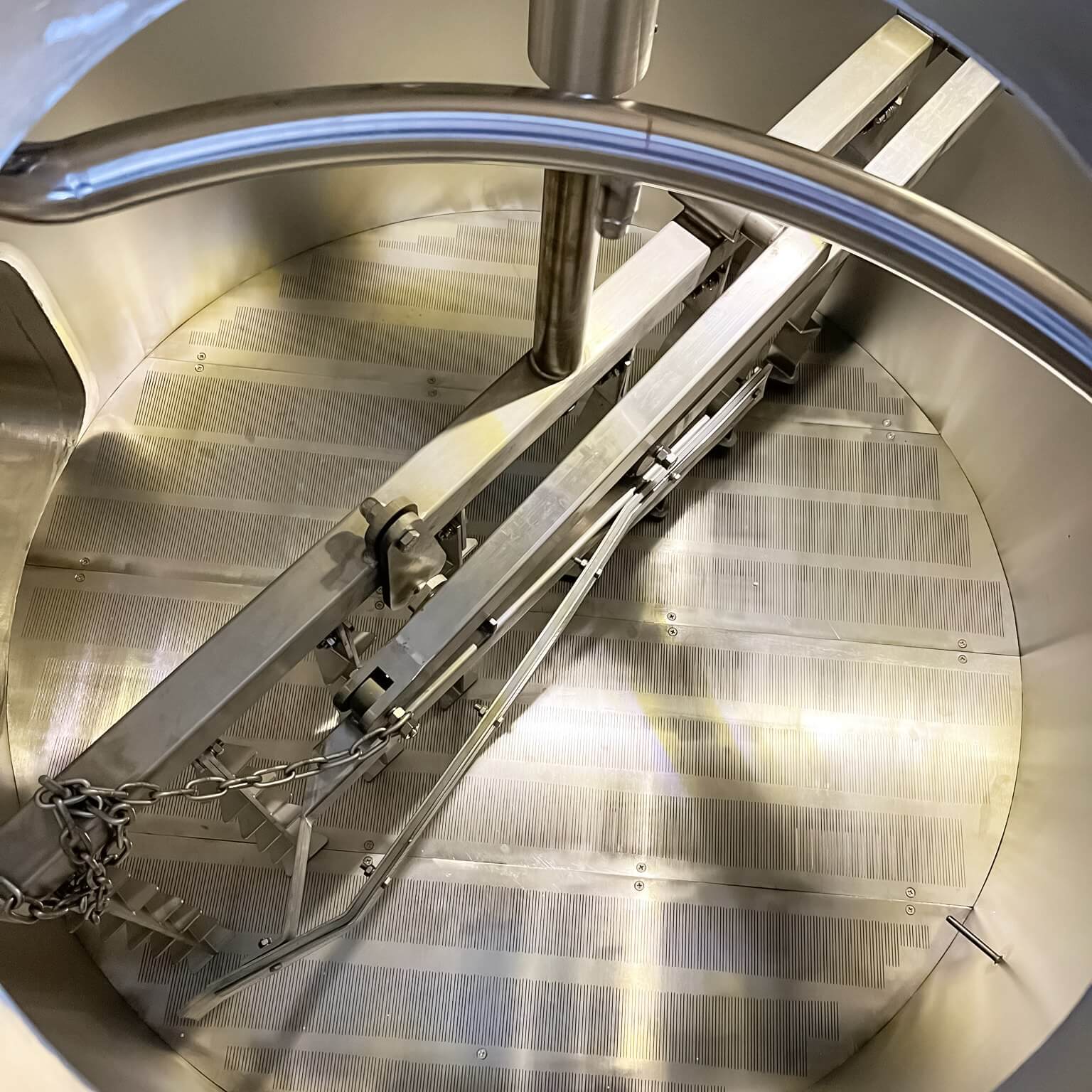

·High precision false bottom, top gas 0.7mm, bottom 3mm. wedge wire.

·Multiple wort drain ports

· Multiple CIP under flush ports

· Thermo-well and PT100 temperature sensor, wired ready into PID Control cabinet

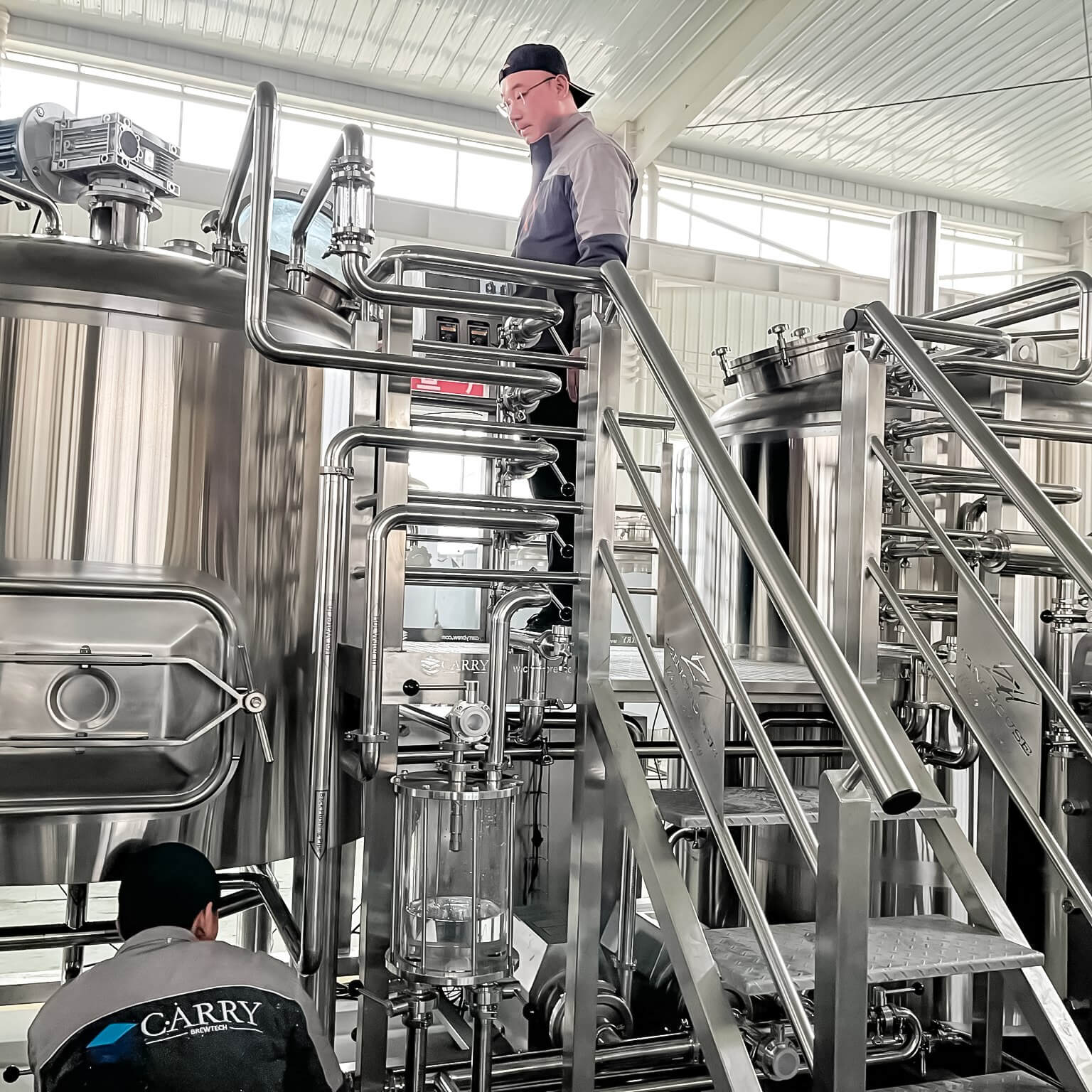

· 10L glass type balance tank equipped between lauter pipelines

· Sample valve pre-installed on wort pipeline, convenient to take sample during wort backflow process

· 4 SUS304 legs pre-installed on pallet frame

  • B- KETTLE/WHIRLPOOL TANK
  •
  • Heating method: Direct Fire (combustor underneath, optional: electric, steam heating, TBD)
  • Control Method: PID Control cabinet
  •
  •
  • Total Consuming power: Depends
  • Working power: 220V, 60HZ, 1/3 Phases (customized)
  • Max working temperature: 100℃ (boiling up)
  • Kettle Tank with extra 40% head space
  • Tangential Whirlpool inlet equip on 1/3 position of kettle tank
  • Top mounted Steam condensing pipe (outdoor)
  • Top mounted glass manway
  • LED Light comes included in the tank, easy inside-checking between batches
  • CIP Spray Ball equipped with CIP Arm, butterfly valve on the end, easy to attach to your CIP Cart for cleaning ideally

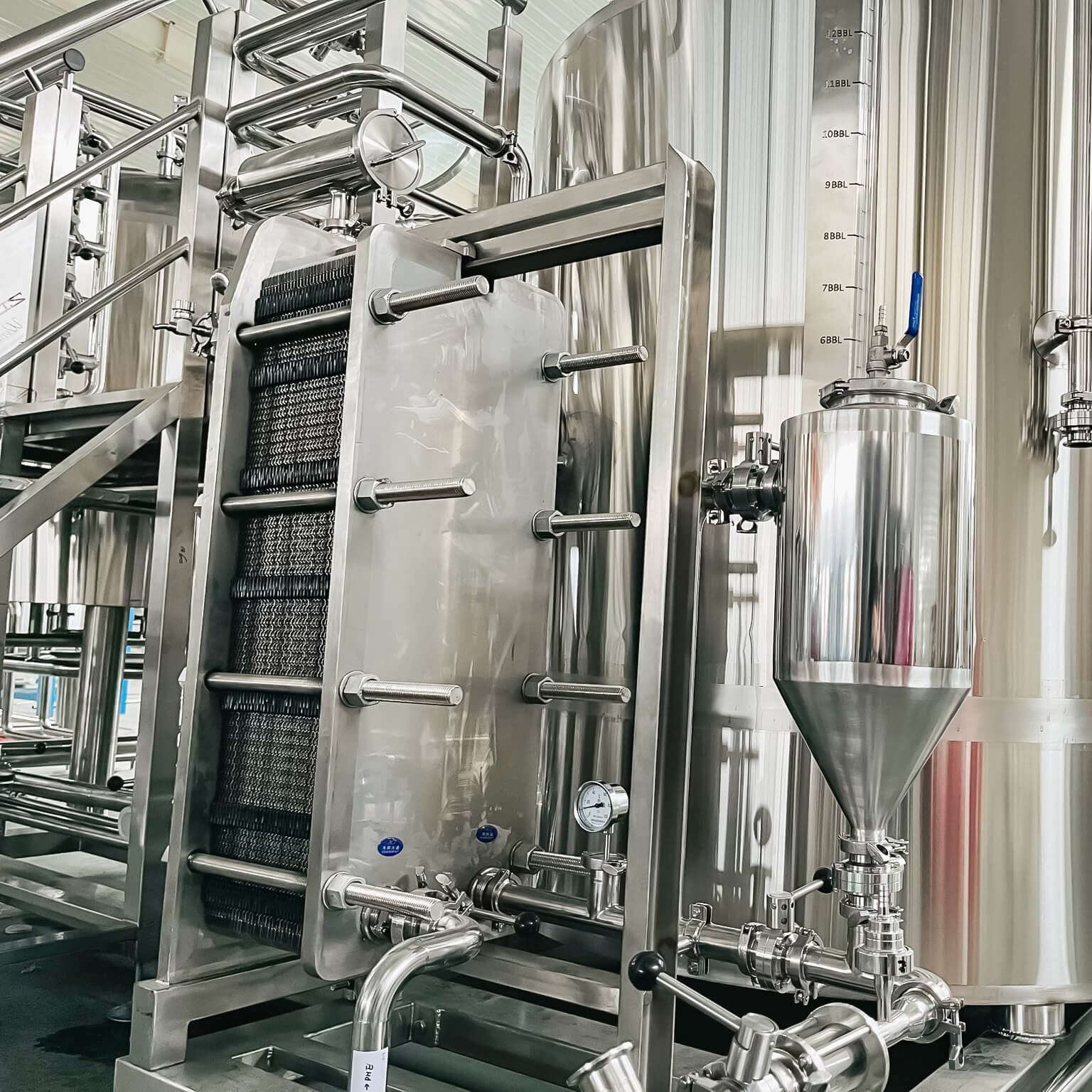

carrybrewtech-10bbl microbrewery (4)

KNOCKING OUT ASSEMBLE

· 2-stage Plate heat exchanger (ie.wort & tap water & glycol water)

· BR0.1/ 11㎡ heat exchange area Sanitary type, 304 SUS Material

· Design pressure:1.0 Mpa, Working temperature: 170°C

· With High quality hops filter, With oxgenation device

· temperature gauge & sight glass pre-installed before oxgenation, 10L Yeast adding tank

· sanitary degree 304 stainless steel valves, fittings, pipelines

· Frame-Mounted design, everything comes in a complete set, assembled ready to brew.

· Platform to be customized according to your local premise requirement. TBD.

  • ·  VFD spead control sanitary centrifugal pump</br>·  Made of food-grade SUS304  Flow rate is 5000L/hr</br>·  Standard lift of 24M  Rated power is 1.5kw
    C- Pre-installed Wort Pump & Hot water Pump
    ·  VFD spead control sanitary centrifugal pump
    ·  Made of food-grade SUS304  Flow rate is 5000L/hr
    ·  Standard lift of 24M  Rated power is 1.5kw

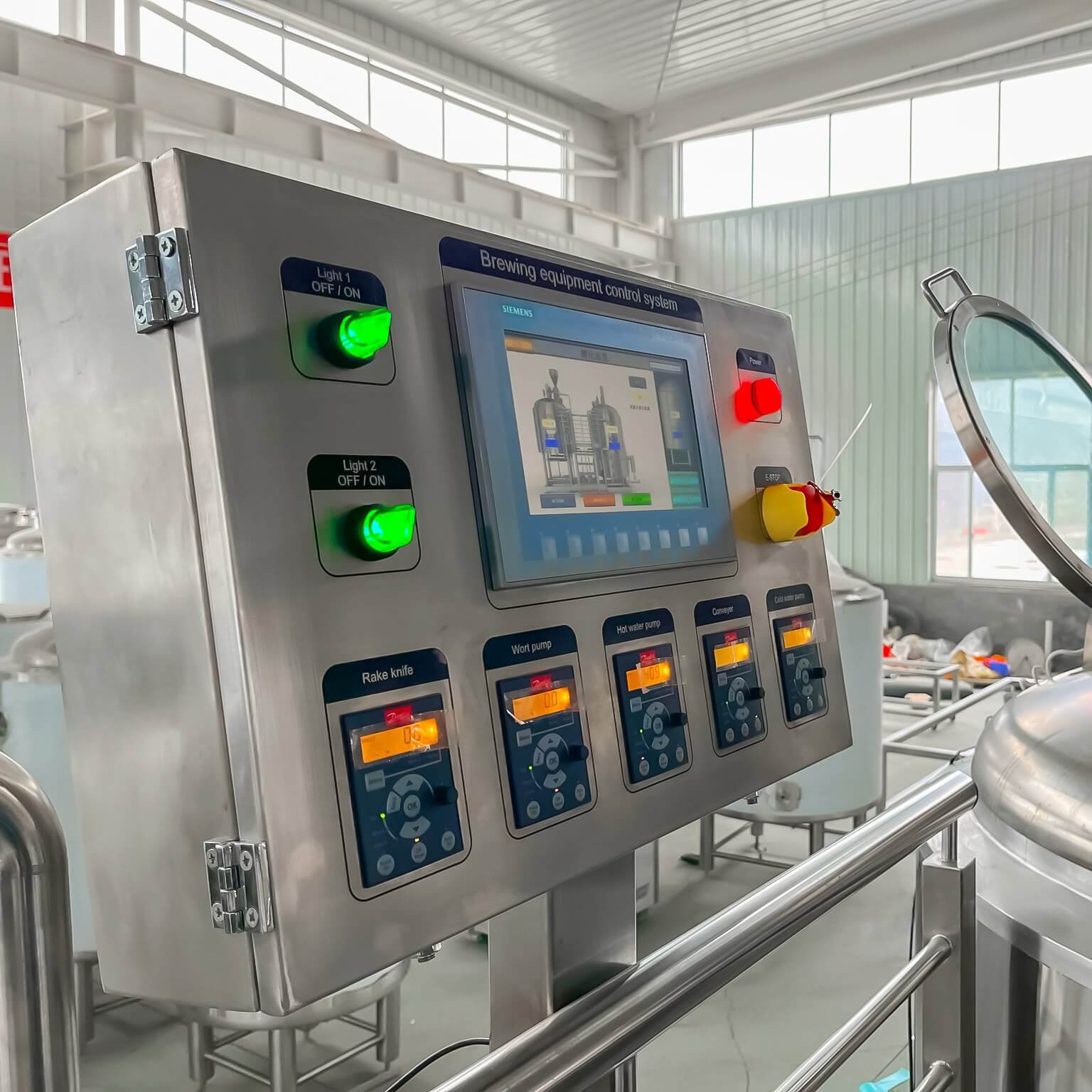

  • · 304 Stainless steel cabinet for the control box </br>· With name marks on each electric component</br>· High quality electricity parts, meet US standard
    Control System
    · 304 Stainless steel cabinet for the control box
    · With name marks on each electric component
    · High quality electricity parts, meet US standard

DESIGN

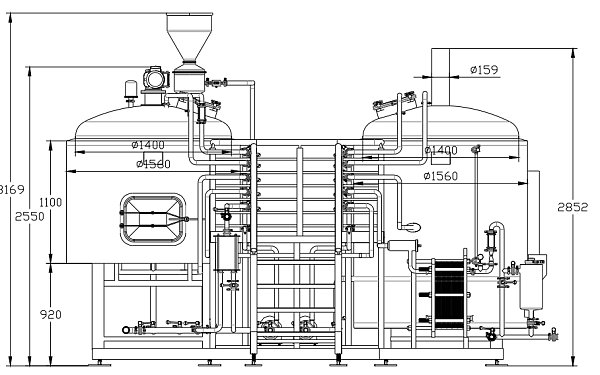

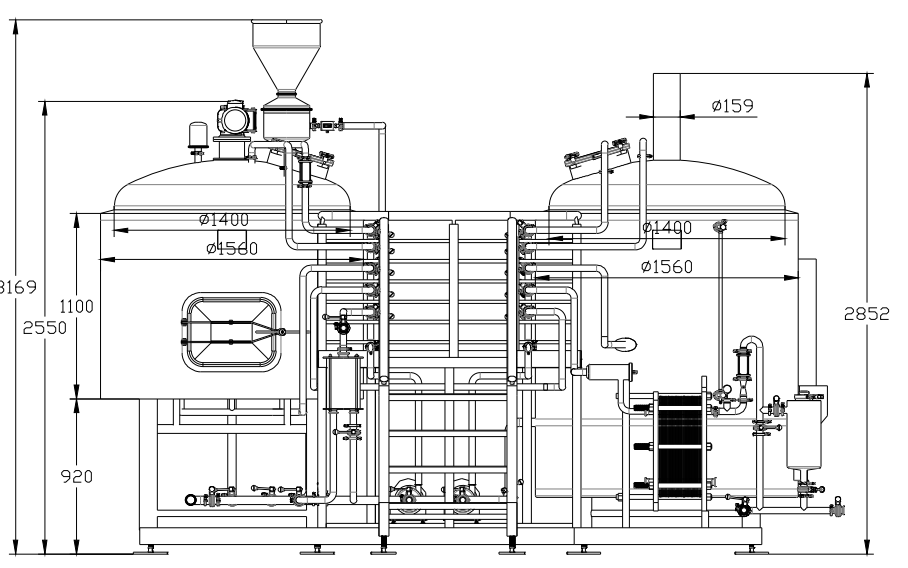

  • 10BBL Brewhouse Front View
    10BBL Brewhouse Front View

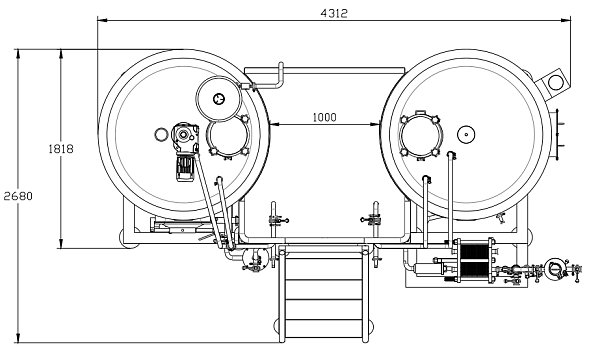

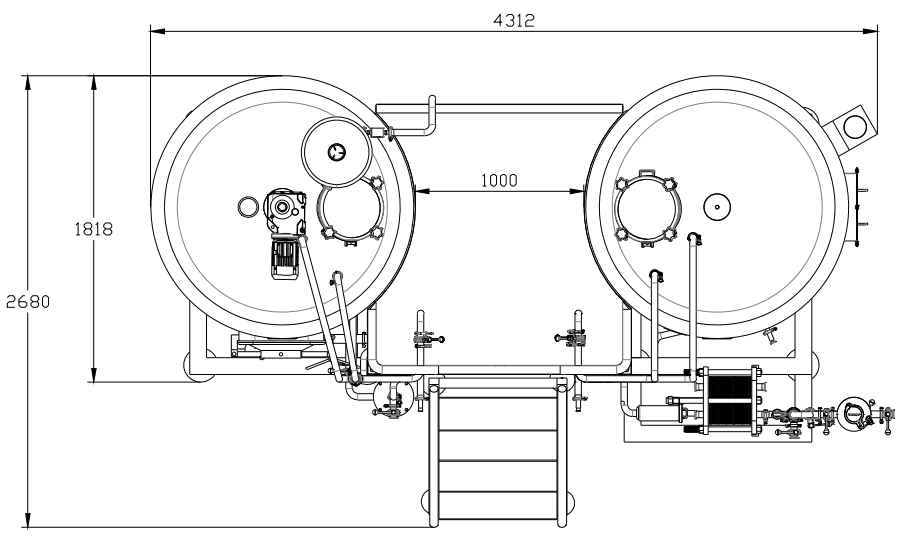

  • 10BBL Brewhouse Top View
    10BBL Brewhouse Top View

How to draw up a complete Commercial Brewery System?

For brewery system that will be setup in pub or restaurant, it has more factors need to be taken in to consideration:

1. Attractive

Brewery system is not only the equipment that provide beers, but also an art corner to attract clients. So, you need to consider the option that looks nice.



2. Save your time

Once you own your pub, the most treasureable thing would be your time, you need time to brew beers, finalize marketing, visit your clients, and manage the cash flow. Everybody has 24 hours a day, but you were trying to split it into 48 hours.

So, if there is a system can help you optimize the operation process, save your time to do more worthful works, then don't hesitate, that is the suitable one for you.



3. Turnkey solution

Recently, COVID-19 makes the travels difficult, especially when your system need the onsite installation service. But how to install?

Don't worry, if you can find a supplier that can provide turnkey solution, don't miss it. That will be the wonderful option at the moment.

From the owner’s point of view, all of them are important to start with. So sourcing the right supplier will be an significant choice. Carry brewtech provides consultation service from 0 to 1.

Contact CARRY guys right now, we are ready to provide the most suitable solutions for your business. Let’s do it!

Listen -> communication -> system configuration -> layout -> simulated pipeline -> Details -> price quotation -> production -> shipment -> remote/onsite service -> life-time support
