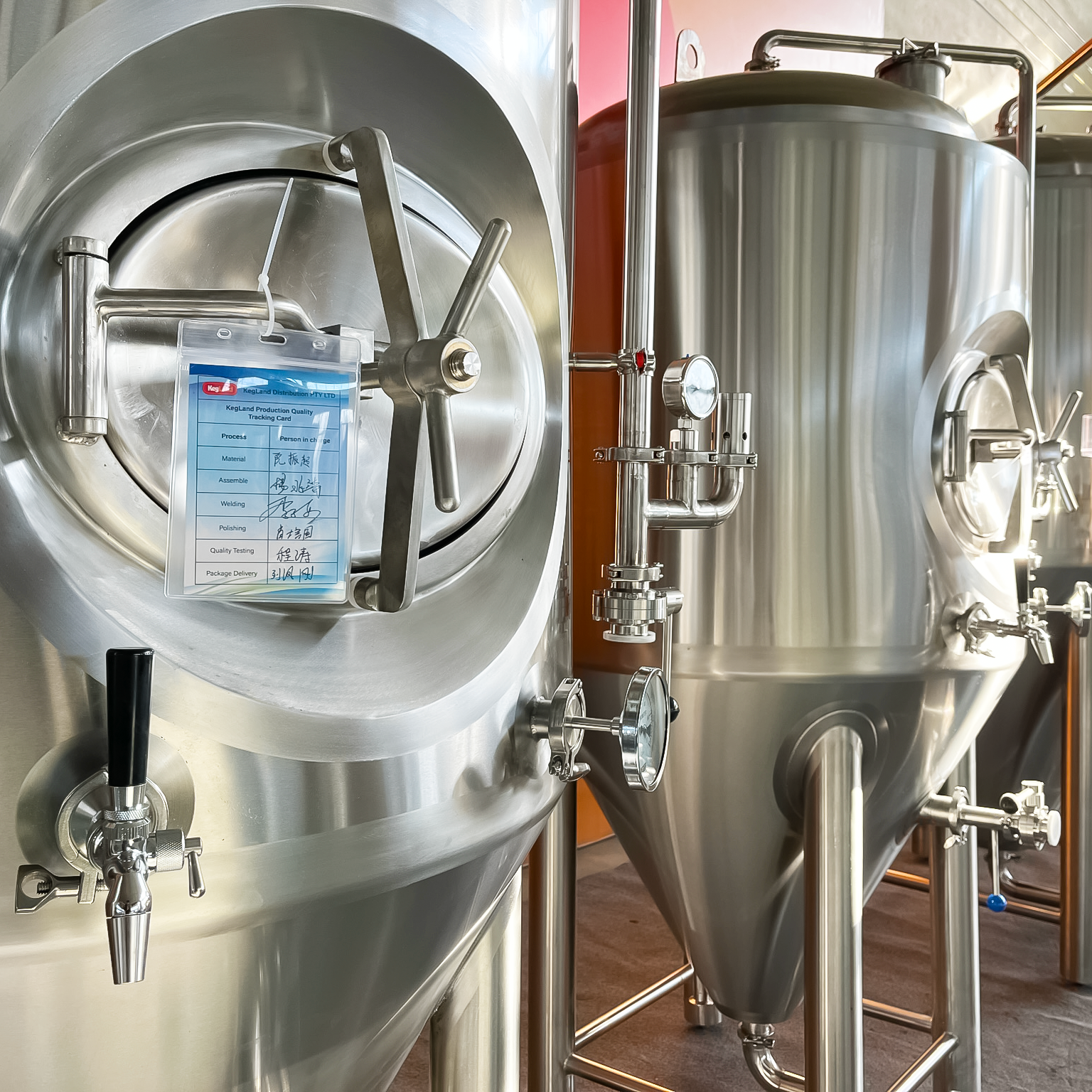

800L Beer Fermentation Tank

Name: 800L Beer Fermentation Tank
SKU: 0

Fermentation tank, is made of stainless steel 304. You may also heard some other names as conical fermenter, fermentation vessels, Unitank, or even FV, made by 304 sanitized stainless steel, 100% TIG Welding, is the key part to hold wort after brewing and turns it into beers in days.

Add to Basket

Inquire Now

◉ Product Parameters

800L Beer Fermentation Tank

Product Details

A fermentation tank is a kind of vessel in the equipment used to make beer. After the wort comes out of the brewing system, it enters the fermentation tank. The fermentation tank provides a good and satisfactory environment for the aerobic and anaerobic reaction of yeast, and plays a vital role in the process of beer making. Therefore, the fermenter occupies a very important position in the fermentation system.

Component

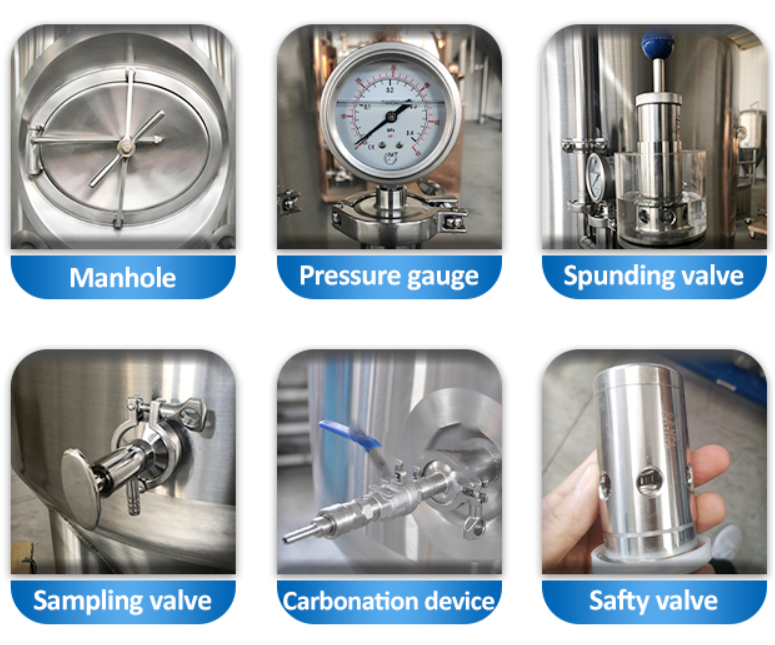

No.	Description	No.	Description
1	Safety valve port	2	360° spray ball equip with CIP arm
3	Side Manway	4	360° spray ball equip with CIP arm

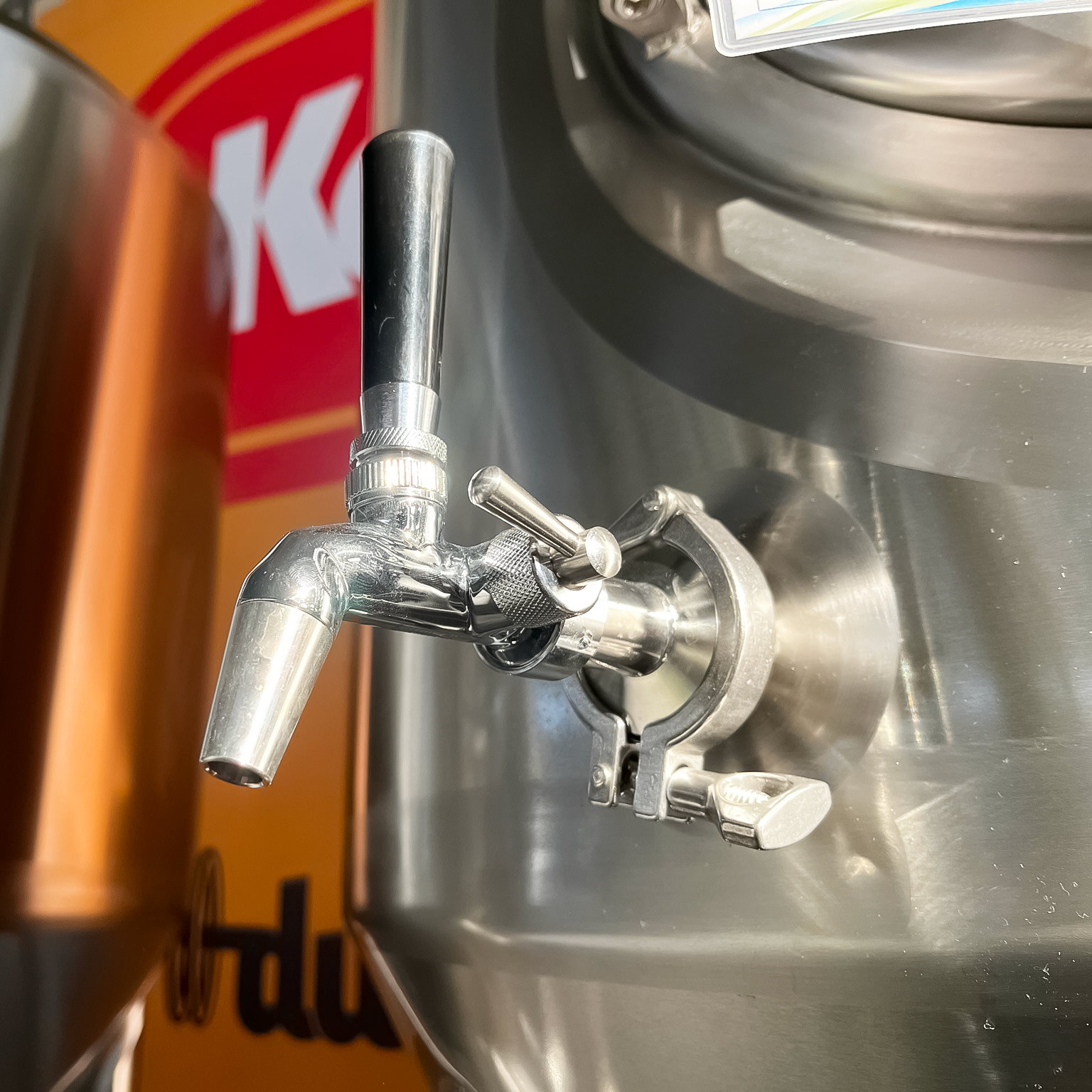

5	Spunding Valve on CO2 Blow off arm	6	Sample Valve

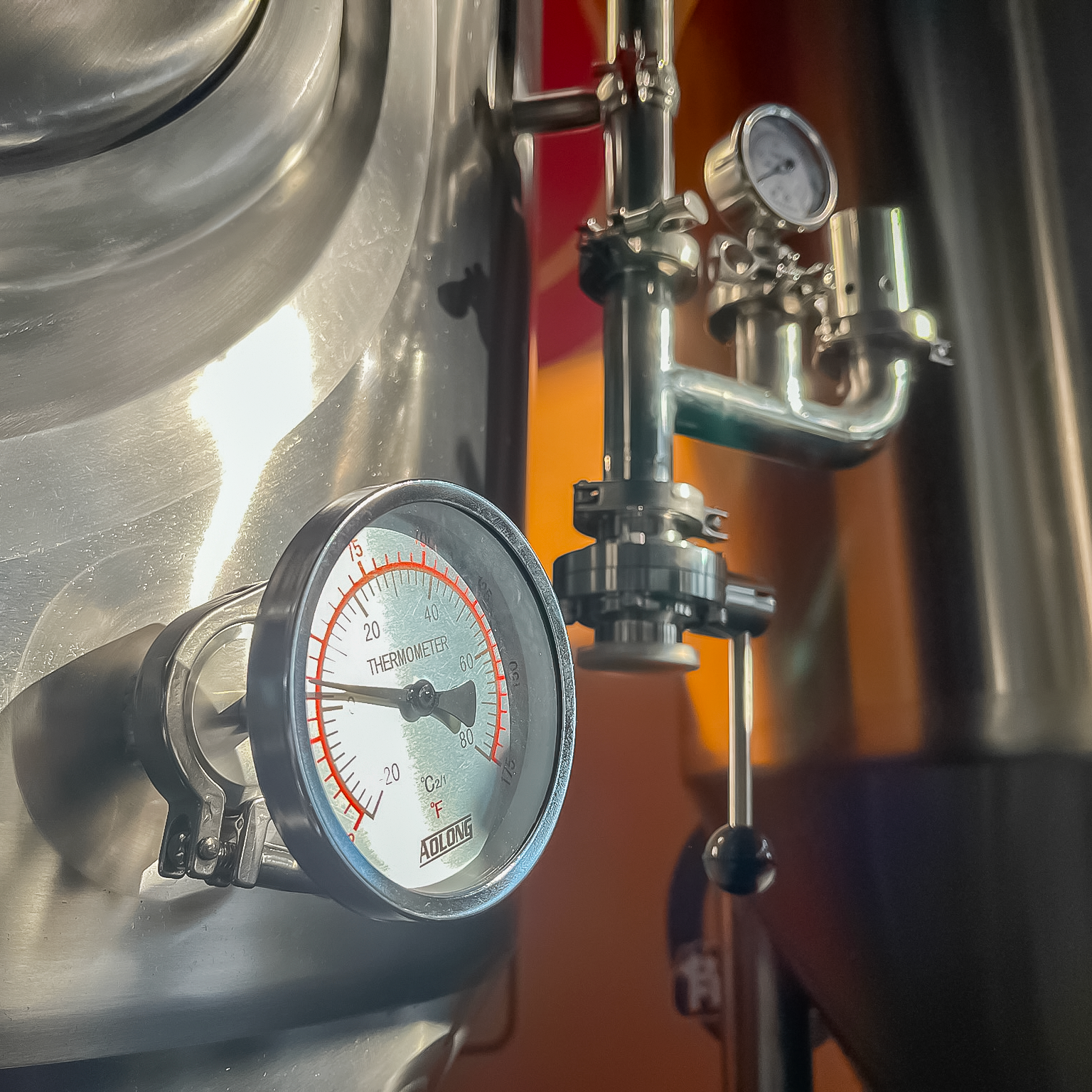

7	Temperature gauge	8	Temperature probe: PT-100
9	Beer outlet&racking arm	10	Bottom drain port

Configuration

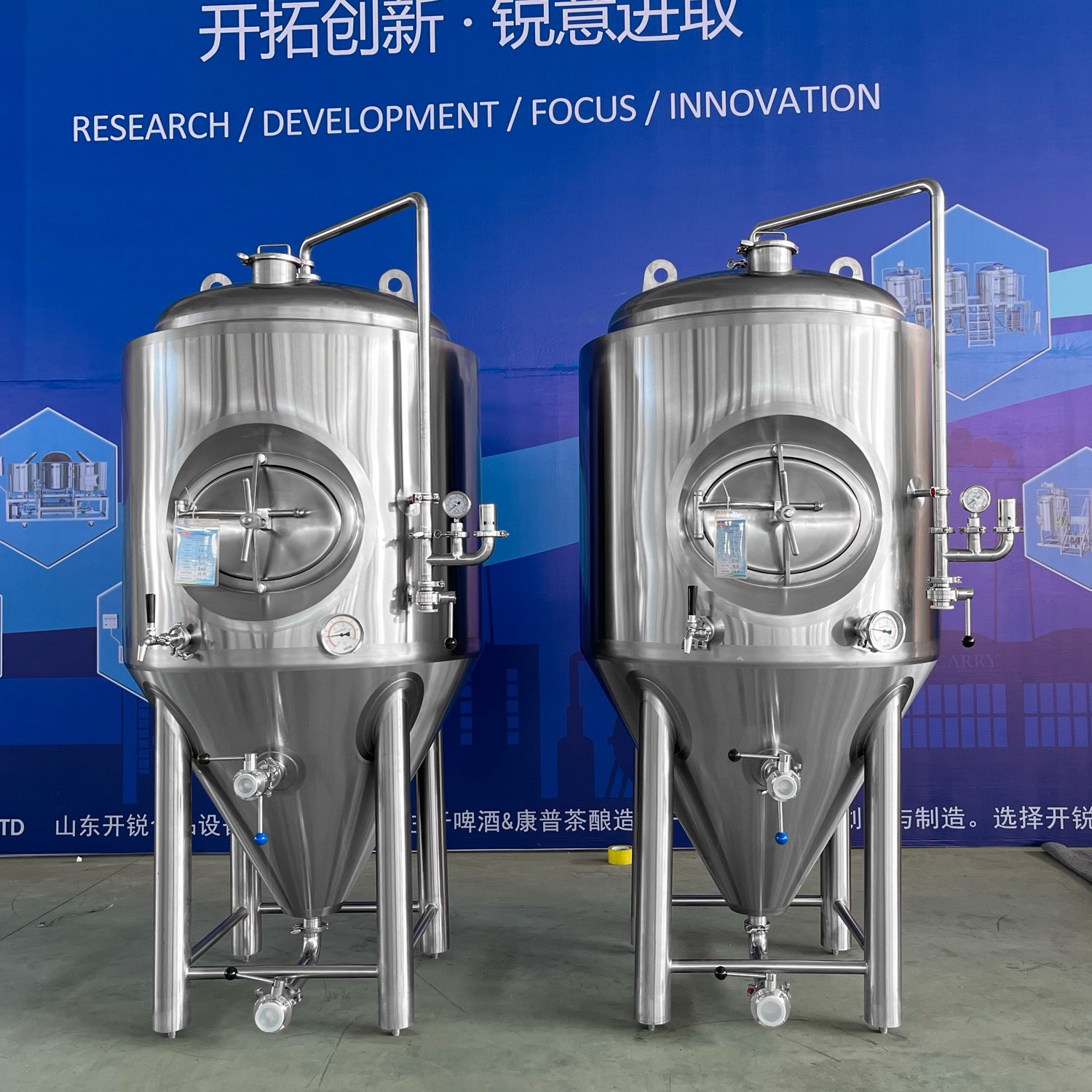

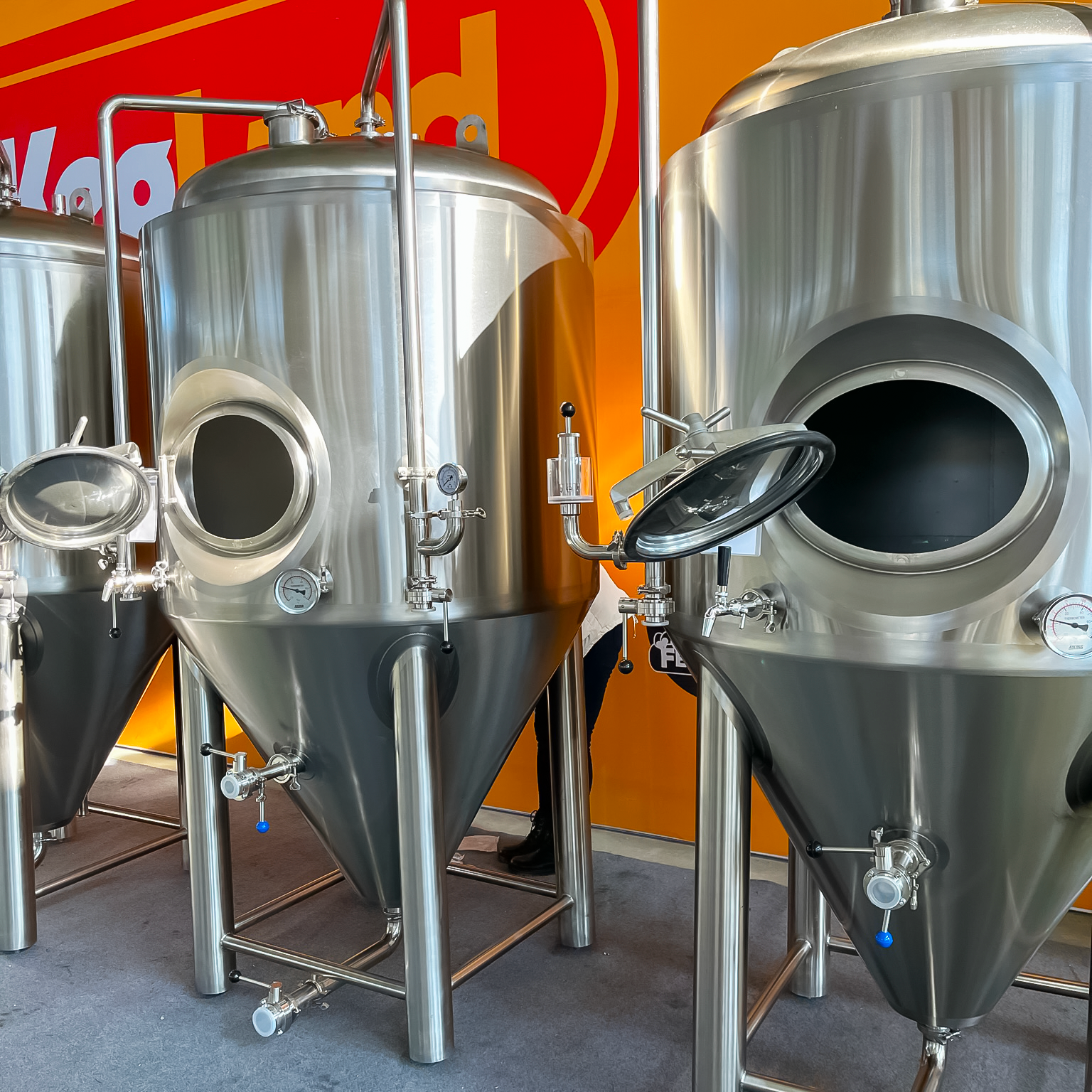

Side Manway (M-Series) Conical Fermenter, is built for those industrial breweries who will ferment beers with volume from 500L to 5,000L(max to 50BBL).

With the Standard fully polished 304 stainless steel material, it has all standard sanitary welded tri-clamp fittings and CIP arm. There are also some more advanced add-on features, pick up the one which suitable for your current stage, we are your one-stop brewing store.

1. Effective volume = 800L, with extra 25% head space. Total volume = 1000L;

2. Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire;

3. Inner layer=3mm, pickling and passivating treated;

4. outer layer=2mm, Hairline polishing;

5. Dimple glycol cooling jacket;

6. PU Insulation layer=80mm on side and cone bottom;

7. Design pressure 0.3MPa; Working pressure 0.15Mpa;

8. 60°Conical Cone bottom;

9. 4 x heavy duty legs with leveling foot pads;

You can also upgrade your fermentation tank with below options:

1. Additional CO2 Blow off pipeline

2. Carbonation Port & fittings
