Kegerator-X Brewery Made Kit

Name: Kegerator-X Brewery Made Kit
SKU: 0

This is a One click option for the nitty gritty parts that often get missed when setting up a Kegerator for the first time. If you were to ask what our staff members here have at home, without a doubt this is going to be the right option.

Add to Basket

Inquire Now

◉ Product Parameters

Kegerator-X Brewery Made Kit

Product Description

Overview

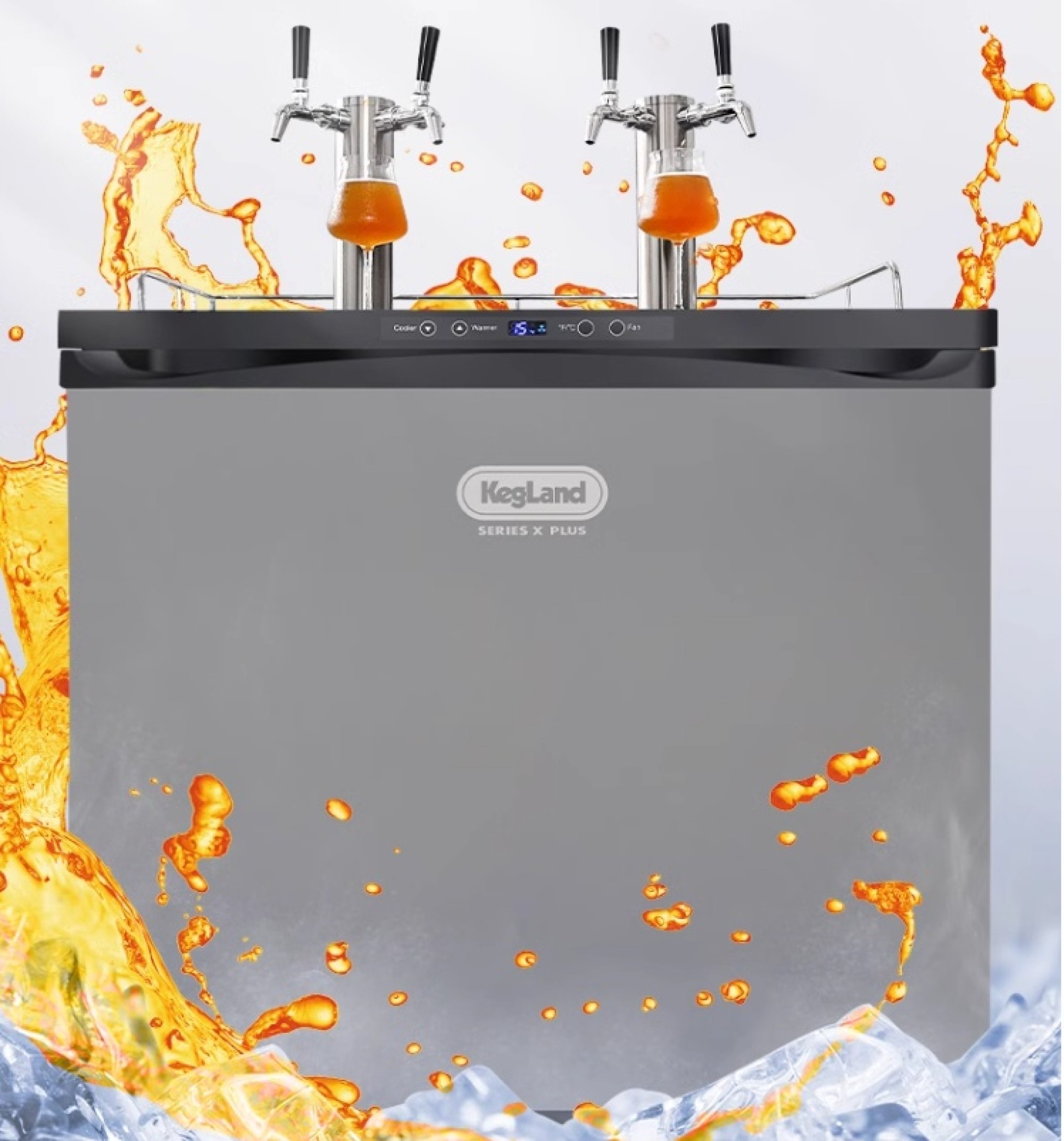

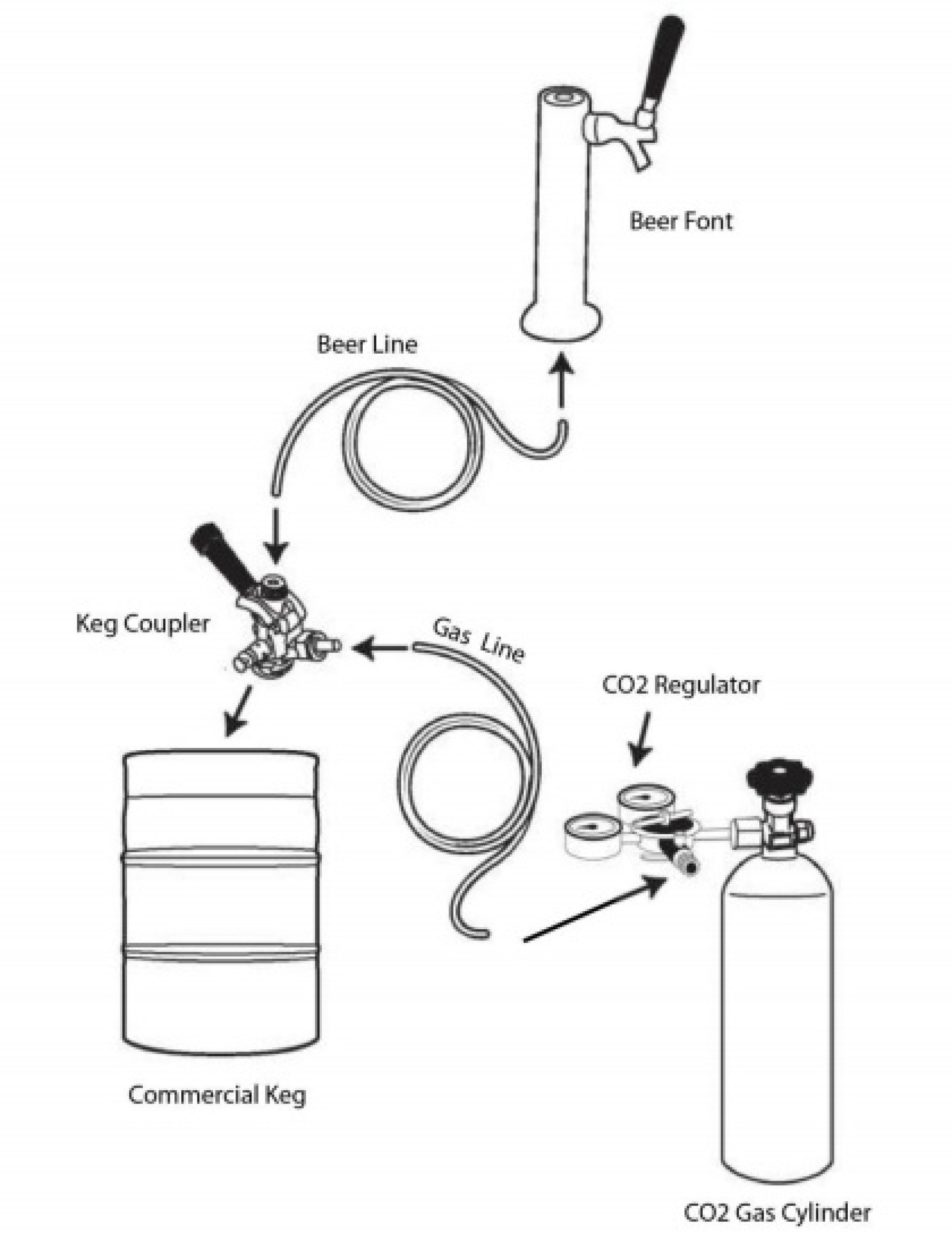

Kegerator-X is a refrigerator that has been designed or altered to store and dispense kegs. The kegerator keeps the keg in a refrigerated environment and uses CO2 to pressurize and dispense beverages from the keg. This keeps the contents of the keg fresh and carbonated for an extended period of time.

kegerators are designed in a manner that will allow one or more kegs to fit inside along with the dispense system. Kegerators are typically used to dispense draft beer, but are also gaining popularity for dispensing wine, cold brew coffee, and kombucha with certain modifications.

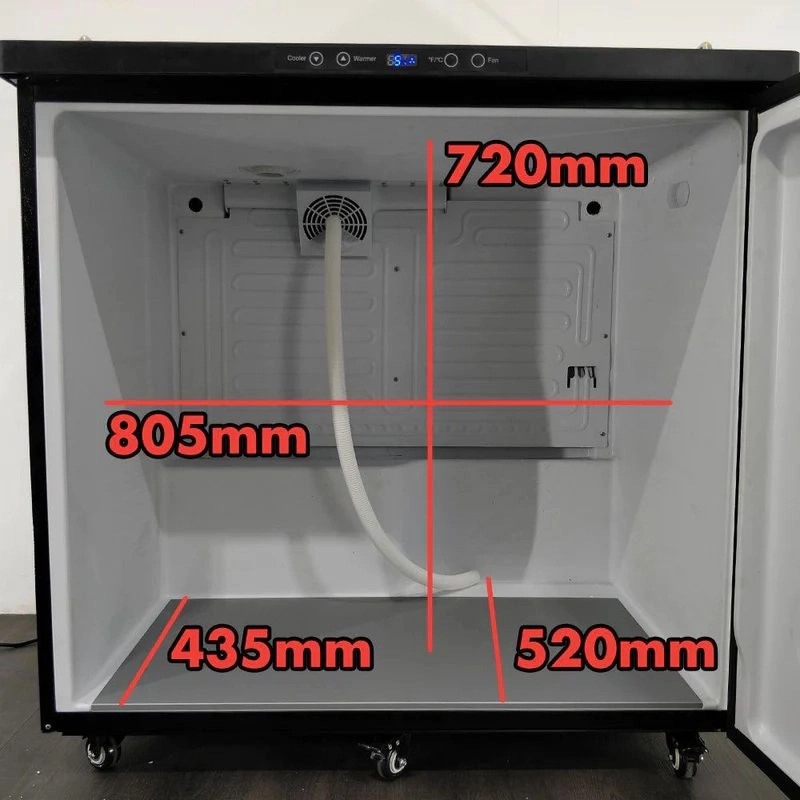

Volume= 310L
Power=100w
Temperature range: -5 ~28 degree C
Voltage: 220V~240V, 50HZ (customized: 110V, 60HZ, US Standard)
Capacity: Can put max 8 X 19L BALL LOCK kegs, or 5 x 1/6 US kegs

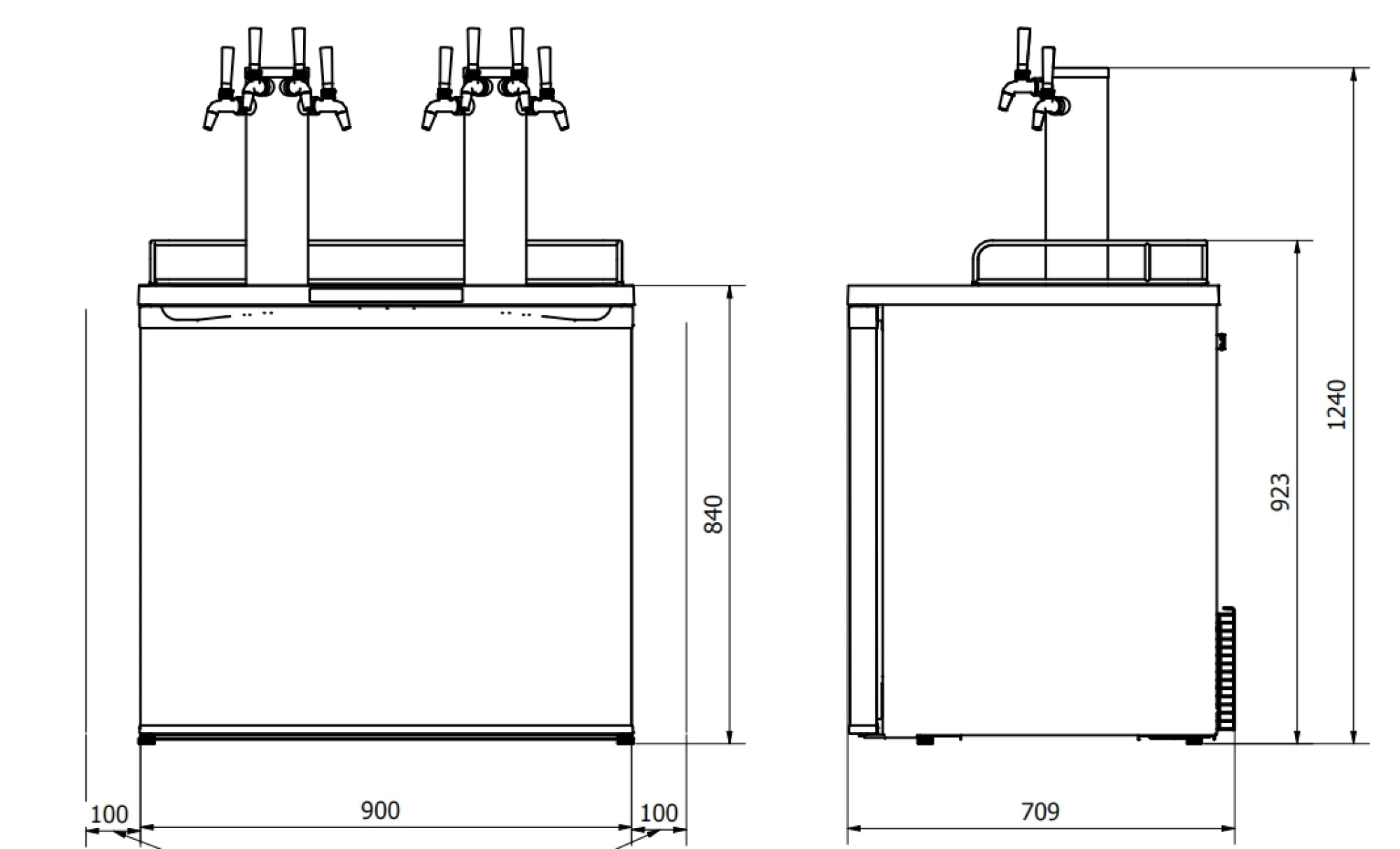

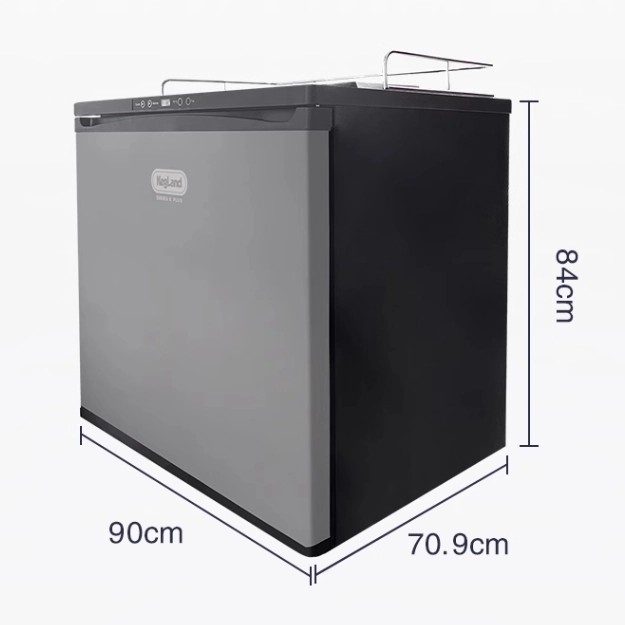

Dimension: 90cm*71cm*89cm(package size, without tap tower installed)
Gross Weight: 80kg
Note: Taps quantity options: 4 / 6 / 8 sets

For more information on what's included please see the detailed description below.

Standard Package:

1 x MK4 Type 30 CO2 Regulator with 8mm duotight push in
1 x Black Plastic Wrap Around Drip Tray
1 x Set of 4 Castor Wheels + bolts. (2 x Front Locking, 2 Free Spinning)
1 x CO2 Cylinder Holder (designed to suit 2.6kg gas cylinder, we do not supply gas cylinder, please source locally)
1 x Chrome Plated Guard Rail with rubber locking feet.

Tap Font Package:

Depends on the quantity of taps, you will get different Numbers on each part. While, they are everything that you need to assemble it to use.

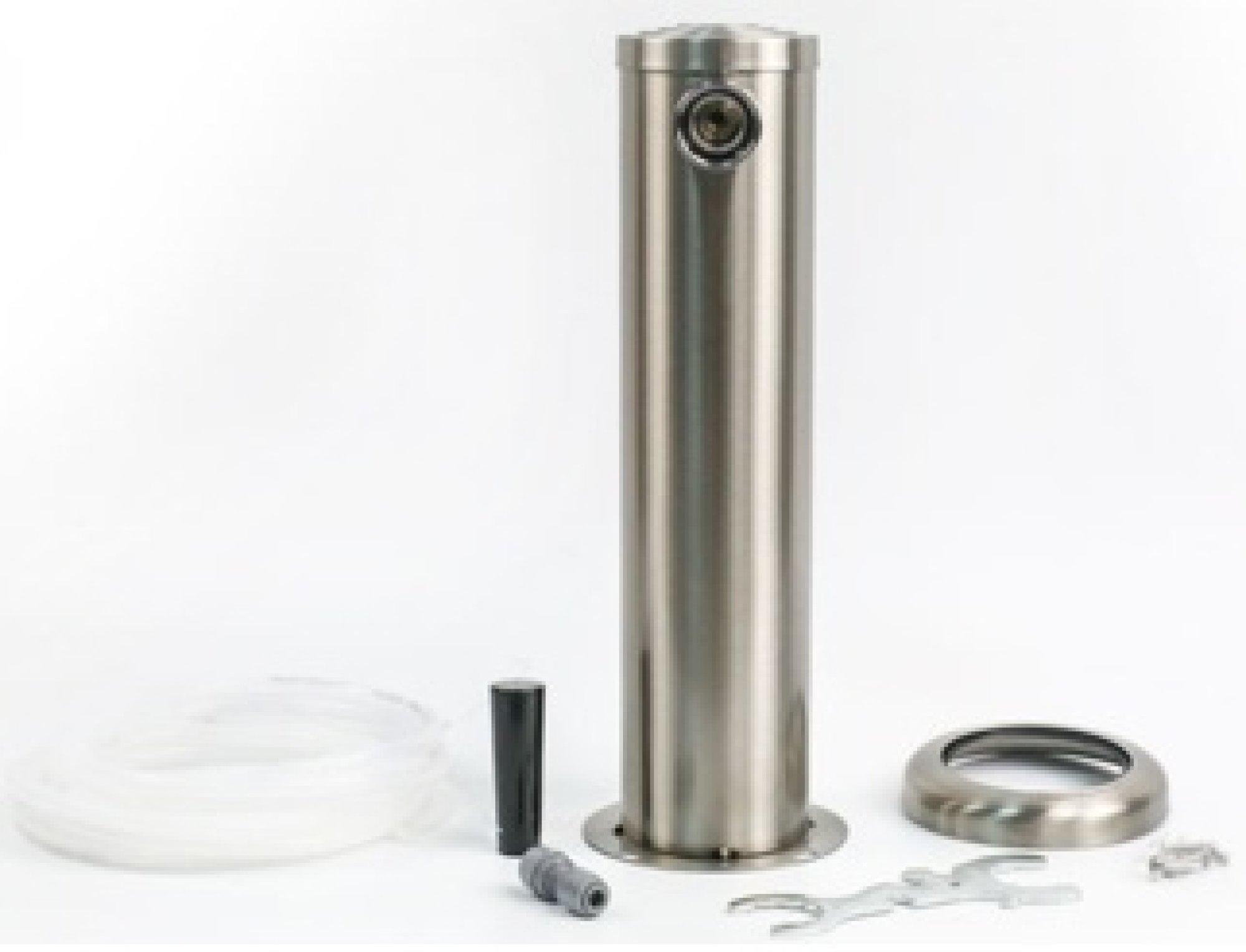

Single Tap Font Kit
1 x single tap – stainless steel font
1 x duotight compatible short shank
1 x duotight 6.5mm x 8mm reducer
1 x Black plastic tap handle
1 x Pre-cut 4mm ID x 8mm OD EVABarrier beer line
1 x Pre-cut 5mm ID x 8mm OD EVABarrier gas line
4 x Metric M5 Stainless screws
1 x 7 in 1 faucet tap wrench/spanner
1 x NukaTap Stainless Steel Taps

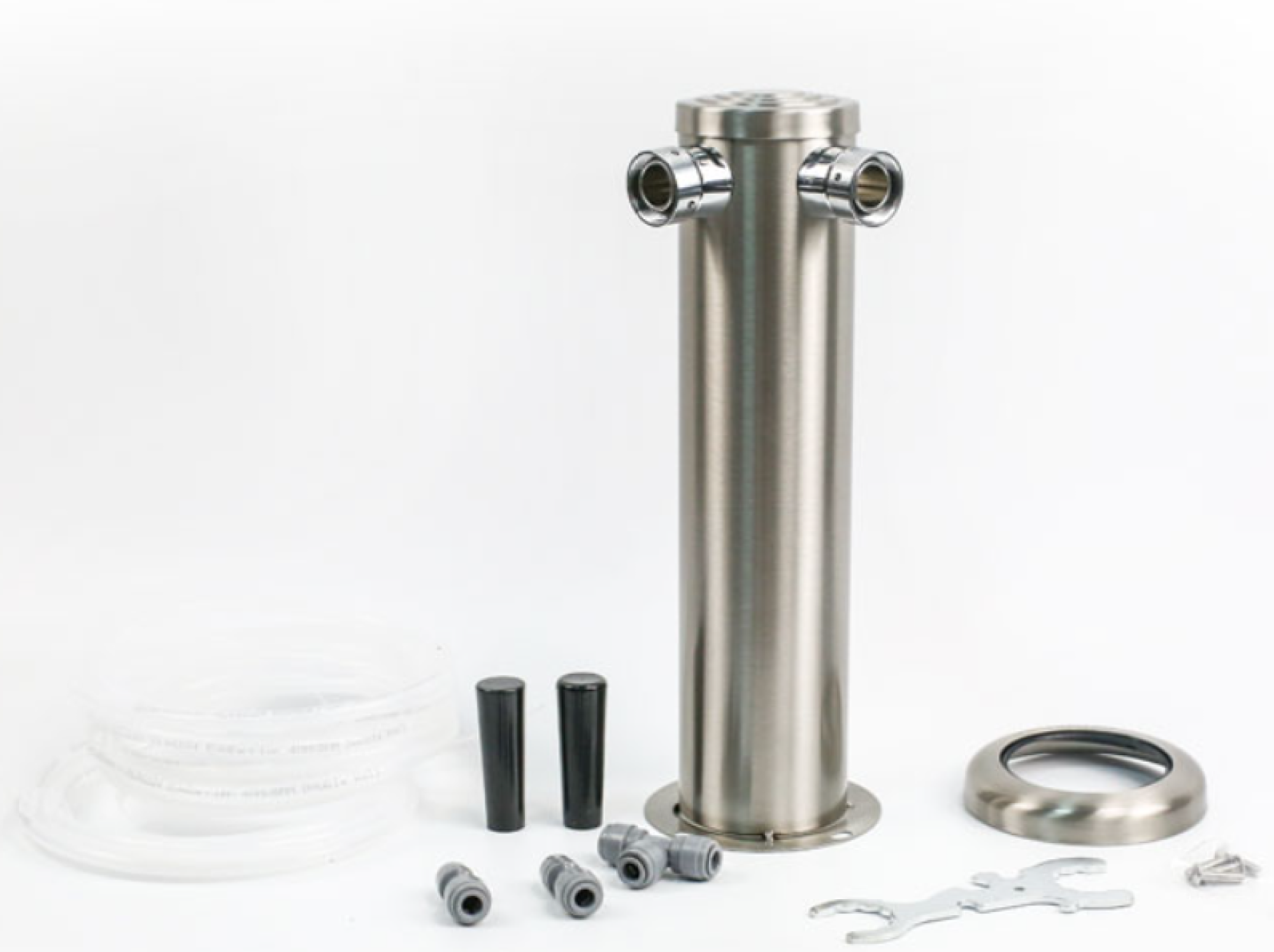

Double Tap Font Kit
1 x double tap – stainless steel font
2 x duotight compatible short shank
2 x duotight 6.5mm x 8mm reducer
2 x Black plastic tap handle
2 x Pre-cut 4mm ID x 8mm OD EVABarrier beer line
1 x Pre-cut 5mm ID x 8mm OD EVABarrier gas line
4 x Metric M5 Stainless screws
1 x 7 in 1 faucet tap wrench/spanner
1 x duotight 8mm push in tee piece
2 x NukaTap Stainless Steel Taps

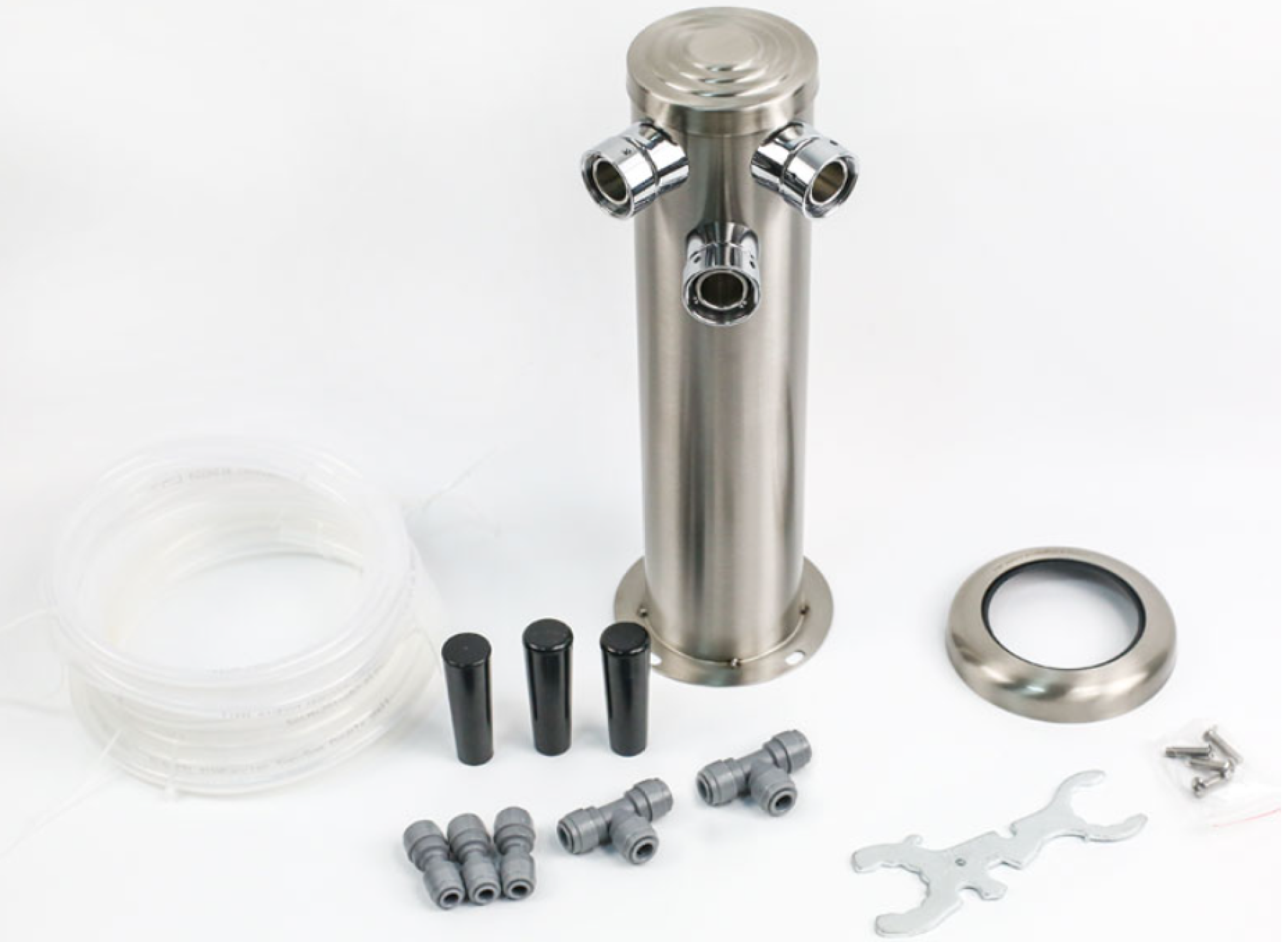

Triple Tap Font Kit
1 x triple tap – stainless steel font
3 x duotight compatible short shank
3 x duotight 6.5mm x 8mm reducer
3 x Black plastic tap handle
3 x Pre-cut 4mm ID x 8mm OD EVABarrier beer line
1 x Pre-cut 5mm ID x 8mm OD EVABarrier gas line
4 x Metric M5 Stainless screws
1 x 7 in 1 faucet tap wrench/spanner
2 x duotight 8mm push in tee piece
3 x NukaTap Stainless Steel Taps

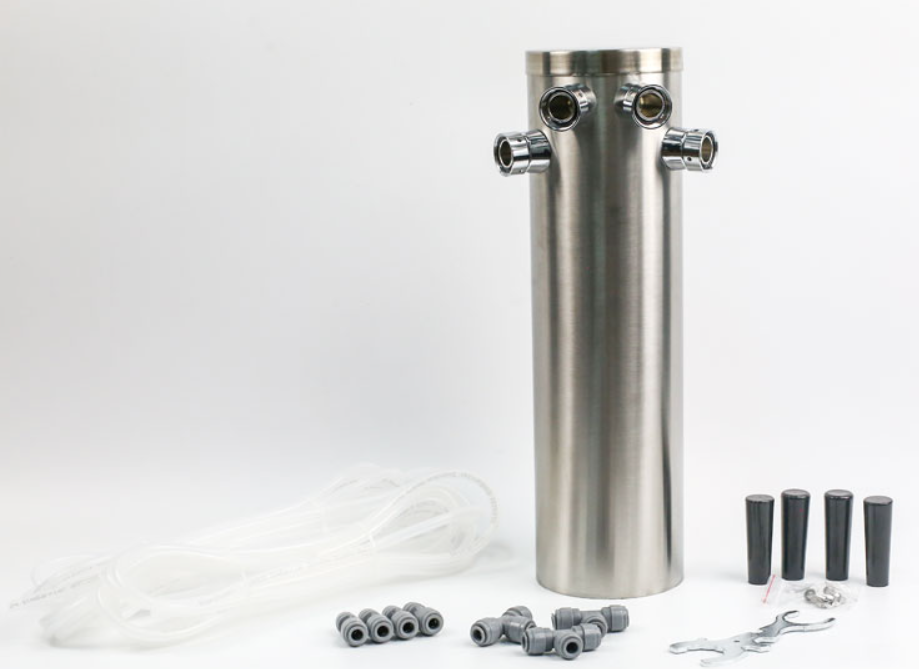

Quadruple Tap Font Kit
1 x quadruple tap – stainless steel font
4 x duotight compatible short shank
4 x duotight 6.5mm x 8mm reducer
4 x Black plastic tap handle
4 x Pre-cut 4mm ID x 8mm OD EVABarrier beer line
1 x Pre-cut 5mm ID x 8mm OD EVABarrier gas line
4 x Metric M5 Stainless screws
1 x 7 in 1 faucet tap wrench/spanner
3 x duotight 8mm push in tee piece
4 x NukaTap Stainless Steel Taps

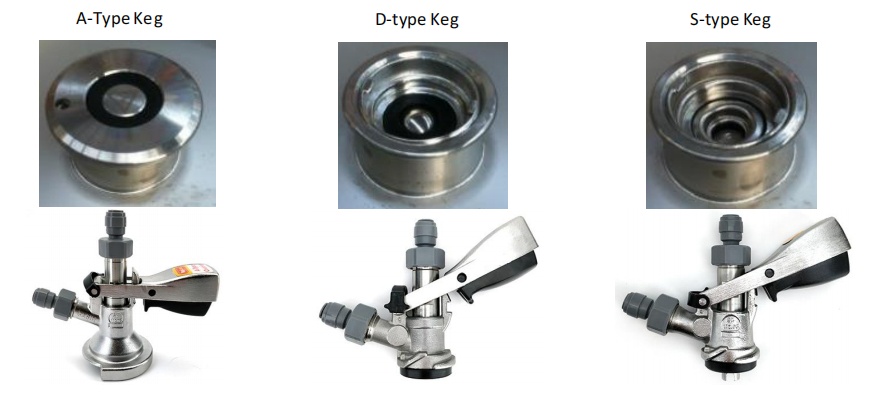

Commercial kegs come in a variety of sizes; 20L, 25L, 35L and 50L. The 50L size is the most common size that you will come across. Commercial kegs come in three main styles; A-type, D-type and S type. These three types of commercial kegs can be distinguished by the shape of their spear (shown below).
