500L Beer Equipment Turnkey System

  • 500L Beer Equipment Turnkey System
  • 500L Beer Equipment Turnkey System
  • 500L Beer Equipment Turnkey System
  • 500L Beer Equipment Turnkey System
  • 500L Beer Equipment Turnkey System
  • 500L Beer Equipment Turnkey System

500L Beer Equipment Turnkey System

-+
Add to Basket
Inquire Now

◉ Product Parameters

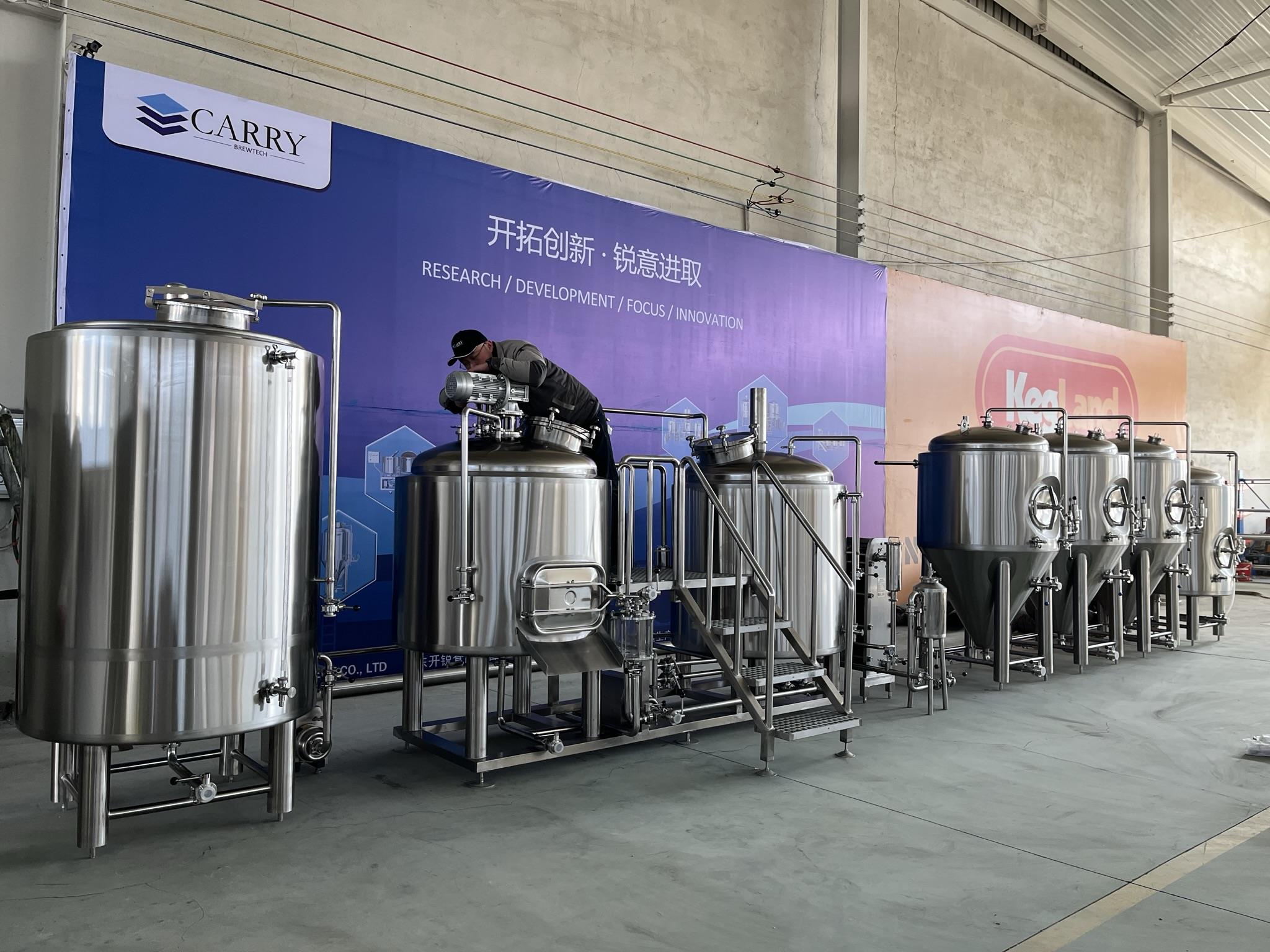

The main equipment of a complete set of 500L beer brewing system is shown in the table below:

500L Beer Brewery System

1. 200kg/h Malt miller

2. 500L Brewhouse, steam heating

3. 1000L Hot liquid tank

4. Steam boiler with salt tank&water tank

5. 500L*6 Fermentation tanks with dry hops adding port

6. 300L*2 Fermentation tanks with dry hops adding port

7. 500L Bright beer tank

8. 1500L Glycol water tank

9. 3HP*2 Chiller

10. 3T/H Glaycol water pump

11. Brewing and fermenting control cabinet

12. 50L*2 CIP carts

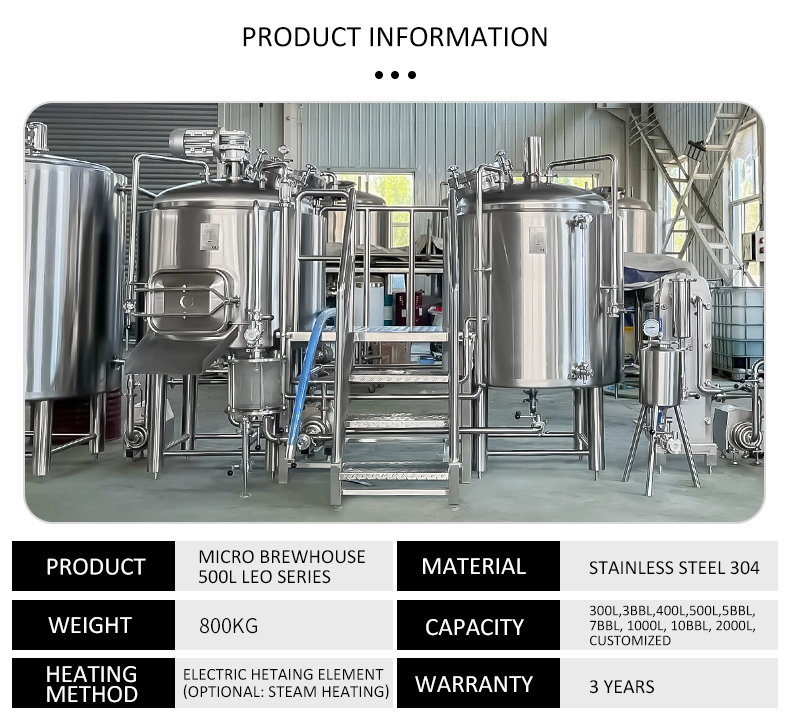

1 (1)

Beer Brewing System

  • * Mash&Lauter Tank Effective Volume=500L</br>* Kettle&Whirlpool Tank Effective Volume=500L</br>* Brewhouse Control Cabinet </br>* VFD Motor with Raker</br>* Plateform with handrails</br>* Plate Heating Exchanger </br>* Condensing Unit </br>* Level Gauge </br>* Wort Collection Pipe</br>* Back Flushing Pipe

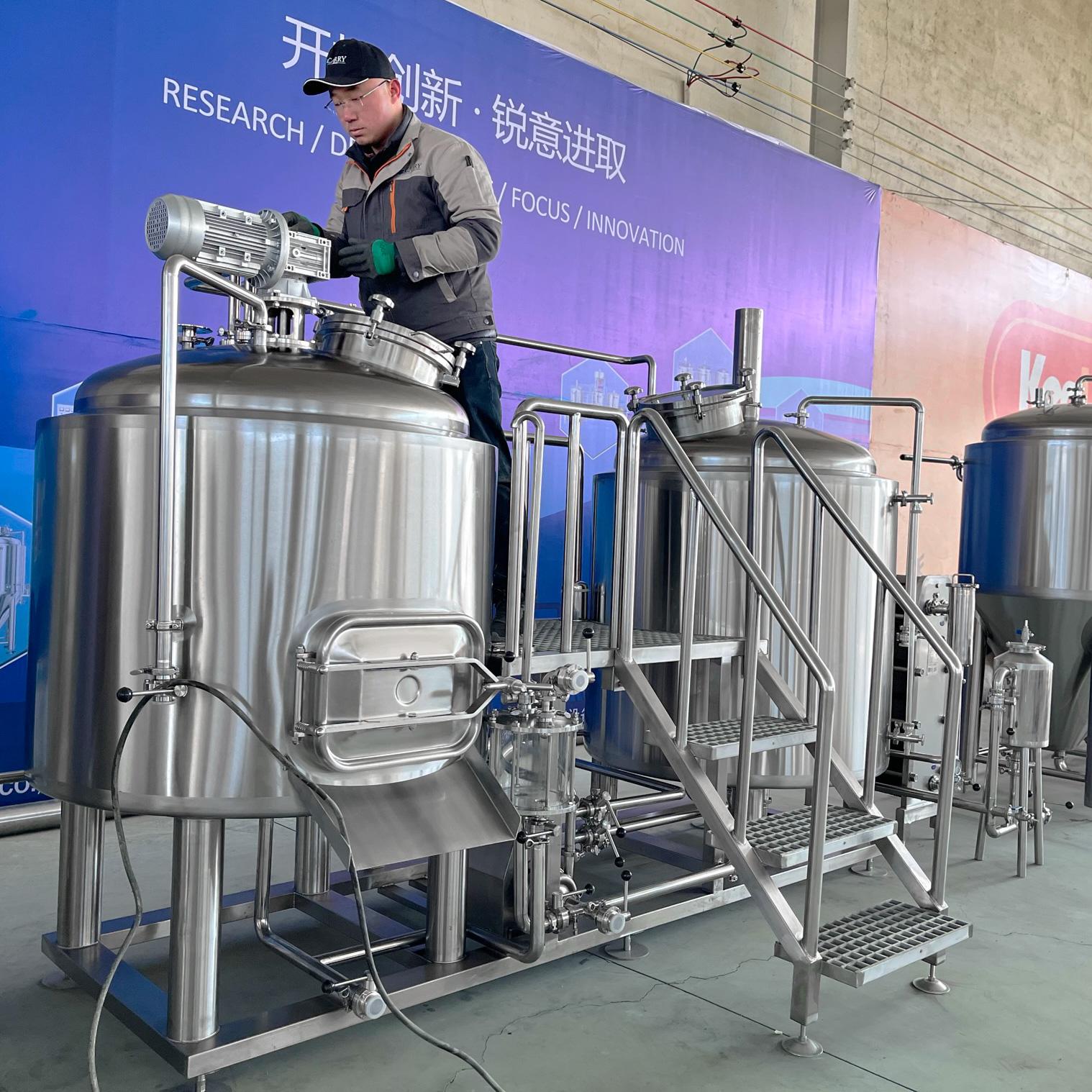

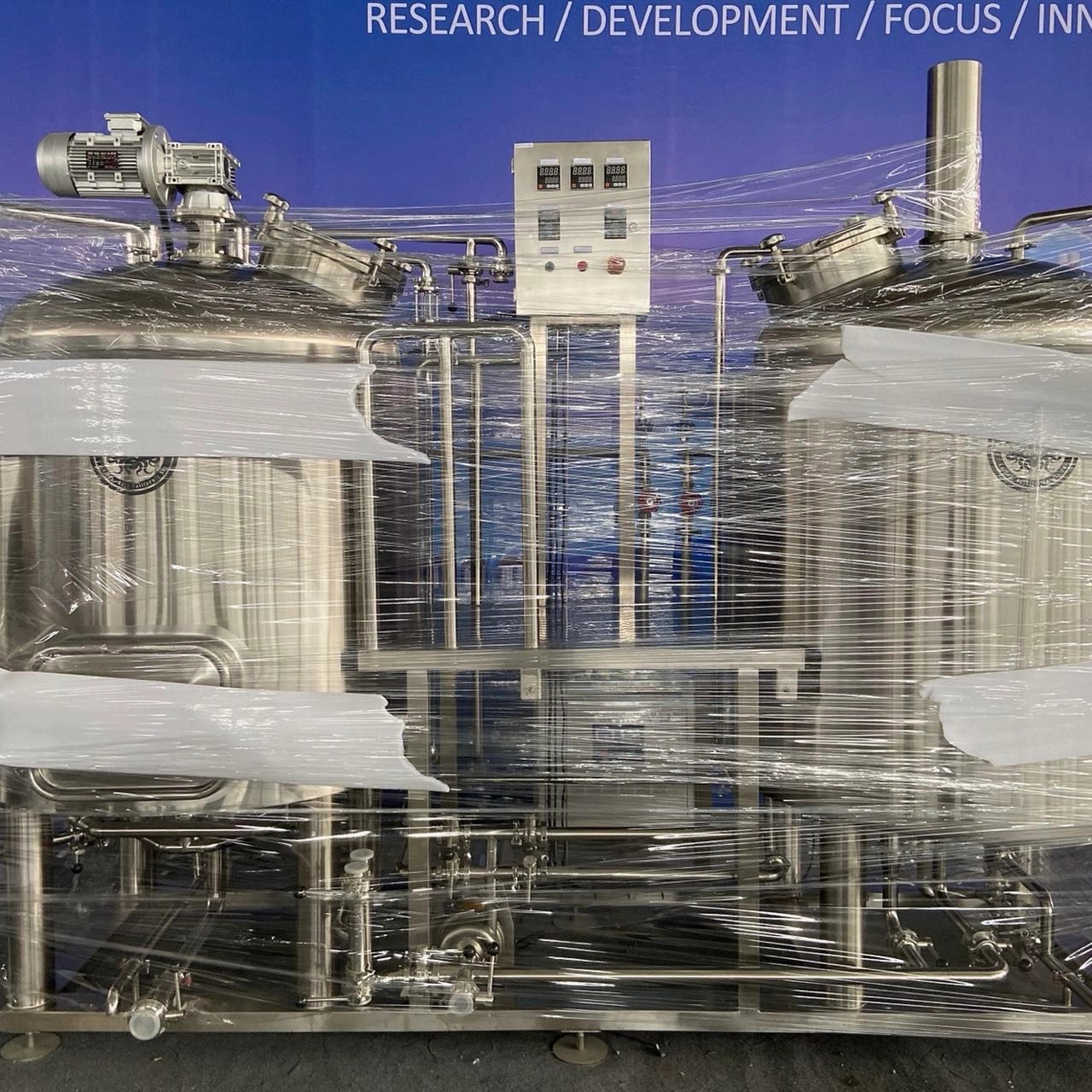

    500L Brewhouse
    * Mash&Lauter Tank Effective Volume=500L
    * Kettle&Whirlpool Tank Effective Volume=500L
    * Brewhouse Control Cabinet
    * VFD Motor with Raker
    * Plateform with handrails
    * Plate Heating Exchanger
    * Condensing Unit
    * Level Gauge
    * Wort Collection Pipe
    * Back Flushing Pipe
  • * Steam generator capacity=50kg/h</br>* Famous brand YANO, International Quality Standard</br>* Consuming power=3kw</br>* With water softener</br>* With pressure relief safety valve </br>* With salt tank</br>* With indivuidual pressure & steam flow control system</br>* Dimension is 880mm*800mm*1300mm</br>* Grass weight is 250kg

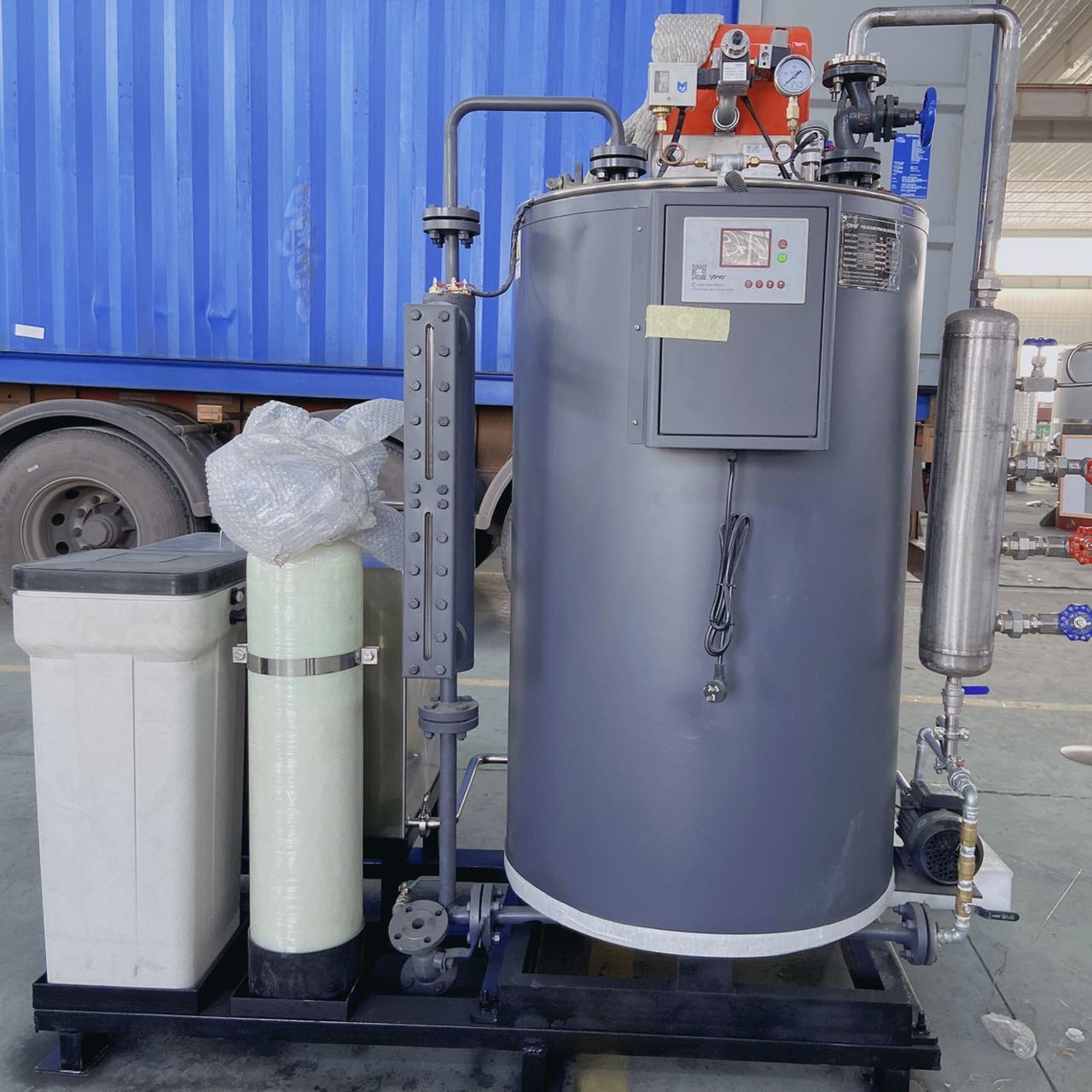

    Steam Boiler
    * Steam generator capacity=50kg/h
    * Famous brand YANO, International Quality Standard
    * Consuming power=3kw
    * With water softener
    * With pressure relief safety valve
    * With salt tank
    * With indivuidual pressure & steam flow control system
    * Dimension is 880mm*800mm*1300mm
    * Grass weight is 250kg
  • * Effective volume=1000L</br>      * Total volume=1250L</br>      * Dimension=φ1160mm*2000mm</br>      * Top glass manway</br>      * Steam heating jacket </br>      * Pressure relief valve</br>      * Level tube indicator</br>      * With 3T/H hot water pump
    1000L Hot liquid tank
    * Effective volume=1000L
          * Total volume=1250L
          * Dimension=φ1160mm*2000mm
          * Top glass manway
          * Steam heating jacket
          * Pressure relief valve
          * Level tube indicator
          * With 3T/H hot water pump

Fermenting System

  • * Effective Volume=500L</br>* Total Volume=625L</br>* Sampling Valve</br>* Carbonation Valve </br>* CO2 blow off arm with Spunding Valve </br>* CIP Arm with 360° CIP ball & Pressure Gauge </br>* Dry Hops Adding port</br>* Dry Hops Adding device </br>* Rotary Racking Arm</br>* Lifting Lugs</br>* Beer outlet & Drain outlet

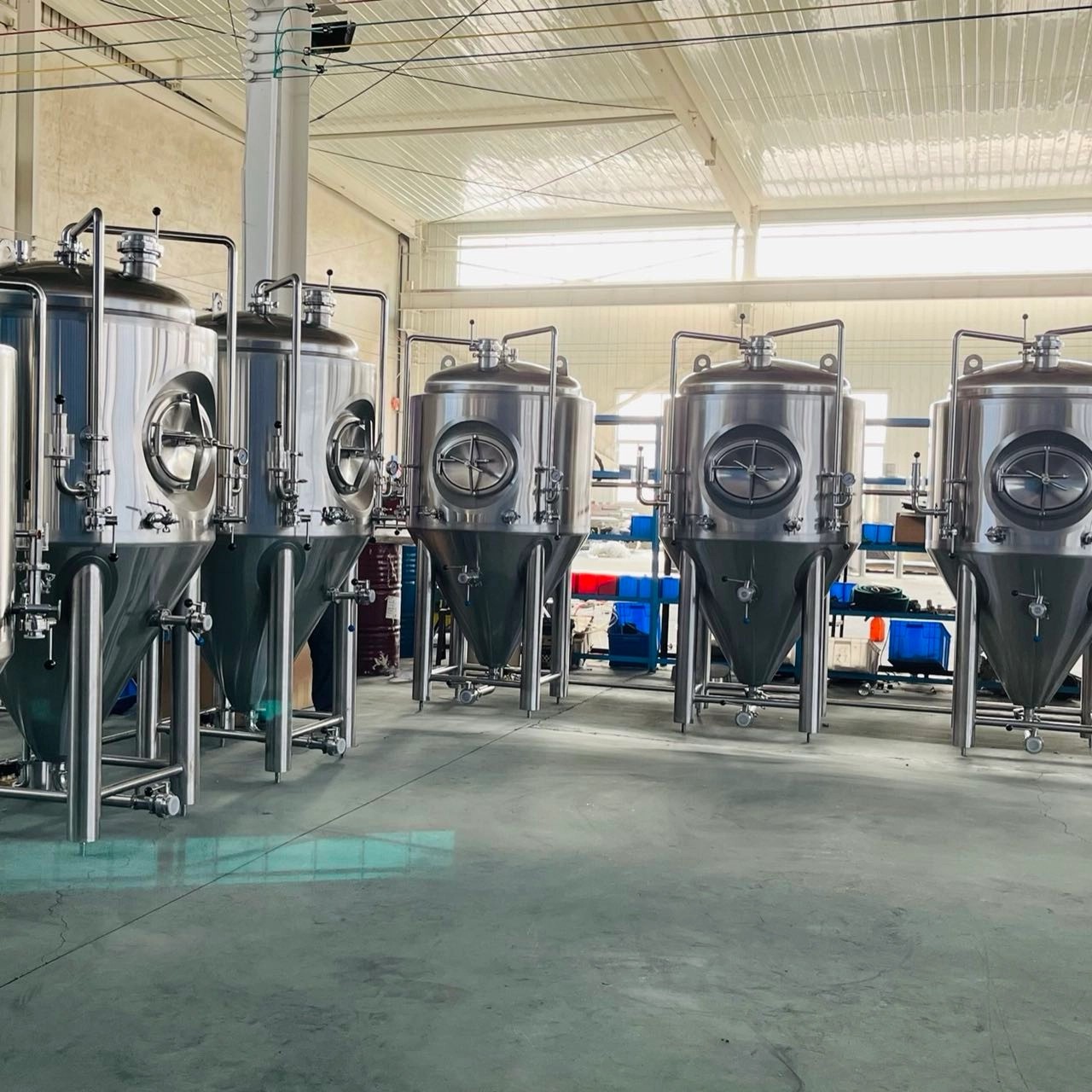

    500L Fermentation Tank
    * Effective Volume=500L
    * Total Volume=625L
    * Sampling Valve
    * Carbonation Valve
    * CO2 blow off arm with Spunding Valve
    * CIP Arm with 360° CIP ball & Pressure Gauge
    * Dry Hops Adding port
    * Dry Hops Adding device
    * Rotary Racking Arm
    * Lifting Lugs
    * Beer outlet & Drain outlet
  • * Effective Volume=500L </br>* Total Volume=625L</br>* Net Dimension: Φ1060 * 1750mm</br>* 360° spray ball and pressure gauge equip with CIP arm</br>* Spunding vavle on CO2 blow off arm</br>* Sample Valve </br>* Temperature probe: PT-100</br>* Carbonation Stone</br>* Level Tube</br>* Beer outlet

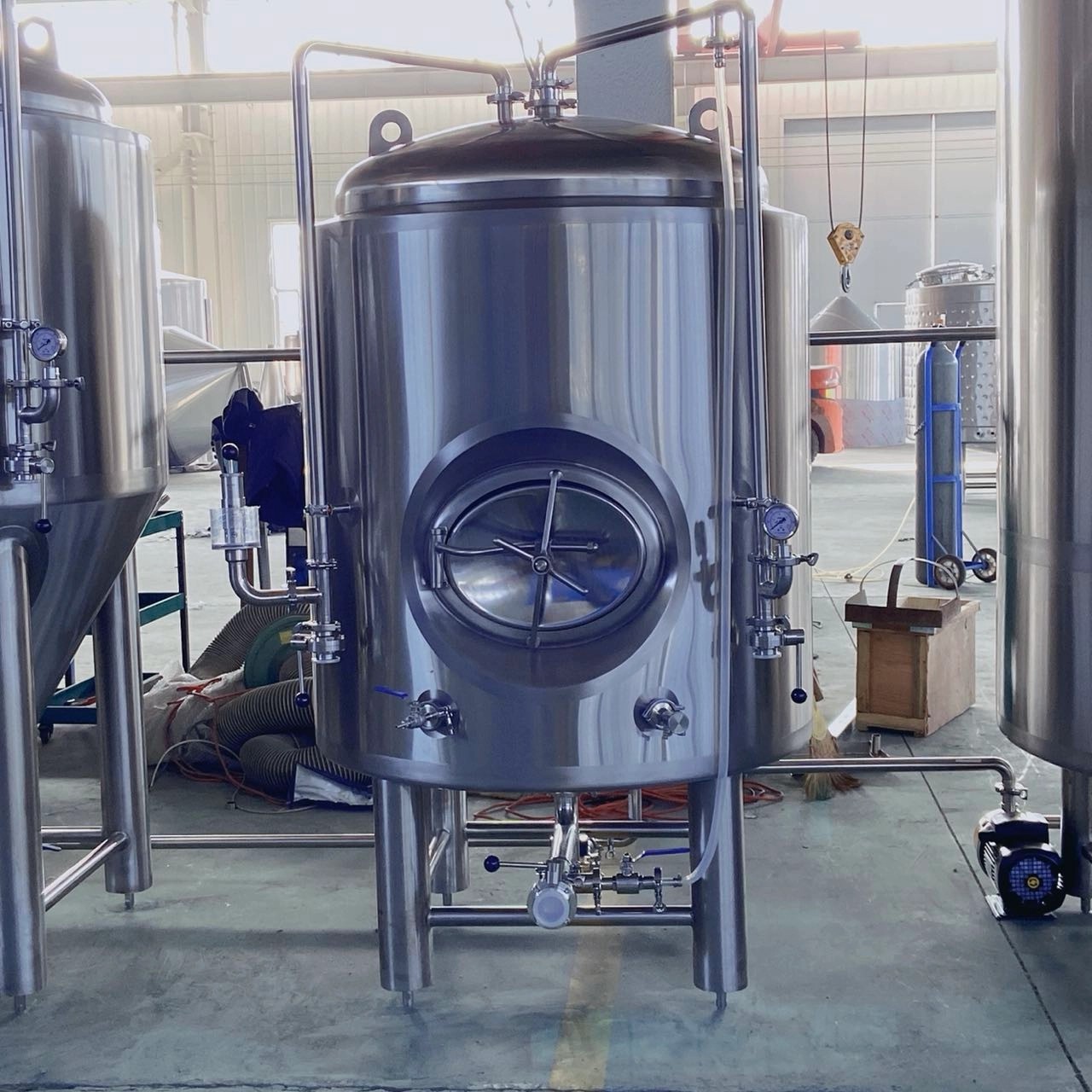

    500L Bright Beer Tank
    * Effective Volume=500L
    * Total Volume=625L
    * Net Dimension: Φ1060 * 1750mm
    * 360° spray ball and pressure gauge equip with CIP arm
    * Spunding vavle on CO2 blow off arm
    * Sample Valve
    * Temperature probe: PT-100
    * Carbonation Stone
    * Level Tube
    * Beer outlet
  • * Effective volume:1500L, total volume: 1650L</br>* Net Dimension=Φ1360 *2100mm</br>* Level tube</br>* Insulated conical top and sloped bottom</br>* Glycol water inlet and outlet</br>*  Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated; External-Jacket(SUS304) thickness: 2mm, Hairline polishing;</br>* Insulation layer: PU-thickness= 80mm.</br>* 100% high accuracy TIG welding.

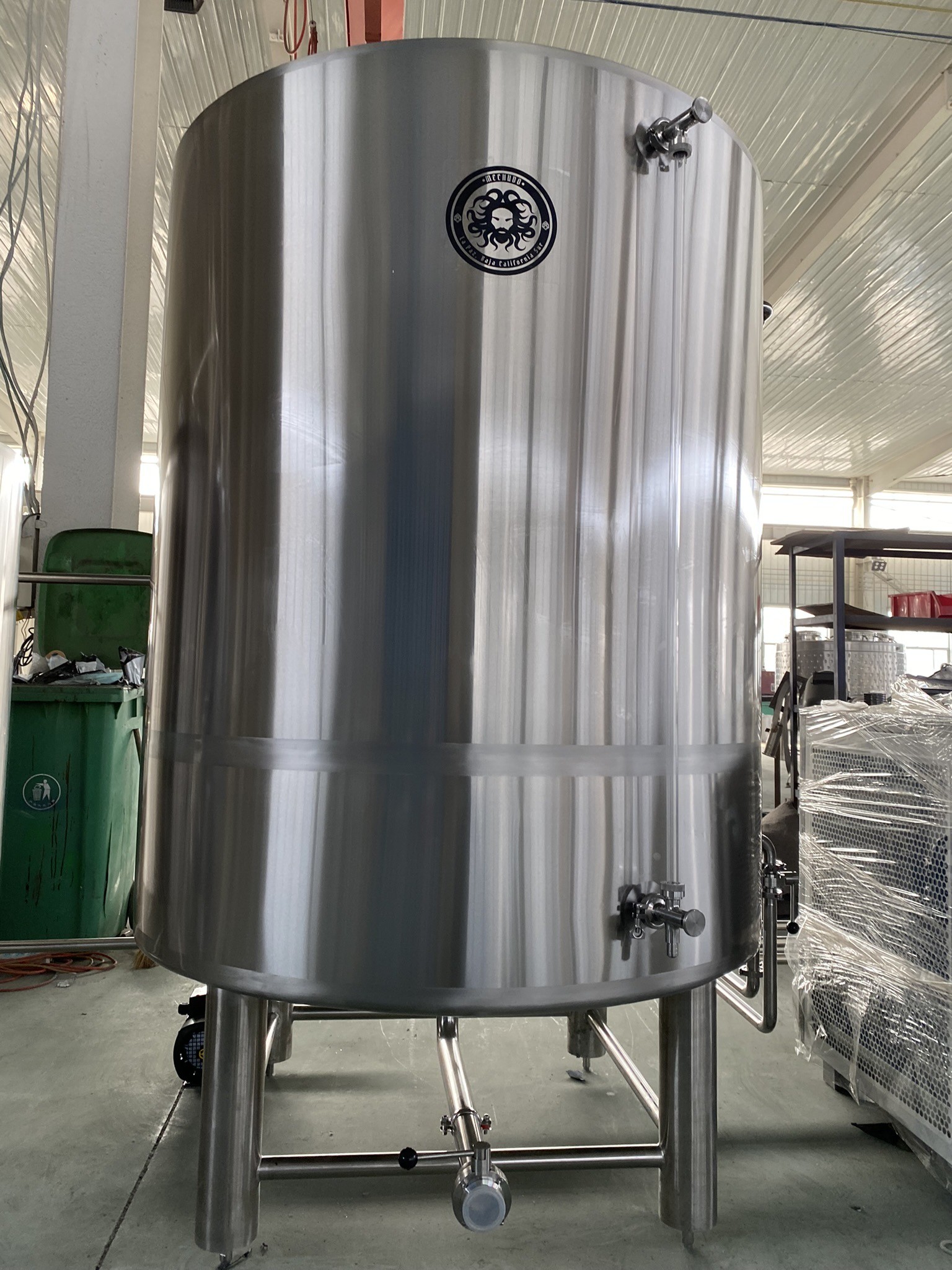

    Cooling System 1500l Glycol Water Tank
    * Effective volume:1500L, total volume: 1650L
    * Net Dimension=Φ1360 *2100mm
    * Level tube
    * Insulated conical top and sloped bottom
    * Glycol water inlet and outlet
    *  Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated; External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
    * Insulation layer: PU-thickness= 80mm.
    * 100% high accuracy TIG welding.
  • * 3HP, Working power: 2.8 KW/unit.</br>* Internal compressor brand is USA Copeland.</br>* Copland vortex compressor, more durable, refrigeration effect</br>* Medium: Environmental protection refrigerants R404A</br>* Dimension=900*800*750mm

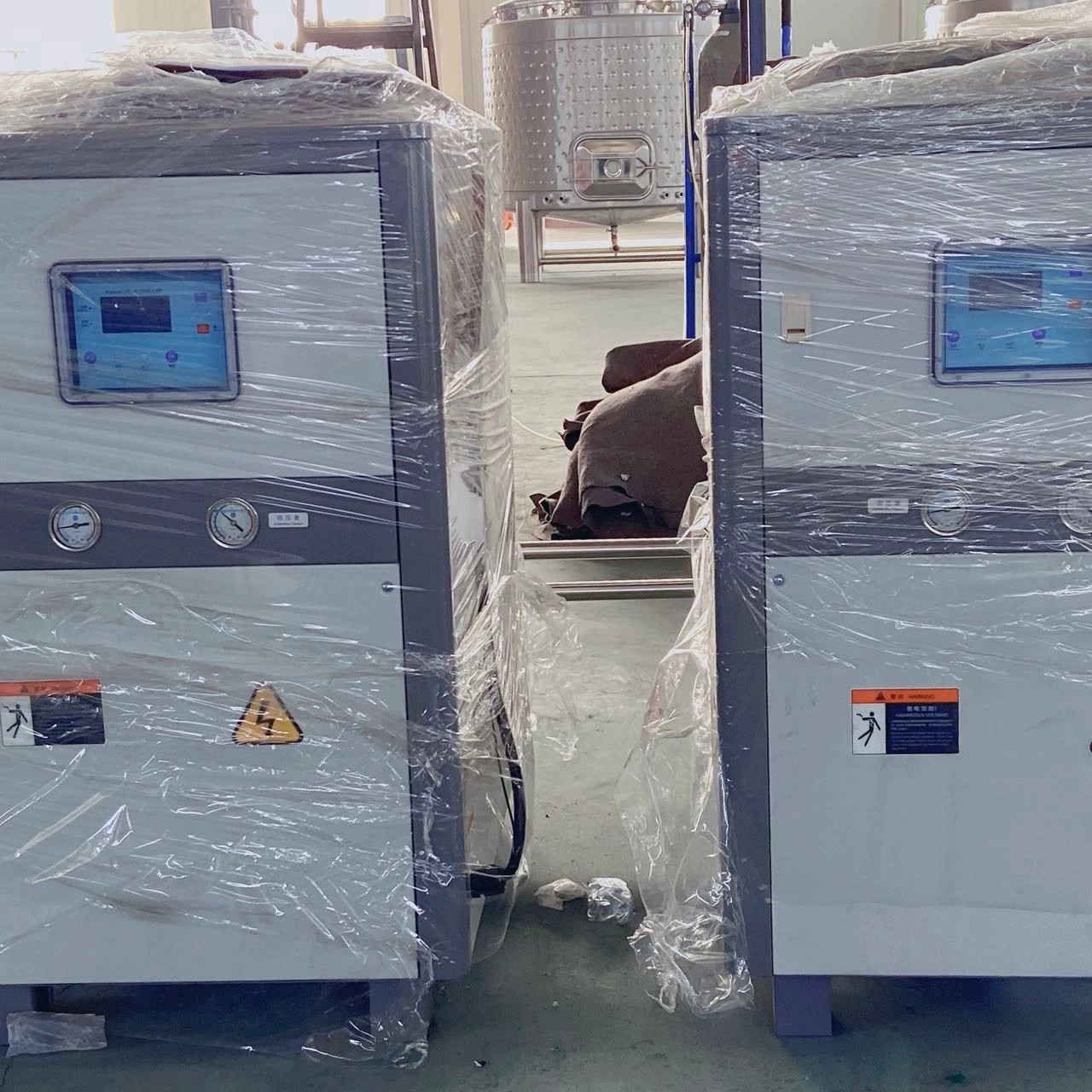

    3HP Chiller
    * 3HP, Working power: 2.8 KW/unit.
    * Internal compressor brand is USA Copeland.
    * Copland vortex compressor, more durable, refrigeration effect
    * Medium: Environmental protection refrigerants R404A
    * Dimension=900*800*750mm

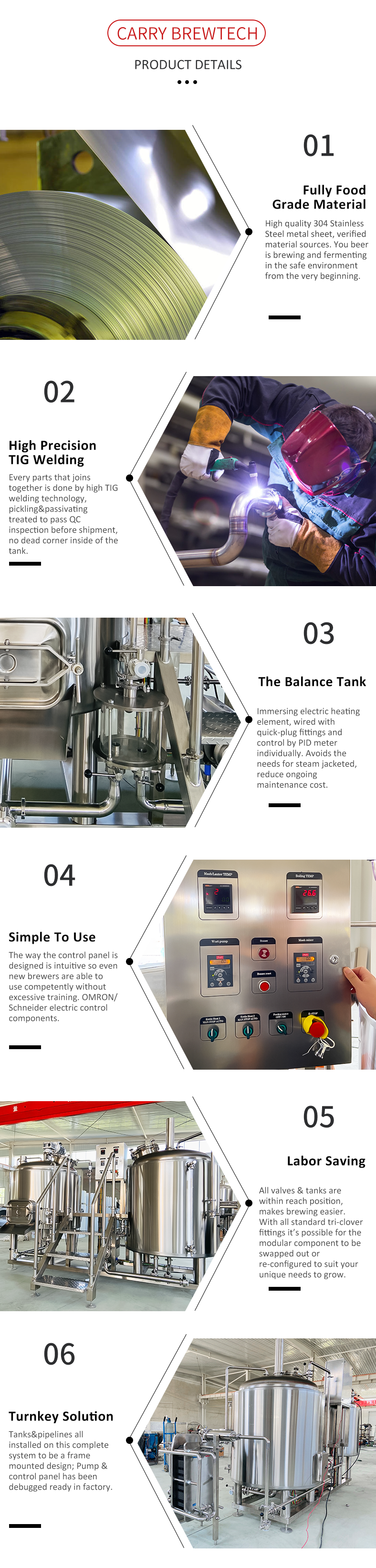

1 (2)

Auxiliary Machine Series

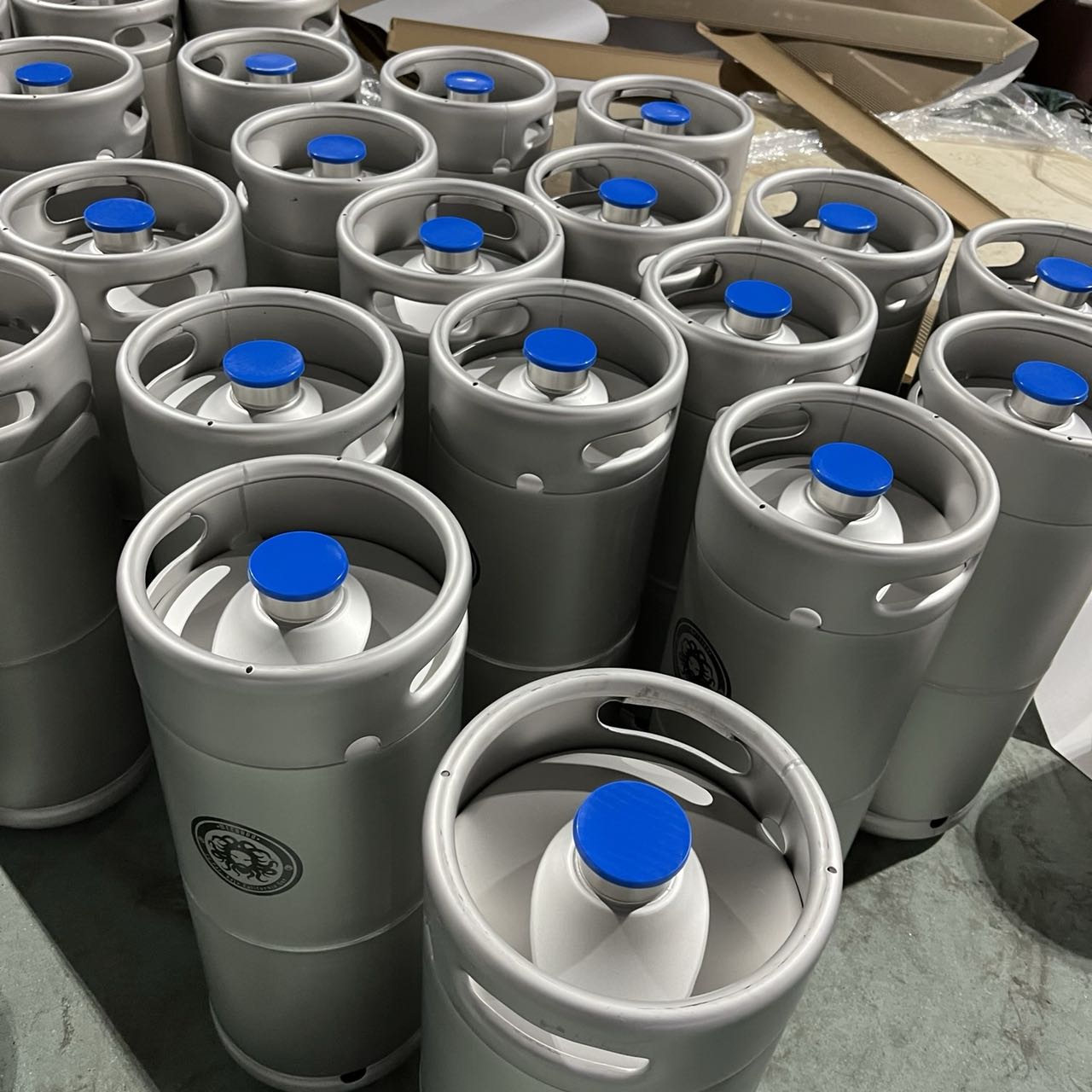

  • Beer Kegs
    Beer Kegs

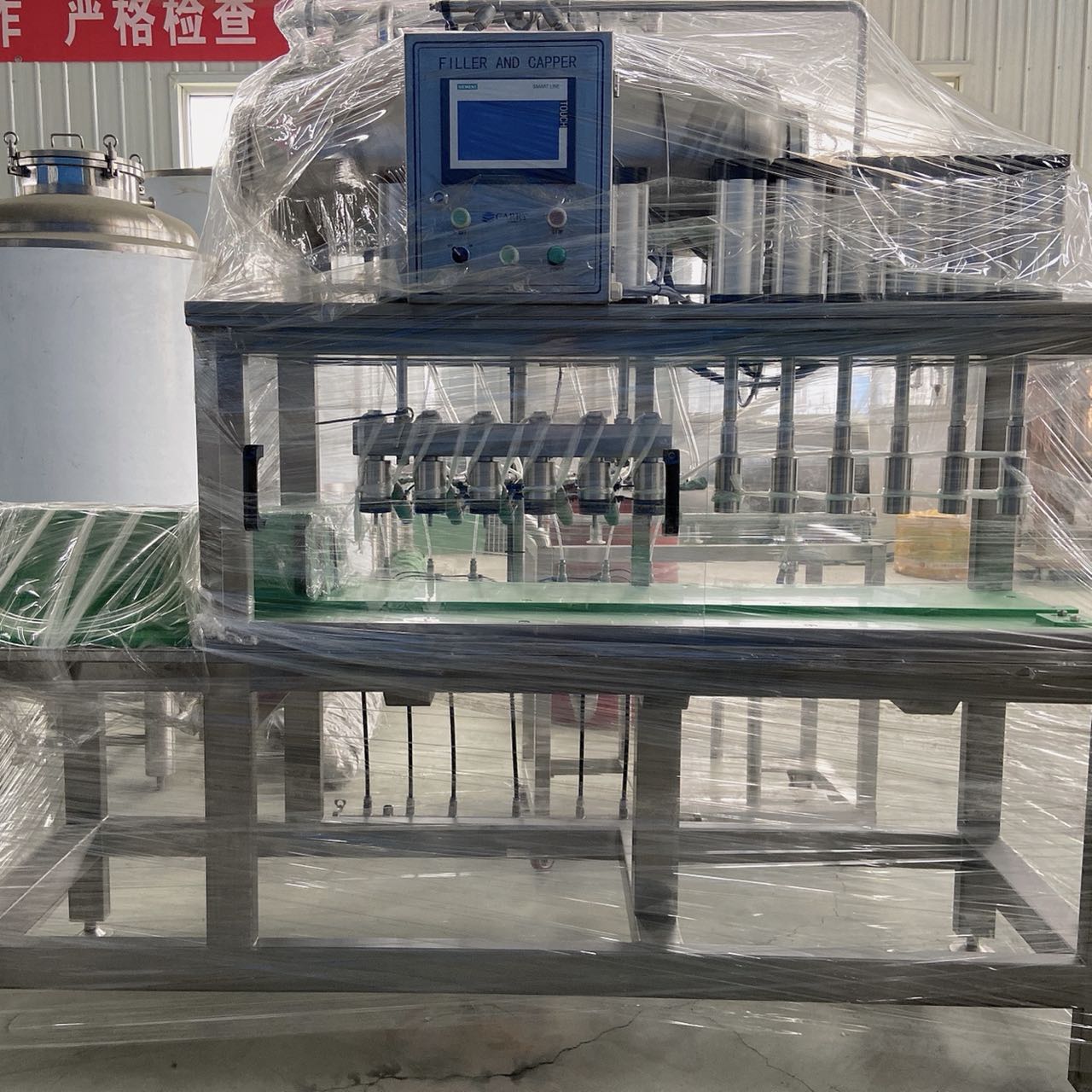

  • Filler And Caper
    Filler And Caper

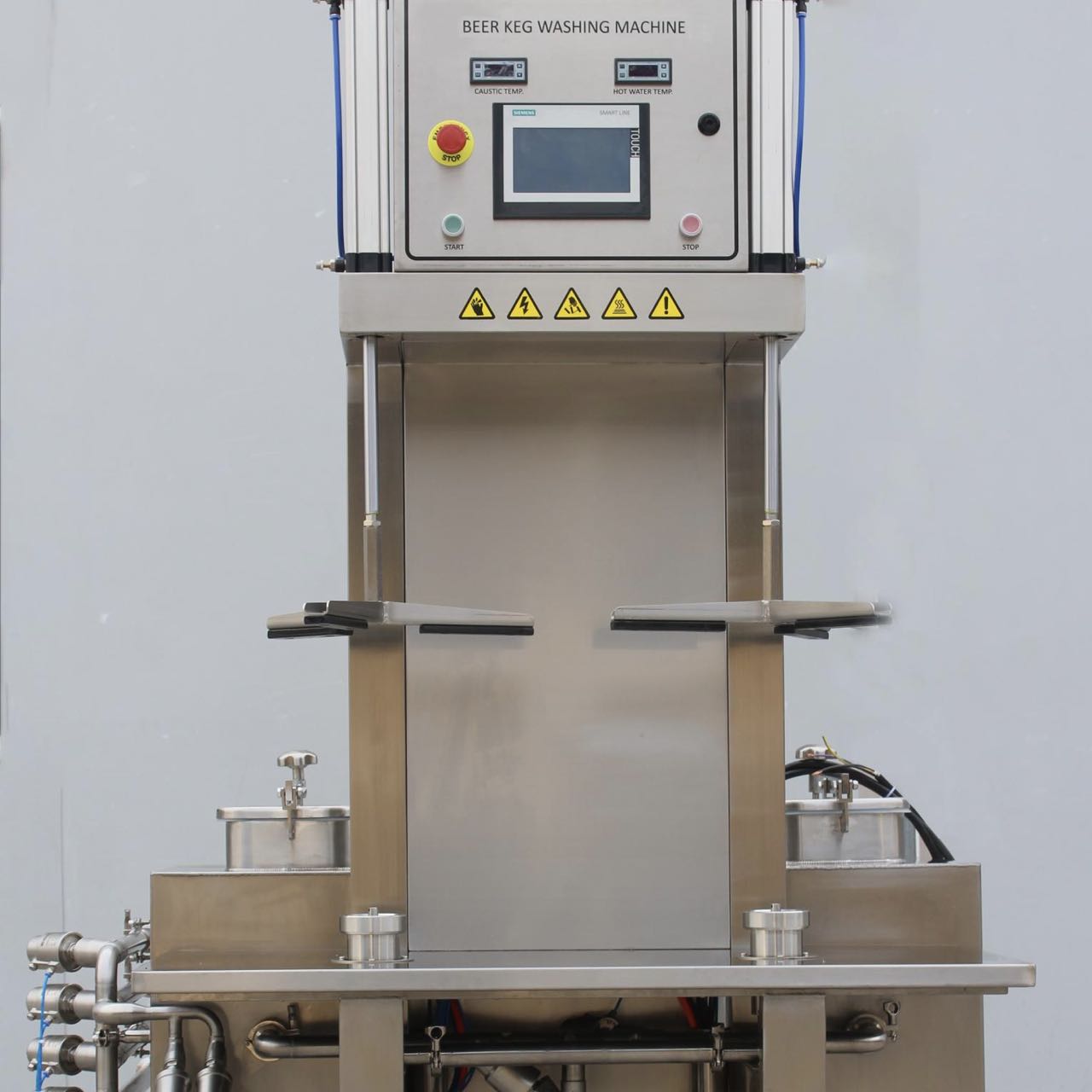

  • Kegs Washing Machine
    Kegs Washing Machine

Kegs Washing Machine

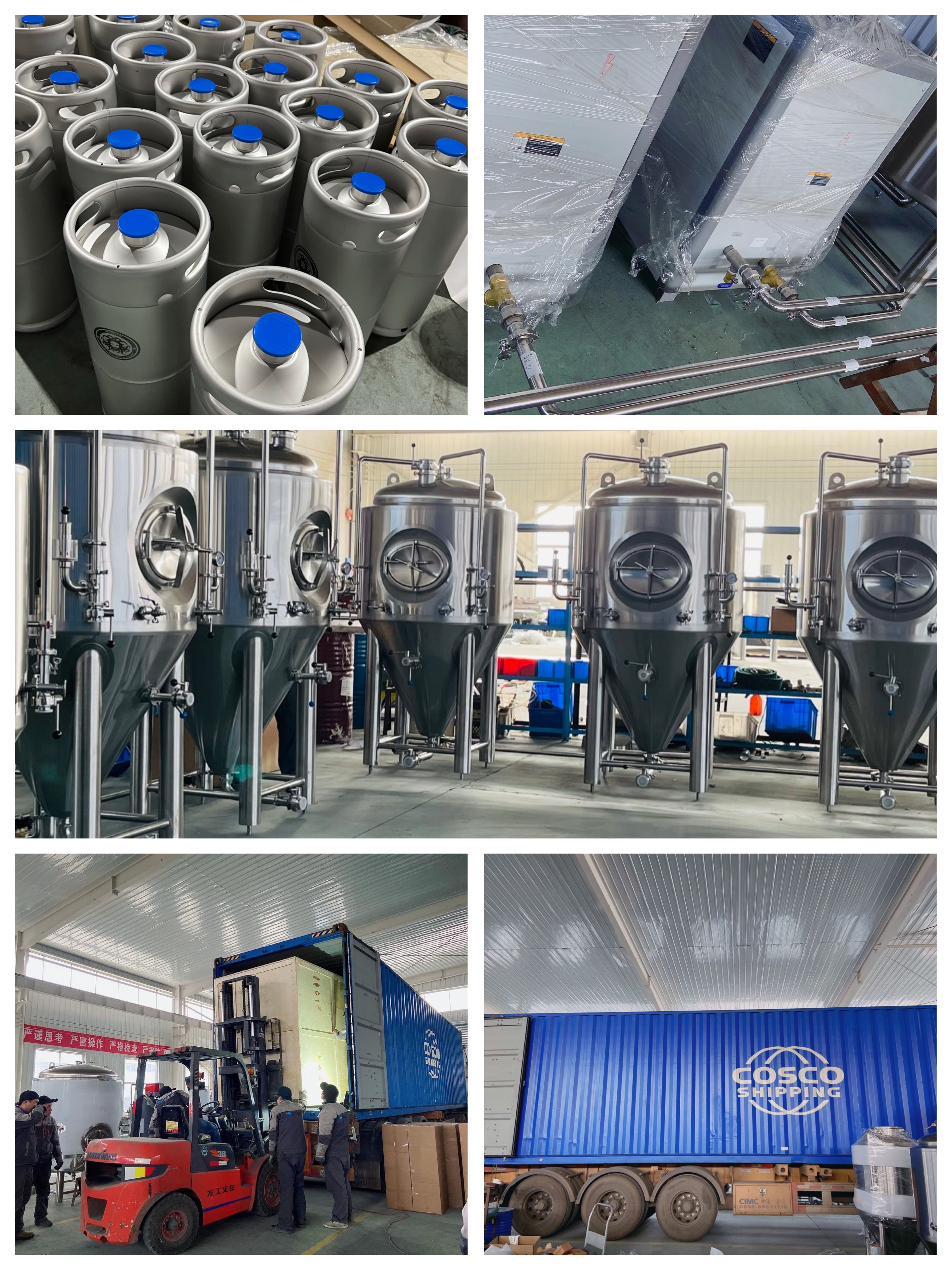

All equipment must be tested and piped in our factory before delivery.

Labels will be attached to the interface and pipes to explain the connected accessories and the direction of the pipes. After receiving the equipment, install the pipes and accessories according to the labels, it's as easy as a puzzle.

1 (11)
1 (3)
1 (12)
