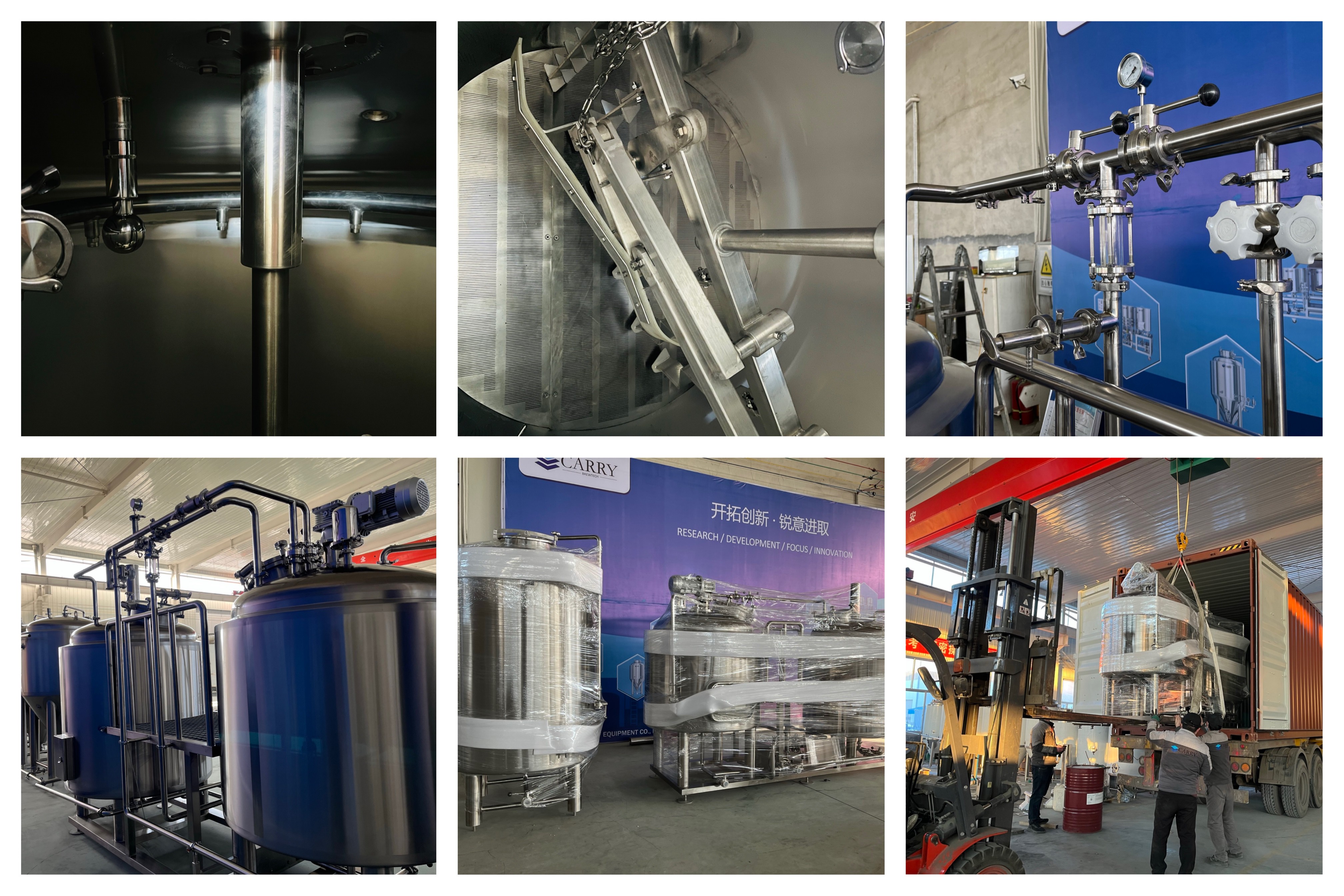

500L brewery equipment system

  • 500L brewery equipment system
  • 500L brewery equipment system
  • 500L brewery equipment system
  • 500L brewery equipment system
  • 500L brewery equipment system
  • 500L brewery equipment system

500L brewery equipment system

500L Micro beer brewing equipment, find complete details about fermentation tank, 500L conical fermenter, brewhouse - Carry Brewery Equipment Solutions
-+
Add to Basket
Inquire Now

◉ Product Parameters

Whole set of 500L Beer Brewing Equipment will include components as below:

1.200kg/h Crashing System

4. Glycol Cooling System

2. 500L Mashing system & 1000L Hot water tank

5. PID Control System (Optional: PLC)

3. 500L Fermentation Tank & Bright Beer Tank

6. 50L CIP System

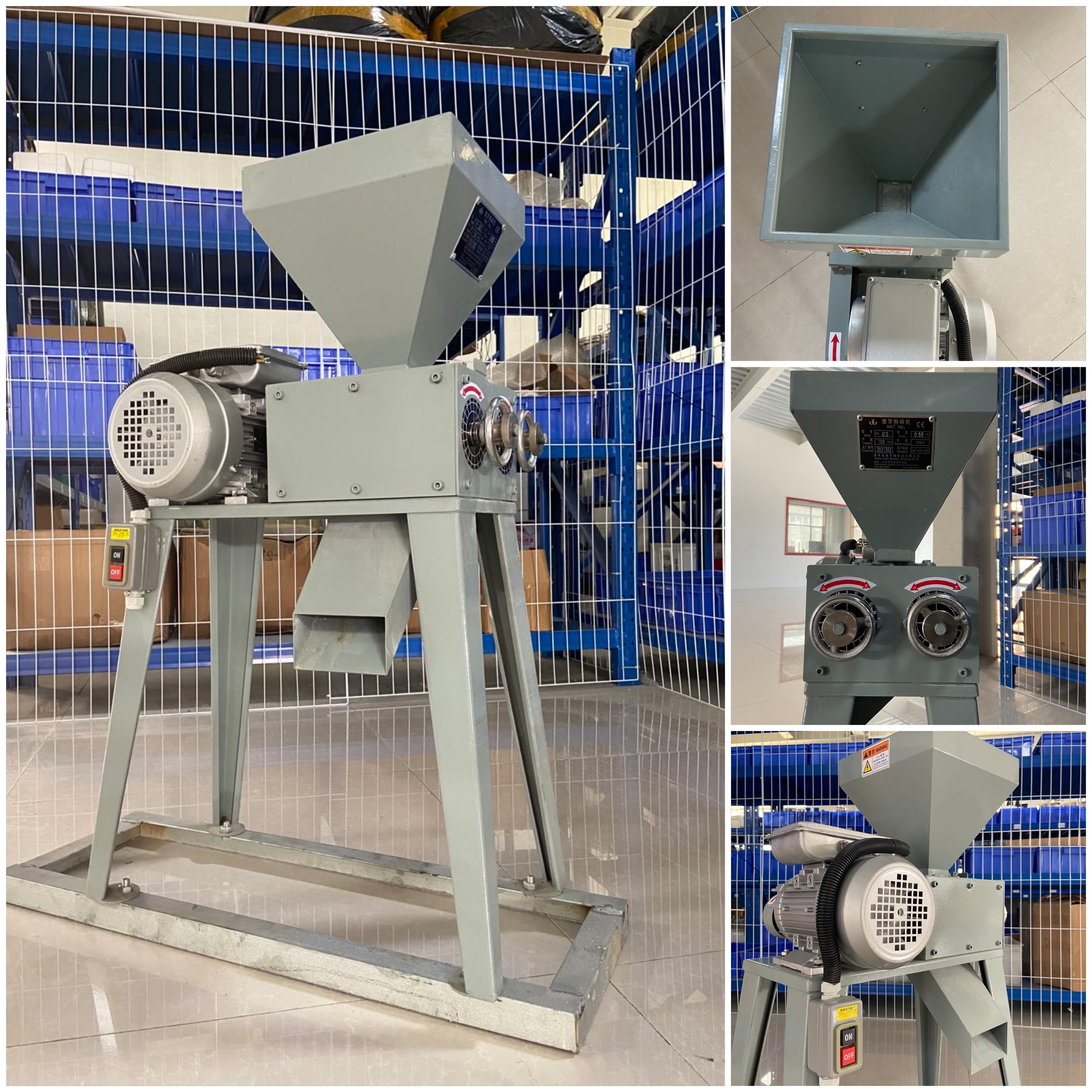

200kg/h Crashing System

  •  1. Crushing Ability: 200kg/h</br> 2. Power=0.75kw</br> 3. Double Rollers type, material: Alloy, roller size:  Φ155*200mm</br> 4. Rotio of magnetic metal material: ≤0.003G/KG</br> 5. Gross Weight: 155kg</br> 6. Dimensions: 750*400*1150mm</br> 7. The crushing process of malt is about 30 min by malt miller generally.</br> 8. New type malt miller, equipped with motor, belt pulley, belt, hopper and etc.</br> 9. This machine can remove the iron and dust by automatically.</br>10.Low noise
     Malt Miller

    1. Crushing Ability: 200kg/h

    2. Power=0.75kw

    3. Double Rollers type, material: Alloy, roller size: Φ155*200mm

    4. Rotio of magnetic metal material: ≤0.003G/KG

    5. Gross Weight: 155kg

    6. Dimensions: 750*400*1150mm

    7. The crushing process of malt is about 30 min by malt miller generally.

    8. New type malt miller, equipped with motor, belt pulley, belt, hopper and etc.

    9. This machine can remove the iron and dust by automatically.

    10.Low noise

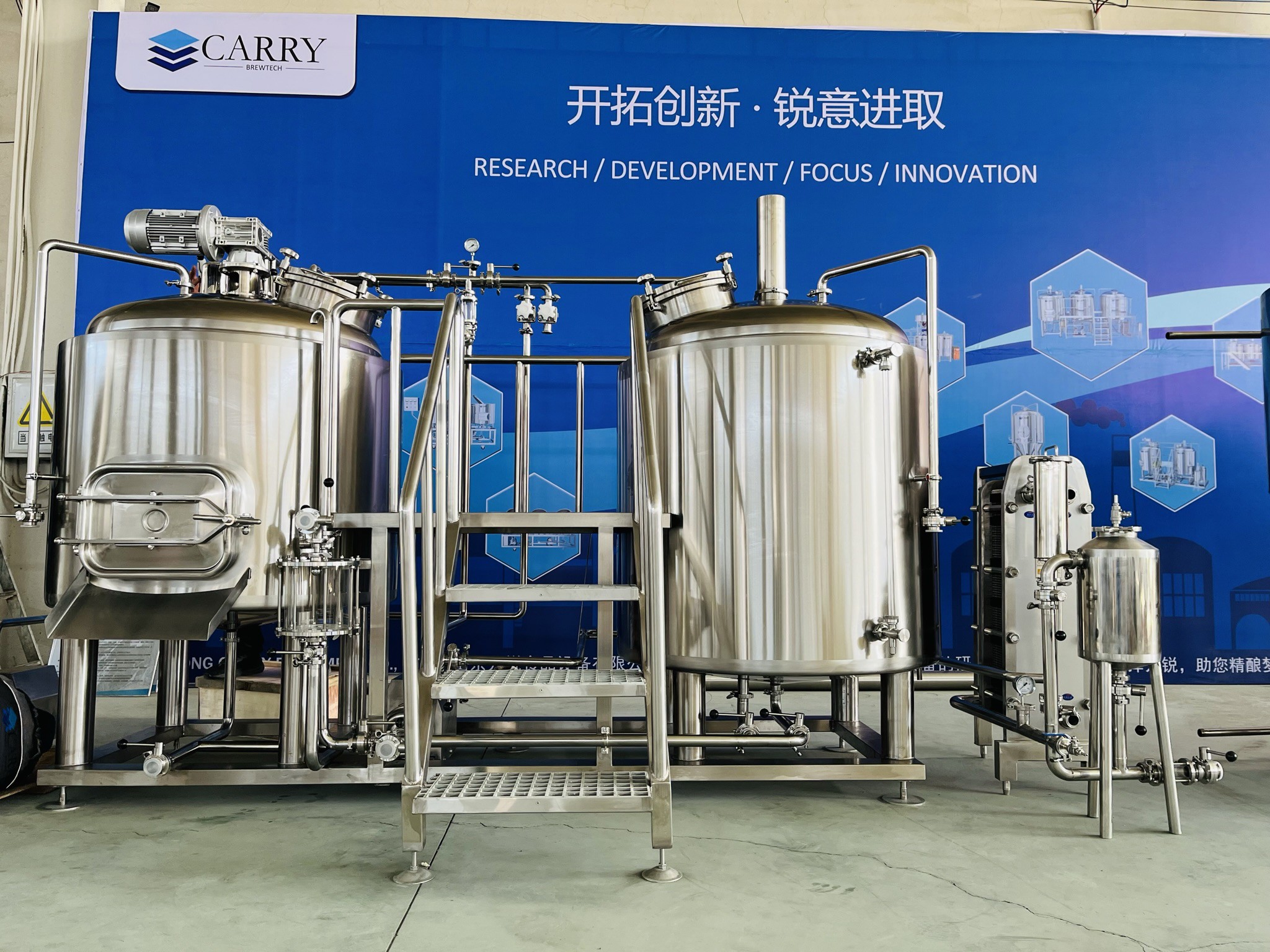

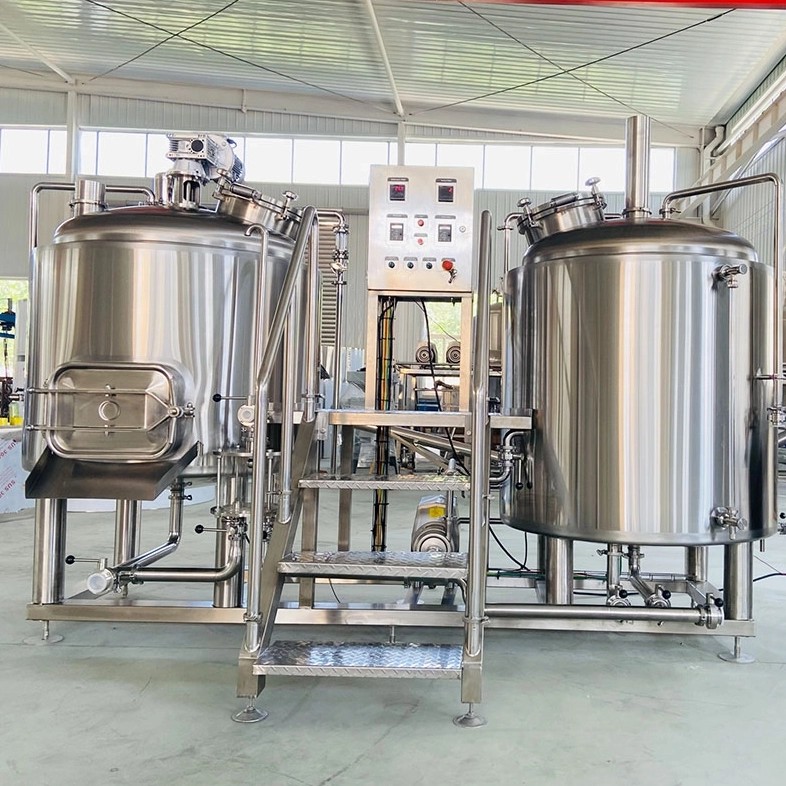

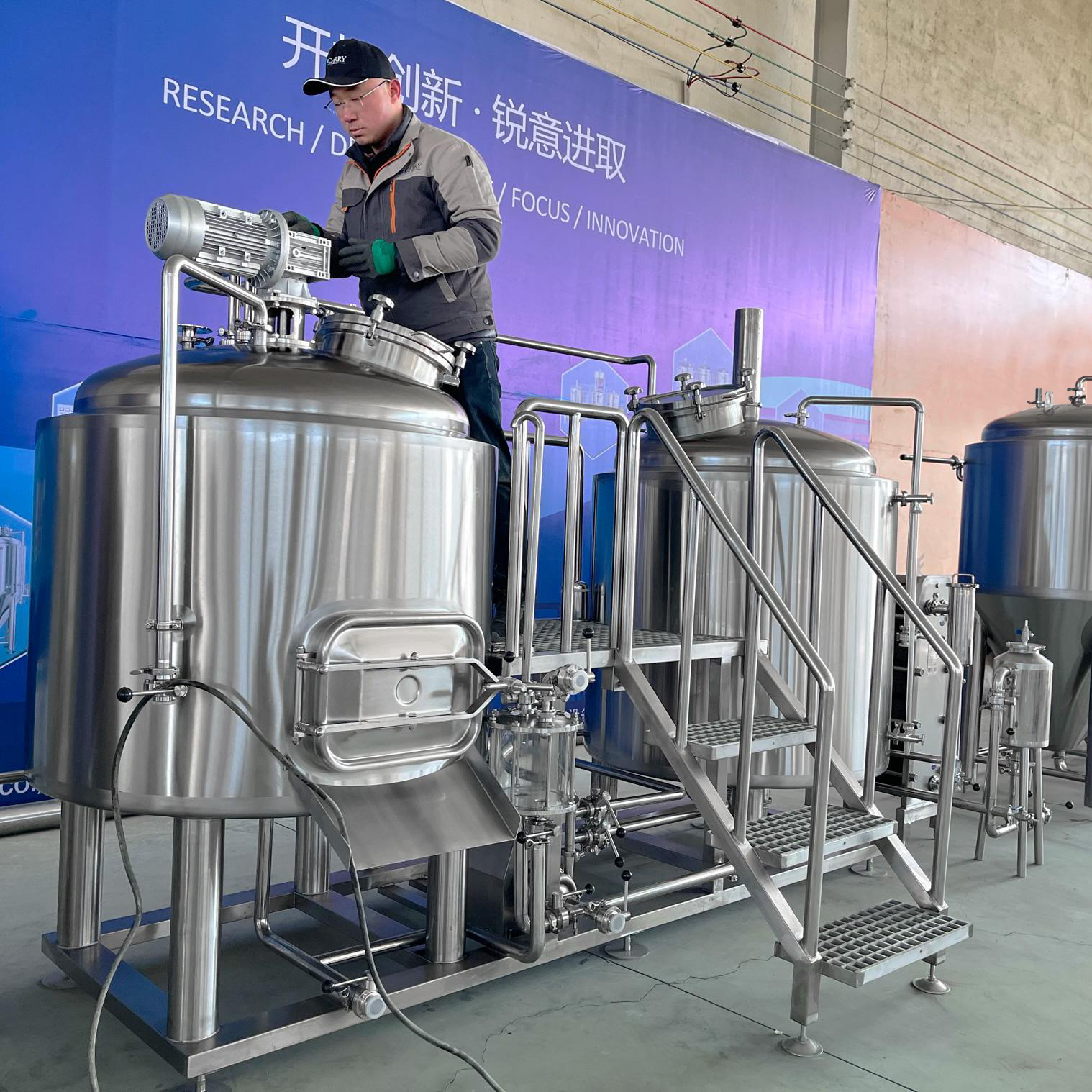

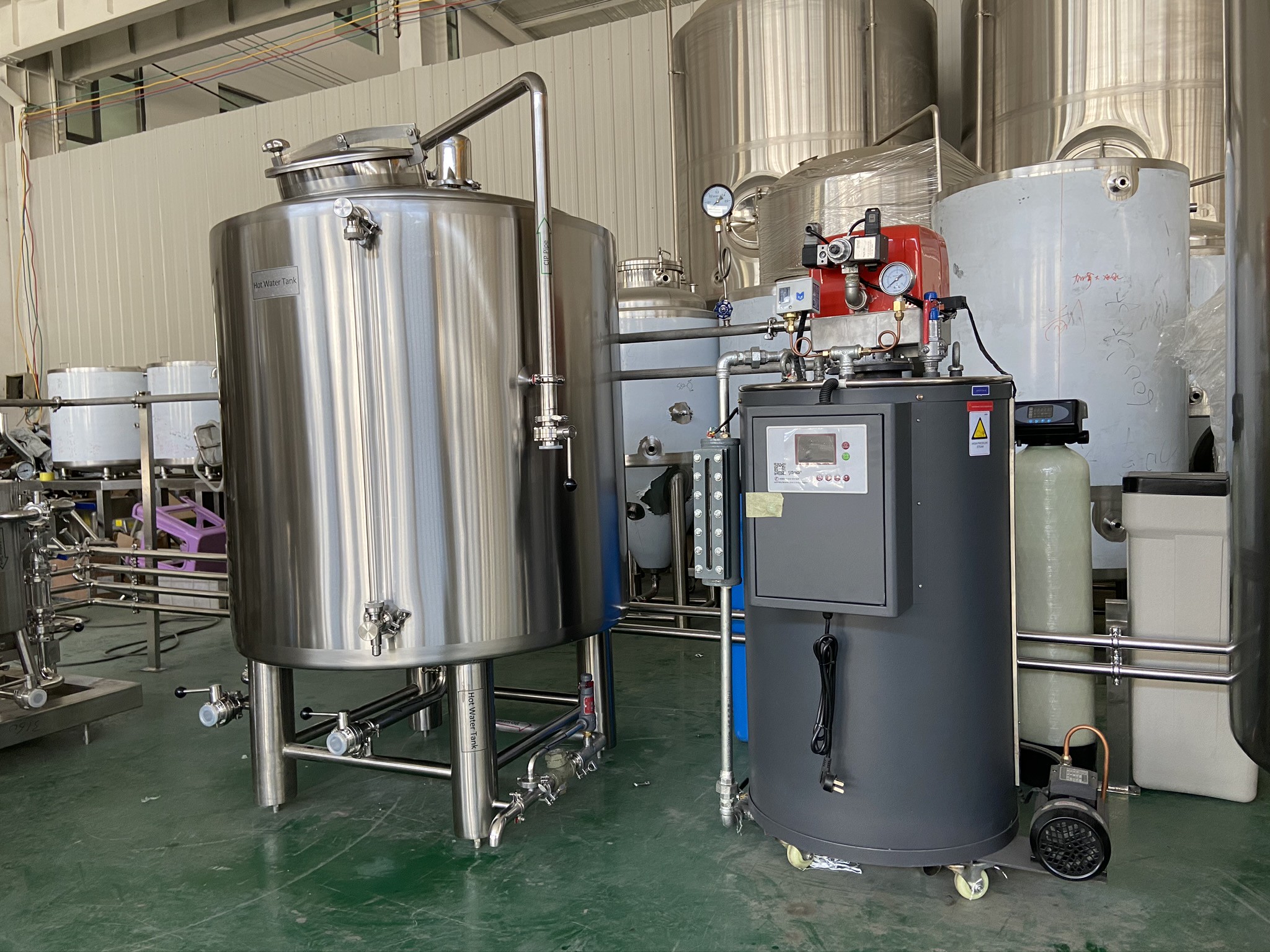

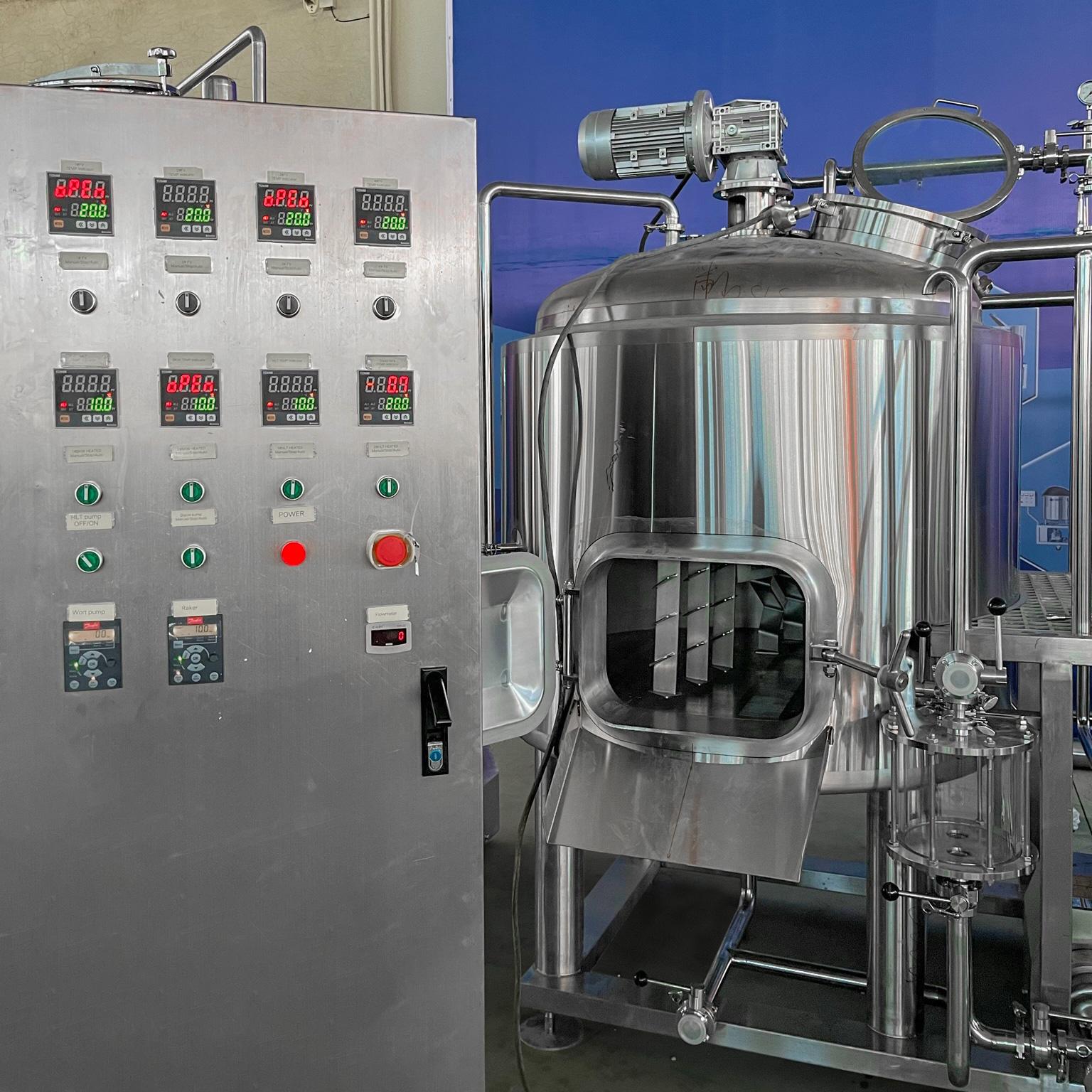

500L Mashing System & 1000L Hot Water Tank

2

Left: Mash/Lauter Tun

Right: Kettle/Whirlpool Tank

1. Effective volume=500L, with extra 30% head space

2. Top glass manway

3. Top mounted Grain Raker with VFD Motor & reducer

4. Easy clean and detachable sparging ring for grain washing

5. CIP Arm with internal 360°Spray ball

6. High precision milled false bottom

7. Side mounted grain outdoor

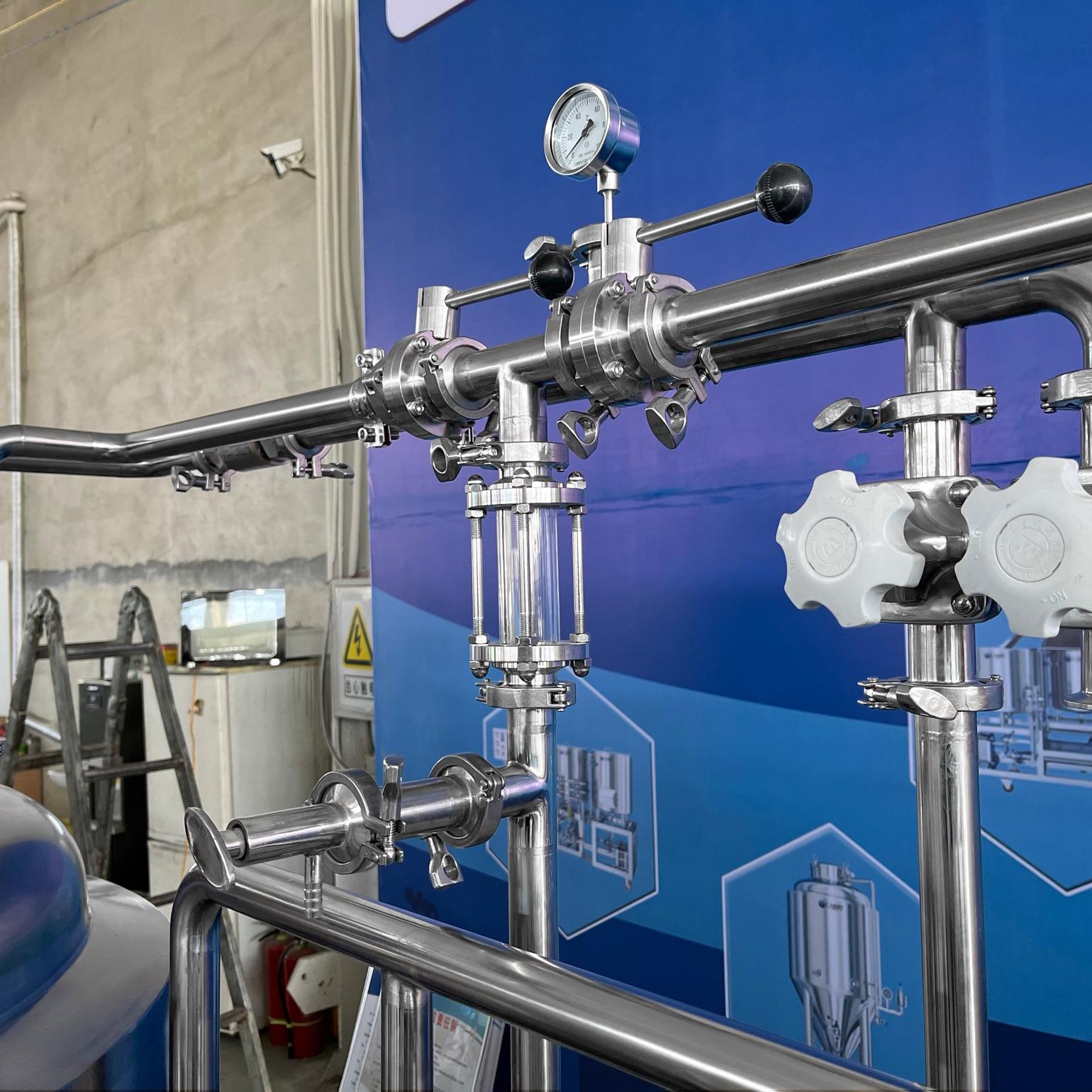

8. Wort backflow pipeline with sight glass and sample valve

9. 15L Glass balance tank

10. 4 Heavy duty legs fixed on pallet frame

1. Effective Volume=500L, with extra 40% head space

2. Top glass manway

3. Top mounted Φ102 outdoor condenser pipe with inner drain pipe

4. CIP Arm with internal 360°Spray ball

5. Tangential wort inlet

6. Multiple wort drain port

7. Level tube

8. Build-in electric heating elements

With Three Heating Method:

  • 3
    Electrical Heating
  • 4
    Steam Heating
  • 5

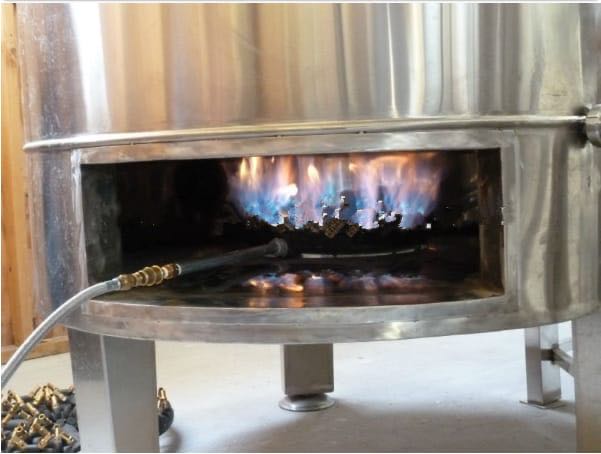

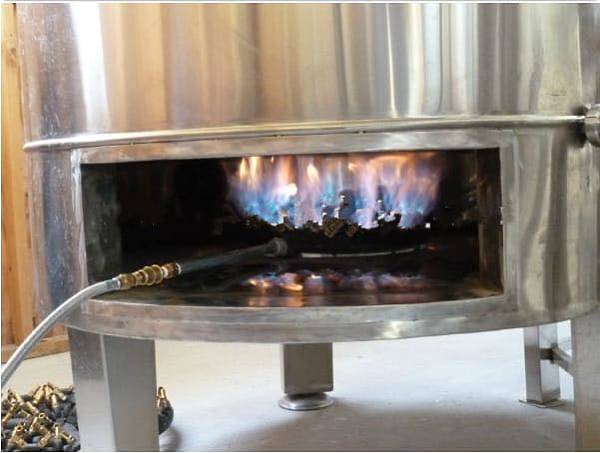

    Direct Fire Heating
  • 6
    Direct Fire Heating

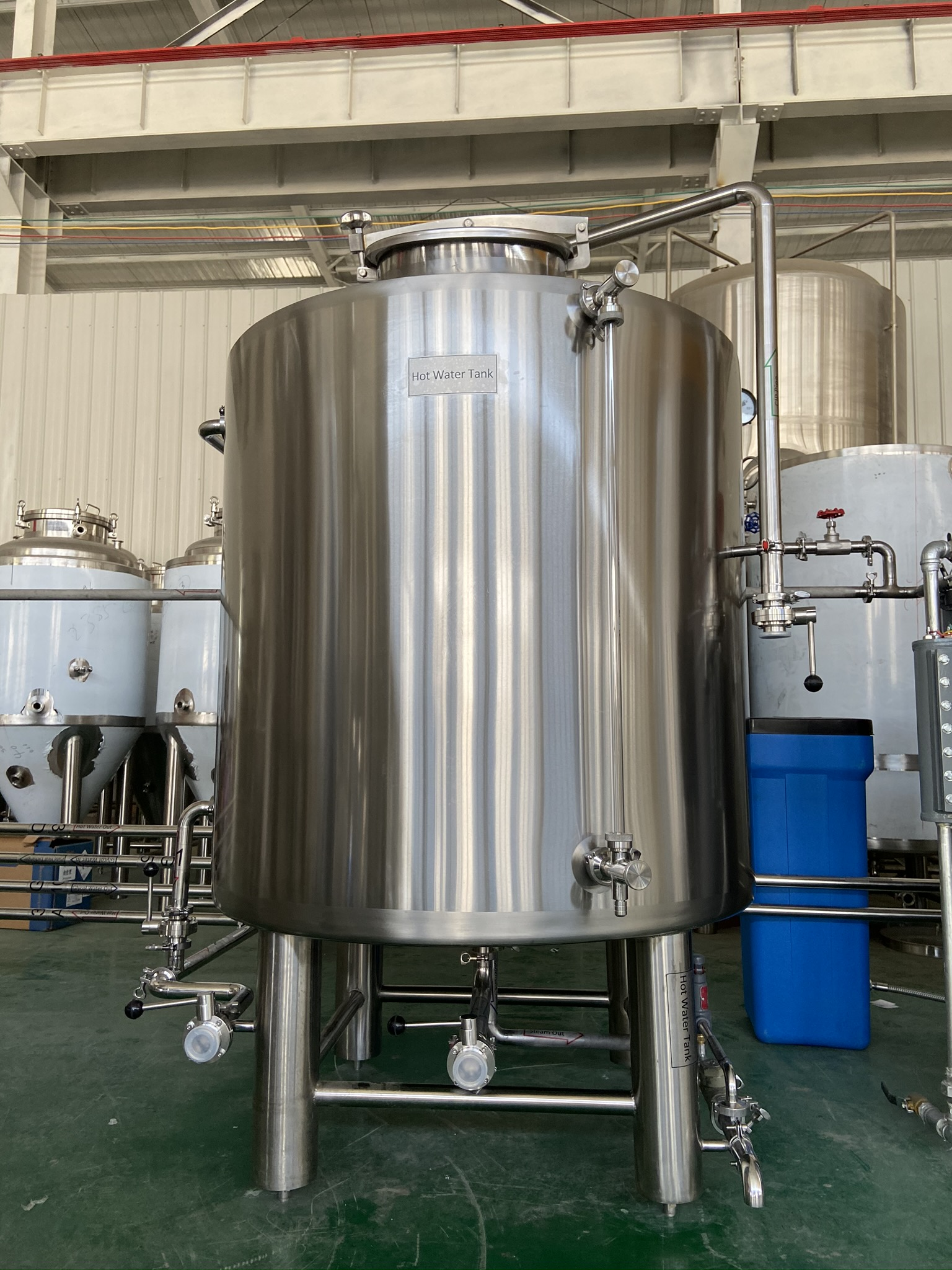

    1. Effective volume=1000L, total volume=1250L
    2. Dimension=Φ1160*2000mm
    3. Top manway
    4. Steam Heating jacket
    5. Pressure Relief Valve
    6. Temperature probe(PT-100)
    7. Level tube indicator
    8. Inner-Jacket(SUS 304), TH=3.0mm, pickling&passivating treated; External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate;
    10. Dish head (SUS 304)
    11. Insulation layer: PU-thickness=80mm
    12. 100% high precision TIG welded joints
    13. 4pcs x SUS304 heavy duty legs with leveling pad
  • 7

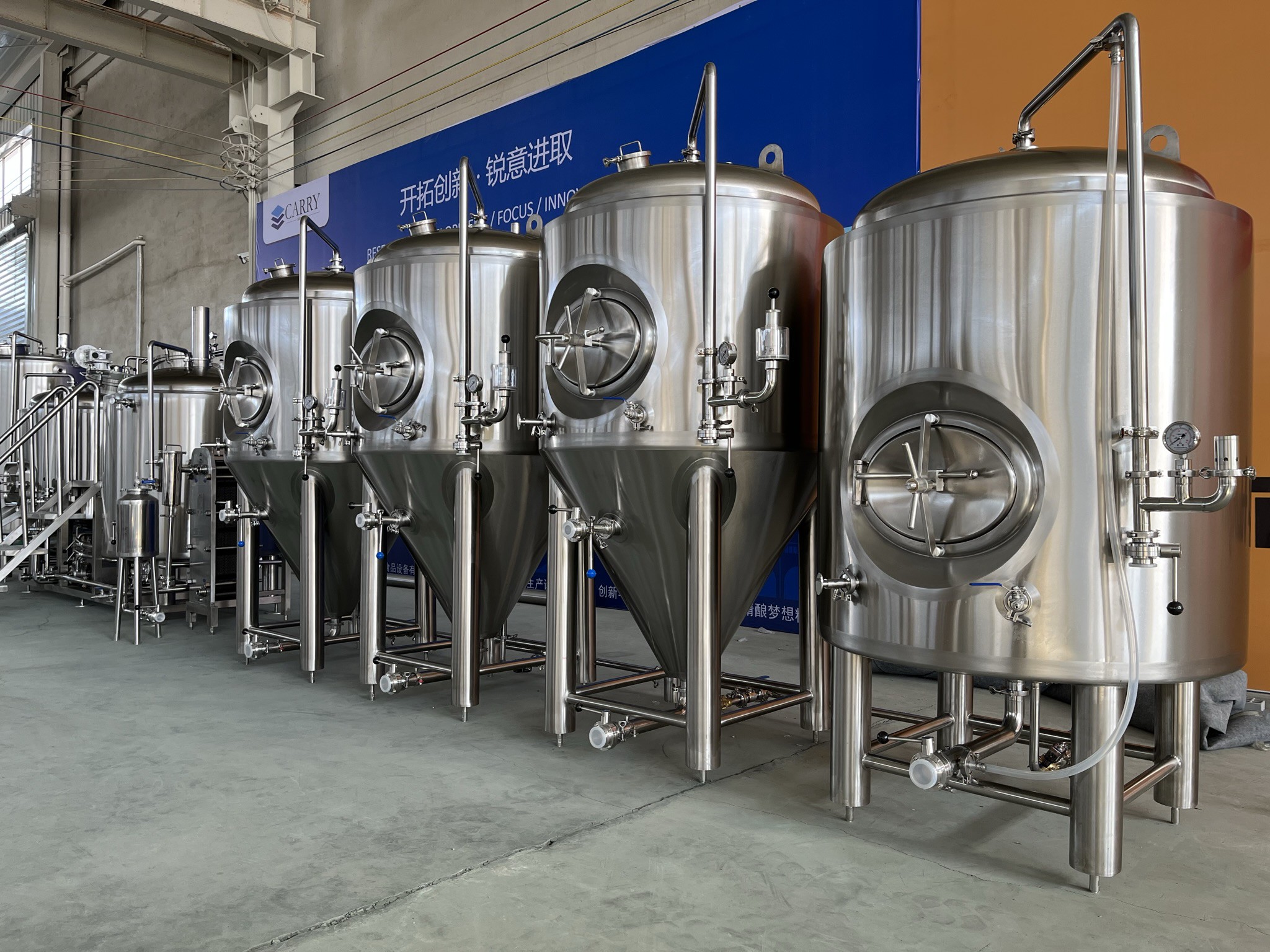

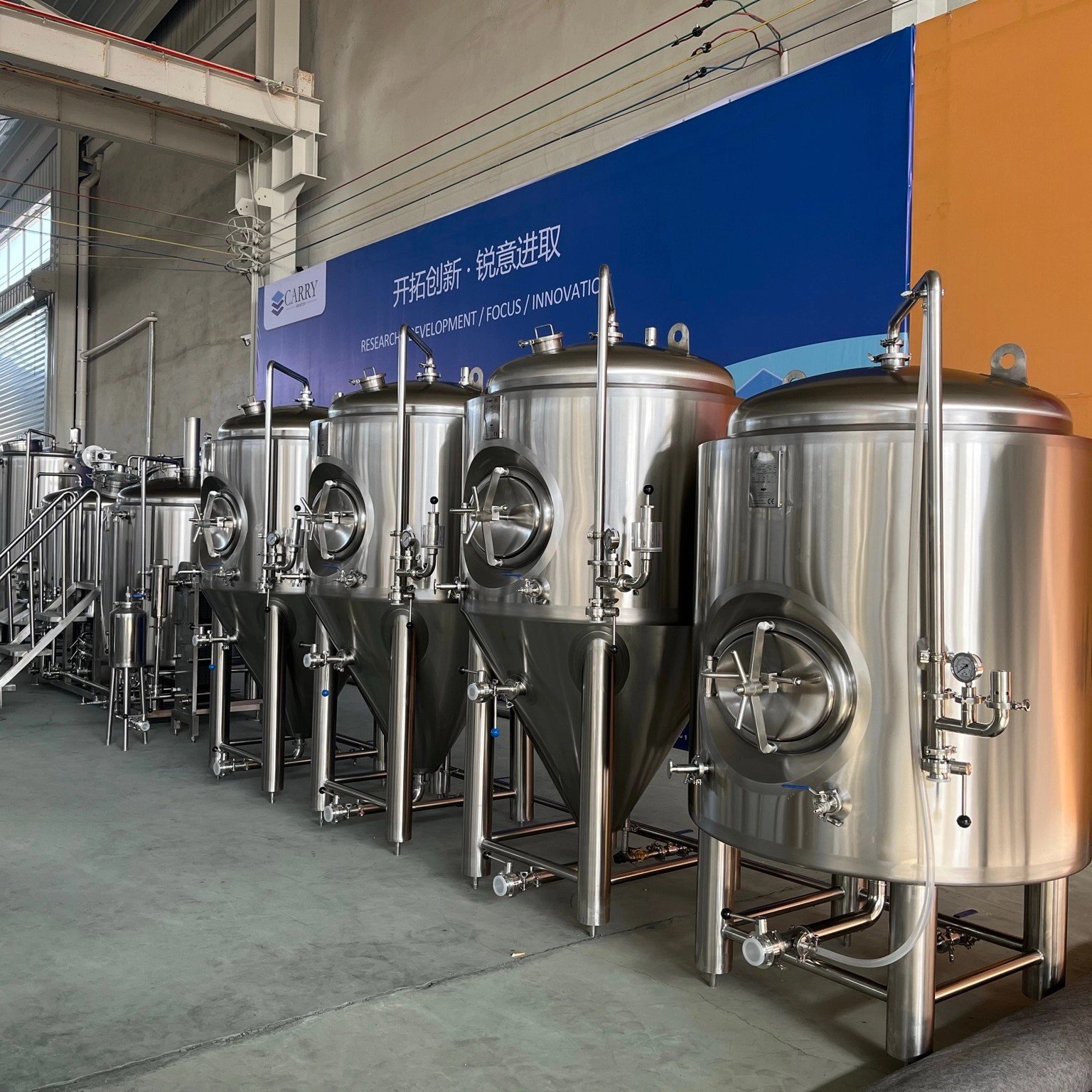

    500L Fermentation Tank & Bright Beer Tank
    500L Fermentation Tank
    1.Effective volume=500L, total volume=625L
    2. Net Dimension: Φ1060 * 2100mm
    3. 360° spray ball equip with CIP arm
    4. Pressure gauge and Spunding Valve on CIP arm
    5. Sample Valve
    6. Temperature probe: PT-100
    7. Cooling jacket: Dimpled plate on cone and side
    8. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
    9. Insulation layer: PU-thickness= 80mm.
    10. Design pressure 0.3MPa; Working pressure 0.15Mpa.
    11. 100% high accuracy TIG welding.
  • 8

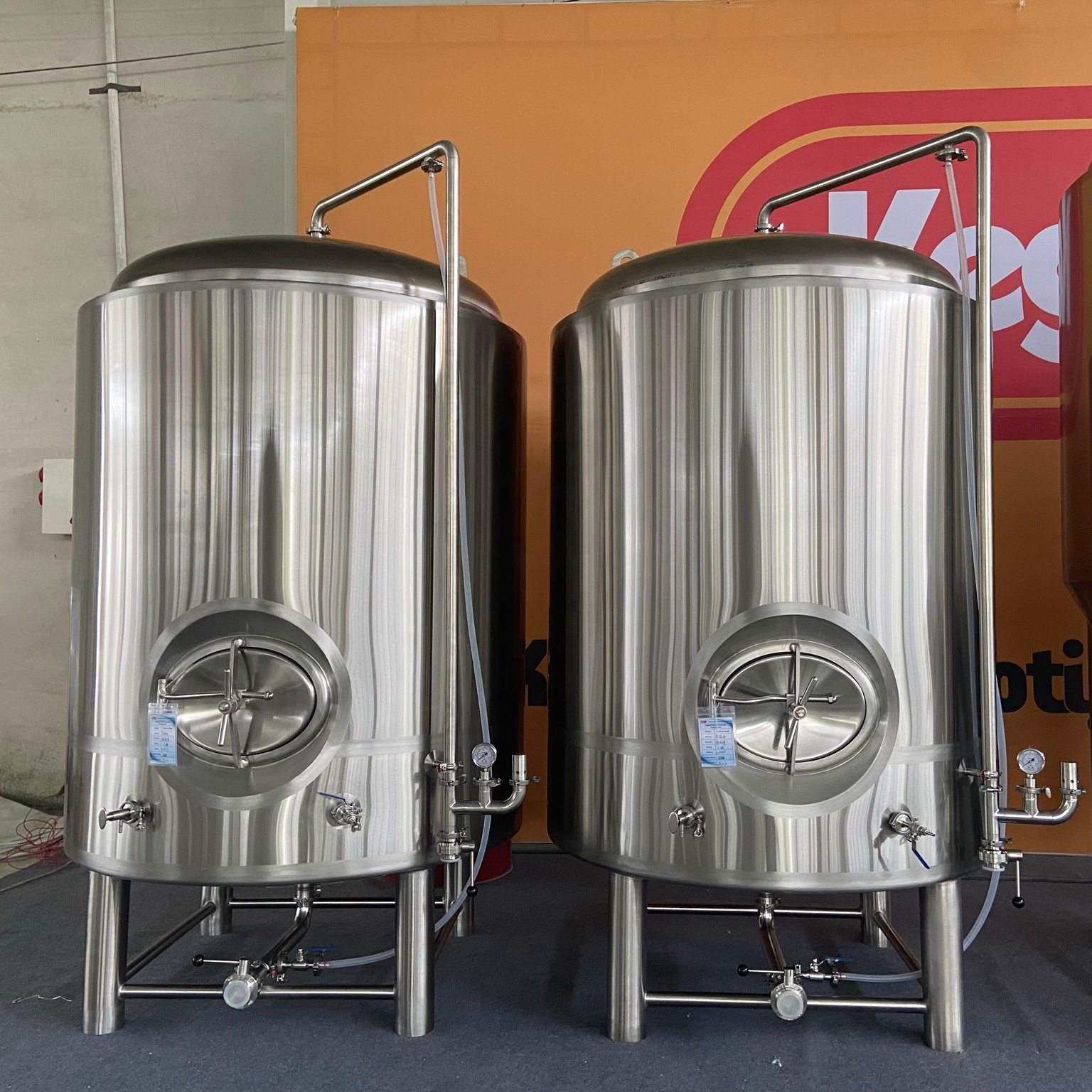

    500L Bright Beer Tank
    1. Effective volume=500L, total volume=625L
    2. Net Dimension: Φ1060 * 1750mm
    3. 360° spray ball equip with CIP arm
    4. Pressure gauge and pressure relief vavle on CIP arm
    5. Sample Valve and Carbonation Stone equipped on tank
    6. Temperature probe: PT-100
    7. Cooling jacket: Dimpled plate on cone and side
    8. Level Tube
    9. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
    10.Oval head&conical bottom, thickness: 3mm.
    11.Insulation layer: PU-thickness= 80mm.
    12.100% high accuracy TIG welding.
    13.Design pressure 0.3MPa; Working pressure 0.15Mpa.

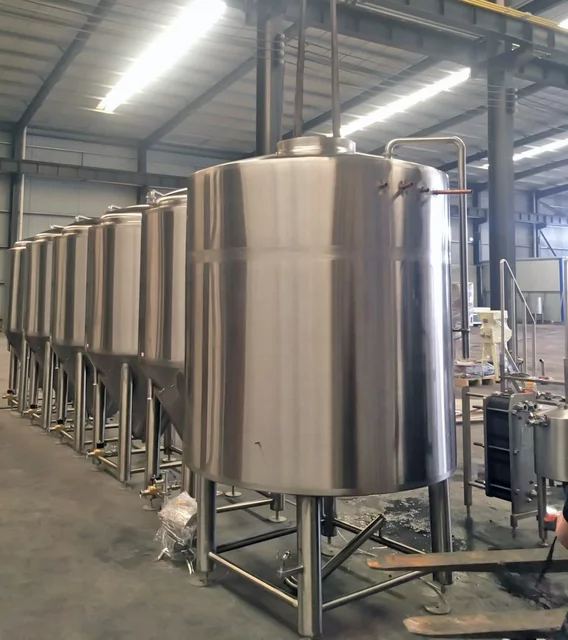

Glycol Cooling System

  • 1. Effective volume:1500L, total volume: 1650L</br>2. Net Dimension=Φ1360 *2100mm</br>3. Level tube</br>4. Insulated conical top and sloped bottom</br>Glycol water inlet and outlet</br>5. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;</br>6. Insulation layer: PU-thickness= 80mm.</br>7. 100% high accuracy TIG welding.</br>
    1500L Glycol Water Tank
    1. Effective volume:1500L, total volume: 1650L
    2. Net Dimension=Φ1360 *2100mm
    3. Level tube
    4. Insulated conical top and sloped bottom
    Glycol water inlet and outlet
    5. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
    6. Insulation layer: PU-thickness= 80mm.
    7. 100% high accuracy TIG welding.
  • 10

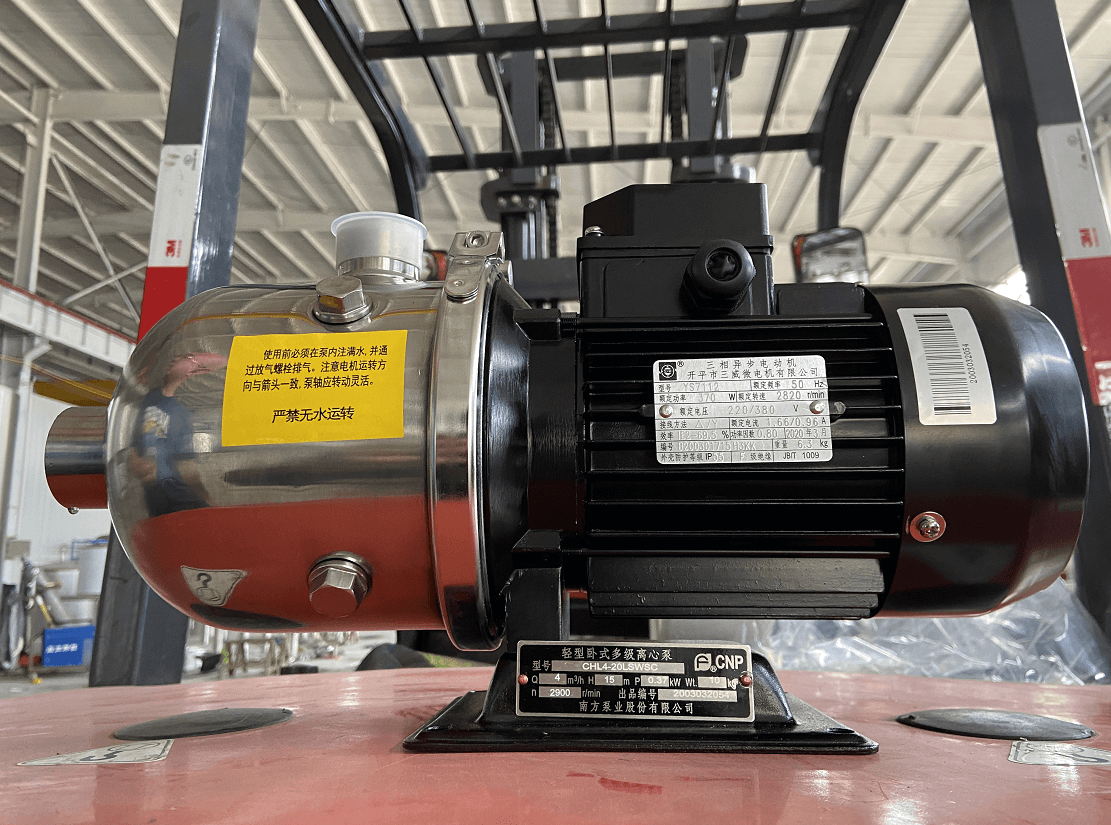

    Glycol Pump
    1. Flow 3m3/h, lift 18m
    2. Material: SUS304
    3. Rev: 2880r/min Capacity:3000L/h
    4. Standard PPR Glycol piping loops
  • 11

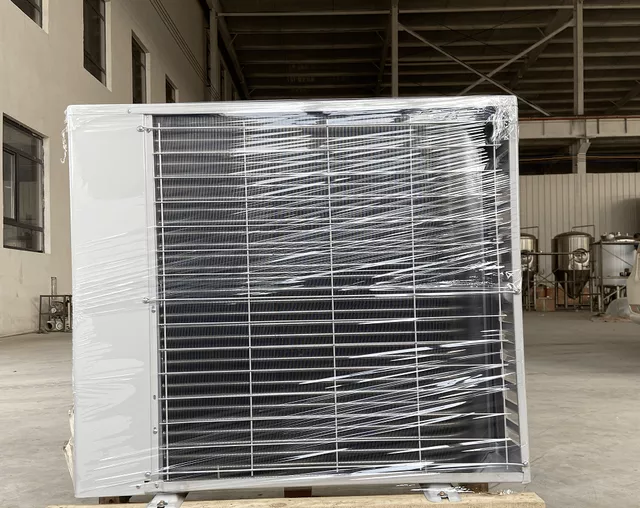

    3HP Industrial Chiller
    1. 3HP, Working power: 2.8 KW/unit.
    2. Internal compressor brand is USA Copeland.
    3. Copland vortex compressor, more durable, refrigeration effect
    4. Medium: Environmental protection refrigerants R404A
    5. Dimension=900*800*750mm

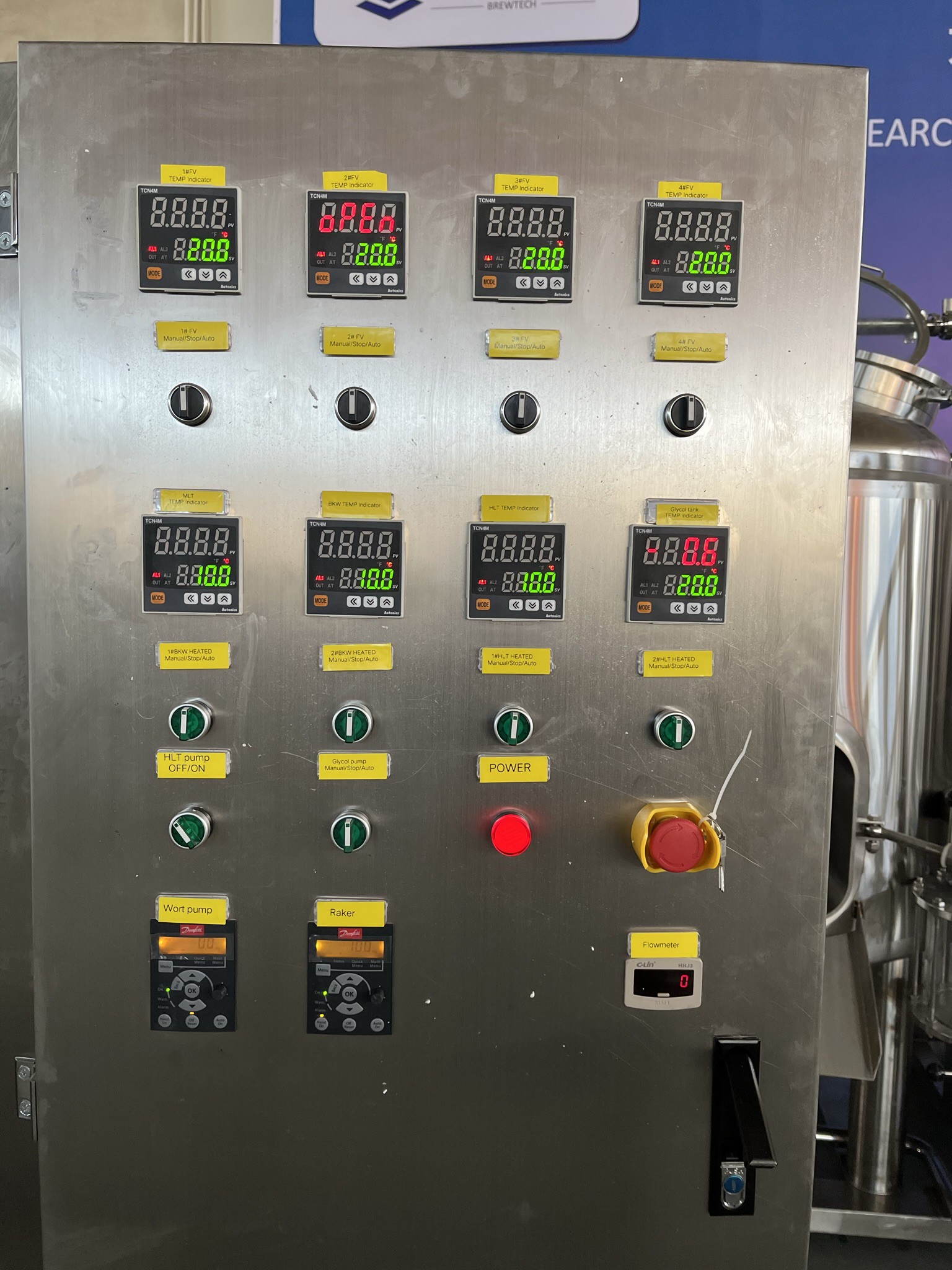

PID Control System (Optional: PLC)

  • 12
    1. SUS 304 Material cabinet
    2. Installing style: wall-mounted
    3. Temperature indicator of brewhouse & hot water tank
    Pump & motor & rake reducer VFD Speed control & control
    of fermenters & glycol tank & chiller
    4. High quality electronic components, CE standard
    5. Pump on/off control
    6. High quality electronic components, CE standard
  • 13

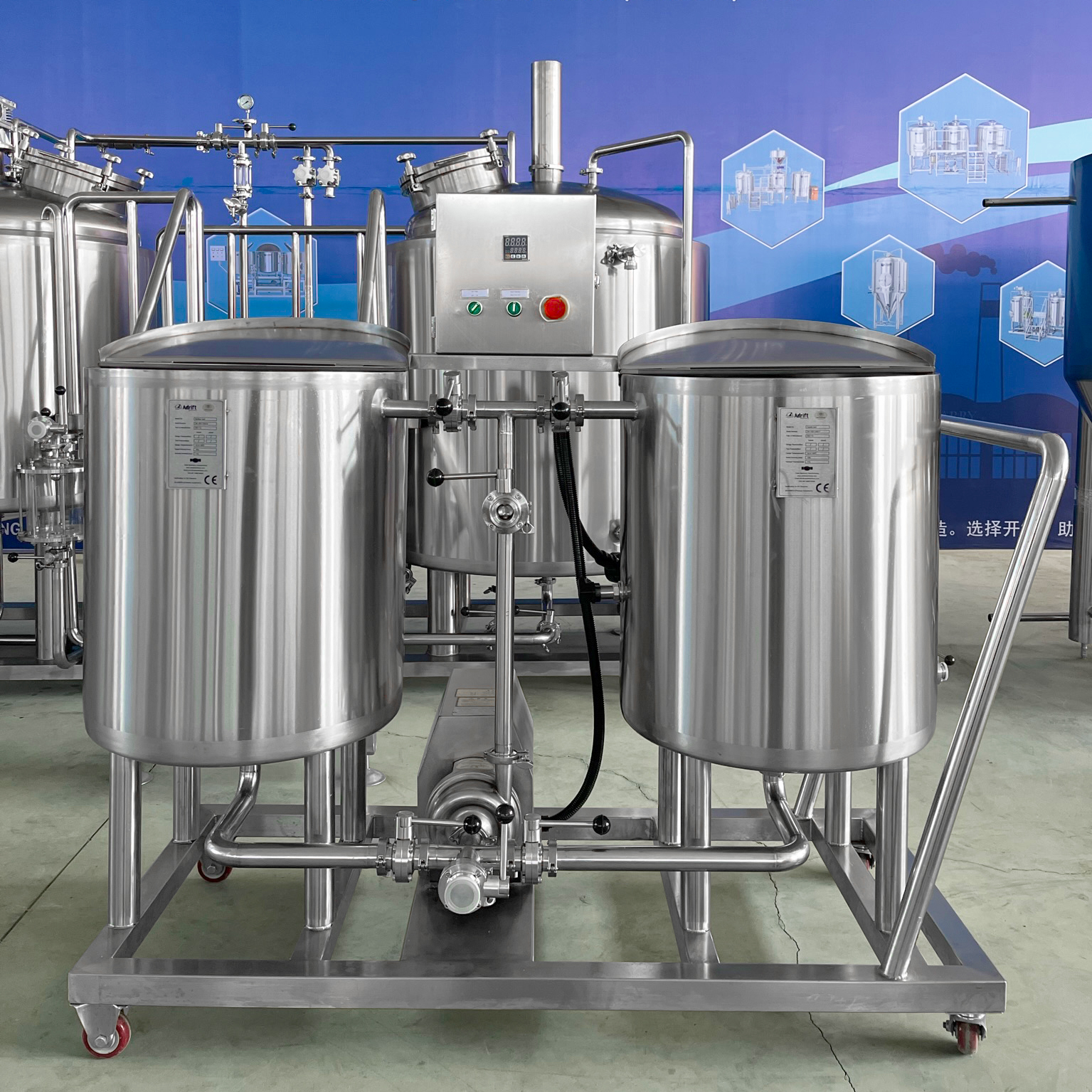

    50L CIP System
    - Disinfection tank
    Effective volume: 50L
    Dimensions: Φ 500*700mm
    SUS304 Material Cone top & bottom Thickness is 2mm
    Valves and fittings included
    - Alkali tank
    Effective volume: 50L
    Dimensions: Φ 500*700mm
    Double layers, with 50mm PU insulation
    SUS304 Material Cone top & bottom Thickness is 2mm
    Valves and fittings included
    Heating: 3KW electric heating tubes
    - Cleaning Pump
    Flow 3m3/h, lift is 24m
    Hose: Reinforced food grade
    Stainless steel; power is 0.75KW
    Dimension:
    480*200*345mm
    Complete circulation sanitary piping and fittings
