600L brewery equipment system

  • 600L brewery equipment system
  • 600L brewery equipment system
  • 600L brewery equipment system
  • 600L brewery equipment system
  • 600L brewery equipment system
  • 600L brewery equipment system

600L brewery equipment system

500L full beer brewing equipment, find complete details about fermentation tank, 500L conical fermenter, brewhouse - Carry Brewery Equipment Solutions
-+
Add to Basket
Inquire Now

◉ Product Parameters

A whole set of 600L Beer Brewing Equipment will include components as below:

1.200kg/h Crashing System

4. Glycol Cooling System

2. 600L Mashing system & 1000L Hot water tank

5. PID Control System (Optional: PLC)

3. 600L Fermentation Tank & Bright Beer Tank

6. 50L CIP System

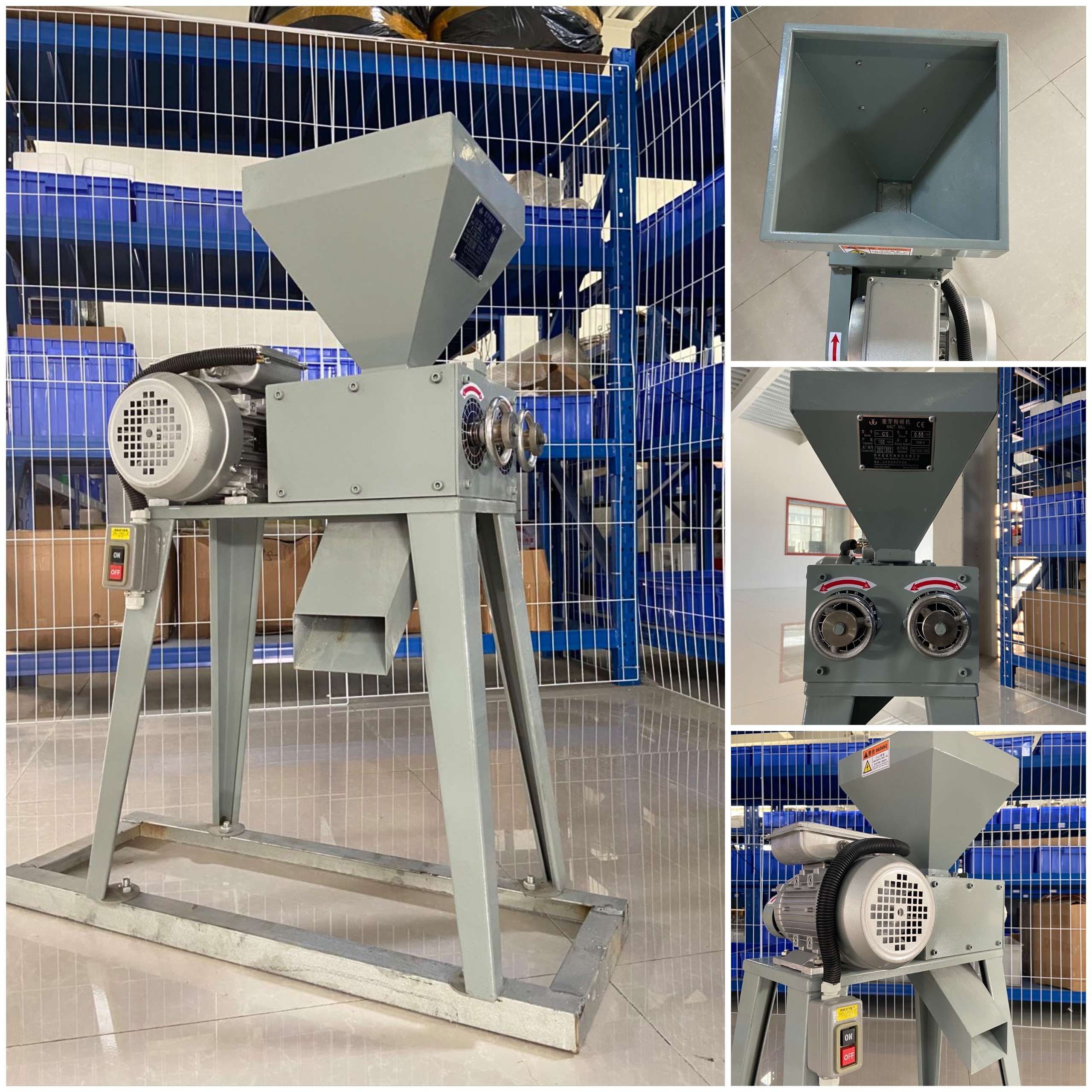

200kg/h Crashing System

1

Malt Miller

1. Crushing Ability: 200kg/h

2. Power=0.75kw

3. Double Rollers type, material: Alloy, roller size: Φ155*200mm

4. Rotio of magnetic metal material: ≤0.003G/KG

5. Gross Weight: 155kg

6. Dimensions: 750*400*1150mm

7. The crushing process of malt is about 30 min by malt miller generally.

8. New type malt miller, equipped with motor, belt pulley, belt, hopper and etc.

9. This machine can remove the iron and dust by automatically.

10.Low noise

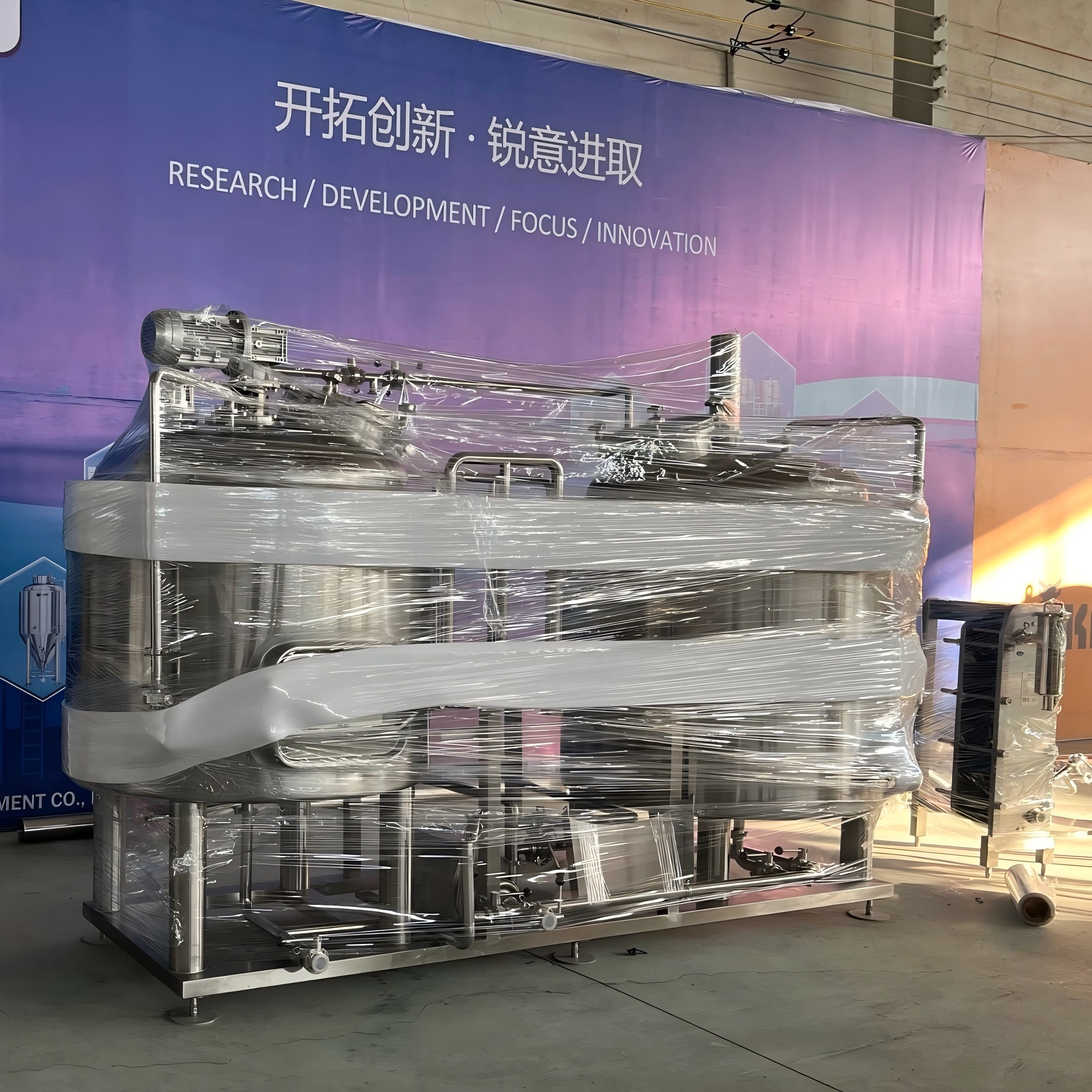

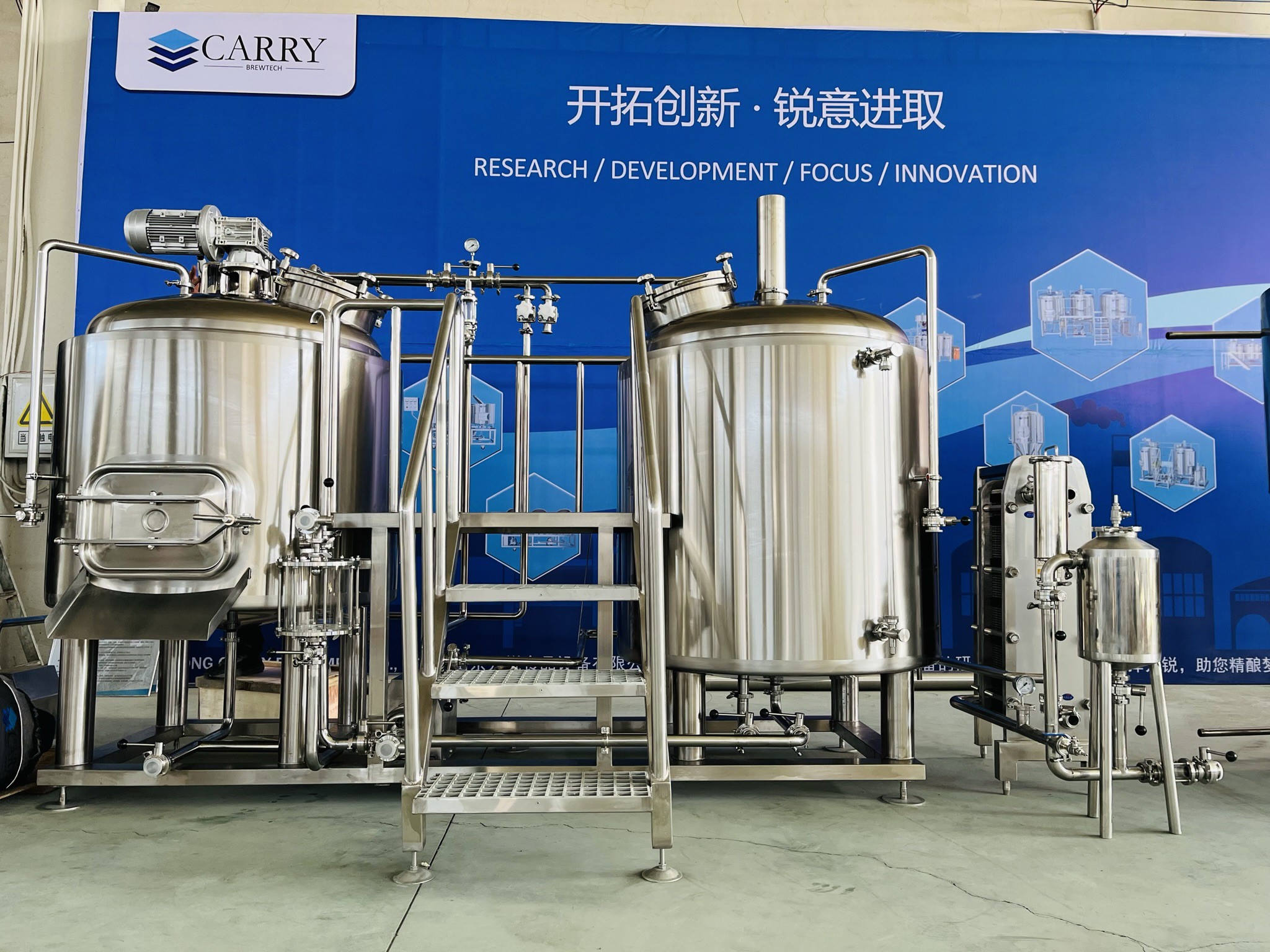

600L Mashing System & 1200L Hot Water Tank

2

Left: Mash/Lauter Tun

Right: Kettle/Whirlpool Tank

1. Effective volume=600L, with extra 30% head space

2. Top glass manway

3. Top mounted Grain Raker with VFD Motor & reducer

4. Easy clean and detachable sparging ring for grain washing

5. CIP Arm with internal 360°Spray ball

6. High precision milled false bottom

7. Side mounted grain outdoor

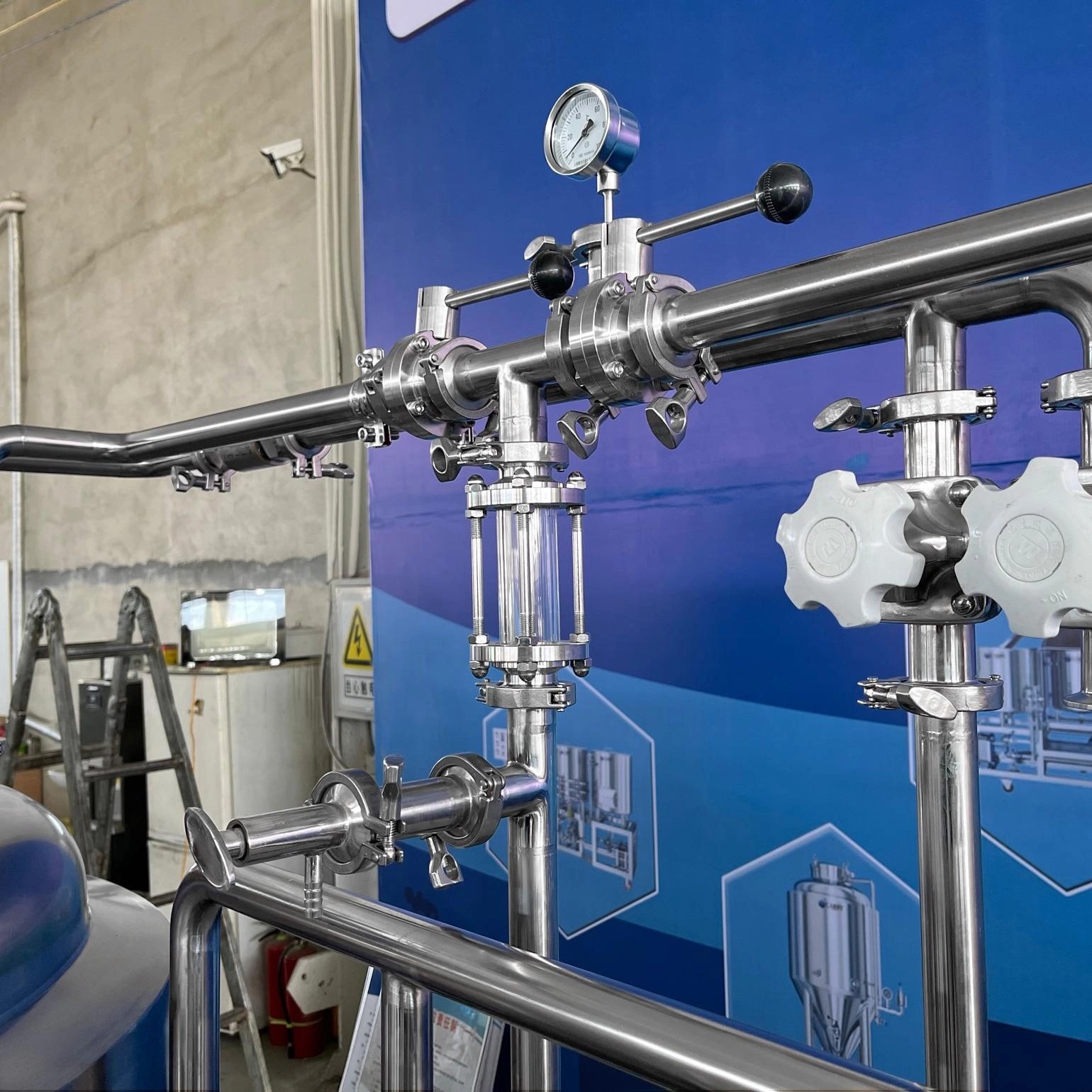

8. Wort backflow pipeline with sight glass and sample valve

9. 15L Glass balance tank

10. 4 Heavy duty legs fixed on pallet frame

1. Effective Volume=600L, with extra 40% head space

2. Top glass manway

3. Top mounted Φ102 outdoor condenser pipe with inner drain pipe

4. CIP Arm with internal 360°Spray ball

5. Tangential wort inlet

6. Multiple wort drain port

7. Level tube

8. Build-in electric heating elements

With Three Heating Methods:

  • Electrical Heating
    Electrical Heating
  • Steam Heating
    Steam Heating

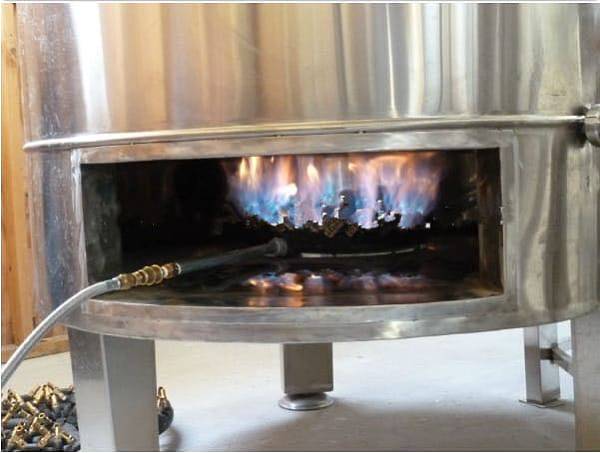

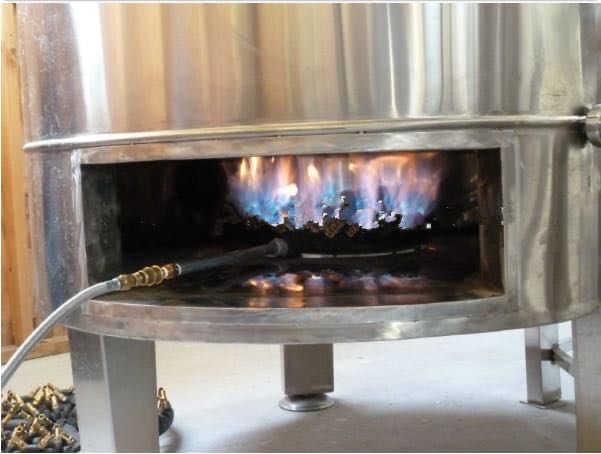

  • Direct Fire Heating
    Direct Fire Heating
6

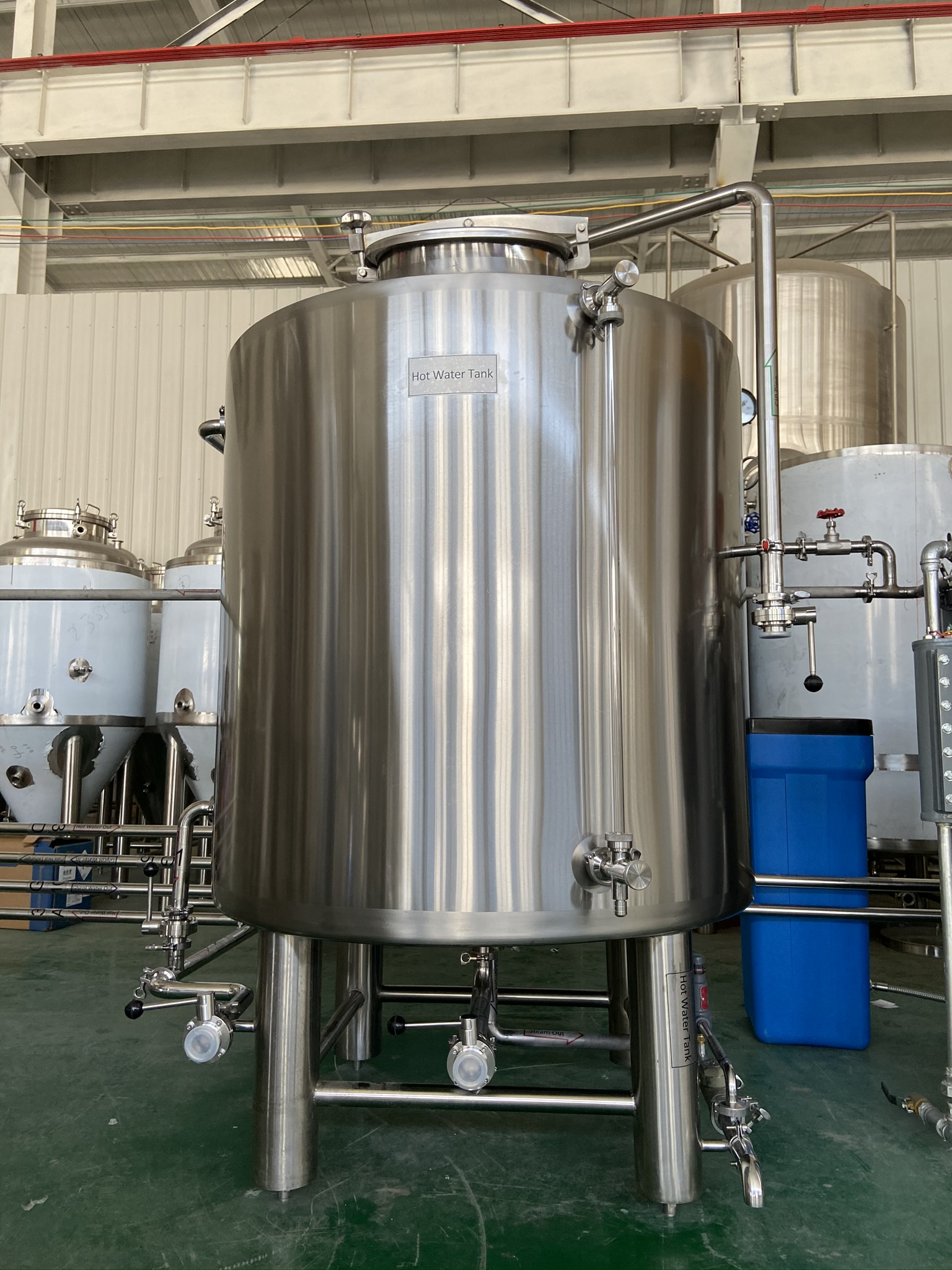

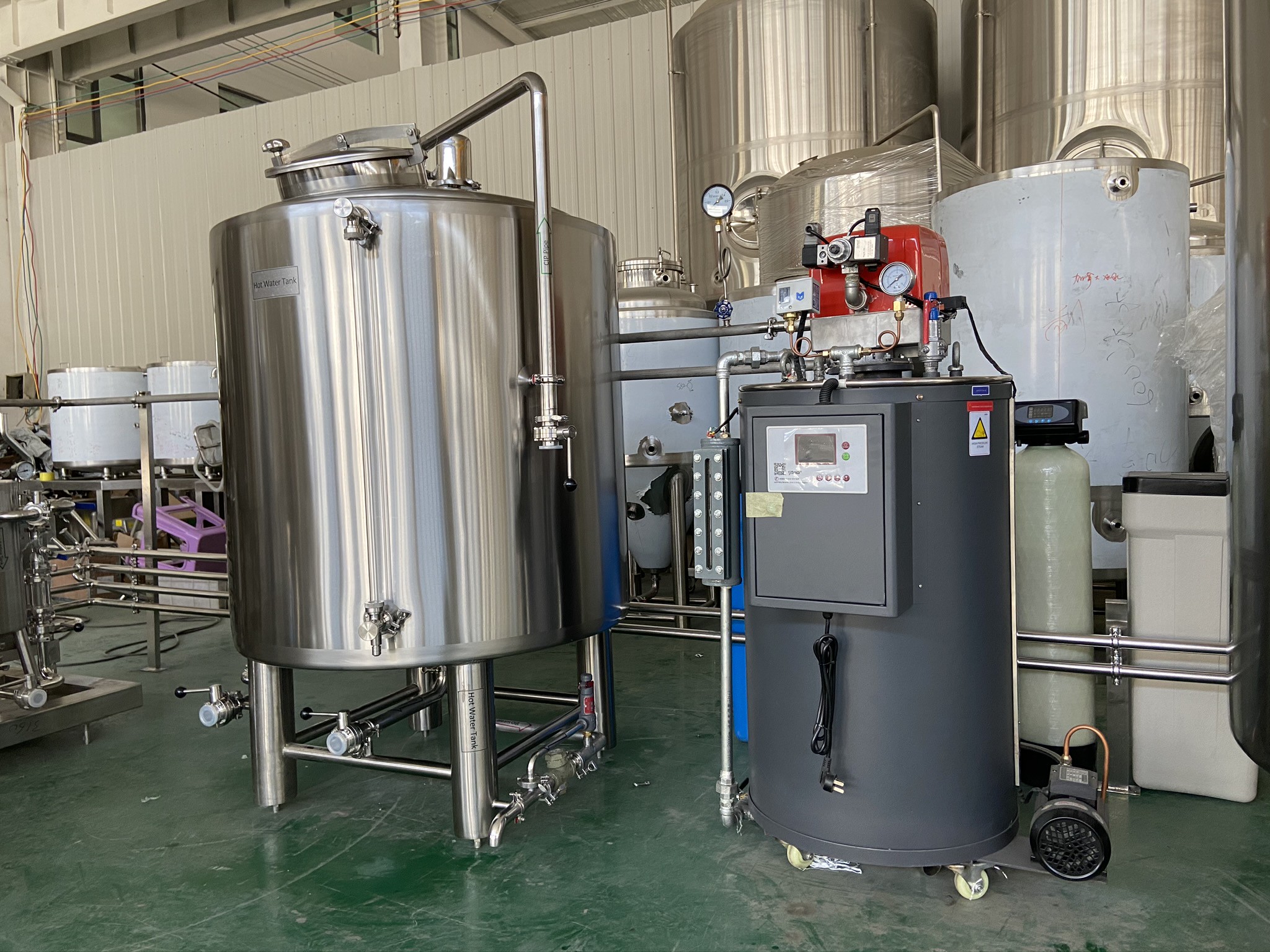

1200L Hot Water Tank

1. Effective volume=1200L, total volume=1500L

2. Dimension=Φ1160*2300mm

3. Top manway

4. Steam Heating jacket

5. Pressure Relief Valve

6. Temperature probe(PT-100)

7. Level tube indicator

8. Inner-Jacket(SUS 304), TH=3.0mm, pickling&passivating treated; External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate;

10. Dish head (SUS 304)

11. Insulation layer: PU-thickness=80mm

12. 100% high precision TIG welded joints

13. 4pcs x SUS304 heavy duty legs with leveling pad

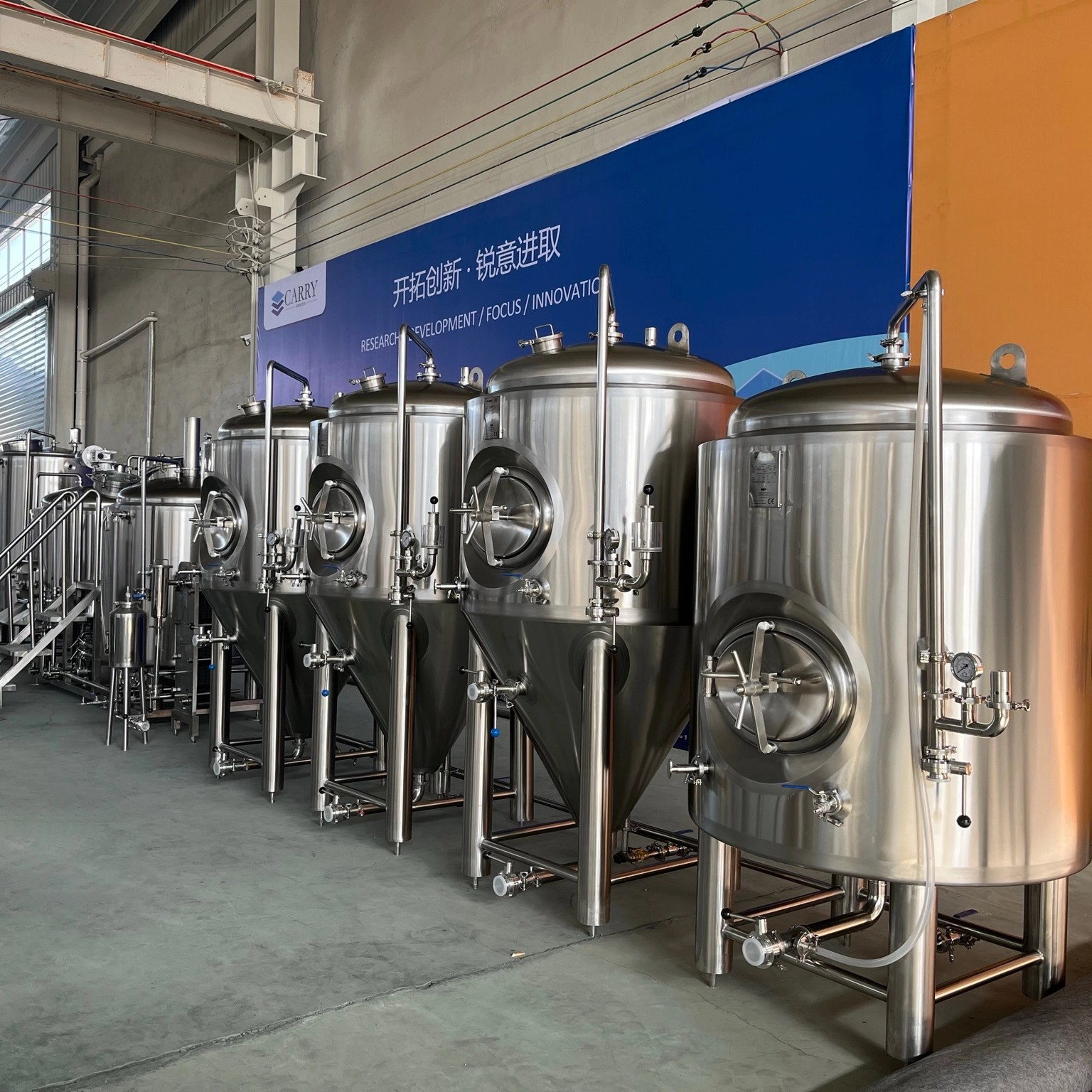

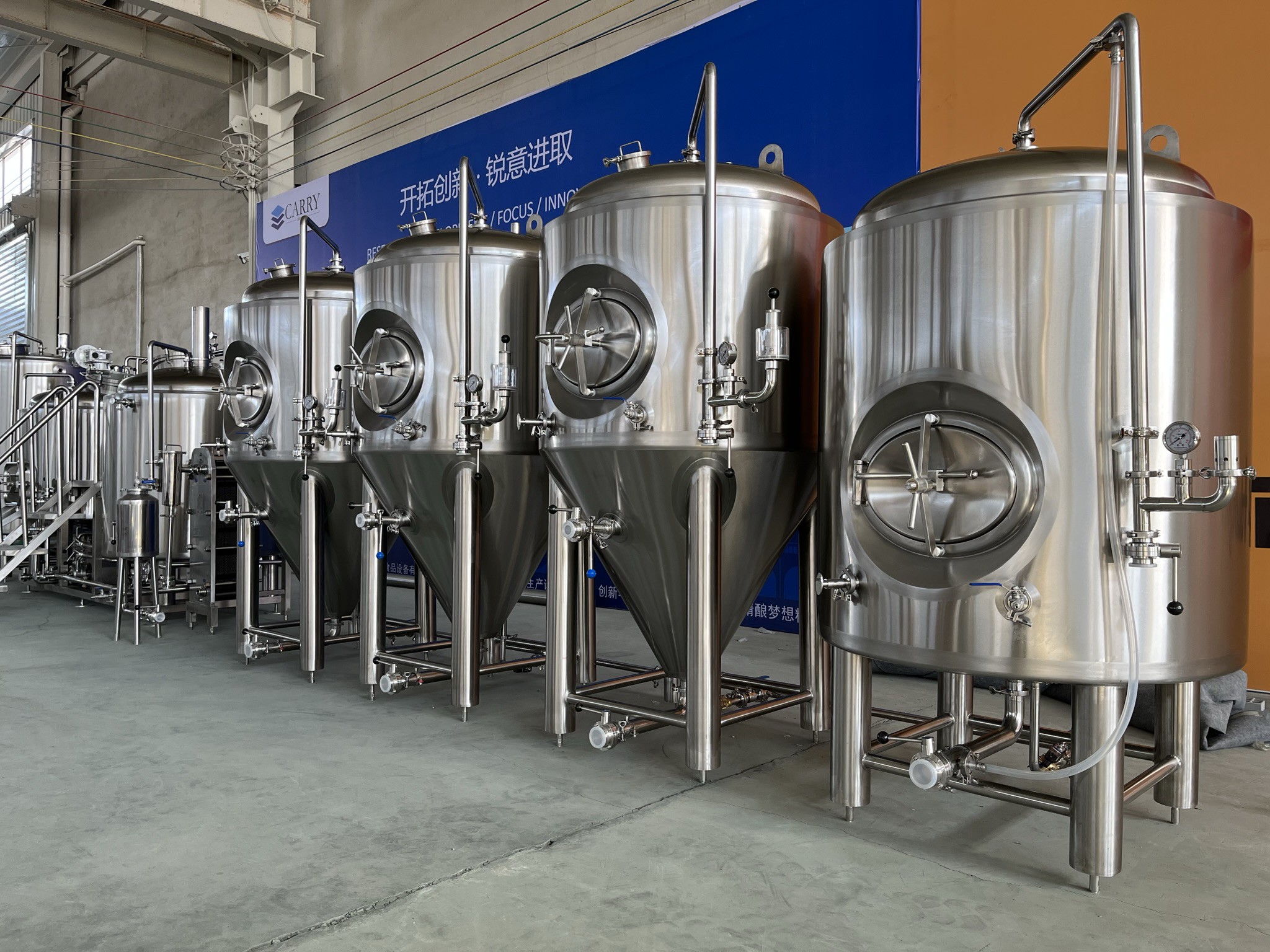

600L Fermentation Tank & Bright Beer Tank

7

600L Fermentation Tank

1.Effective volume=600L, total volume=750L

2. Net Dimension: Φ1160 * 2200mm

3. 360° spray ball equip with CIP arm

4. Pressure gauge and Spunding Valve on CIP arm

5. Sample Valve

6. Temperature probe: PT-100

7. Cooling jacket: Dimpled plate on cone and side

8. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;

9. Insulation layer: PU-thickness= 80mm.

10. Design pressure 0.3MPa; Working pressure 0.15Mpa.

11. 100% high accuracy TIG welding.

8

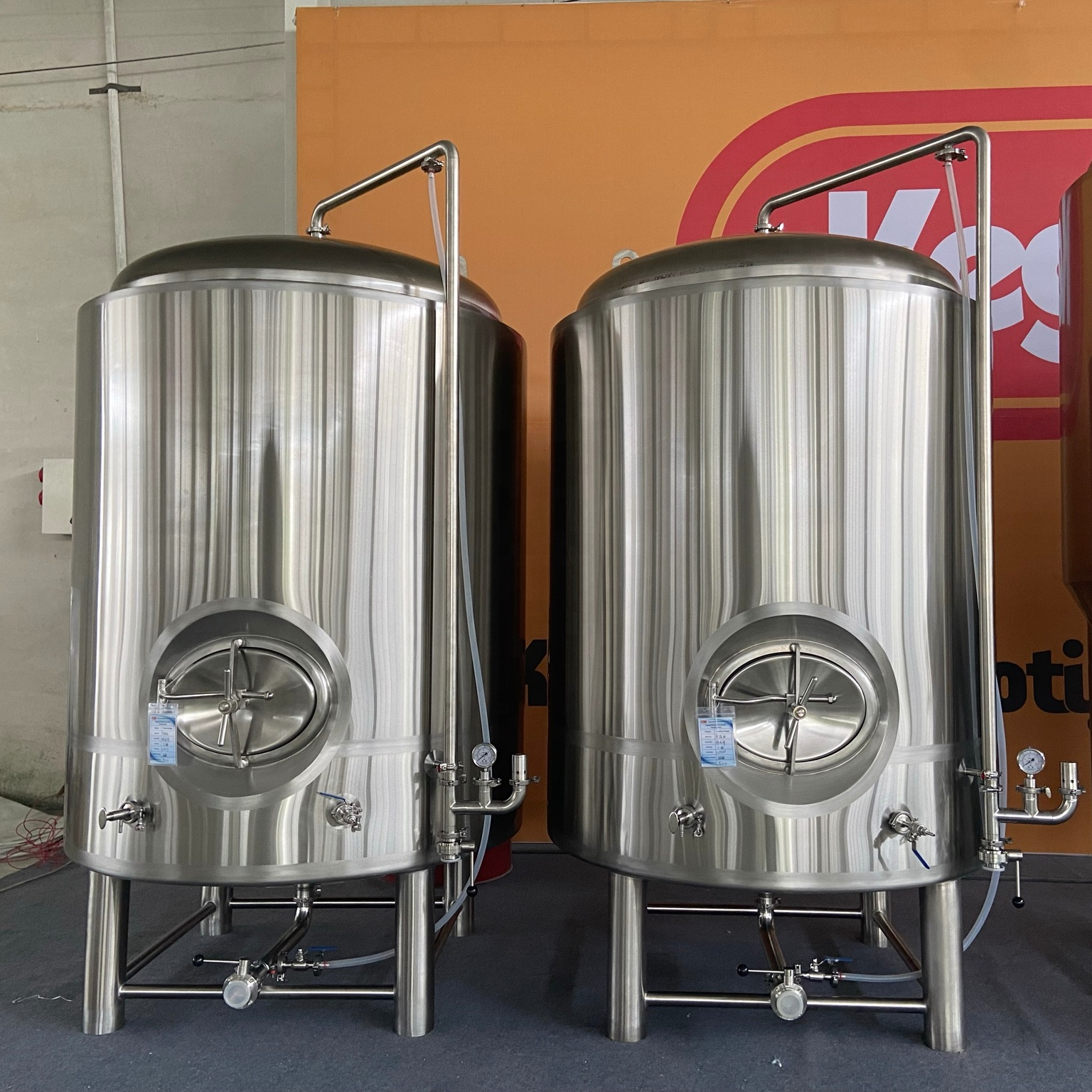

600L Bright Beer Tank

1. Effective volume=600L, total volume=750L

2. Net Dimension: Φ1060 * 1950mm

3. 360° spray ball equip with CIP arm

4. Pressure gauge and pressure relief vavle on CIP arm

5. Sample Valve and Carbonation Stone equipped on tank

6. Temperature probe: PT-100



7. Cooling jacket: Dimpled plate on cone and side

8. Level Tube

9. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;

10.Oval head&conical bottom, thickness: 3mm.

11.Insulation layer: PU-thickness= 80mm.

12.100% high accuracy TIG welding.

13.Design pressure 0.3MPa; Working pressure 0.15Mpa.

Glycol Cooling System

  • 1. Effective volume:1500L, total volume: 1650L</br>2. Net Dimension=Φ1360 *2100mm</br>3. Level tube</br>4. Insulated conical top and sloped bottom</br>Glycol water inlet and outlet</br>5. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;</br>6. Insulation layer: PU-thickness= 80mm.</br>7. 100% high accuracy TIG welding.

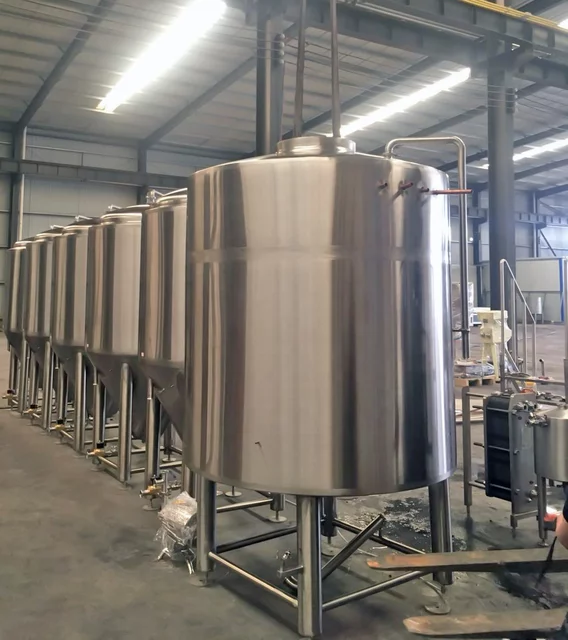

    1500L Glycol Water Tank
    1. Effective volume:1500L, total volume: 1650L
    2. Net Dimension=Φ1360 *2100mm
    3. Level tube
    4. Insulated conical top and sloped bottom
    Glycol water inlet and outlet
    5. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
    6. Insulation layer: PU-thickness= 80mm.
    7. 100% high accuracy TIG welding.
  • 1. Flow 3m3/h, lift 18m</br>2. Material: SUS304</br>3. Rev: 2880r/min Capacity:3000L/h</br>4. Standard PPR Glycol piping loops

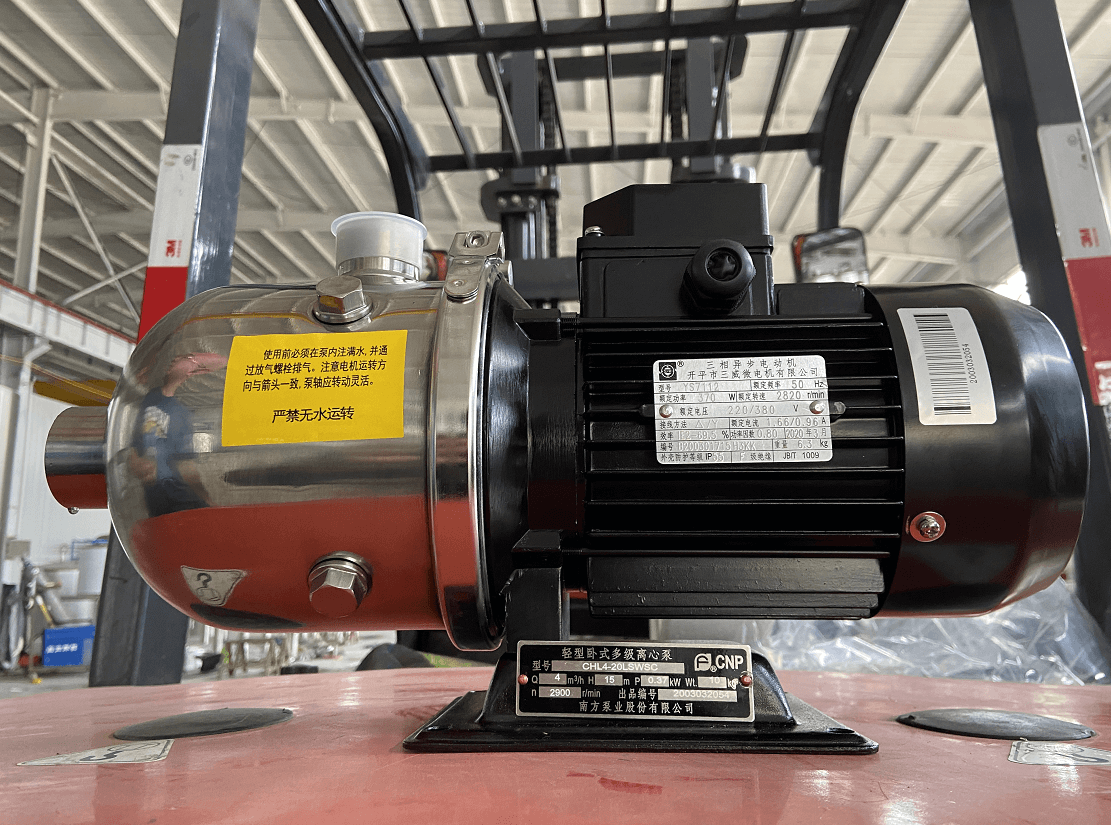

    Glycol Pump
    1. Flow 3m3/h, lift 18m
    2. Material: SUS304
    3. Rev: 2880r/min Capacity:3000L/h
    4. Standard PPR Glycol piping loops
  • 1. 3HP, Working power: 2.8 KW/unit.</br>2. Internal compressor brand is USA Copeland.</br>3. Copland vortex compressor, more durable, refrigeration effect</br>4. Medium: Environmental protection refrigerants R404A</br>5.Dimension=900*800*750mm

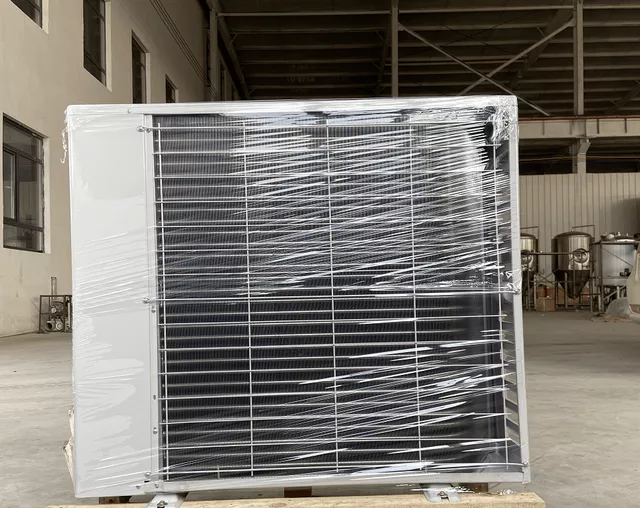

    3HP Industrial Chiller
    1. 3HP, Working power: 2.8 KW/unit.
    2. Internal compressor brand is USA Copeland.
    3. Copland vortex compressor, more durable, refrigeration effect
    4. Medium: Environmental protection refrigerants R404A
    5.Dimension=900*800*750mm

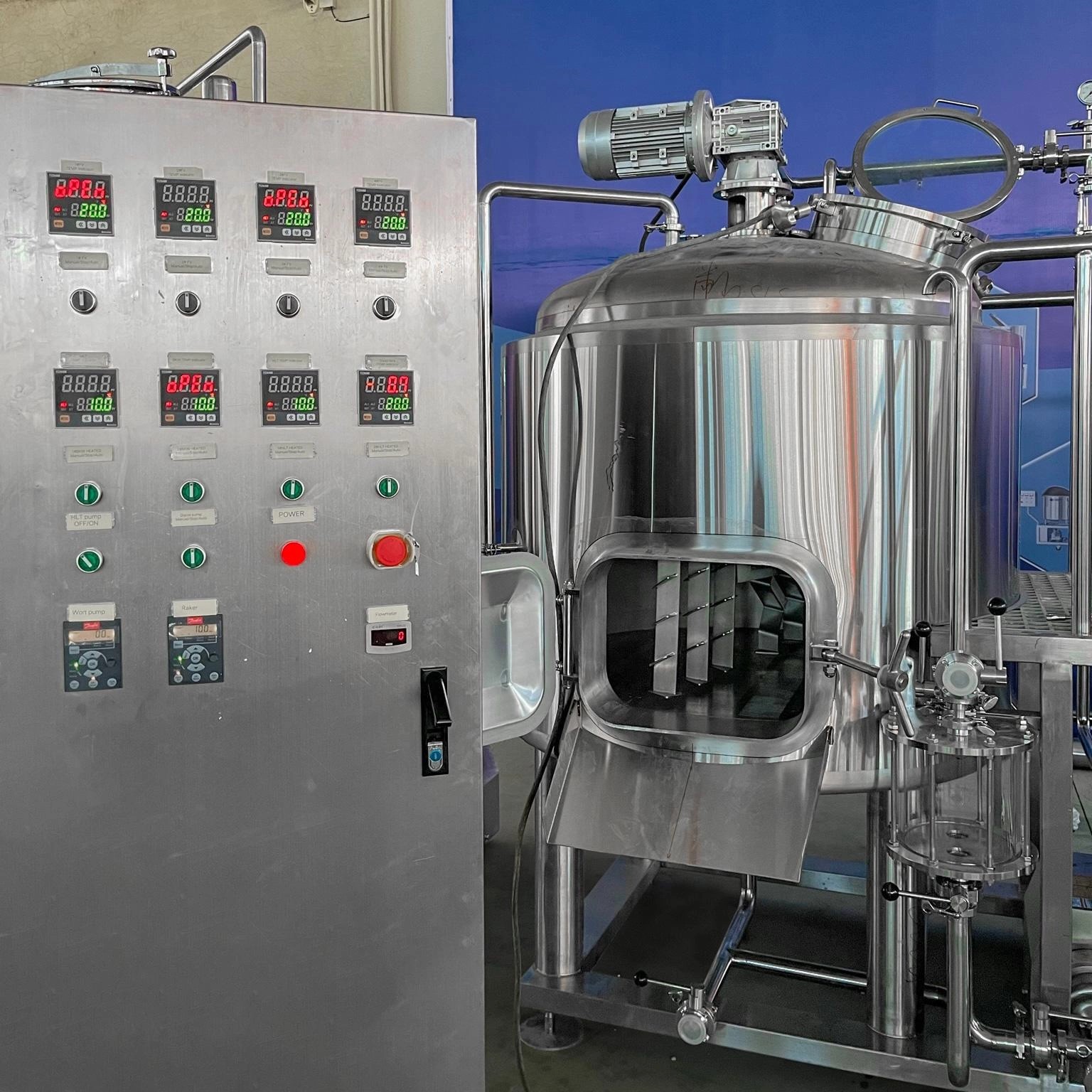

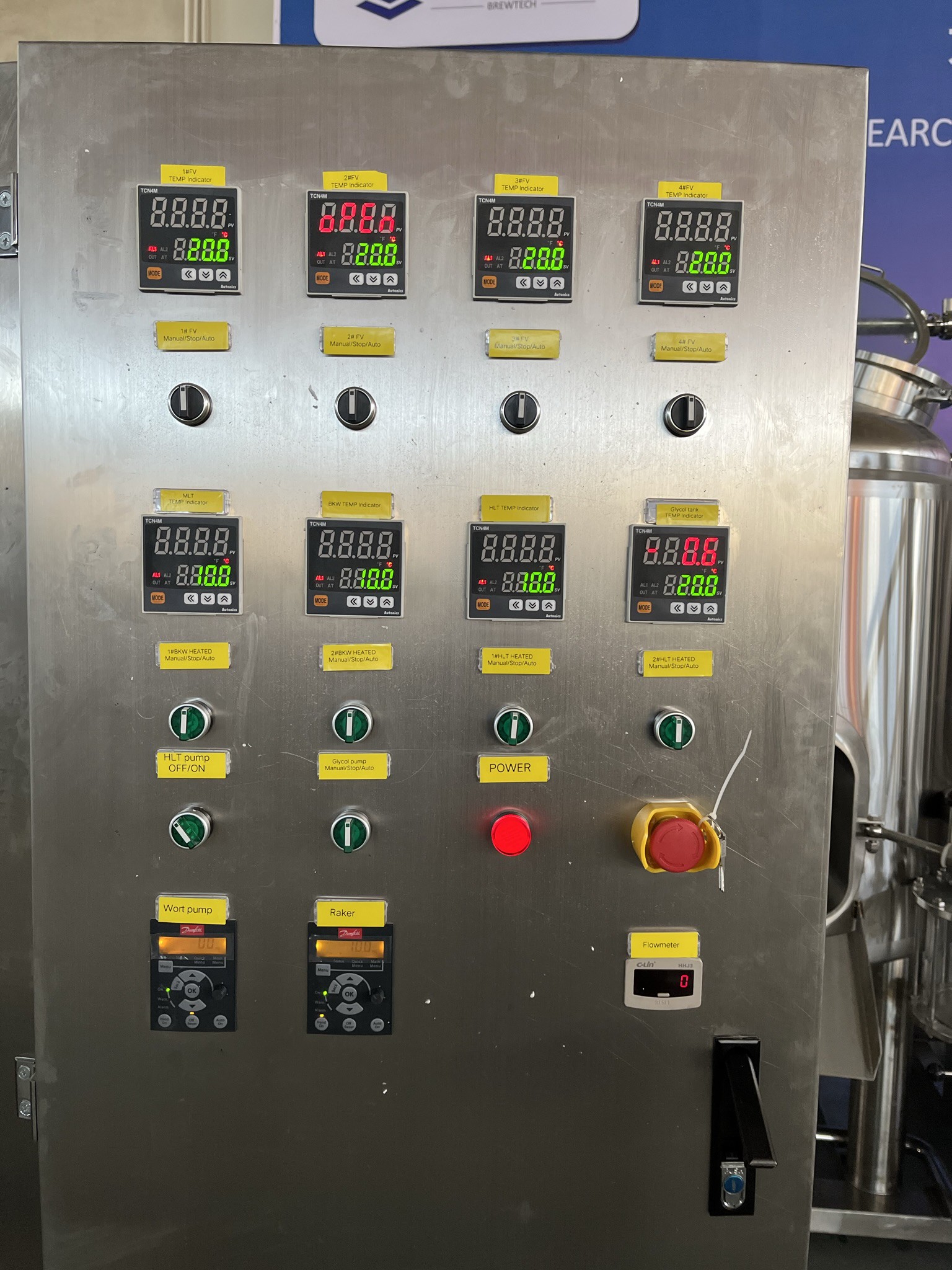

PID Control System (Optional: PLC)

12

1. SUS 304 Material cabinet

2. Installing style: wall-mounted

3. Temperature indicator of brewhouse & hot water tank

Pump & motor & rake reducer VFD Speed control & control

of fermenters & glycol tank & chiller



4. High quality electronic components, CE standard



5. Pump on/off control



6. High quality electronic components, CE standard

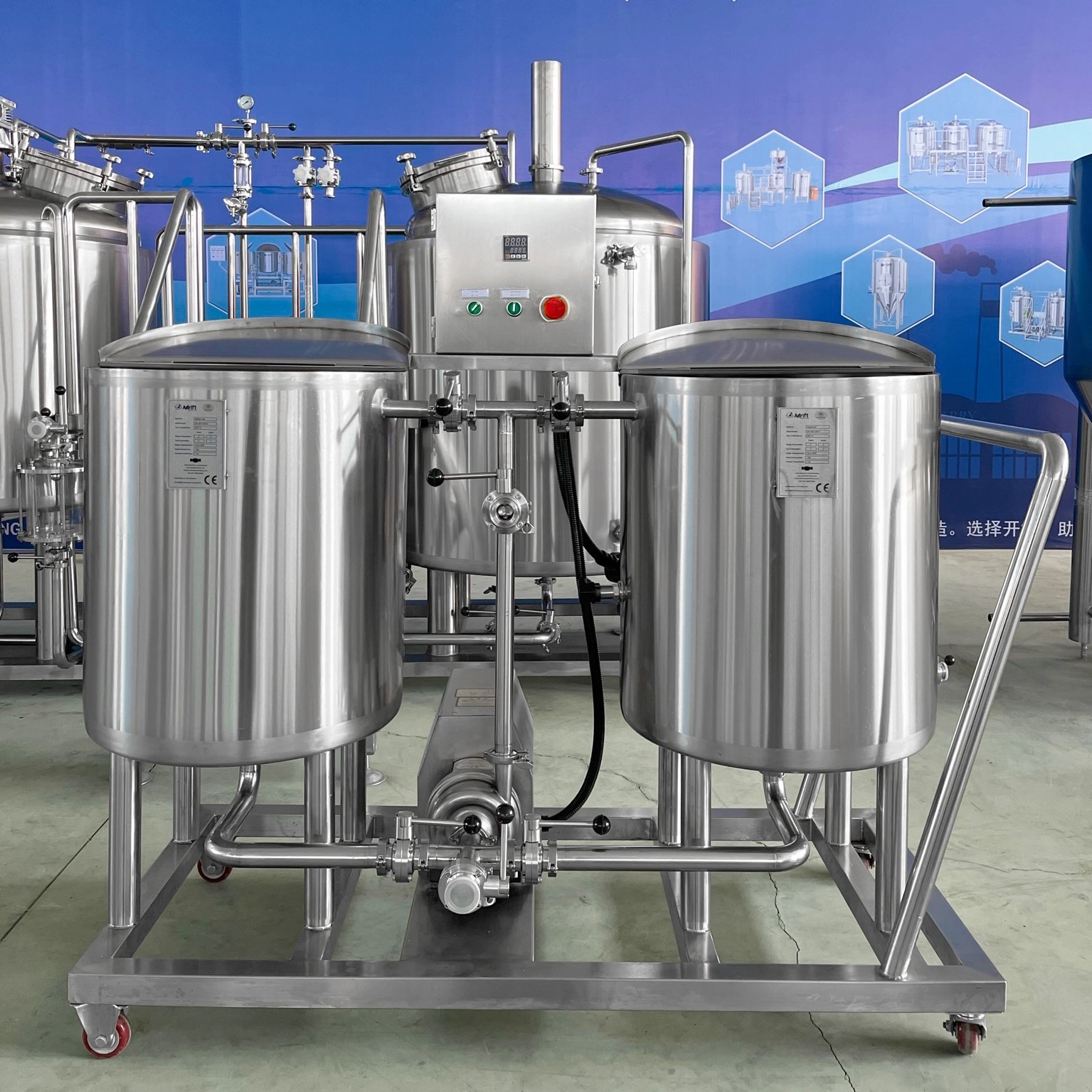

50L CIP System

13

- Disinfection tank

Effective volume: 50L

Dimensions: Φ 500*700mm

SUS304 Material Cone top & bottom Thickness is 2mm

Valves and fittings included

- Alkali tank

Effective volume: 50L

Dimensions: Φ 500*700mm

Double layers, with 50mm PU insulation

SUS304 Material Cone top & bottom Thickness is 2mm

Valves and fittings included

Heating: 3KW electric heating tubes

- Cleaning Pump

Flow 3m3/h, lift is 24m

Hose: Reinforced food grade

Stainless steel; power is 0.75KW

Dimension: 480*200*345mm

Complete circulation sanitary piping and fittings

Carry Equipment is a professional brewing equipment supplier in China. We have our own factory and technology team. The staff has more than 10 years of brewing experience and manufacturing experience.

 - With the concept of "pioneering and enterprising", CARRY strives to consistently deliver high-quality products and the best service for our customers. Fully committed to the brewing industry, we always take customers’ requirements and satisfaction as our aim.

14
