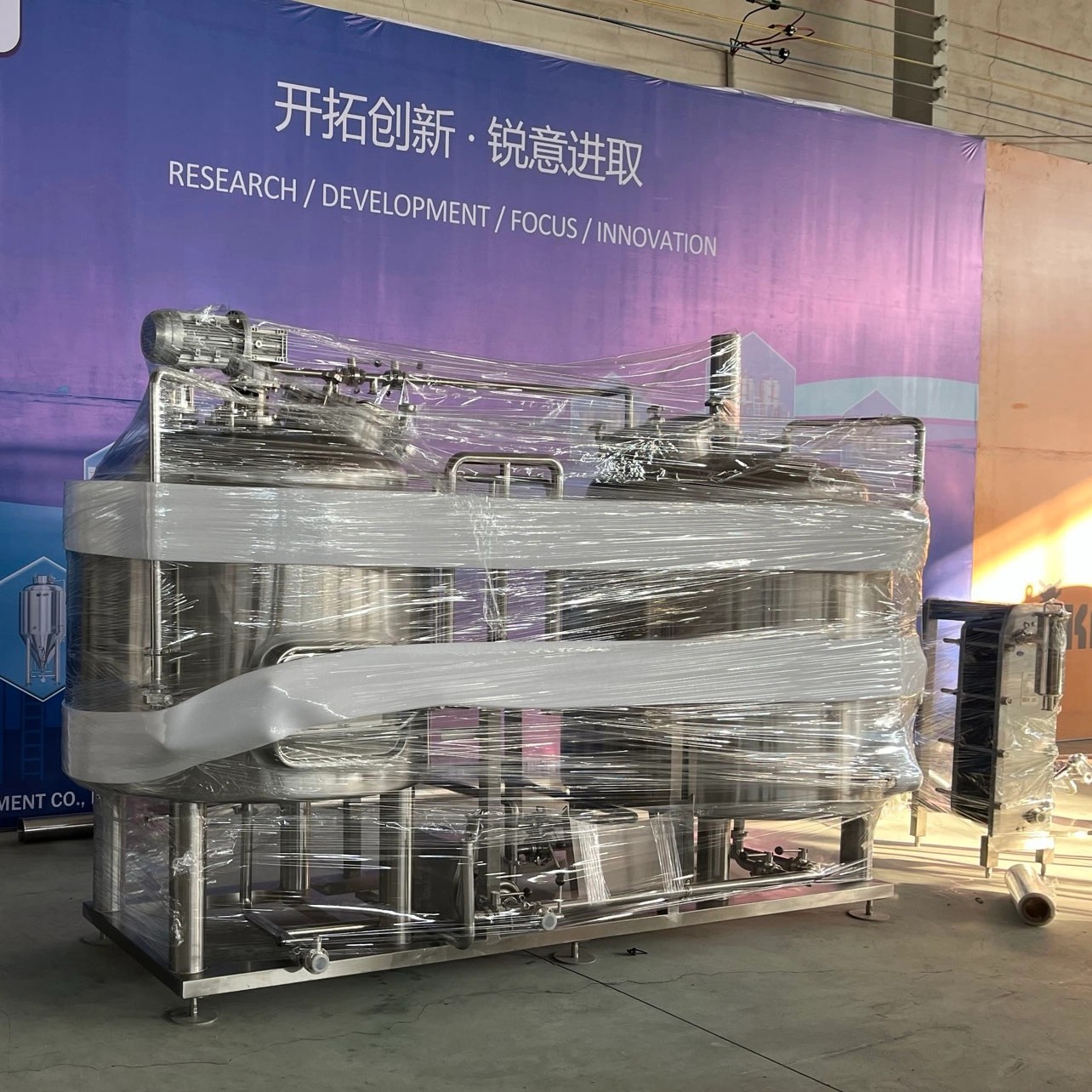

400L Beer Brewing System - CARRY Brewtech

Effective Volume :

200L
2BBL
250L
300L
3BBL
400L
Customized

Heating Method :

Electric Element Heating
Steam Heating
Customized

Add to Basket

Inquire Now

◉ Product Parameters

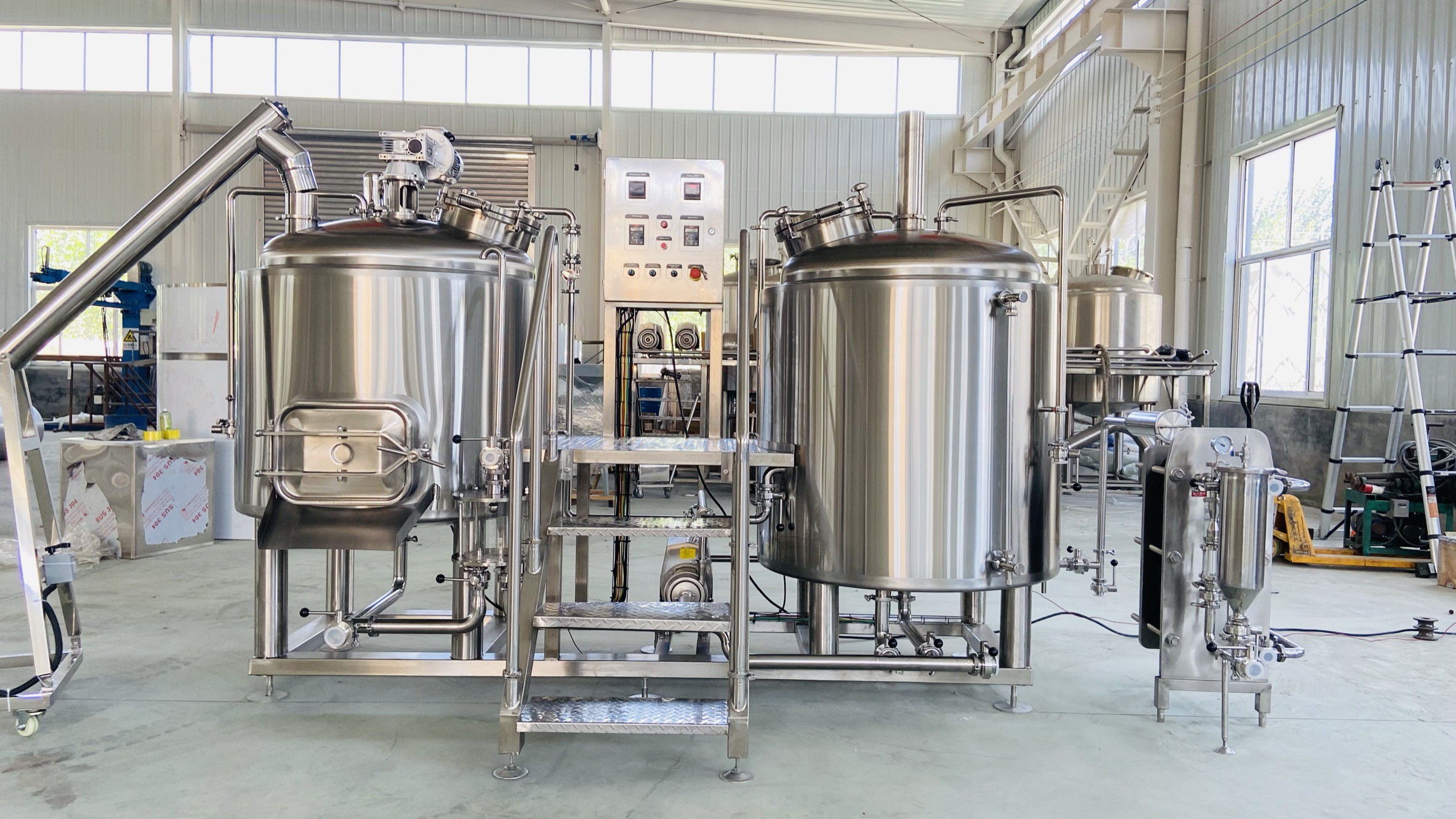

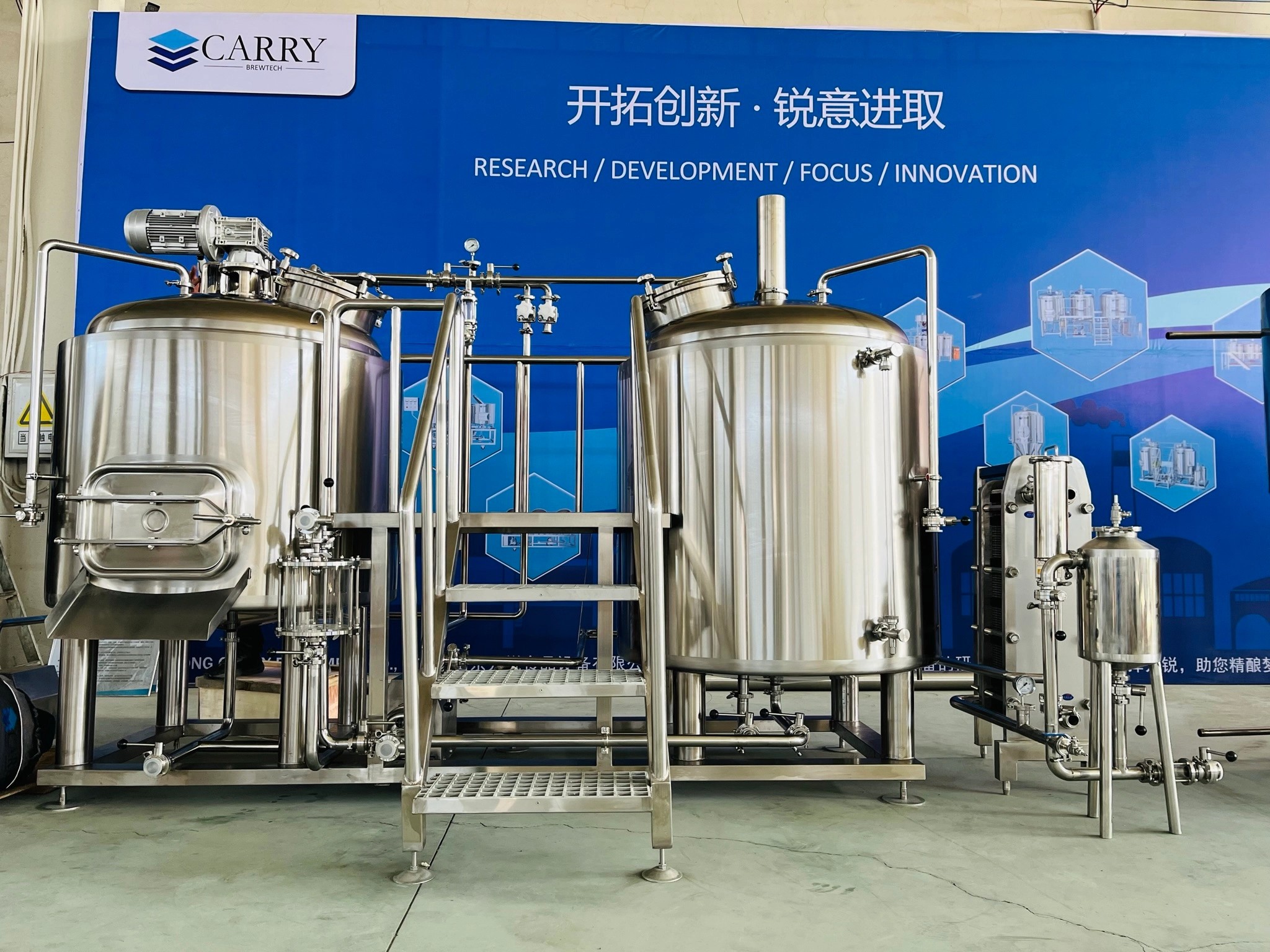

400L 2-Vessel Beer Brewery System

400L 2-Vessel Beer Brewery System - made of stainless steel 304. Including mash / lauter tank, kettle / whirlpool tank and other small devices. It's effective volume is 400L. total volume is 500L. We can customize your equipment according to your needs.The brewing system is an important part of the fermentation process, and the wort enters the fermentation tank after it comes out of the brewing system. Therefore, the quality of the beer brewed in the fermenter largely depends on the quality of brewing.

the Mash + Lauter Tank
Top glass type manhole	Grain raker with moter and reducer (VFD)
Easy clean and detachable spraging spray ring	360° coverage CIP spraying ball
With Pressure relief valve equipped on top of tank	With tangential whirlpool inletSteam heating jacket
Side mounted grain outdoor&grain chute, size=430*330mm	Professional designed SUS304 false bottom, milled gap: 0.7mm
With Balance tank	Temperature probe (PT-100)
With sight glass equipped on the wort back-flow pipeline	With 3T/h VFD type Wort pump
the Kettle + Whirlpool Tank
Side manhole	Outdoor condensing unit to prevent steam back-flow
With tangential whirlpool inlet	Temperature probe (PT-100)
360° coverage CIP spraying ball	With level tube
the Related Device
Yeast Adding Tank	Plate Heat Exchanger
Oxgenation Adding Device	Hops Filter

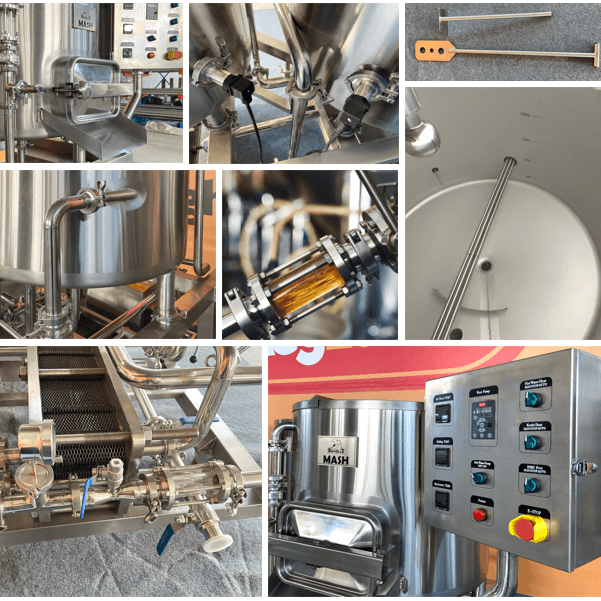

Details

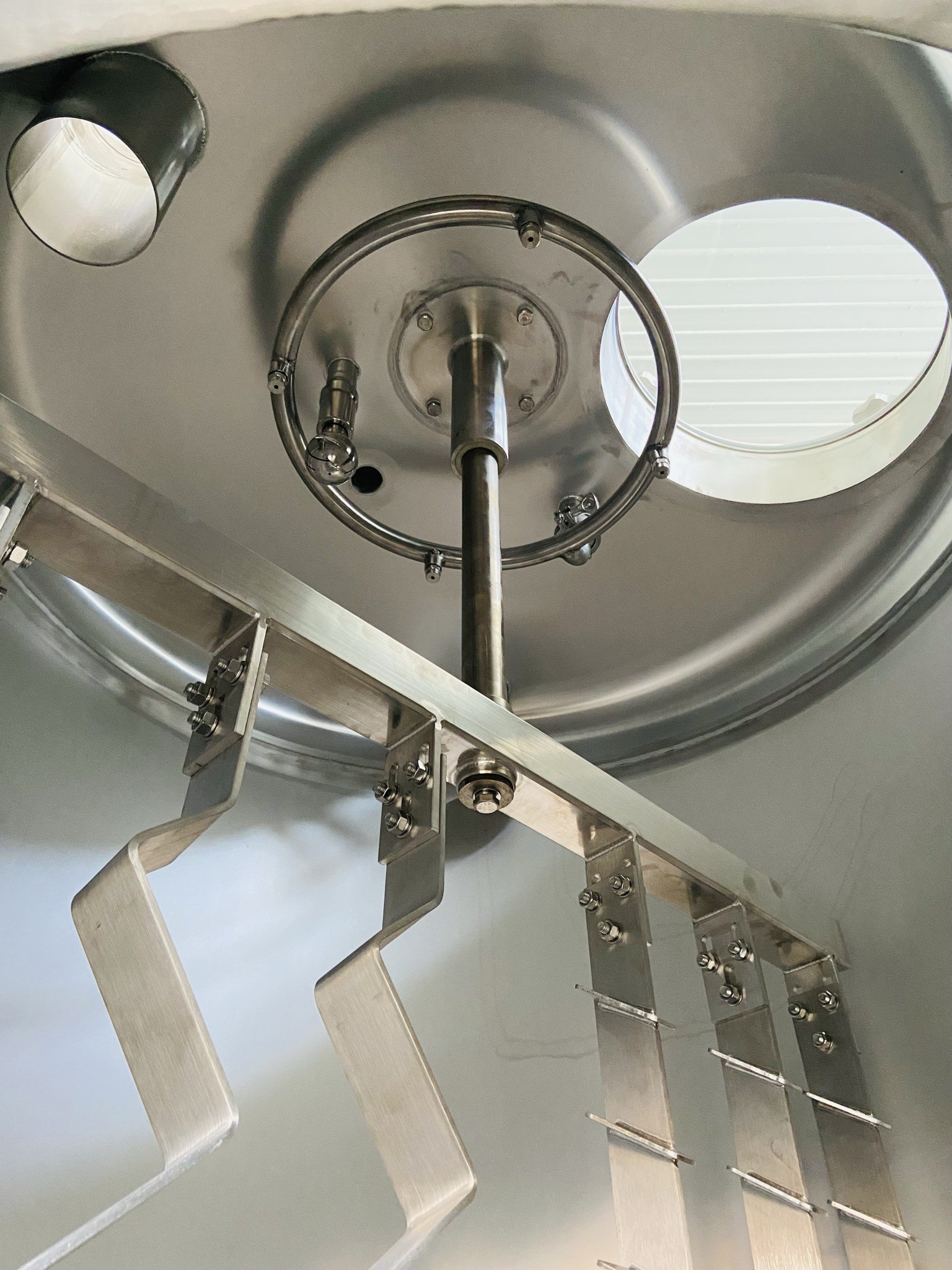

Spaging Spray Ring

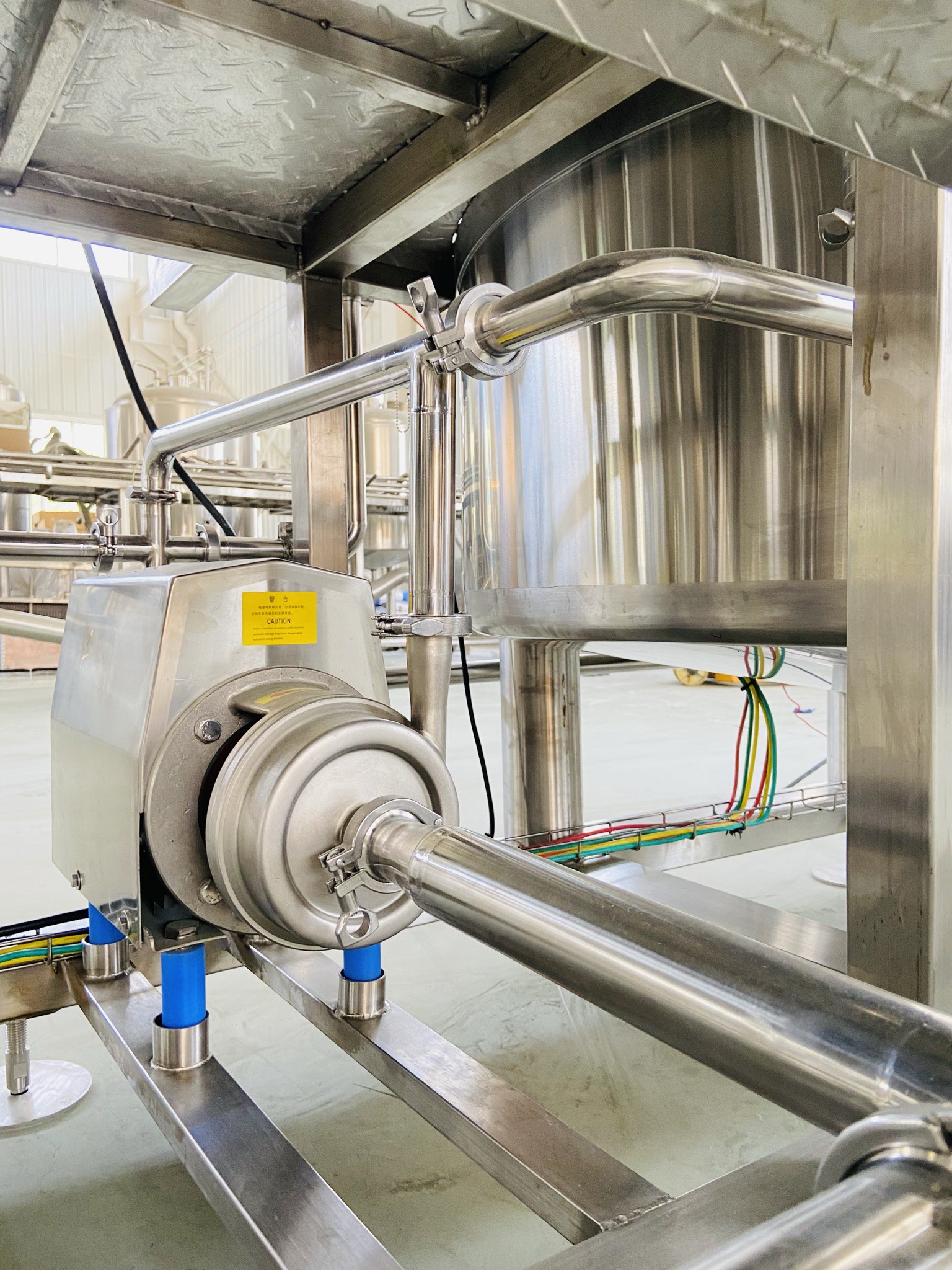

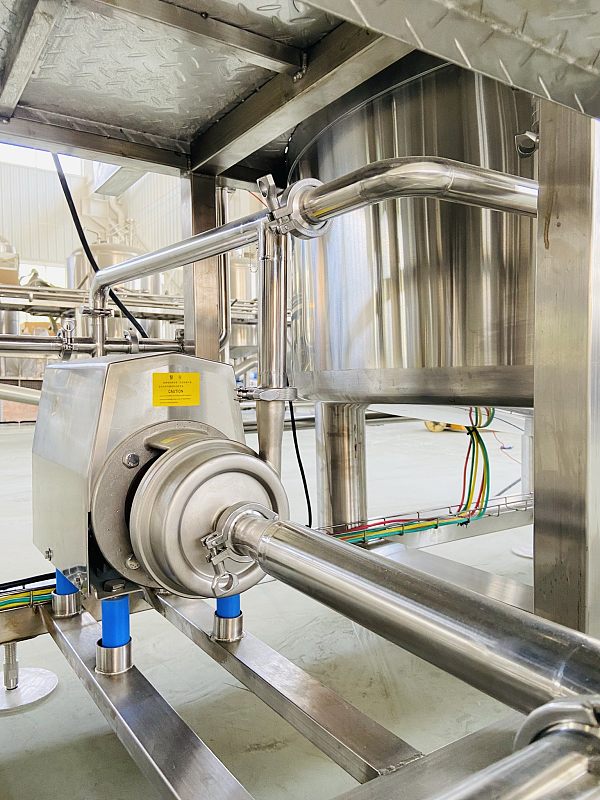

Wort pump

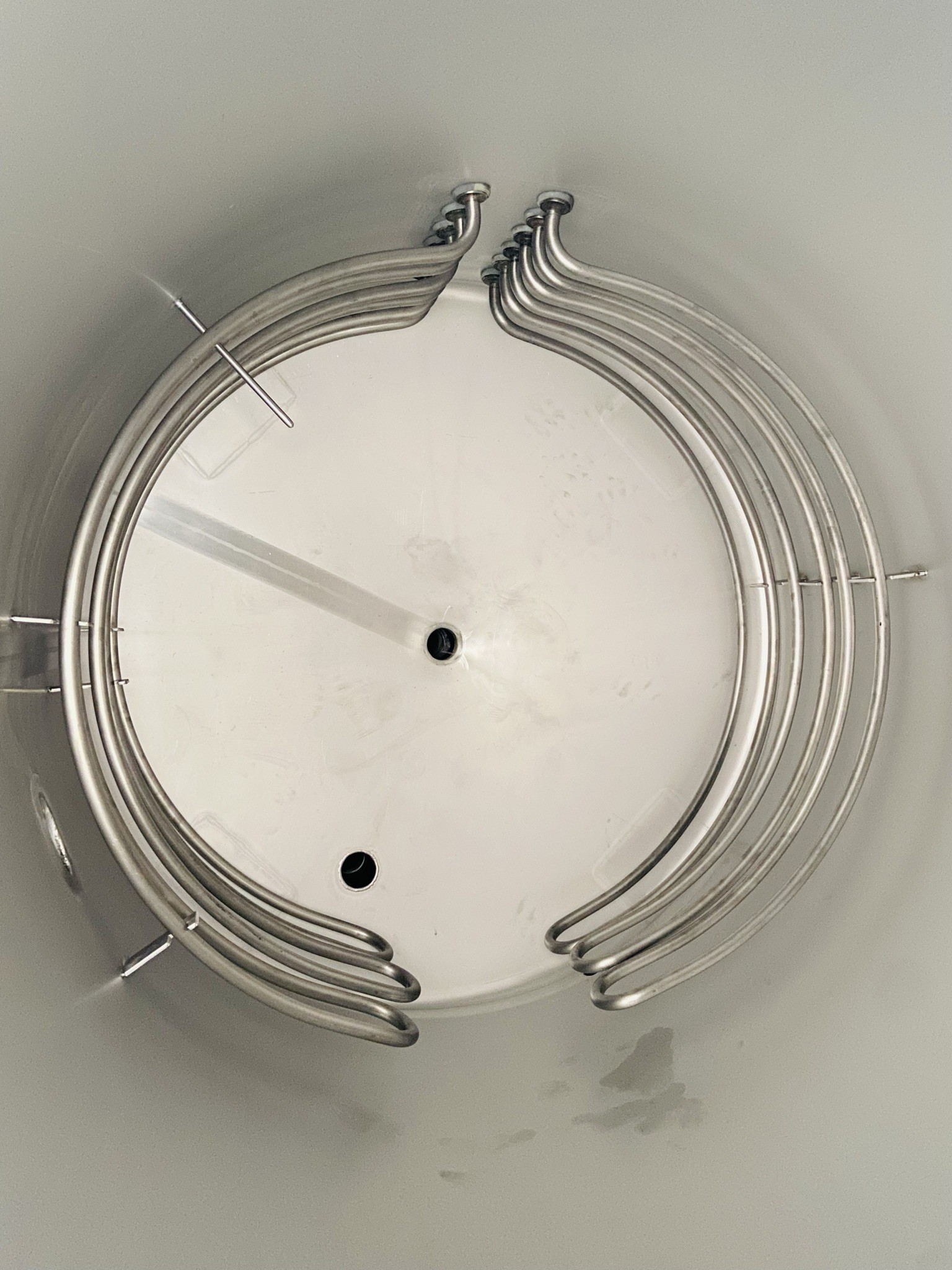

Electric heating tube
Plate heating exchanger

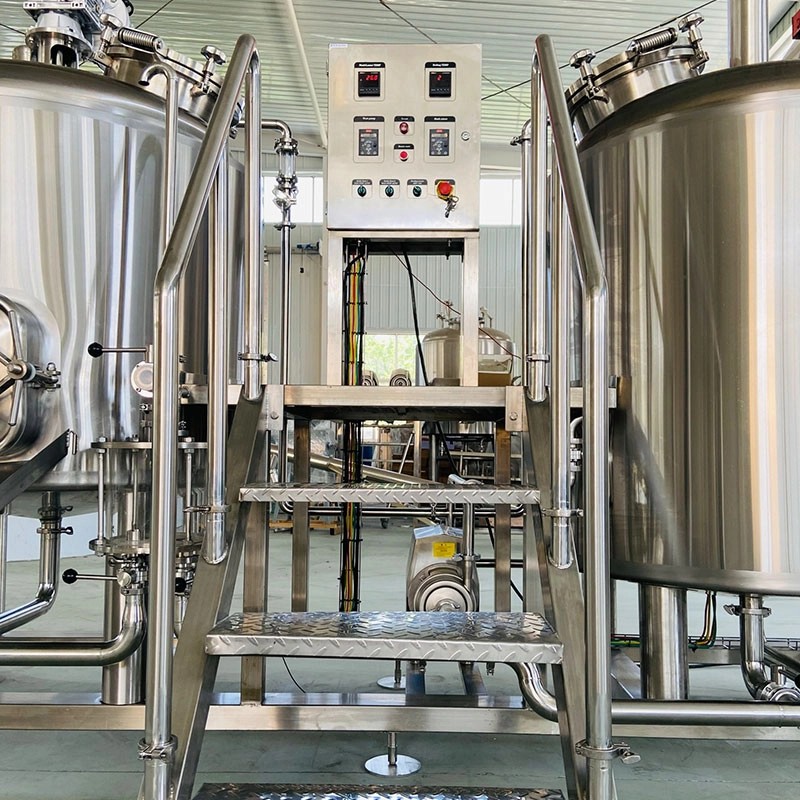

Control Cabinet
Balanced tank

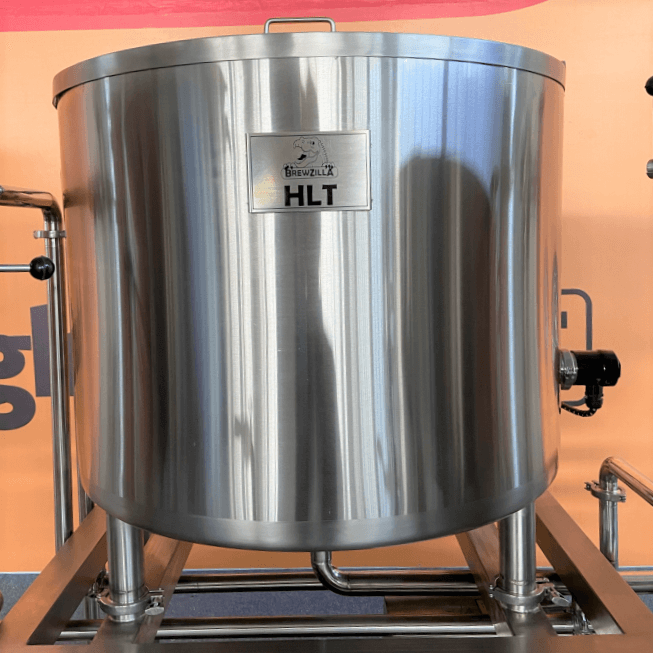

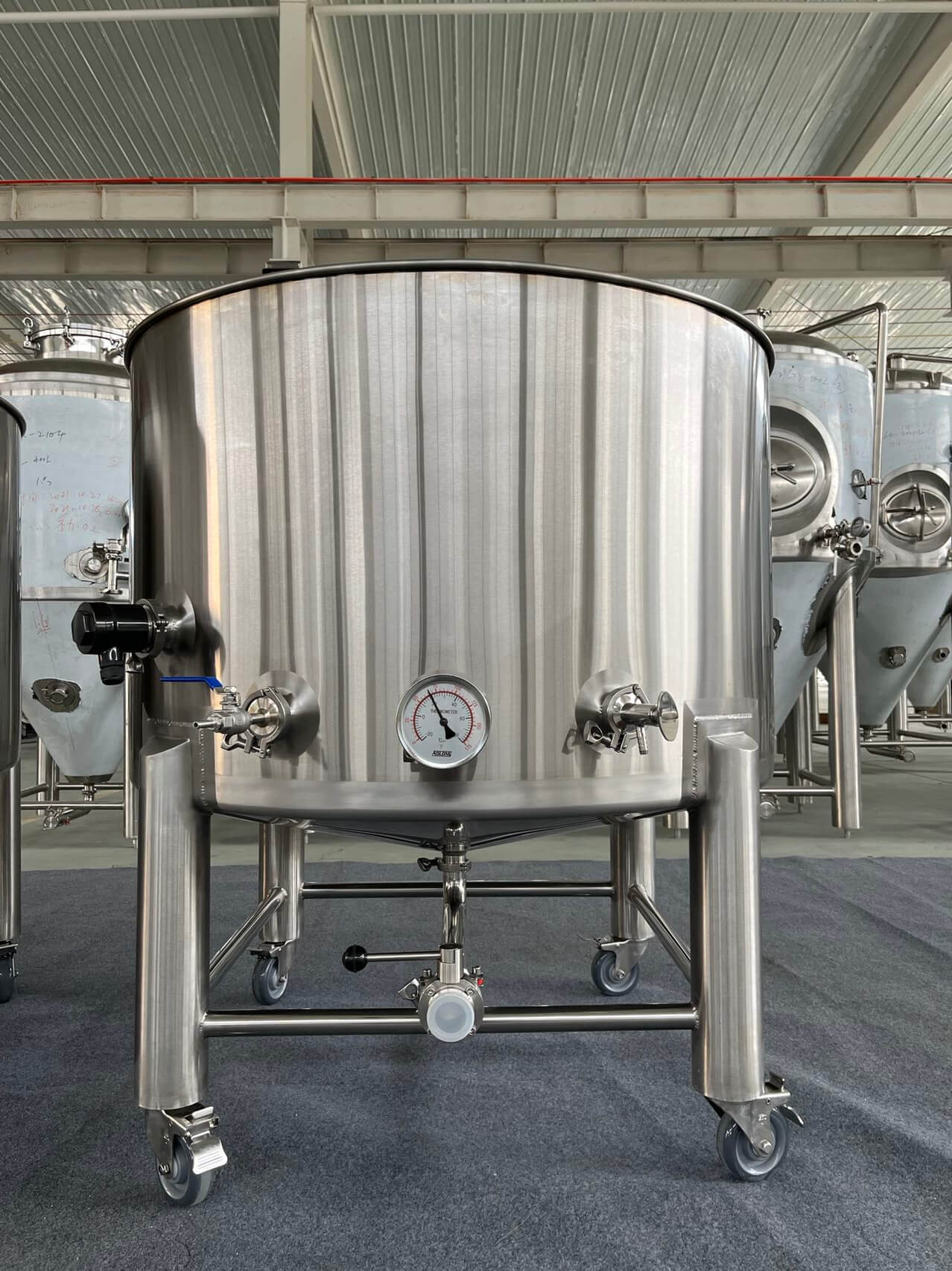

Hot Water Tank
1. Effective volume=200L, max volume=280L
2. Atmospheric manual open top lid
3. 12kw electric element
4. With 1T/H Hot water pump
5. Temperature Probe&PT-100
6. with level mark inside of tank

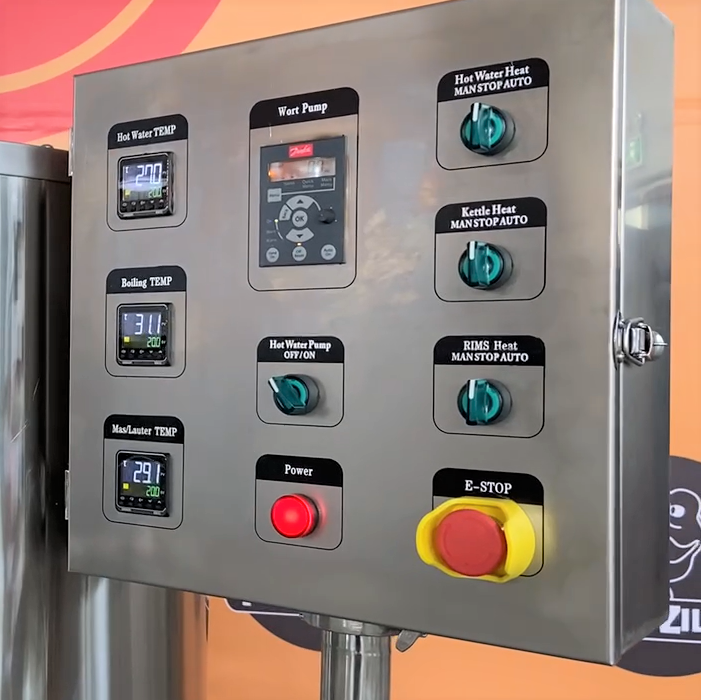

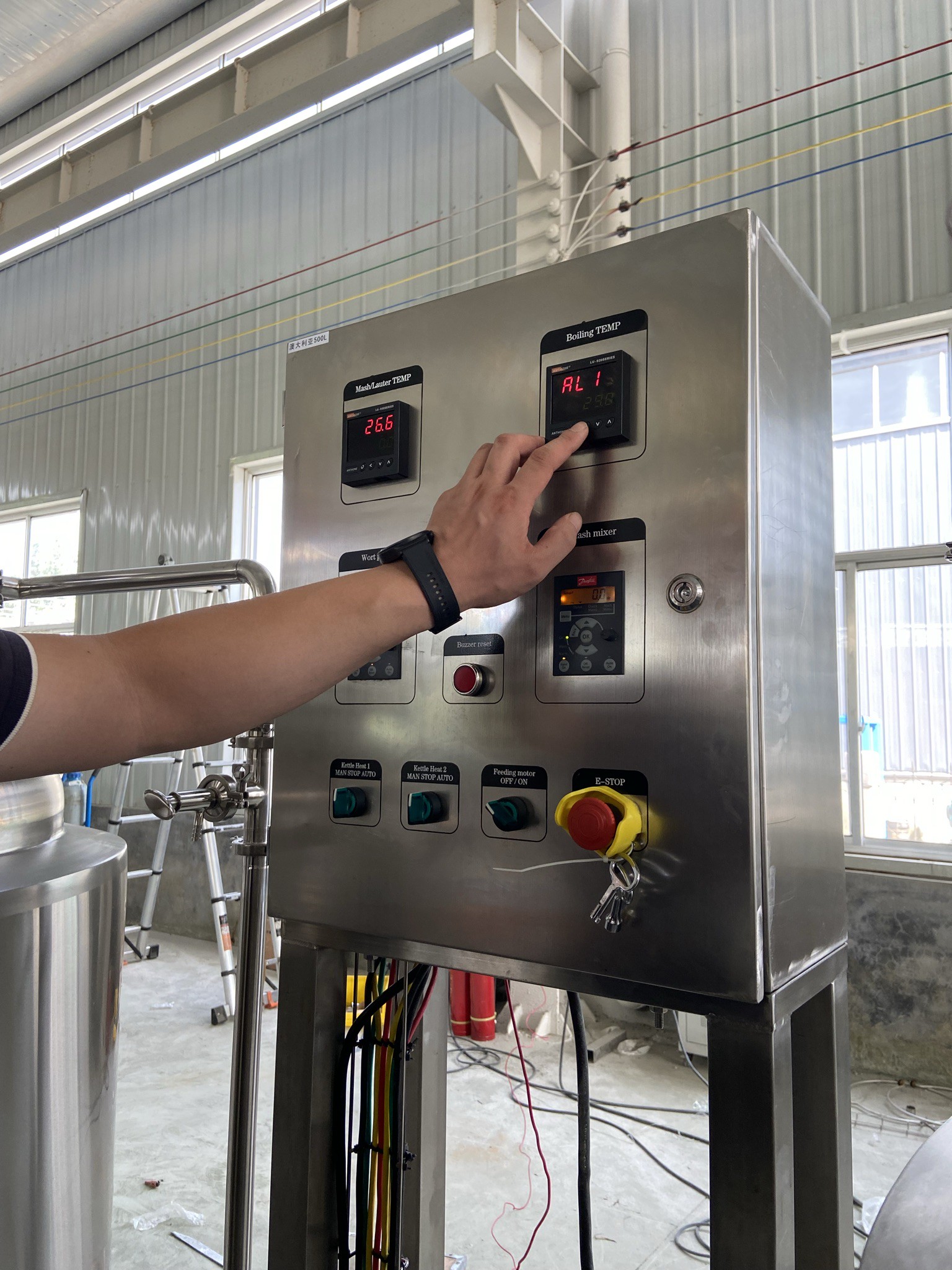

PID Control Cabinet
1. SUS 304 Material cabinet
2. Temperature indicator & heating elements on/off control of mash/lauter tun, kettle/whirlpool tank, hot water tank
3. Wort Pump VFD Speed control
4. Hot water pump on/off control
5. With high quality electric components, Schneider brand. CE, ISO Certificated

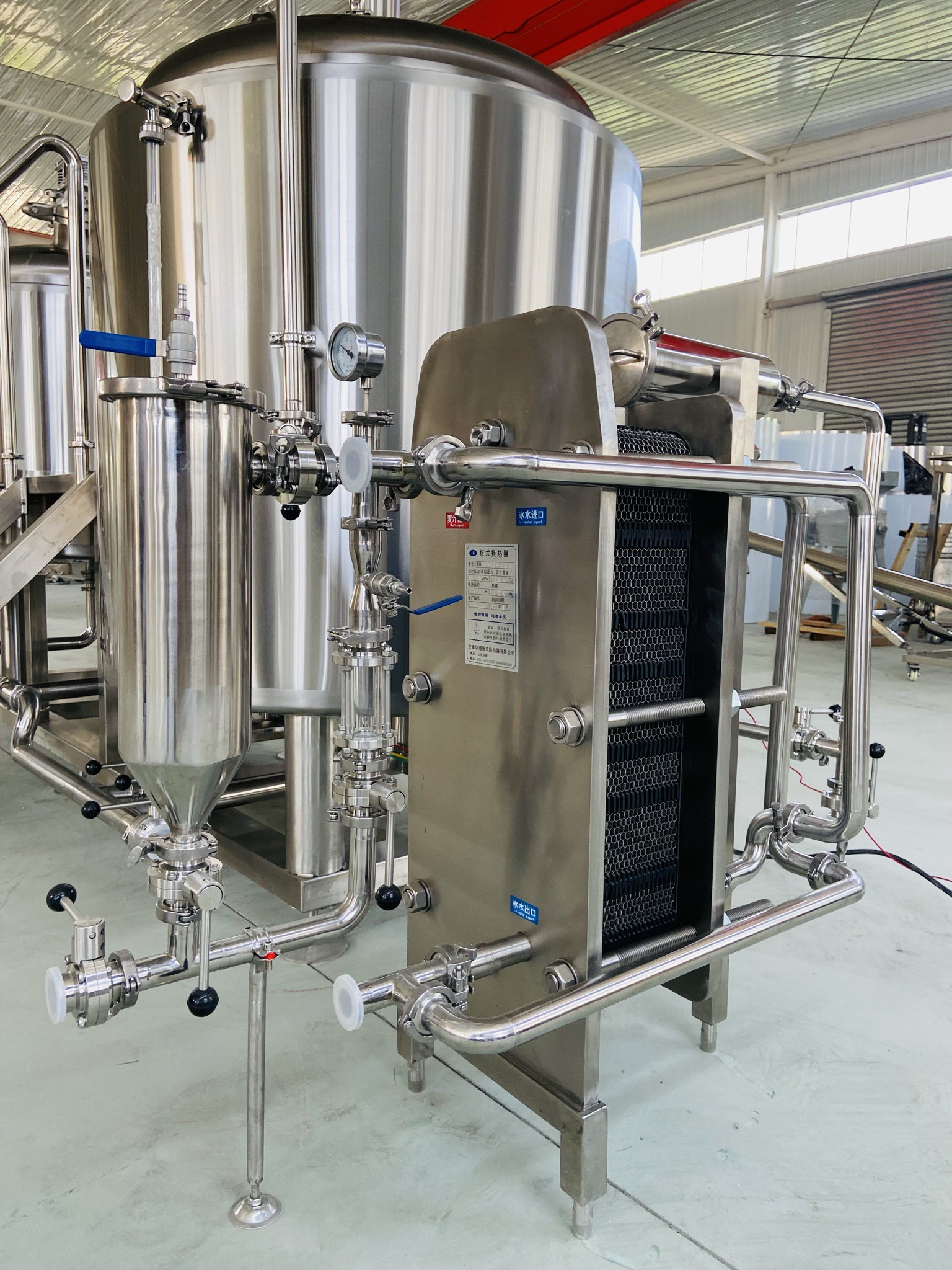

Knocking Out Fittings
1. High precision hops filter, equipped in pipelinebefore PHE
2. 3㎡ single stage plate heat exchanger
3. Temperature Gauge after PHE
4. Tap water outlet from the PHE to be able backflow into Hot water tank
5. Oxygenation device before wort knocking out port
