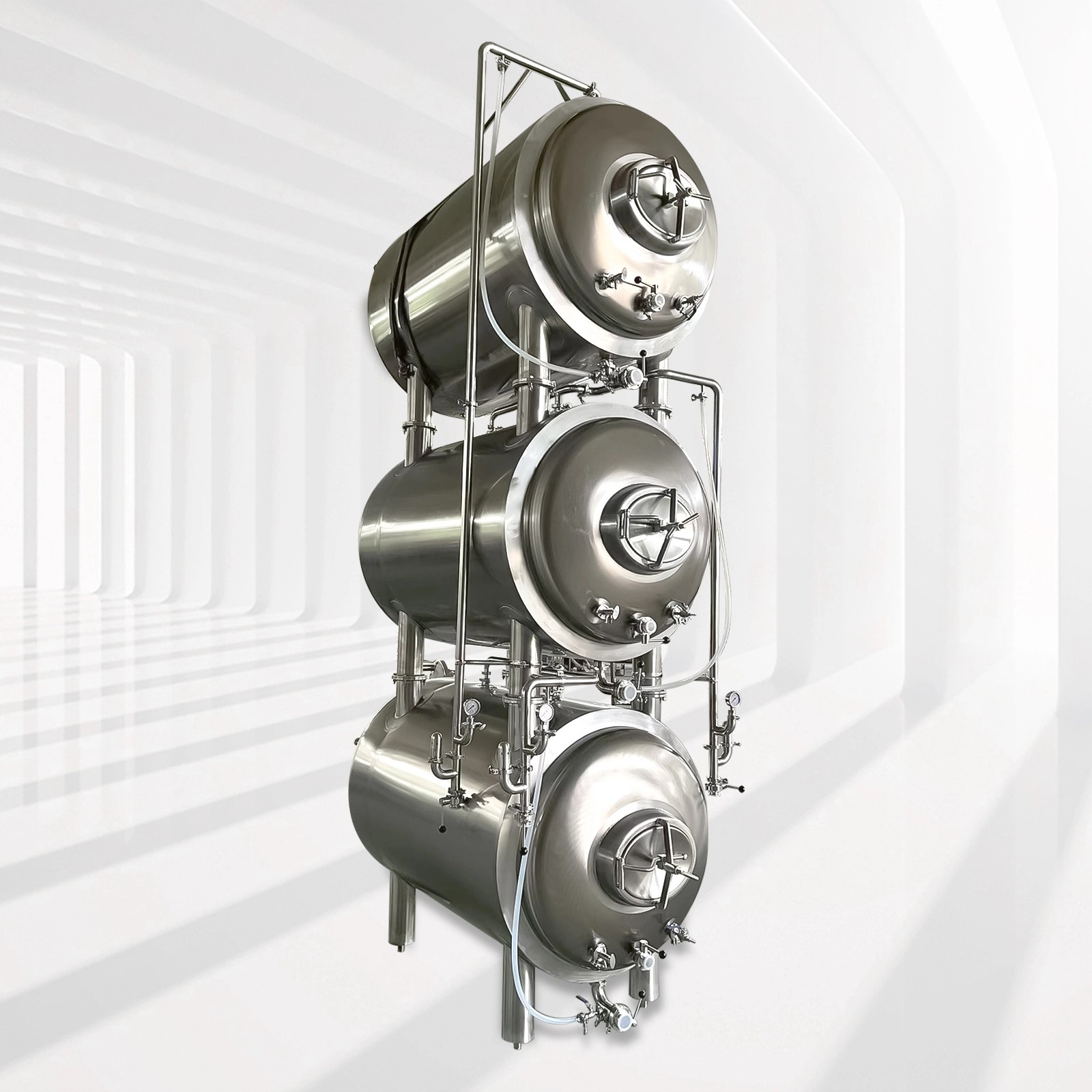

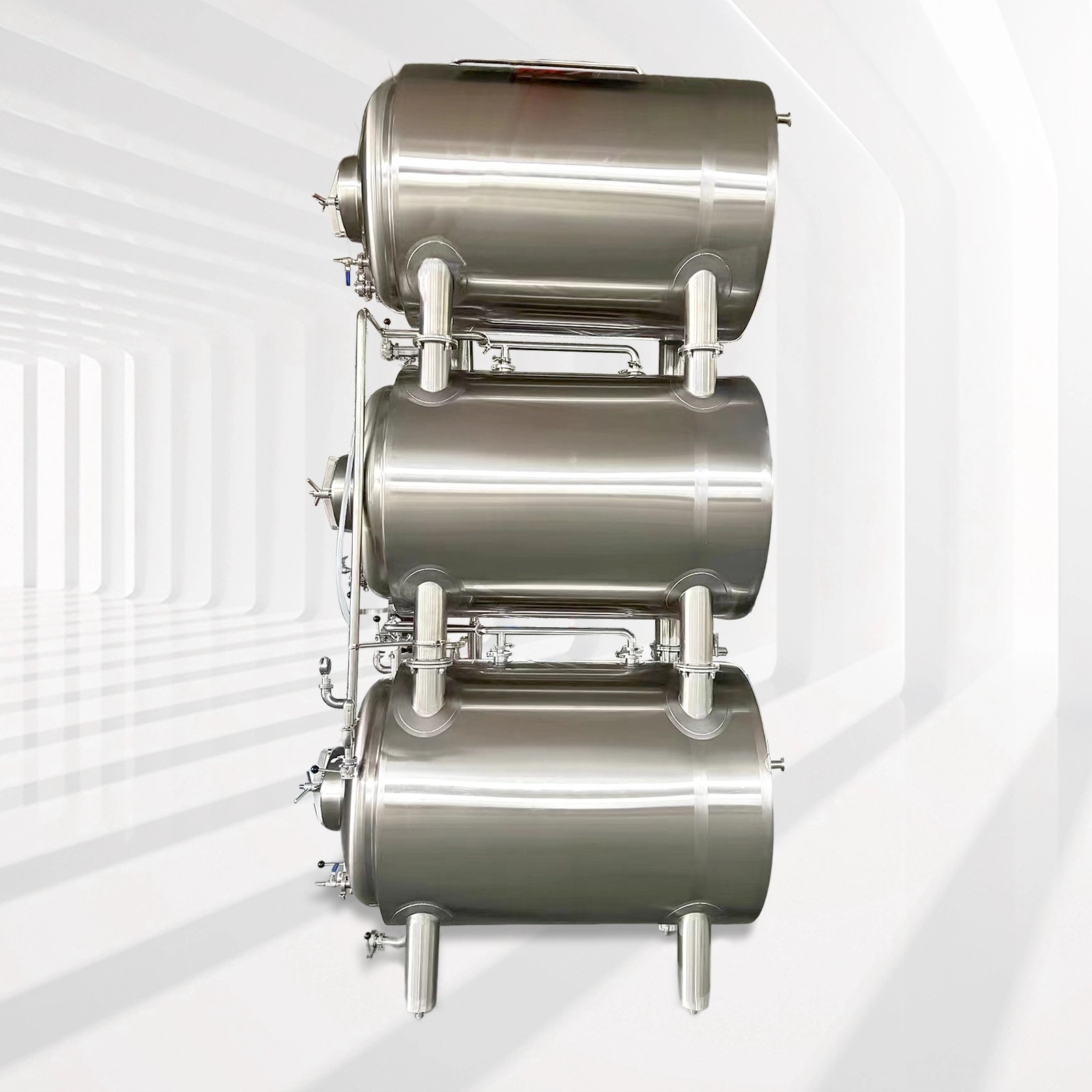

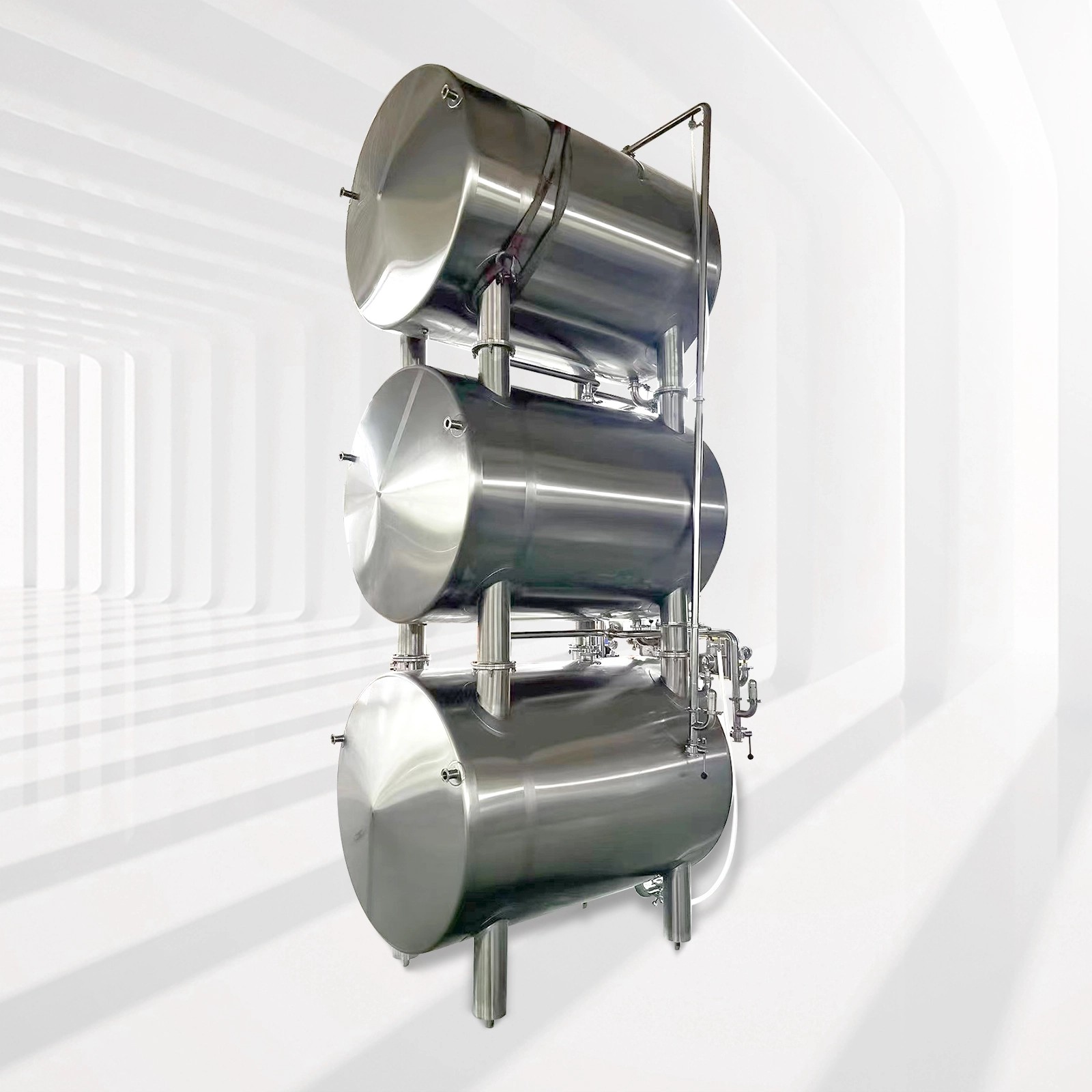

Triple Horizontal Brite Tank
Also, we can customize the equipment according to your actual situation.
◉ Product Parameters
Whole set of 500L Beer Brewing Equipment will include components as below:

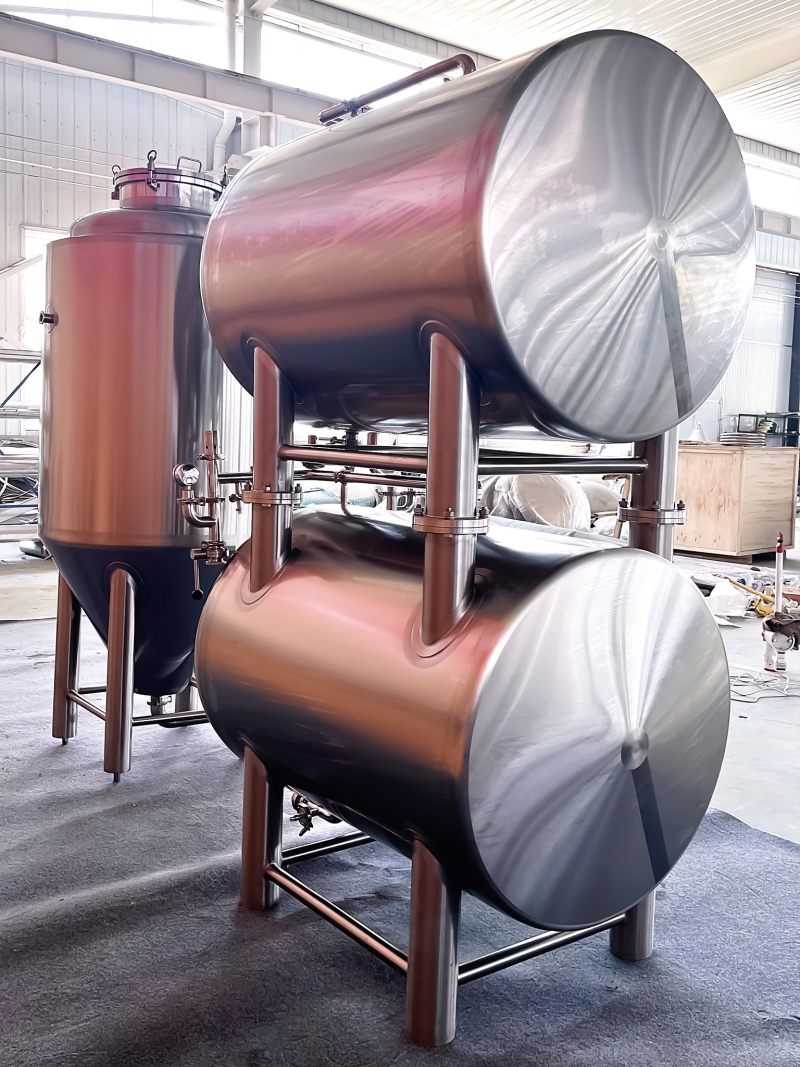

Horizontal Brite Tank - a turnkey project, made of the stainless steel 304. The main purpose of equipment design is to provide customers with double or triple beer brewing capacity on the basis of the same floor area.
- The Horizontal Brite Tank is a turnkey project, and the raw materials are all food-grade 304 stainless steel.
- The Horizontal Brite Tank consists of 2-3 separate brite tanks, each tank has the same effective volume, and we can provide you with customized services according to your brewing needs and actual conditions.
- The Horizontal Brite Tank consists of two layers, the basic structure is: inner layer + cooling jacket + insulation jacket + outer layer.
Specifications

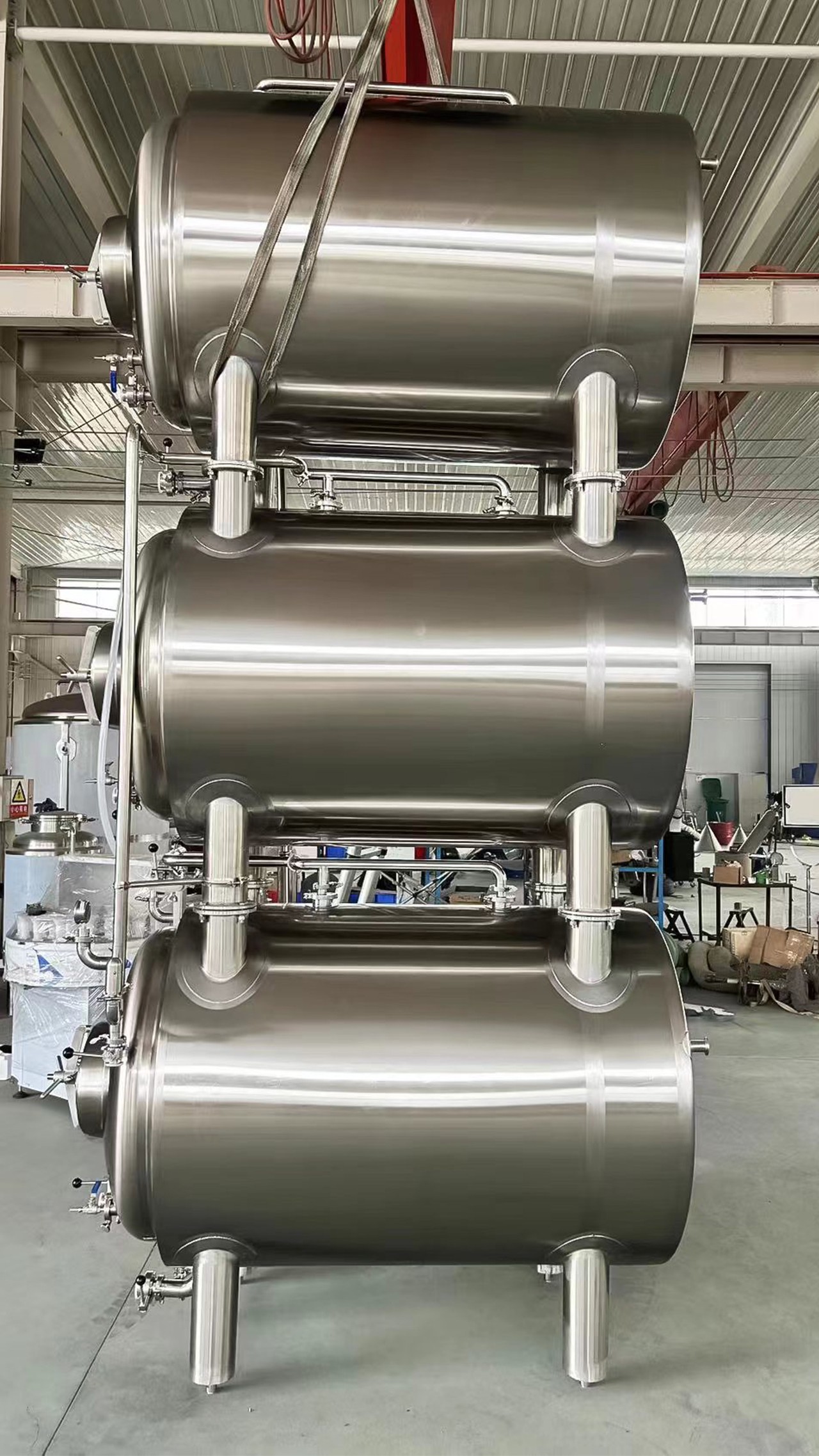

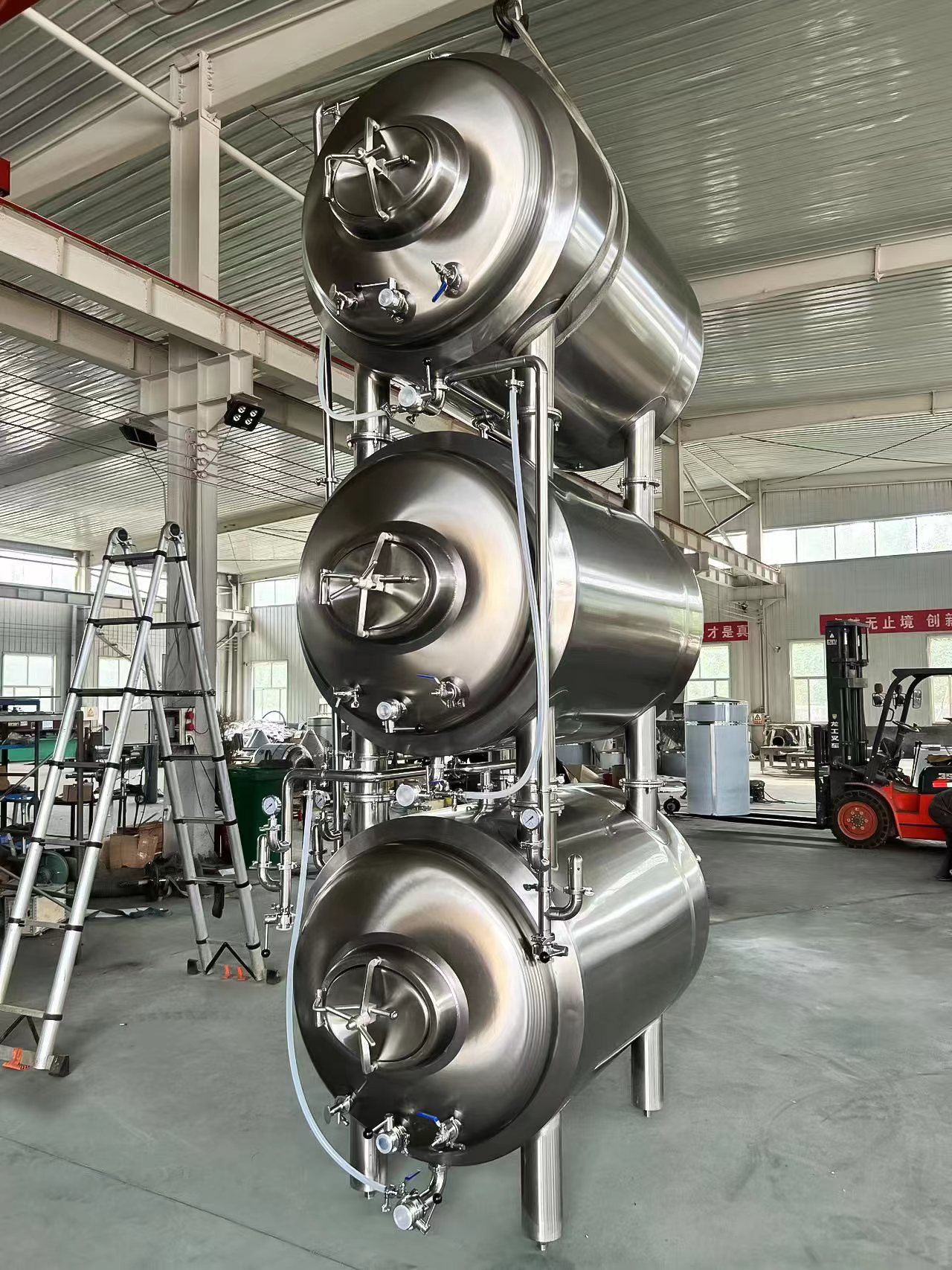

>> Triple Horizontal Brite Tank:
* Included the 3 tanks, the effective volume of each brite tank is 1000L, and the total volume of each brite tank is 1250L;
* Installing Method: Assembled ready to use;
* Cooling Method: Glycol Water circulation in tank's jacket;
* 100% high accuracy TIG welding;
* Design pressure 0.3MPa; Working pressure 0.15Mpa;
* Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;
* External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
* Insulation layer: PU-thickness= 80mm;
* Dimension: 2025mm*1316mm*4102mm;
* All accessories on the equipment are included;
* As a direct factory, we can provide you with the free consulation service, customize service and professional suggested solution according to your requirements.

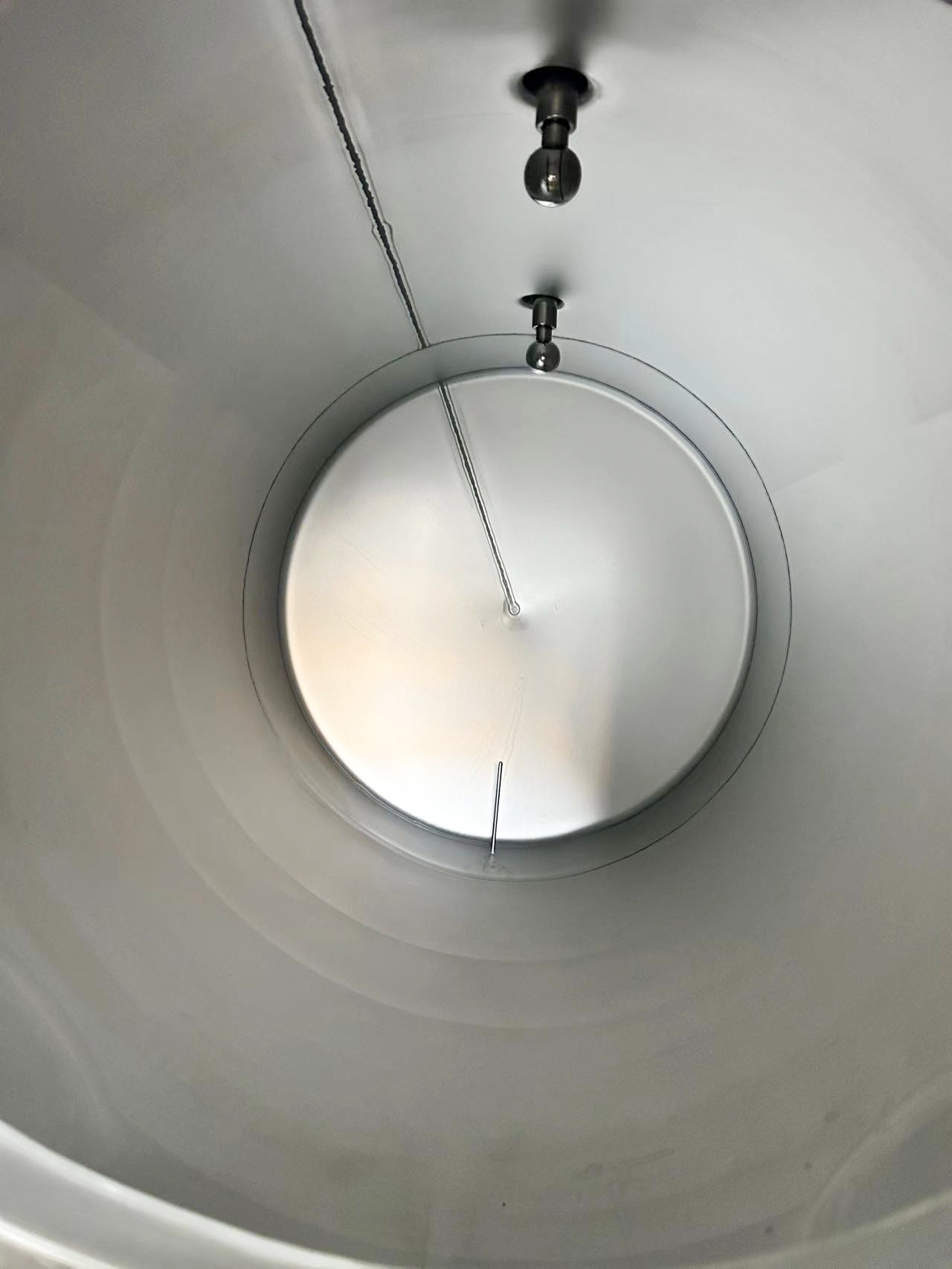

Inner Situation

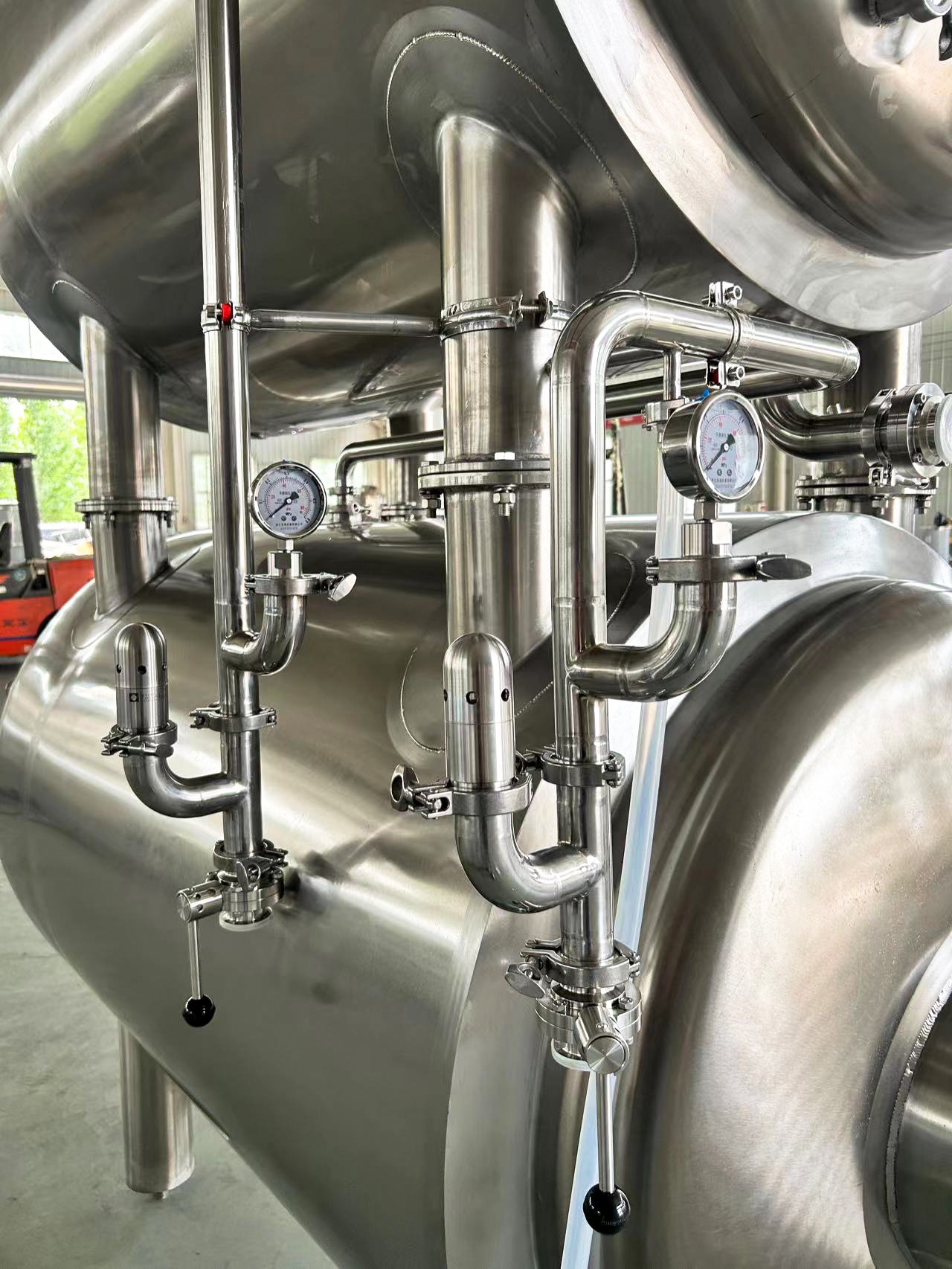

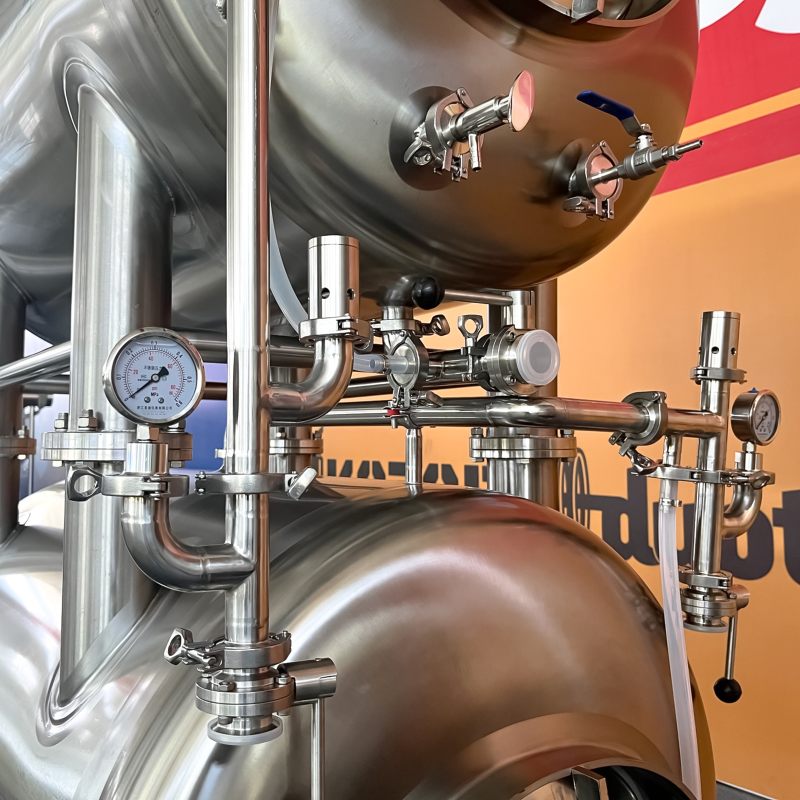

Pressure Gauge & Pressure Relief Valve

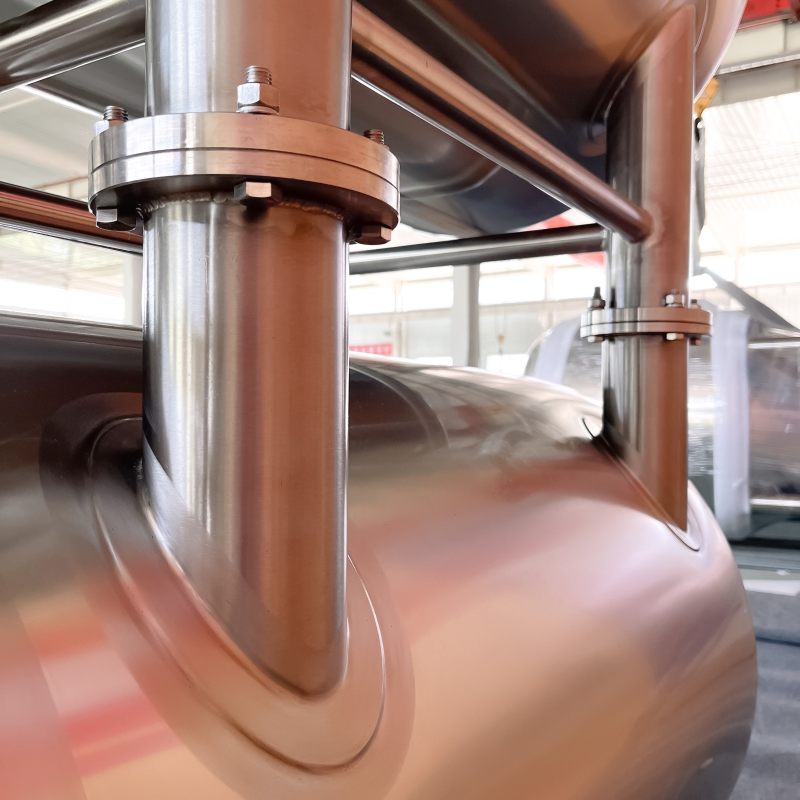

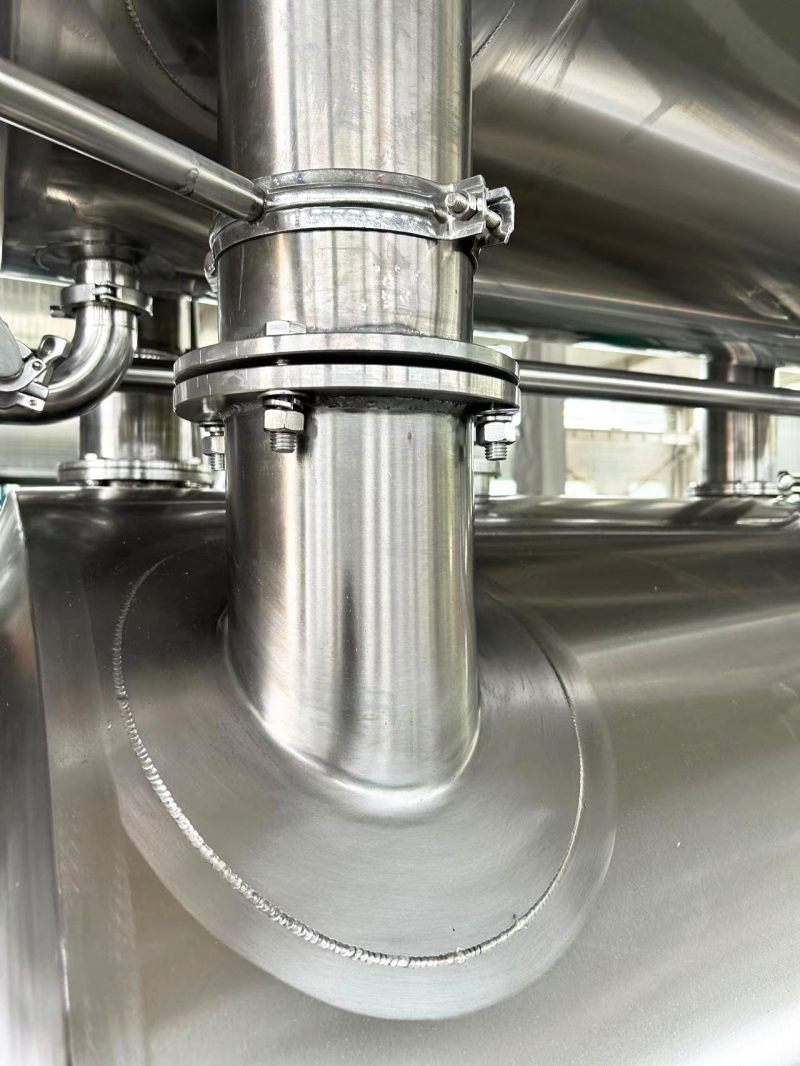

Flange

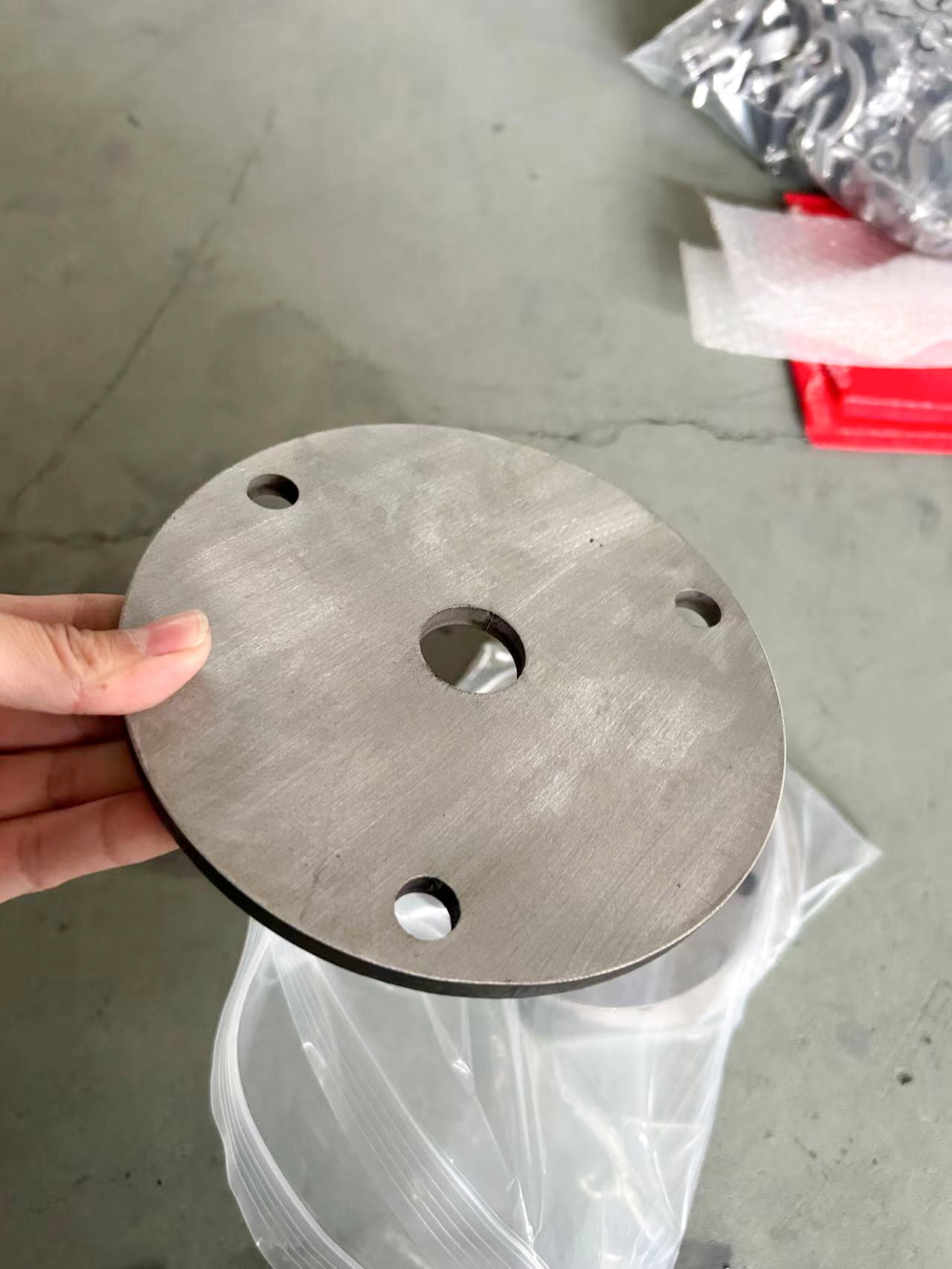

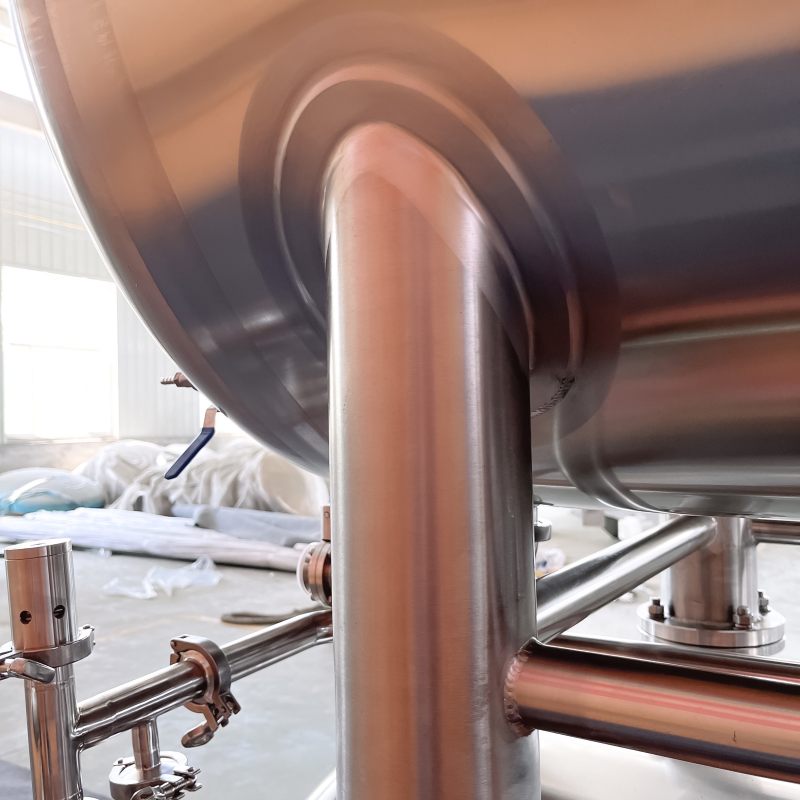

Adjustable pads with bolts

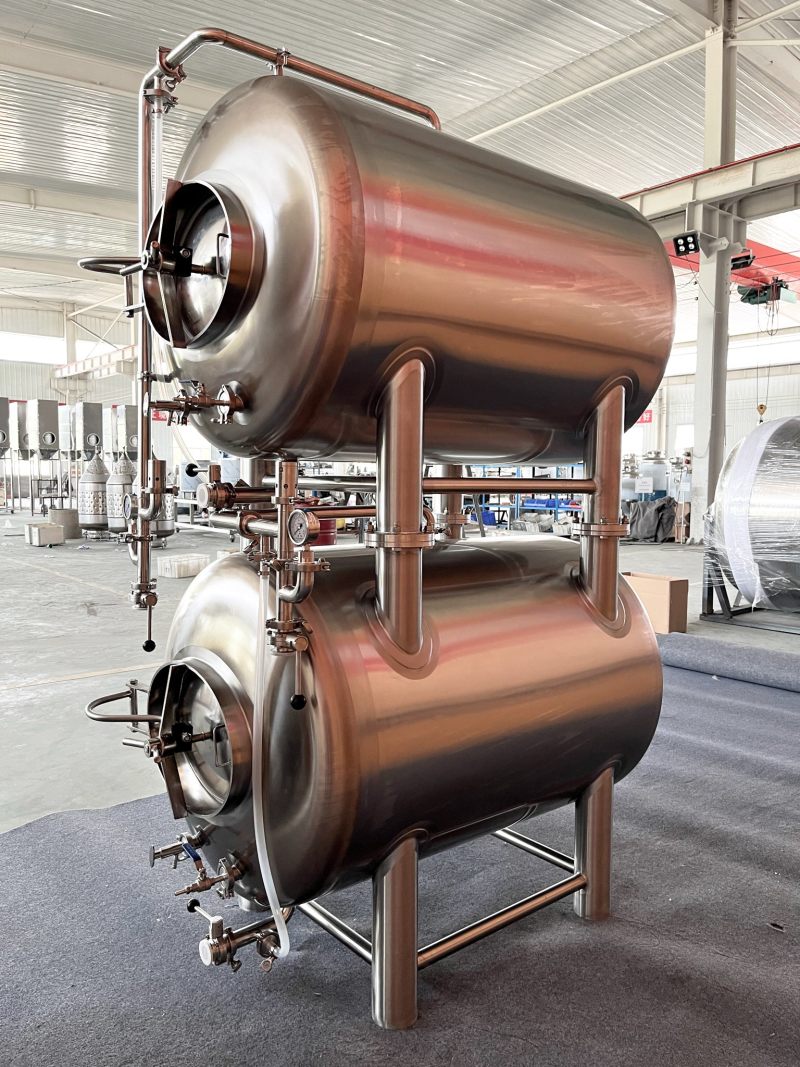

>> Horizontal Brite Tank:

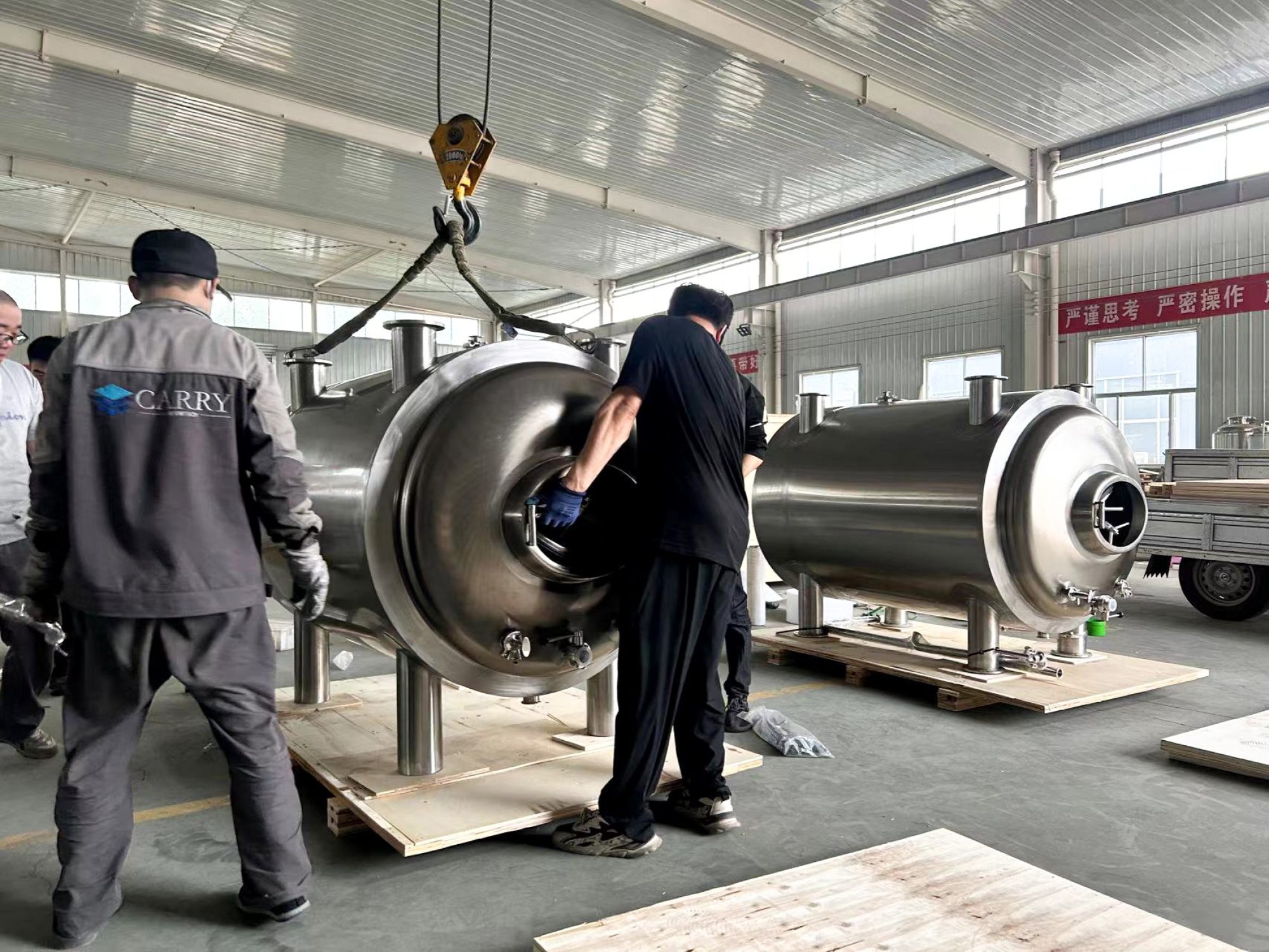

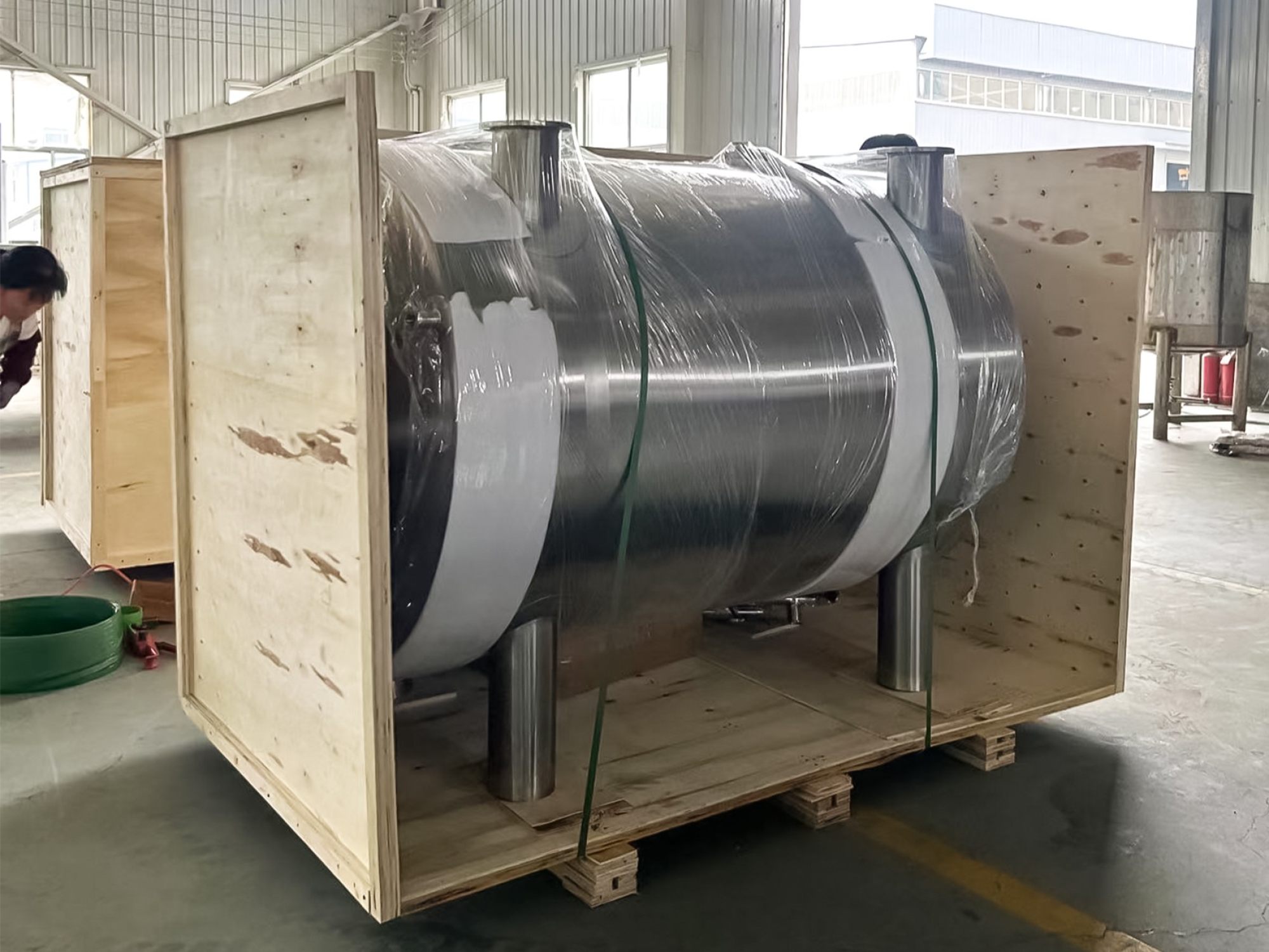

Delivery & Shipping
* Included the 3 tanks, the effective volume of each brite tank is 1000L, and the total volume of each brite tank is 1250L;
* Installing Method: Assembled ready to use;
* Cooling Method: Glycol Water circulation in tank's jacket;
* 100% high accuracy TIG welding;
* Design pressure 0.3MPa; Working pressure 0.15Mpa;
* Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;
* External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
* Insulation layer: PU-thickness= 80mm;
* Dimension: 2025mm*1316mm*4102mm;
* All accessories on the equipment are included;
* As a direct factory, we can provide you with the free consulation service, customize service and professional suggested solution according to your requirements.
