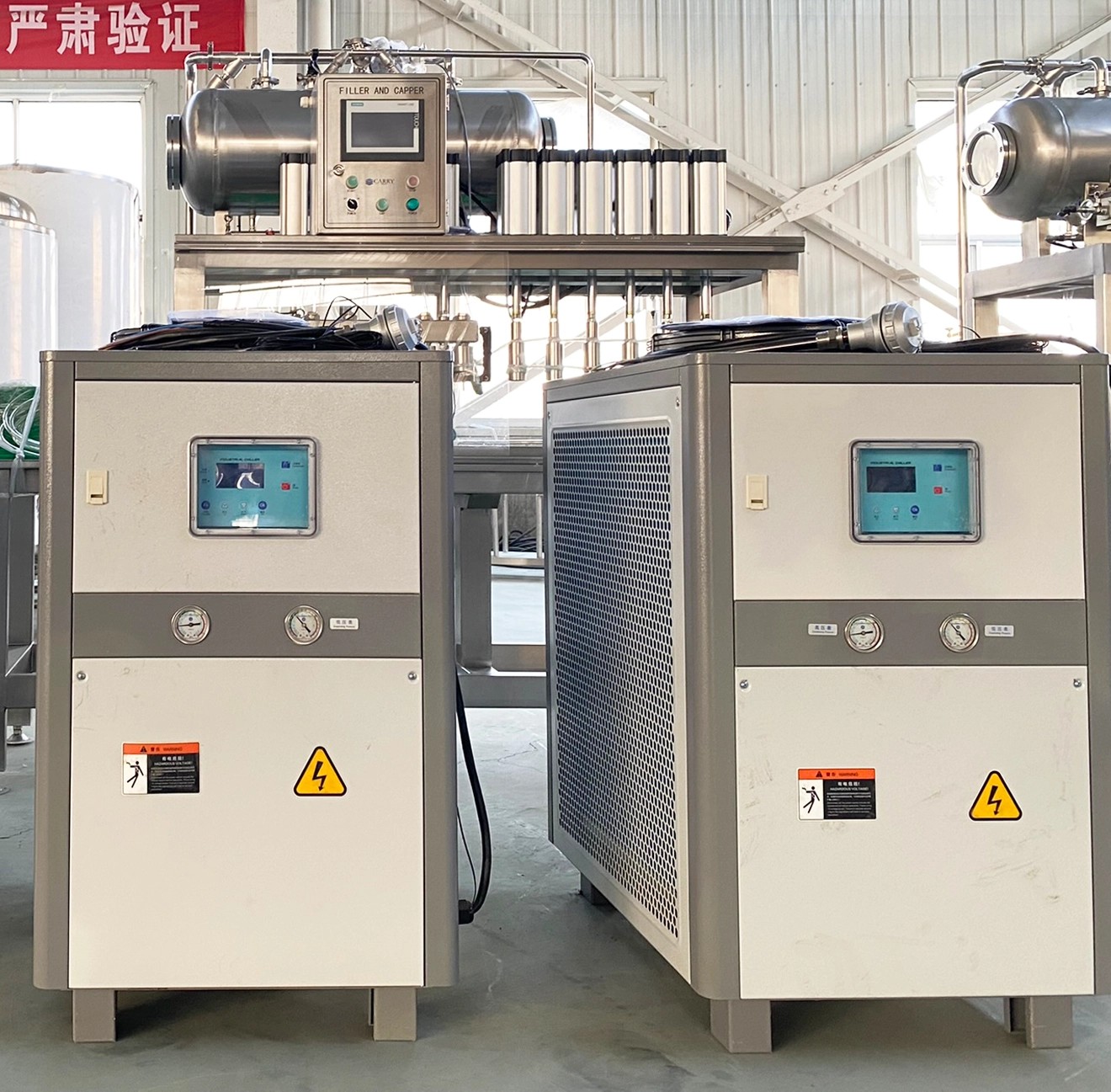

Industrial Chiller for Cooling System and Beer Fermentation Tank

Name: Industrial Chiller for Cooling System and Beer Fermentation Tank
SKU: 0

Industrial chiller - made of stainless steel 304. Including 2HP / 3HP / 4HP/5HP/6HP/7HP/8HP/10HP/12HP/15HP/20HP/25HP/30HP/40HP/50HP/60HP. It's effective volume is 400L. We can customize your equipment according to your needs.

Add to Basket

Inquire Now

◉ Product Parameters

Industrial Chiller for Cooling System and Beer Fermentation Tank

Product Description

Product Description

Model	Cooling capacity （KW）	Gross power(KW)	Comp power（KW)	Dimension(MM)
Model	Cooling capacity （KW）	Gross power(KW)	Comp power（KW)	Length	Width	Height
1 HP	2.7KW	1.3KW	0.8KW	620mm	500mm	590mm
2 HP	5.2KW	2.2KW	1.7KW	700mm	520mm	790mm
3 HP	9.1KW	3.1KW	2.5KW	800mm	600mm	990mm
4 HP	12.0KW	4.3KW	3.4KW	800mm	660mm	1290mm
5 HP	15.0KW	5.2KW	4.2KW	800mm	660mm	1290mm
6 HP	18.0KW	5.8KW	4.7KW	800mm	660mm	1290mm
7 HP	21.0KW	6.8KW	5.5KW	1150mm	700mm	1390mm
8 HP	23.0KW	7.9KW	6.6KW	1150mm	700mm	1390mm
10 HP	29.5KW	10.2KW	8.5KW	1150mm	700mm	1390mm
12 HP	35.0KW	11.7KW	9.2KW	1500mm	720mm	1490mm
15 HP	45.0KW	15.4KW	11.5KW	1500mm	720mm	1490mm
20 HP	58.5KW	20.0KW	16.2KW	1785mm	915mm	1630mm
25 HP	69.0KW	22.0KW	18.2KW	2080mm	1050mm	1680mm
30 HP	86.0KW	29.0KW	24.8KW	2200mm	1200mm	1880mm
40 HP	116.0KW	34.7KW	30.6KW	2200mm	1200mm	1880mm
50 HP	140.0KW	44.0KW	36.5KW	3000mm	1200mm	1880mm
60 HP	168.0KW	53.0KW	43.5KW	3400mm	1200mm	1880mm
