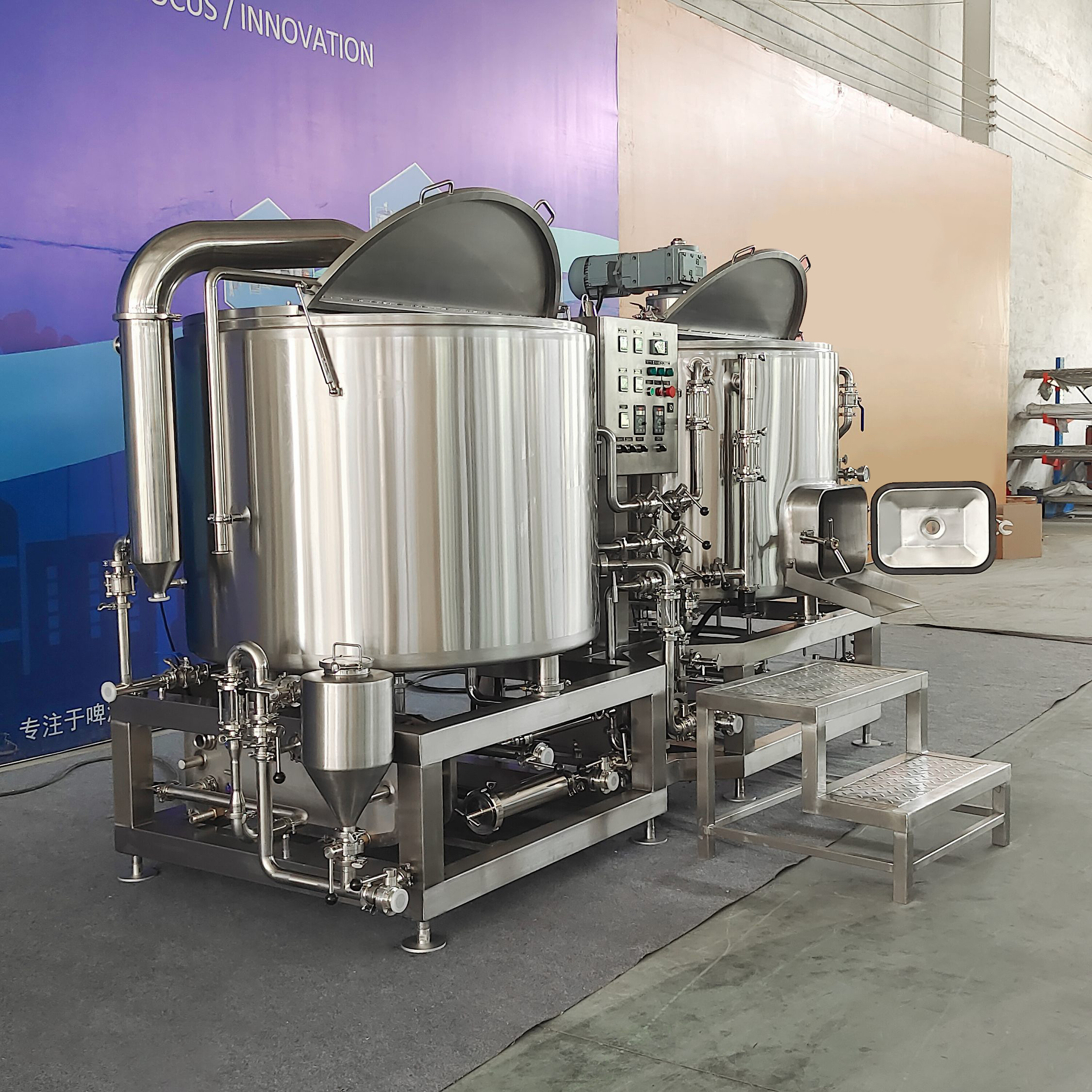

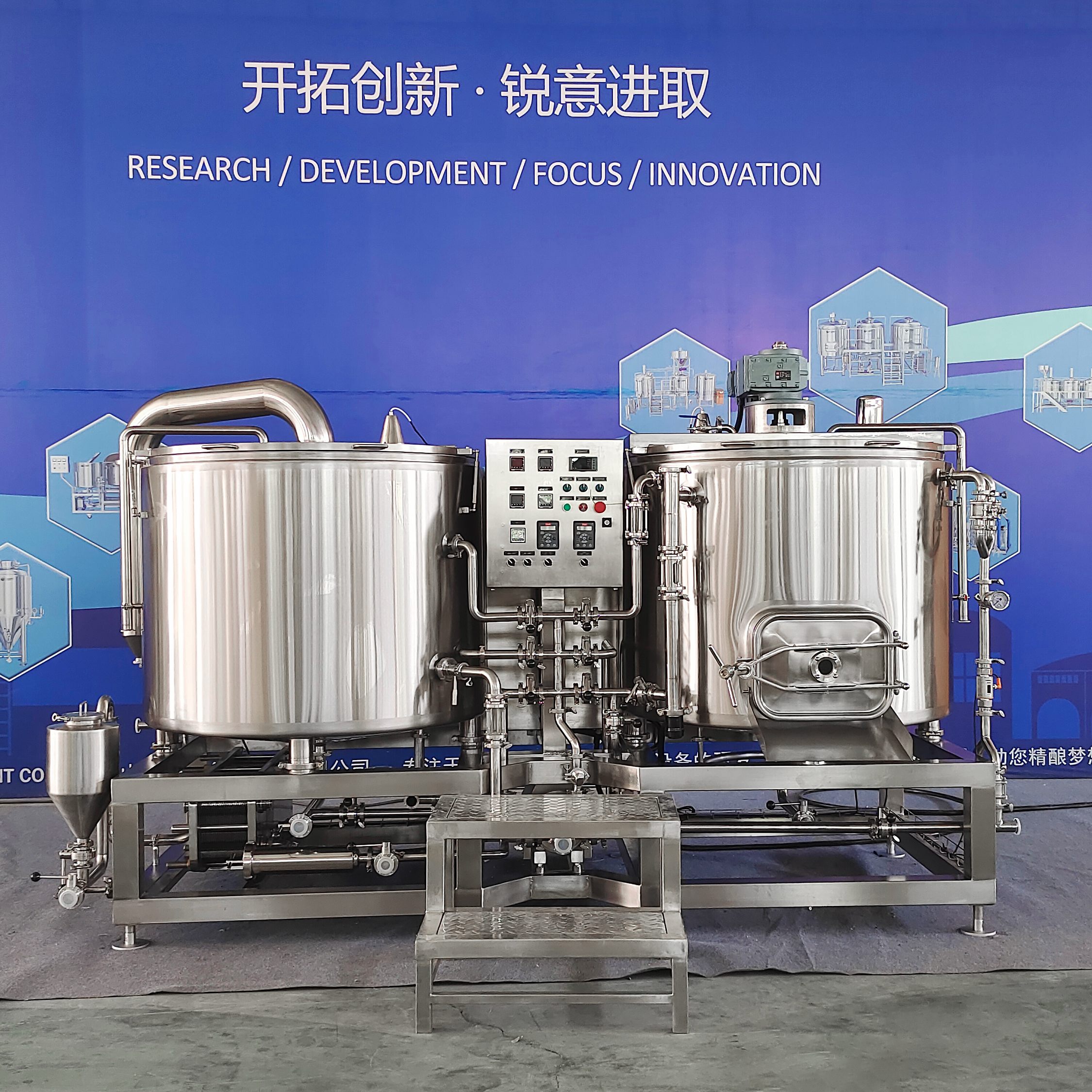

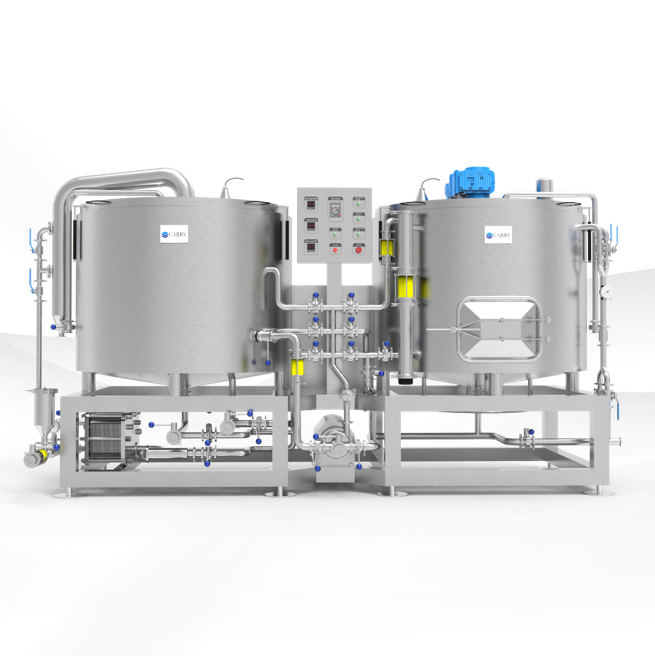

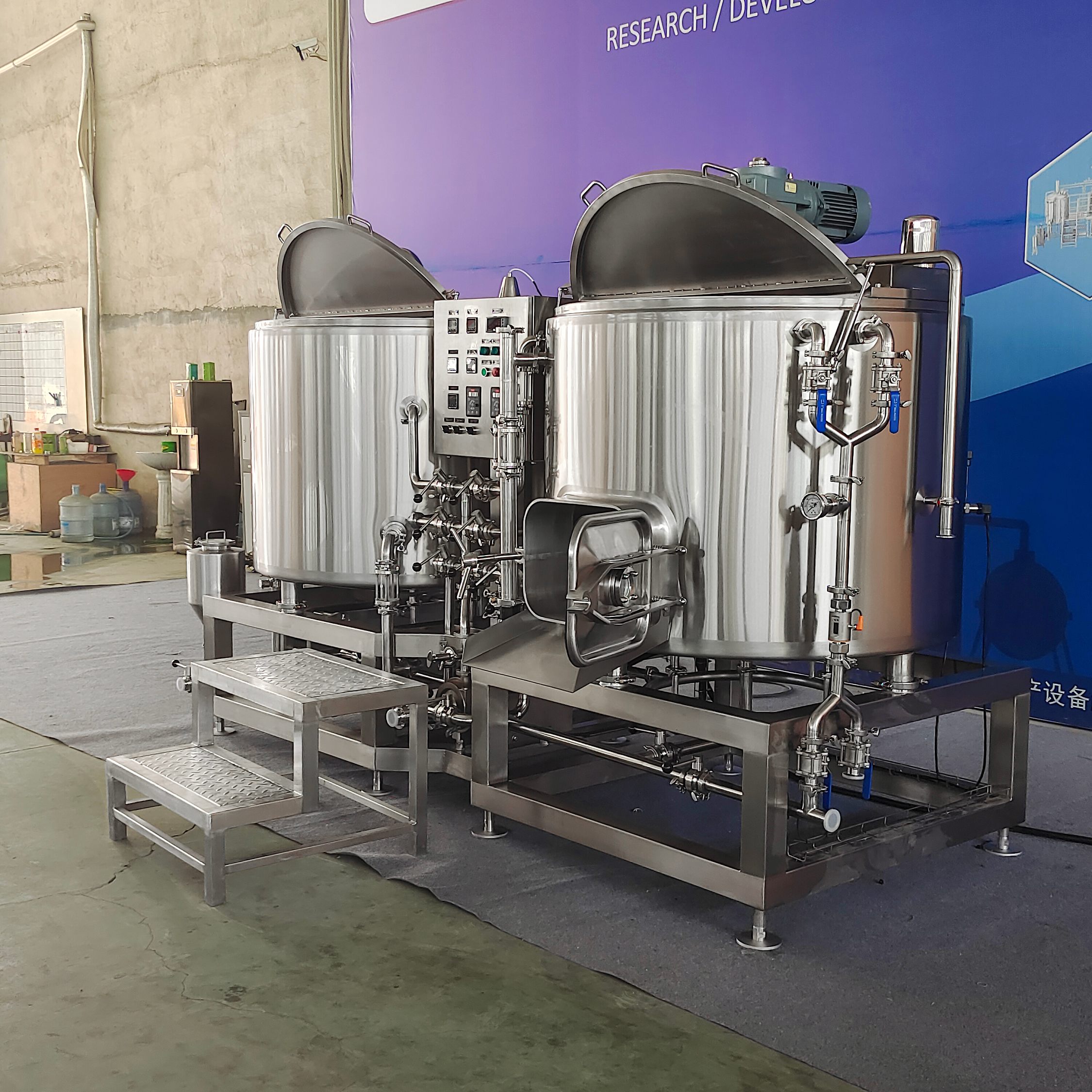

500L Brewhouse NOVA Series

500L Brewhouse NOVA Series

If you have your Pub running and looking for an affordable brewery system with small footprint, don't miss this out!
All our Carry Brewtech Brewing equipment are custom designed and manufactured to fit each brewer's individual requirement. A turnkey solution starts from your needs, ideas, brewing schedule, premise, layout, budget, to production, installation, and life-time service.
-+
Add to Basket
Inquire Now

◉ Product Parameters

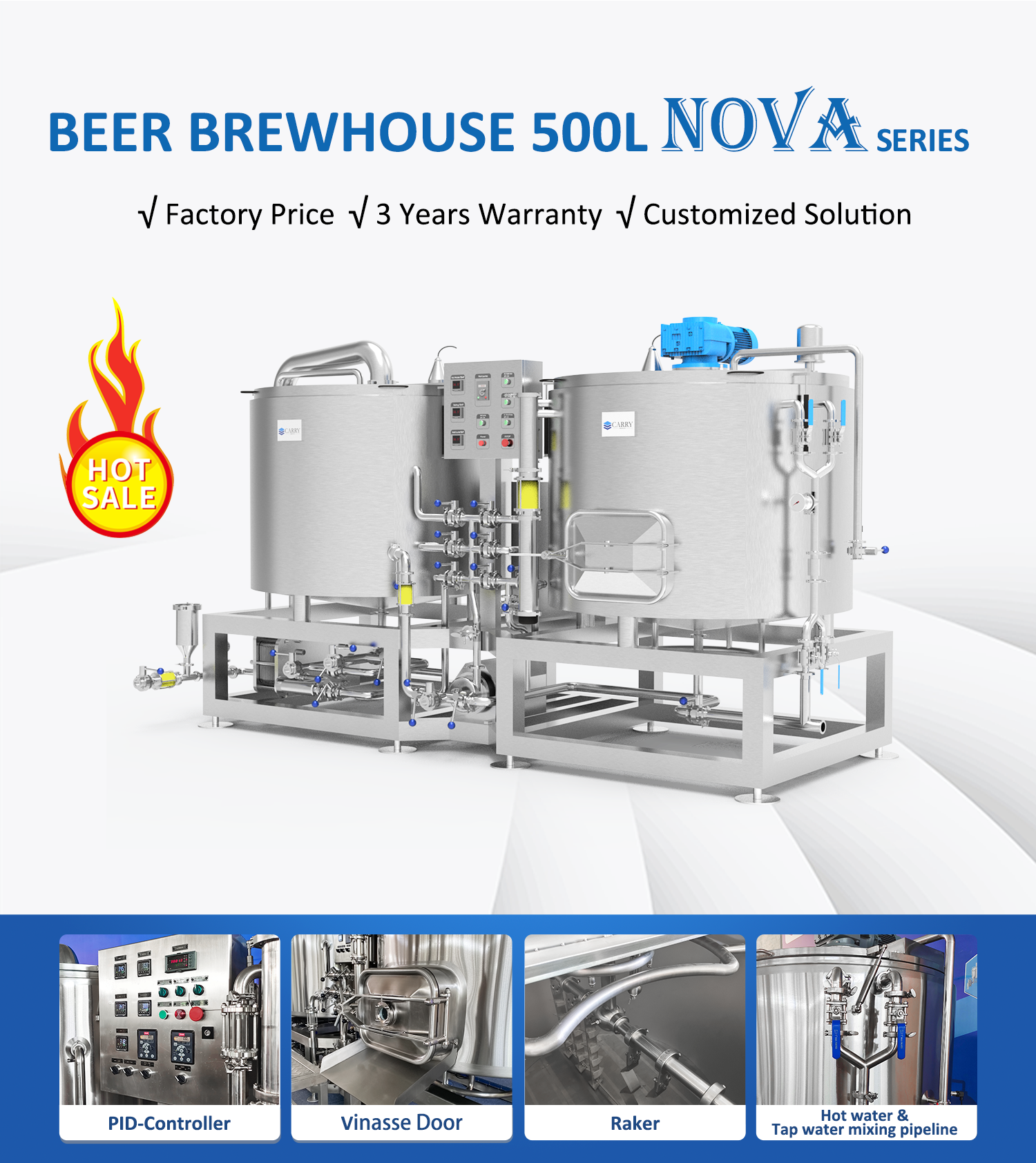

详情1

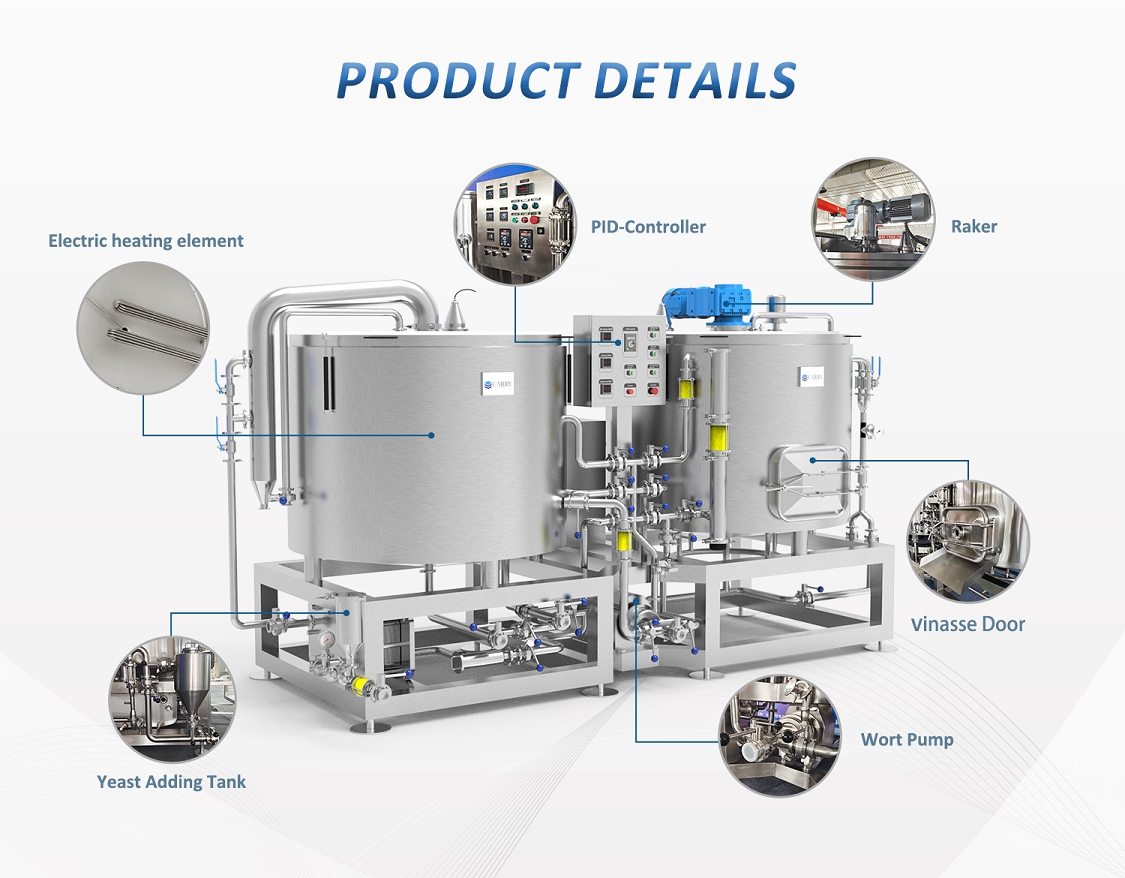

产品细节

SPECIFICATION

A- Production Technology

100% TIG Welded

Tanks’ Insulation layer: PU-thickness= 80mm

Electric heating elements of 18kw x 2 sets in kettle tank

Inner-Jacket, TH=3.0mm, pickling&passivating treated

External-Jacket, TH=2.0mm, high degree wires drawing plate

  • B- General Configuration
  • 详情页-3
    MASH/LAUTER TANK
    1. Gas spring assisted lid
    2. Grain rake with motor and reducer (VFD control)
    3. Grain outdoor with sight glass
    4. Hot water & tap water combination sparging pipelines
    5. Sieve plate & back flushing pipeline underneath
    6. Wort backflow pipeline
    7. Build-in CIP cleaning pipe
    8. PT-100 Temperature sensor
  • 详情页-4
    KETTLE/WHIRLPOOL TANK
    1. Gas spring assisted lid
    2. 18KW *2 sets heating elements
    3. Indoor condensing pipe
    4. 2nd wort outlet on the bottom
    5. Build in rotary arm for clear wort transferring
    6. Tangential Whirlpool inlet
    7. PT-100 Temperature Sensor
    8. Extra 40% head space

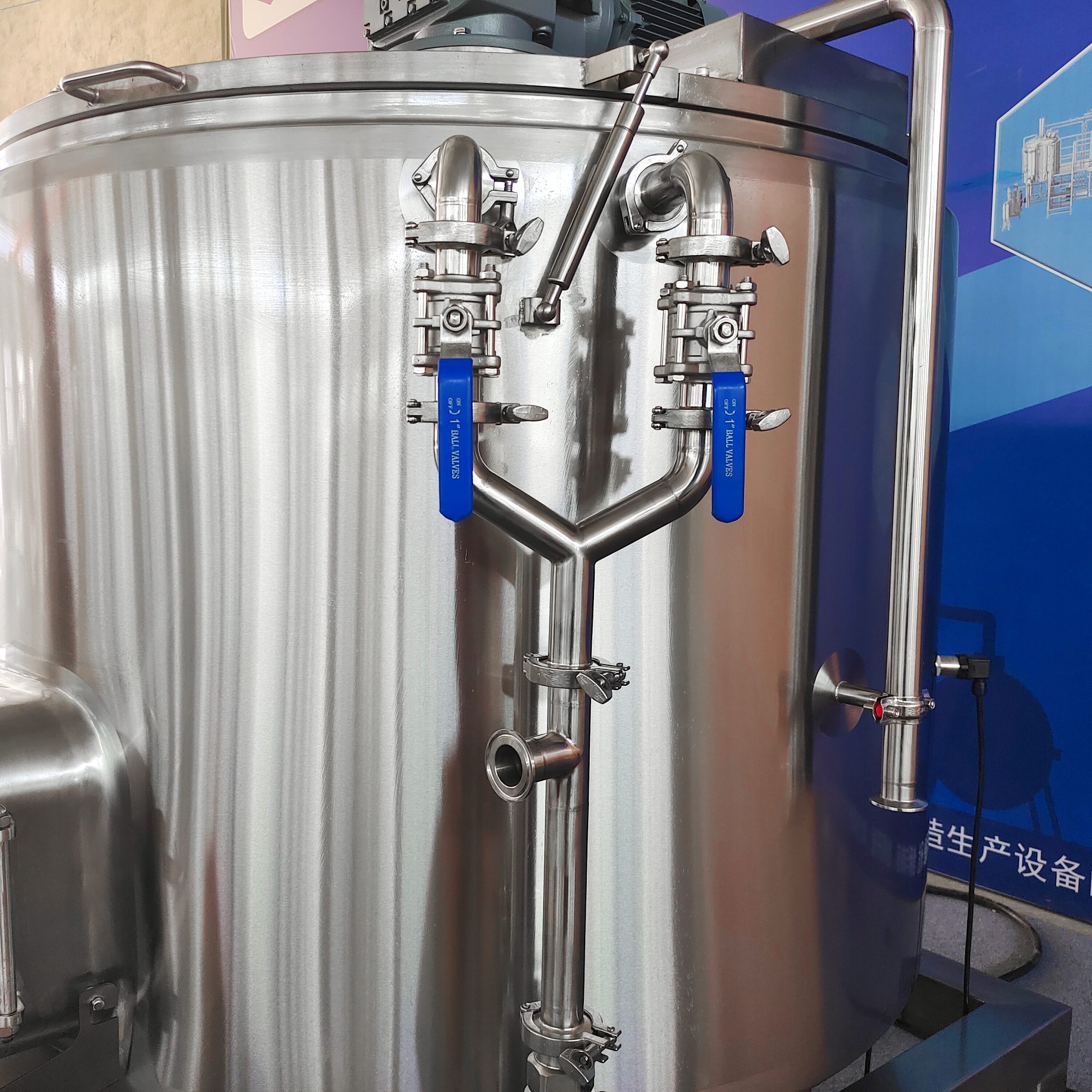

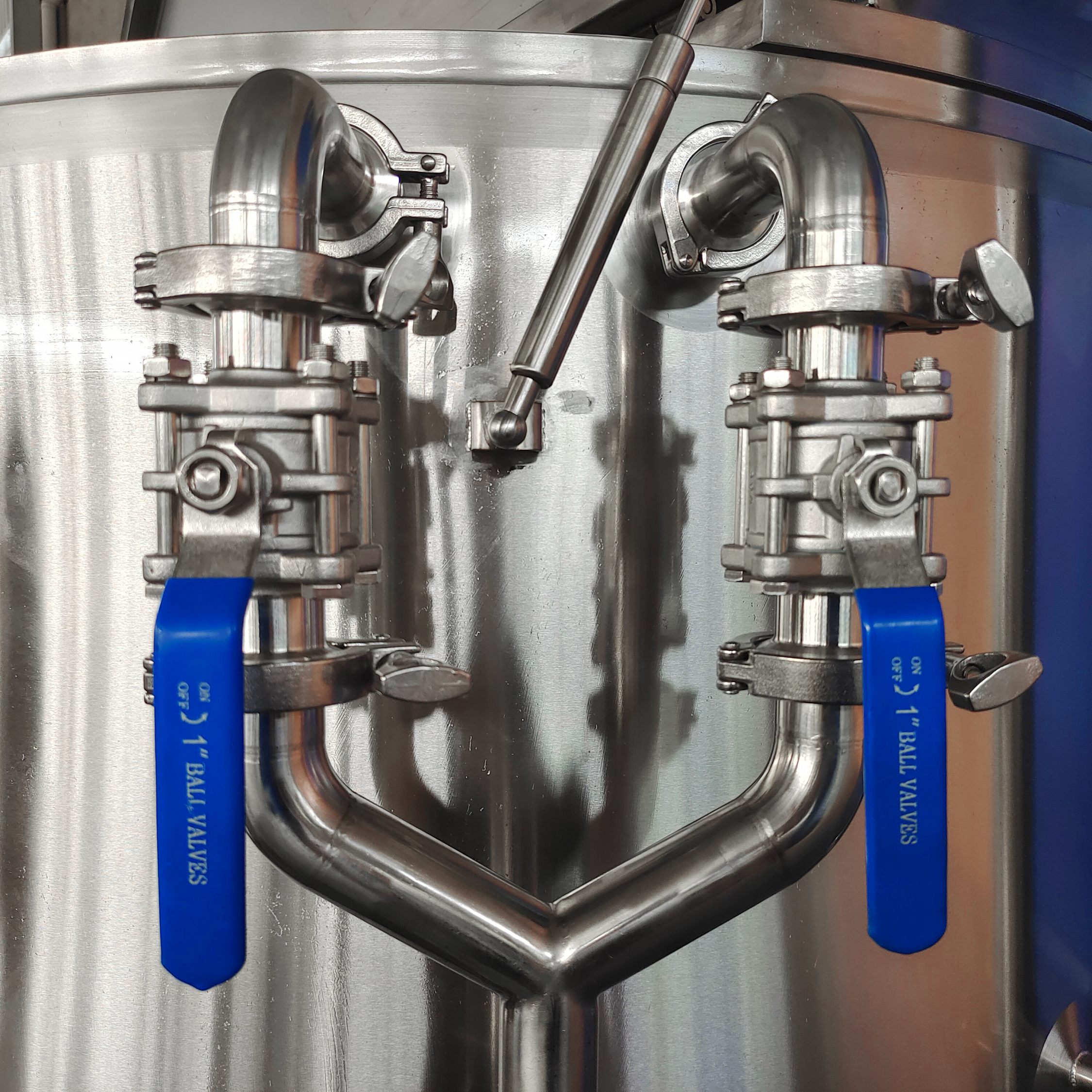

  • Hot&Tap water mixing inlet
    Hot&Tap water mixing inlet

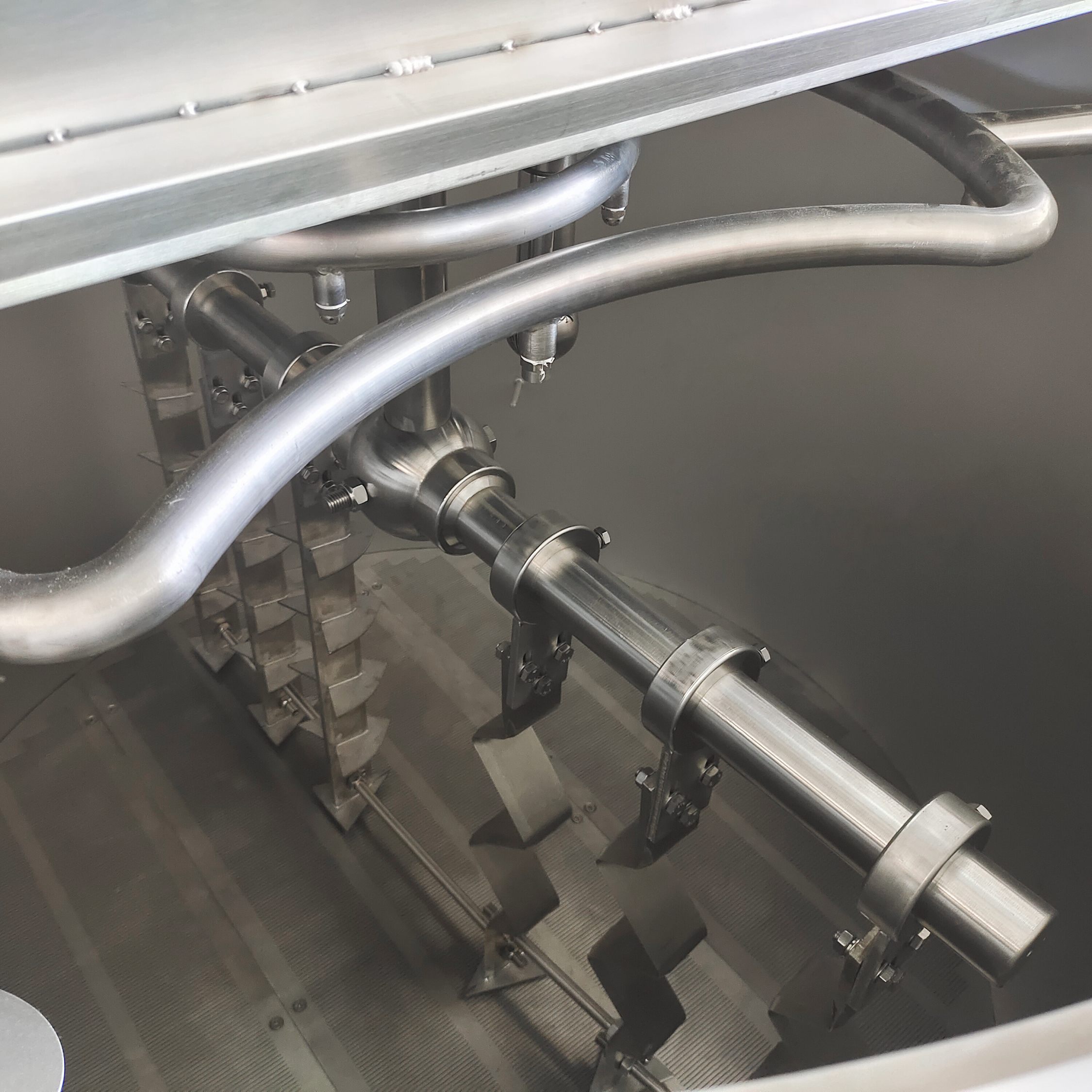

  • Sparging ring & Grain raker
    Sparging ring & Grain raker

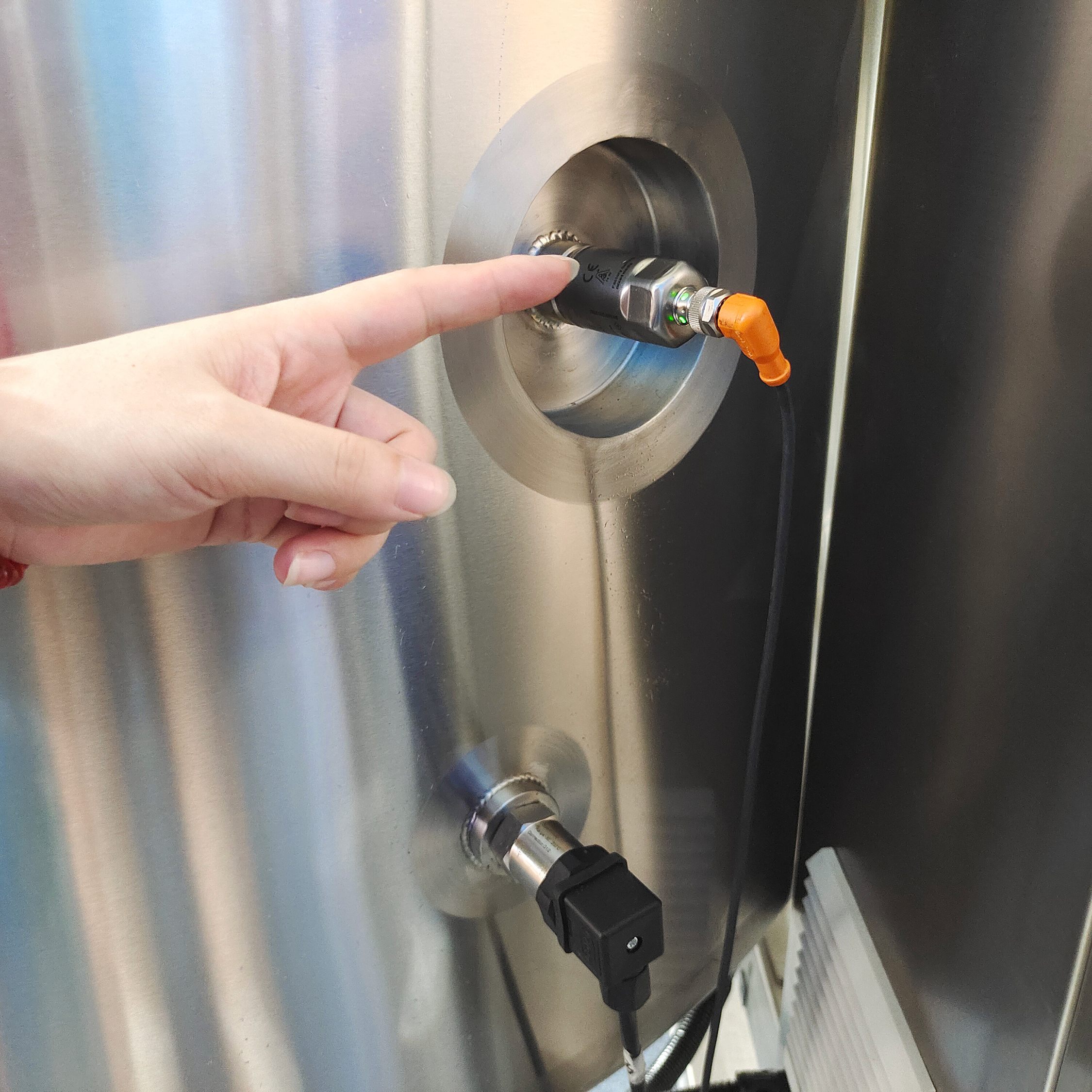

  • IFM Level sensor
    IFM Level sensor

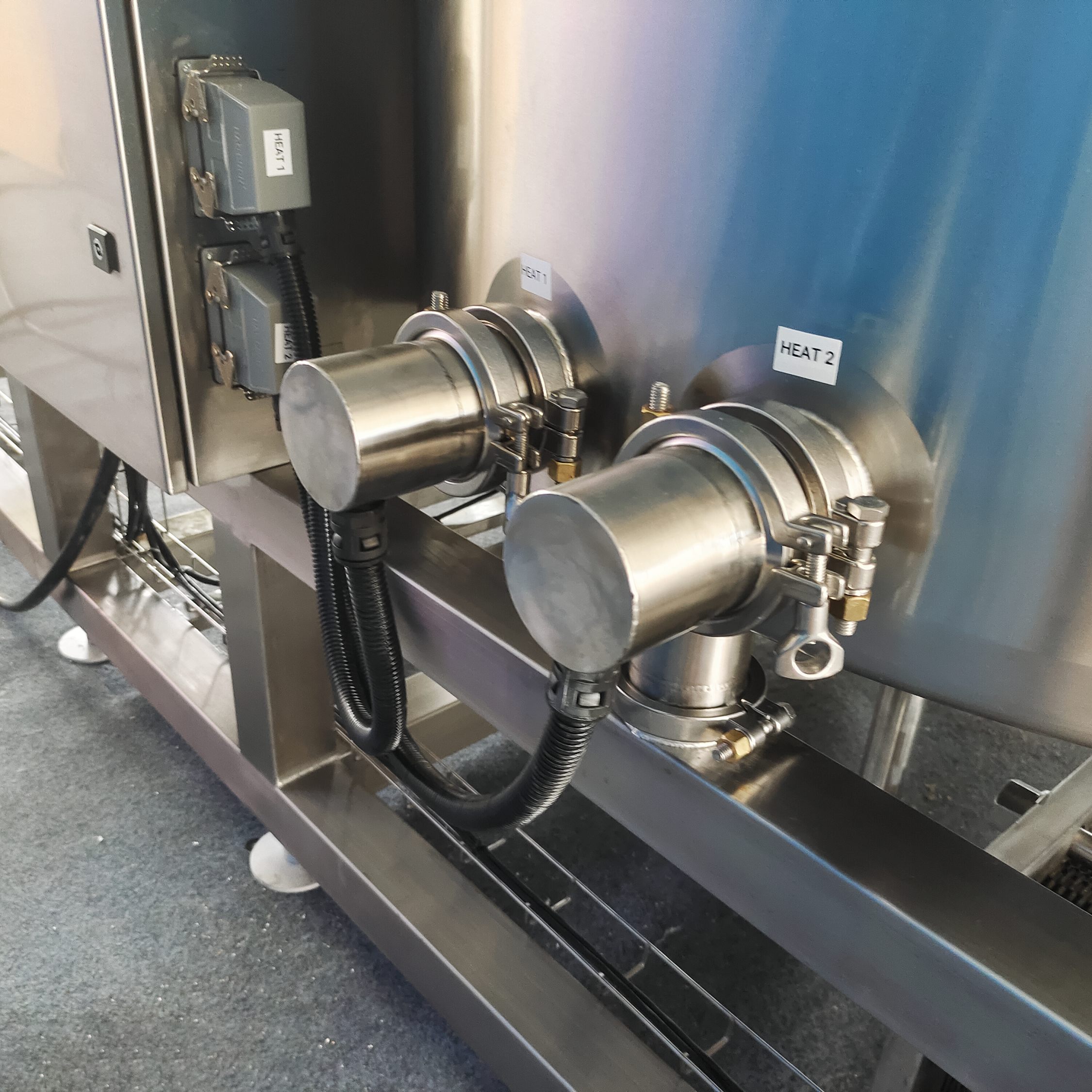

  • Tri-clamp Heating elements
    Tri-clamp Heating elements

How to draw up a complete Commercial Brewery System?

For brewery system that will be setup in pub or restaurant, it has more factors need to be taken in to consideration:



1.  Attractive

Brewery system is not only the equipment that provide beers, but also an art corner to attract clients. So, you need to consider the option that looks nice.



2.  Save your time

Once you own your pub, the most treasureable thing would be your time, you need time to brew beers, finalize marketing, visit your clients, and manage the cash flow. Everybody has 24 hours a day, but you were trying to split it into 48 hours.

So, if there is a system can help you optimize the operation process, save your time to do more worthful works, then don't hesitate, that is the suitable one for you.



3. Turnkey solution

Recently, COVID-19 makes the travels difficult, especially when your system need the onsite installation service. But how to install?

Don't worry, if you can find a supplier that can provide turnkey solution, don't miss it. That will be the wonderful option at the moment.

From the owner’s point of view, all of them are important to start with. So sourcing the right supplier will be an significant choice. Carry brewtech provides consultation service from 0 to 1.


Contact CARRY guys right now, we are ready to provide the most suitable solutions for your business. Let’s do it!

Listen -> communication -> system configuration -> layout -> simulated pipeline -> Details -> price quotation -> production -> shipment -> remote/onsite service -> life-time support

1 (3)
