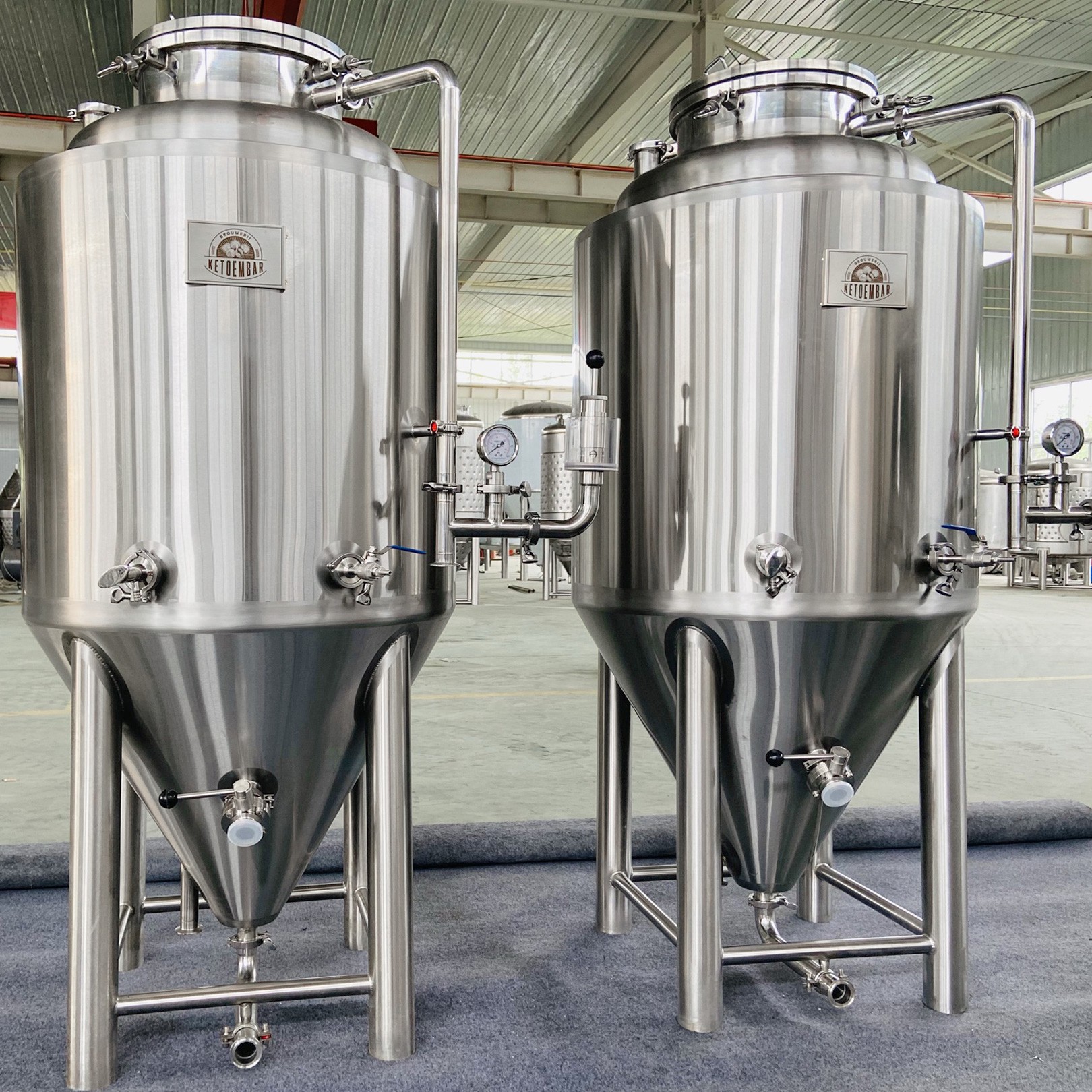

100L Fermentation Tank
◉ Product Parameters
100L Fermentation Tank
Configuration
1. Effective=100L, with extra 25% head space
2. Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire
3. Inner layer=3mm, pickling and passivating treated
4. outer layer=2mm, Hairline polishing
5. Dimple glycol cooling jacket
6. PU Insulation layer=80mm on side and cone bottom
7. Design pressure 0.3MPa; Working pressure 0.15Mpa.
8. 60°Conical Cone bottom
9. 4 x heavy duty legs with leveling foot pads
It comes with:

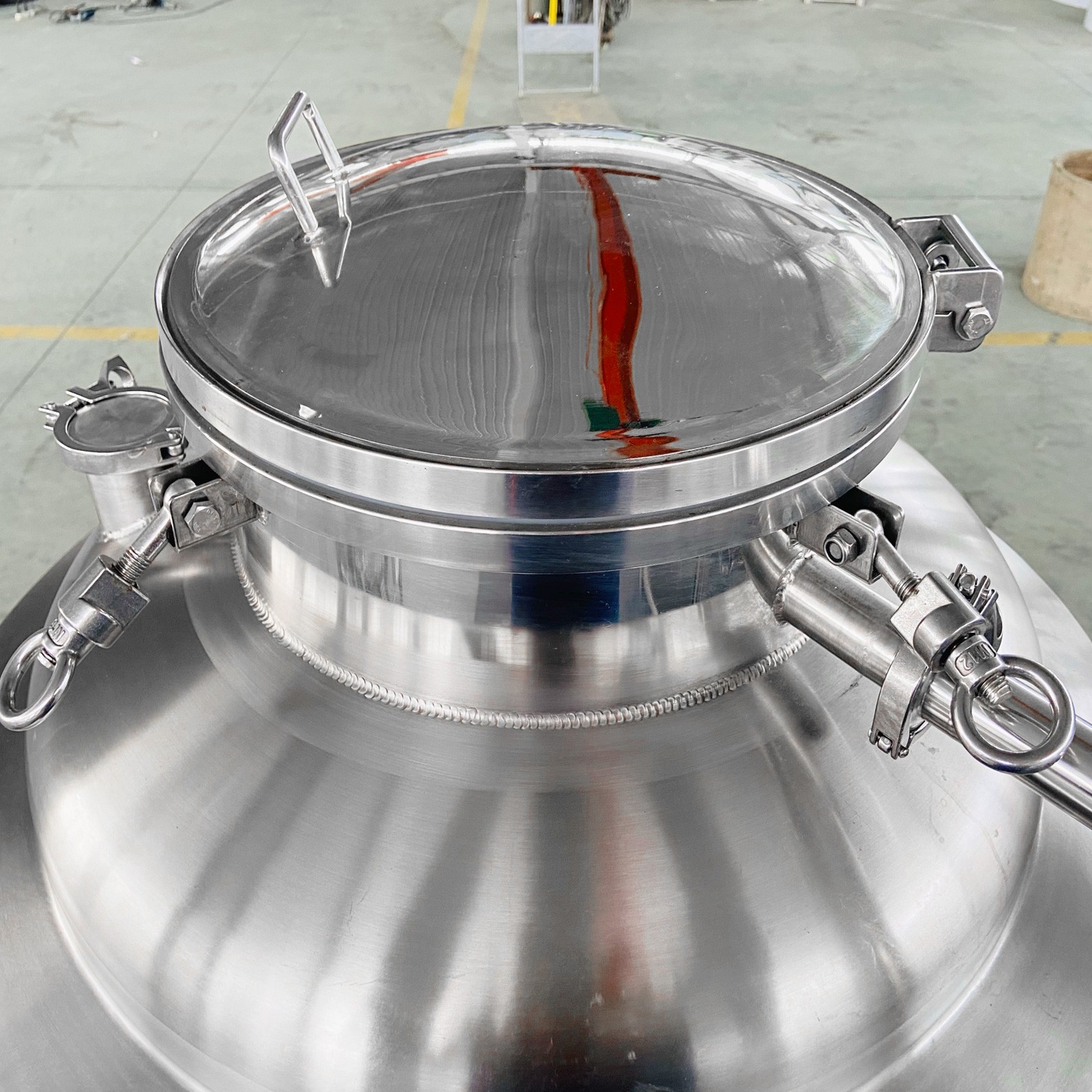

1. Top Manway, flange type

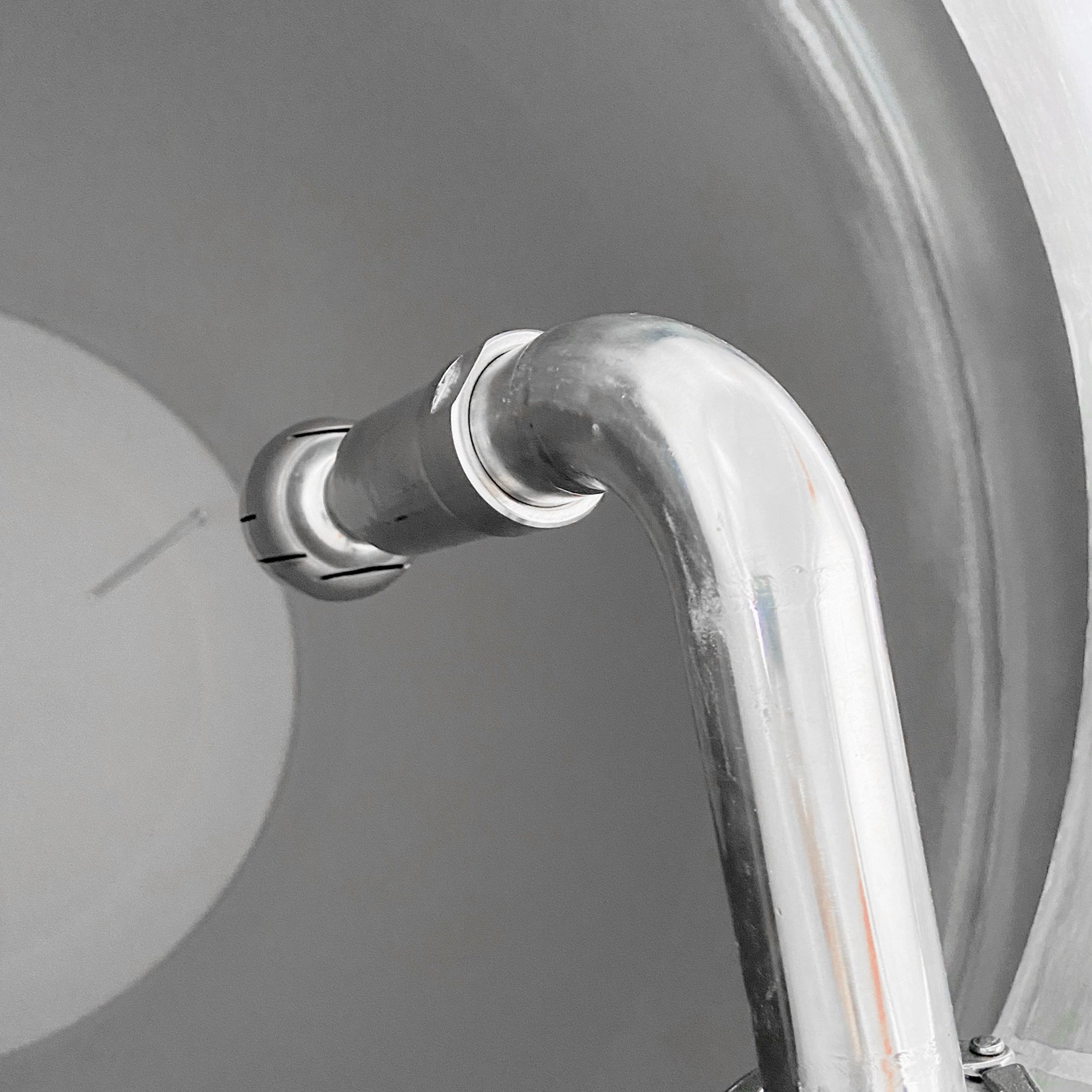

2. CIP arm with internal 360°spray ball

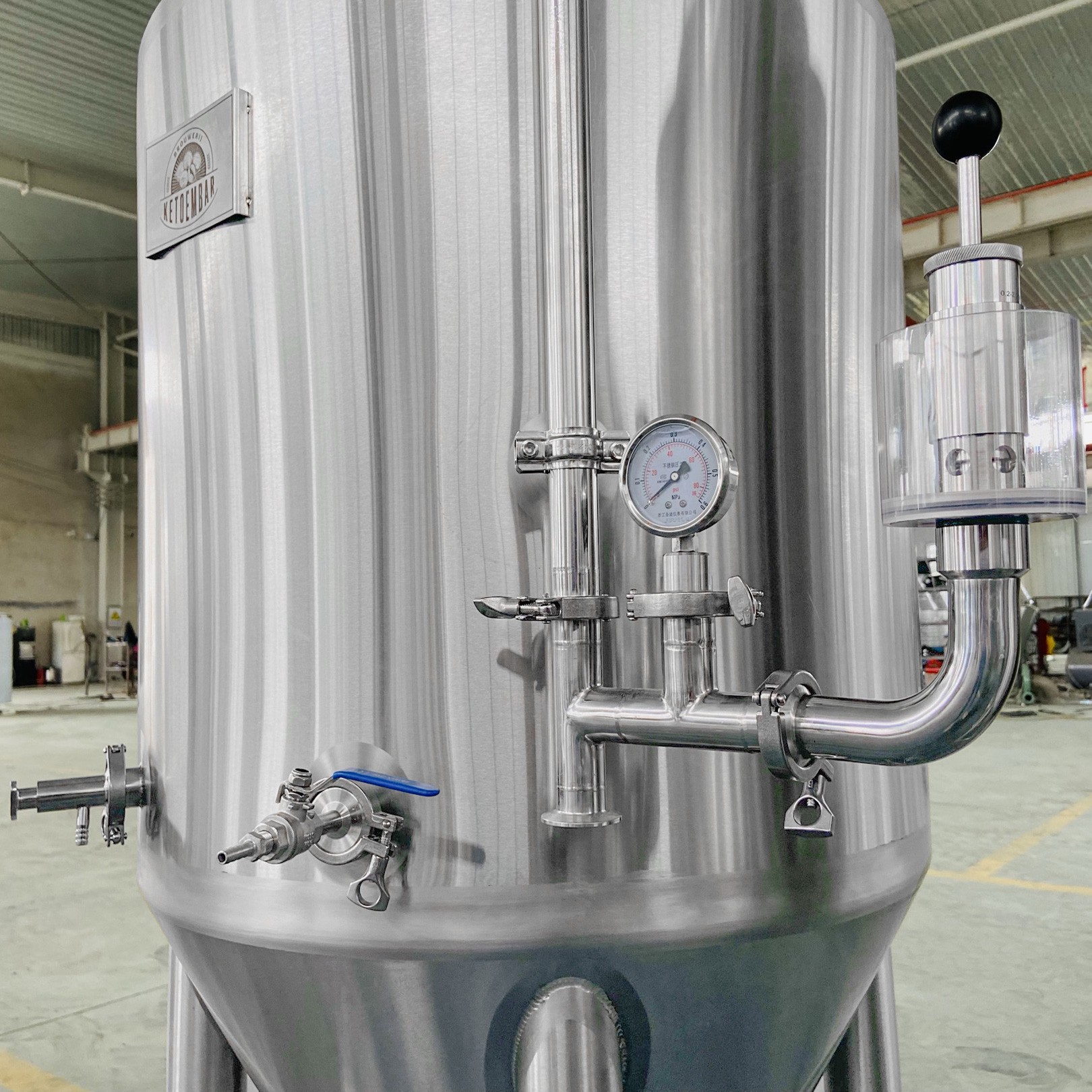

3. Pressure relief valve
4. Pressure Gauge
5. Temperature Gauge
6. Sample valve

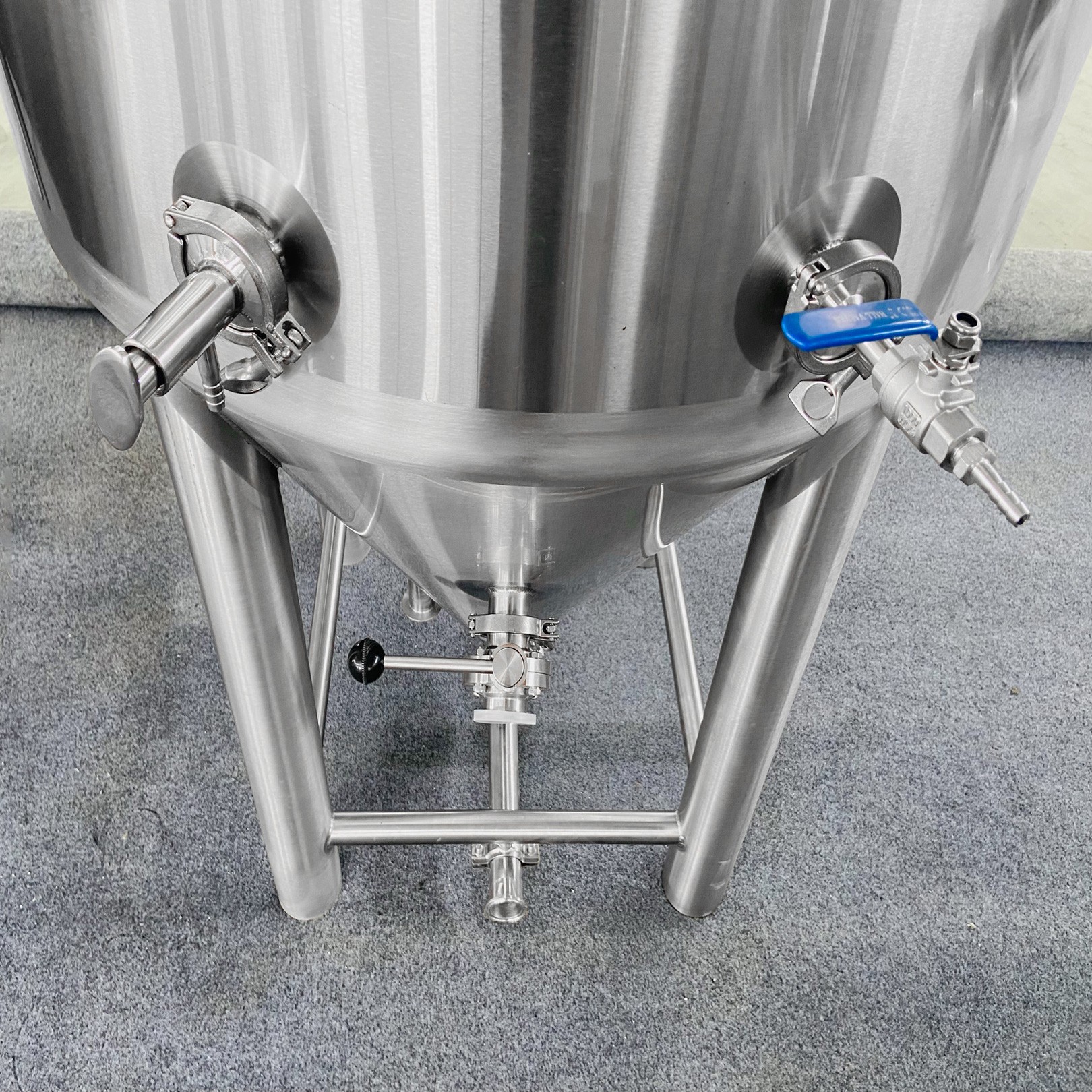

7. Beer outlet on cone
8. Bottom drain port
9. PT-100 Temperature sensor
10. Complete fittings, valves
You can also upgrade your fermentation tank with below options:
Spunding Valve
Carbonation Fittings

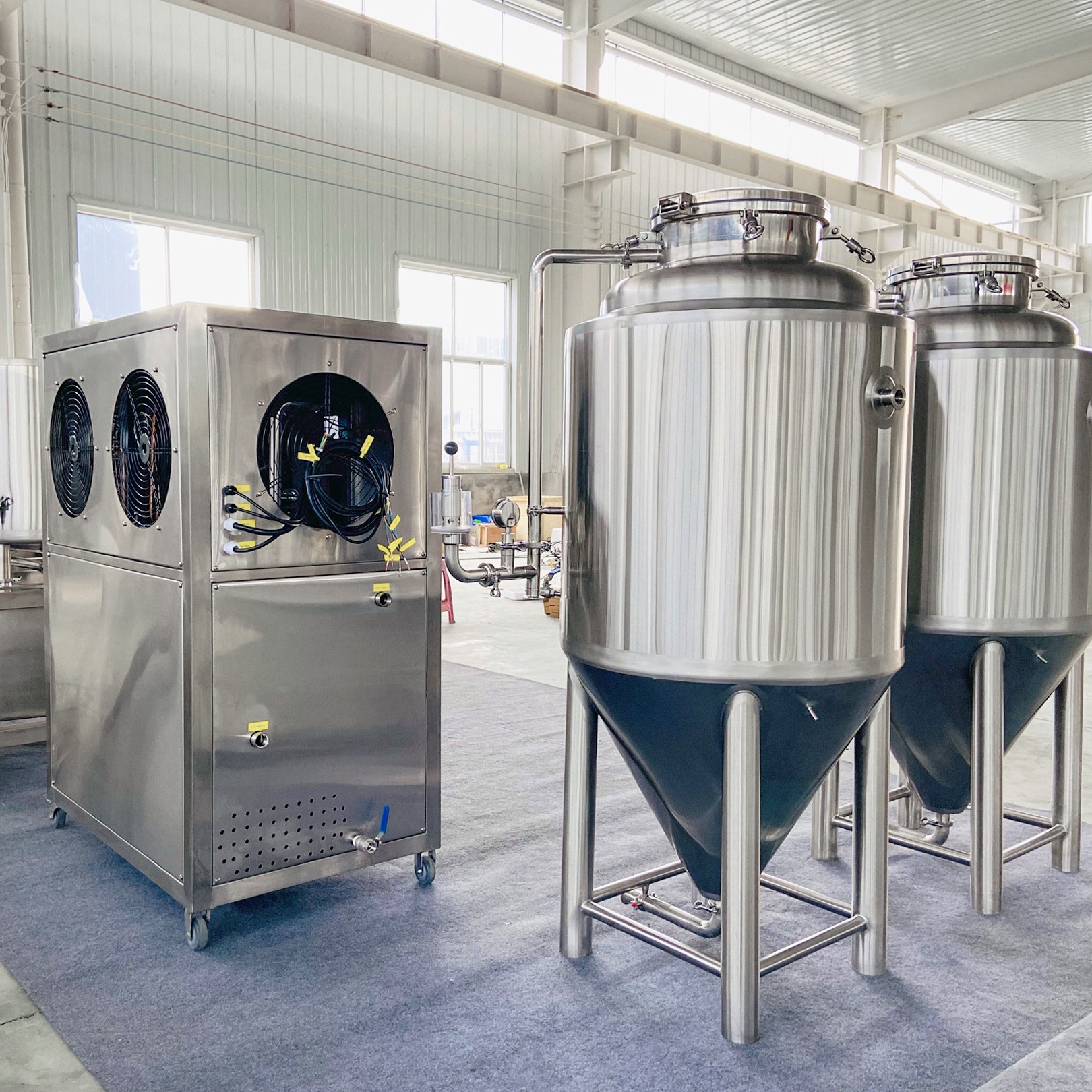

Glycol Chiller Unit

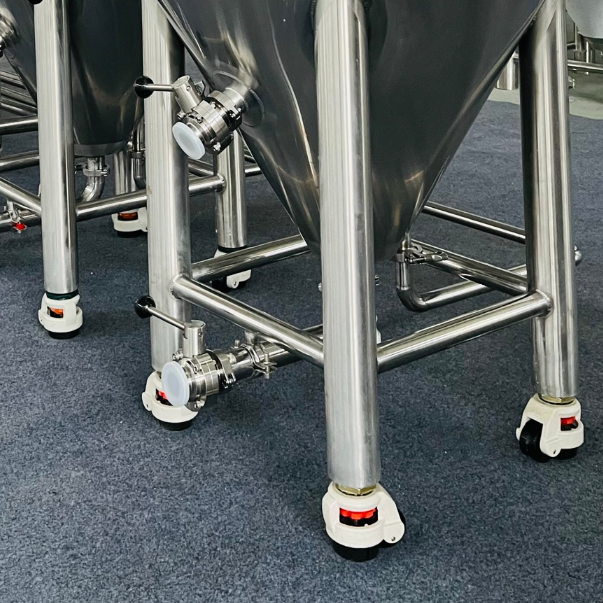

Wheels (100L &200L)

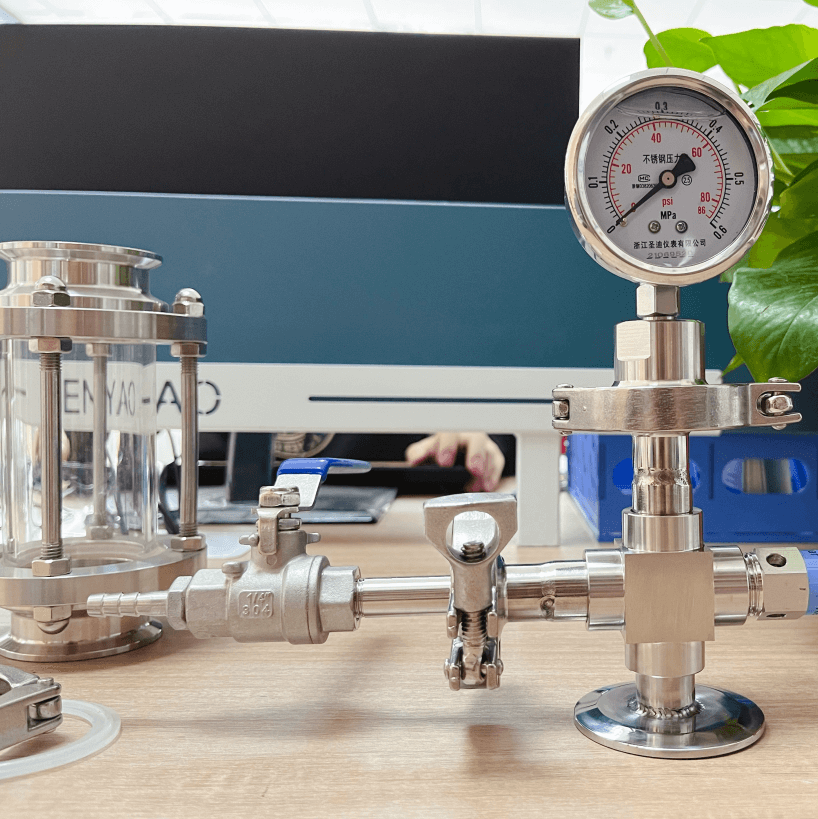

Dry Hops Adding Device
Dry hops adding device for 100L~300L Fermenters
Connect onto the top dry hopping port
don't miss it out if you are adding hops on the cold side.
Let's dry hopping to add aroma into our beers.
Parameter
Getting your tanks from the direct factory, our team is ready to provide 100% customized products to meet any of your special requirements.
