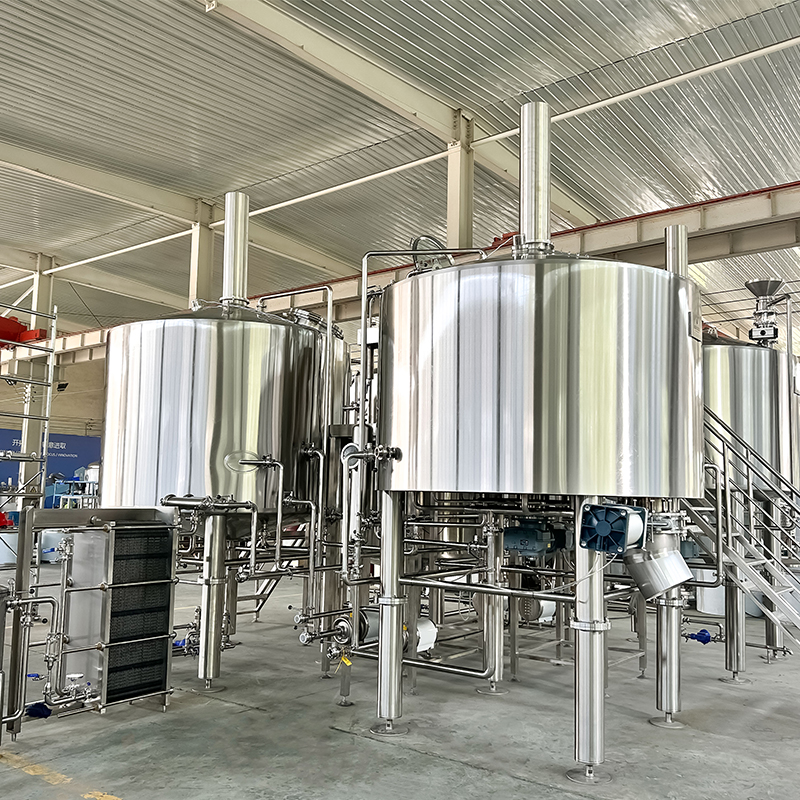

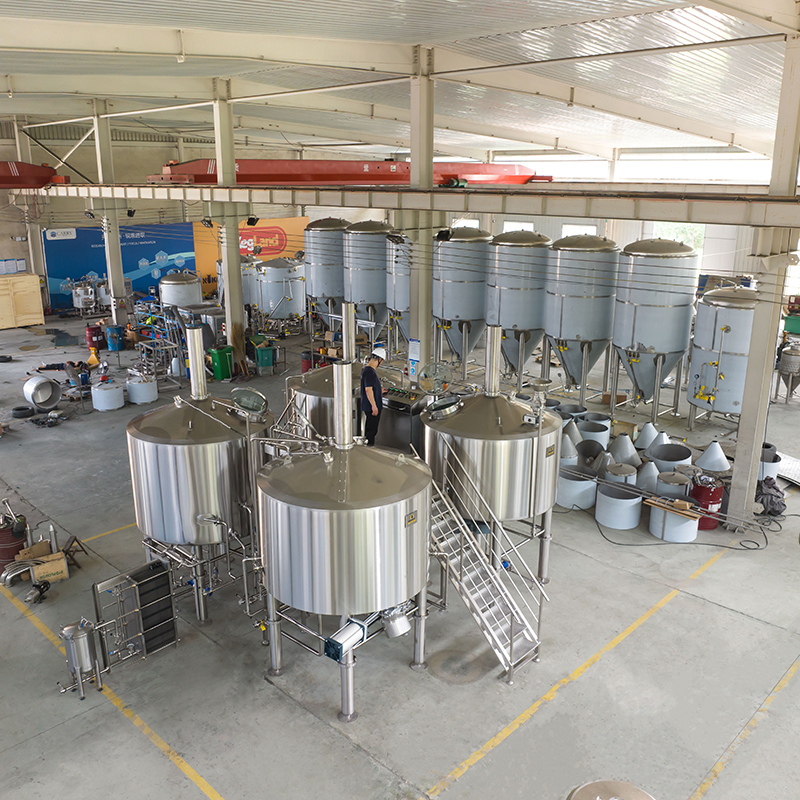

30HL 4-vessel Brewhouse System
◉ Product Parameters
Carry Brewtech 30HL 4-vessel Brewhouse system is the ideal designed specically for medium sized Industrial-breweries that want to produce on a large scale with a relatively compact footprint and have the flexibility to brew a large range of styles.
Customized Solution
Compact Structure
Fully Sanitary 304 material
If you are scheduling the next Industrial brewing system, please don't hesitate to let us know. Carry Brewtech team is happy to provide FREE and CUSTOMIZED solution for you.
Optional Combination:
Effective production capacity per batch: 1000L, 10BBL, 20HL, 20BBL, 30HL, 30BBL, 50HL, Customized
Structure:
A - Mash Tank + Lauter Tank + Kettle/Whirlpool Tank + 2-times HLT [Recommend for 2-batch brewday]
B - Mash/Lauter Tank + Kettle Tank + Whirlpool Tank + 2-times HLT
C - Mash Tank + Lauter Tank + Kettle Tank + Whirlpool Tank + 2-times HLT (5-Vessel system)
SPECIFICATION
A- MASH TANK
30HL Mash tank with extra 20% head space
Dish head with top mounted glass manway (with your LOGO etched)
LED Light comes included in the tank, easy inside-checking between batches
CIP Spray Ball equipped with CIP Arm, butterfly valve on the end
Hydrator with customized grist case
Bottom driven Agitator, VFD speed control
Steam heating jacket on the cone and side
Individual Mash pump to transfer mash to the Lauter tank
B- LAUTER TANK
30HL Lauter tank with extra 20% head space
Dish head with top mounted glass manway (with your LOGO etched)
LED Light on top of dish head

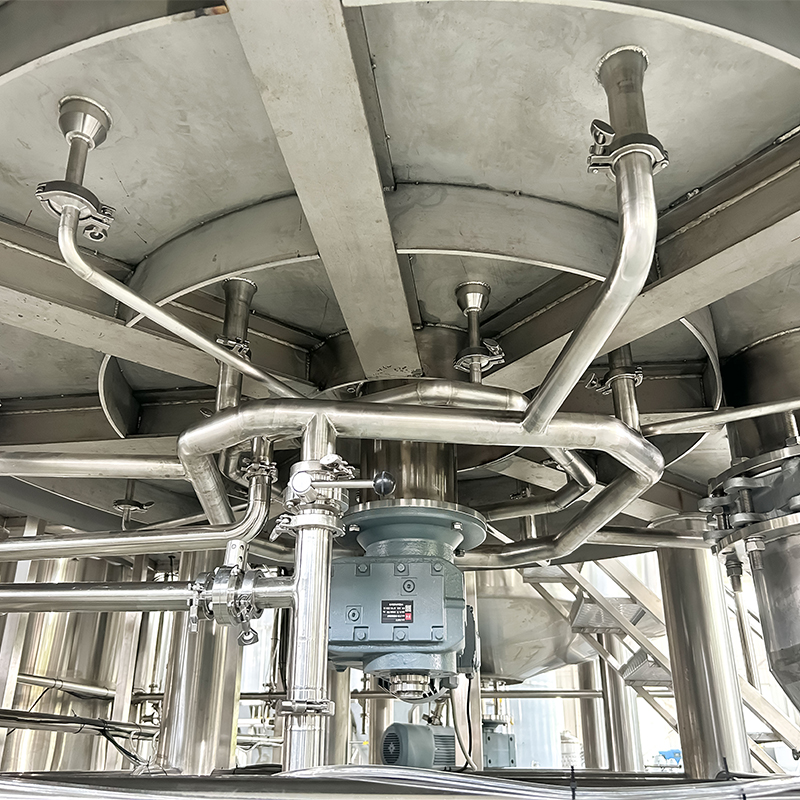

Bottom driven Grain rake with auto grain-out device, VFD speed control
Sieve plate
Bottom grain out port with pneumatic knife valve installed
Bottom based wort collection pipe and back flushing pipeline
Balance colume with sight glass and sample valve on top of platform
Individual Lauter pump to transfer wort to the kettle tank
C- KETTLE/WHIRLPOOL TANK
Heating method: Steam heating jacket on cone, side, and inside of tank (steam colume)
Tangential Whirlpool inlet equip on 1/3 position of kettle tank
Top mounted Steam condensing pipe (outdoor)
Top mounted glass manway (with your LOGO etched)
LED Light comes included in the tank, easy inside-checking between batches
CIP Spray Ball equipped with CIP Arm, butterfly valve on the end, easy to attach to your CIP Cart for cleaning ideally
Individual Whirlpool pump to generate whirlpool effect and knocking out the worts into FVs, VFD speed control

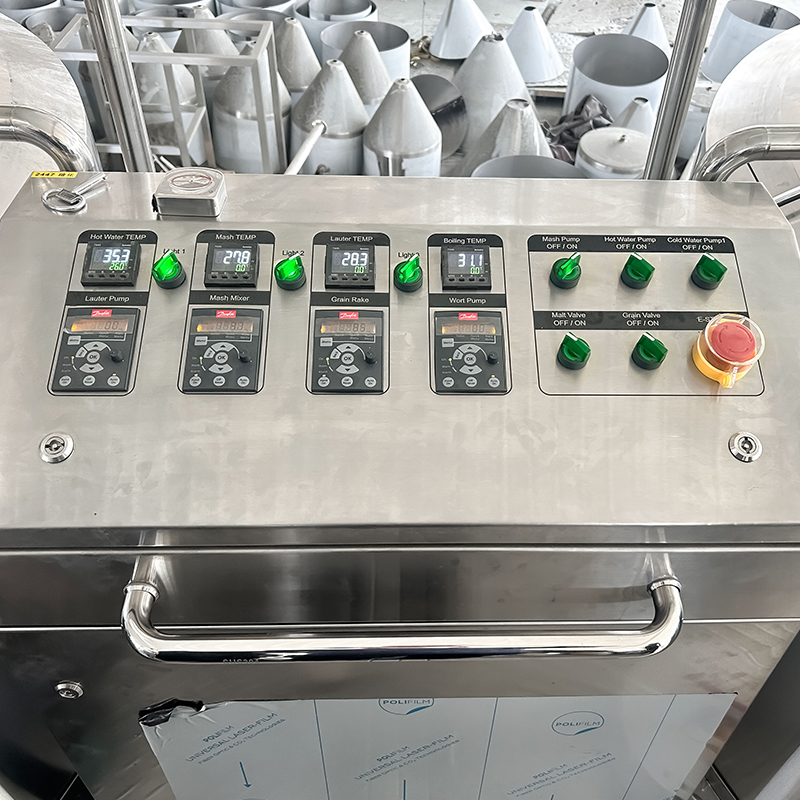

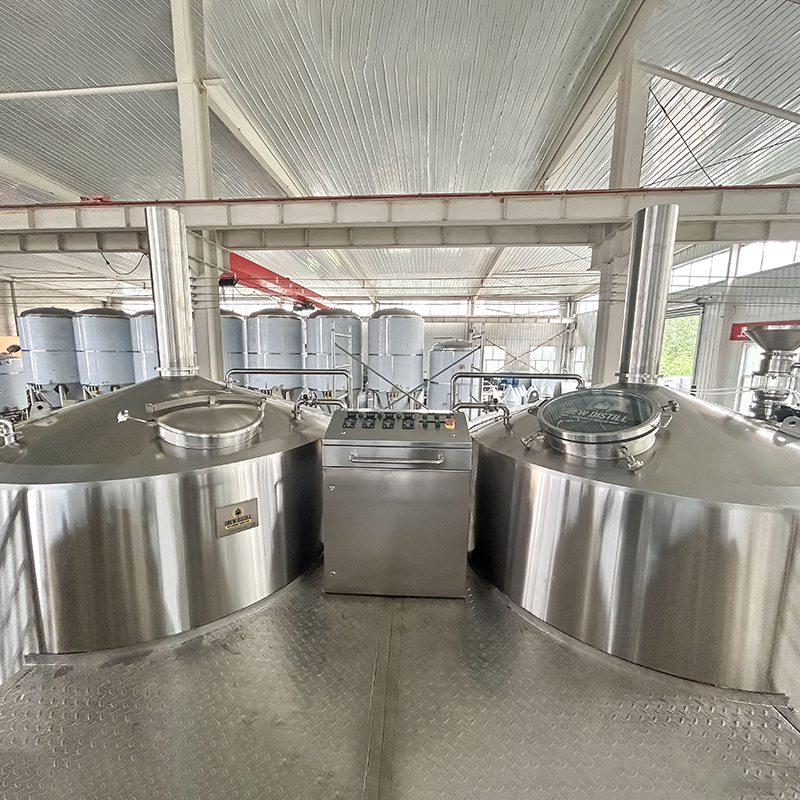

Complete Platform with stairs and guiderails- Pre-build Control System on side of tanks

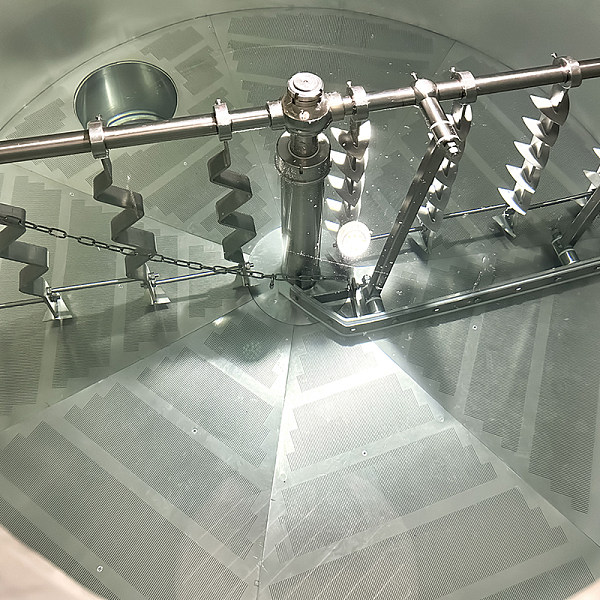

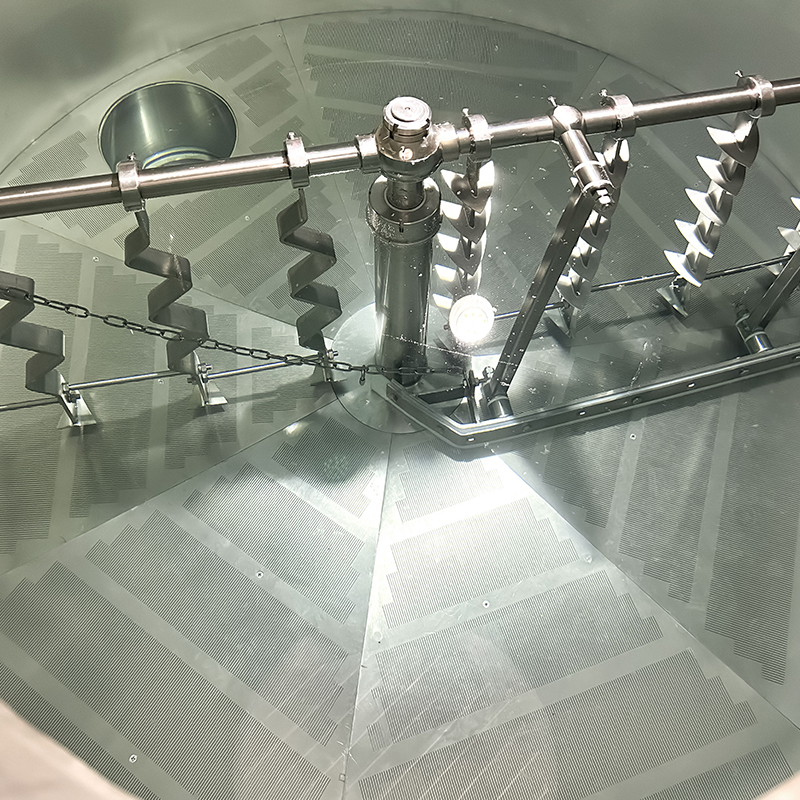

- Bottom driven grain rake with auto-out device
- Bottom grain out port with pneumatic valve

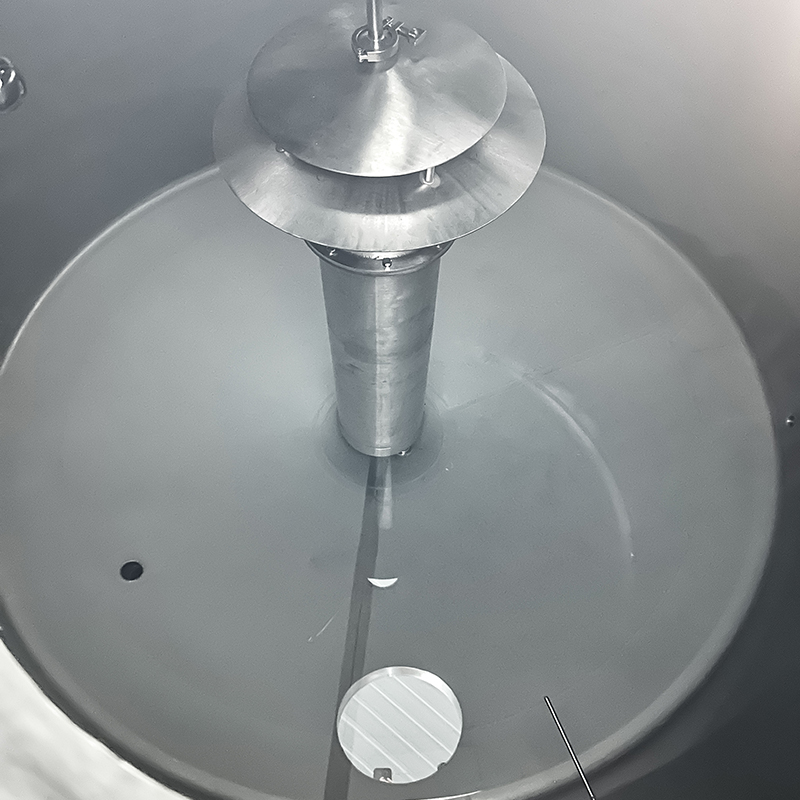

- Build-in steam heating colume for Kettle tank

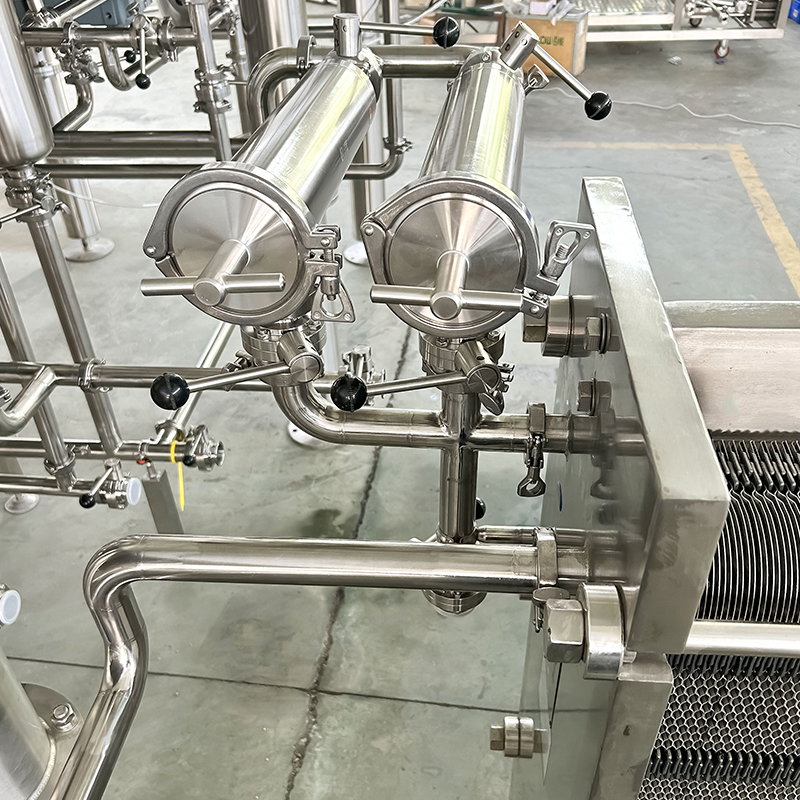

- Dual wort filter (tri-clamp) before PHE

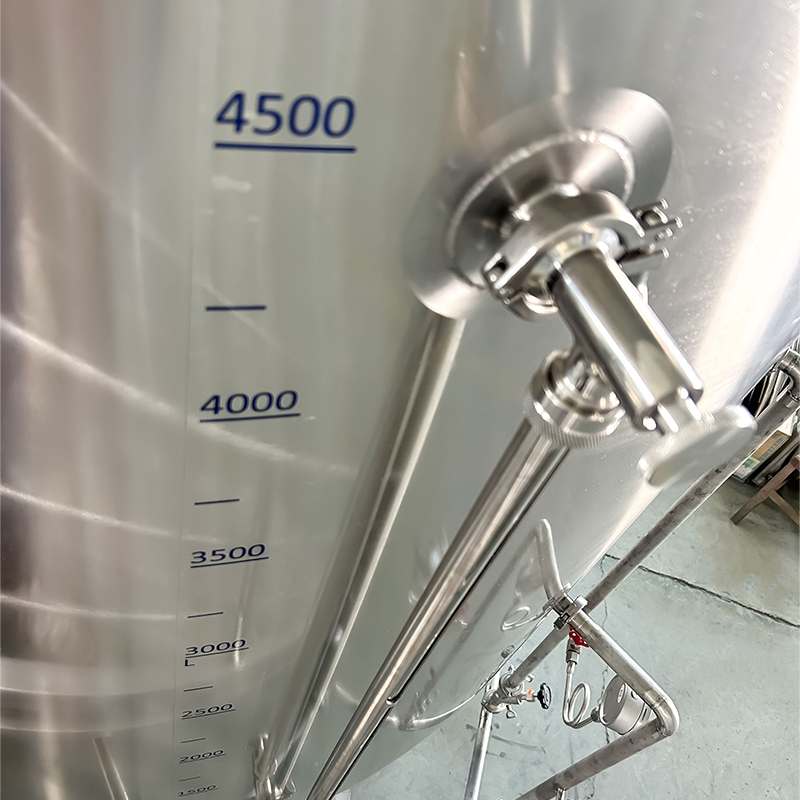

- Sight glass with level marks

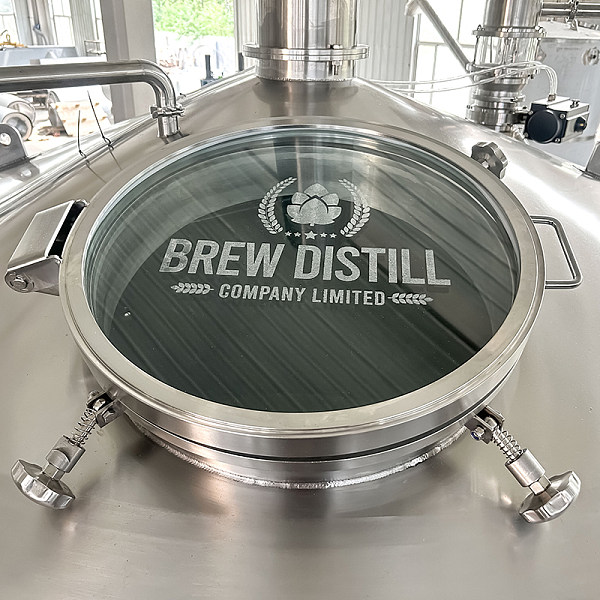

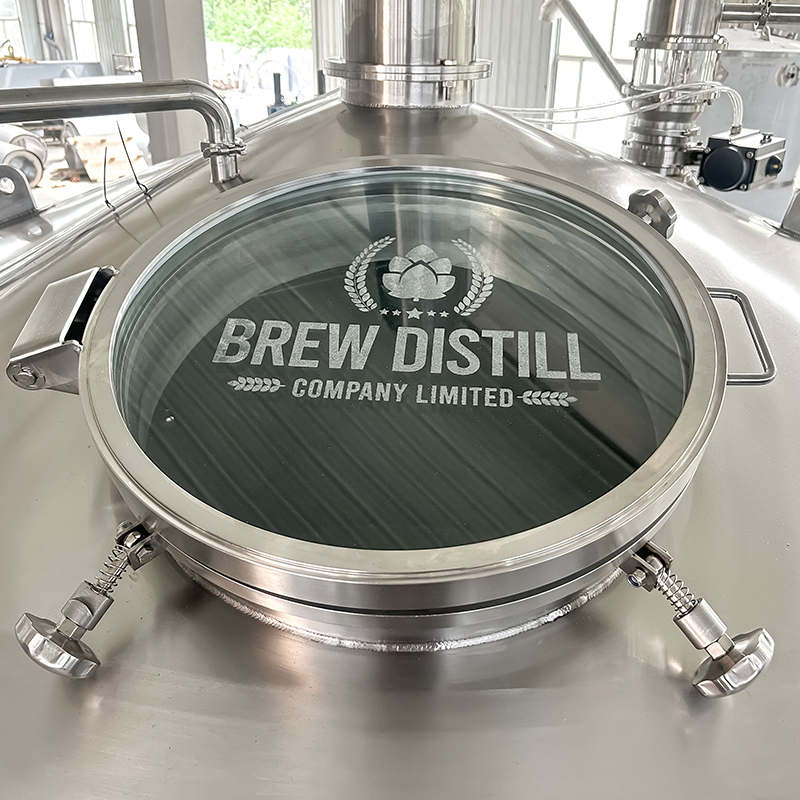

- Glass manhole with your LOGO etched
DESIGN

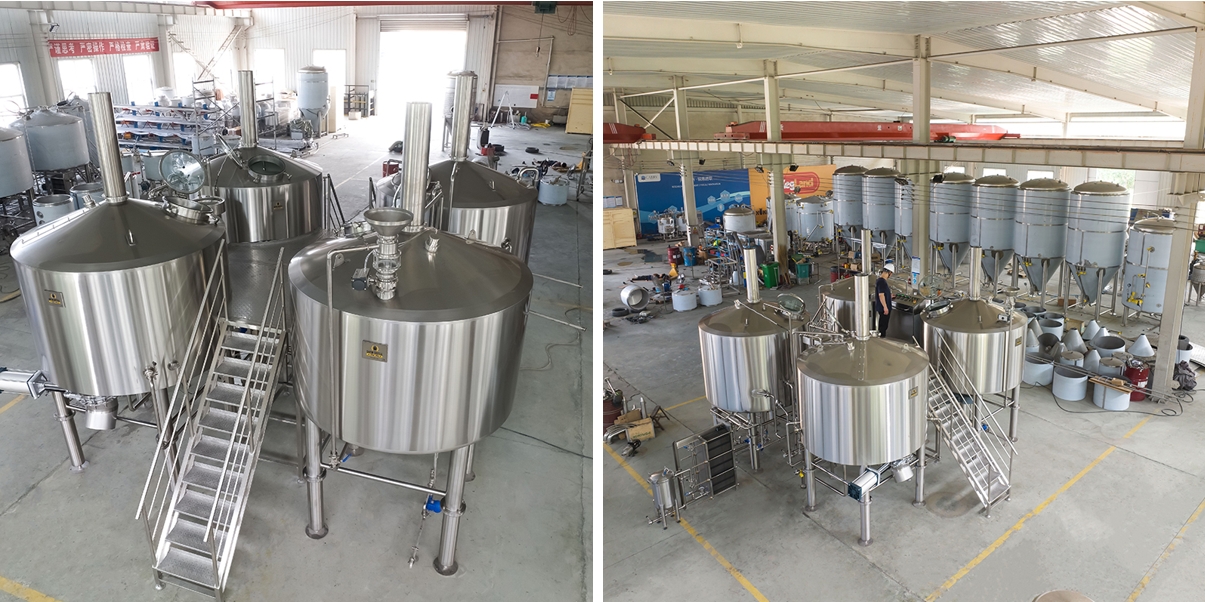

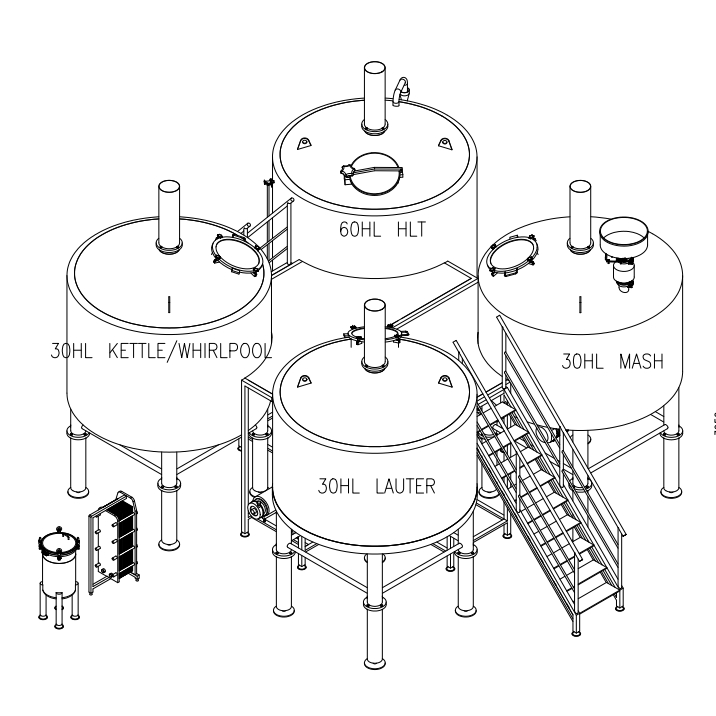

30HL Brewhouse Side View

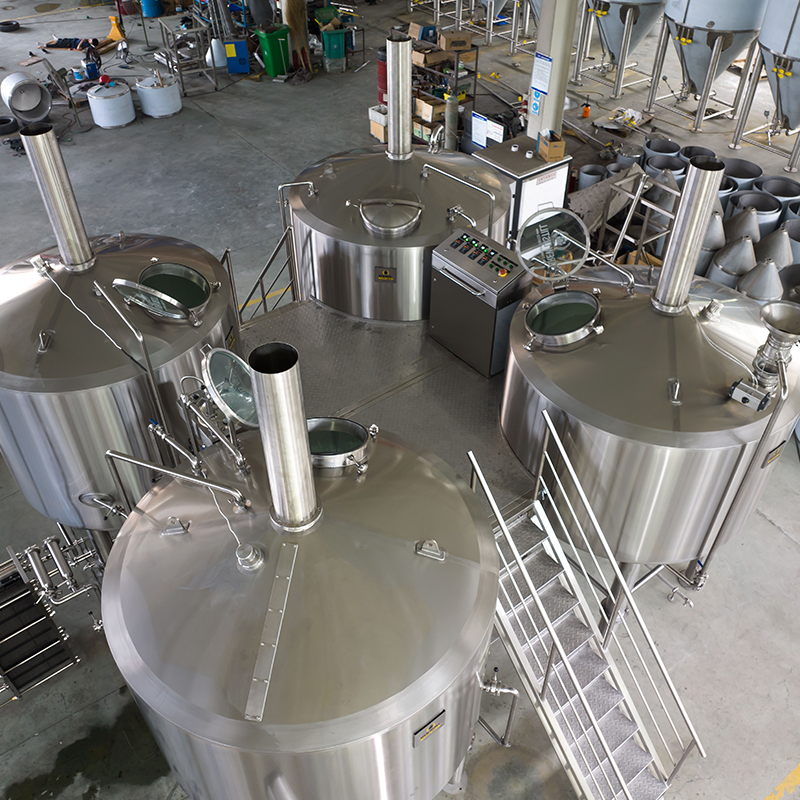

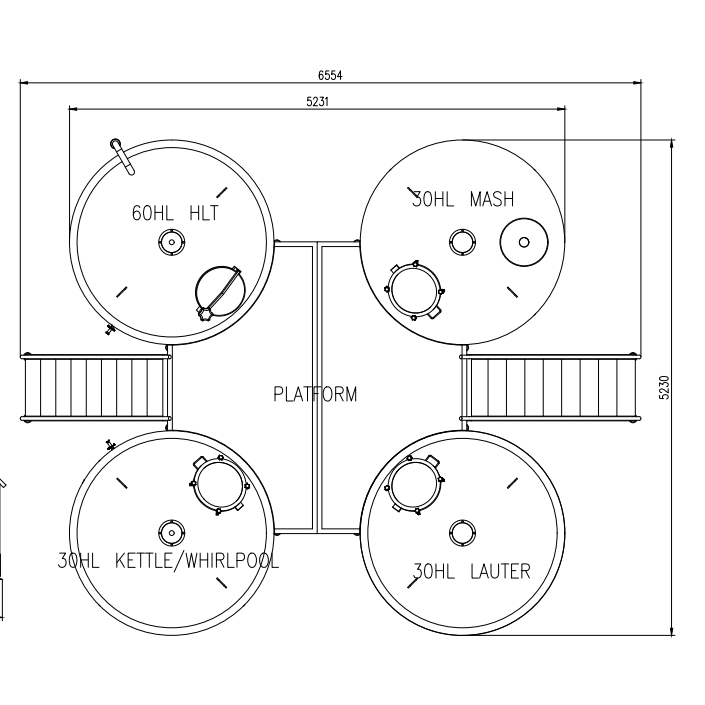

30HL 4-Vessel Brewhouse Top View
How to draw up a complete Commercial Brewery System?
For brewery system that will be setup in pub or restaurant, it has more factors need to be taken in to consideration:
1. Attractive
Brewery system is not only the equipment that provide beers, but also an art corner to attract clients. So, you need to consider the option that looks nice.
2. Save your time
Once you own your pub, the most treasureable thing would be your time, you need time to brew beers, finalize marketing, visit your clients, and manage the cash flow. Everybody has 24 hours a day, but you were trying to split it into 48 hours.
So, if there is a system can help you optimize the operation process, save your time to do more worthful works, then don't hesitate, that is the suitable one for you.
3. Turnkey solution
Recently, COVID-19 makes the travels difficult, especially when your system need the onsite installation service. But how to install?
Don't worry, if you can find a supplier that can provide turnkey solution, don't miss it. That will be the wonderful option at the moment.
From the owner’s point of view, all of them are important to start with. So sourcing the right supplier will be an significant choice. Carry brewtech provides consultation service from 0 to 1.
Contact CARRY guys right now, we are ready to provide the most suitable solutions for your business. Let’s do it!
Listen -> communication -> system configuration -> layout -> simulated pipeline -> Details -> price quotation -> production -> shipment -> remote/onsite service -> life-time support
