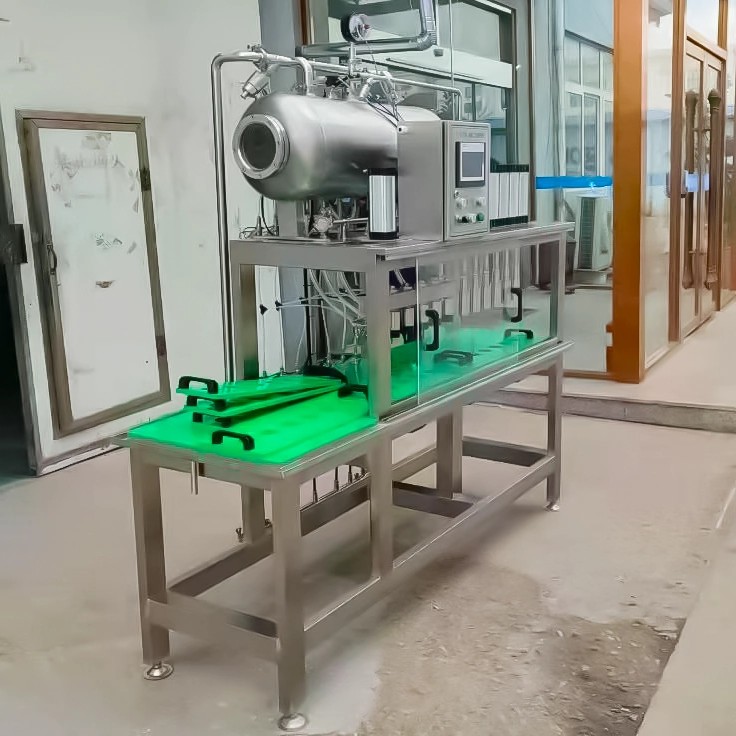

6-Head Beer Bottling System

6-head beer bottle filling machine for beer brewing system, suitable for mass production in small breweries, we also provide different specifications of canning machines, fermentation systems, etc.
-+
Add to Basket
Inquire Now

◉ Product Parameters

6-Head Glass Bottle Filling Machine

Overview

The 6 heads filling machine adopts the counter pressure filling technology which can perfectly realize the requirments of twice vacuum, Co2 injection. The machine is adopts counter pressure filling technology, this machine is specially designed for beer filling. The machine has the advantages of high speed, reliable output, compact design and stable operation. The machine suitable for medium or small capacity breweries.

Product Description

1. The filling machine is mainly used for filling, sealing, and can be used for carbonated beverages such as cola, Sprite, and beer.

2. Two steps of filling and capping can be performed on the machine.

3. Glass window design, and improve sanitary conditions, production capacity and economic benefits.

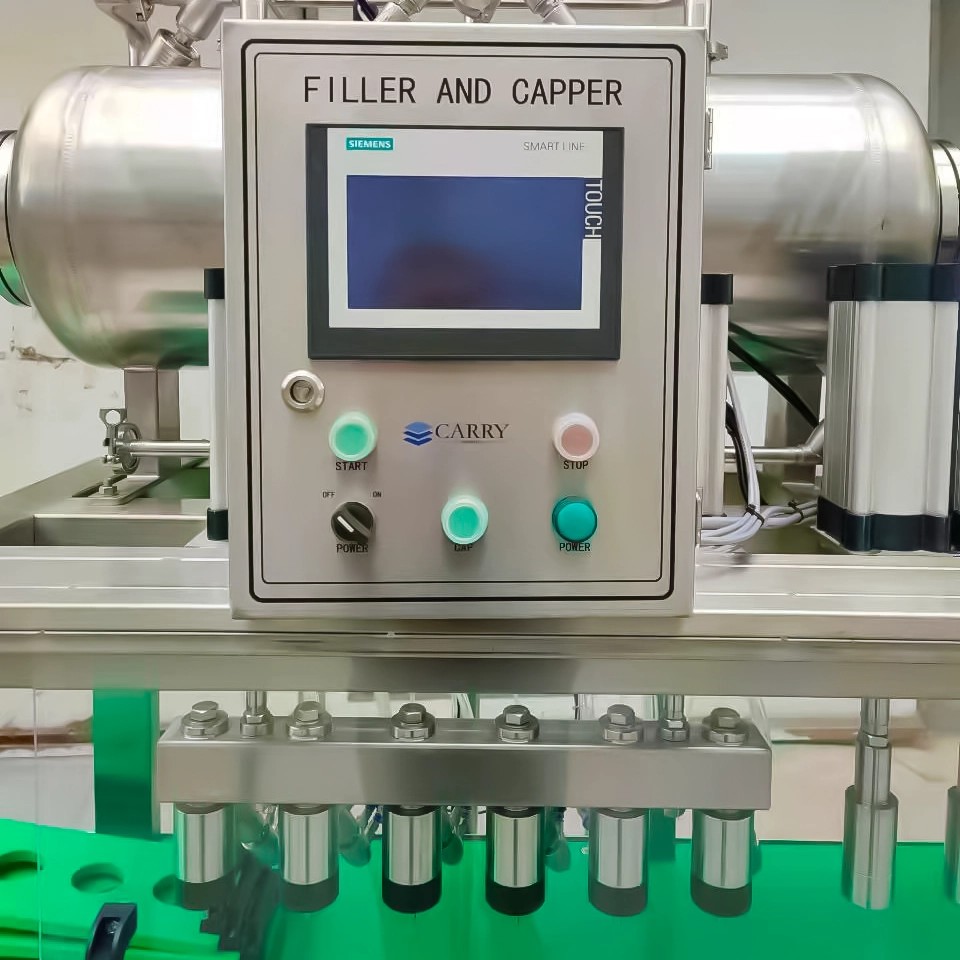

4. The host adopts advanced programmable controller control technology. The main electrical components are Siemens PLC 200 smart.

5. Suitable for small bars and breweries for filling and selling

6. Automatic control by PLC,  all parameters can be adjusted.
7. Filling and capping process can be finished in this machine.
8. With CO2 pressurization and could add vacucum.
9. Adopt isobar filling method and with unique pressure maintaining system,performance stable and reliable, beer loss minimum.
10. With pressure compensator, to guarantee a stable filling process.

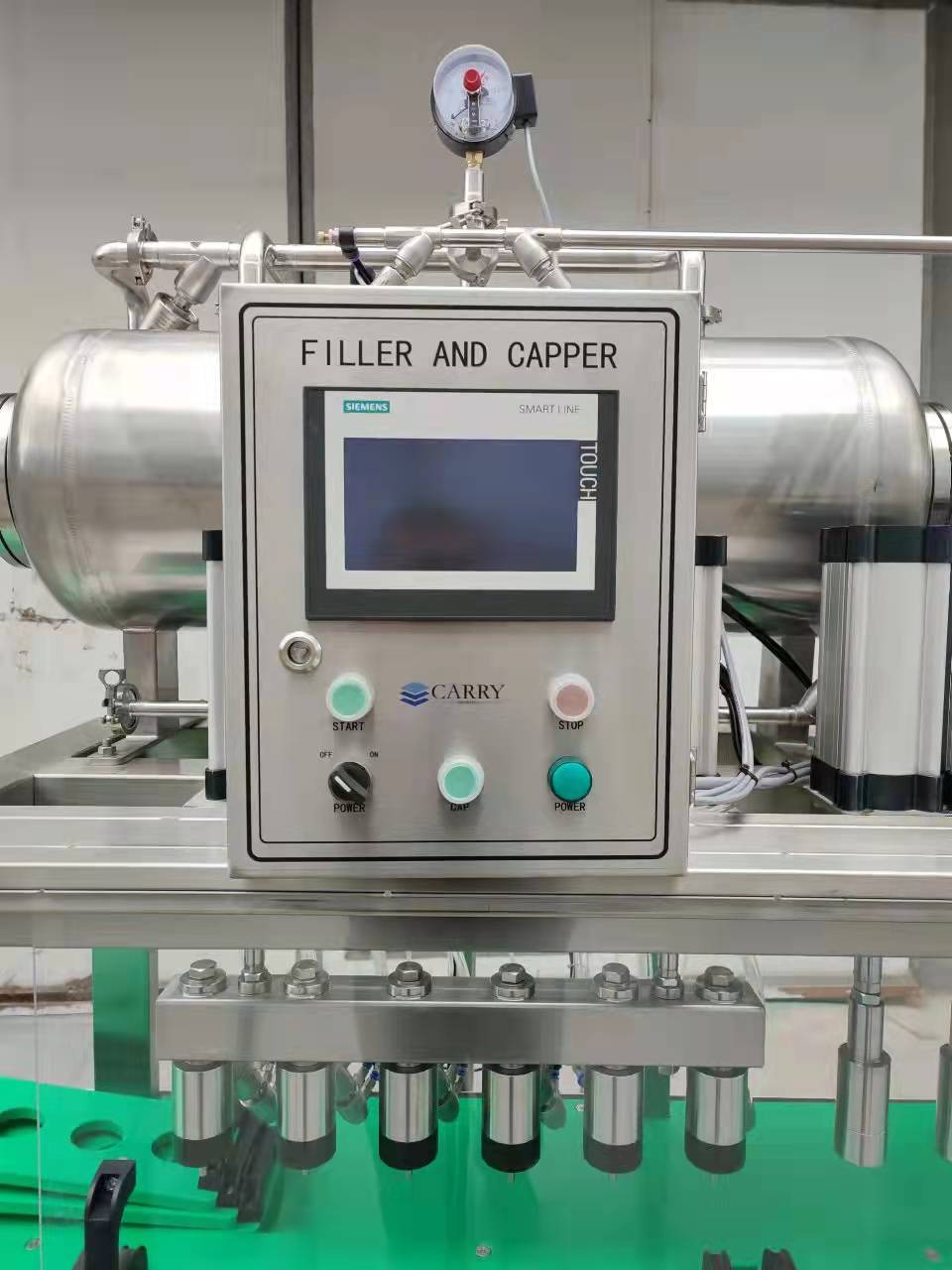

01faeeb2c1d7fabab701a6f100d3c88e

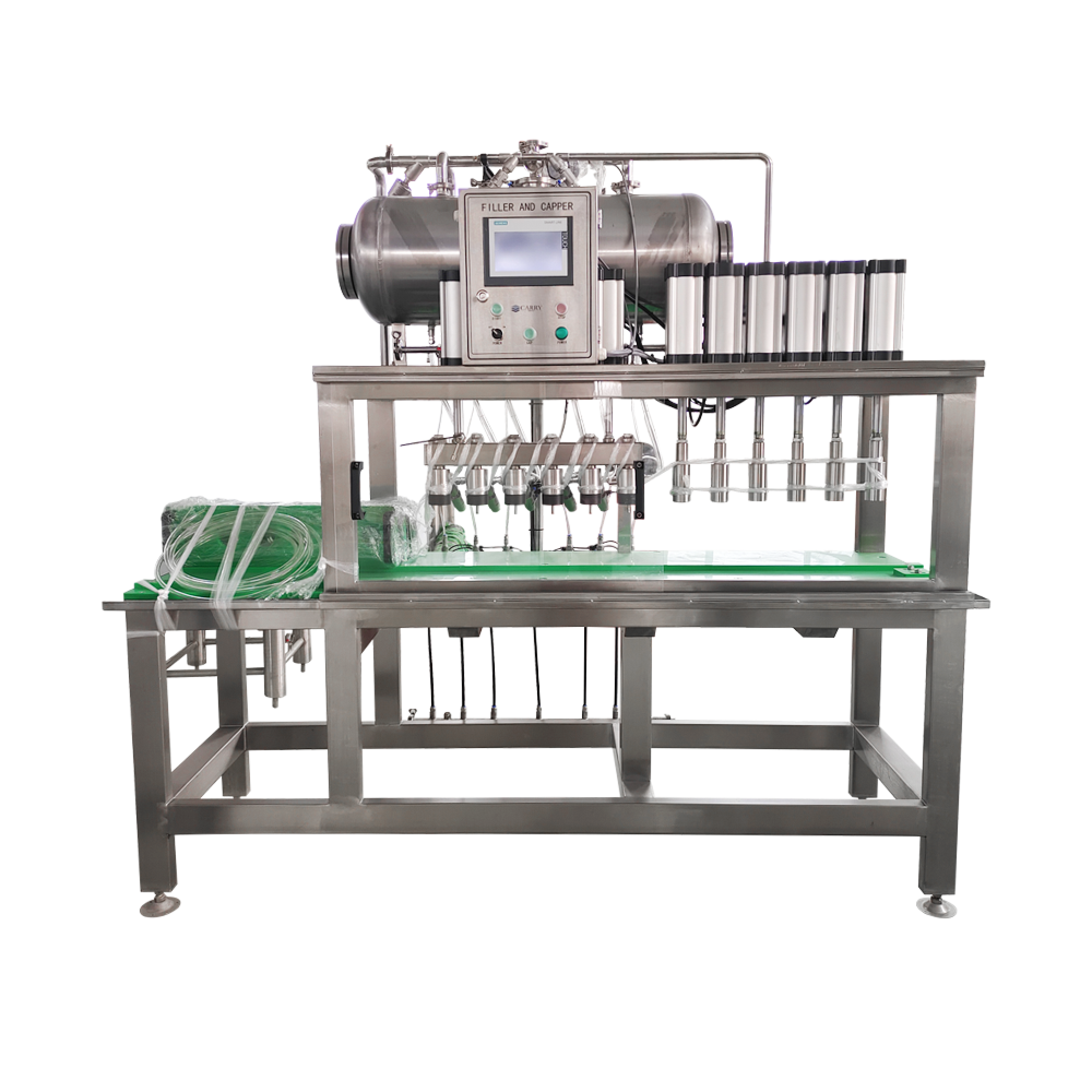

8573587dcb1eb7e2708bbdd77b1fb048

1.Dimension=2.73x0.85x2.20M, gross weight=245KG

2.Bottling capacity: 300-450BPH

3.Power supply: Single phase 110-240V 50/60Hz（Single-phase electric）

4.Power consumption: 200W

5.Beer Source Pressure: 0.15Mpa

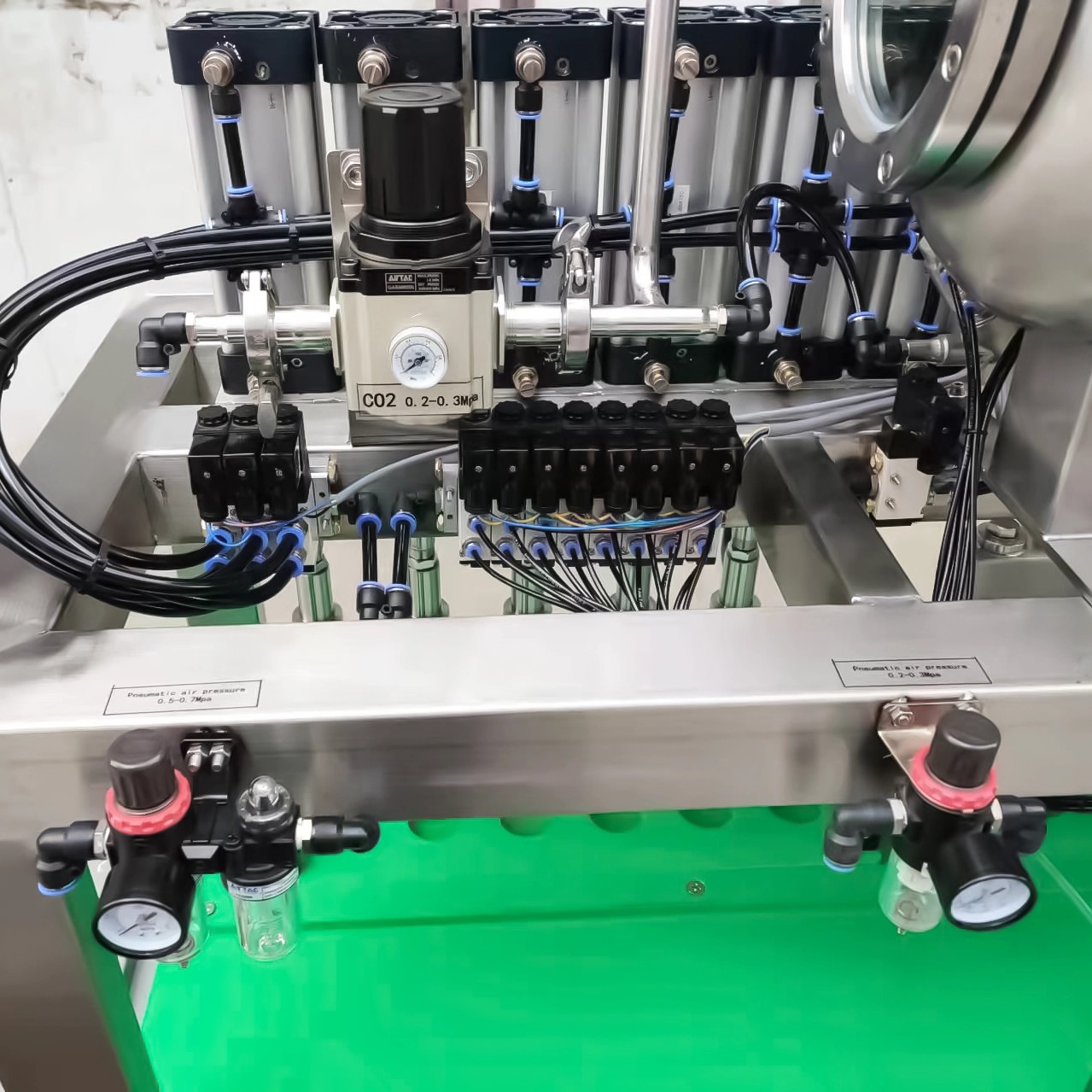

6.CO2 Regulator Pressure range: 0.15-0.2Mpa

7.Time setting way: Siemens PLC 200 smart

8.beer bottle type: 300ml/ 500ml (customized)

Working Process

1. Filling working procedure: Put the bottle on the station →CO2 filling→beer filling→stop

2. Capping working procedure: Put the bottle on the station→capping→stop

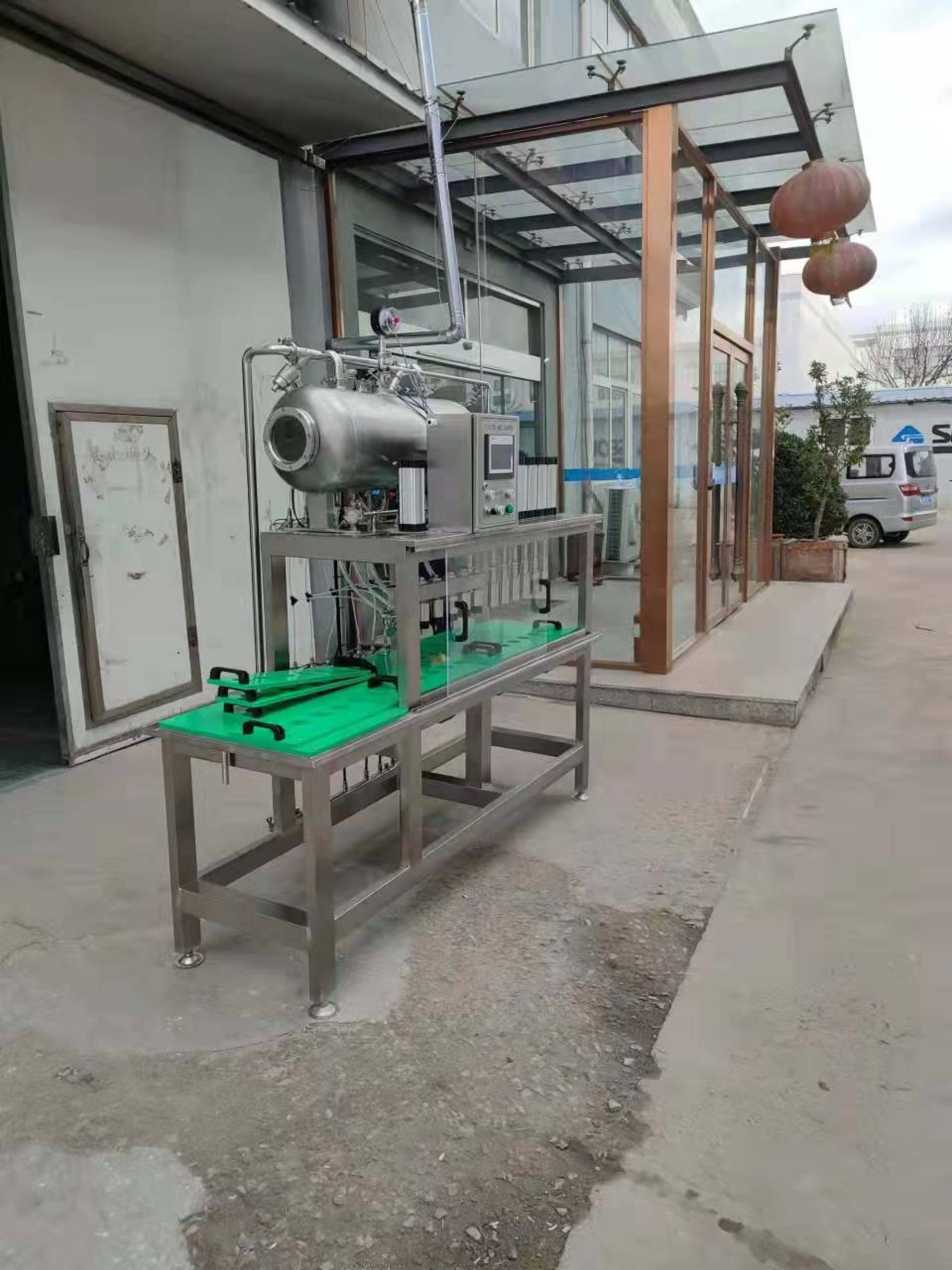

e3649d7013504c75d40443102d73239b

1. Automatic control by PLC, all parameters can be adjusted

2. Filling and capping process can be finished on this machine

3. With CO2 pressurization and could add vacuum

4. Adopt isobar filling method and with unique pressure

maintaining system, stable and reliable, minimum beer loss.
