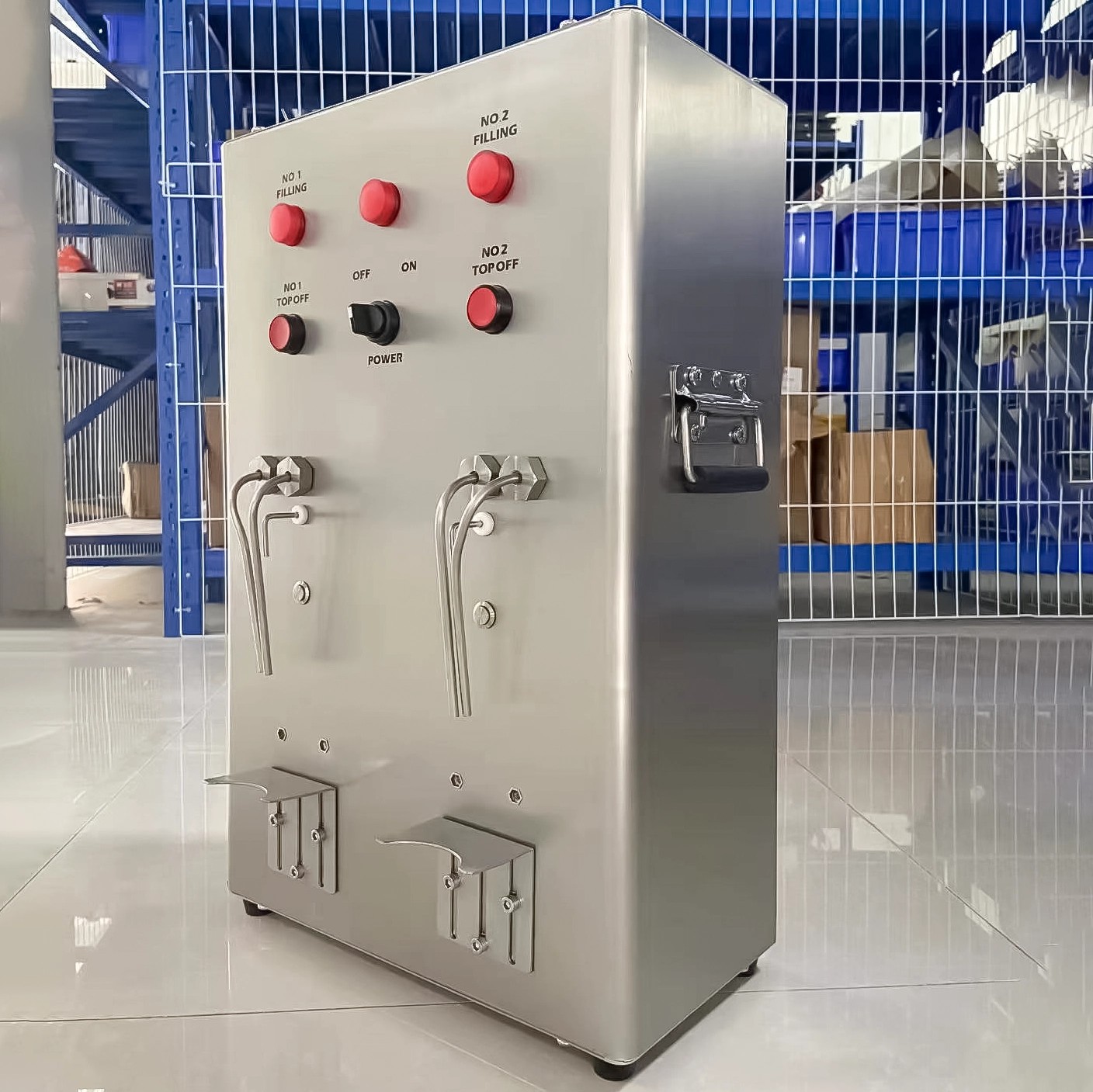

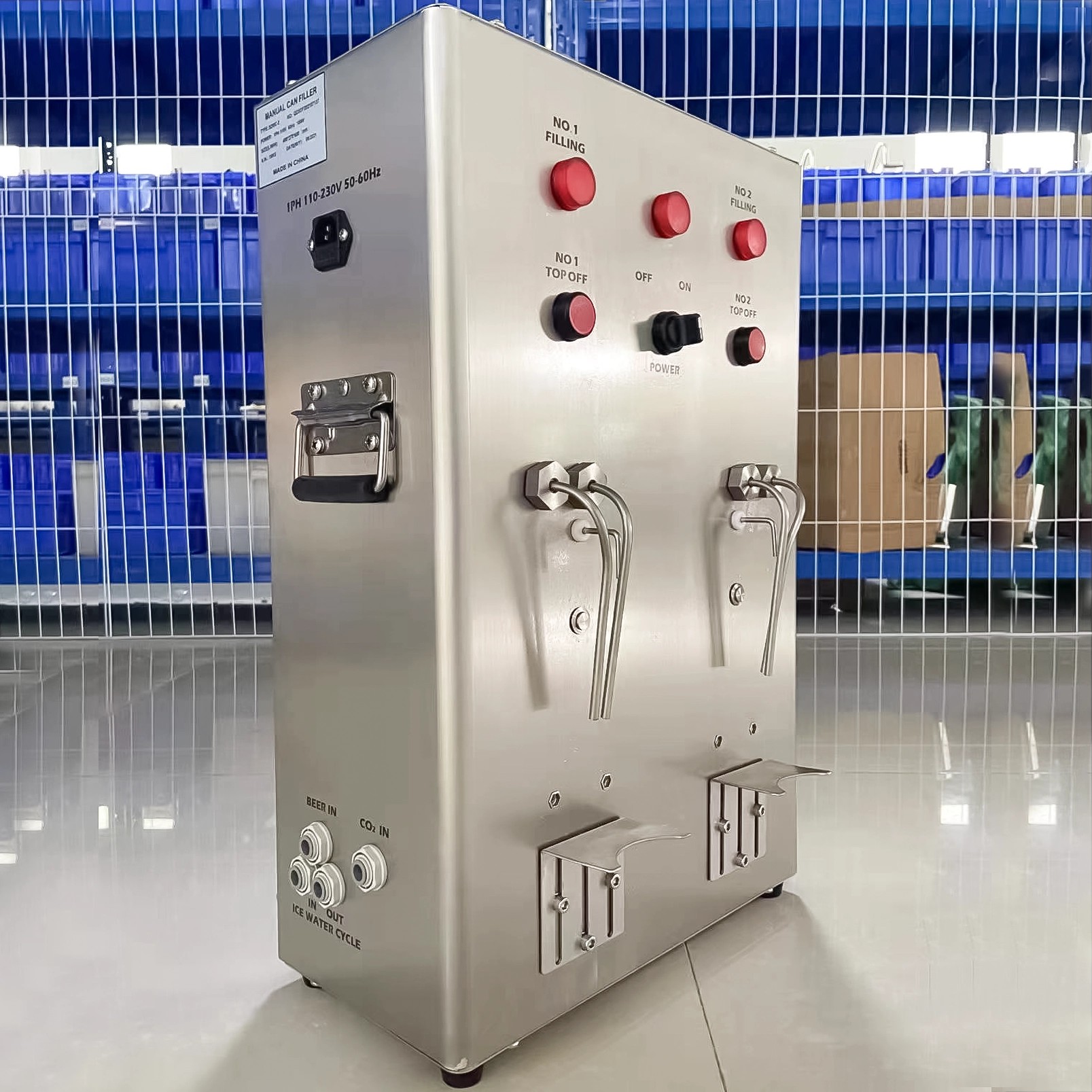

Double Heads Semi-Auto Can Filler

This Double Head semi automatic canning machine is special designed for medium capacity brewery/brew pubs. It's easy operating with high efficiency. The working flow includes discharge the CO2, Beer filling. All-in-one filling method design, the working is reliable.
-+
Add to Basket
Inquire Now

◉ Product Parameters

Double Head Semi-automatic Keg Filler

Overview



Double Head Semi Automatic Canning & Capping Machine



This combined machine is used for filling and capping of beer and other carbonated drink.It has such advantages as stable filling,fast speed,control of liquid surface,Adjustable base. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision. It is priority and ideal facility for medium -size beer plant and beverage plant.



1.Dimension=0.55x0.40x0.80m, gross weight=20kg

2.Filling capacity: 3-4PCS/MIN/STATION | total 2 Stations

3.Filling Speed: 330ml-15s, 550ml - 20s

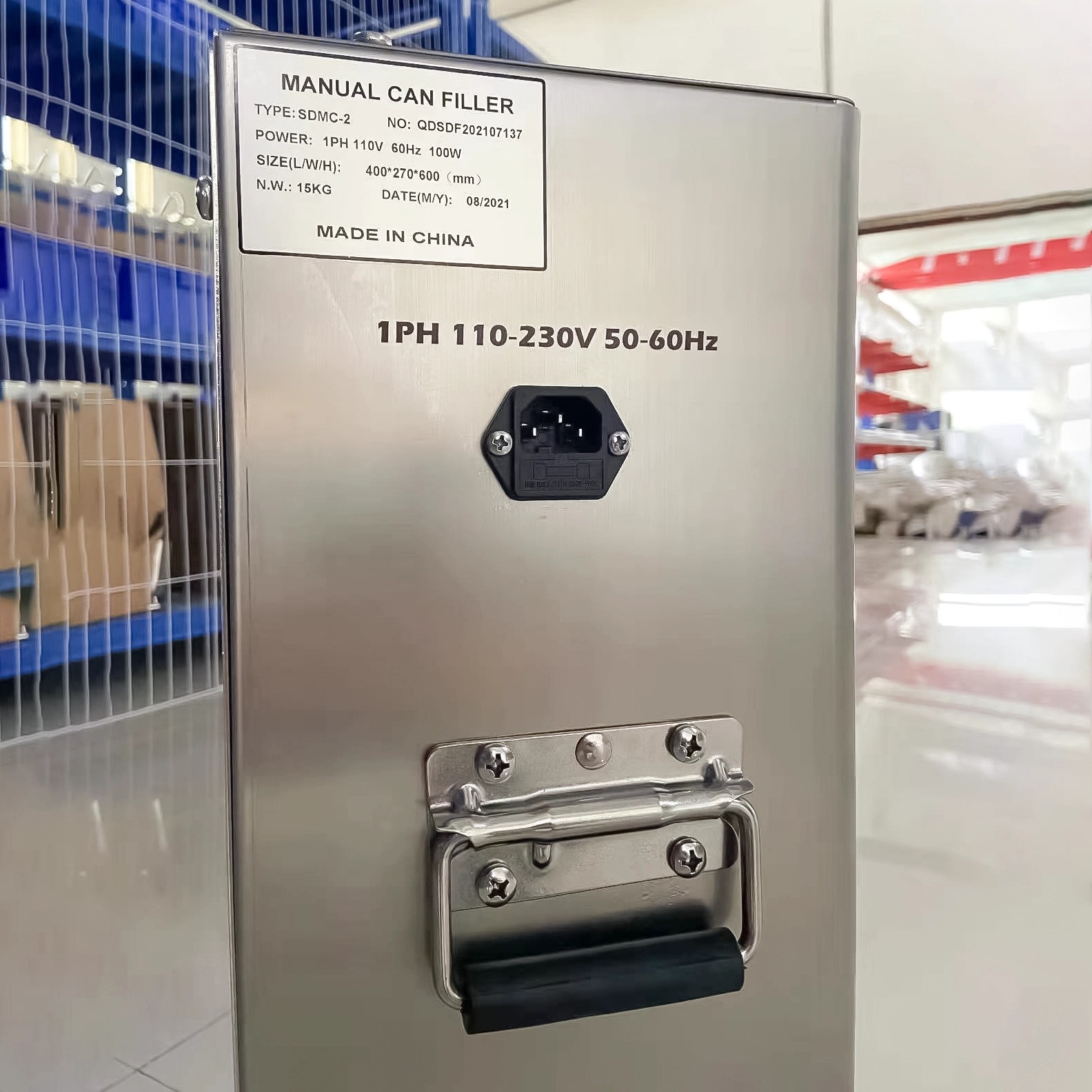

4.Power supply: Singel Phase 110V-240VAC 50/60Hz is default

5.Power consumption: 100w

6.Main Material is 304 Stainless steel

7.Beer Source Pressure:0.08-0.15MPa  (12-22psi)

8.Co2 Pressure: 0.05-0.08MPa (9-12psi)

9.CO2 Regulator 20 psi from plant system connected to canning system with 3/8 OD barbed fitting

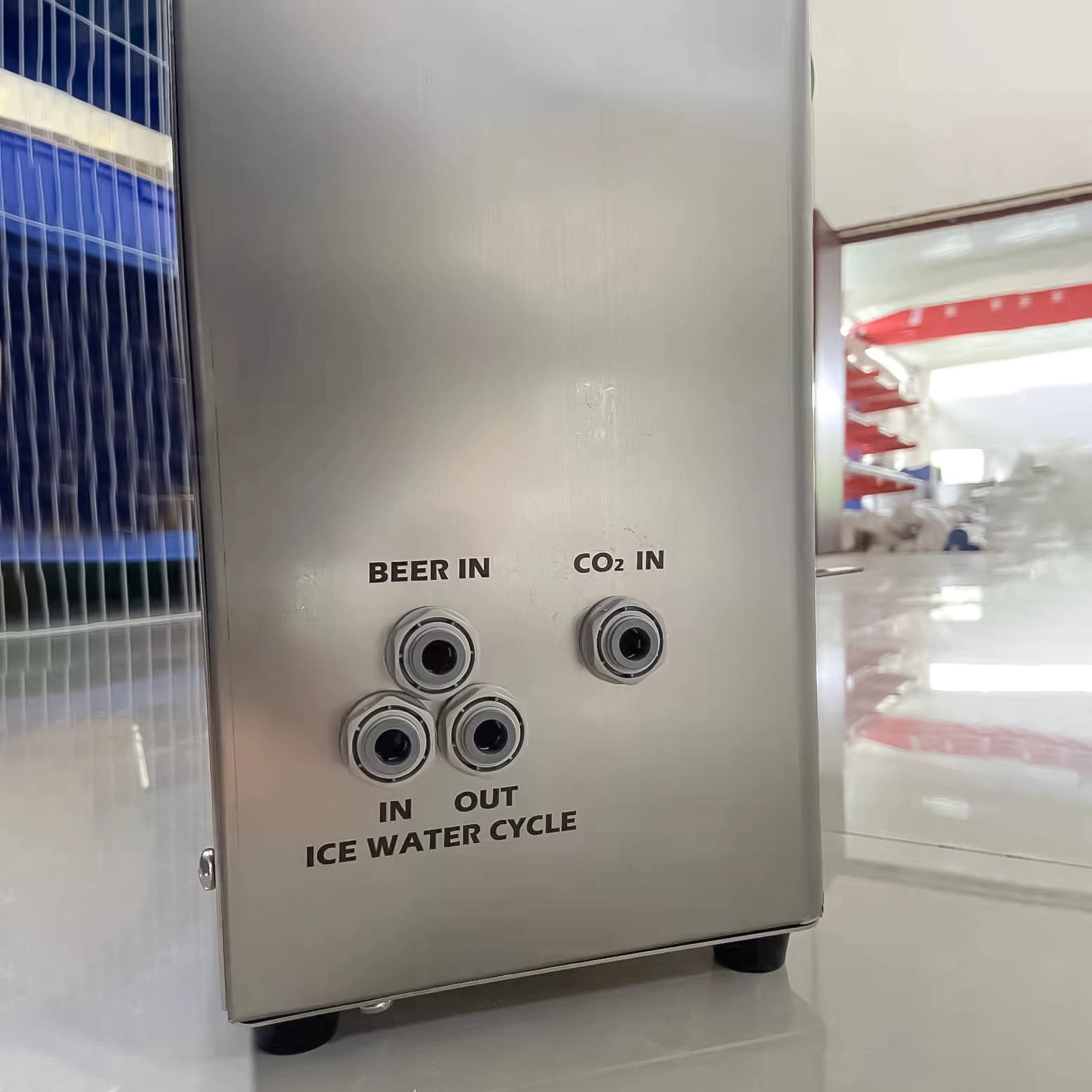

10.Installation source: CO2, Ice water (-2℃~ -1℃)

11.Can Volume type: 330ml-568ml

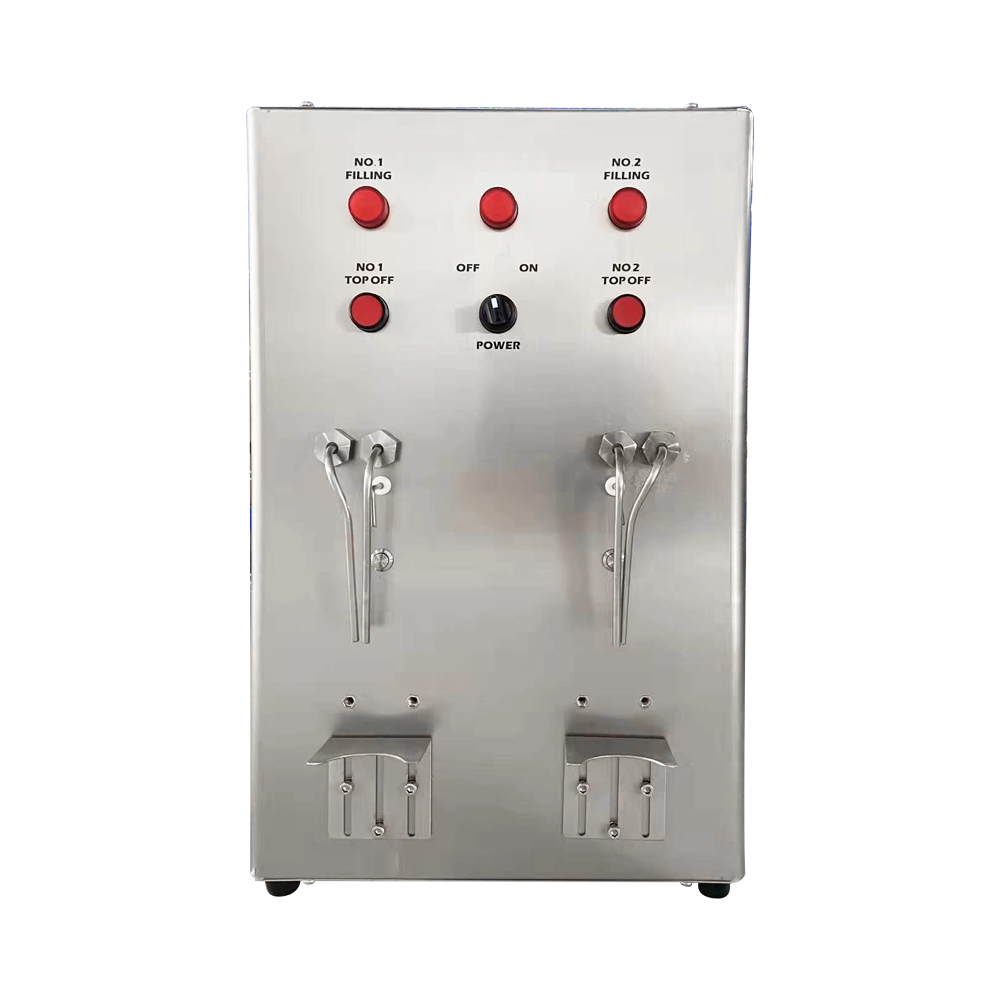

b7633916536cd92b11d227c715079fb7
49f69df922b2606d13e9b58cc27ebce5

Advantages:



1. The filling amount is rather average,the adjustment is convenient.

2. Main frame adopts SUS304 liquid contract parts adopts SUS316.

3. It adopts special filling valve which makes washing and cleaning convenient.

4. Made of food grade stainless steel, the whole is small and exquisite

5. Small floor area and convenient operation.

6. The filling process includes release CO2 ,filling and exhaust.

7. Using isobaric filling method

8. It is the ideal choice for small brewery

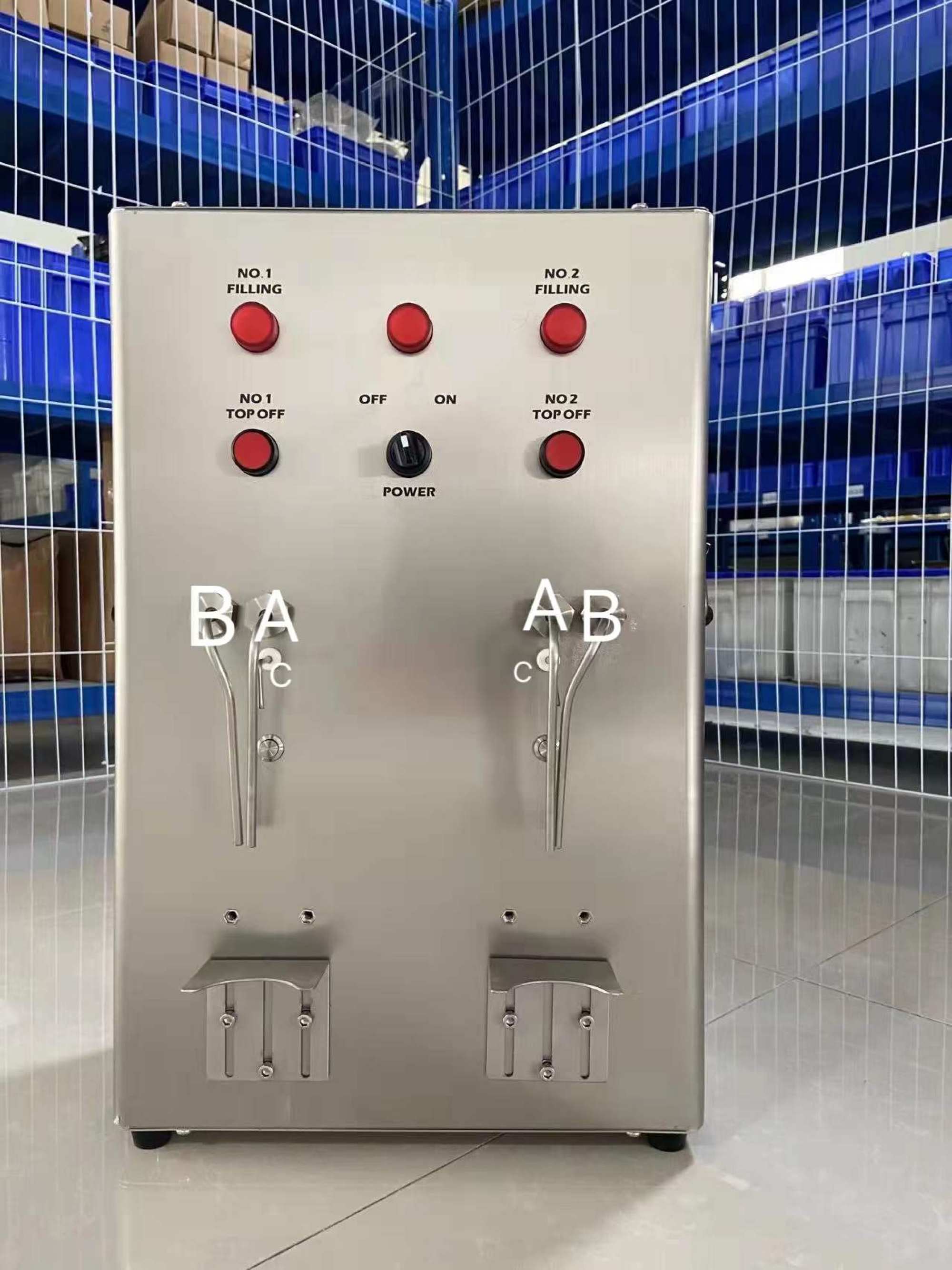

There are three difference tubes:



1. Tube A is a CO2 tube: which can release the CO2 to the can and during the filling process prevent the beer from being oxidized.

2. Tube B is Beer outlet tube: which allows beer to through this tube and then filling in the can.

3. The shortest one C is a liquid level sensing tube, which can sense the beer in advance to prevent overflow.

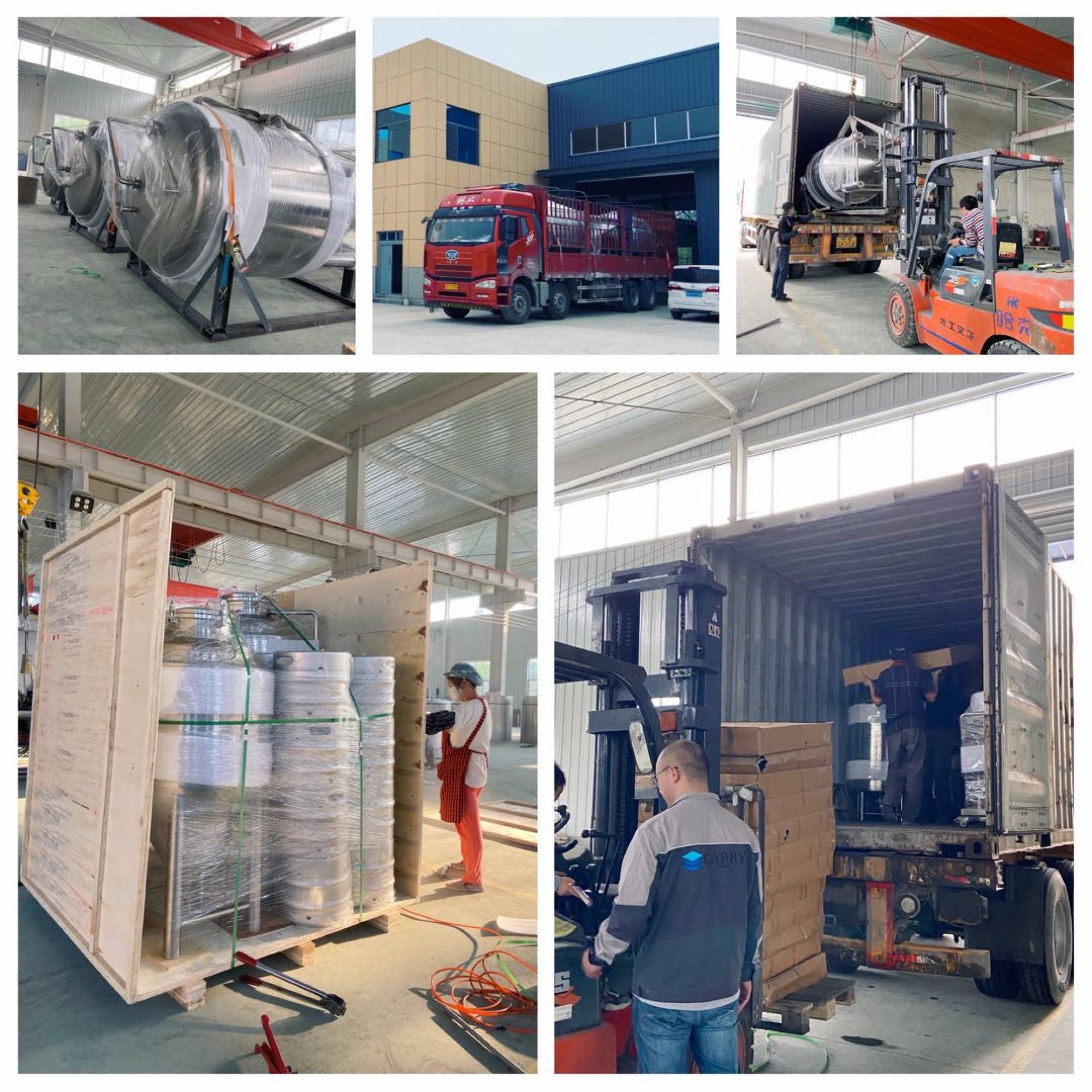

Packaging & Shipping
