500L 2 Vessel Brewhouse Beer Brewing Equipment System Manufacturer

Name: 500L 2 Vessel Brewhouse Beer Brewing Equipment System Manufacturer
SKU: 0

When you want to expand your pub/micro brewery, 500L 2 Vessel Brewing System is a good choice for brewers.

All tanks is made of stainless steel 304, our tank is 2-layer with PU insulation. The inner layer is 3 mm, packing and passivating treatment. Outer layer is 2 mm, ink wires drawing plate.

Add to Basket

Inquire Now

◉ Product Parameters

500L Brewhouse is one of the most popular brewing machine in brewing beer area

When you want to expand your pub/micro brewery, 500L 2 Vessel Brewing System is a good choice for brewers.

All tanks is made of stainless steel 304, our tank is 2-layer with PU insulation. The inner layer is 3 mm, packing and passivating treatment. Outer layer is 2 mm, ink wires drawing plate.

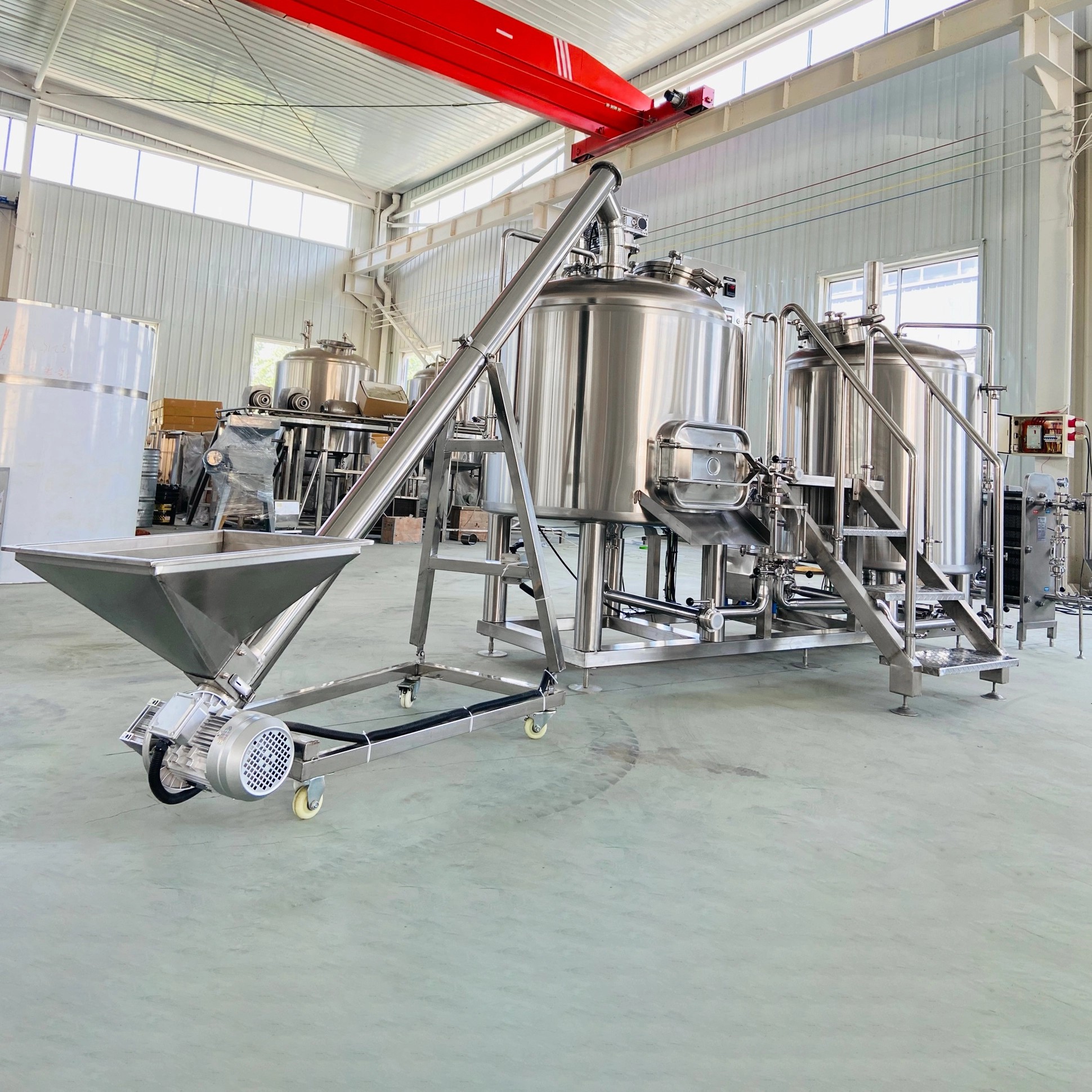

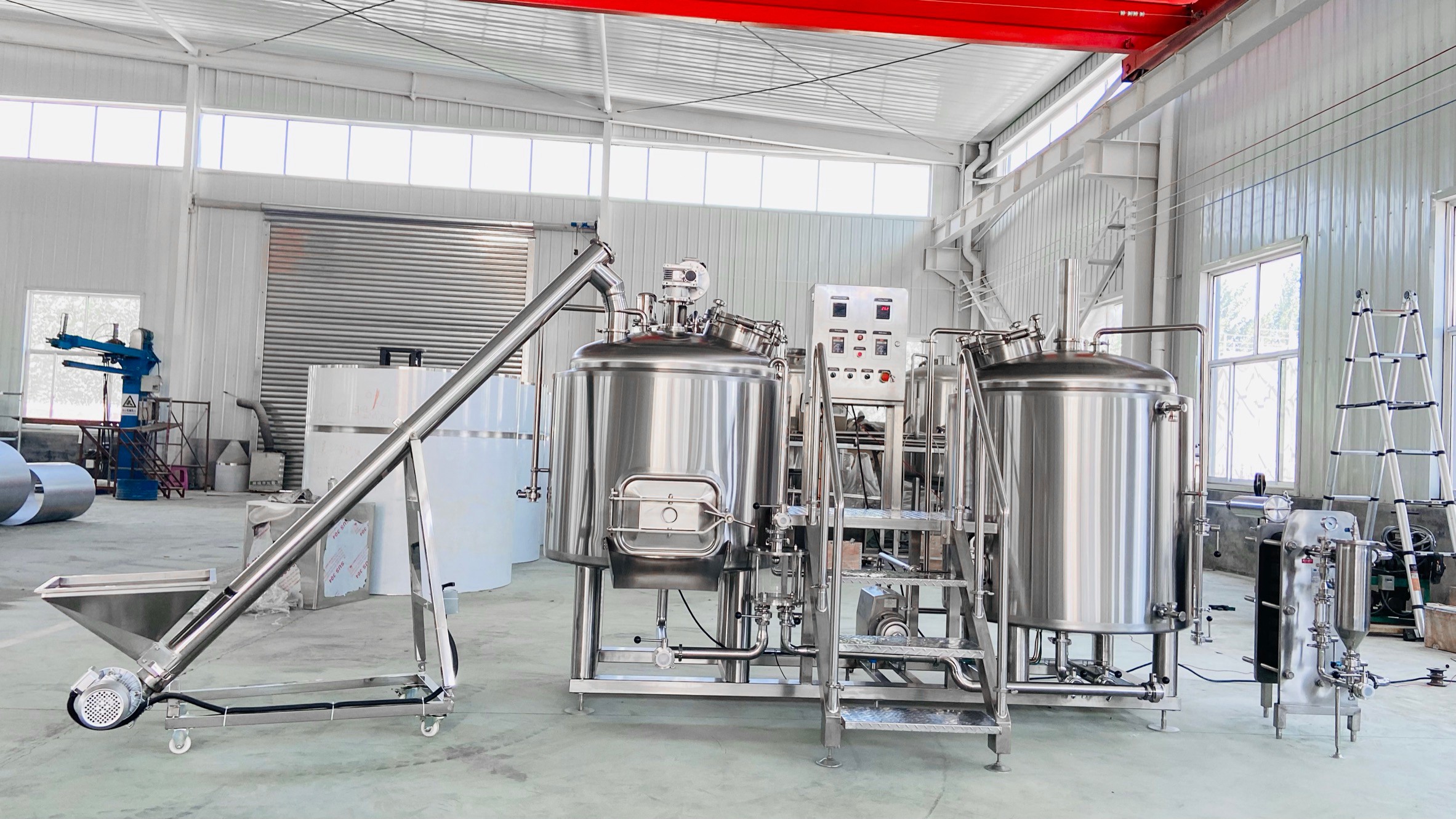

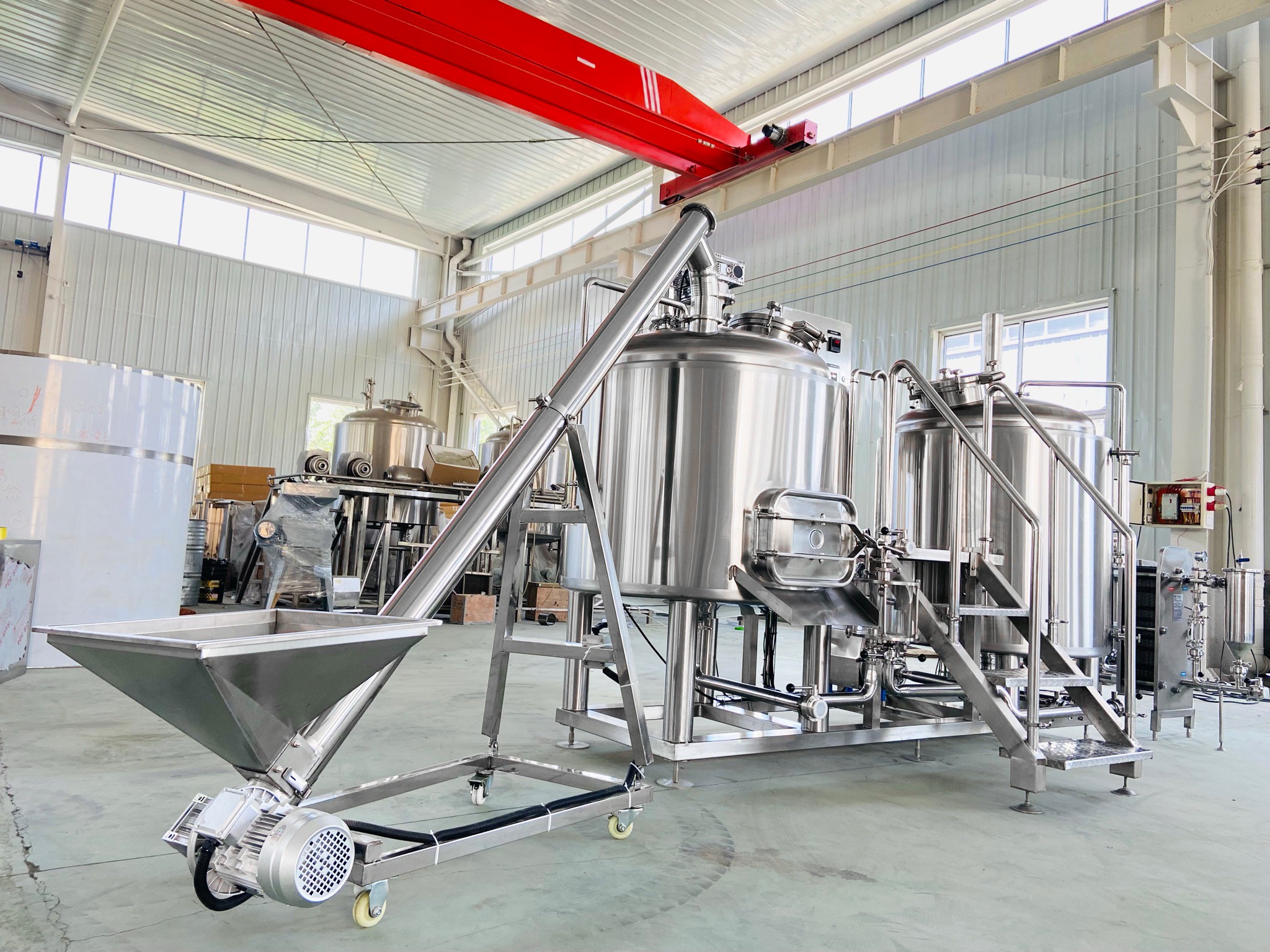

The whole set of 500L beer brewery equipment include malt miller, auger system, 500L brewhouse, HLT, 500L/1000L fermenters, 500L/1000L BBT, cooling water tank, industrial chiller, CIP cart and so on.

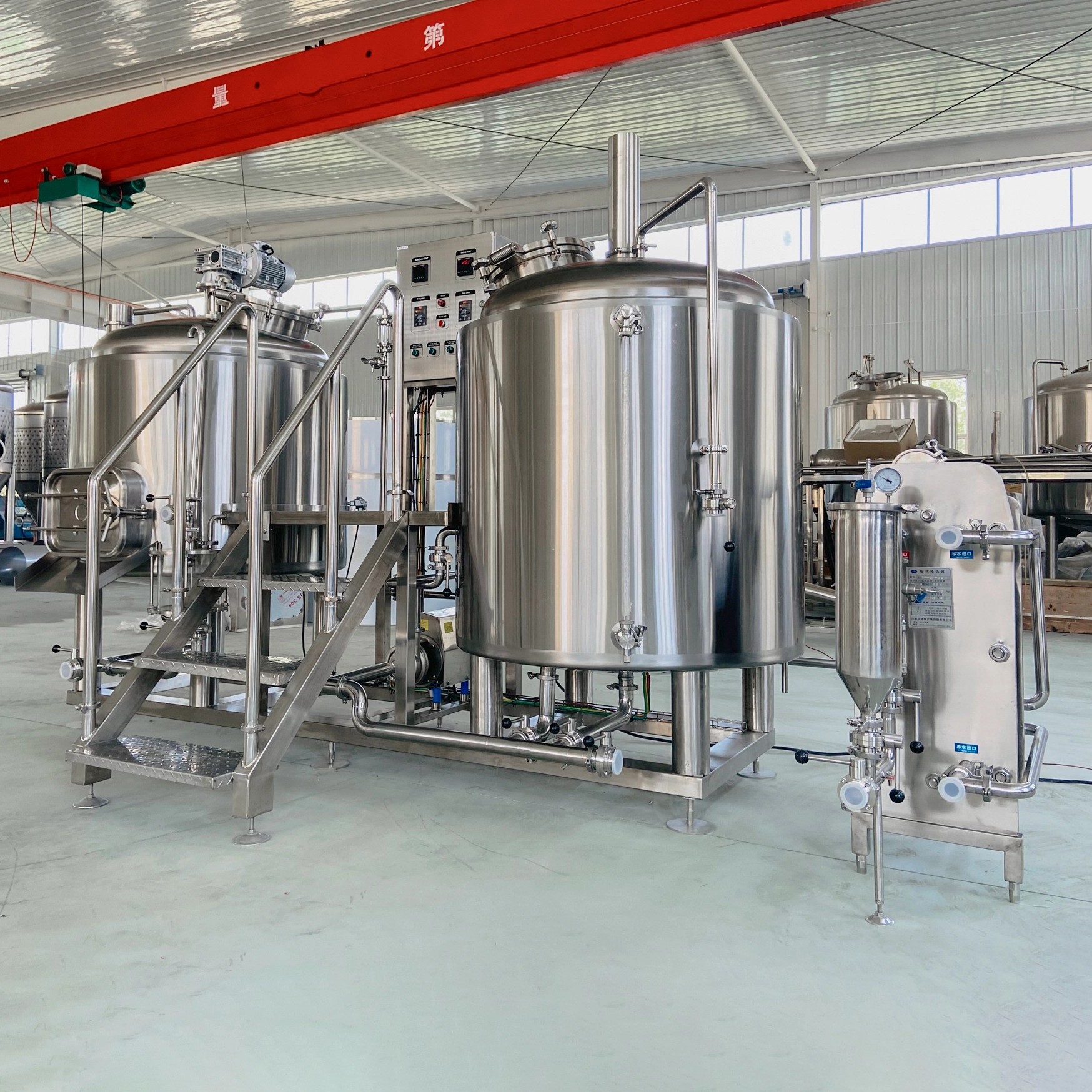

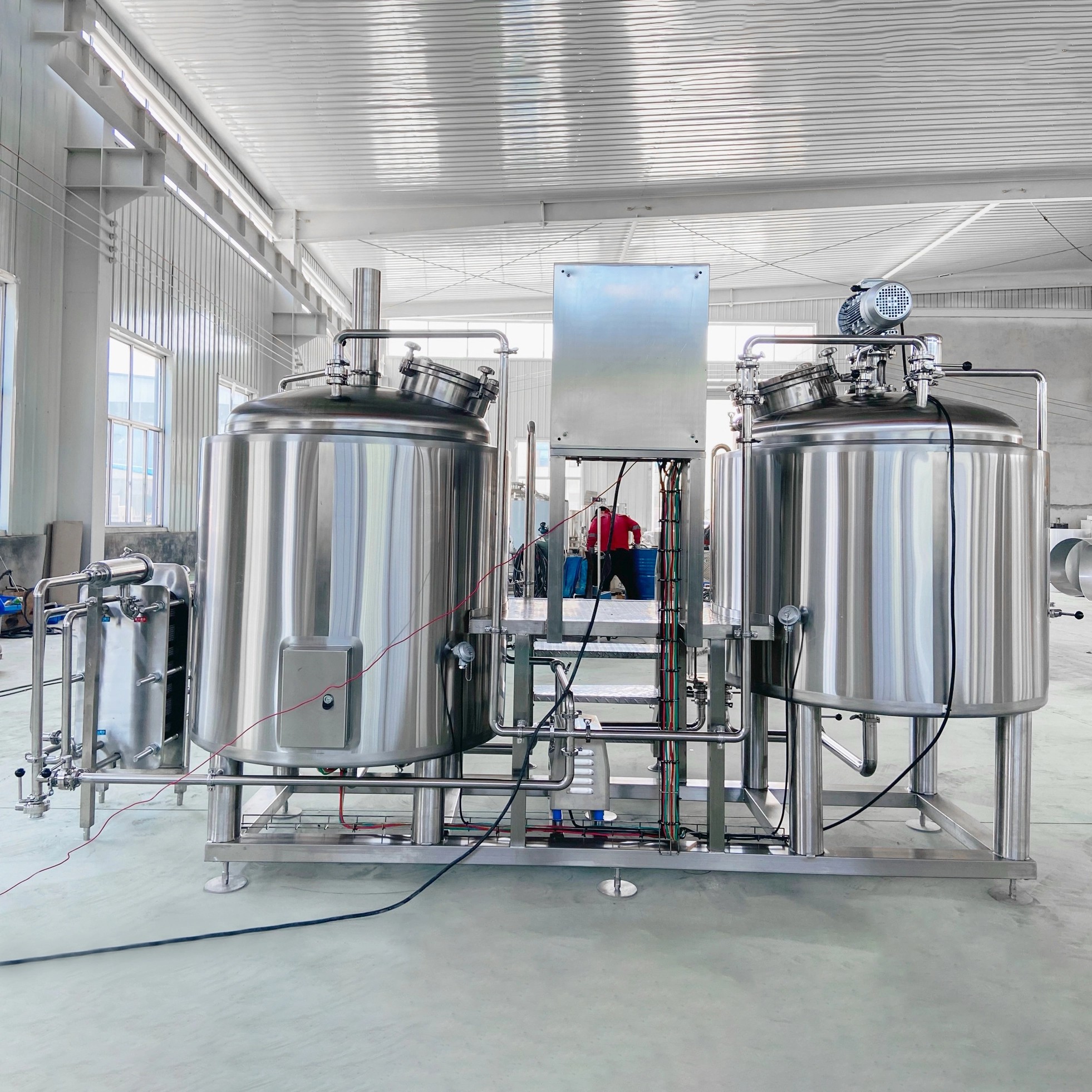

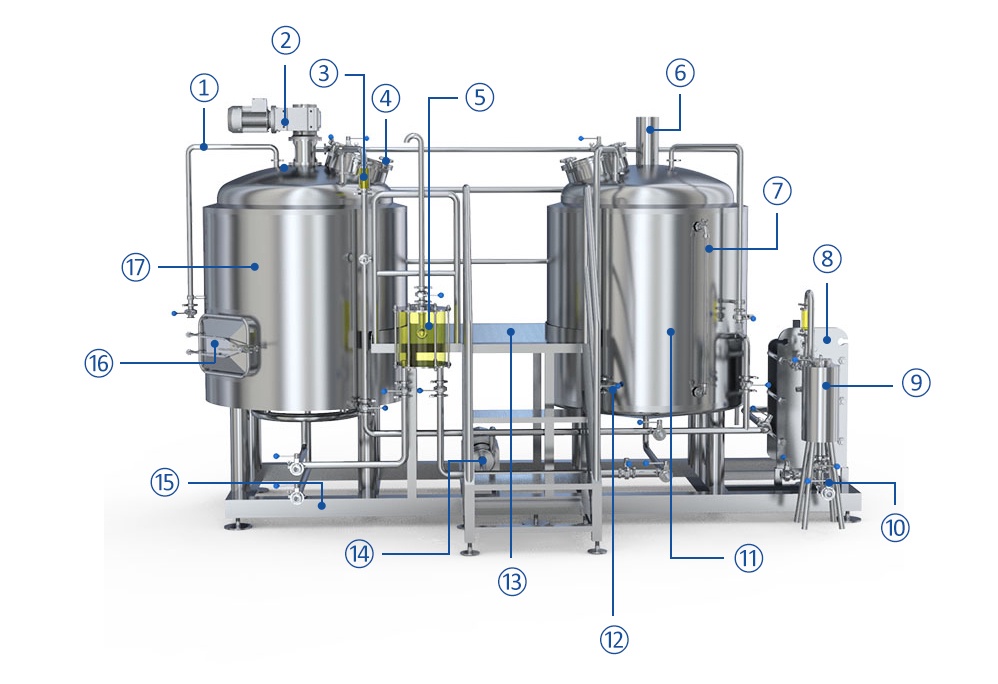

There are some details of 500L brewhosue mainly.

1.	CIP Arm	10.	Wort Oxgenation Device
2.	Raker & Motor with VFD	11.	Kettle/Whirlpool Tank
3.	Sight Glass	12.	Tangential Whirlpool Inlet
4.	Top Manhole	13.	Platform with guardrail
5.	Balanced Tank	14.	Food-grade Wort Pump
6.	Condensing Unit	15.	Pallet&Tray(optional)
7.	Level Gauge	16.	Grain Door
8.	Plate Heating Exchanger	17.	Mash/Lauter Tank
9.	Yeast Adding Tank	18.	Piping and accessories

Mash/Lauter Tun(Left)
a. Effective volume= 500L, total volume= 625L
b. Top Manway

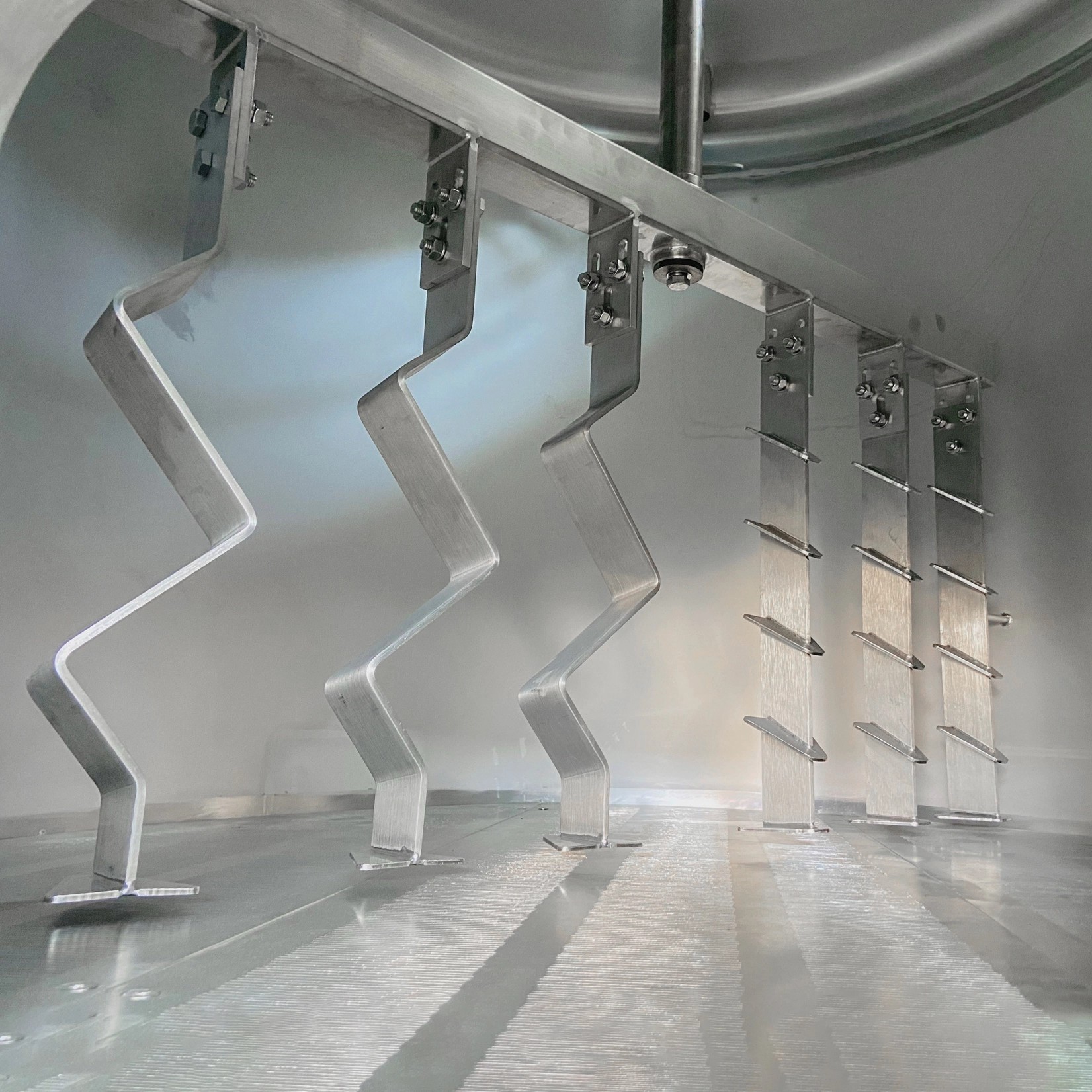

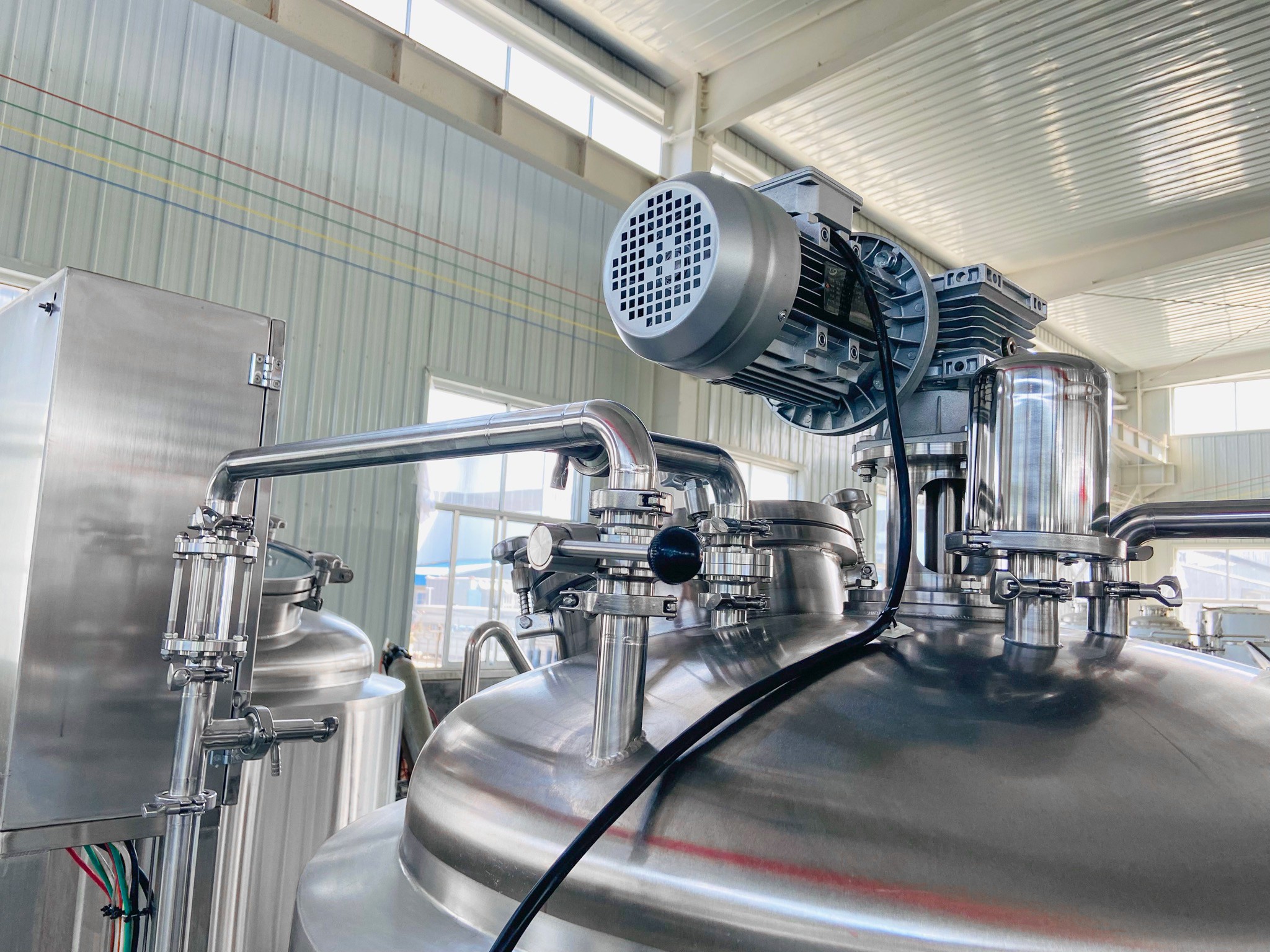

c. Rake with VFD 1.1KW Motor & reducer
d. Spray ring & 360° coverage CIP spraying ball

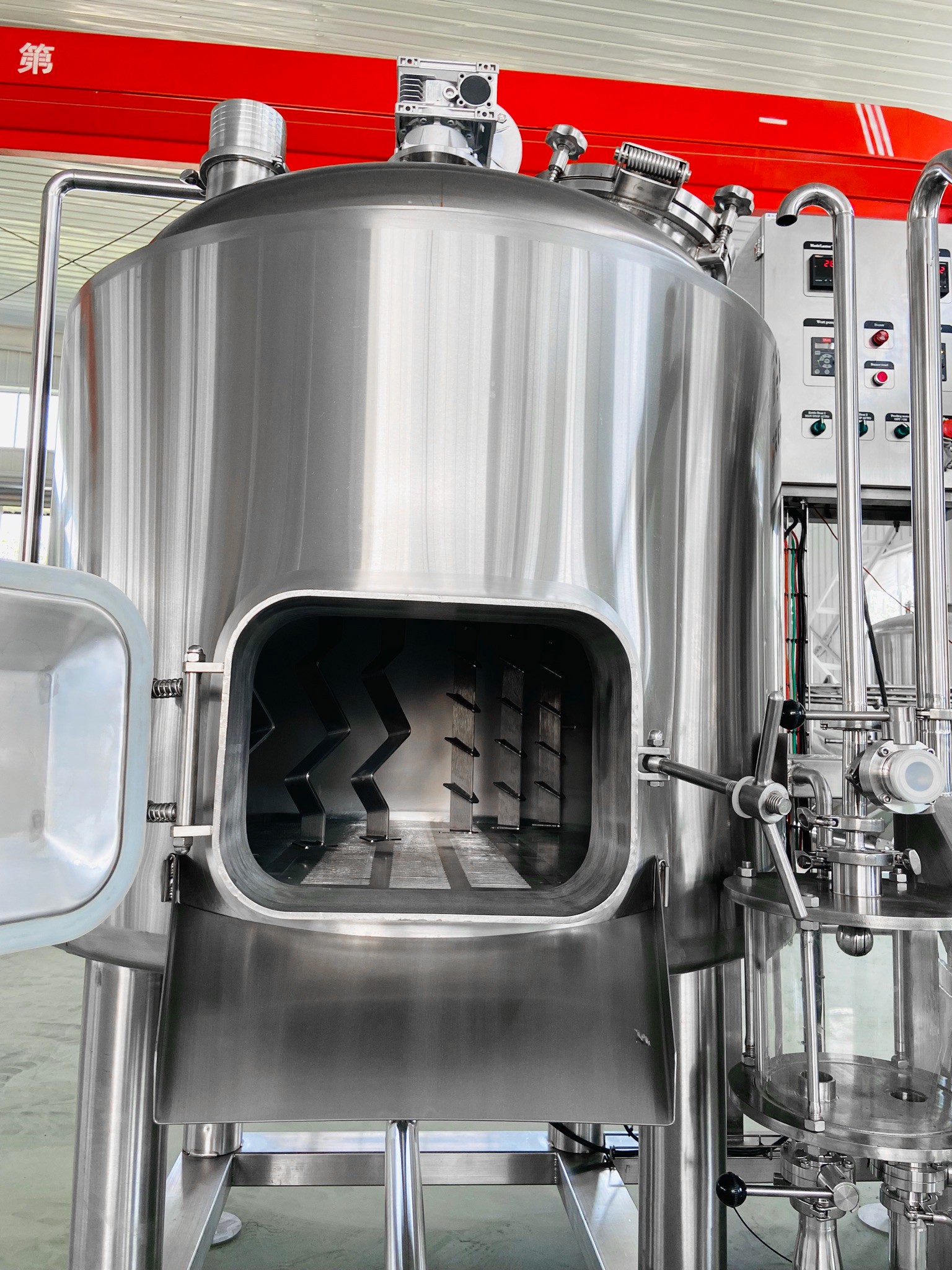

e. Side grain outdoor
f. High precision milled false bottom/sieve

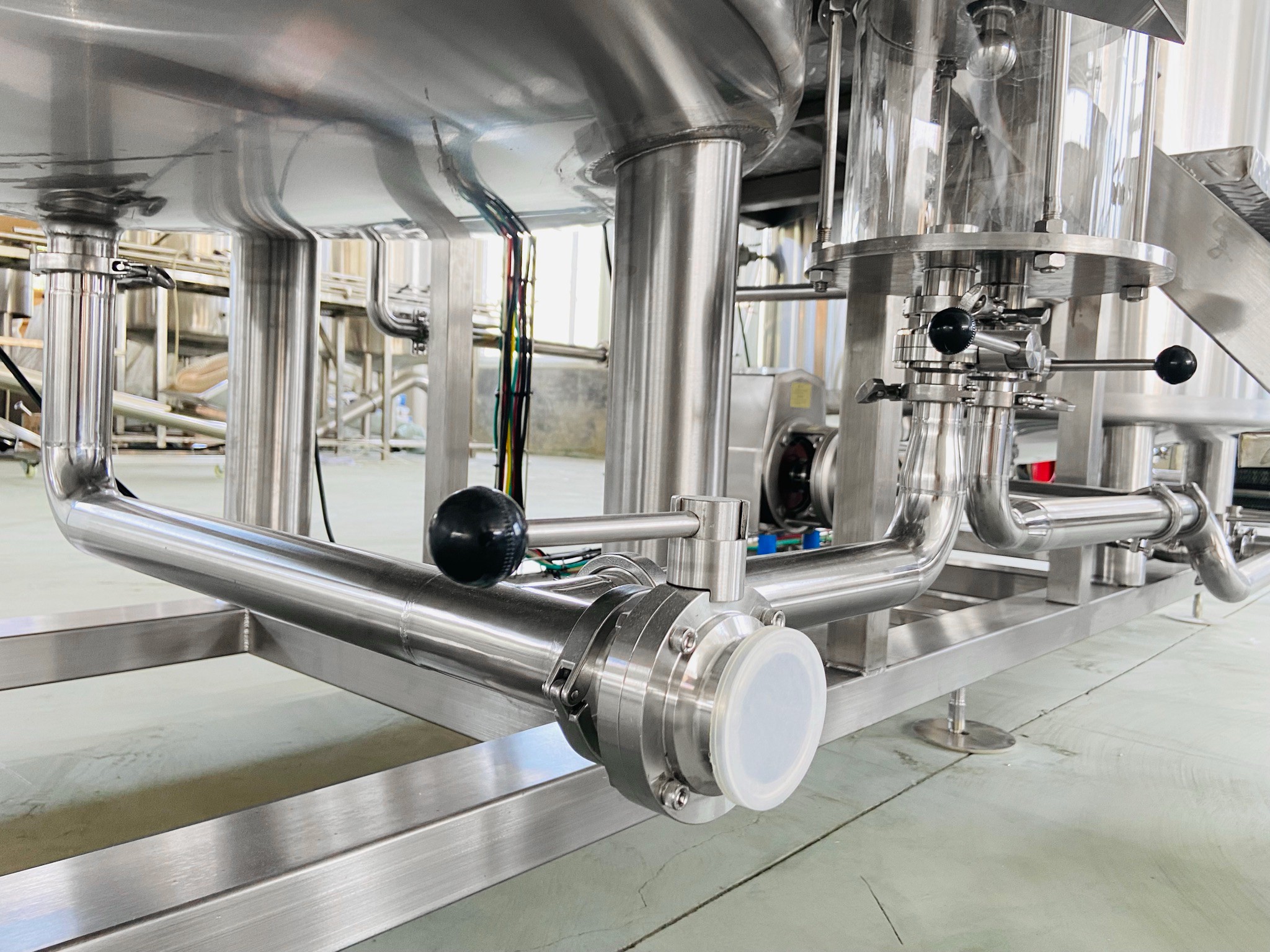

g. Wort collection Ring pipes installed underneath
Kettle/Whirlpool Tank (right)
a. Effective volume= 500L, max volume=800L
b. Top Manyway

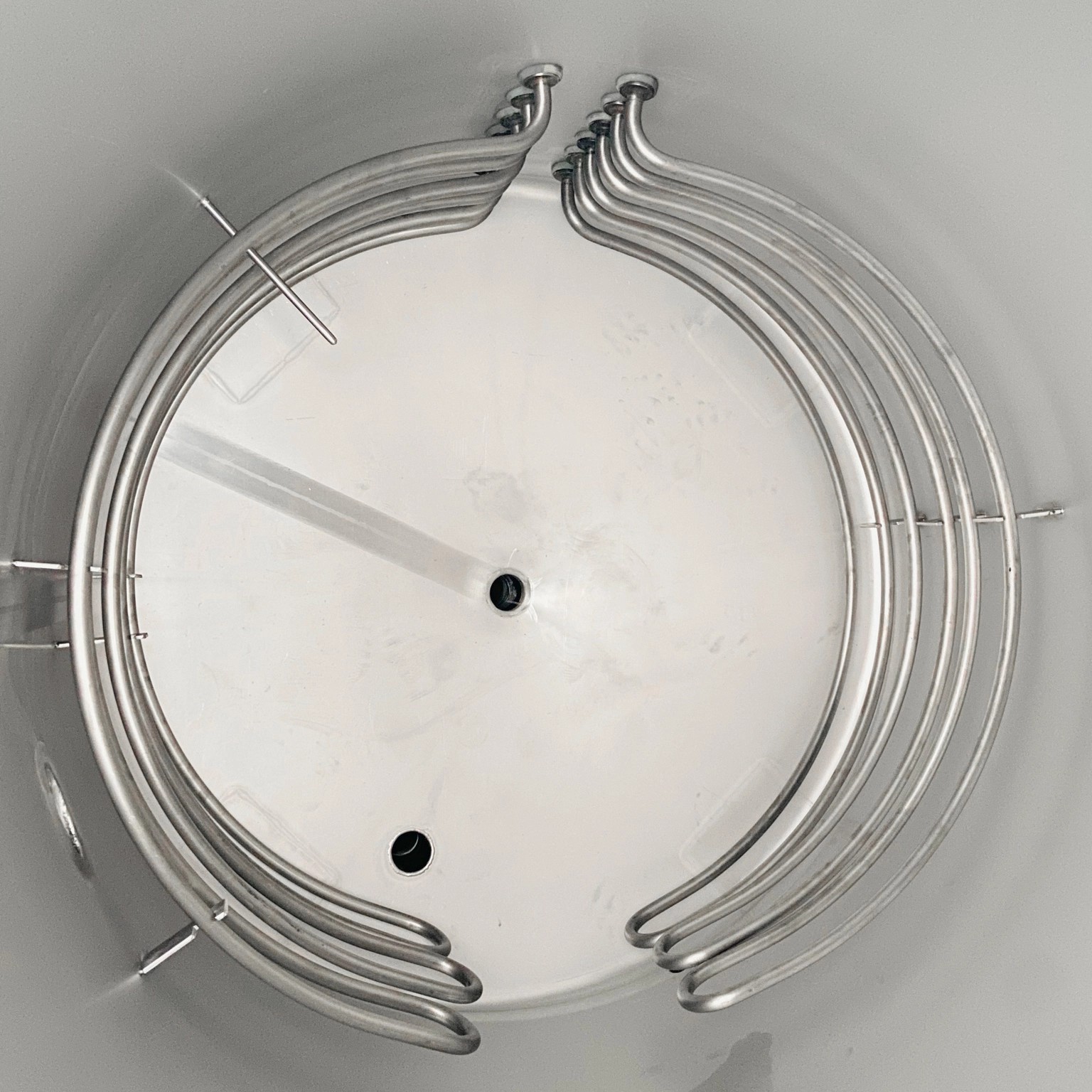

c. Electric elements heating method
d. Sample Valve equip with the wort pipeline
e. Tangential whirlpool inlet
f. Outdoor condensing unit(indoor needs to be discussed further)

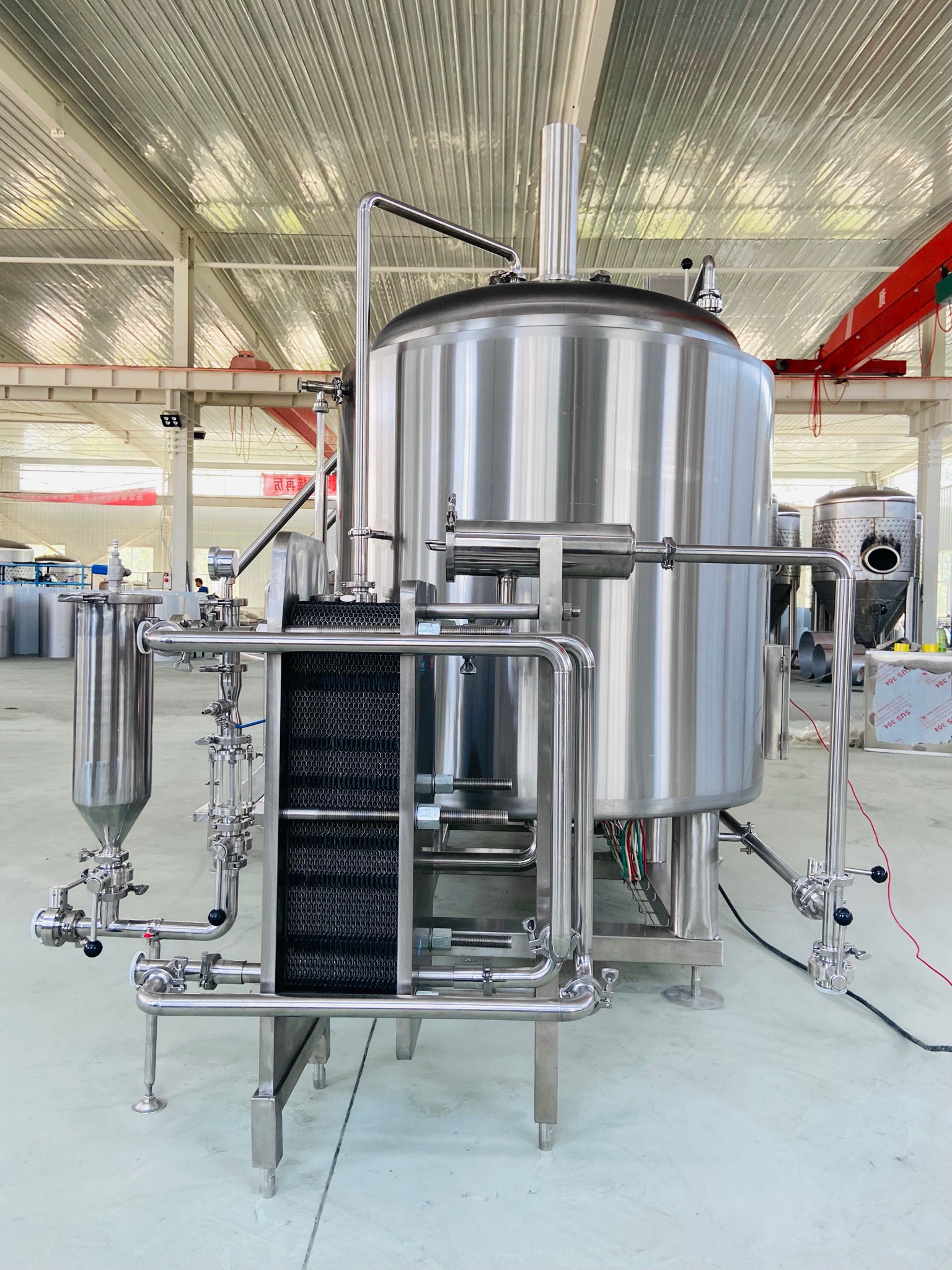

g. with knock-out system(PHE, yeast adding tank and others)
