500L Combined 2 Vessel Brewhouse and 2 Vessel 3 Tank Brewing System Beer Brewing Equipment System Manufacturer

Name: 500L Combined 2 Vessel Brewhouse and 2 Vessel 3 Tank Brewing System Beer Brewing Equipment System Manufacturer
SKU: 0

This brewhouse set includes 500L 2 vessel 3 Tank, powered by steam heating. This brewhouse set can satisfy your different brewing requests, just like single-step mashing infusion, stepped mashing infusion and so on.

Add to Basket

Inquire Now

◉ Product Parameters

500L Combined 2 Vessel Brewhouse and 2 Vessel 3 Tank Brewing System Beer Brewing Equipment System Manufacturer

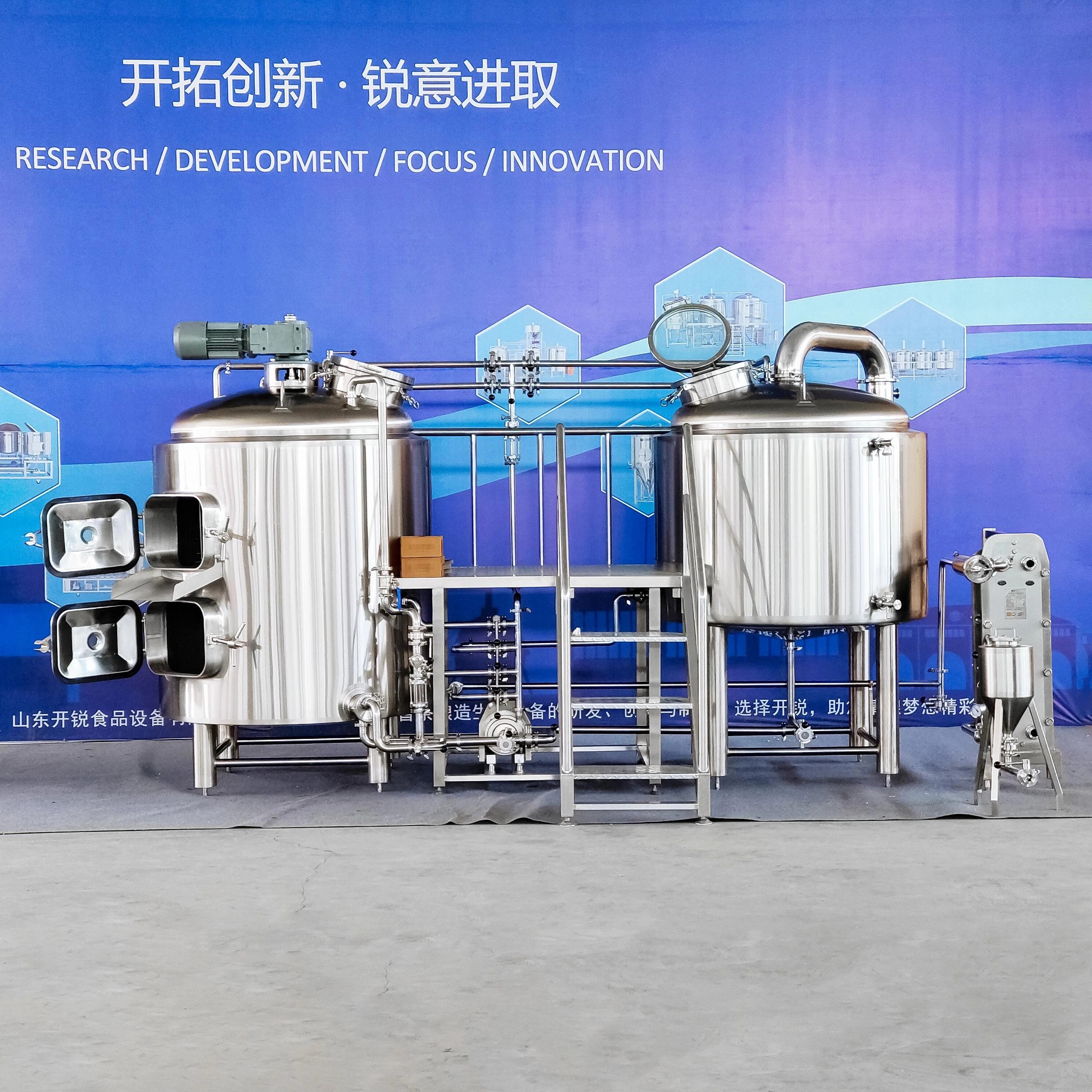

This brewhouse set includes combined 2 vessel, powered by steam heating. This brewhouse set can satisfy your different brewing requests, just like single-step mashing infusion, stepped mashing infusion and so on. Some friends name it 2 vessel 3 tank because it has 3 individual tank.

#1 Vessel: Top is Mash/Lauter Tank, Bottom is Whirlpool Tank
#2 Vessel: Boil Tank

If you have your Pub running, or the scale of your current brewery(50L~200L brewery) couldn’t meet your market needs and looking for an affordable brewery system with small footprint, don’t miss this out, 500L combined 2 Vessel will be a great choice for you.

There are some details of 500L combined 2 Vessel brewhosue mainly.

Product Description

1.	CIP Arm	10.	Wort Oxgenation Device
2.	Raker & Motor with VFD	11.	Kettle/Whirlpool Tank
3.	Sight Glass	12.	Tangential Whirlpool Inlet
4.	Top Manhole	13.	Platform with guardrail
5.	Balanced Tank	14.	Food-grade Wort Pump
6.	Condensing Unit	15.	Pallet&Tray(optional)
7.	Level Gauge	16.	Grain Door
8.	Plate Heating Exchanger	17.	Mash/Lauter Tank
9.	Yeast Adding Tank	18.	Piping and accessories

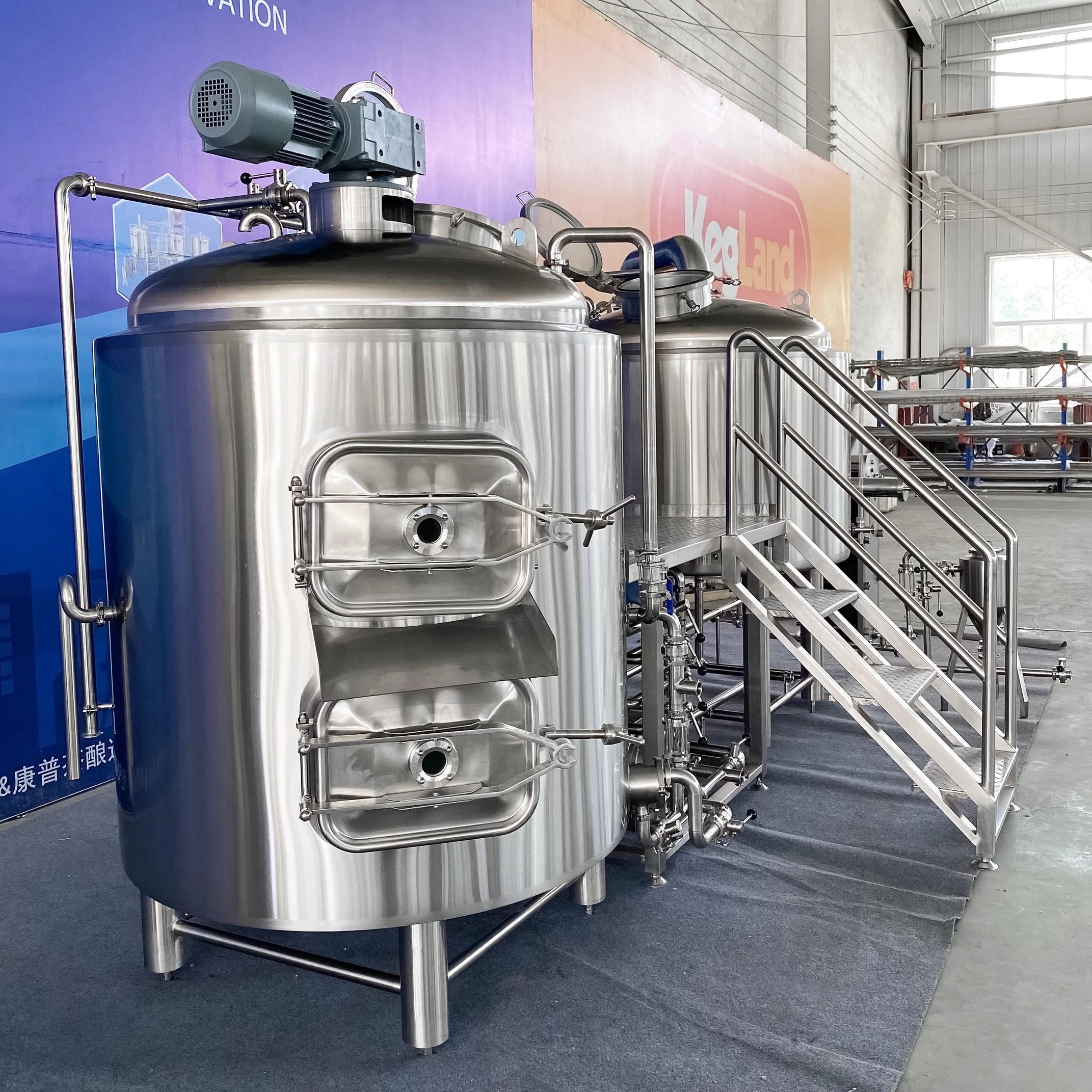

Mash/Lauter Tun(Top tank) Whirlpool Tank(Bottom tank)
a. Effective volume= 500L, total volume= 625L

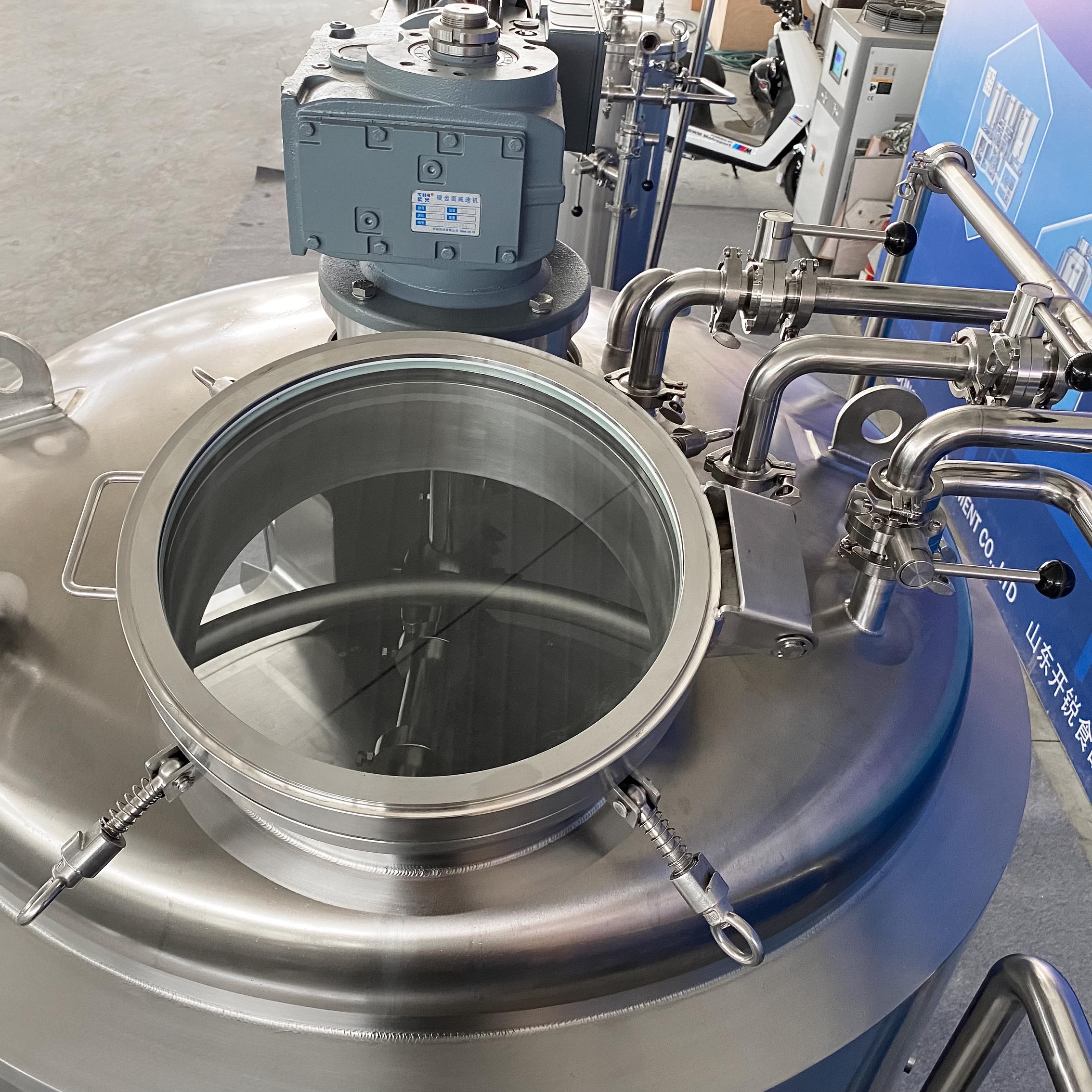

b. Top Manway

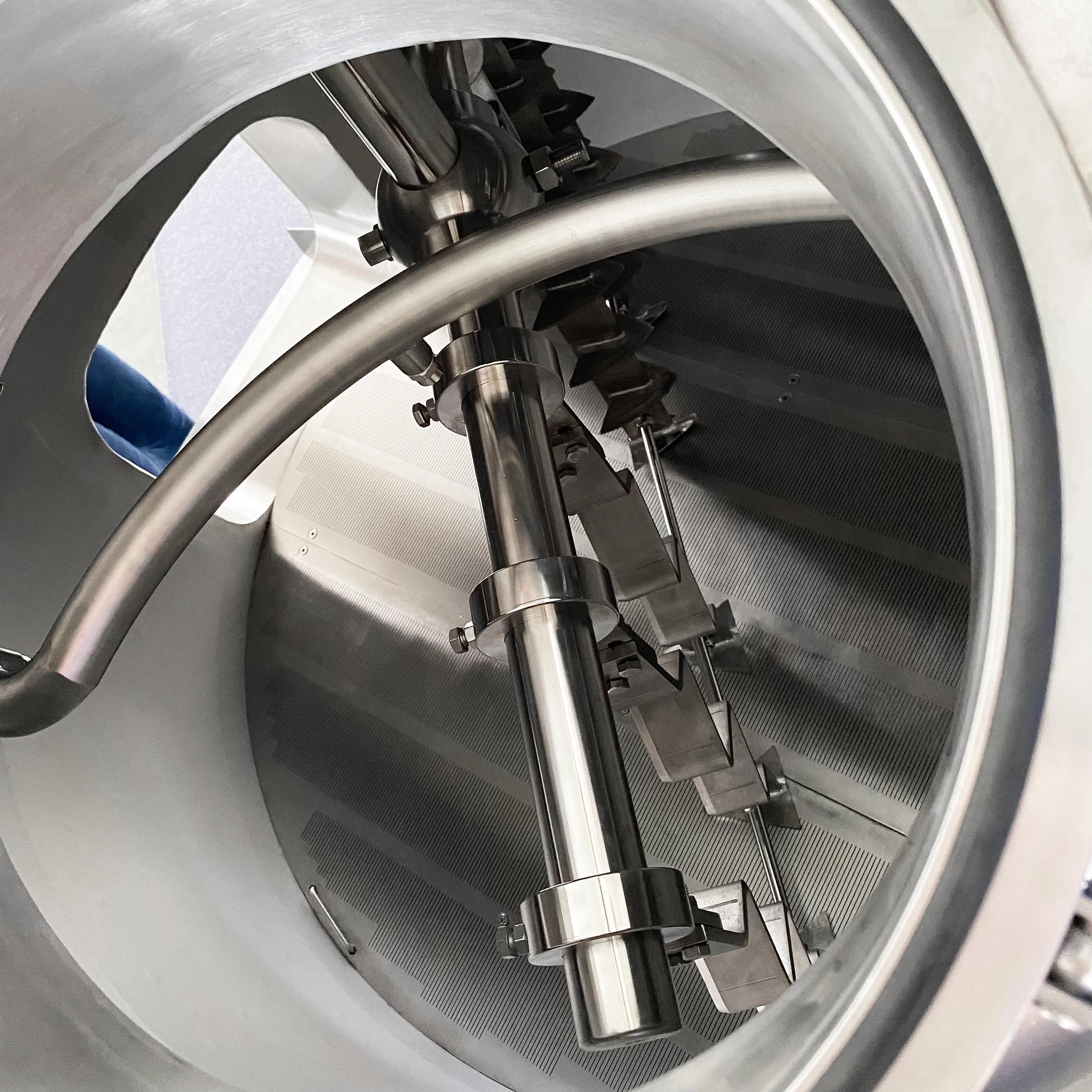

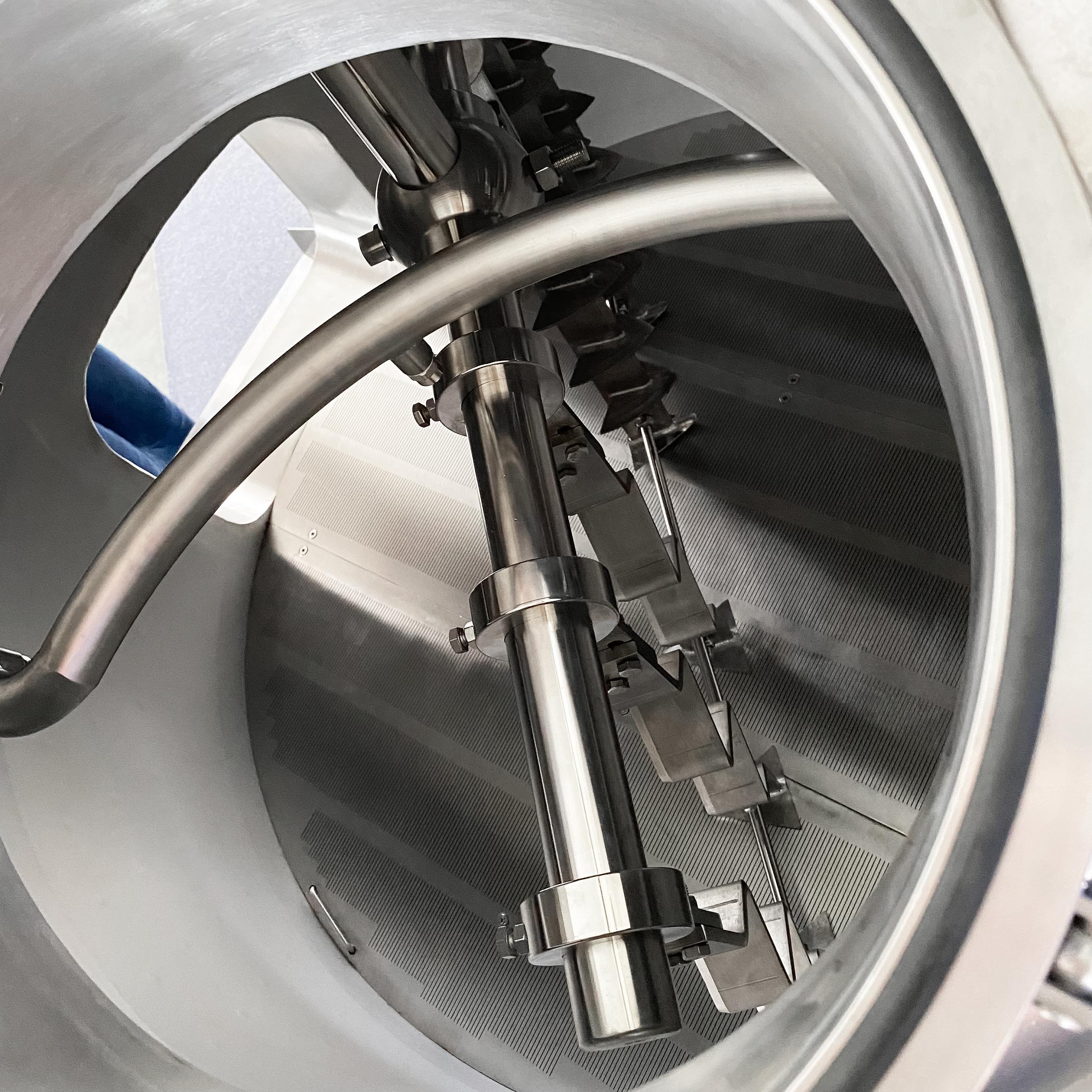

c. Rake with VFD 1.1KW Motor & reducer

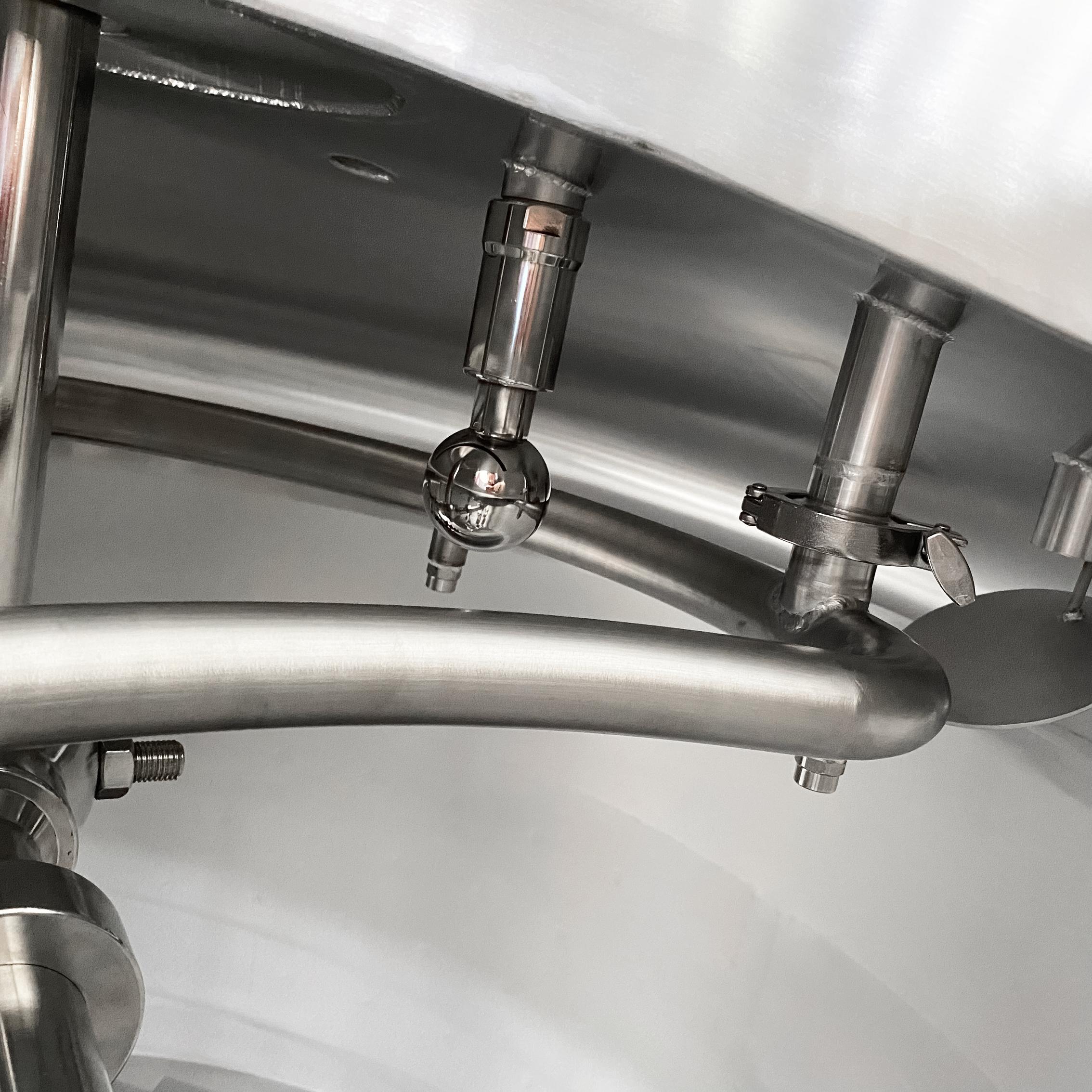

d. Spray ring & 360° coverage CIP spraying ball
e. Side grain outdoor
f. High precision milled false bottom/sieve
g. Wort collection Ring pipes installed underneath

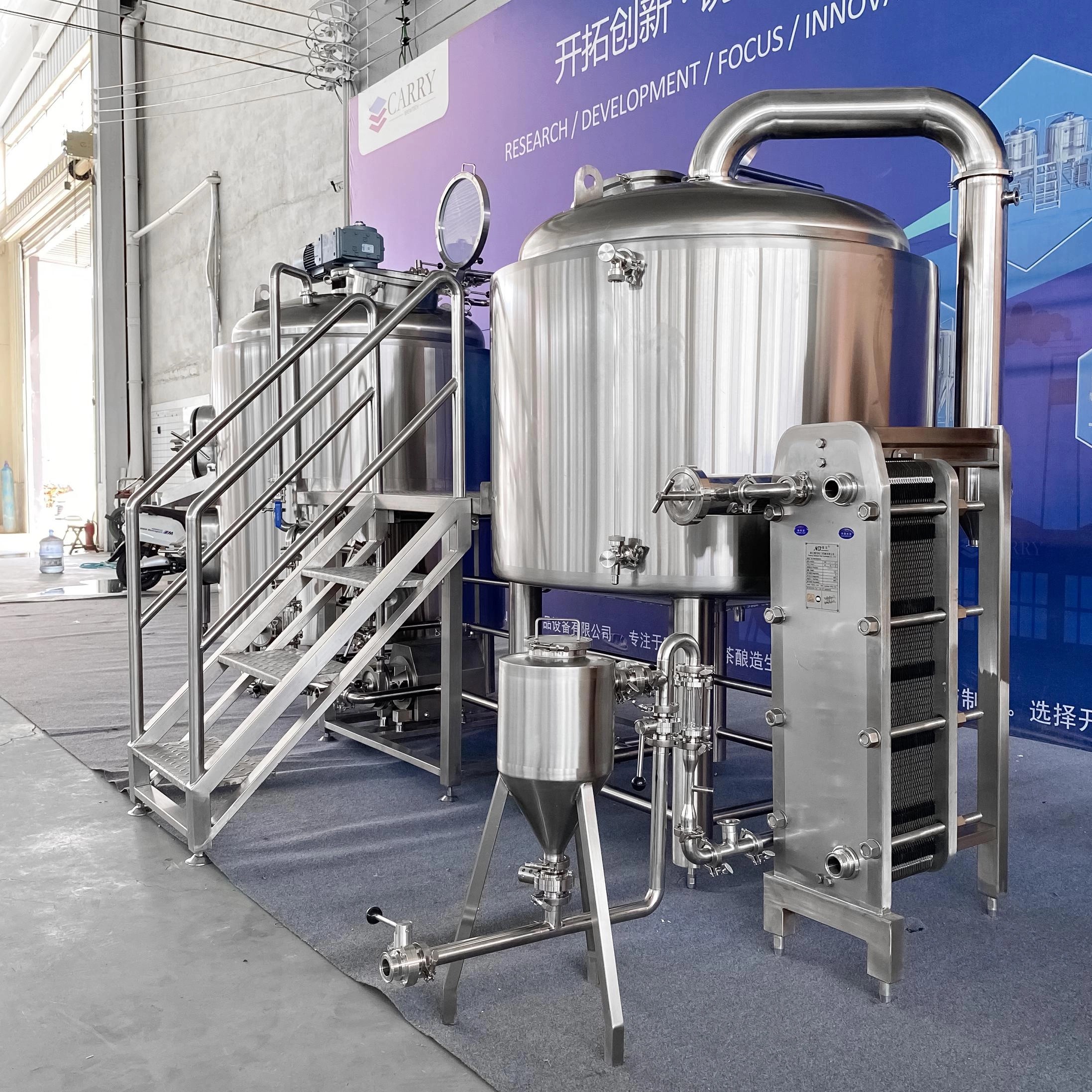

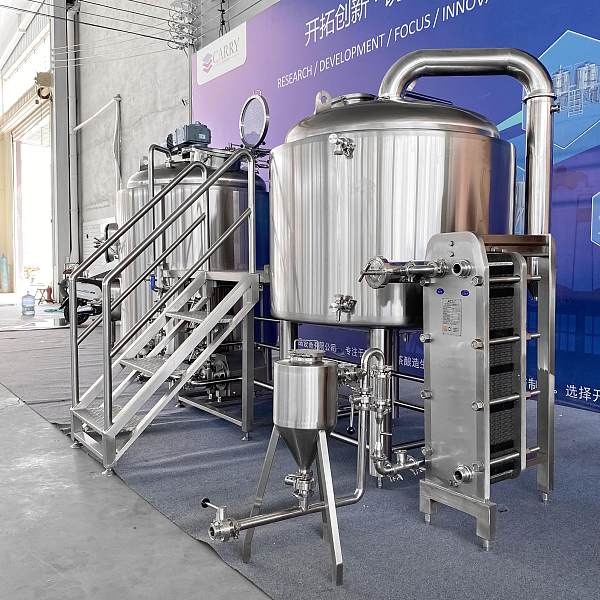

Kettle Tank (right)
a.Effective volume= 500L, total volume=800L
b. Top Manyway
d. Steam heating dimple jacket + drain valve installed in outlet
e. Sample Valve equip with the wort pipeline
f. Indoor condensing unit(customized accordingly)
Optional configuration is outdoor condensing device

Composed with standard brewhouse, here are some difference for this set of 500L combined brewhouse, just like followings.

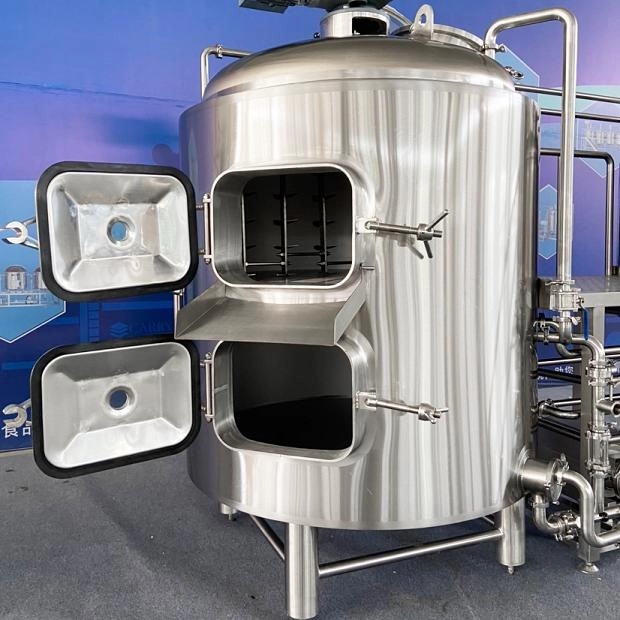

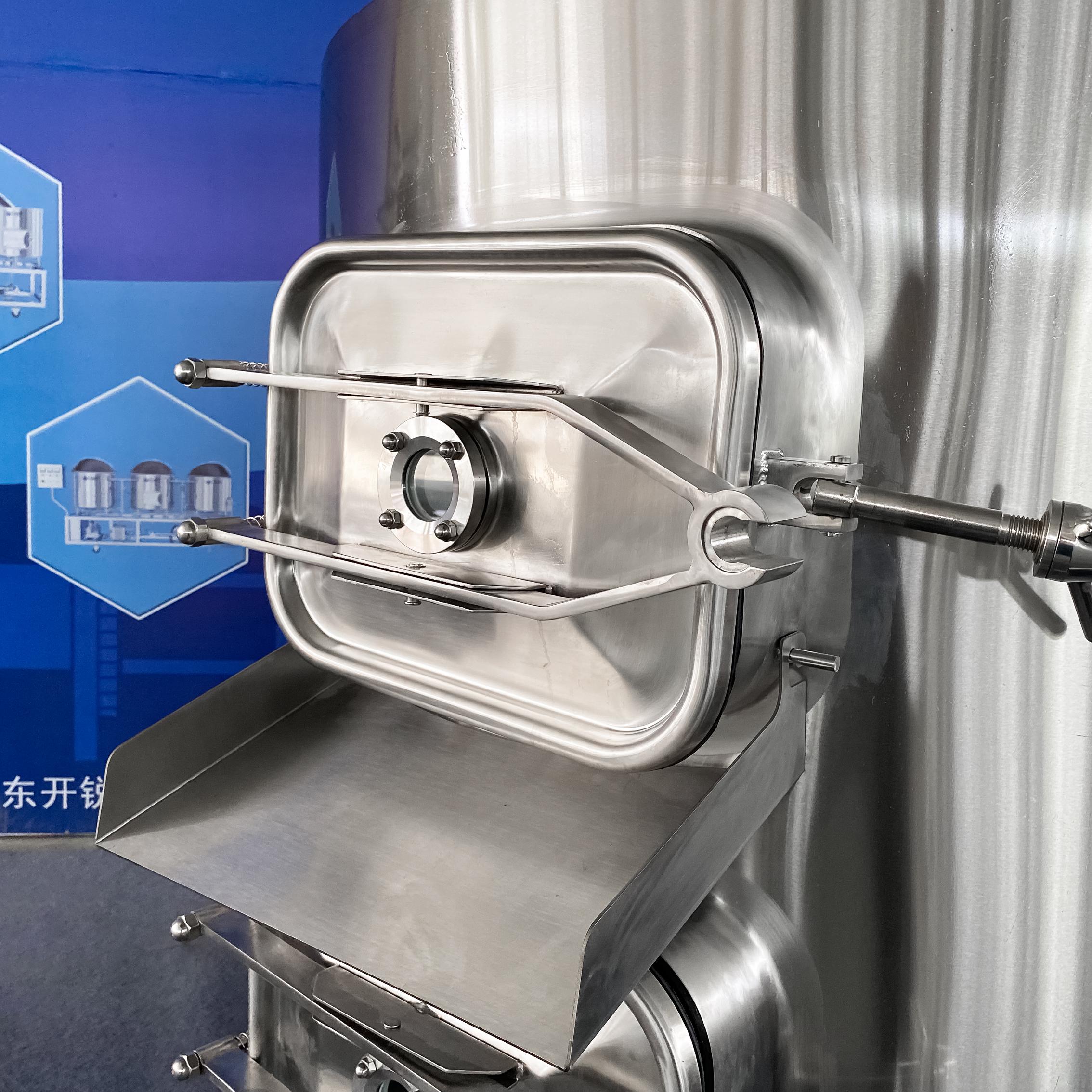

1-2 vinasse door design, its angle can be customized according to brewing needs

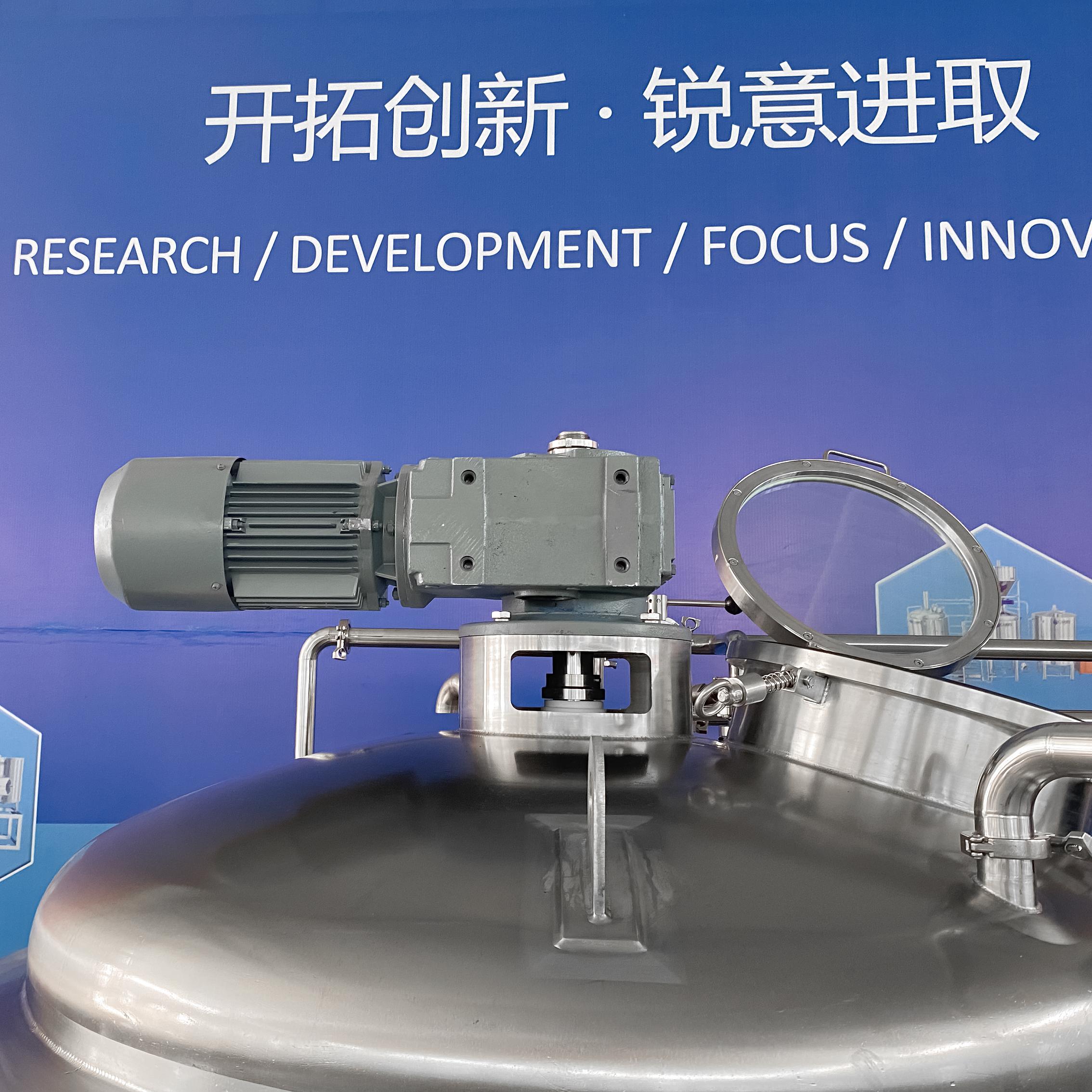

2-Updated Raker&Raker Motor, more powerful
3-Customized whirlpool bottom. Standard is fitted with 160 conical bottom. If you like this type, let’ s chat further details together.
4-Condensing device is fitted with indoor condensing pipe only according clients’ requests.
5-Brewhouse Pipeline is specially designed as well.

If you want to ask about this brewhouse, or need any other tech specifications，just leave your message/questions on the comment area or email. CARRY Team will contact with you ASAP.
Anyway, just follow us, we will share lots of tips and advice on how to use all our beer brewing equipment.

Following is details of part.
