600L brewery equipment system
◉ Product Parameters
600L brewery equipment system
A whole set of 600L Beer Brewing Equipment will include components as below:
200kg/h Crashing System
Malt Miller1. Crushing Ability: 200kg/h 2. Power=0.75kw 3. Double Rollers type, material: Alloy, roller size: Φ155*200mm 4. Rotio of magnetic metal material: ≤0.003G/KG 5. Gross Weight: 155kg 6. Dimensions: 750*400*1150mm 7. The crushing process of malt is about 30 min by malt miller generally. 8. New type malt miller, equipped with motor, belt pulley, belt, hopper and etc. 9. This machine can remove the iron and dust by automatically.10.Low noise
Left: Mash/Lauter Tun
1. Effective volume=600L, with extra 30% head space
2. Top glass manway
3. Top mounted Grain Raker with VFD Motor & reducer
4. Easy clean and detachable sparging ring for grain washing
5. CIP Arm with internal 360°Spray ball
6. High precision milled false bottom
7. Side mounted grain outdoor

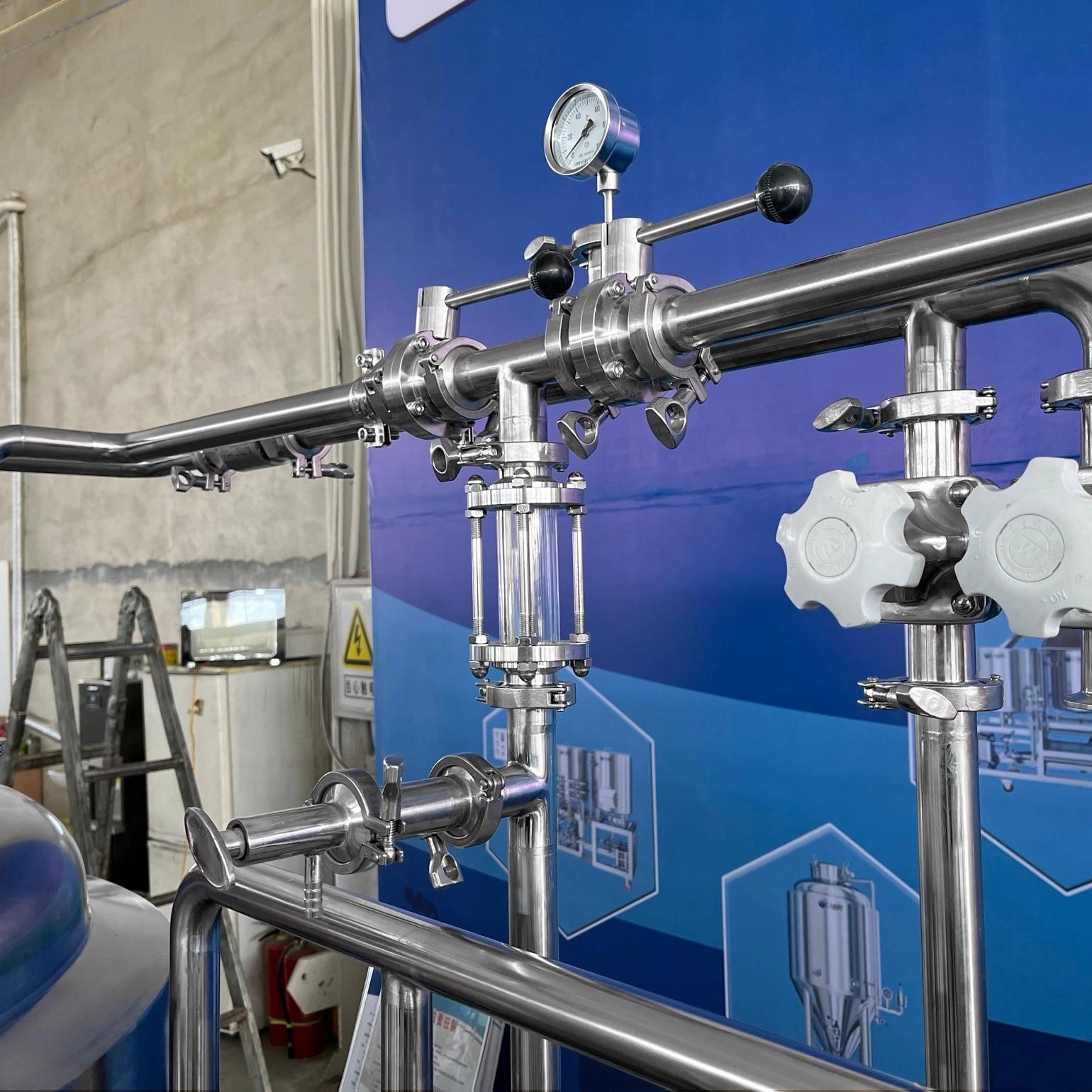

8. Wort backflow pipeline with sight glass and sample valve
9. 15L Glass balance tank
10. 4 Heavy duty legs fixed on pallet frame
Right: Kettle/Whirlpool Tank
1. Effective Volume=600L, with extra 40% head space
2. Top glass manway
3. Top mounted Φ102 outdoor condenser pipe with inner drain pipe
4. CIP Arm with internal 360°Spray ball
5. Tangential wort inlet
6. Multiple wort drain port
7. Level tube
8. Build-in electric heating elements
With Three Heating Methods:
Electrical Heating

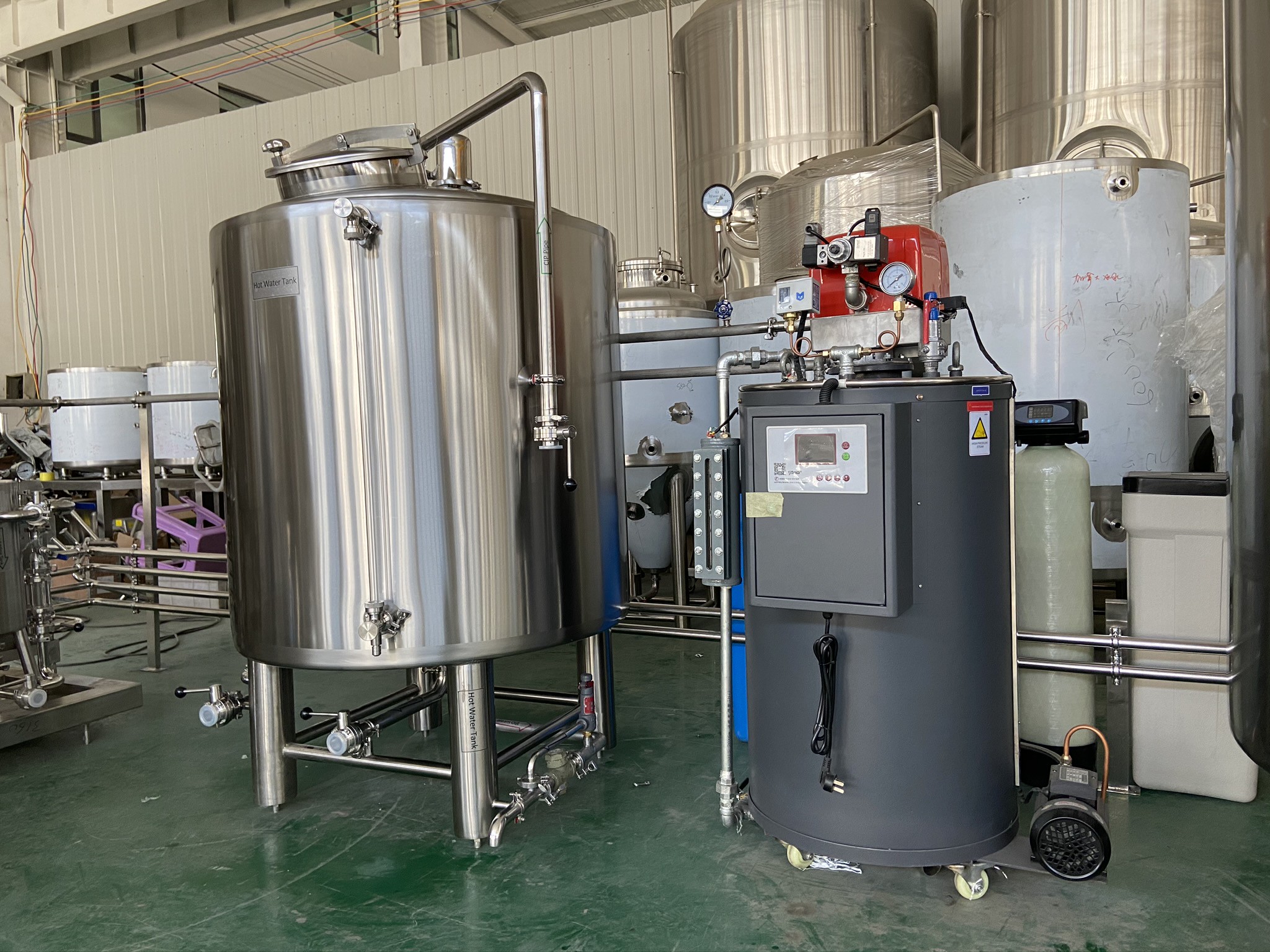

Steam Heating

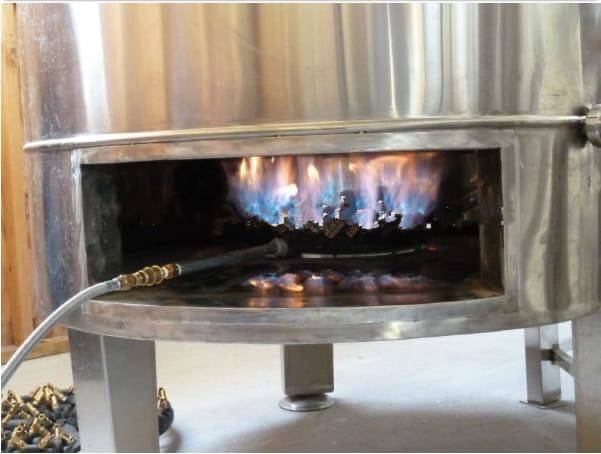

Direct Fire Heating

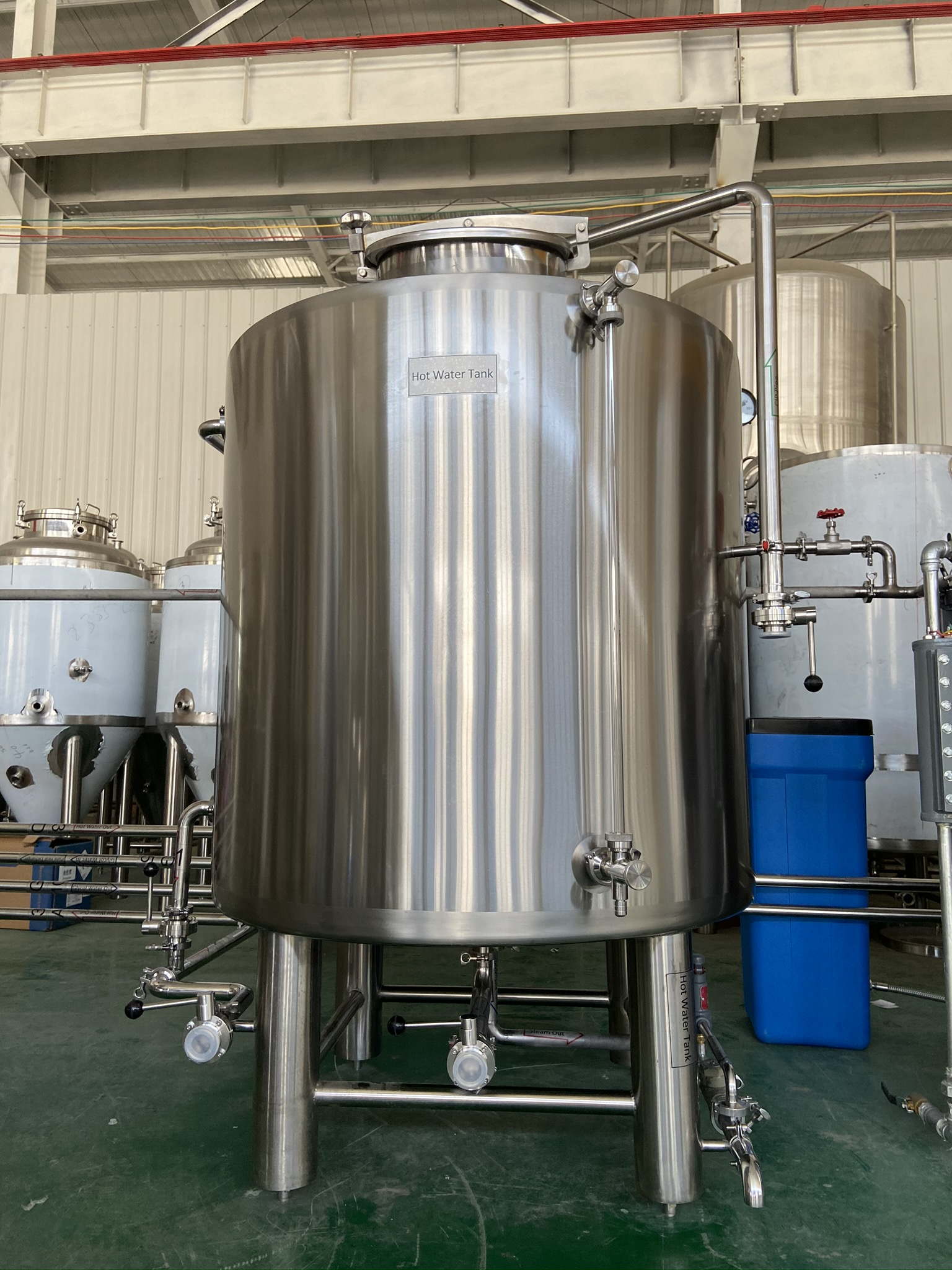

1200L Hot Water Tank
1. Effective volume=1200L, total volume=1500L
2. Dimension=Φ1160*2300mm
3. Top manway
4. Steam Heating jacket
5. Pressure Relief Valve
6. Temperature probe(PT-100)
7. Level tube indicator
8. Inner-Jacket(SUS 304), TH=3.0mm, pickling&passivating treated; External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate;
10. Dish head (SUS 304)
11. Insulation layer: PU-thickness=80mm
12. 100% high precision TIG welded joints
13. 4pcs x SUS304 heavy duty legs with leveling pad

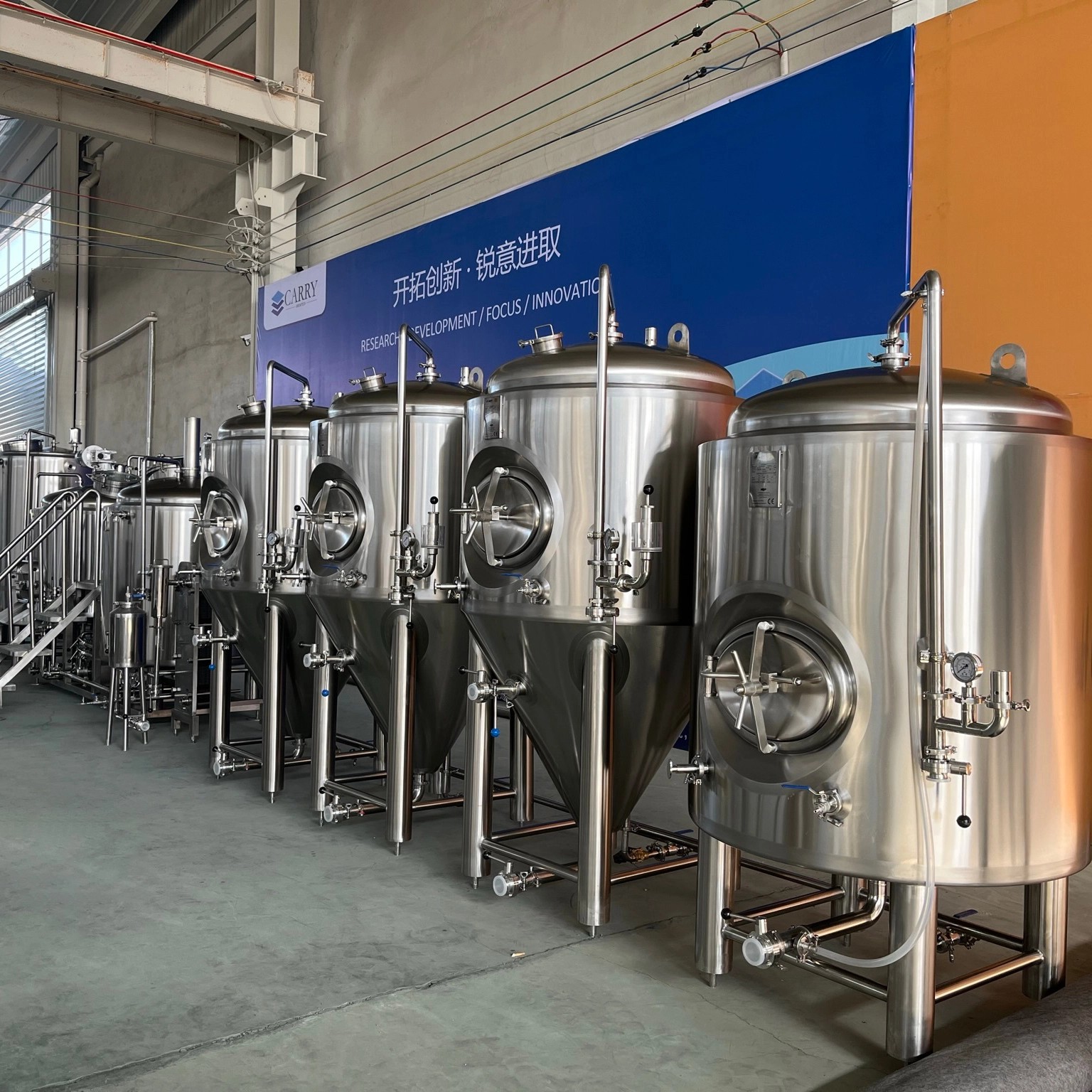

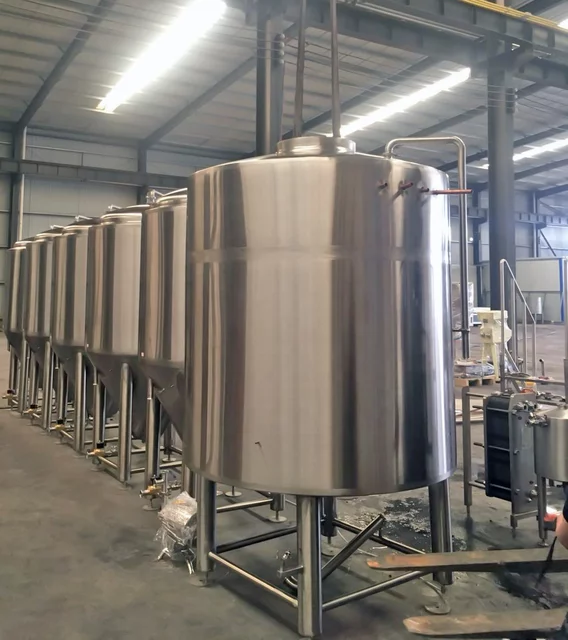

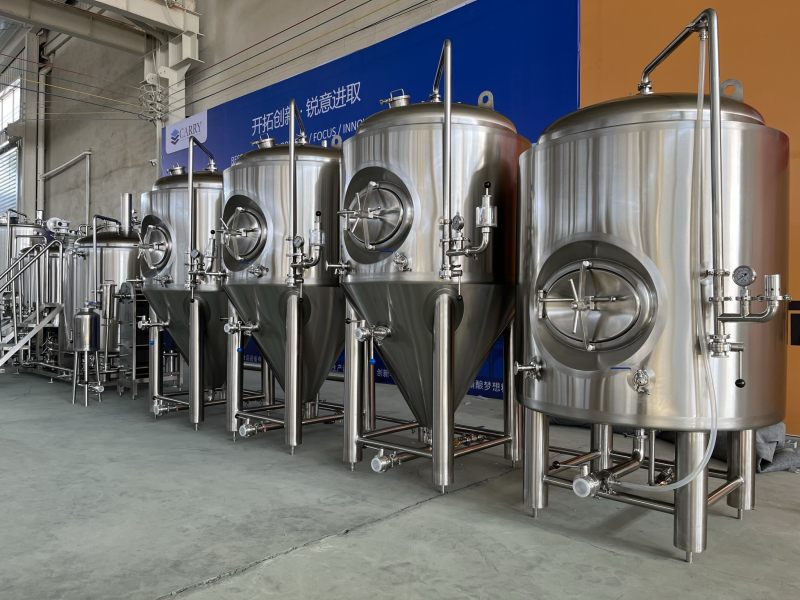

600L Fermentation Tank & Bright Beer Tank
Fermentation Tank
1.Effective volume=600L, total volume=750L
2. Net Dimension: Φ1160 * 2200mm
3. 360° spray ball equip with CIP arm
4. Pressure gauge and Spunding Valve on CIP arm
5. Sample Valve
6. Temperature probe: PT-100
7. Cooling jacket: Dimpled plate on cone and side
8. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
9. Insulation layer: PU-thickness= 80mm.
10. Design pressure 0.3MPa; Working pressure 0.15Mpa.
11. 100% high accuracy TIG welding.

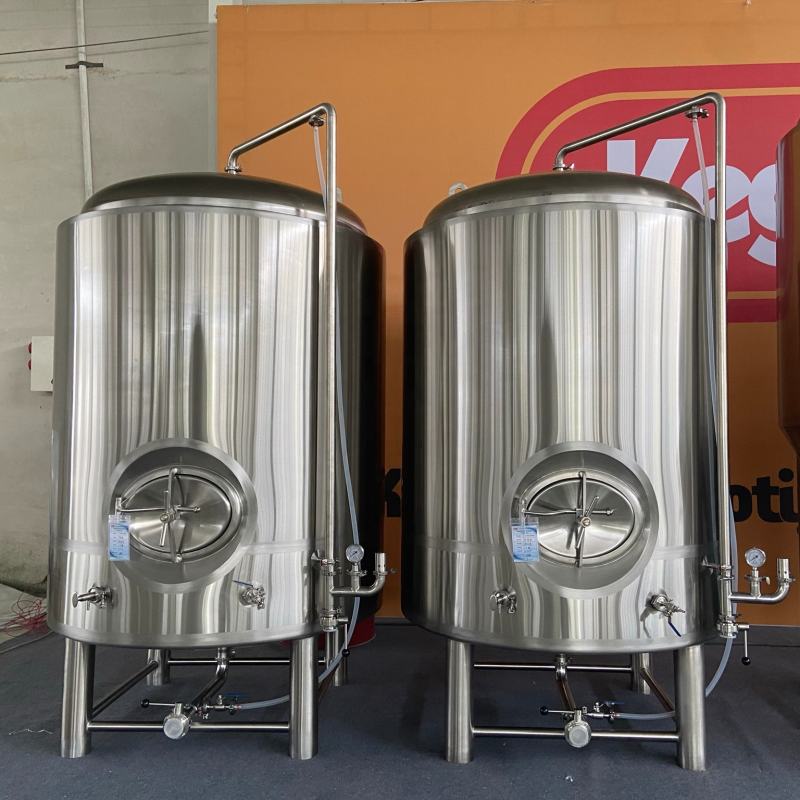

600L Bright Beer Tank
1. Effective volume=600L, total volume=750L
2. Net Dimension: Φ1060 * 1950mm
3. 360° spray ball equip with CIP arm
4. Pressure gauge and pressure relief vavle on CIP arm
5. Sample Valve and Carbonation Stone equipped on tank
6. Temperature probe: PT-100
7. Cooling jacket: Dimpled plate on cone and side
8. Level Tube
9. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
10.Oval head&conical bottom, thickness: 3mm.
11.Insulation layer: PU-thickness= 80mm.
12.100% high accuracy TIG welding.
13.Design pressure 0.3MPa; Working pressure 0.15Mpa.
Glycol Cooling System
1500L Glycol Water Tank
1. Effective volume:1500L, total volume: 1650L
2. Net Dimension=Φ1360 *2100mm
3. Level tube
4. Insulated conical top and sloped bottom
Glycol water inlet and outlet
5. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
6. Insulation layer: PU-thickness= 80mm.
7. 100% high accuracy TIG welding.

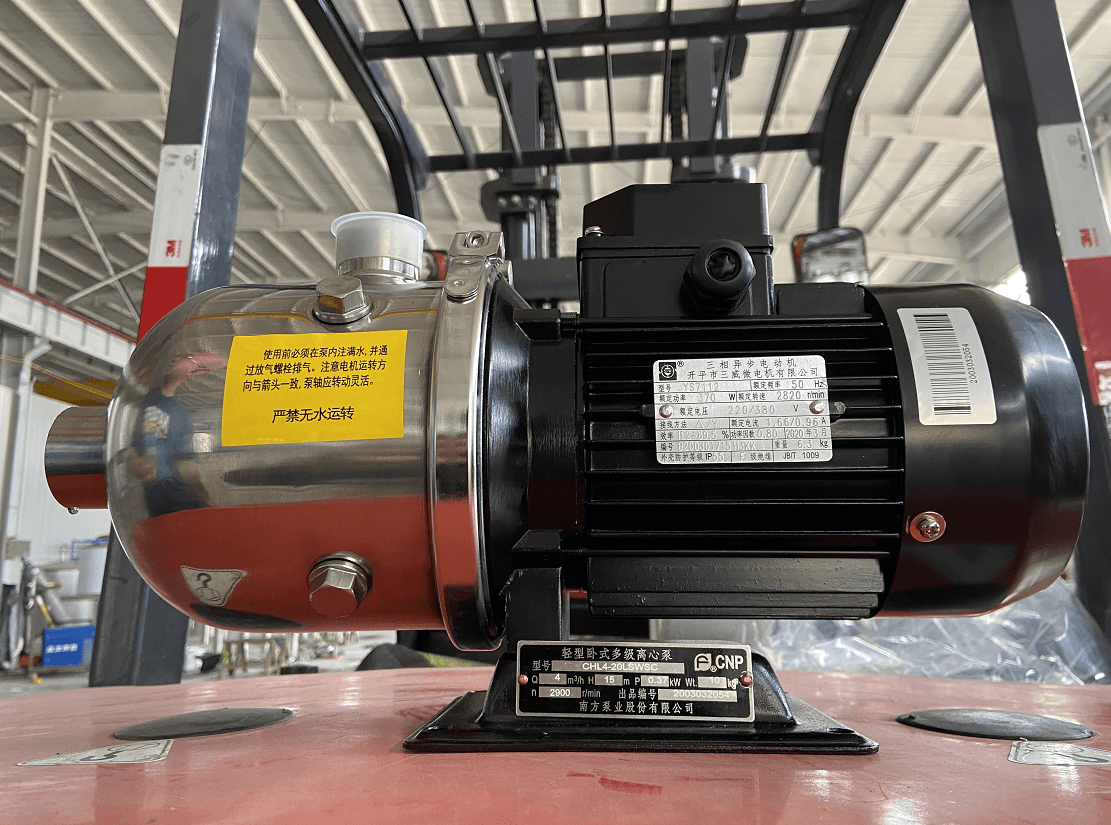

Glycol Pump
1. Flow 3m3/h, lift 18m
2. Material: SUS304
3. Rev: 2880r/min Capacity:3000L/h
4. Standard PPR Glycol piping loops
3HP Industrial Chiller
1. 3HP, Working power: 2.8 KW/unit.
2. Internal compressor brand is USA Copeland.
3. Copland vortex compressor, more durable, refrigeration effect
4. Medium: Environmental protection refrigerants R404A
5. Dimension=900*800*750mm

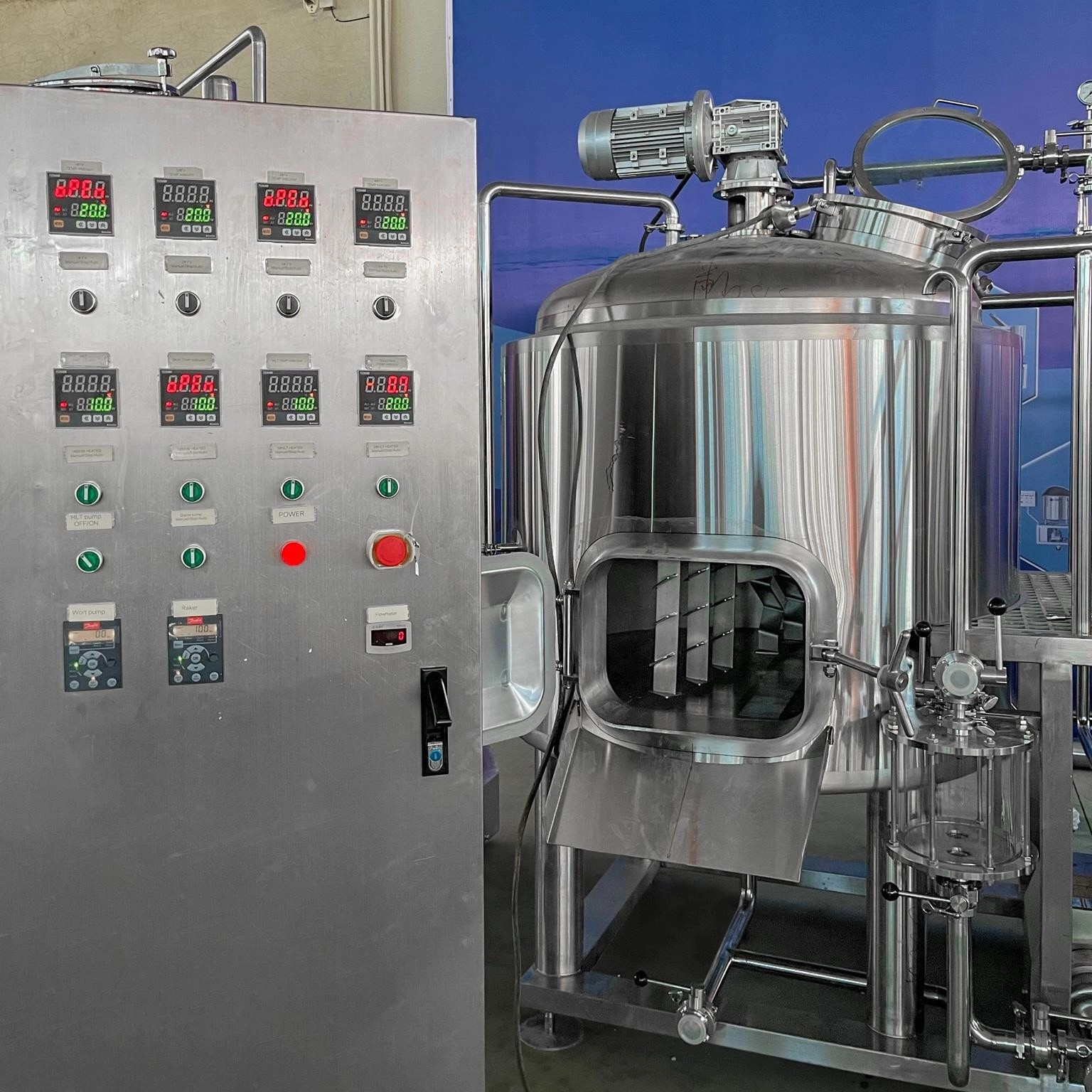

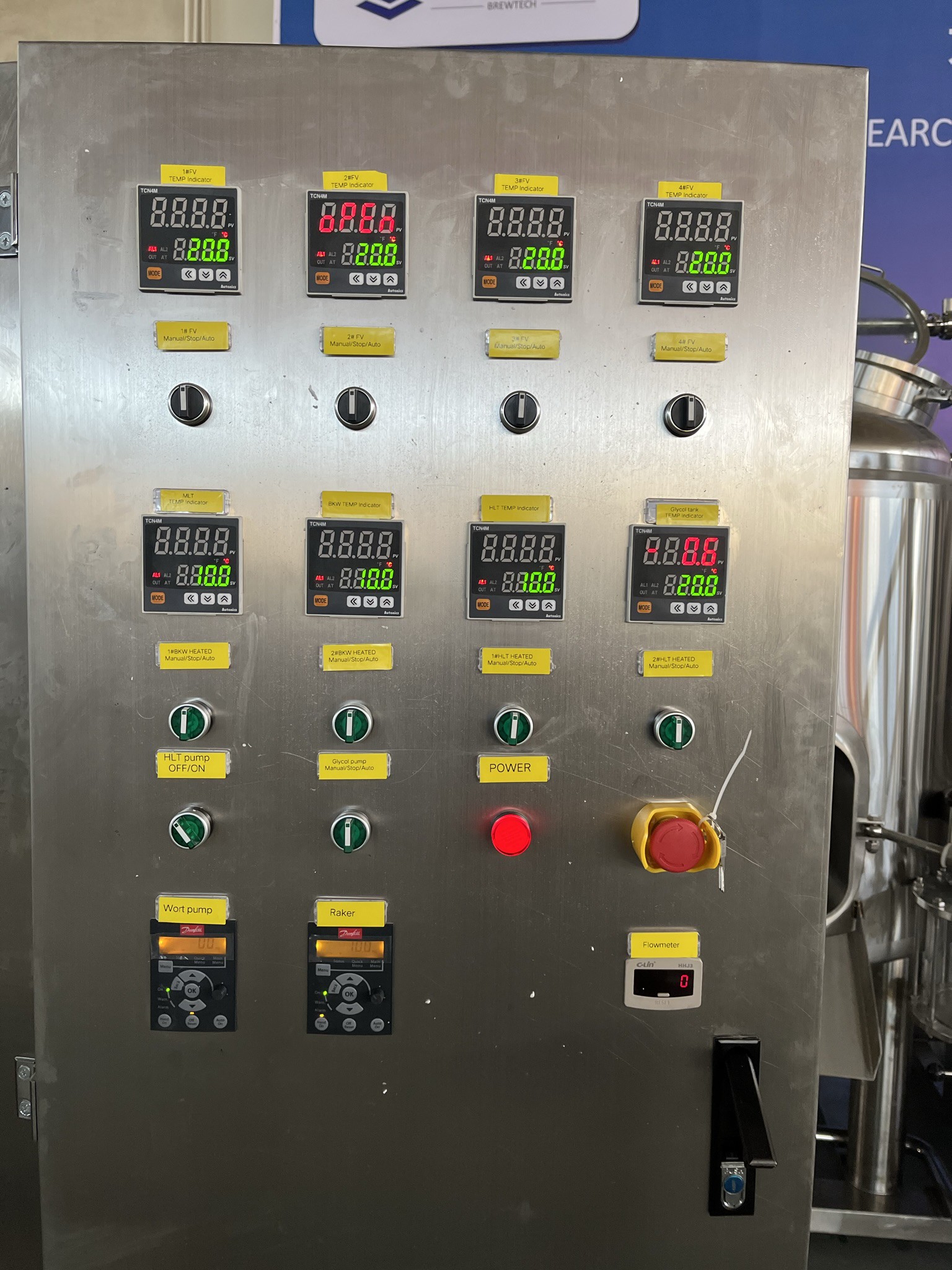

1. SUS 304 Material cabinet
2. Installing style: wall-mounted
3. Temperature indicator of brewhouse & hot water tank
Pump & motor & rake reducer VFD Speed control & control
of fermenters & glycol tank & chiller
4. High quality electronic components, CE standard
5. Pump on/off control
6. High quality electronic components, CE standard

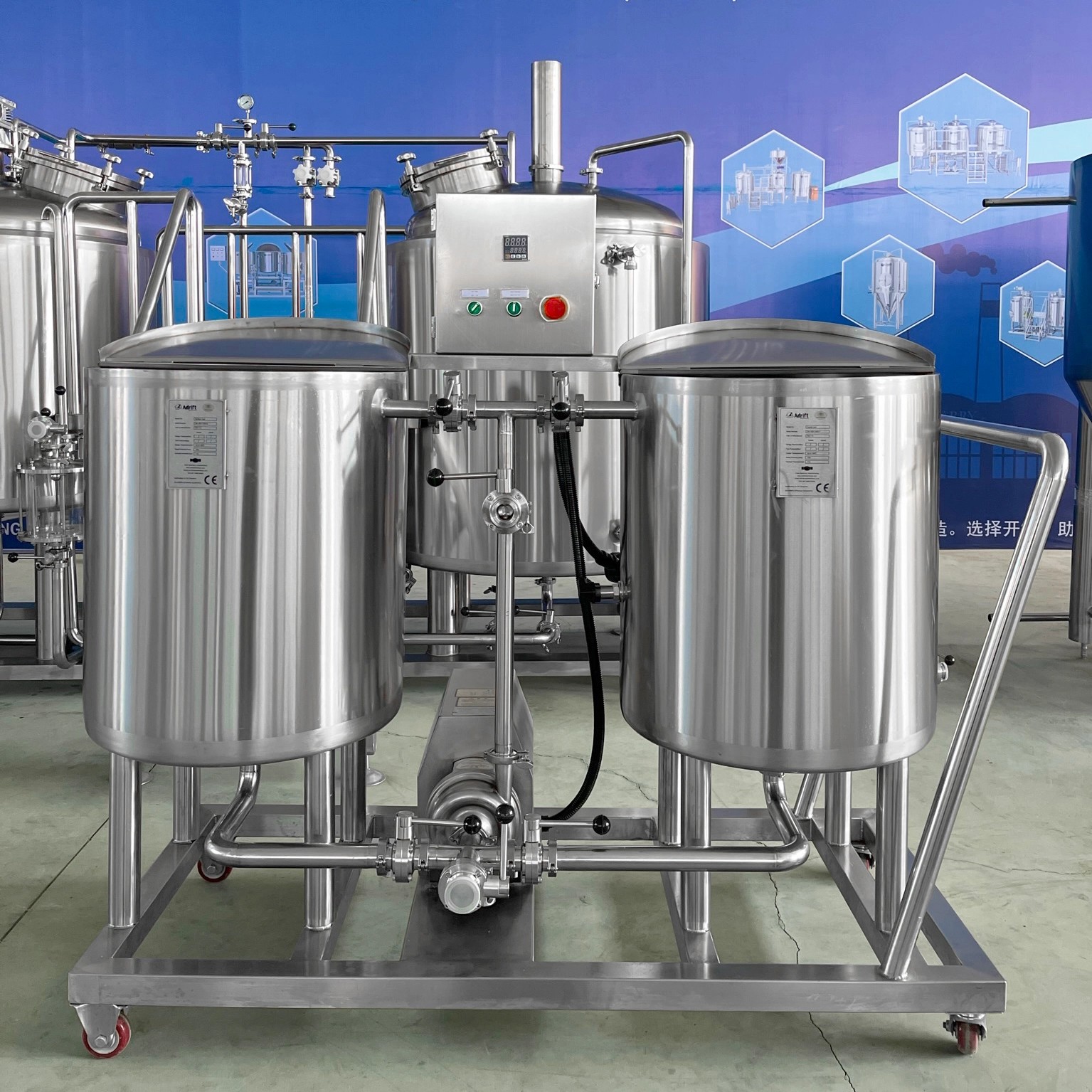

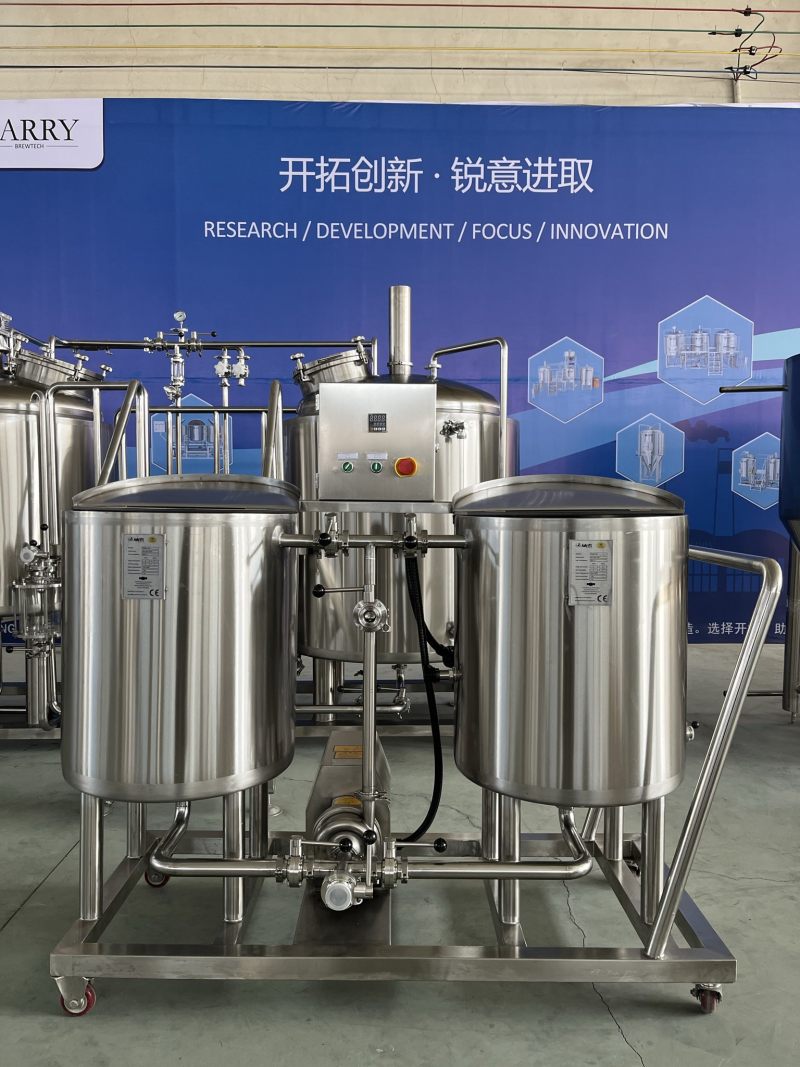

50L CIP System
- Disinfection tank
Effective volume: 50L
Dimensions: Φ 500*700mm
SUS304 Material Cone top & bottom Thickness is 2mm
Valves and fittings included
- Alkali tank
Effective volume: 50L
Dimensions: Φ 500*700mm
Double layers, with 50mm PU insulation
SUS304 Material Cone top & bottom Thickness is 2mm
Valves and fittings included
Heating: 3KW electric heating tubes
- Cleaning Pump
Flow 3m3/h, lift is 24m
Hose: Reinforced food grade
Stainless steel; power is 0.75KW
Dimension: 480*200*345mm
Complete circulation sanitary piping and fittings
Carry Equipment is a professional brewing equipment supplier in China. We have our own factory and technology team. The staff has more than 10 years of brewing experience and manufacturing experience.
- With the concept of "pioneering and enterprising", CARRY strives to consistently deliver high-quality products and the best service for our customers. Fully committed to the brewing industry, we always take customers’ requirements and satisfaction as our aim.
- We can customize all kinds of beer brewery equipment solutions according to your needs. Don't hesitate to contact us if you have any questions, looking forward to providing more support to your business！

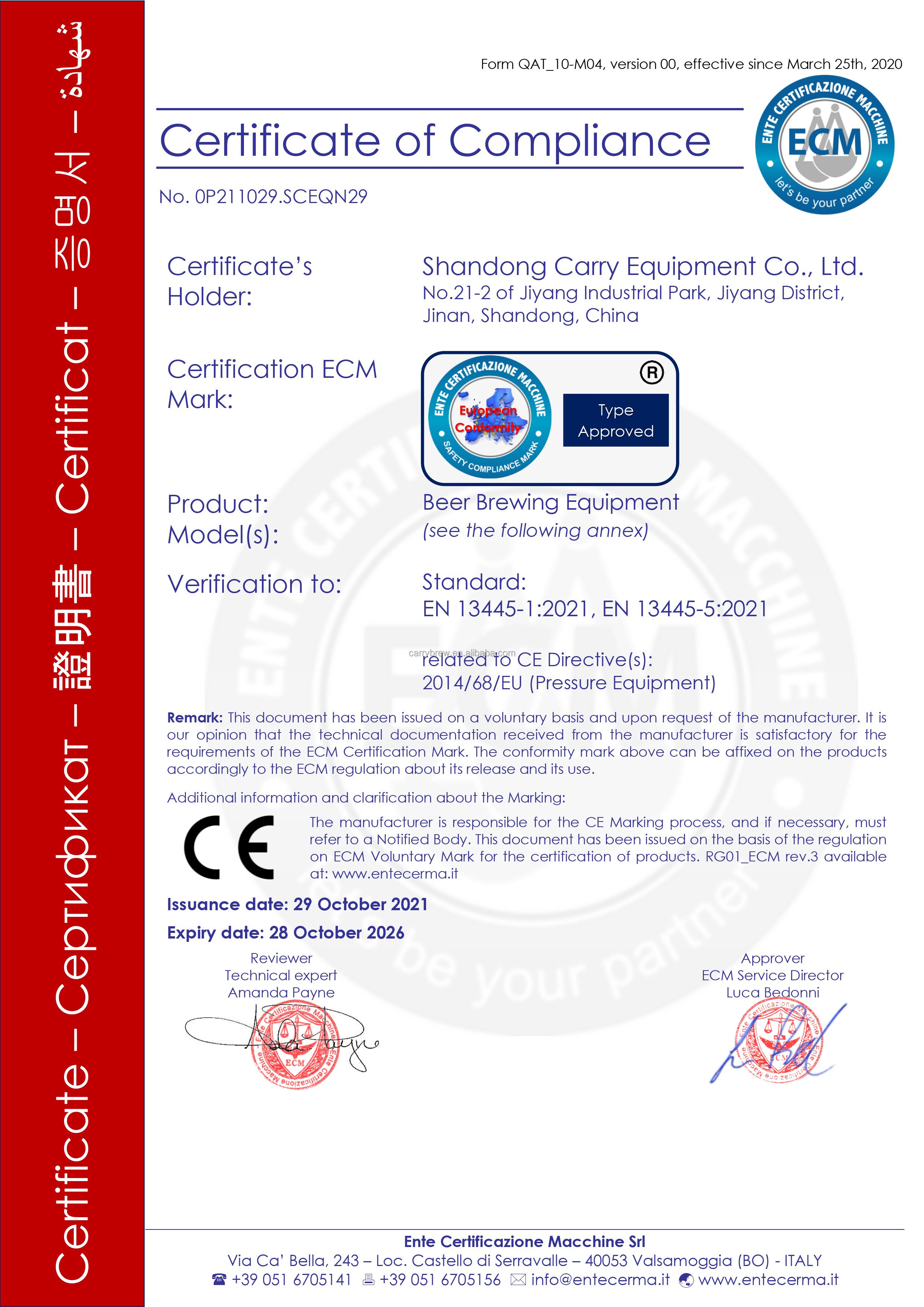

Certificates
