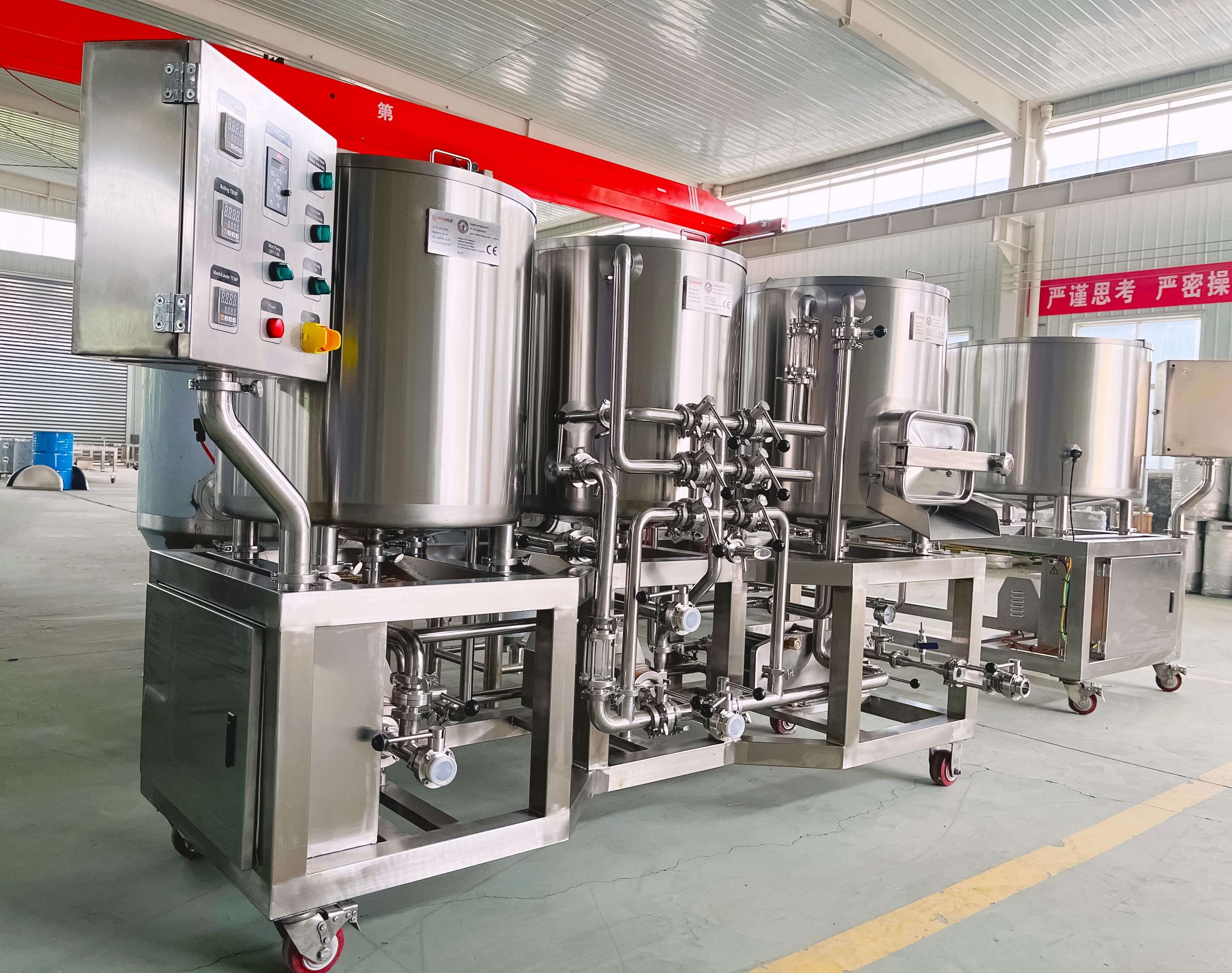

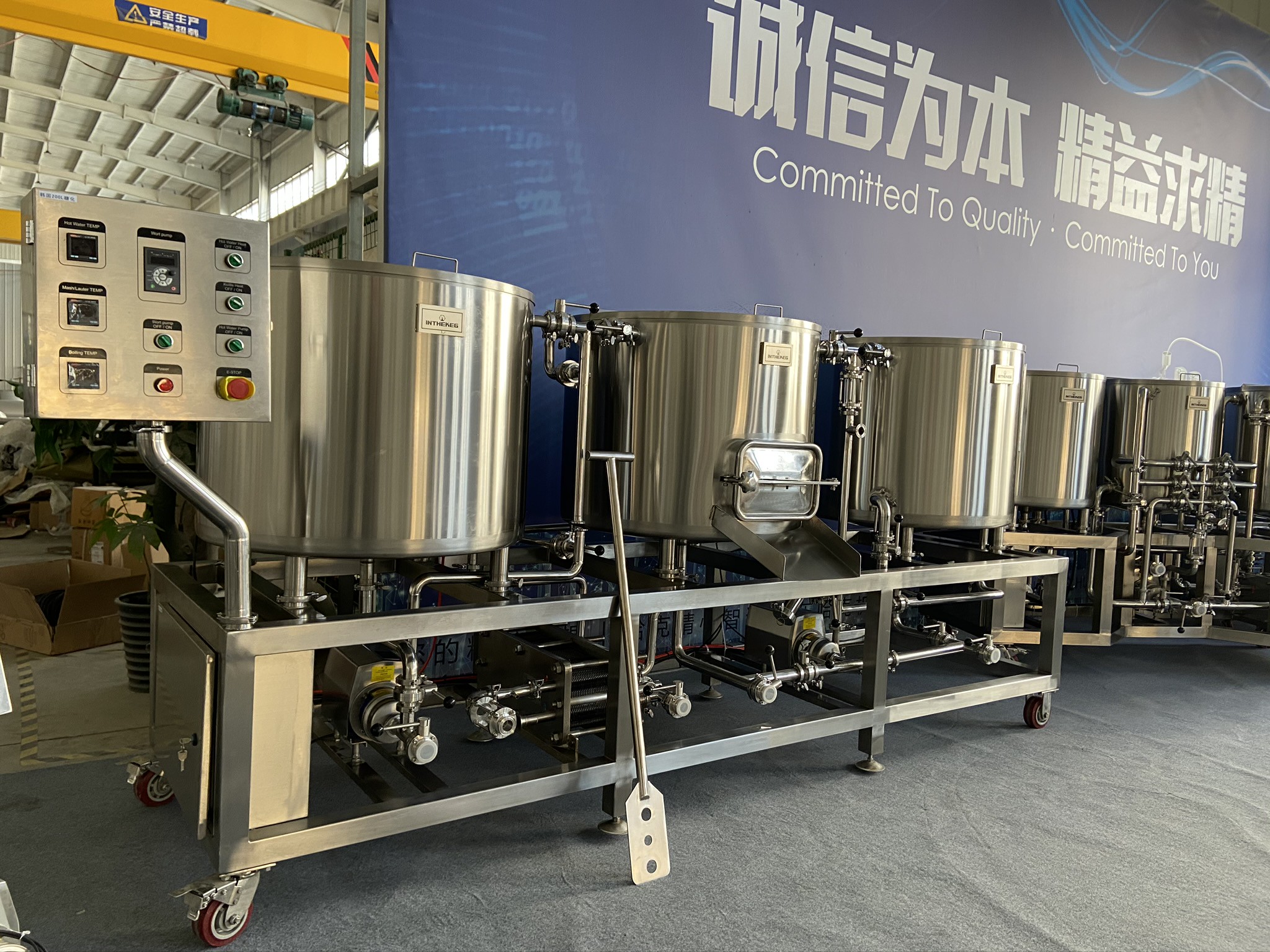

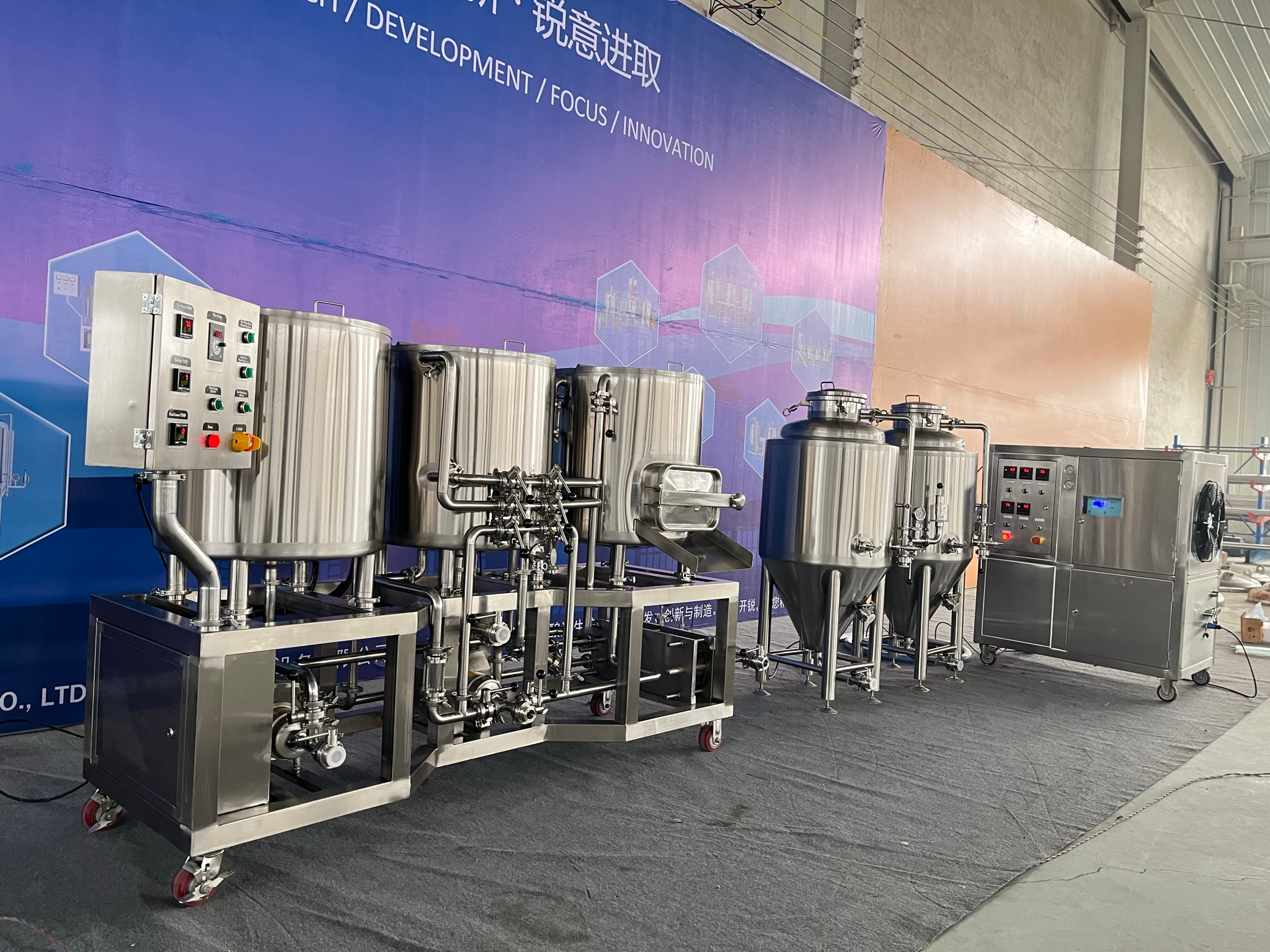

100L SMART Pilot Brewhouse
◉ Product Parameters
100L 3-Vessel Brewhouse with PLC controller
CARRY Brewtech 100L Pilot Brewing Equipment Brewing Kit is specially customized for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.
• Smart
Mini scale industrial brewing equipment, with all the scaled down parts&fittings, you will full in love with this optimized Brew center.
• Turnkey Solution
Installed& wiring ready on a fully welded frame platform, nothing can be easier for your pilot beer brewing jobs.
• 100% Flexible Design
Atmospheric top lid enable a direct inspection & clean of inner space.
You will be able to pilot brewing with your professional brewing recipe on this unit, nothing can be easier with such a complete system configuration, pipelines, wort pump&hot water pump, heat exchanger, etc.
Introduction

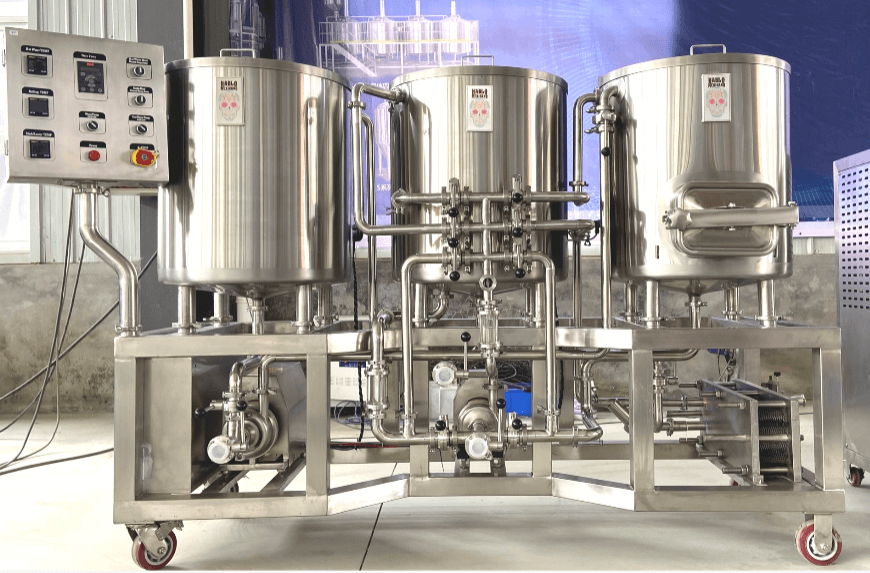

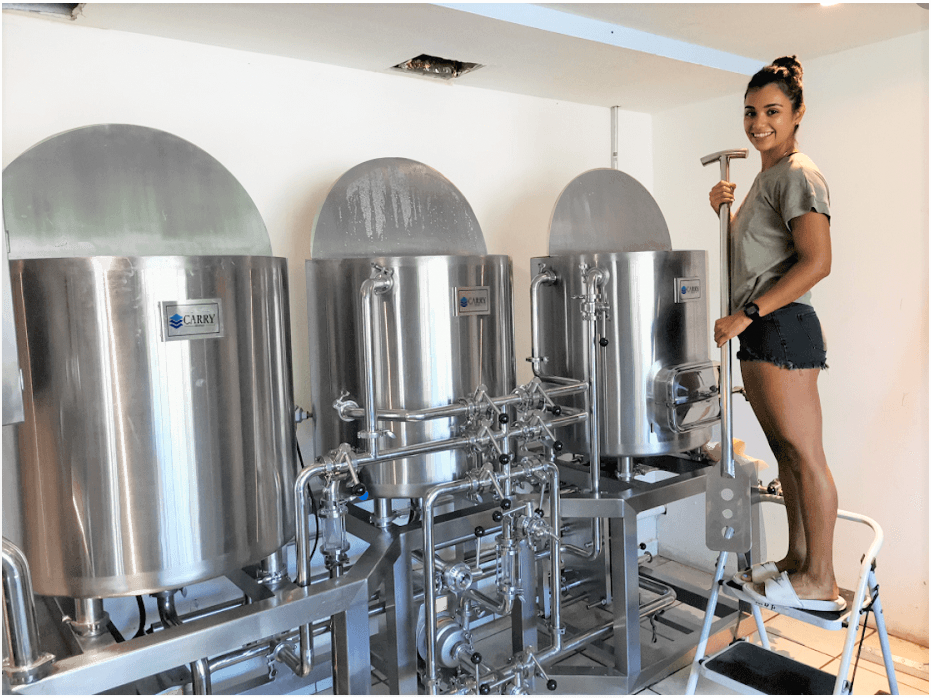

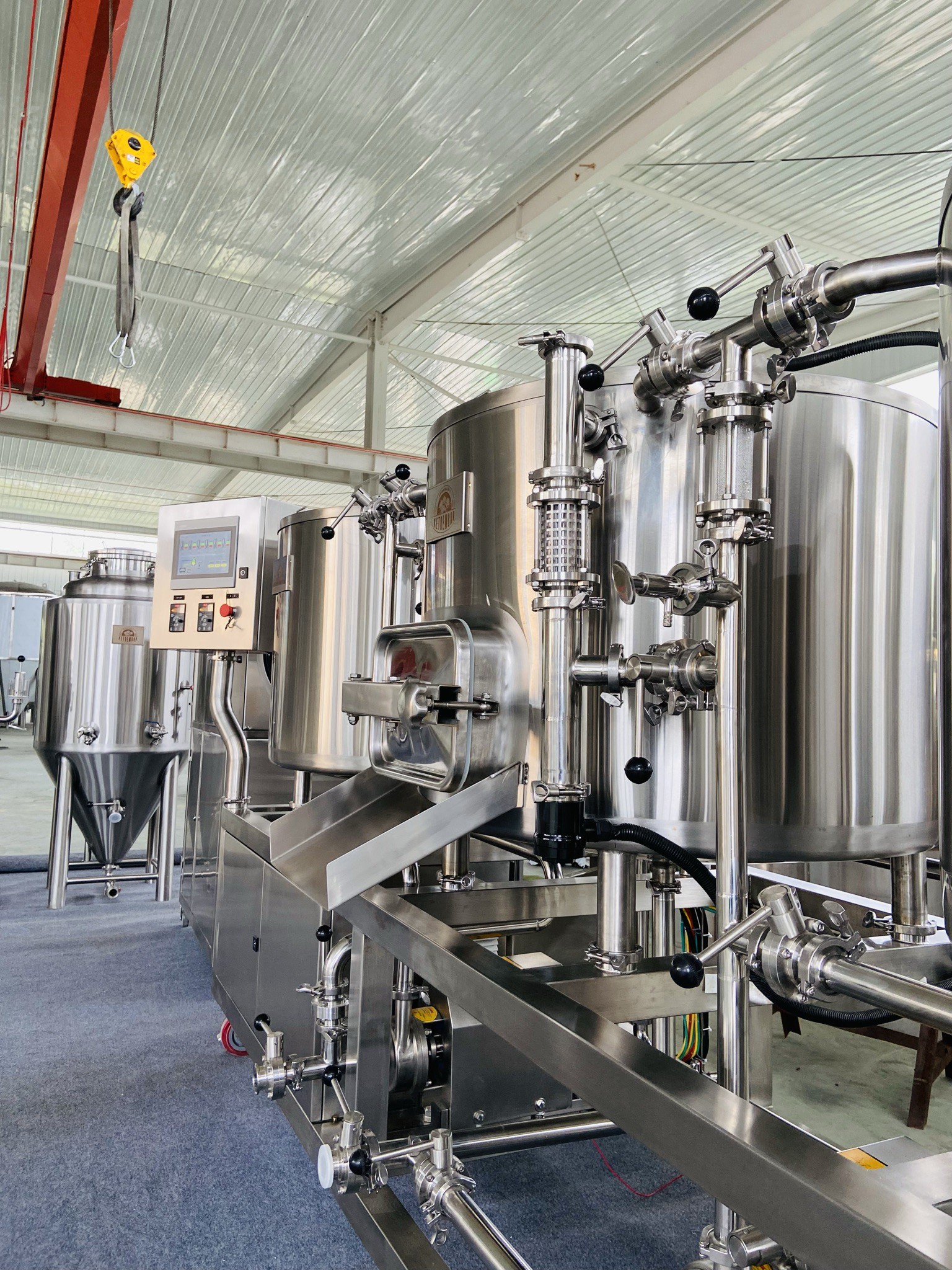

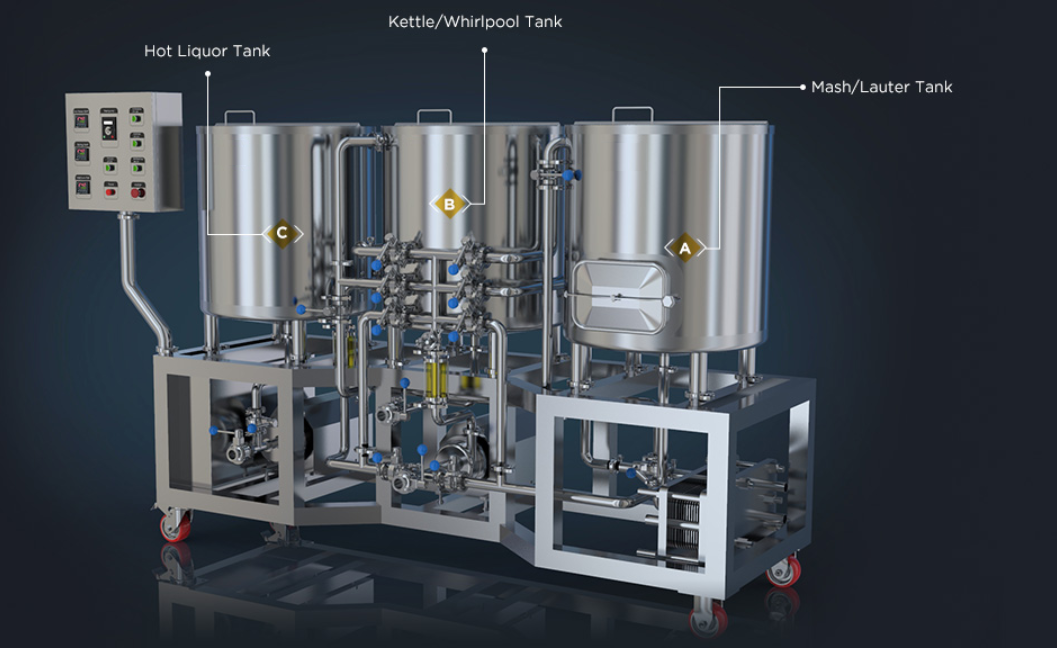

100L 3-Vessel Brewhouse System
Production Technology
1. Inner-Jacket (SUS304), TH=3.0mm, pickling&passivating treated;
2. External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate
3. Atmosphere pressure lid, TH=3.0mm
4. Tanks’ Insulation layer: PU-thickness= 30mm.
5. 100% high precision TIG welded joints
6. Strong universal wheels (with shaft)

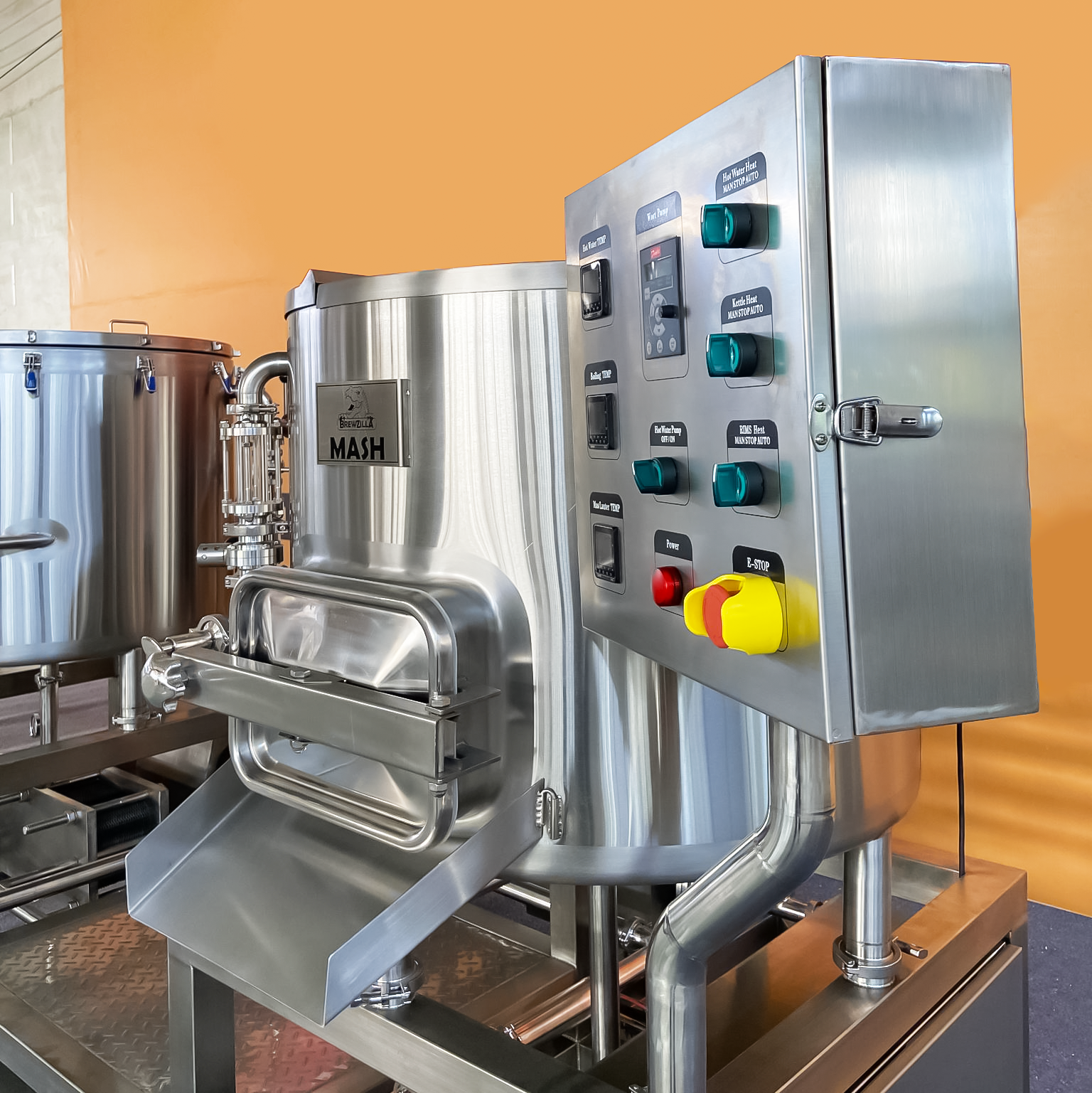

PID Control panel

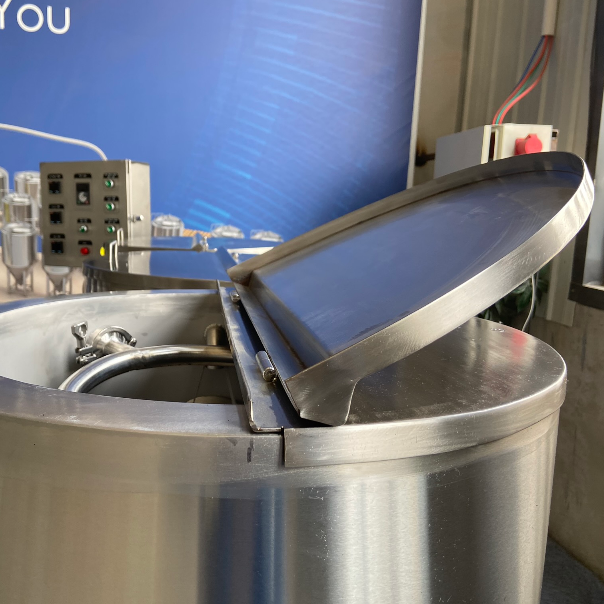

Manual open top lid

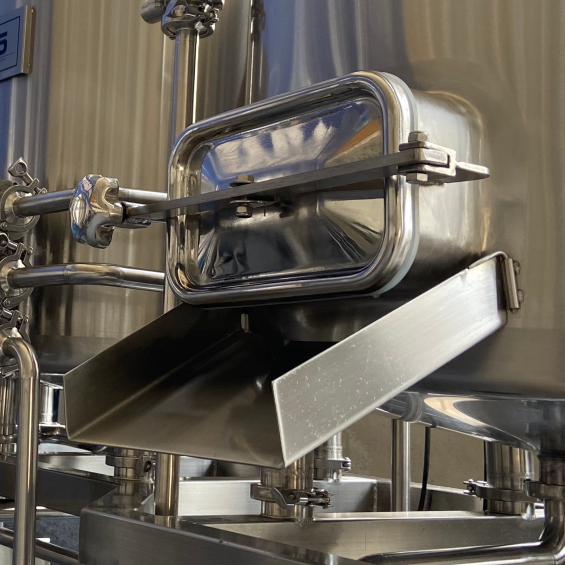

grain outdoor & chute

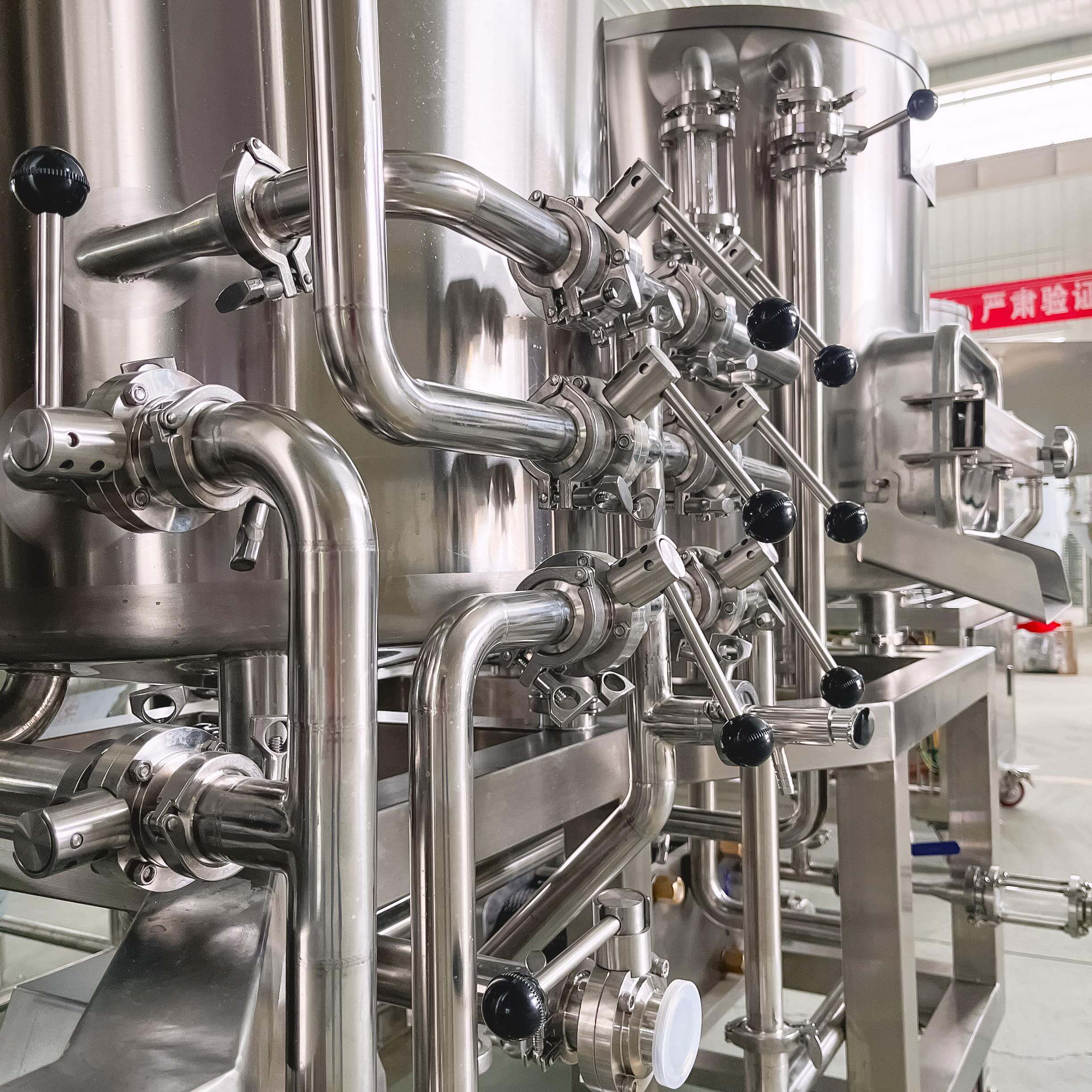

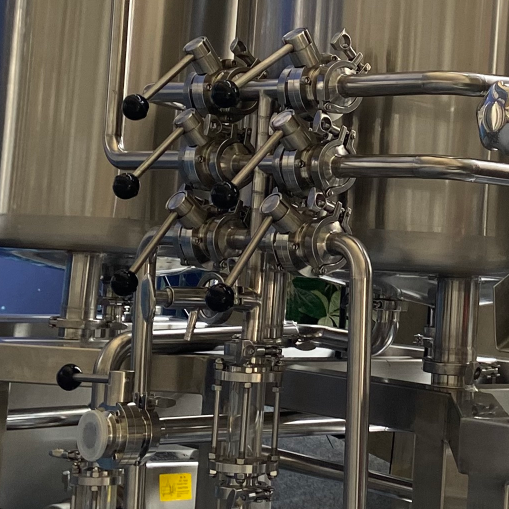

Valve trees

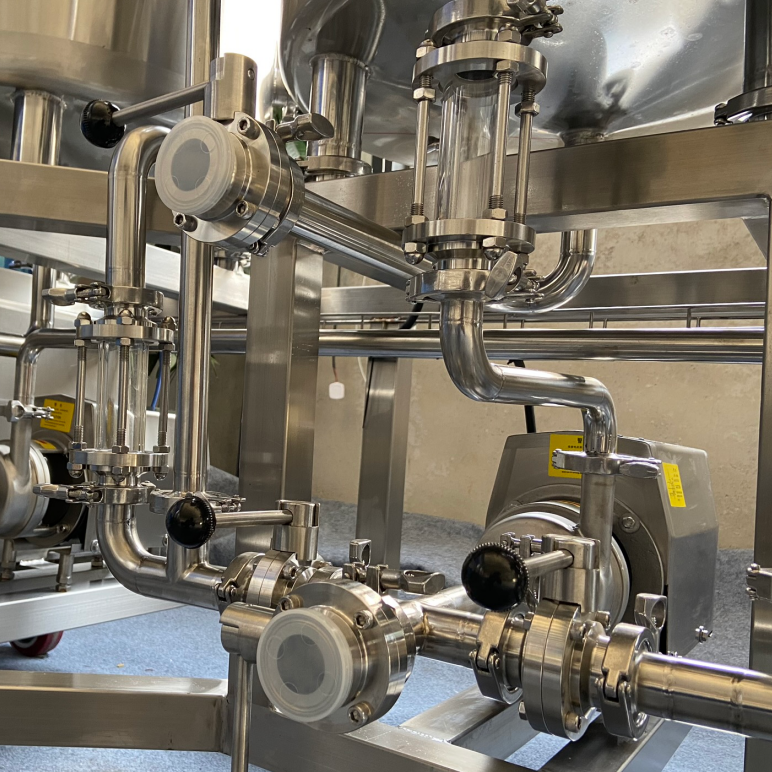

Wort pump with manifold

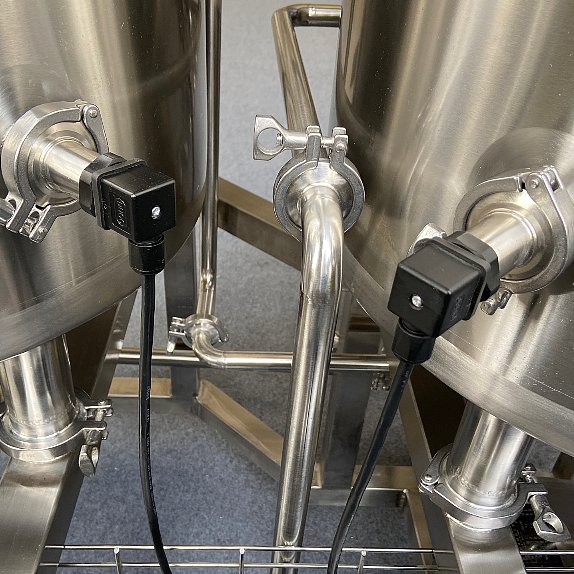

Temperature Probe(Tri-clamp)

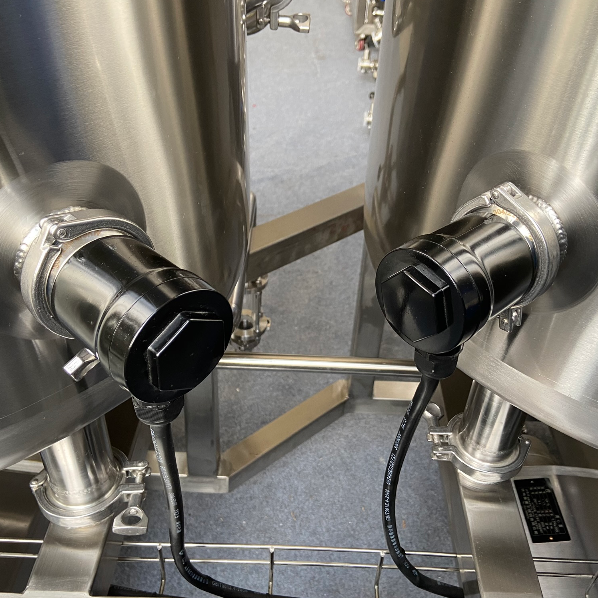

heating elements(Tri-clamp)
Sight glass
Whirlpool Inlet
Semi-automatic Control System
Never give up your creative recipe with such a smart control system, temperature control, pump VFD speed control, international standard electric components takes your brewing into the next level.
• Optional system volume from 100L to 200L
• You only need 2m² floor space to start your own brewery
• All material & accessories included, enjoy your high quality mechanical operation
• Optional System power supply 110V/220V/380V/415V

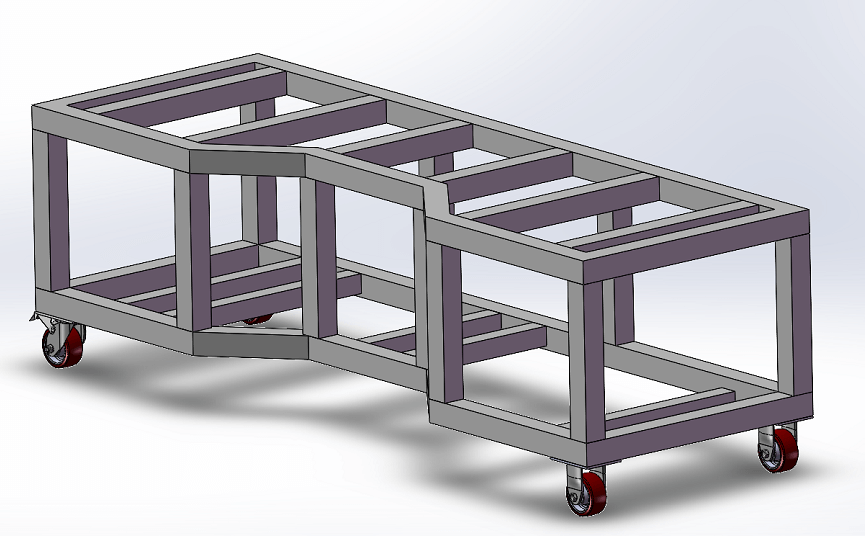

• Total Frame mounted structure, convenient to move around
Optional Configuration

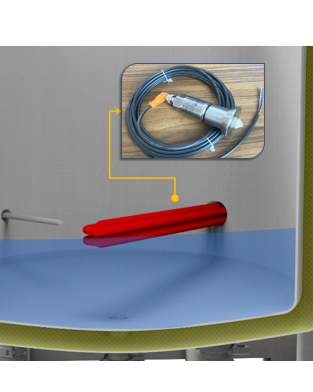

A. Anti-dry burning liquid level sensor· Liquid Level Sensor Suggest installing in the tank where you have electric heating elements, your control cabinet will alarm if heating without enough water
B. RIMS·Installed underneath the mash/lauter tank, along with wort outlet pipeline·with 1 x 3kw electric heating element·realize multiple steps mashing recipes if needed
Buy Together

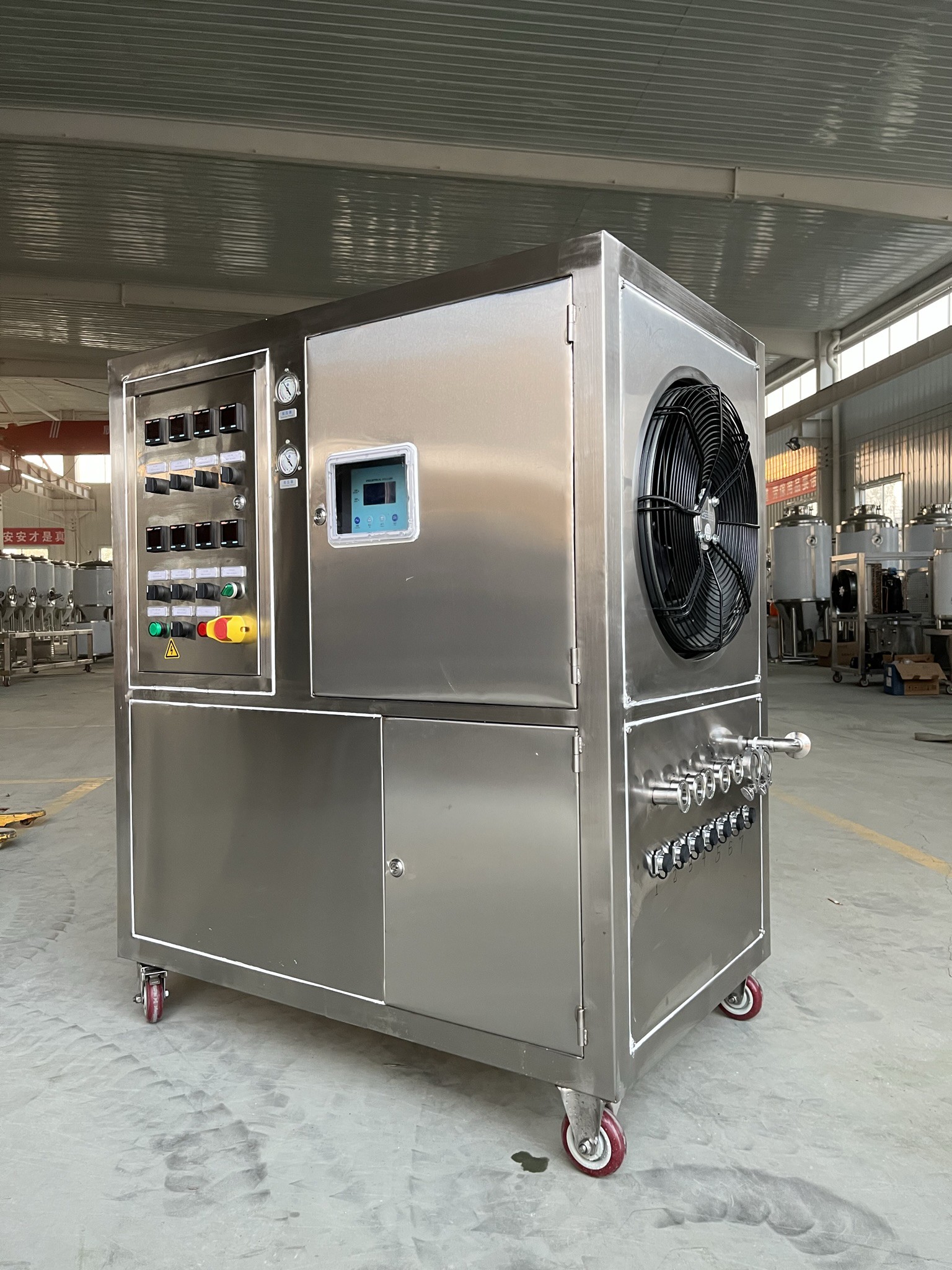

- Smart Chiller Unit

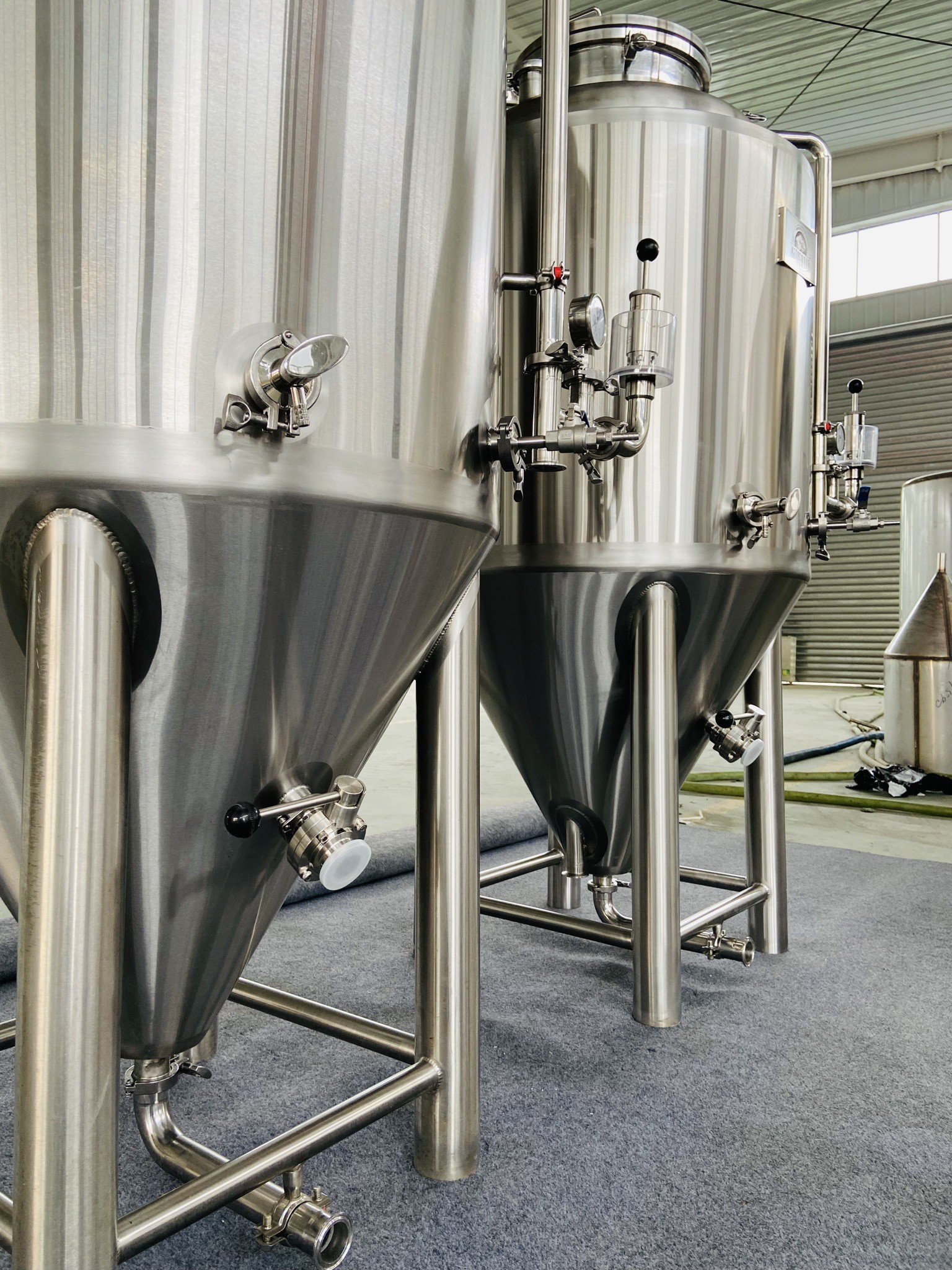

- 100L Fermentation Tank
