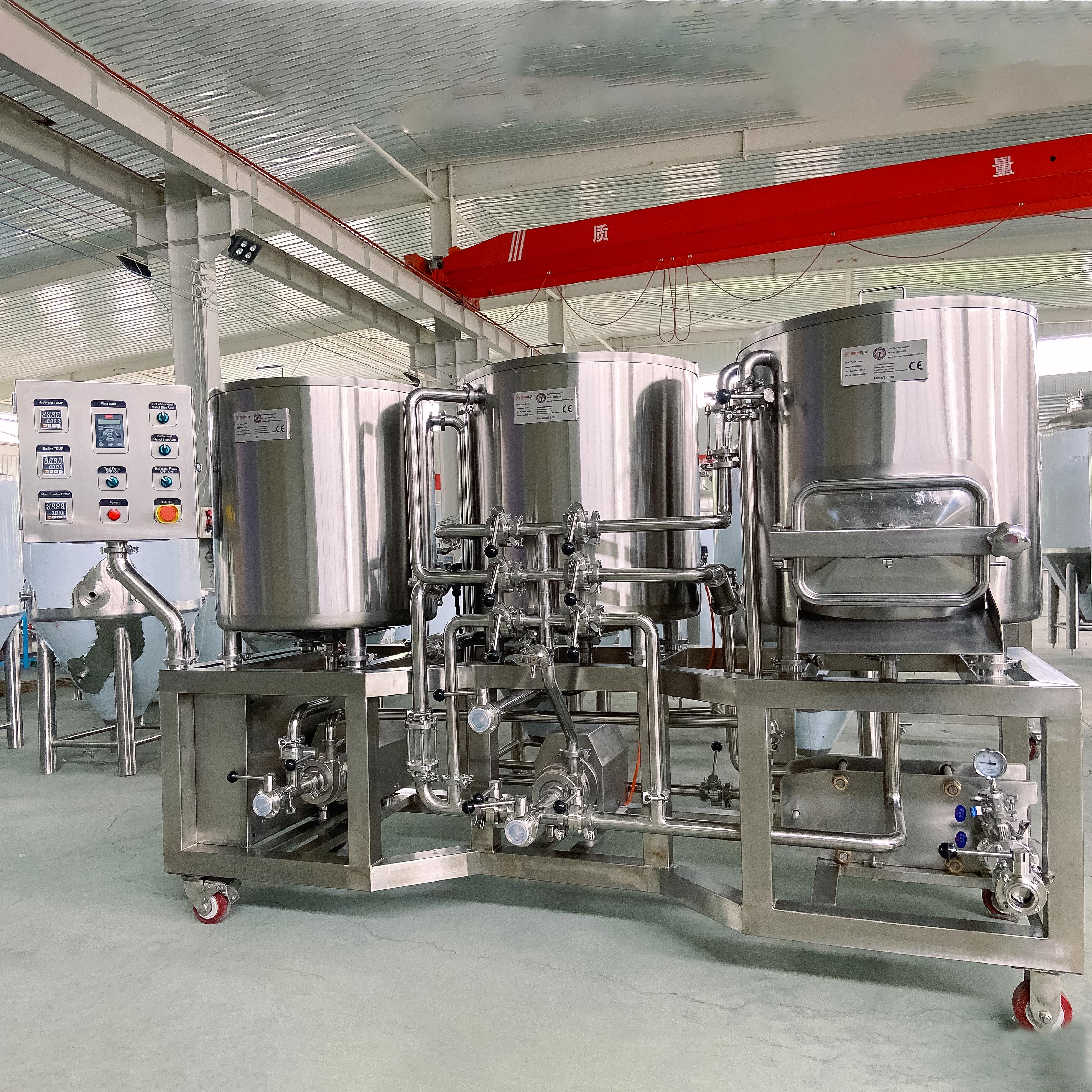

1BBL SMART Beer Brewhouse
◉ Product Parameters

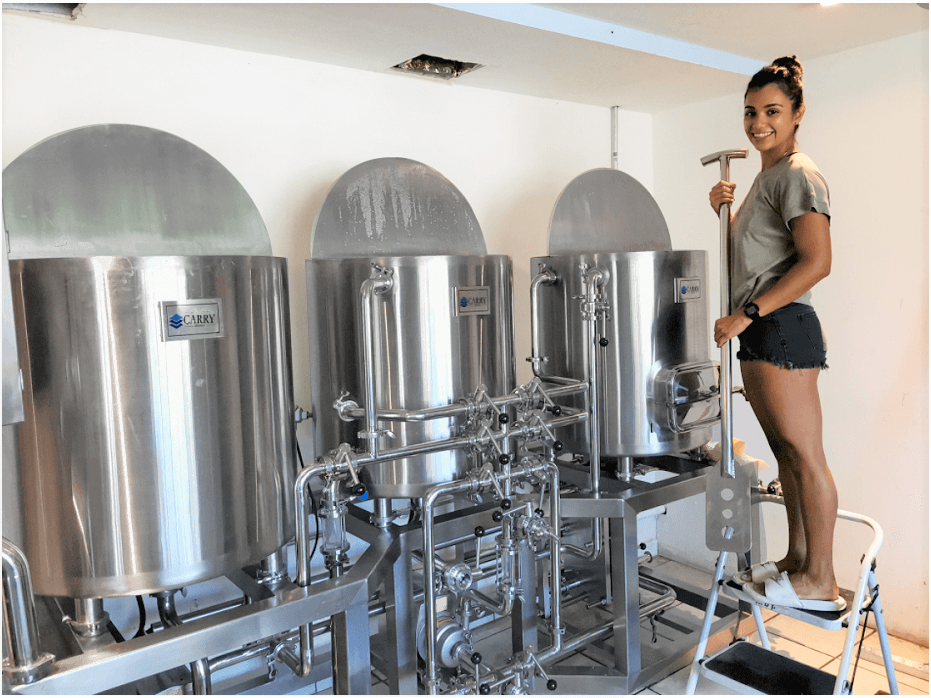

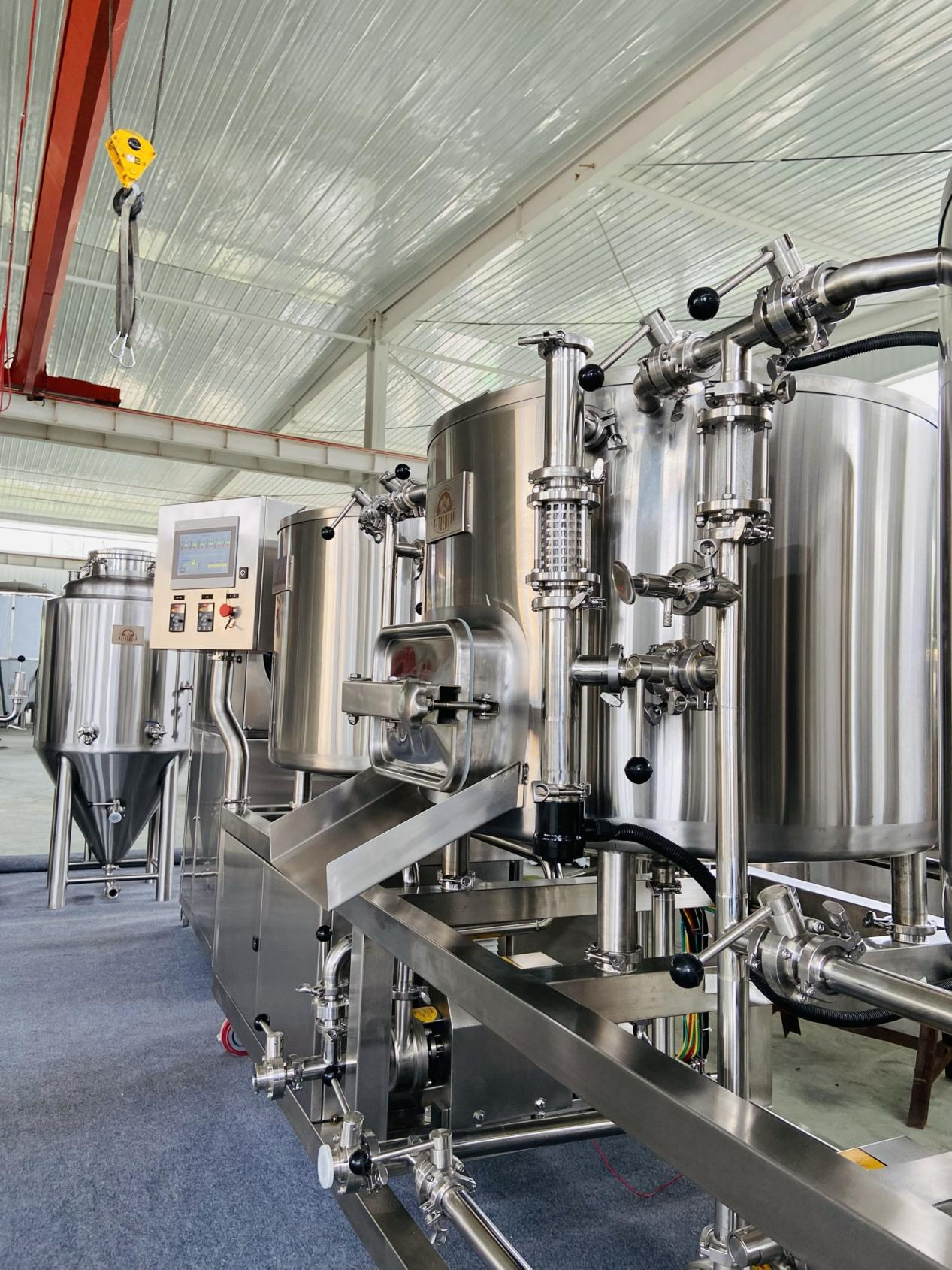

1BBL 3-Vessel Pilot Brewing Equipment
• Smart
Mini scale industrial brewing equipment, with all the scaled down parts&fittings, you will full in love with this optimized Brew center.
• Turnkey Solution
Installed& wiring ready on a fully welded frame platform, nothing can be easier for your pilot beer brewing jobs.
• 100% Flexible Design
Atmospheric top lid enable a direct inspection & clean of inner space.

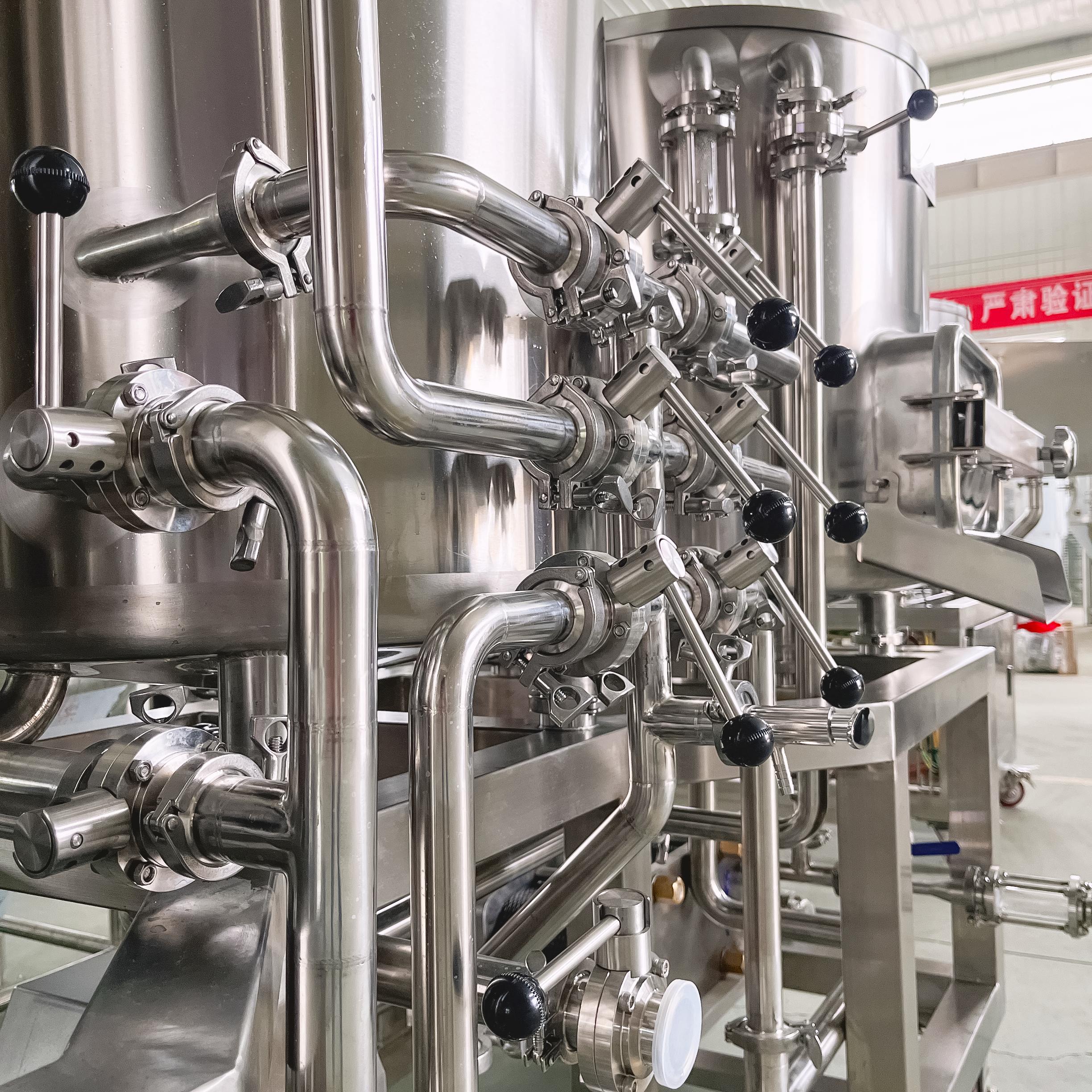

You will be able to pilot brewing with your professional brewing recipe on this unit, nothing can be easier with such a complete system configuration, pipelines, wort pump&hot water pump, heat exchanger, etc.
Semi-automatic Control System
Never give up your creative recipe with such a smart control system, temperature control, pump VFD speed control, international standard electric components takes your brewing into the next level.
• Optional system volume from 1BBL to 2BBL
• You only need 2m² floor space to start your own brewery
• All material & accessories included, enjoy your high quality mechanical operation
• Optional System power supply 110V/220V/380V/415V
Product Details
Left: Hot Liquor Tank Middle: Kettle + Whirlpool Tank Right: Mash+ Lauter Tank Dimension: 2100mm*720mm*1600mm Heating Method: Electric elements Operability: Easy Control System: PID Control Application: Larger, Ale, IPA, Creative pilot Craft Beer
Inner-Jacket (SUS304), TH=3.0mm, pickling& passivating treated; External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate; Atmosphere pressure lid, TH=3.0mm; Tanks’ Insulation layer: PU-thickness= 50mm; 100% high precision TIG welded joints; Strong universal wheels (with shaft);Installation Method: Assembled ready to use, Removable
Specification

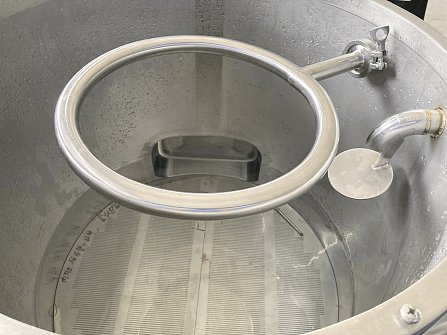

Backflow baffle/ Easy clean and detachable sparging spray ring

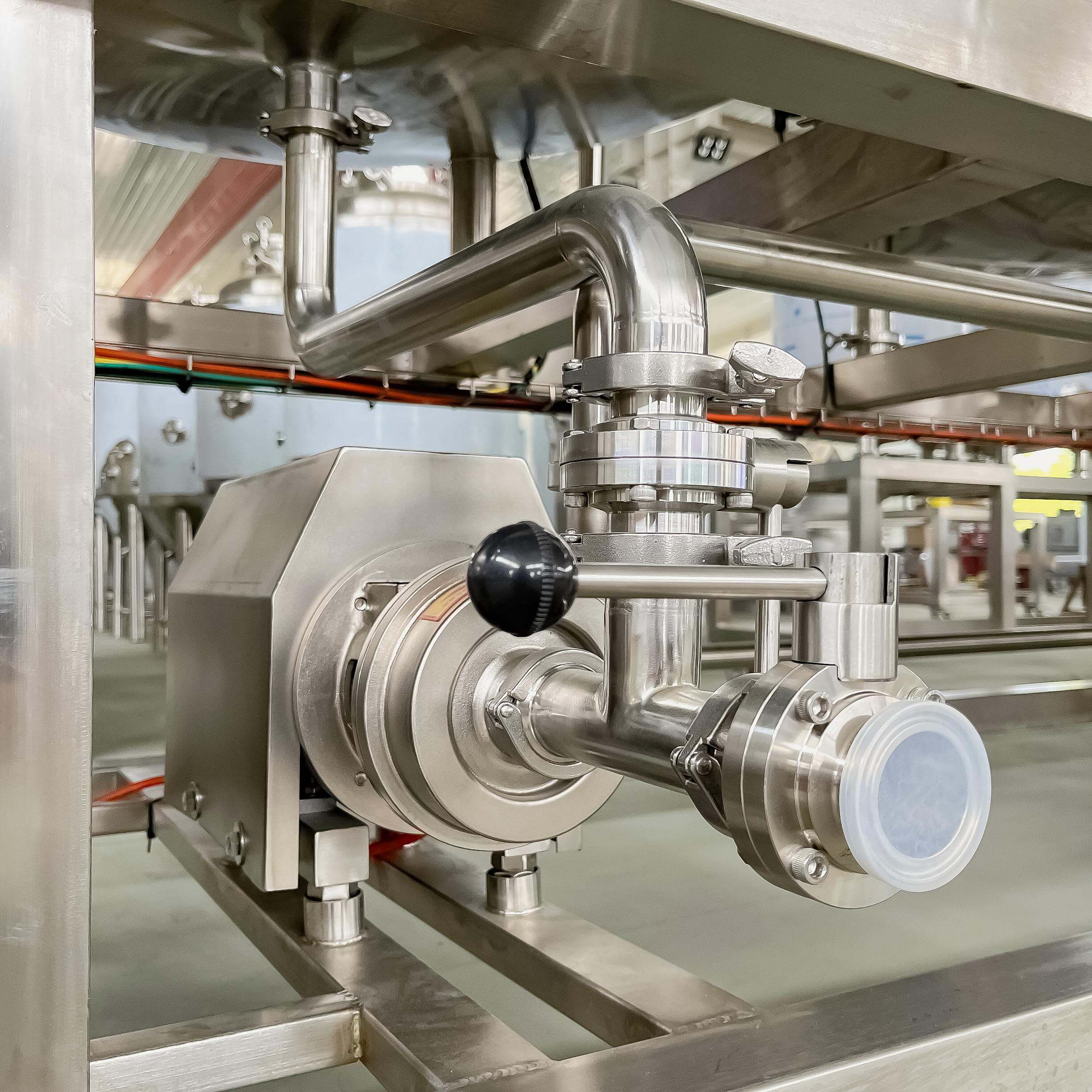

VFD Wort Pump(Flow capacity=1T/h)

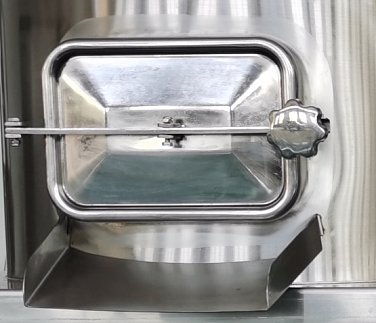

Grain out door + grain chute

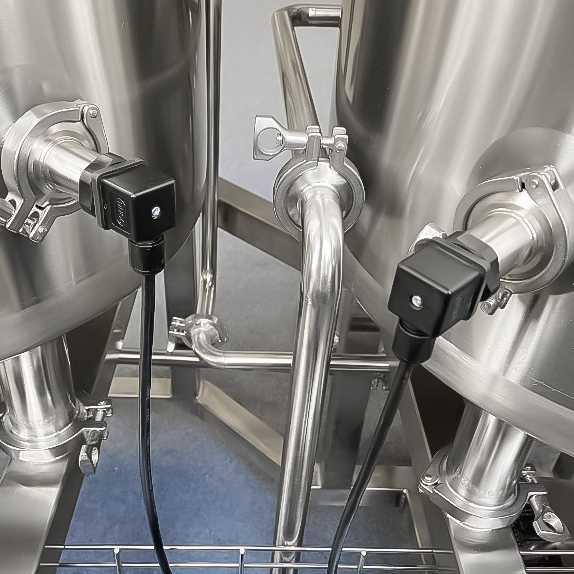

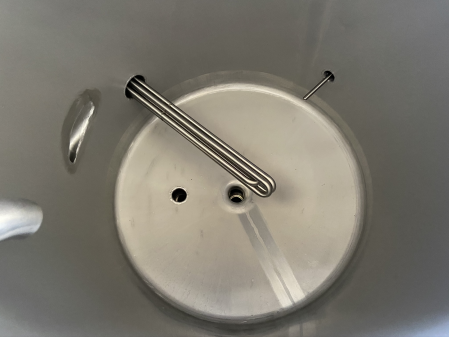

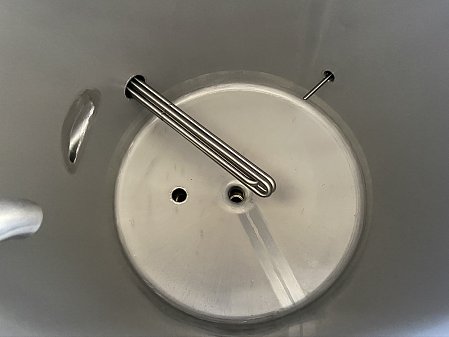

Electric elementes used in kettle/whirlpool tank&HLT- VFD Wort Pump(Flow capacity=1T/h)

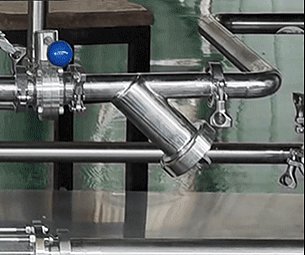

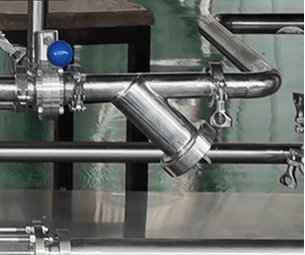

Y type Hops filter equipped ahead of heat exchanger

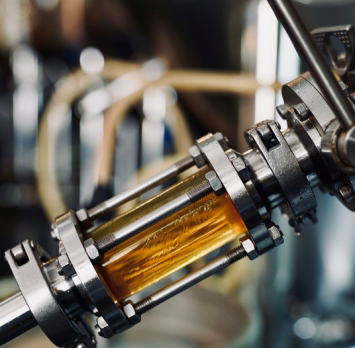

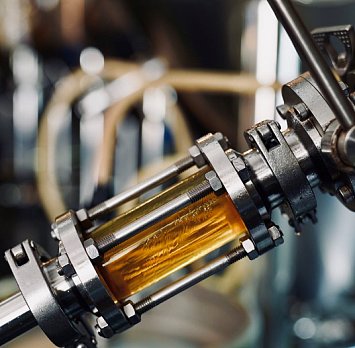

Sight Glass (equipped on wort pipeline)

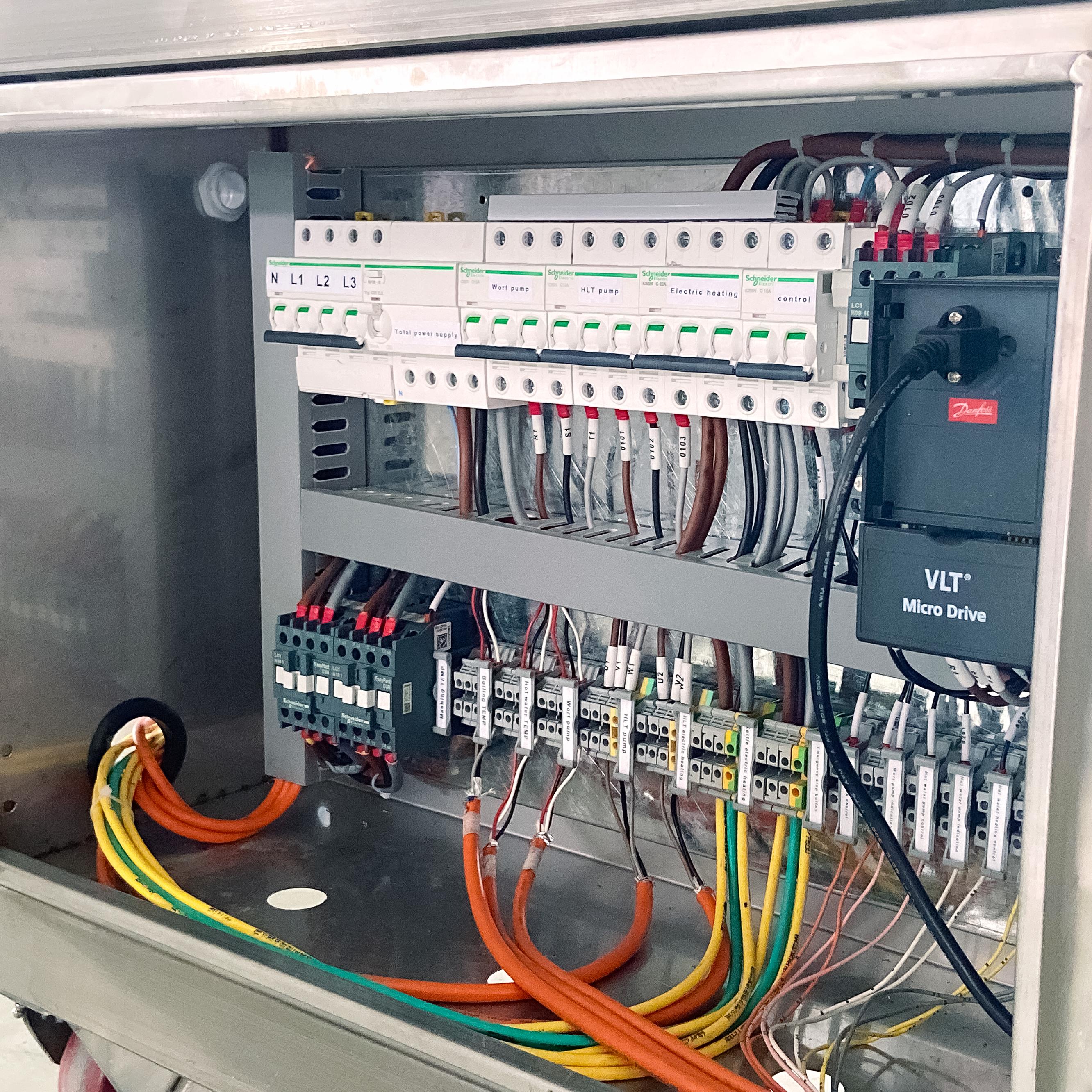

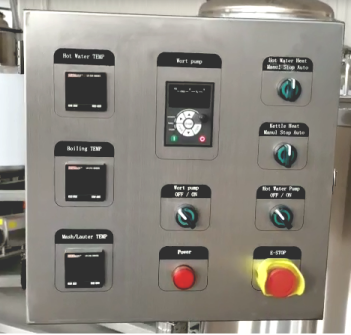

PID Controller (semi-auto temperature control&pump control)
Specification

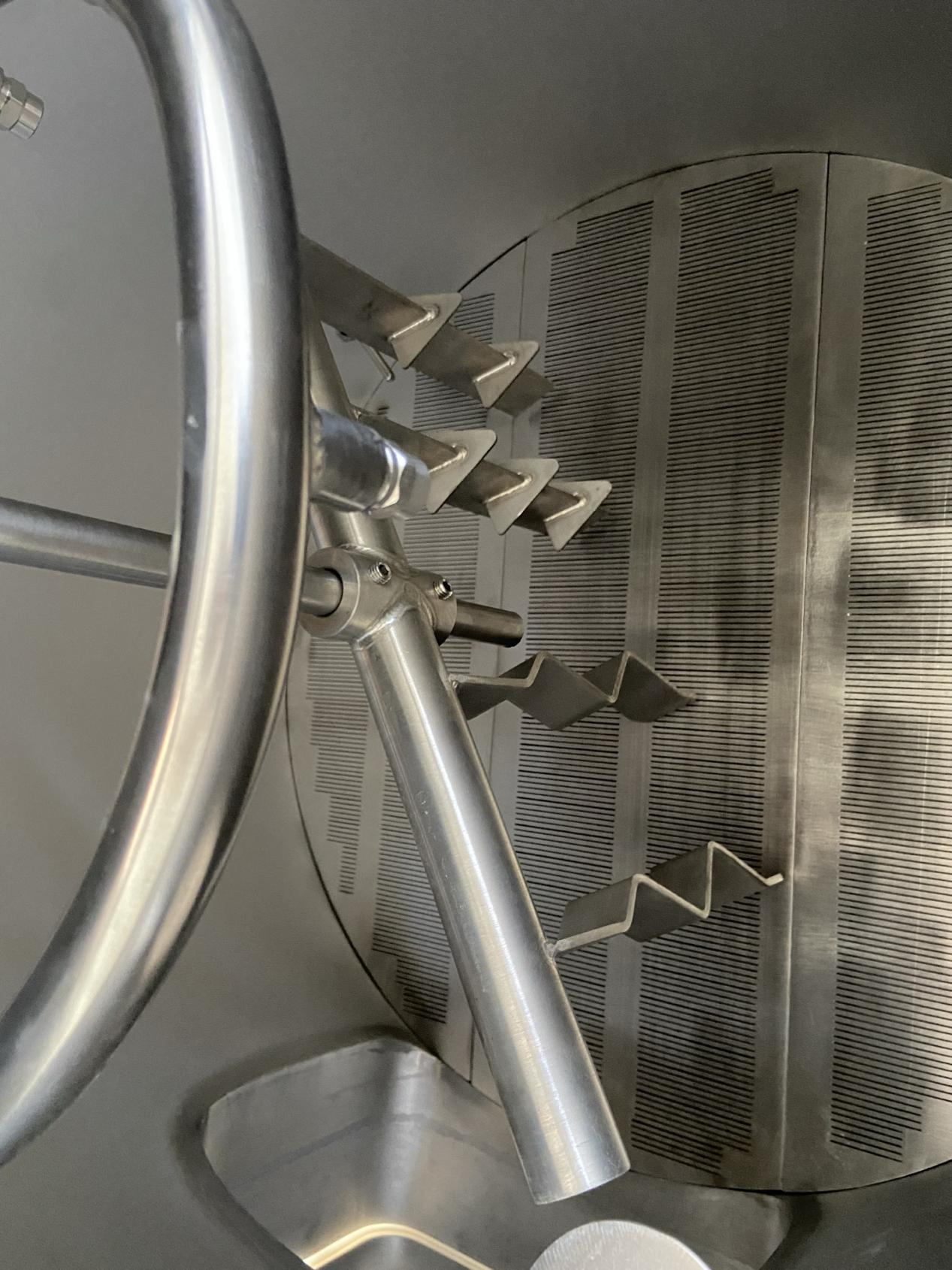

a. Grain Raker·With VFD motor&reducer on top of mash/lauter tank·Build in rakers to mix malts with water during mashing process- b. RIMS·Installed underneath the mash/lauter tank, along with wort outlet pipeline·with 1 x 3kw electric heating element·realize multiple steps mashing recipes if needed

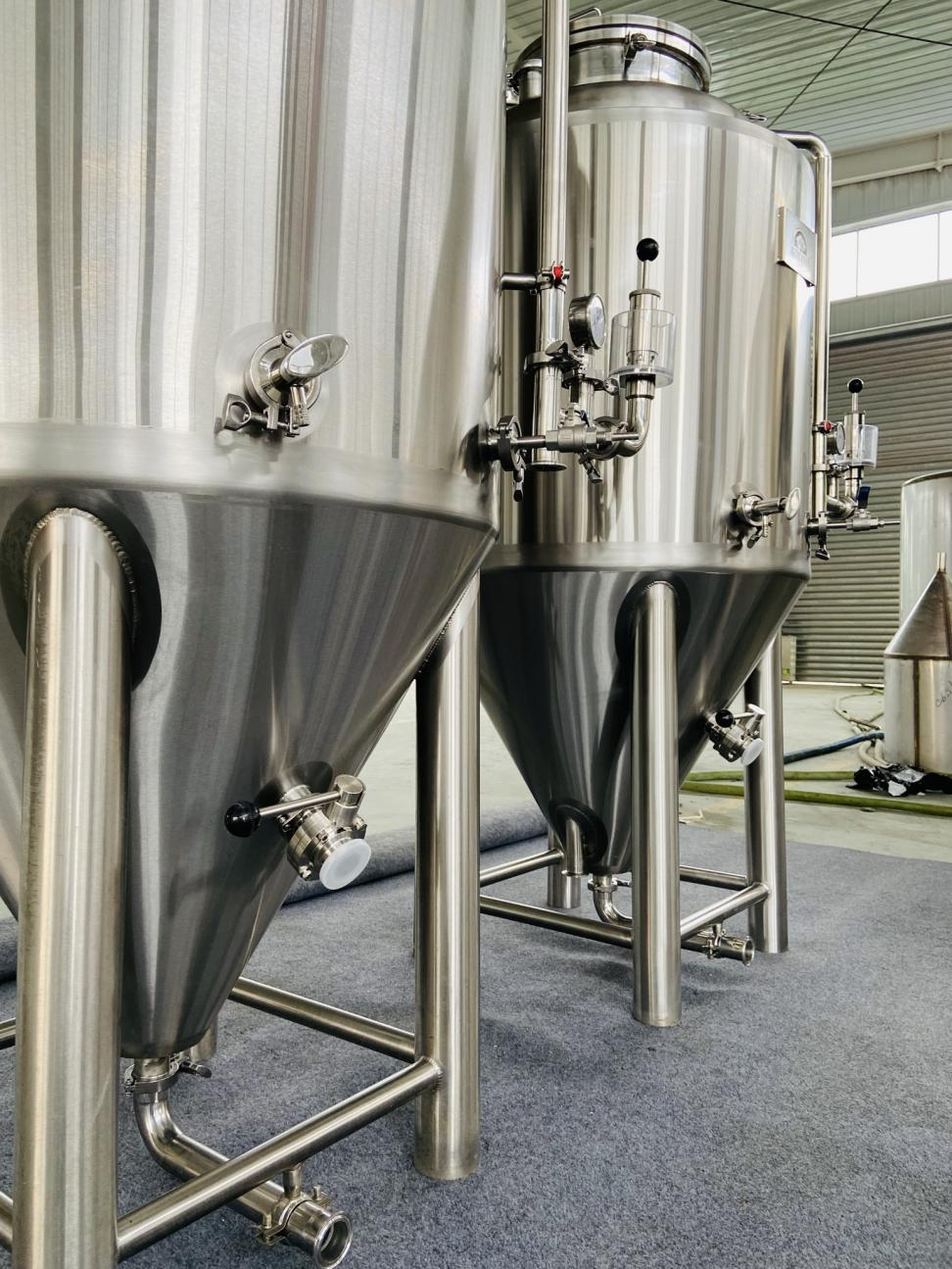

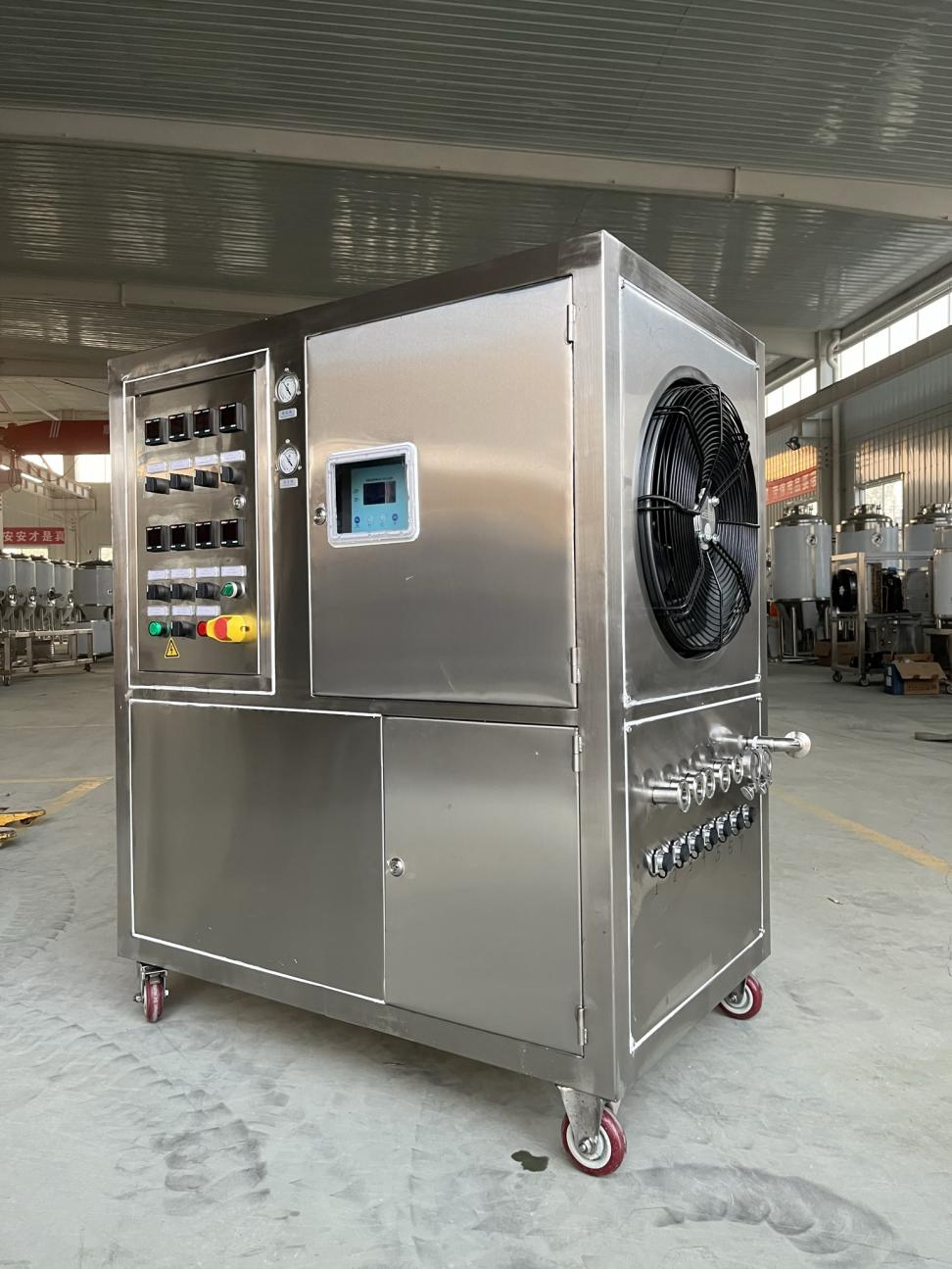

Smart Chiller Unit- 100L Fermentation Tank
