200L STAR Nano Brewhouse

200L STAR Nano Brewhouse

200LSTAR is specially customized for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production
-+
Add to Basket
Inquire Now

◉ Product Parameters

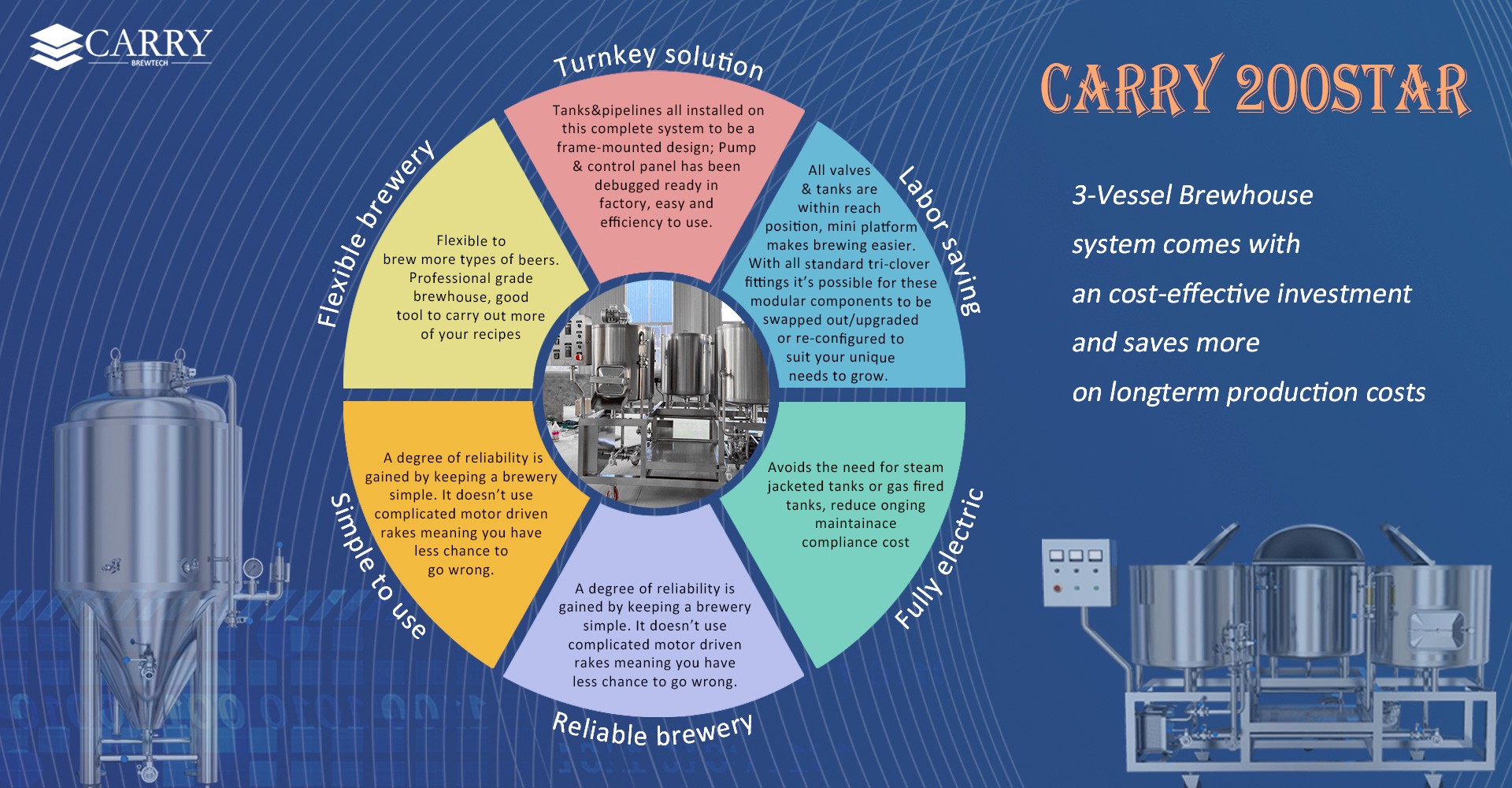

1.CARRY 2--STAR

CARRY Brewtech 200LSTAR Nano Brewery Equipment is specially customized for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.CARRY Brewtech 200LSTAR Nano Brewery Equipment is specially customized for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.

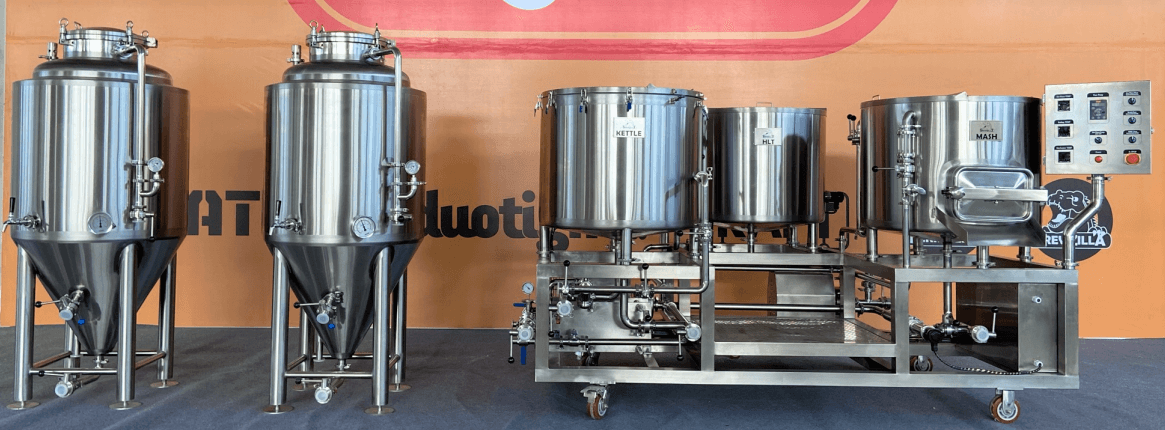

carry brewtech 200l brewsystem

Smart
Mini scale industrial brewing equipment, with all the scaled down parts&fittings, you will full in love with this optimized Brew center.



Turnkey Solution
Installed& wiring ready on a fully welded frame platform, nothing can be easier for your pilot beer brewing jobs



Cost-effective
The 200L Brewhouse saves space and your installation time. It has four wheels and is very convenient to move. All Tanks are on one frame, which is very compact and practical.

  • 1. Effective volume=200L, max volume=250L</br>2. Atmospheric top lid</br>3. Tri-clamp Spary Ring Tube</br>4. Wort backflow pipeline equip with Sight glass</br>5. Removable false bottom</br>6. Grain out door 7. Temperature Probe&PT-100
    Mash+Lauter Tank
    1. Effective volume=200L, max volume=250L
    2. Atmospheric top lid
    3. Tri-clamp Spary Ring Tube
    4. Wort backflow pipeline equip with Sight glass
    5. Removable false bottom
    6. Grain out door 7. Temperature Probe&PT-100
  • 1. Effective volume=200L, max volume=250L</br>2. Atmospheric pressure lid</br>3. 6kw electric element</br>4. Tangent whirlpool inlet</br>5. Temperature Probe&PT-100

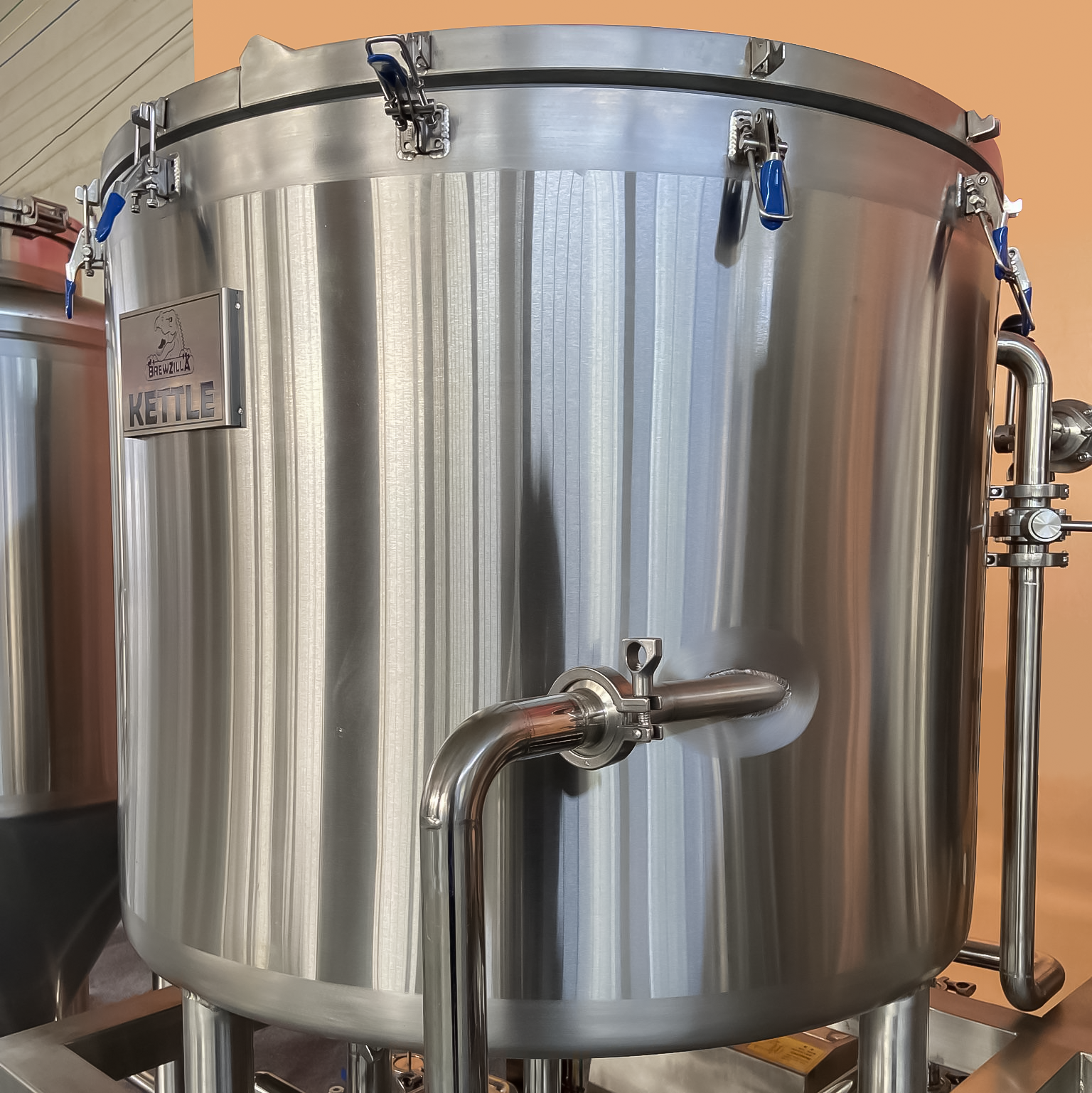

    Kettle+Whirlpool Tank
    1. Effective volume=200L, max volume=250L
    2. Atmospheric pressure lid
    3. 6kw electric element
    4. Tangent whirlpool inlet
    5. Temperature Probe&PT-100
  • 1. Effective volume=200L, max volume=280L</br>2. Atmospheric manual open top lid    </br>3. 12kw electric element  </br>4. With 1T/H Hot water pump  </br>5. Temperature Probe&PT-100 </br>6. with level mark inside of tank

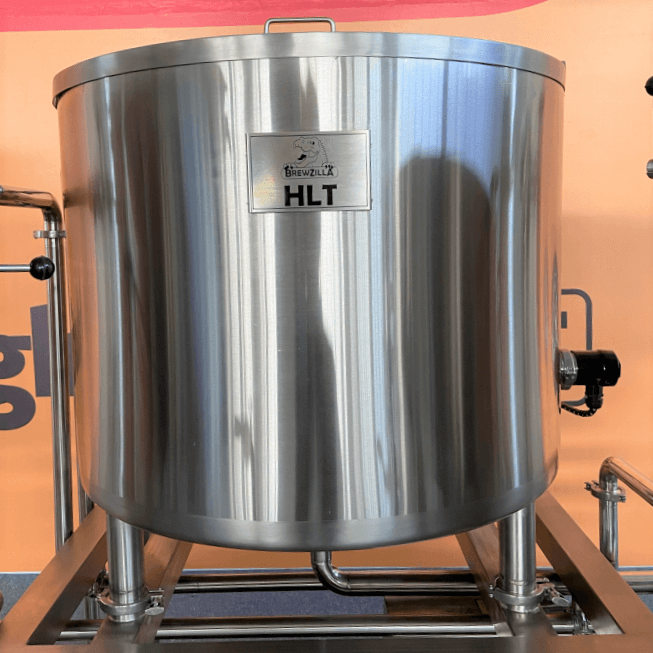

    Hot Water Tank
    1. Effective volume=200L, max volume=280L
    2. Atmospheric manual open top lid
    3. 12kw electric element
    4. With 1T/H Hot water pump
    5. Temperature Probe&PT-100

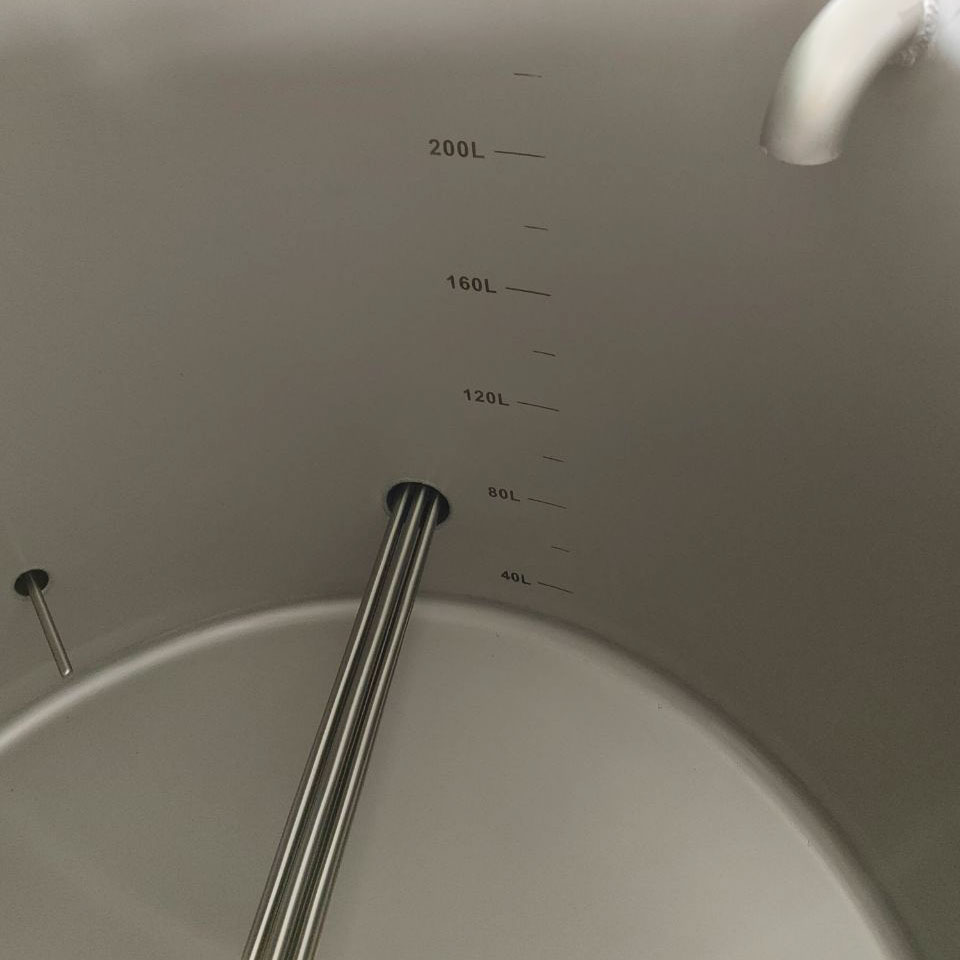

    6. with level mark inside of tank
  • 1. SUS 304 Material cabinet</br>2. Temperature indicator & heating elements on/off control of mash/lauter tun, kettle/whirlpool tank, hot water tank</br>3. Wort Pump VFD Speed control</br>4. Hot water pump on/off control</br>5. With high quality electric components, Schneider brand. CE, ISO Certificated

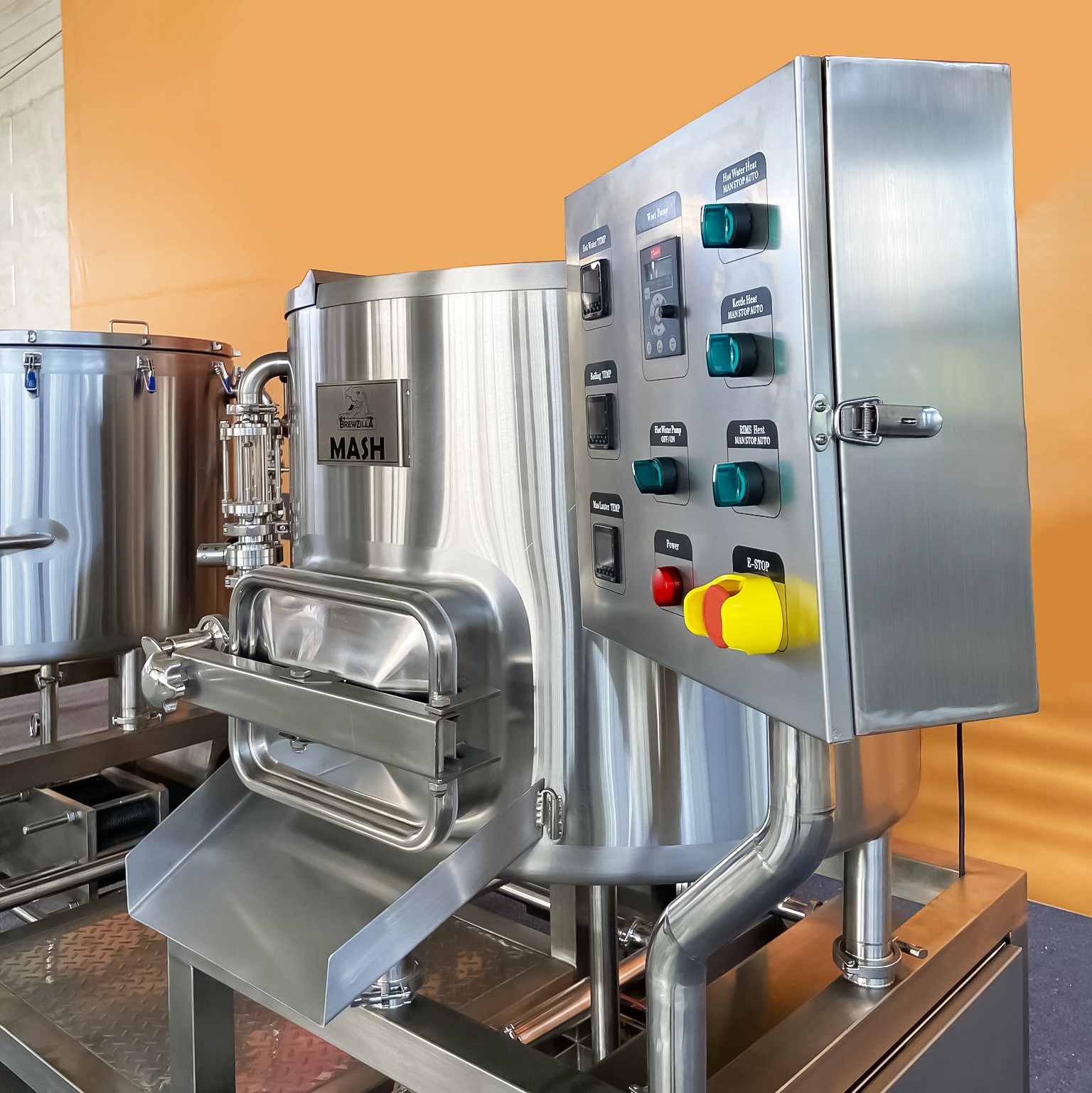

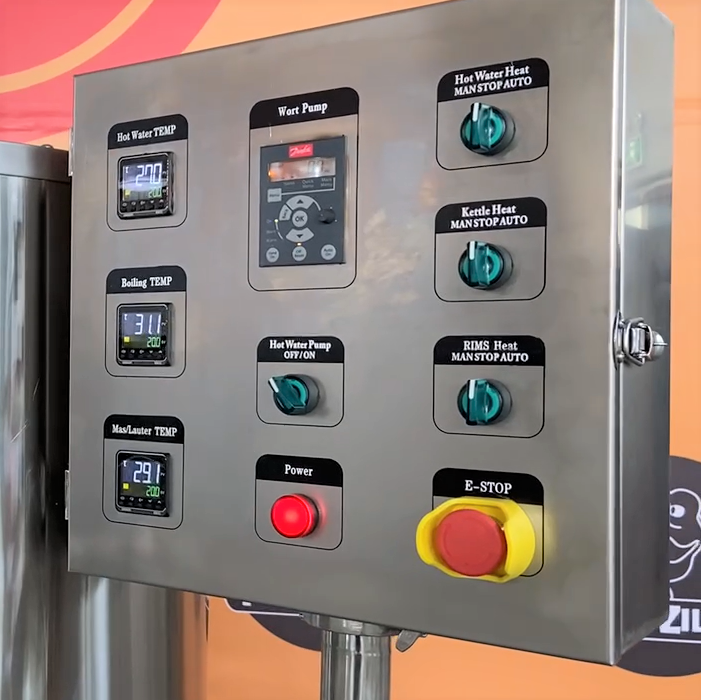

    PID Control Cabinet
    1. SUS 304 Material cabinet
    2. Temperature indicator & heating elements on/off control of mash/lauter tun, kettle/whirlpool tank, hot water tank
    3. Wort Pump VFD Speed control
    4. Hot water pump on/off control
    5. With high quality electric components, Schneider brand. CE, ISO Certificated
  • 1. High precision hops filter, equipped in pipelinebefore PHE</br>2. 3㎡ single stage plate heat exchanger</br>3. Temperature Gauge after PHE</br>4. Tap water outlet from the PHE to be able backflow into Hot water tank</br>5. Oxygenation device before wort knocking out port
    Knocking Out Fittings
    1. High precision hops filter, equipped in pipelinebefore PHE
    2. 3㎡ single stage plate heat exchanger
    3. Temperature Gauge after PHE
    4. Tap water outlet from the PHE to be able backflow into Hot water tank
    5. Oxygenation device before wort knocking out port

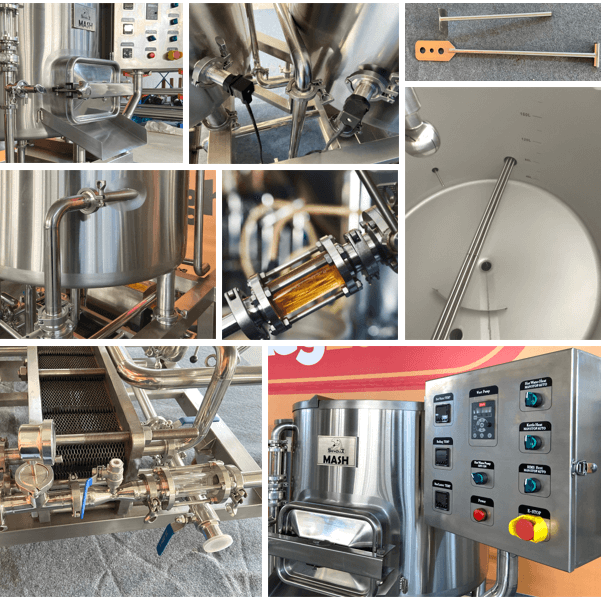

Product Description

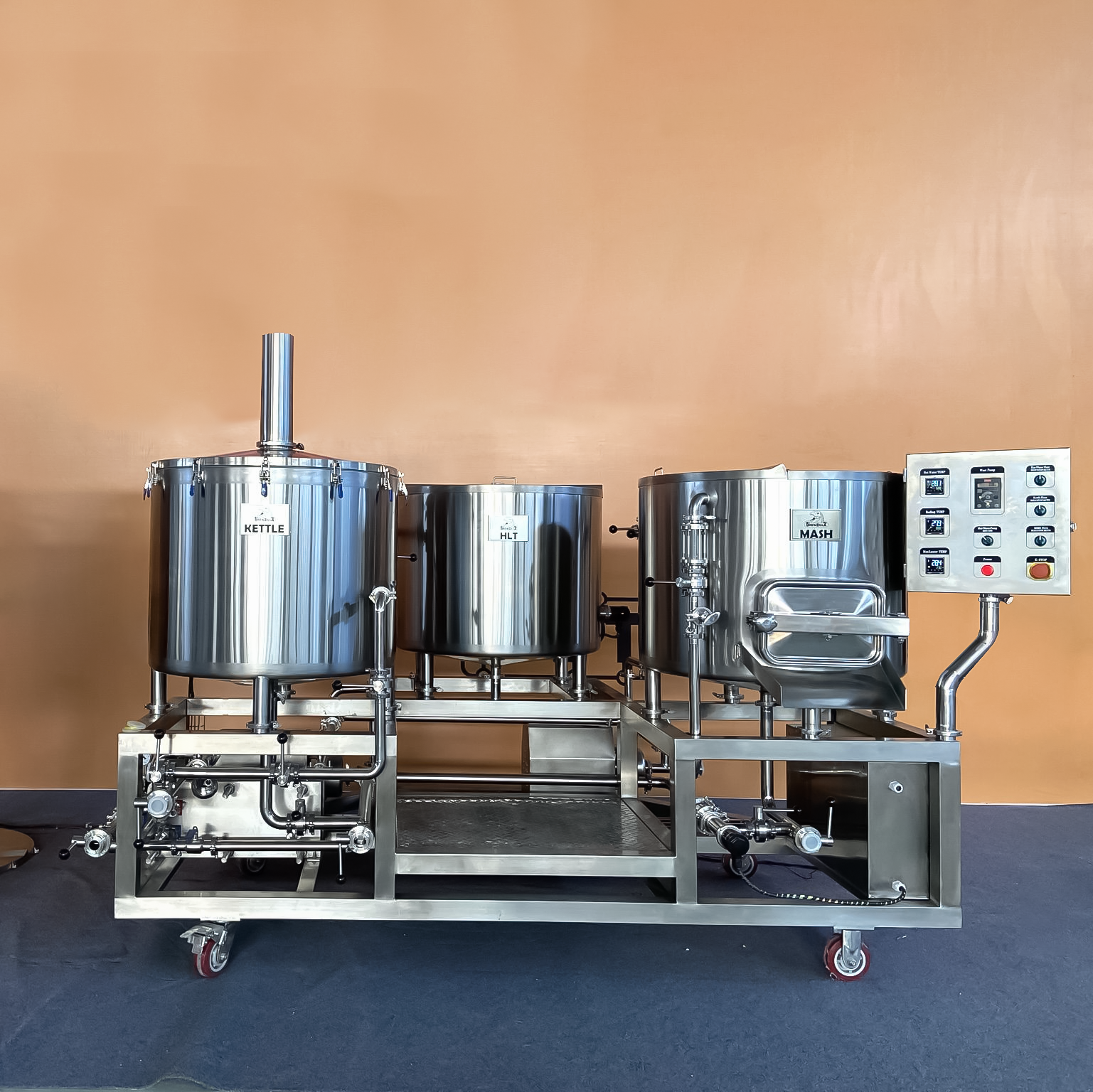

  • Brewhouse from view
    Brewhouse from view
  • Backflow baffle/ Easy clean and detachable sparging spray ring
    Backflow baffle/ Easy clean and detachable sparging spray ring
  • High quality Sieve in mash/lauter tank
    High quality Sieve in mash/lauter tank
  • VFD Wort Pump(Flow                        capacity=1T/h)
    VFD Wort Pump(Flow capacity=1T/h)
  •  Electric elementes used in            kettle/whirlpool tank&HLT
    Electric elementes used in kettle/whirlpool tank&HLT
  • Tangent Whirlpool inlet for                kettle/whirlpool tank
    Tangent Whirlpool inlet for kettle/whirlpool tank
  • 10001

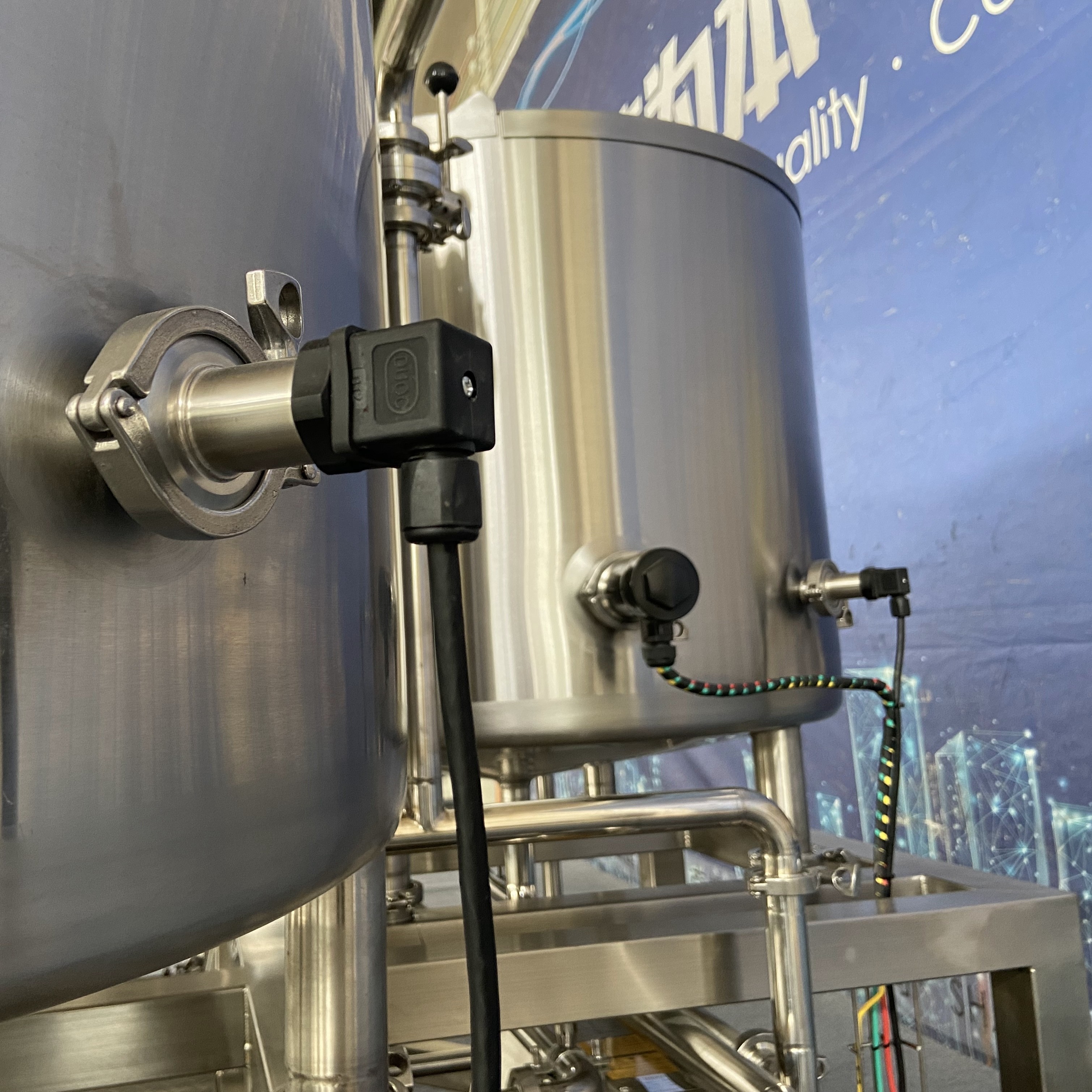

    Temoerature proble& PT-100
  • Plate Heat Exchanger
    Plate Heat Exchanger
  • PID Controller
    PID Controller
  • Sight Glass
    Sight Glass
  • 10002

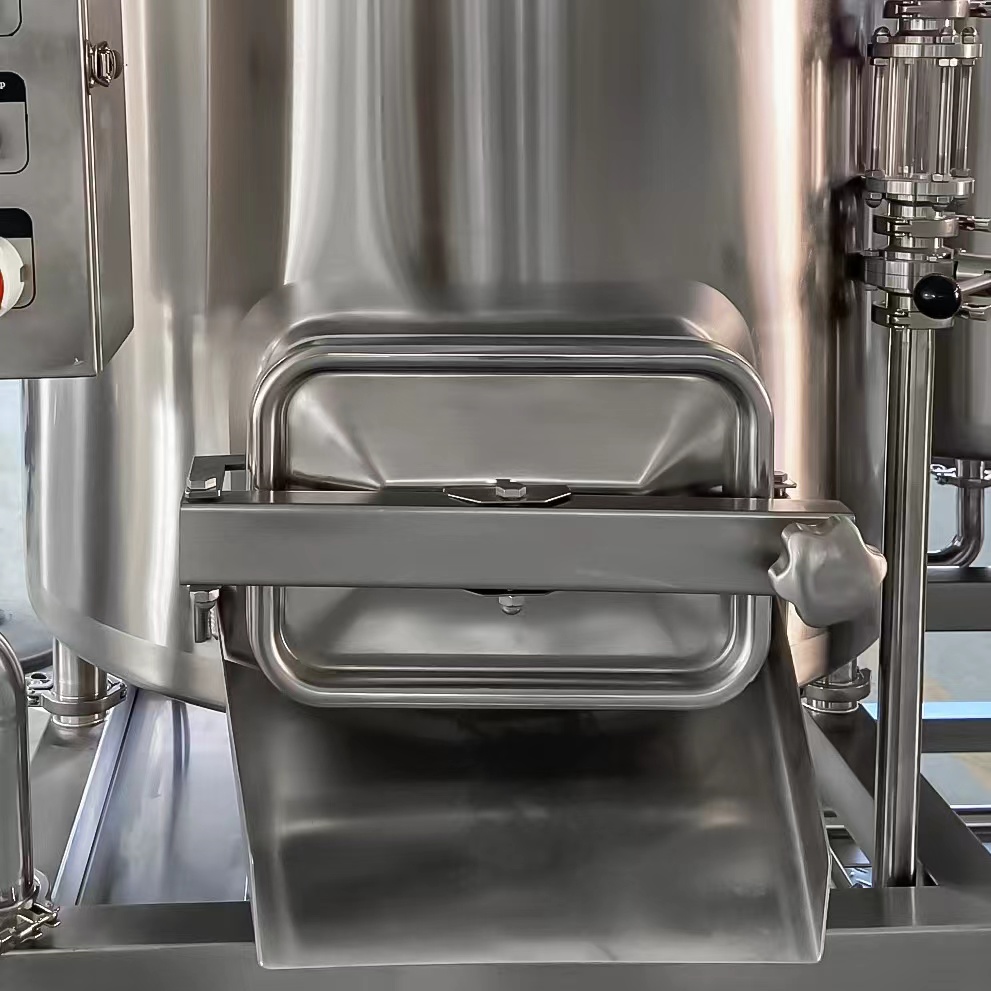

    Grain out door + grain chute
  •  Strong universal wheels

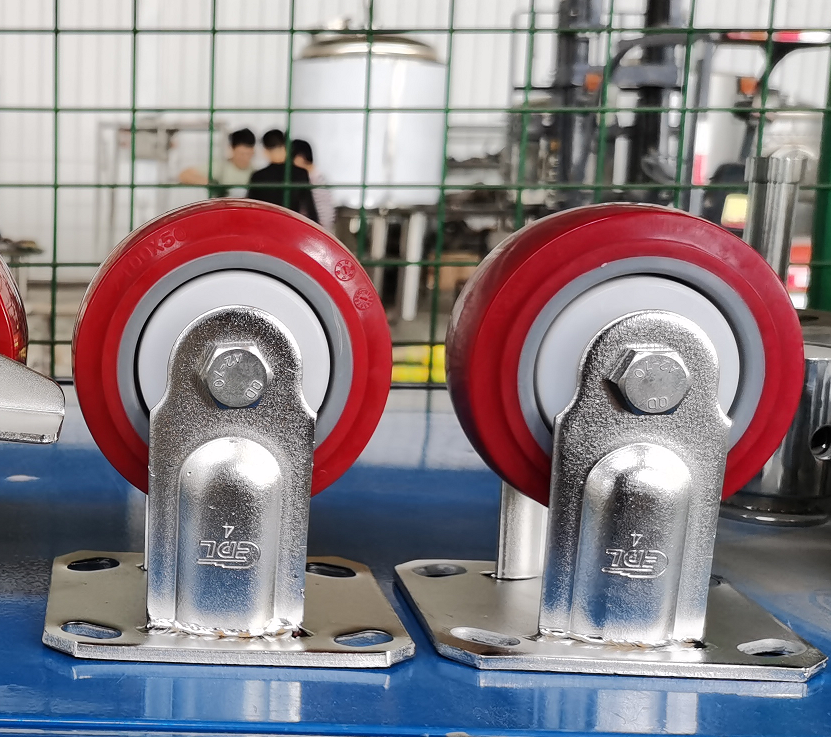

    Strong universal wheels

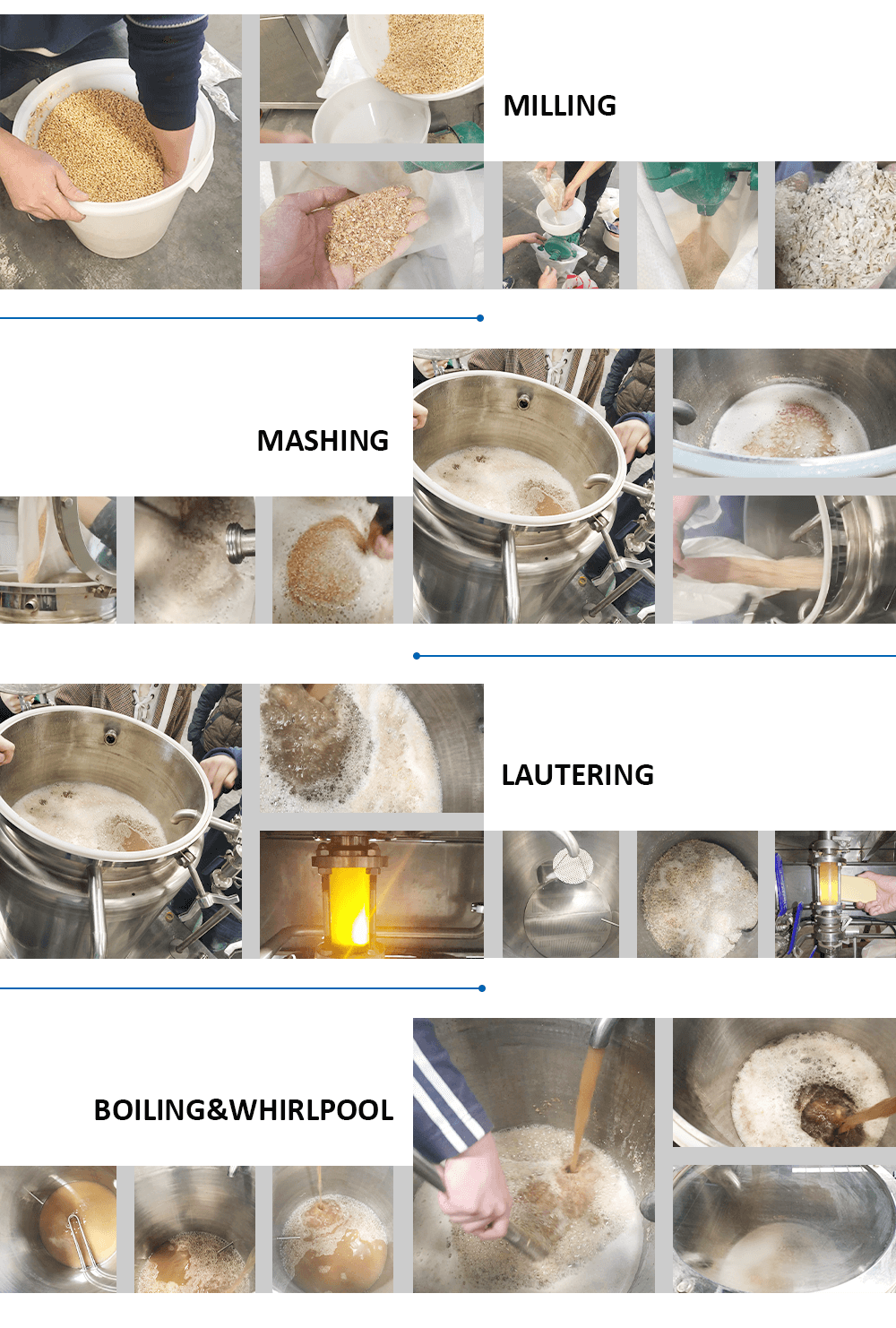

Saccharification flow chart:

step 1Put the Malt into the Malt miller; in this step can make the malt  fully mashed.

   step 2: Mix and stir the pulverized malt with 63-68° water, and use the enzymes contained in the malt to decompose the insoluble macromolecular substances (starch, protein, hemicellulose, etc.) in the malt and auxiliary materials into soluble low-molecular-weight substances. (eg sugars, dextrins, amino acids, peptides), in this step we can get the wort.

   step 3: The next step is Lauter. In this step, we need to add water at 78-82° twice to wash the wort. Then we will filter to get clear wort. This step can be observed through our sight glass.

   step 4: The next step is to boil and spin sink. Through this step, we sterilize the wort. The purpose of the spin sink is to precipitate the deteriorated protein in the wort, so that we can get a clearer wort.

4.photobank (2)

Relative Products

Packaging & Shipping

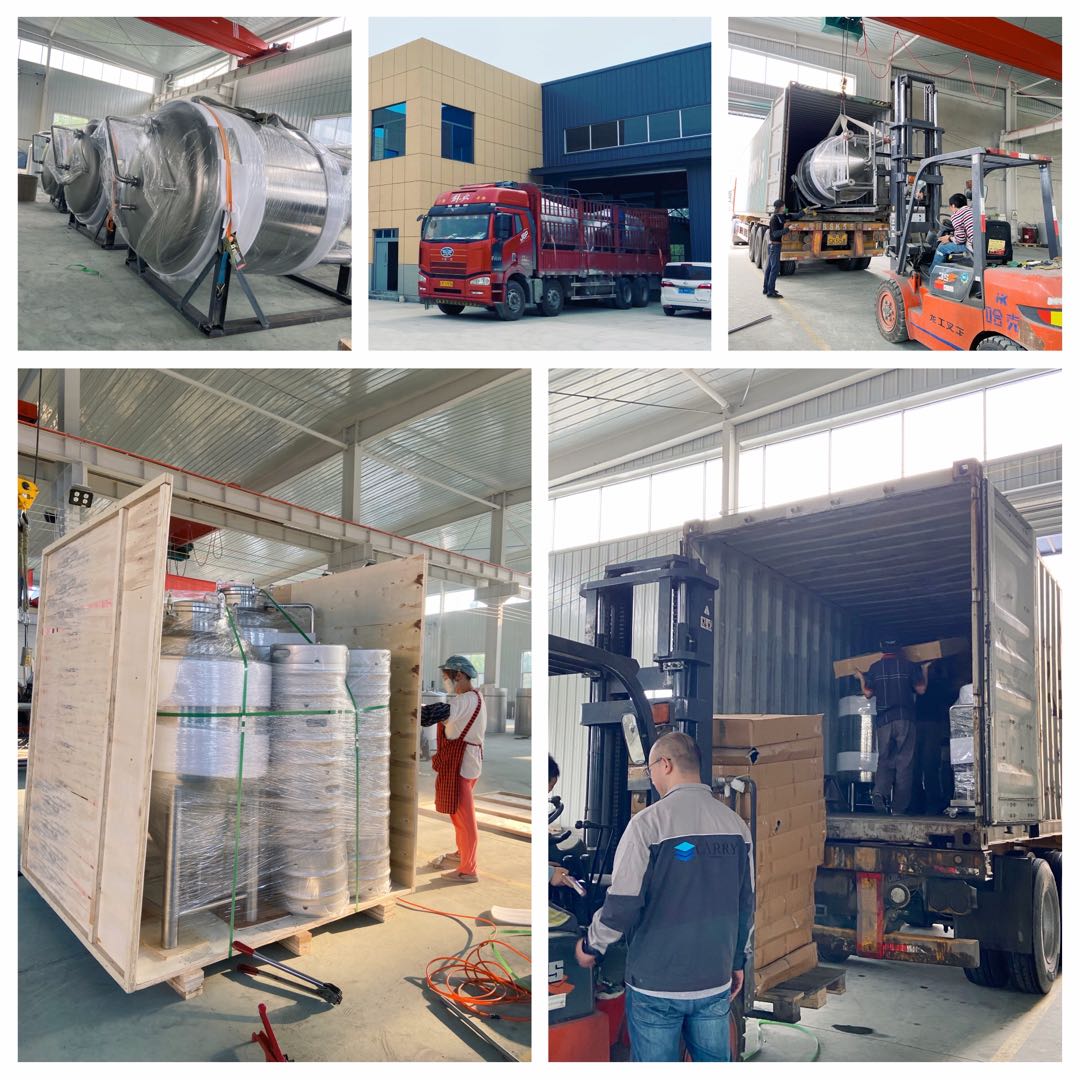

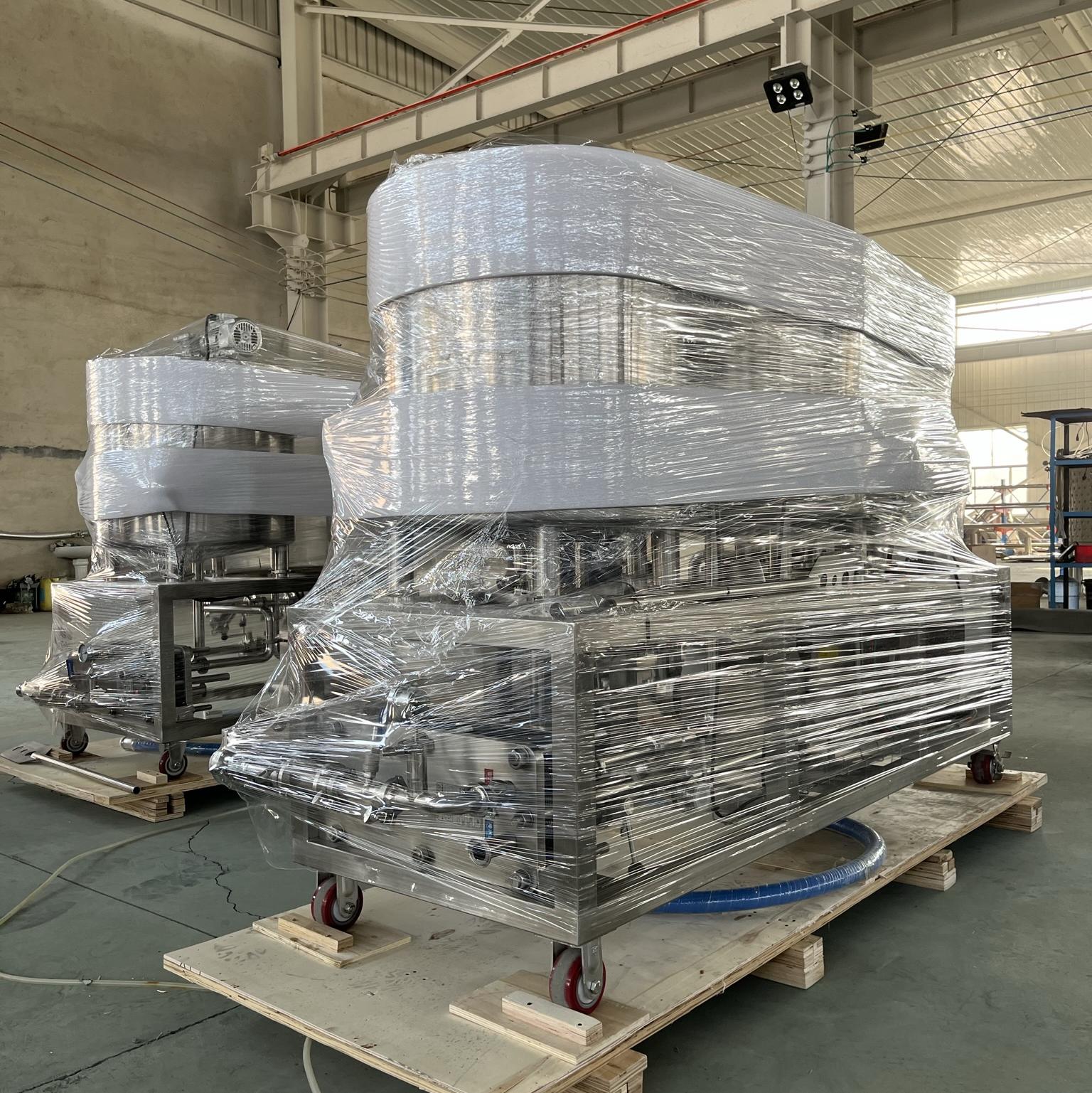

  • All equipment are protected with film and safty cotton
    All equipment are protected with film and safty cotton
  • When loaded into the crate, they will be fasterned as tight as we can
    When loaded into the crate, they will be fasterned as tight as we can
  • Direct shipment from our factory, safe and fast
    Direct shipment from our factory, safe and fast

Our Certificates

Shandong Carry Equipment Co., Ltd



Carry Equipment is a professional brewing equipment supplier in China. We have own factory and technology team. The staff  has more than 10 years brewing experience and manufacturing experience.

With the concept of "pioneering and enterprising", CARRY strives to consistently deliver high-quality products and the best service for our customer. Fully committed to the brewing industry, we always take customer’s requirement and satisfaction as our aim.
