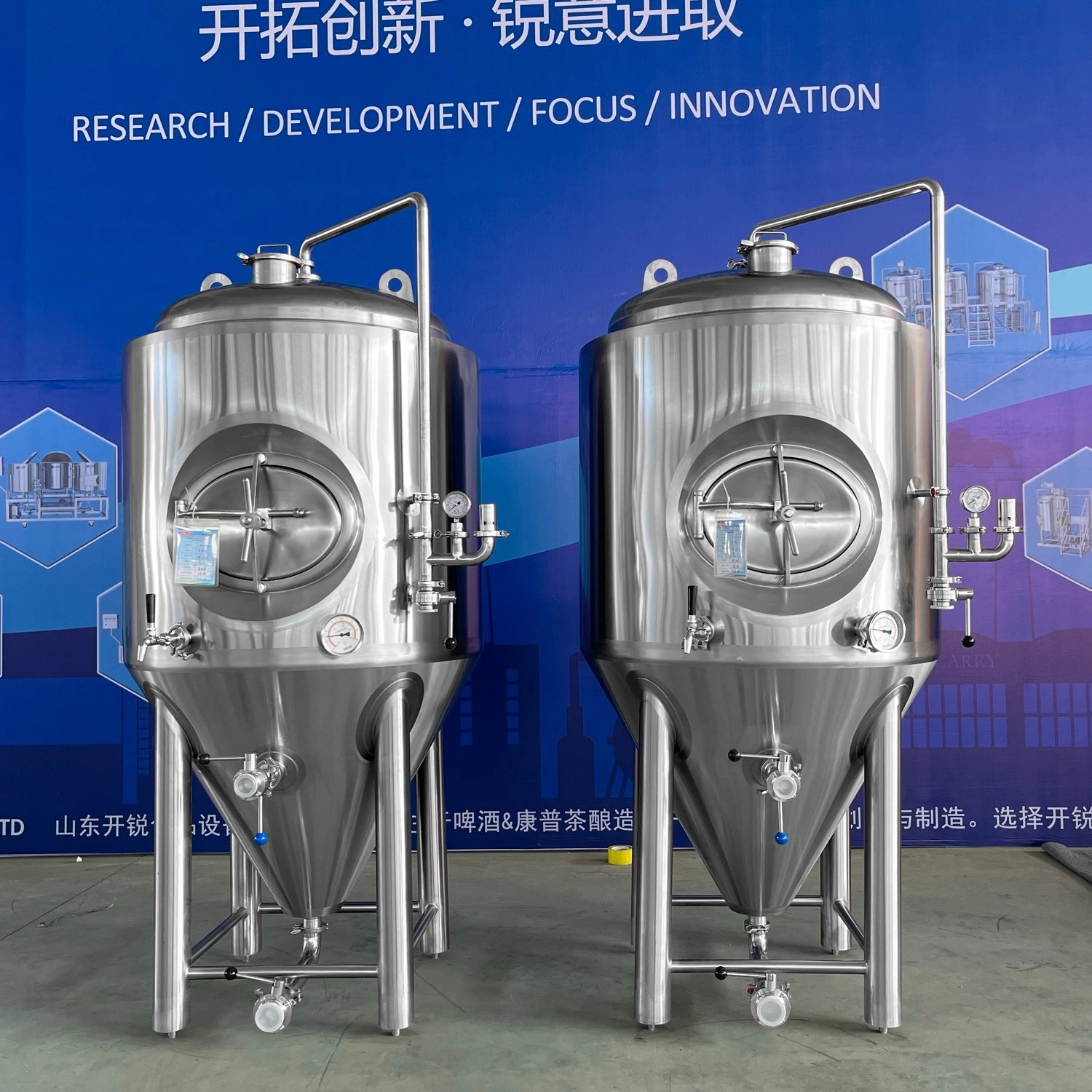

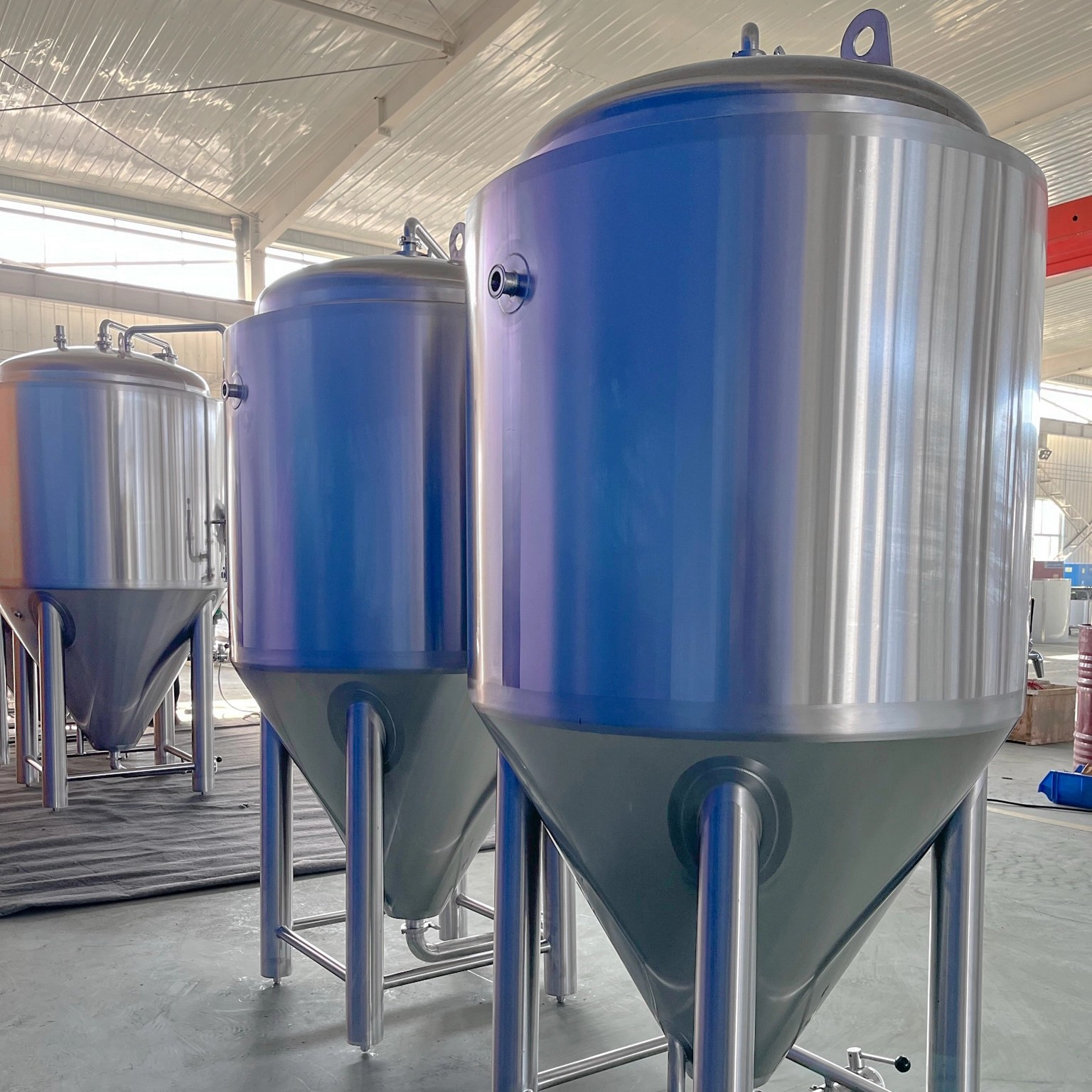

400L Fermentation Tank
-Carry Brewery Equipment Solutions
◉ Product Parameters

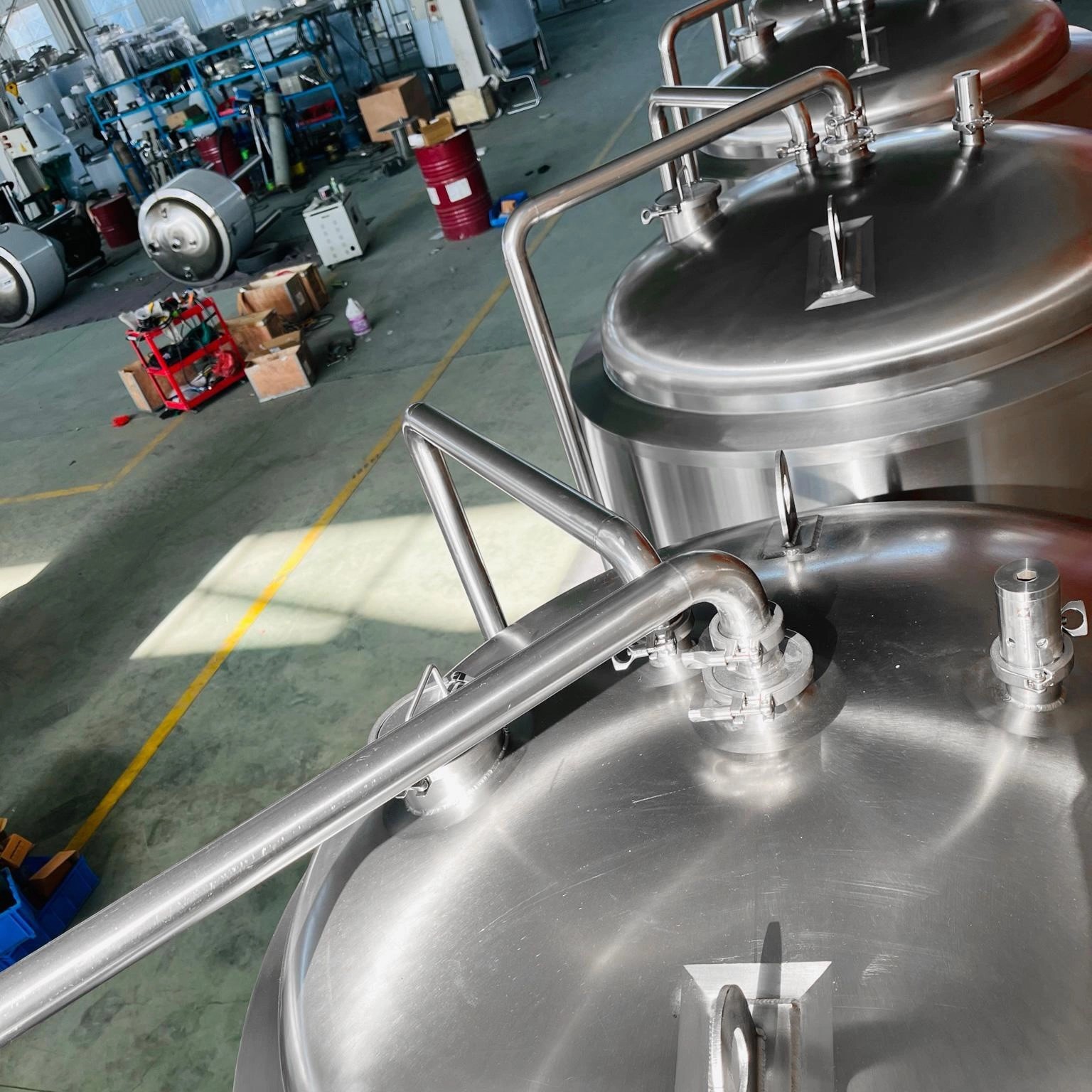

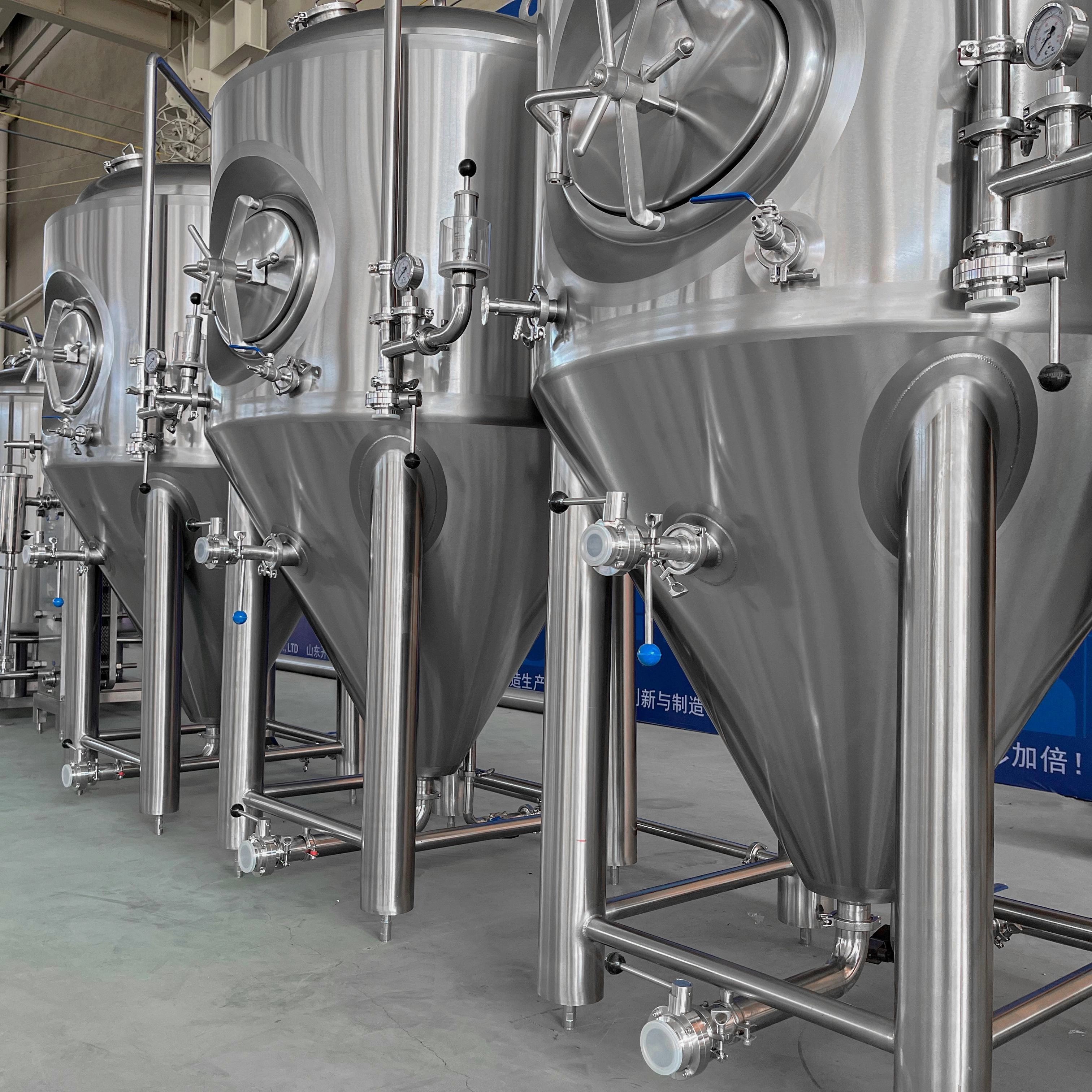

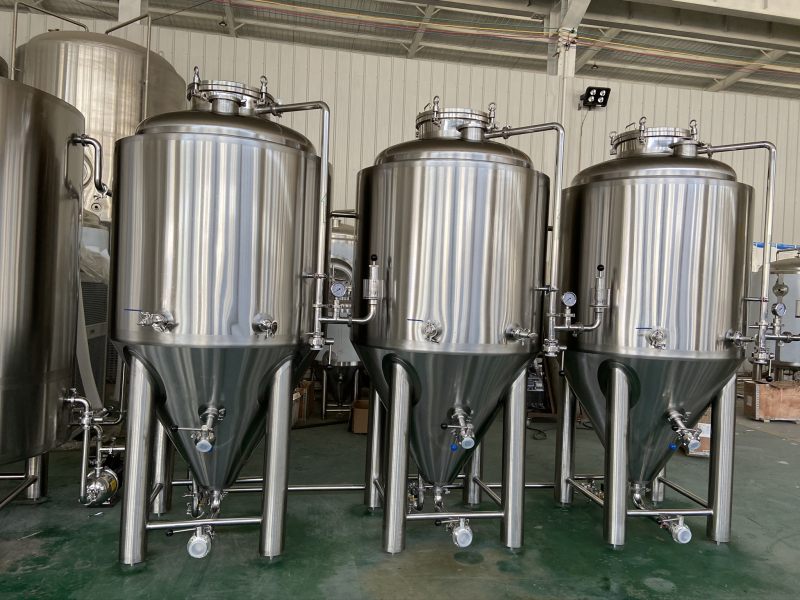

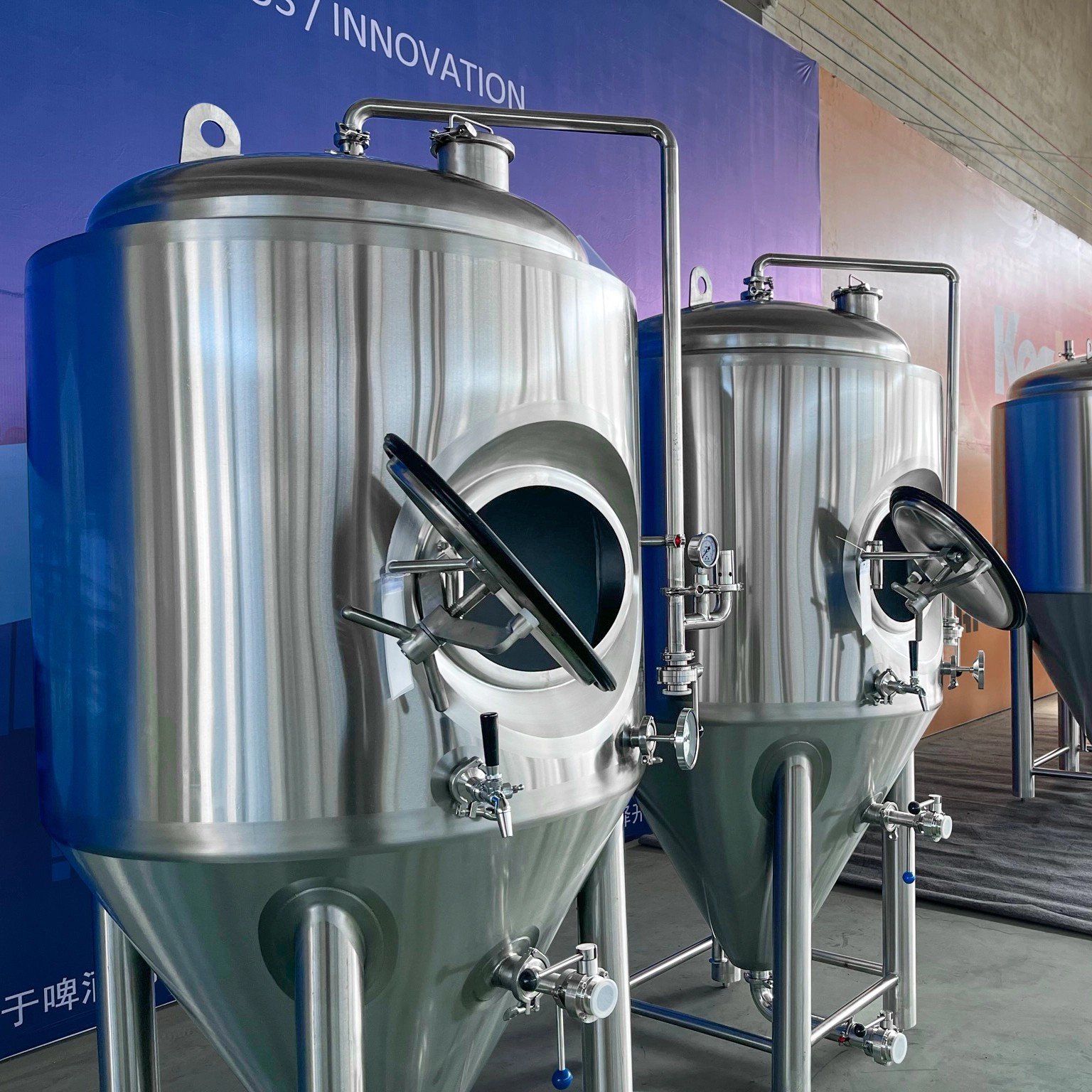

400L Fermentation Tank
Side Manway Fermentation Tank
1. Effective=400L, with extra 25% head space
2. Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire
3. Inner layer=3mm, pickling and passivating treated
4. outer layer=2mm, Hairline polishing
5. Dimple glycol cooling jacket
6. PU Insulation layer=80mm on side and cone bottom
7. Design pressure 0.3MPa; Working pressure 0.15Mpa.
8. 60°Conical Cone bottom
9. 4 x heavy duty legs with leveling foot pads
Top Glass Manway Fermentation Tank
1. Side Manway, shadowless type
2. CIP arm with internal 360°spray ball

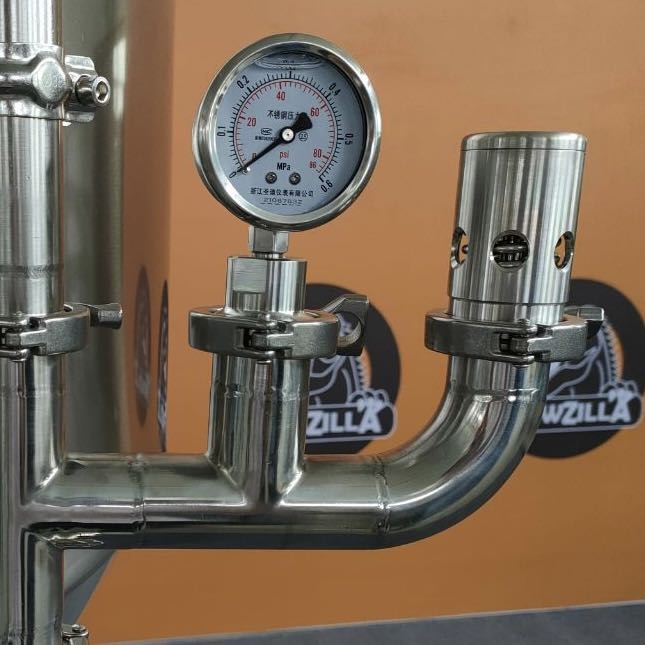

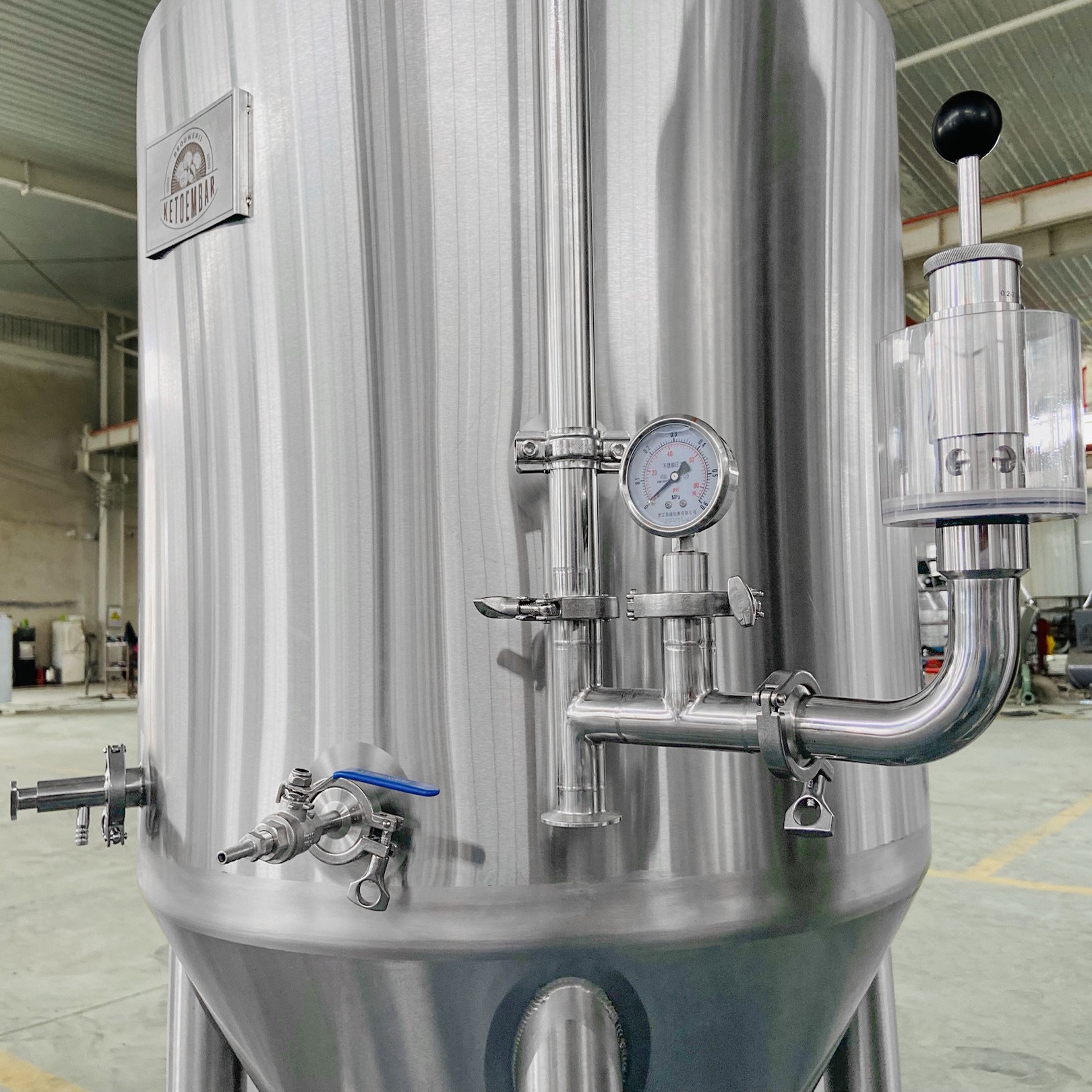

3. Pressure relief valve
5. Pressure Gauge

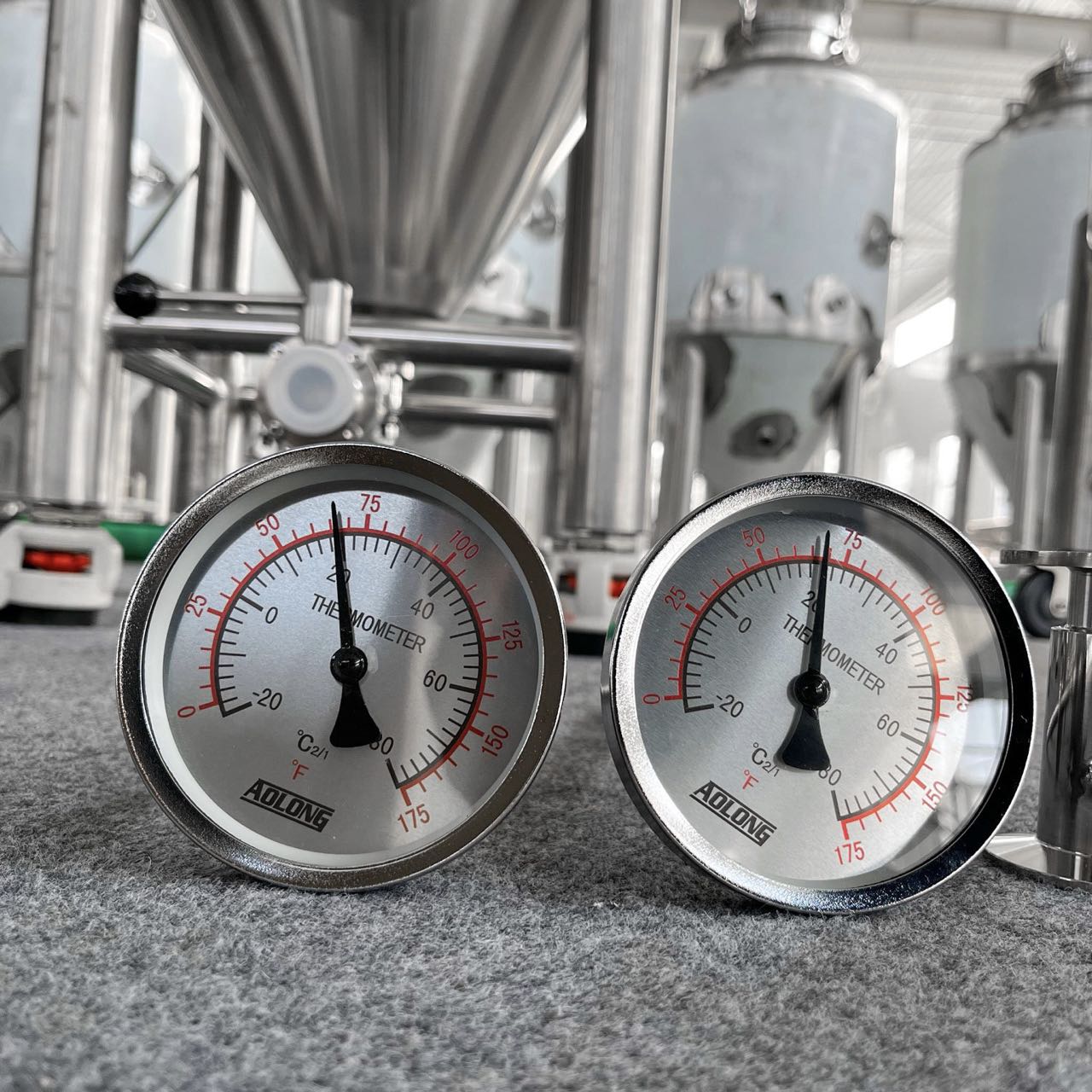

6. Temperature Gauge

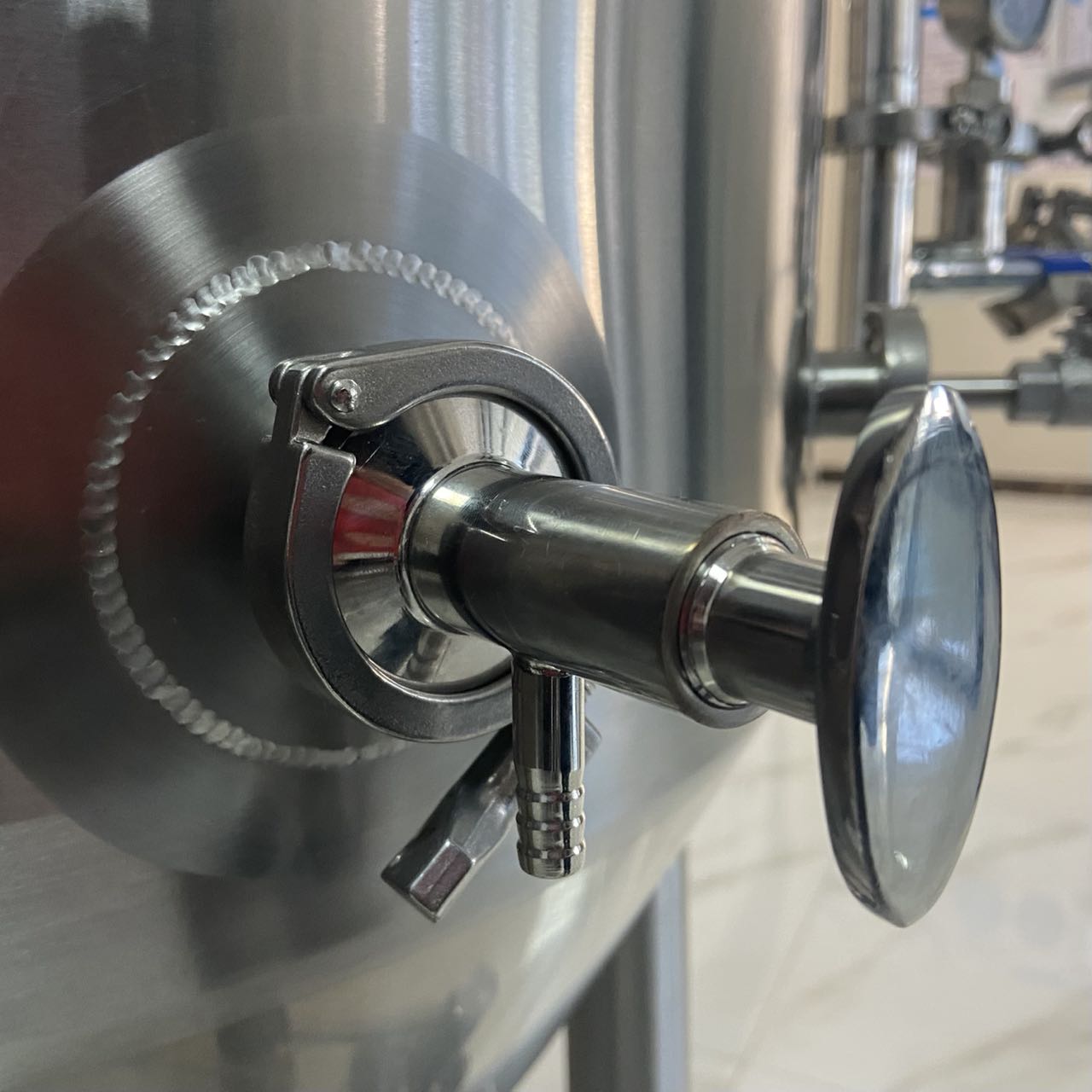

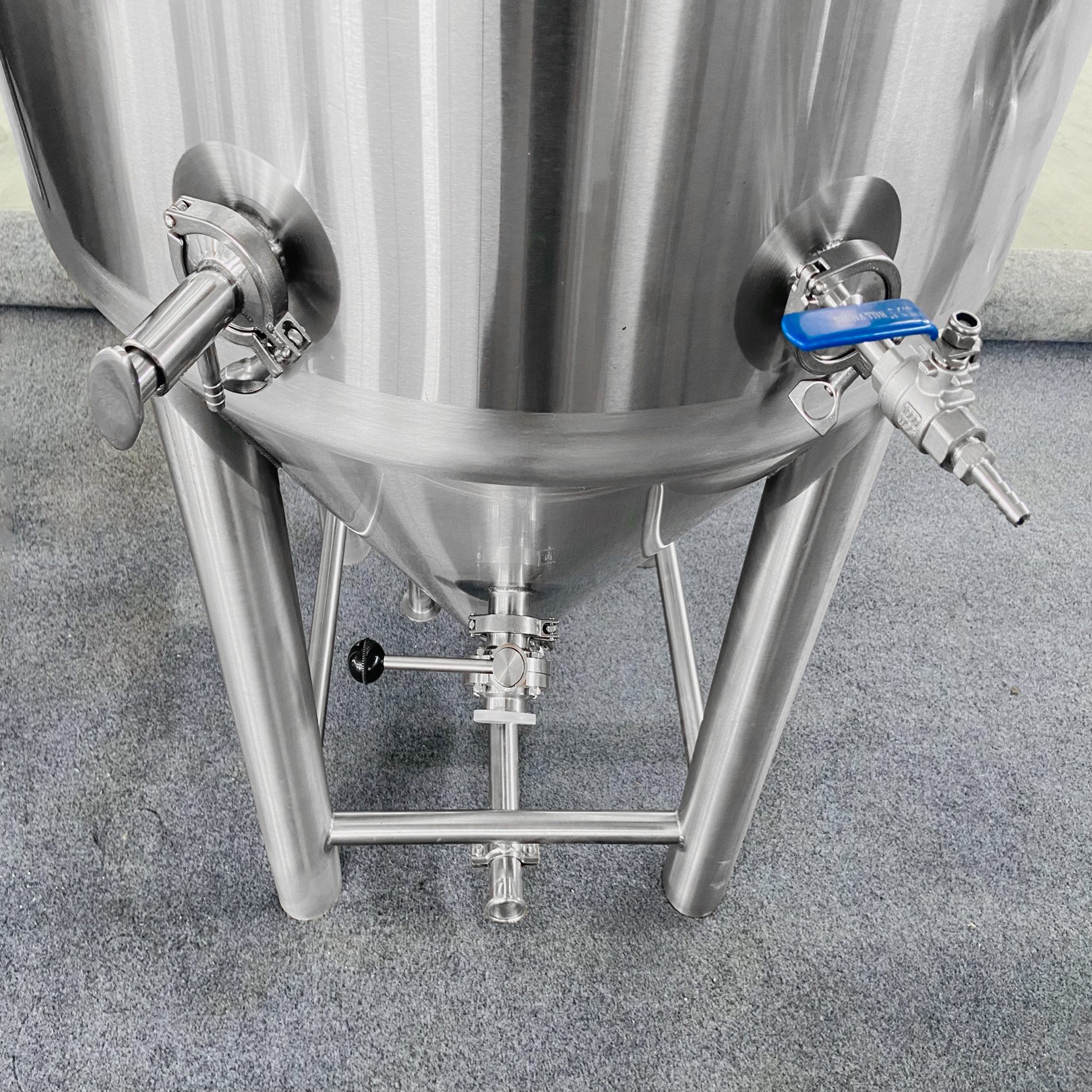

7. Sample valve

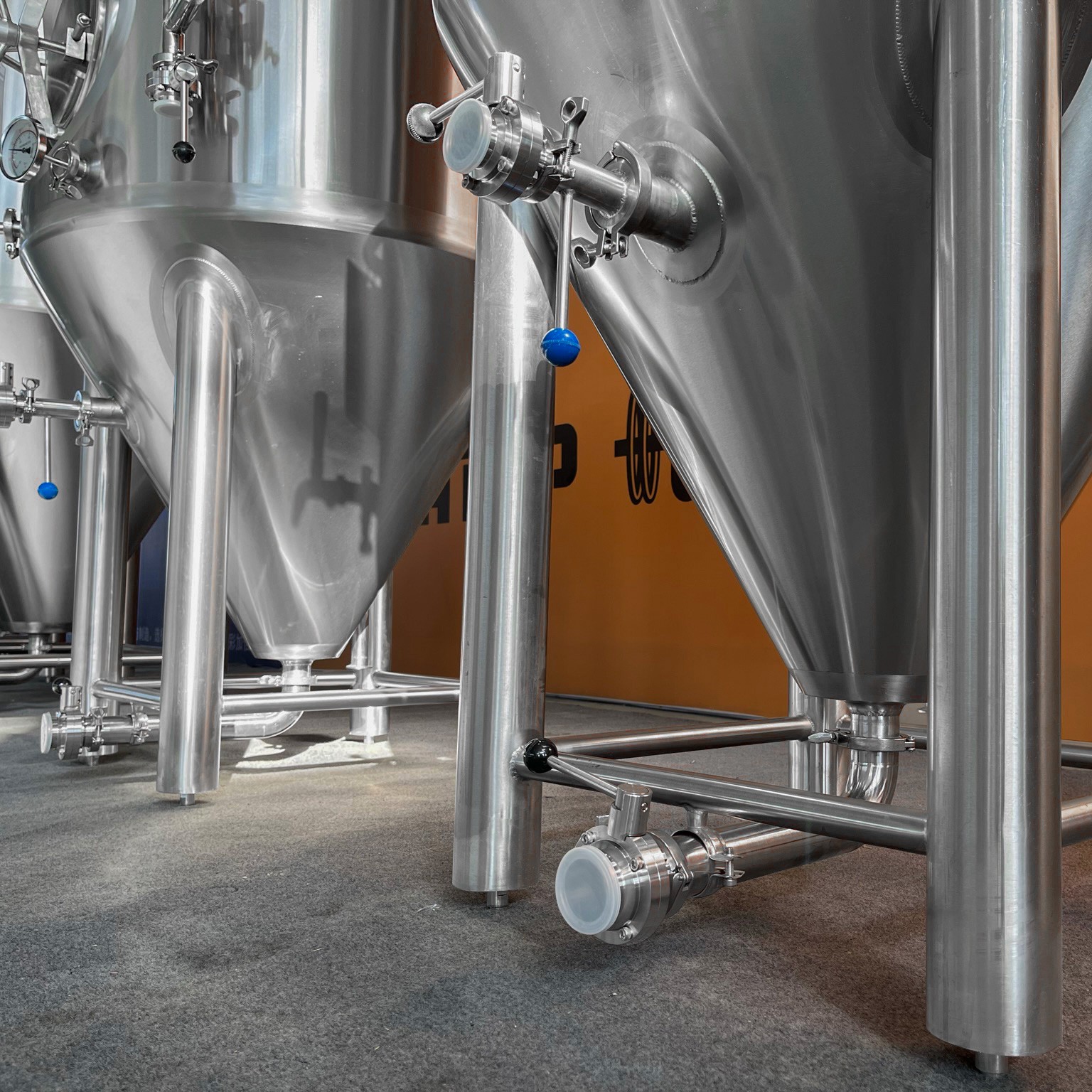

8. Beer outlet on cone
9. Bottom drain port
10. PT-100 Temperature sensor
11. Complete fittings, valves
Standard Configuration:
Sampling Valve
Temperature Gauge

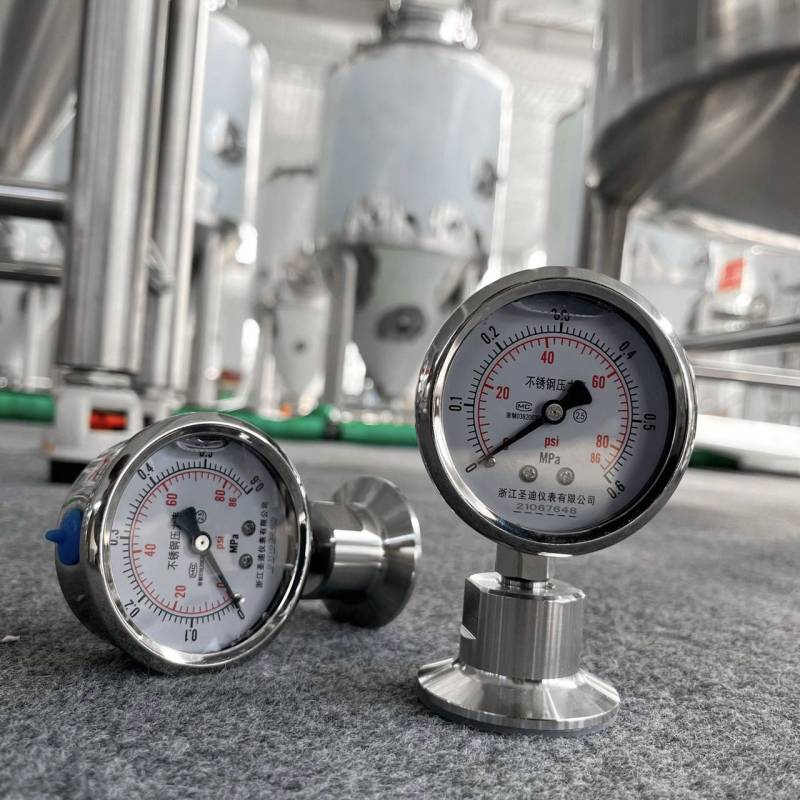

Pressure Gauge
Pressure Relief Valve
You can also upgard your fermentation tank with below optionas:
Sampling Valve

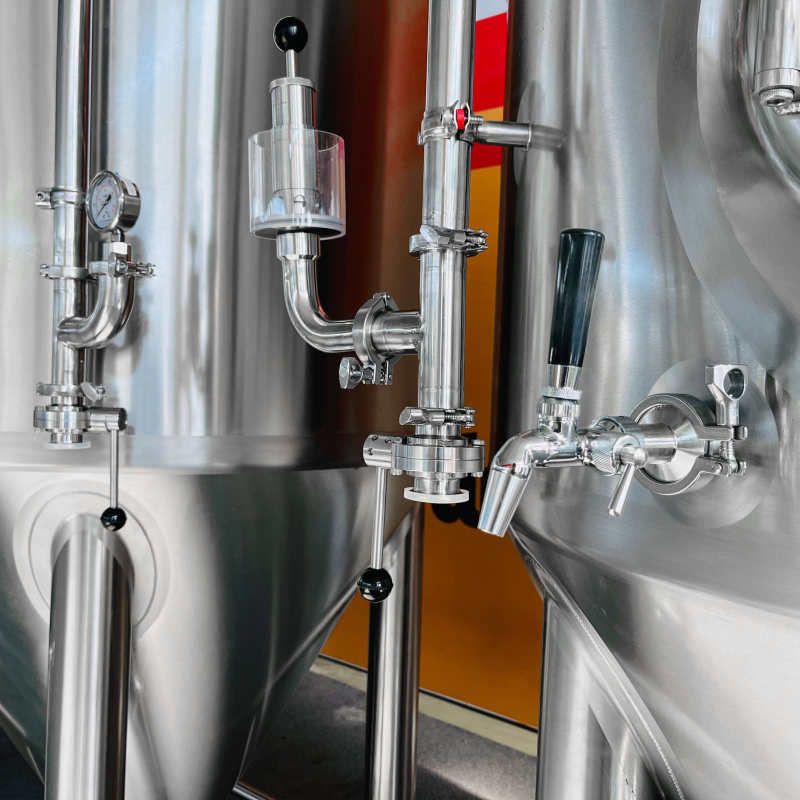

Carbonation Fittings
Kegland NUKTAP sample valve
Rotary Device

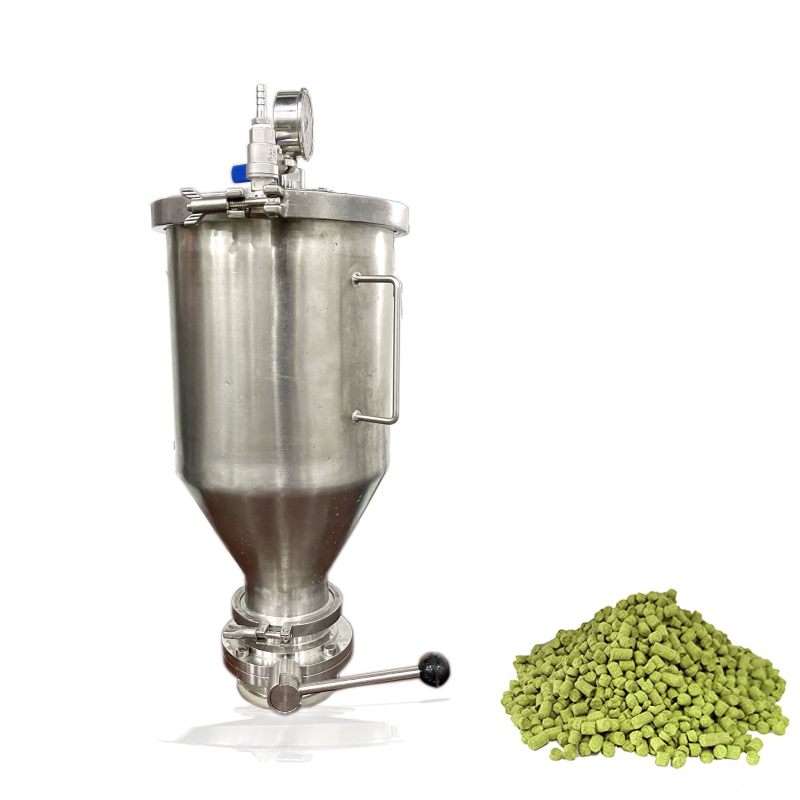

Dry Hops Adding Device
Dry hops adding device for 300L~800L Fermenters
Connect onto the top dry hopping port
don't miss it out if you are adding hops on the cold side.
Let's dry hopping to add aroma into our beers.

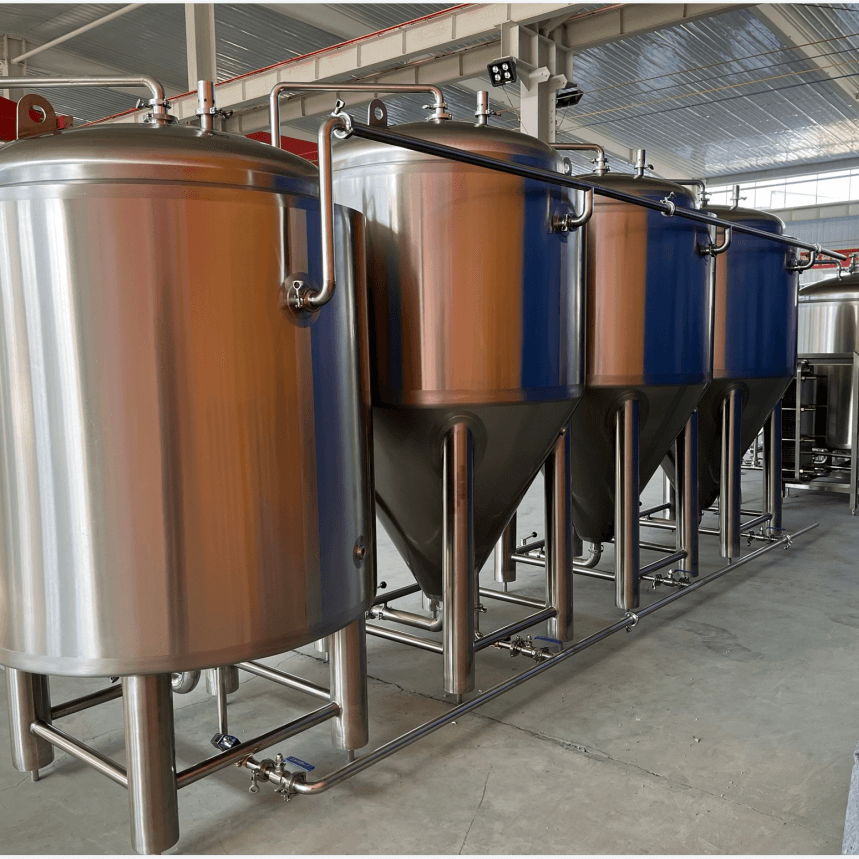

Glycol Cooling Pipelines between chiller & fermenter
We provide turnkey solution for your fermenting system as well. Please let us know if you have a confirmed premise and floor dimenions, we will work out the layout for you.
Hard pipeline connections is options for you to finalize cooling loops between chiller unit and fermenters cooling jacket. Easy to go.
Glycol Cooling Pipelines between chiller & fermenter
We provide turnkey solution for your fermenting system as well. Please let us know if you have a confirmed premise and floor dimenions, we will work out the layout for you.
Hard pipeline connections is options for you to finalize cooling loops between chiller unit and fermenters cooling jacket. Easy to go.
Parameter
Our Advantage：
1.We can supply fermenters of various sizes, including 100 litres.
2.We have our own factory and professional engineers, and customers can customize the products according to their needs.
3.Blow-off pipes are thicker and more conducive to discharge.
4.The carbon stone enters the tank for more than 20 centimeters and exceeds the centerline position, and the carbon dioxide adding effect is better.
5.We have rich experience in selecting raw materials and provide customers with cost-effective products
6.The installation is very simple, you only need to install several parts, and we also provide installation method.
7. It is more convenient to use with cooling system.
Getting your tanks from the direct factory, the factory has sufficient raw materials,our team is ready to provide 100% customized products to meet any of your special requirements.
