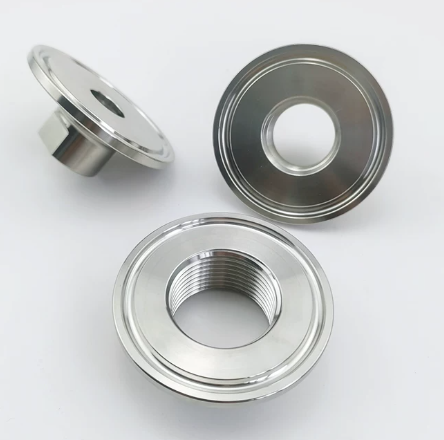

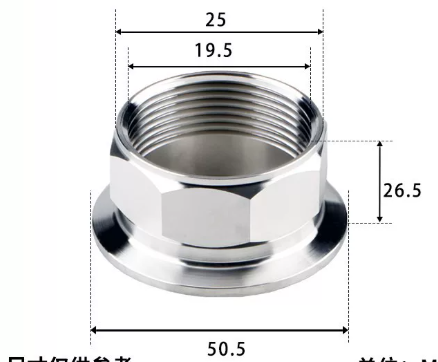

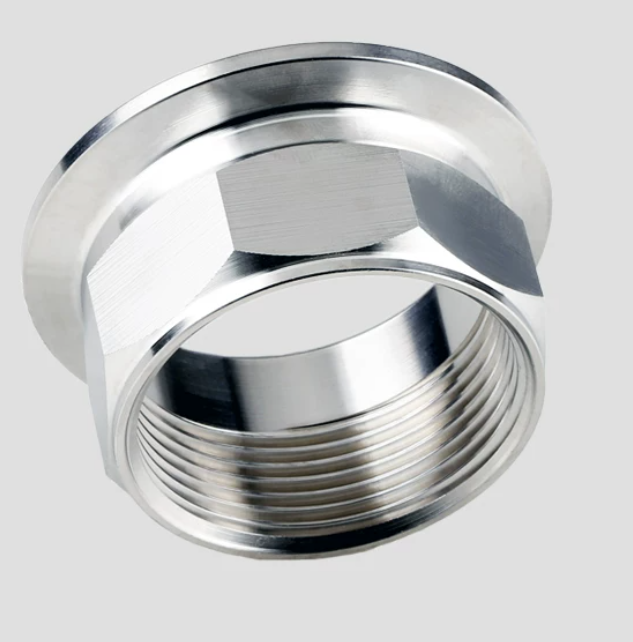

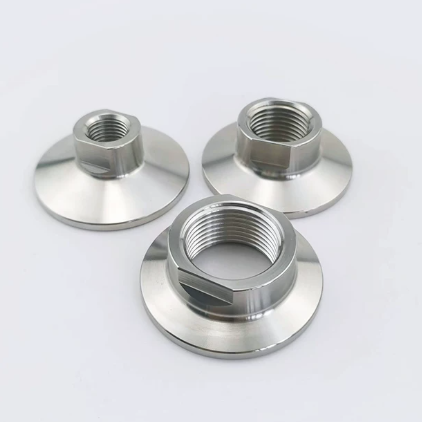

1.5" Tri-Clamp to G 1/2" Female Thread Adapter SS304 TC x BSPP Internal Thread Fitting Coupler Sanitary Stainless Steel
1.5 inch Tri-Clover to 1/2 inch G Female Pipe Adapter, Stainless Steel Sanitary Fitting for Pressure Gauge & Sensor Installation
◉ Product Parameters
Sanitary Stainless Steel 1.5" Tri-Clamp to G 1/2" Female Thread Adapter SS304 SS316L TC x BSPP Internal Thread Fitting Coupler
Series Name: Sanitary Tri-Clamp to BSP (G Thread) Female Adapter Series
Description: These high-precision adapters are designed for seamless integration between sanitary Tri-Clamp process lines and standard G (BSPP) threaded components. They are widely used for mounting instruments like pressure gauges, temperature probes, and sensors in hygienic environments.
Technical Specifications:
Standards: Designed according to ISO, DIN, and ASME BPE standards.
Threads: Parallel Pipe Thread (G / BSPP) according to ISO 228-1.
Tri-Clamp Compatibility: Fits all standard 25.4mm, 50.5mm, and 64mm sanitary ferrules.
Material: SUS304 / SUS316L (Food and Pharmaceutical Grade).
Finish: High-quality polished surface (Ra ≤ 0.4μm) to ensure easy cleaning and minimize residue.
Temperature Range: -20°C to +150°C.
Operating Pressure: Up to 1.6 MPa (16 Bar / 232 PSI) depending on size and clamp rating.
