PLAATO Pro Sensor Real-time Density and Temperature Measurement

Name: PLAATO Pro Sensor Real-time Density and Temperature Measurement
SKU: 0

Add to Basket

Inquire Now

◉ Product Parameters

PLAATO Pro Sensor Real-time Density and Temperature Measurement

Product Description

Overview

70% of your liquid assets are stored in your fermenters.

The PLAATO Edge

PLAATO's sensor technology ensures quality by reducing fermentation monitoring errors and enabling its users to benchmark recipes and compare different fermentation profiles over time. Move from daily to continuous gravity samples. Understand the whole fermentation process instead of only getting a snapshot. Start optimising production based on real-time insights.

Strengthen your operational excellence with real-time fermentation insights in your brewery.

PLAATO Pro Fermentation Management

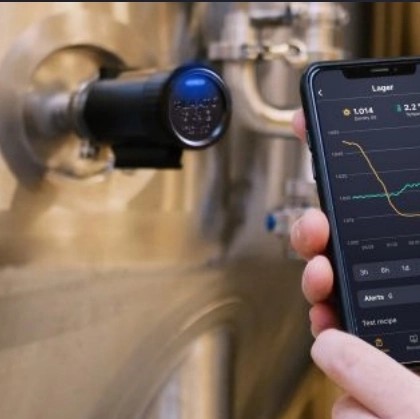

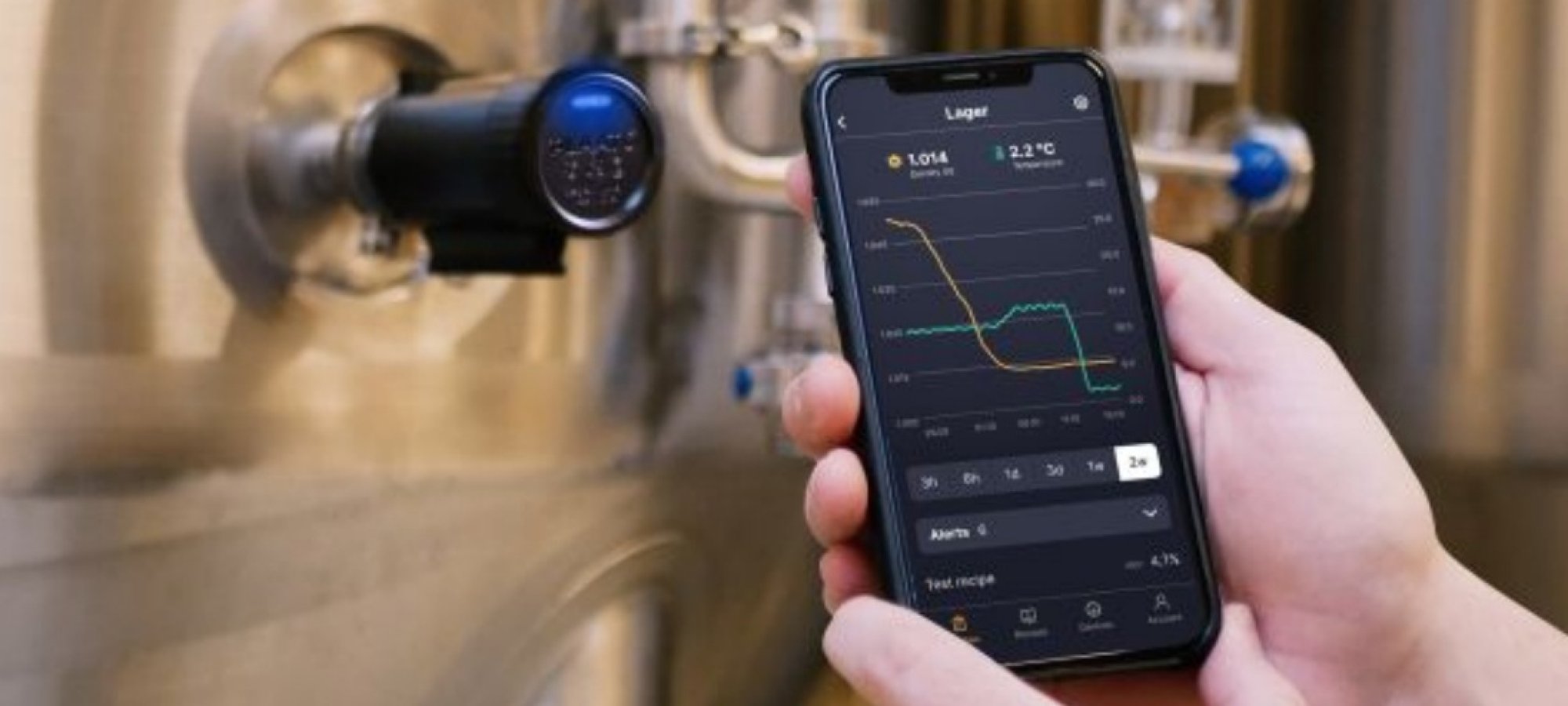

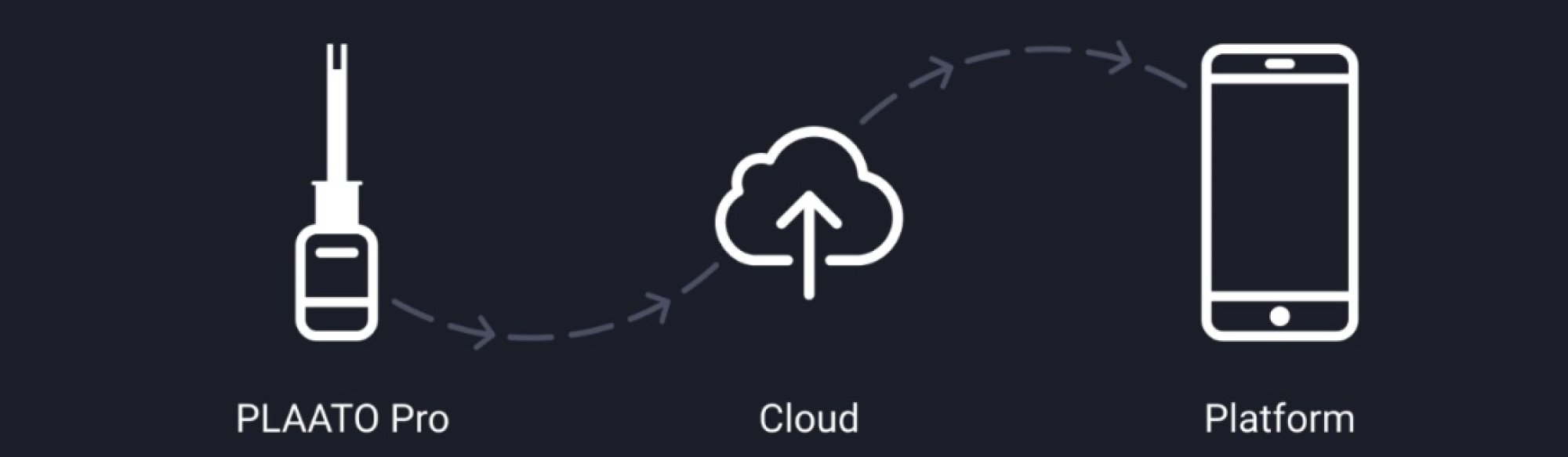

PLAATO Pro is a plug and play fermentation management solution, providing real-time density and temperature measurements to brewers around the world. The PLAATO Pro solution consists of a sensor that is installed into the fermenter and a cloud solution making data accessible and useful to the whole brewery.

A Unique Fingerprint for Every Fermentation

Unique brewing insights are accessible through the PLAATO mobile apps and web app to the whole brewery staff. Through real-time insights you get a unique fingerprint for every fermentation, enabling you to start optimize production, planning, and recipe development from batch to batch.

Continuous Fermentation Updates

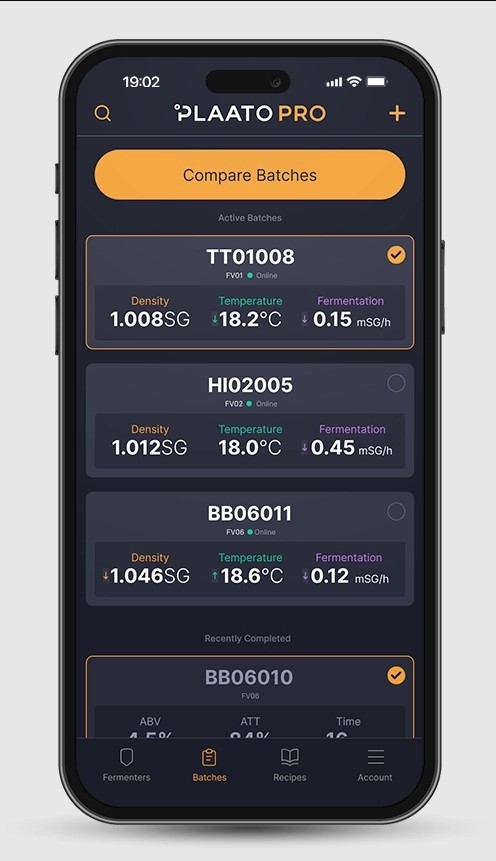

Batch Overview

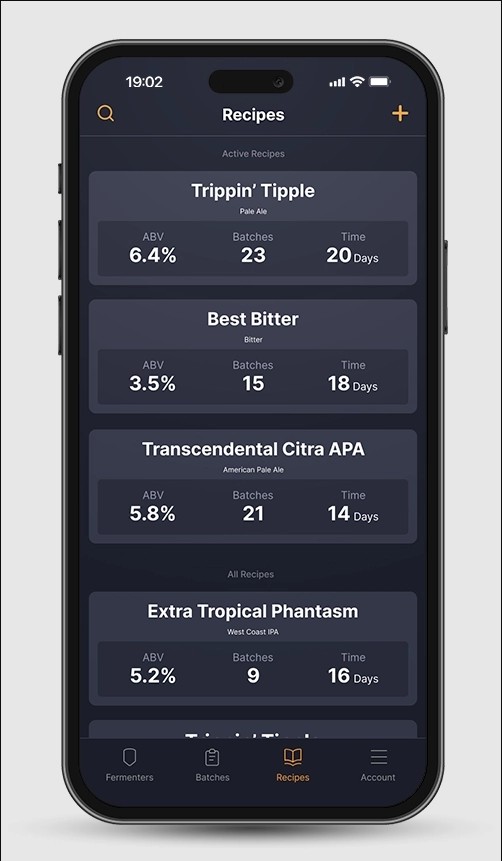

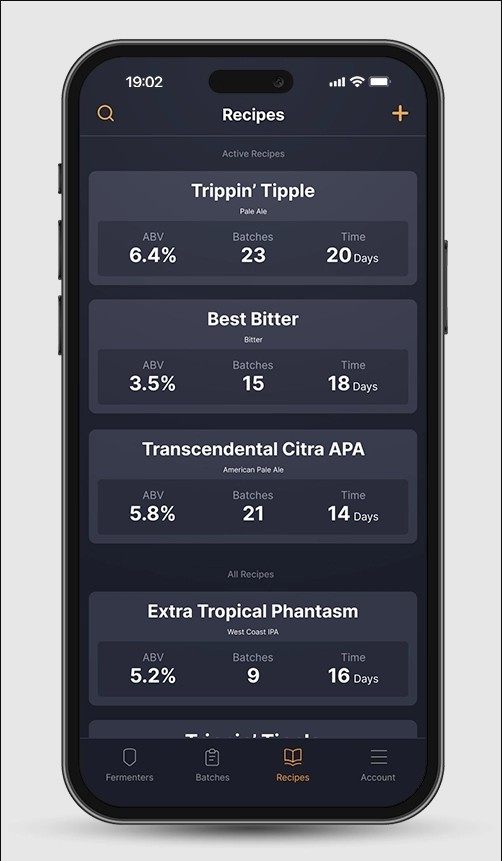

Recipes

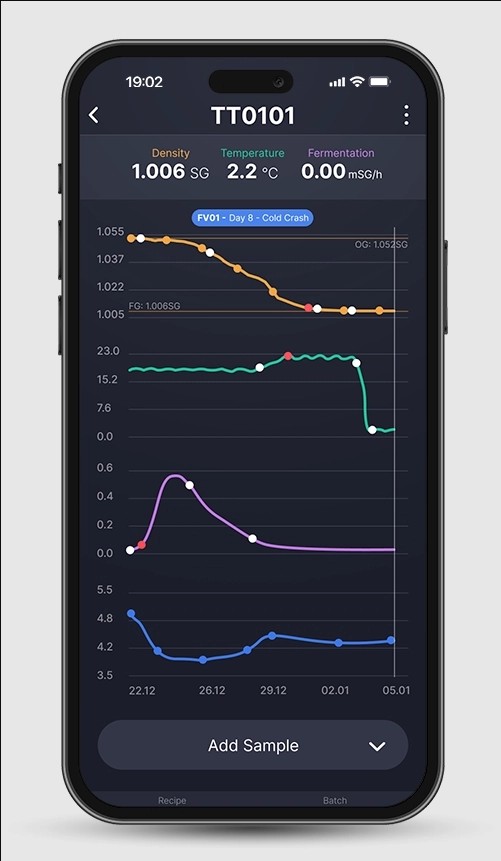

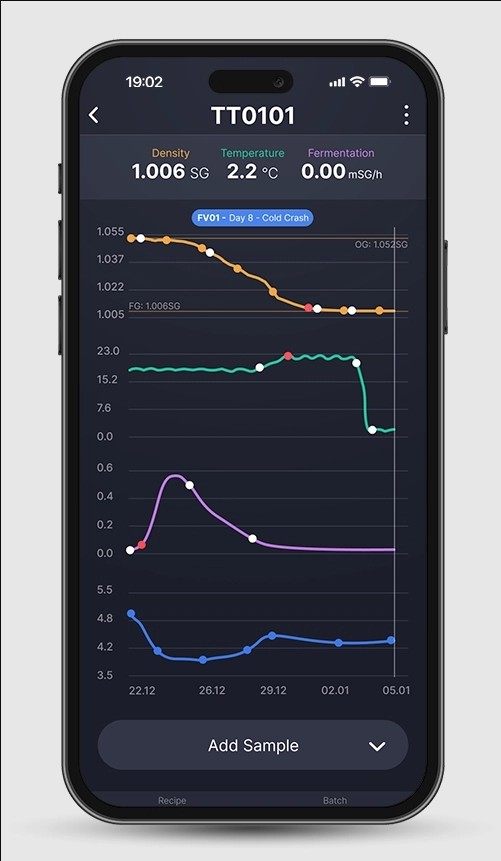

In-depth Batch Insights

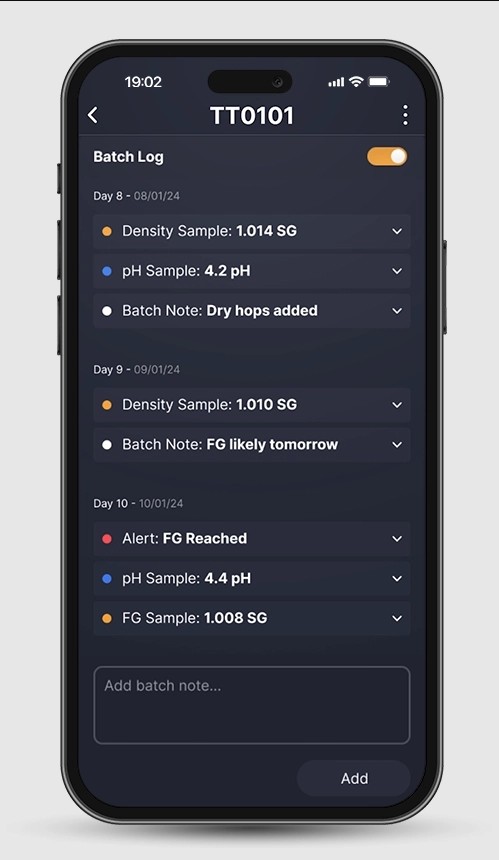

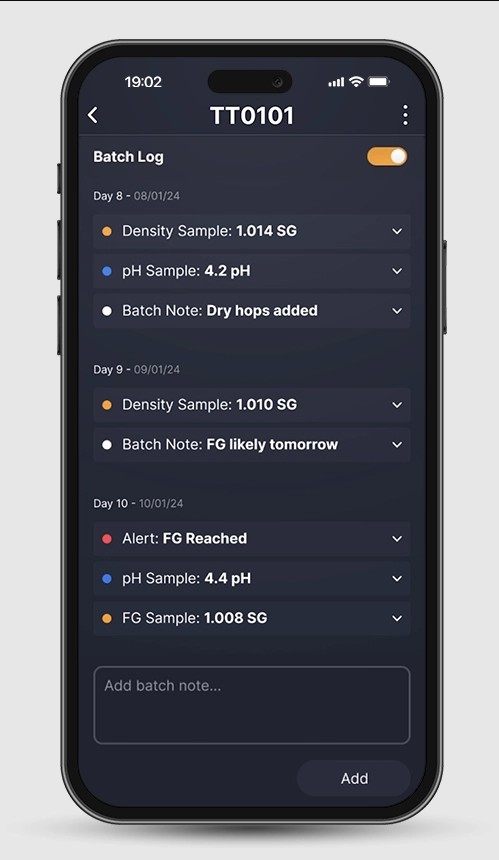

Batch Log

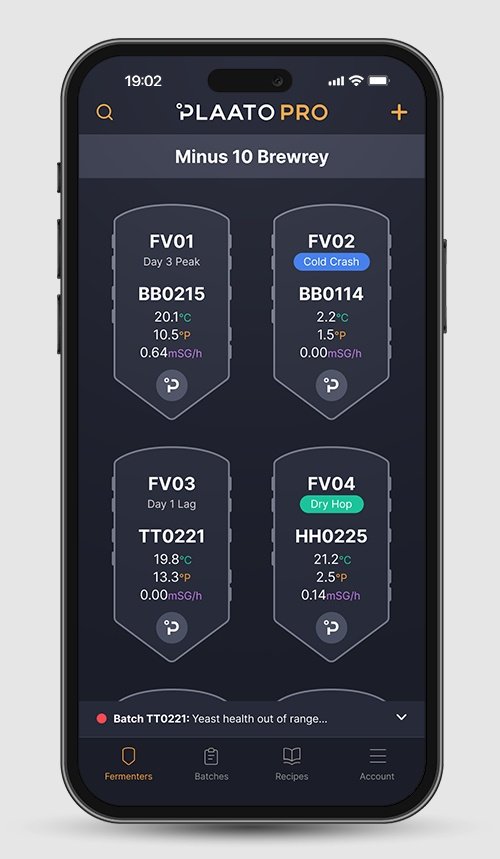

Fermenter Dashboard

48 gravity readings per day. Zero labour cost. Save valuable time every day.

Improve production capacity by up to 10%.

Pinpoint the exact end of fermentation and improve turnover in your tanks.

Optimize your workflows.

Develop a structured brewing cycle and take the right decision and the right time.

Fermentation does not care about your weekends.

Monitor your fermentation remotely. Go into the brewery for a reason.

Fermentation is no longer a black hole.

Gain an in depth understand of the whole fermentation process.

1.5" tri-clamp connection

remote control

Q&A

1. Installation and Maintenance

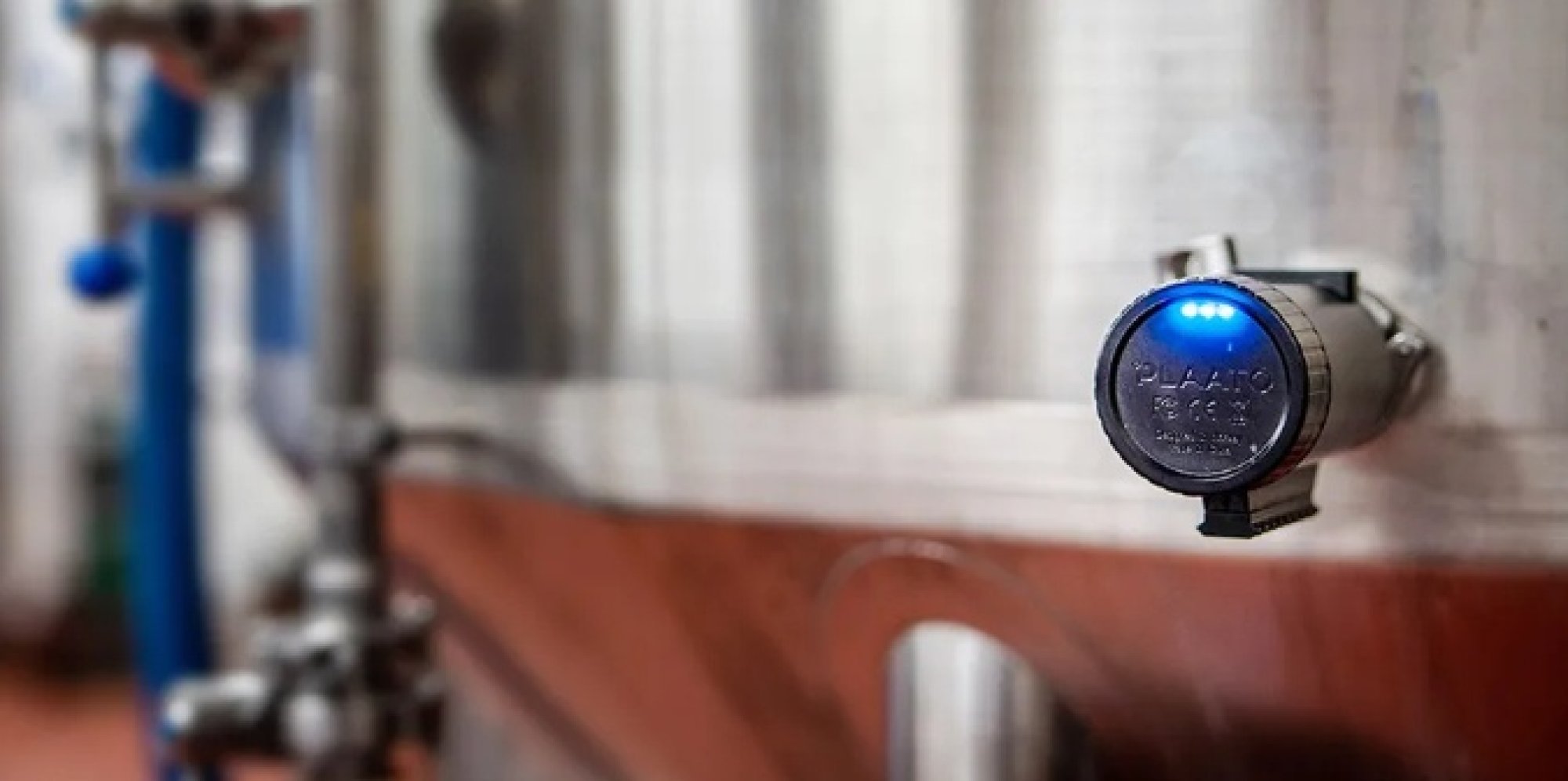

Plug & play tri clamp connection: Tri-Clamp 1.5” or DN25-50. 5-minute installation.
Completely wireless: No cabling needed & up to 6 months battery life (replaceable). PLAATO Pro transmits data wireless to the PLAATO Cloud.
App Availability: Webapp, iOS App, or Android App.
Waterproof: Designed with the brewers environment in mind, PLAATO Pro is made from durable materials and FDA-approved stainless steel.
Modular Lid & rail-on system: PLAATO Pro’s lid is updatable with future add-ons, such as screens and sensors. The built-in rail system allows you to upgrade your PLAATO Pro with future add-ons.
Food Grade: Wetted materials: 100% SS304

2. Process Conditions

Temperature: -0 to +40 °C (32 to 104 °F)
Pressure: -1 to +6 bar (-14.5 to +87 PSI)
Density: >0.9 g/m3(> -28 °Plato)

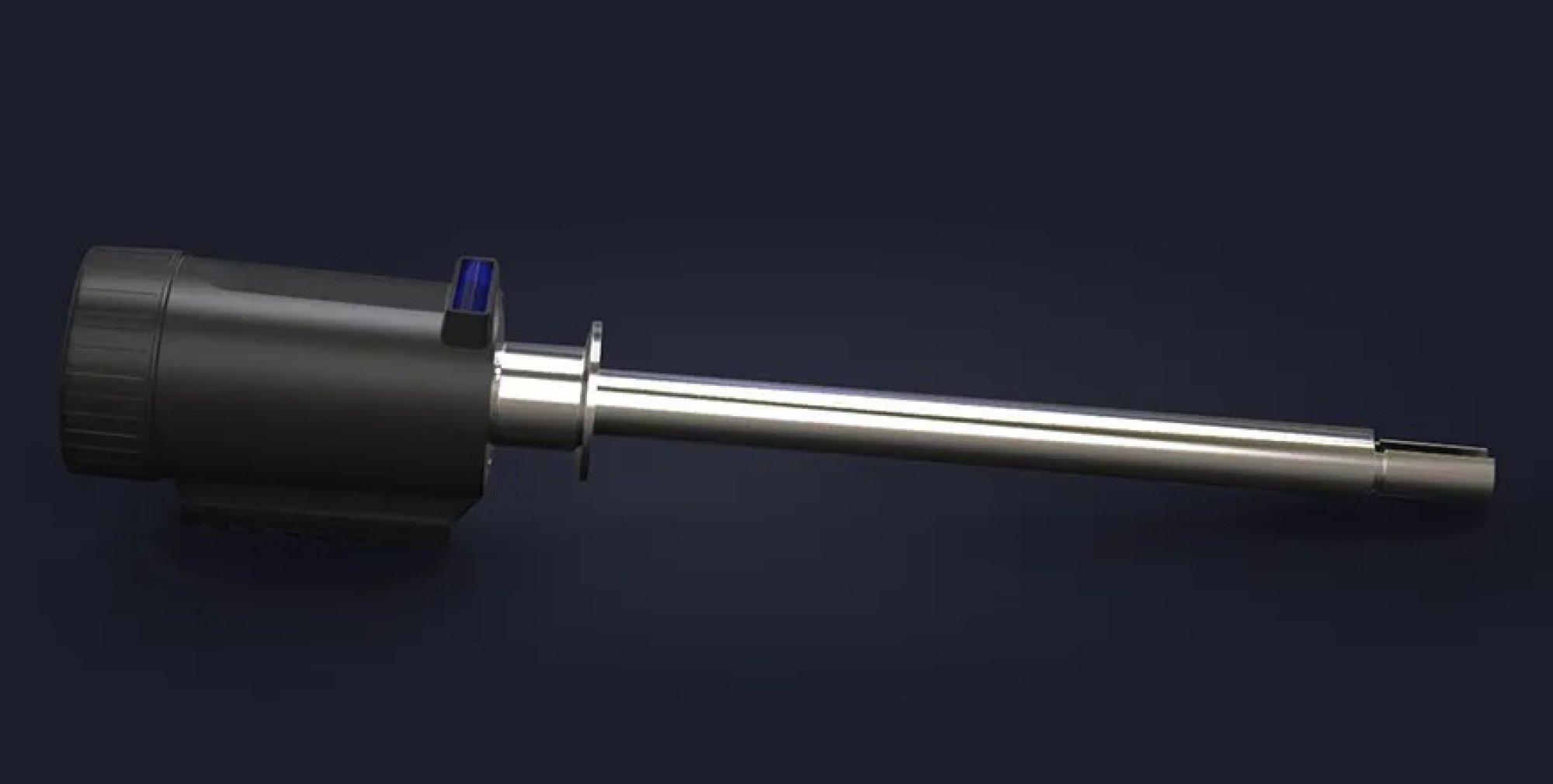

Specs: The diameter of the fork inserted into the tank is 22.75MM/ 0.89″, the length of the fork inserted into the tank is 290MM/ 11.5″. The total length of the fork is 450MM/ 17.7″
Min tank size: 100L. Minimum 50cm/ 20″ of liquid is necessary above the probe.

3. Accuracy

Temperature: ± 0.1 °C / ± 0.2 °F in fermentation temperatures
Density: ±0.50 °Plato / ±0.002 in fermentation processes ranging from 0 to 19° Plato (1.000 to 1.080 SG)

4. Power

2x C-cell Alkaline (replaceable). Battery life: up to 6 months

5. Connectivity

WiFi 2.4 GHz
Range: 200m / 650 feet

6. Units
