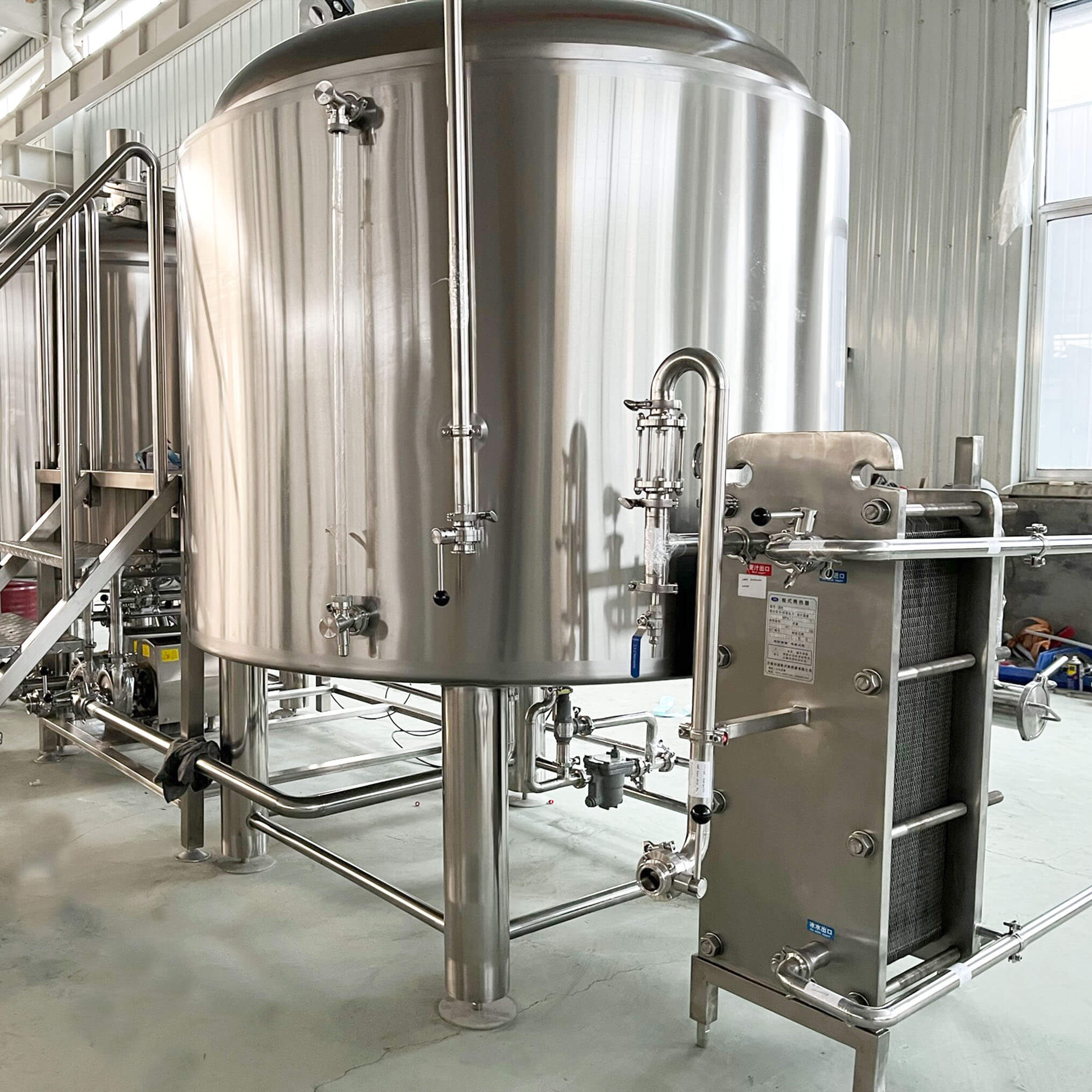

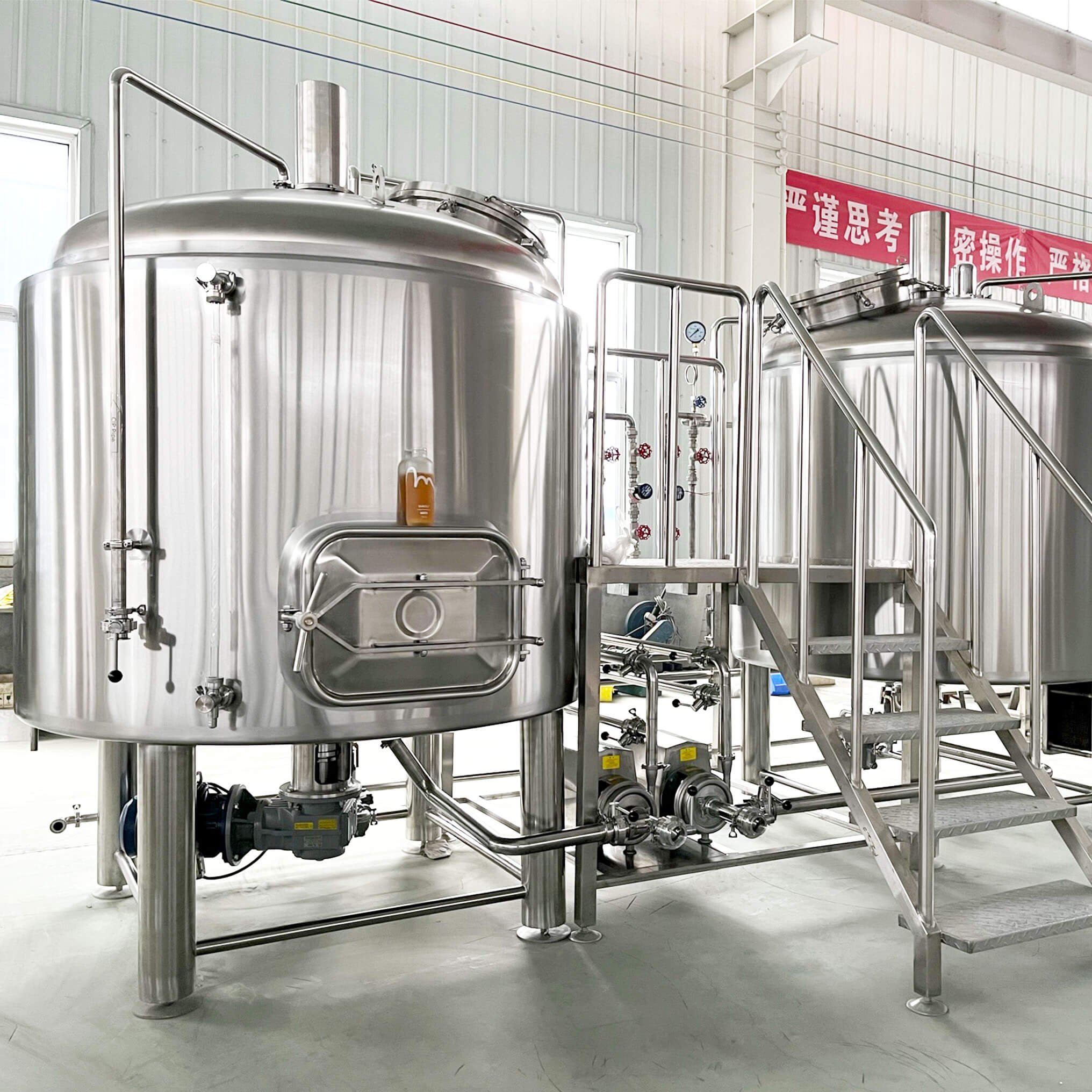

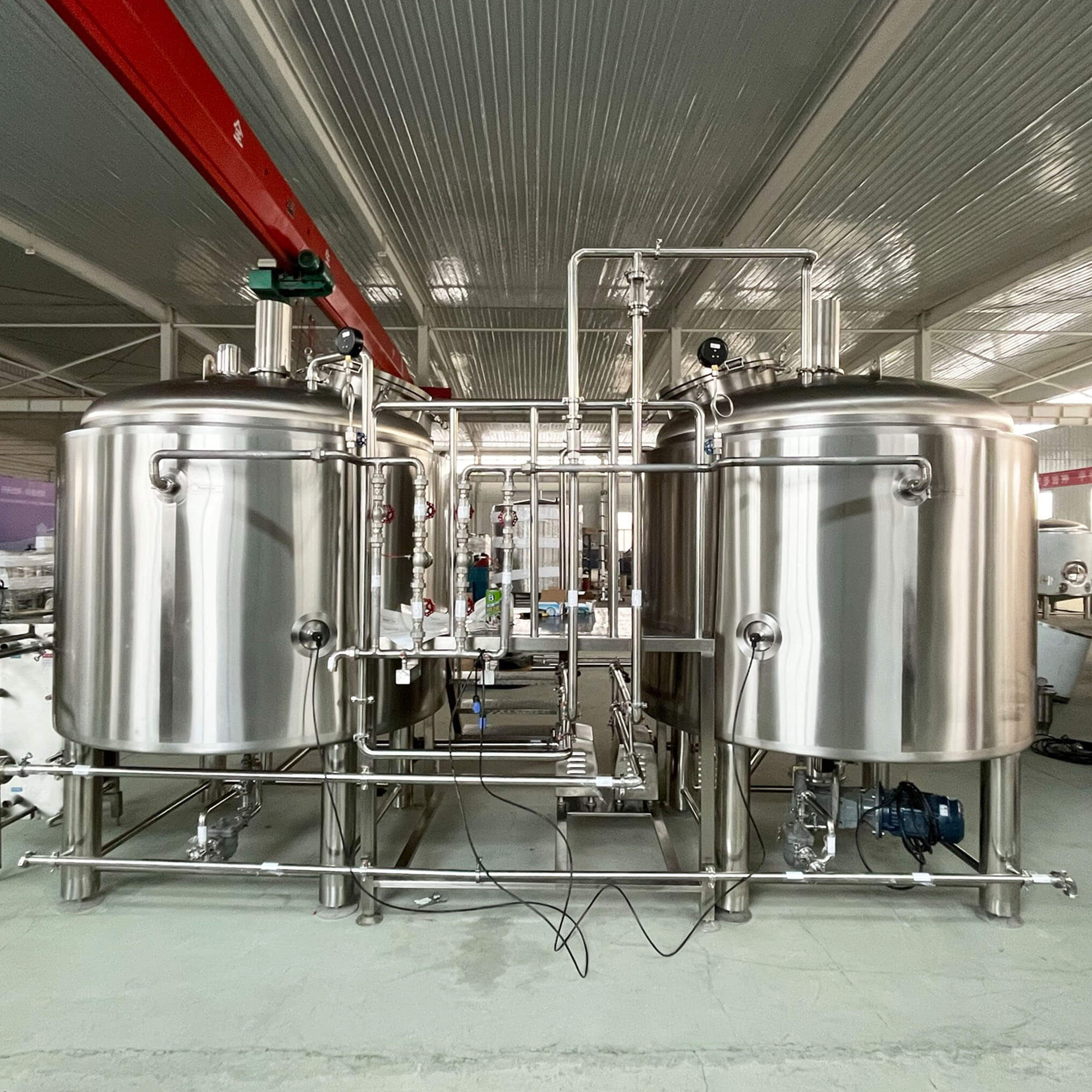

2000L Kombucha Commercial Brewing Equipment

Name: 2000L Kombucha Commercial Brewing Equipment
SKU: 0

Add to Basket

Inquire Now

◉ Product Parameters

Product Description

If you want to expand your Kombucha system, Carry Brewtech can supply the right equipment, training and service for your Industry. No matter how small or large your business is!

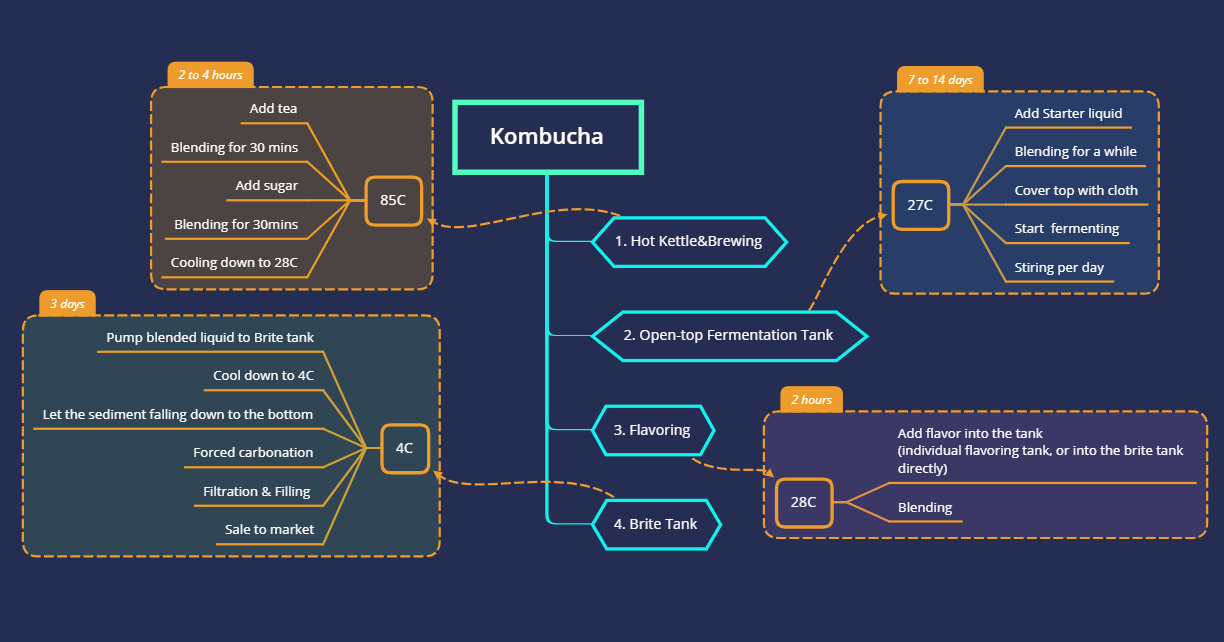

This system is mainly for boiling up water, and brew tea with sugar under proper temperature(85℃).

Brewing tea 10g per liter, adding sugar/80g per 1 liter

Heated by Gas type Steam Boiler

Heat exchanger to cool down liquid to First fermentation tank

Effective volume is 2000L, with steam heating design, you can have max to 2 batches brewing per day. This would be your best choice if you are after 4000L daily output system.

Our manufacturer can produce large range of products as you need, which is complete turnkey solution. Contact us now to get your unique system built from scratch to perfect!

Product Description

2000L Tea Brewing Tank

2000L Hot Kettle Tank

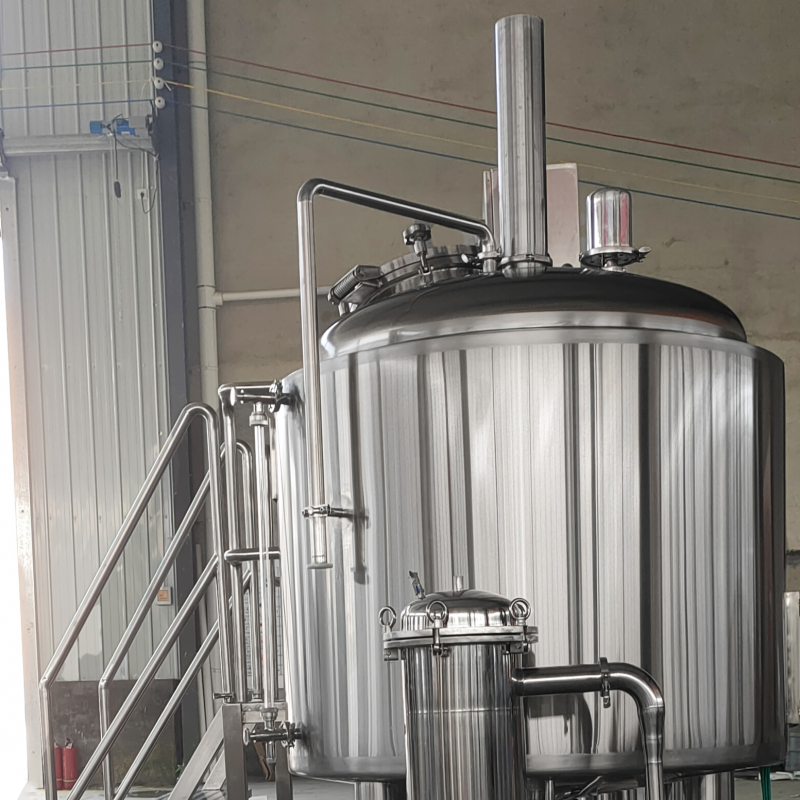

2000L Hot Kettle Tank

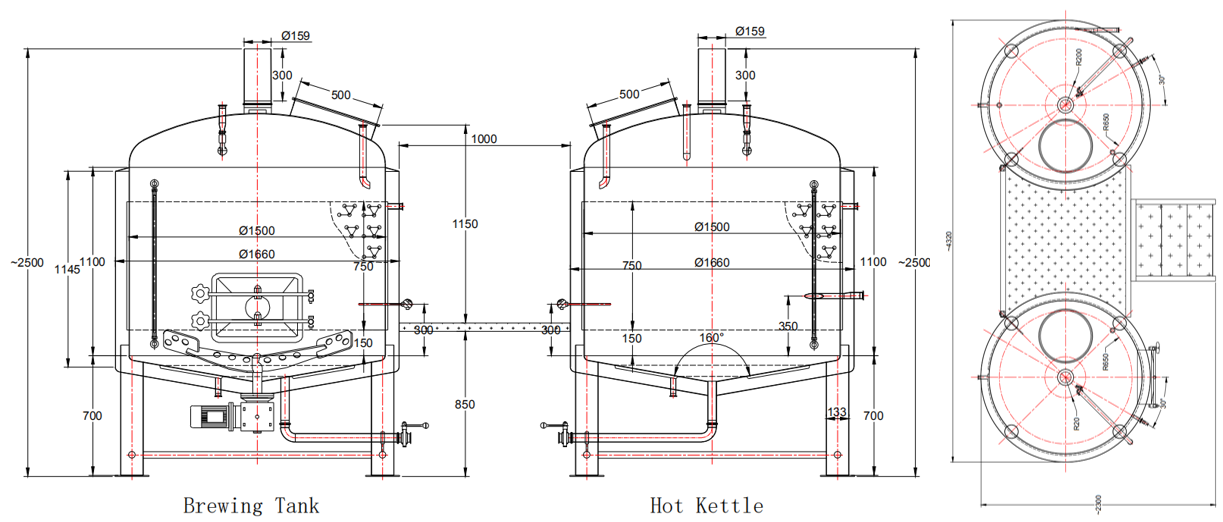

1	Effective volume= 2000L, total volume=2500L, Dimension=φ1660*2500mm, gross weight=350kg
2	Top manway
3	Equipped with Steam Heating Jacket between inner/outer jacket
4	Pressure Relief Valve on Top of tank
5	Temperature probe (PT-100)
6	Outdoor condensate collection pipe

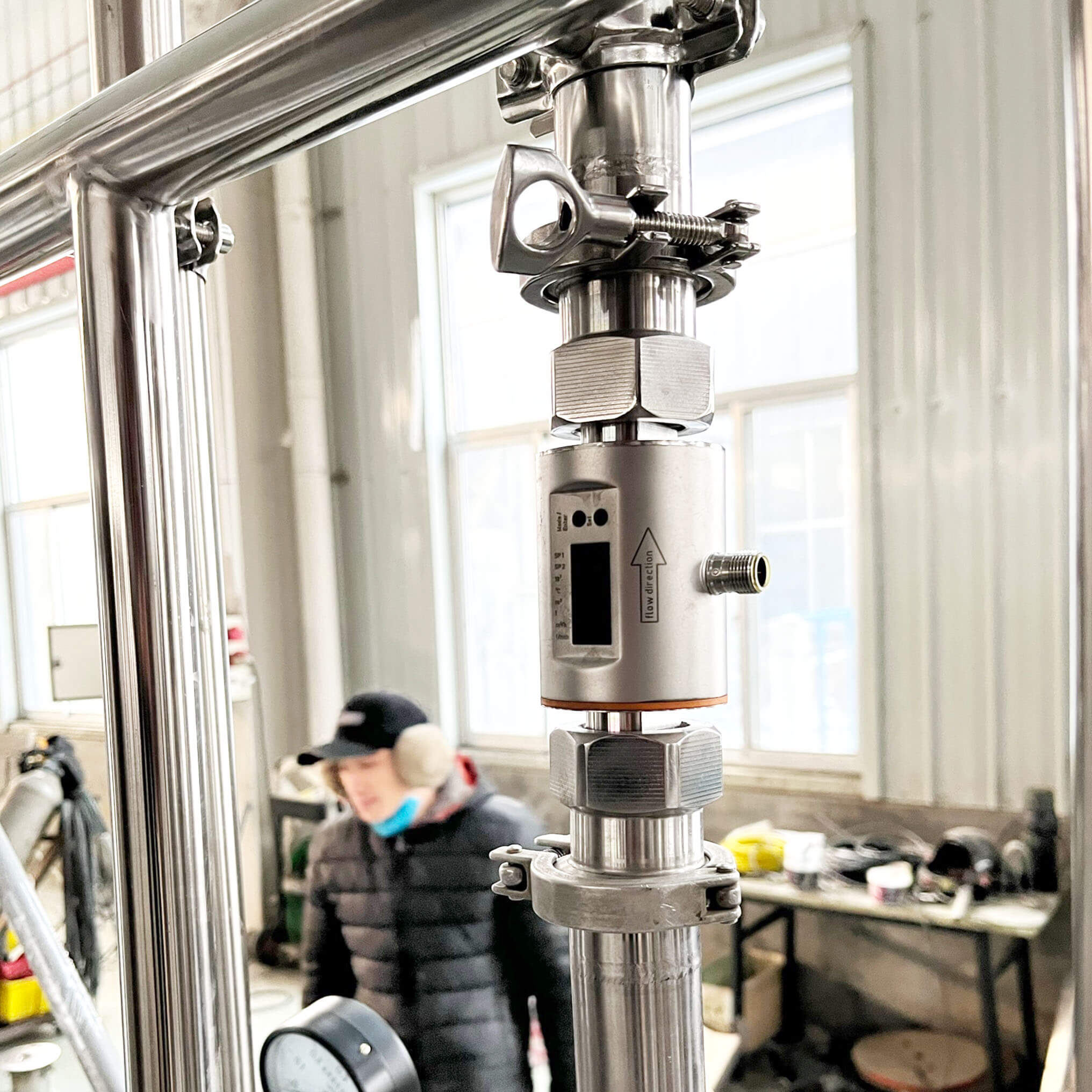

7	with water flowmeter, Germany IFM brand
8	Level tube
9	360° coverage CIP spraying ball
10	Double Layer: Inner-Jacket (SUS304), TH=3.0mm, pickling&passivating treated; External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate
11	·Dish head (SUS304), TH=3.0mm.
12	·Insulation layer: PU-thickness= 80mm.
13	·100% high precision TIG welded joints
14	·4pcs x SUS304 heavy duty legs with leveling pad

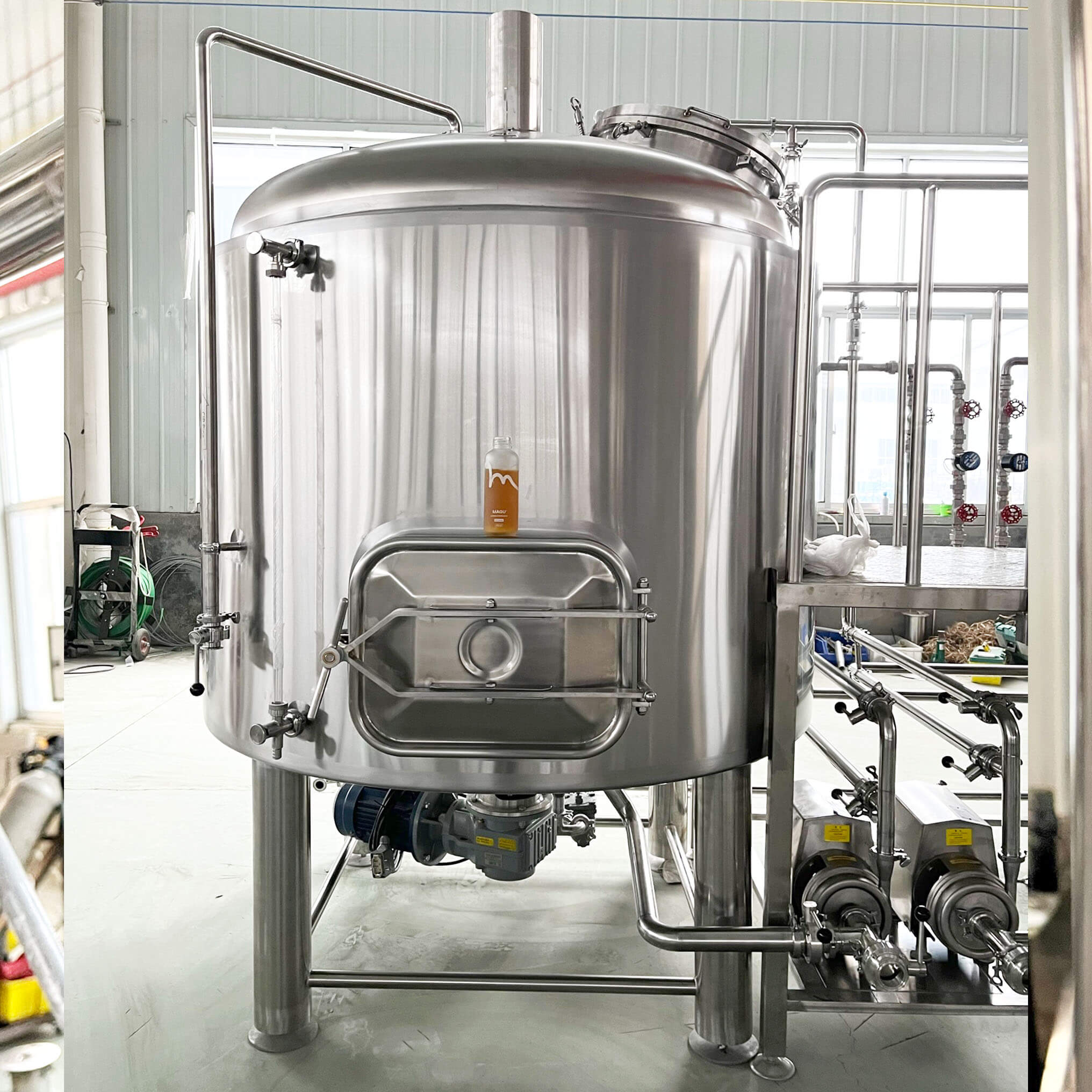

2000L Tea Brewing Tank
1	Effective volume= 1500L, total volume=2000L, Dimension=φ1660*2500mm, gross weight=450kg
2	Top Glass type manway(φ500mm)

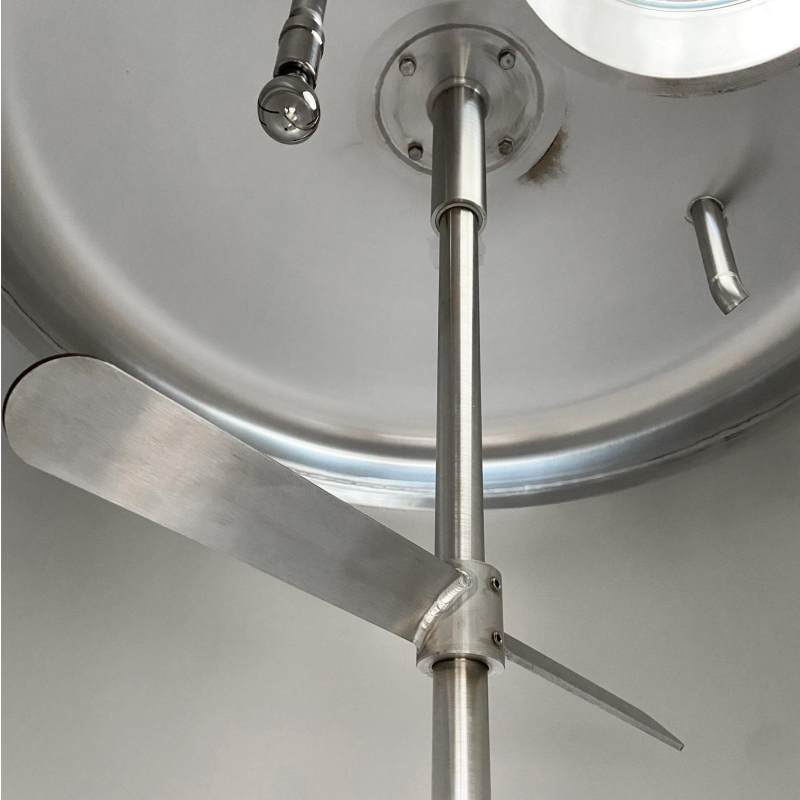

3	Underneath driven Agitator with motor & reducer ( 2.2kw,VFD type)
4	Outdoor condensate collection pipe
5	360° coverage CIP spraying ball

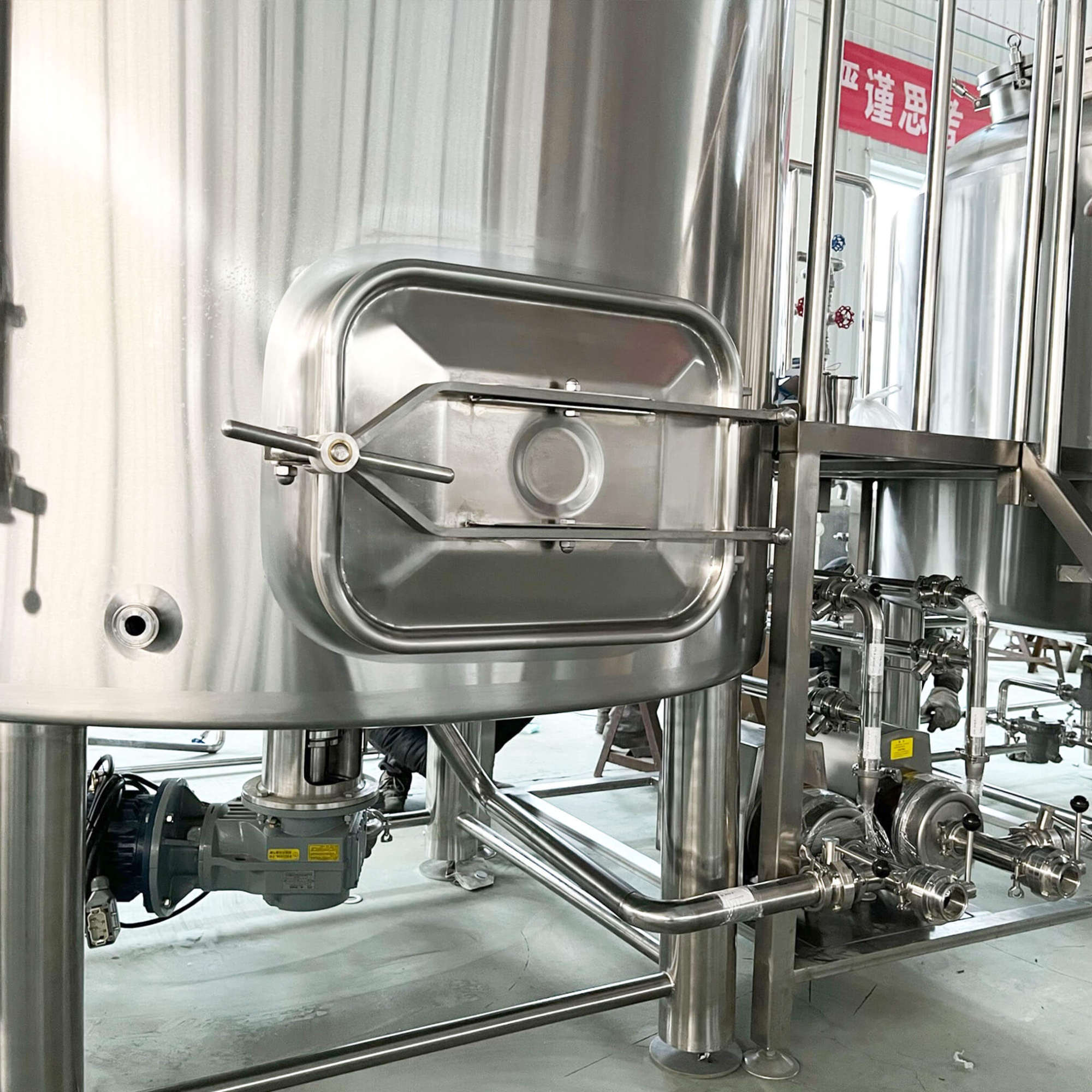

6	Side mounted Tea outdoor(manhole) , size=430*550mm
7	Tea/liquid drain port underneath of the tank
8	Temperature probe (PT-100)
9	Level Tube
10	With 10 m3/h Sanitary VFD Pump (transfering water and mixed tea)

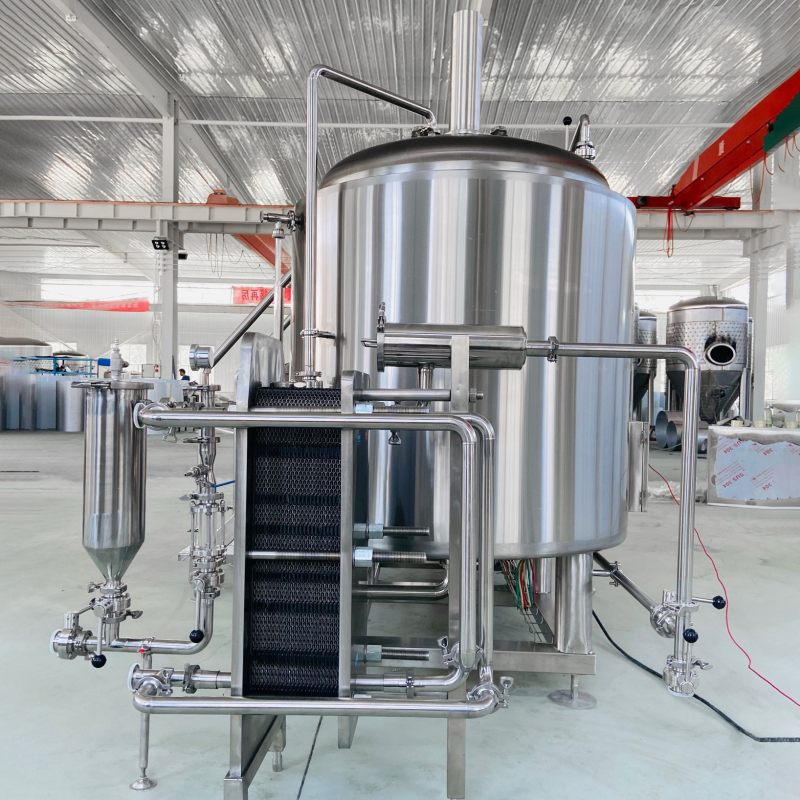

11	Plate Heat Exchanger, BR0.1 / 18㎡ ·Cooling efficiency: from 90C to 28C in 40 mins·Sanitary type, 304 SUS Material·Design pressure:1.0 Mpa; ·Working temperature: 170°C.·Double-stage cooling type (ie. Hot tea &Glycol water & Tap water), to be update to single stage in future
