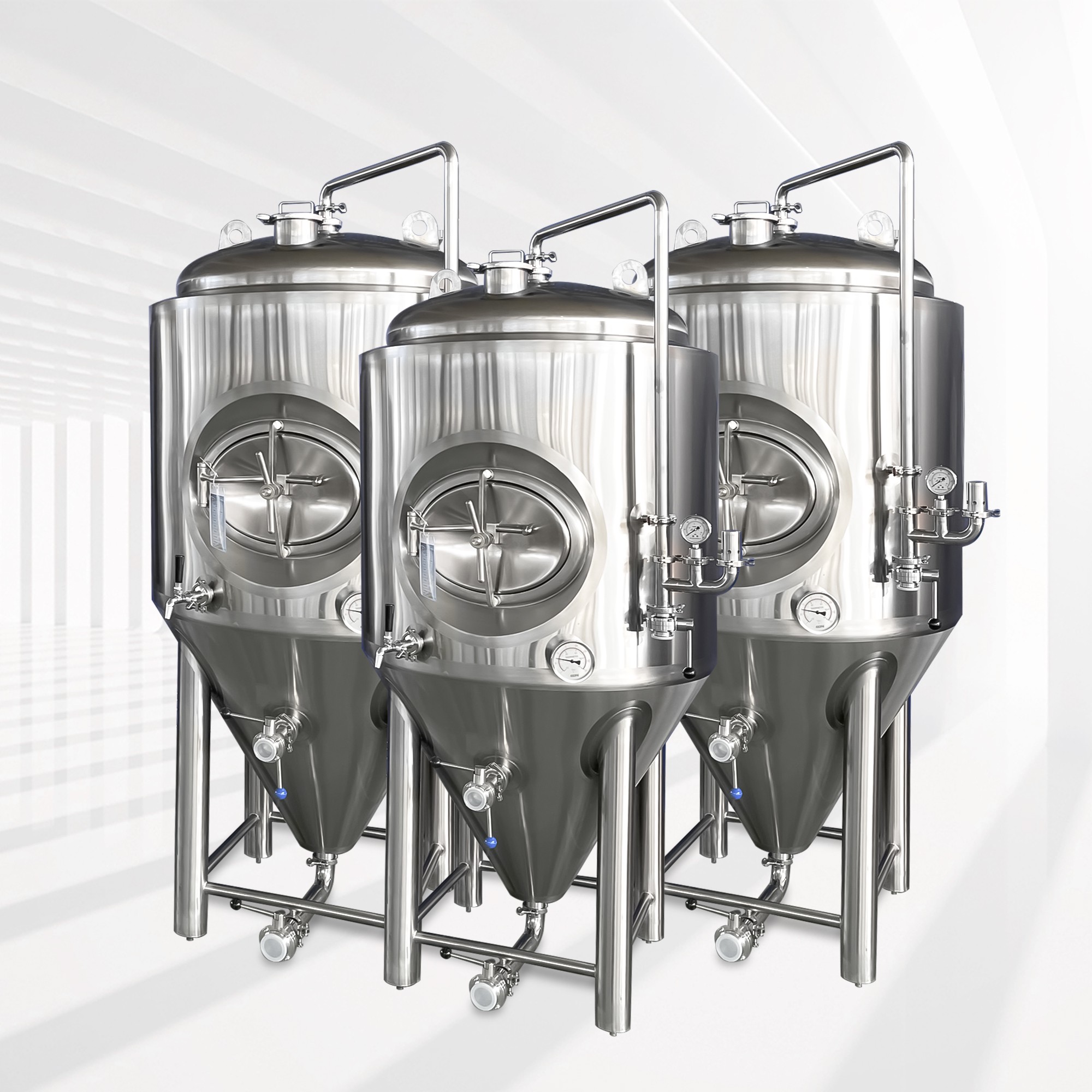

Side Manway (M-Series) carbonation tank, is built for those industrial kombucha breweries who will force carbonate their kombucha under temperature control with volume from 400L to 5,000L(max to 50BBL).

With the Standard fully polished 304 stainless steel material, it has all standard sanitary welded tri-clamp fittings and CIP arm. There are also some more advanced add-on features, pick up the one which suitable for your current stage, we are your one-stop brewing store.

1. Effective volume = 500L, with extra 25% head space. Total volume = 6250L; (example)

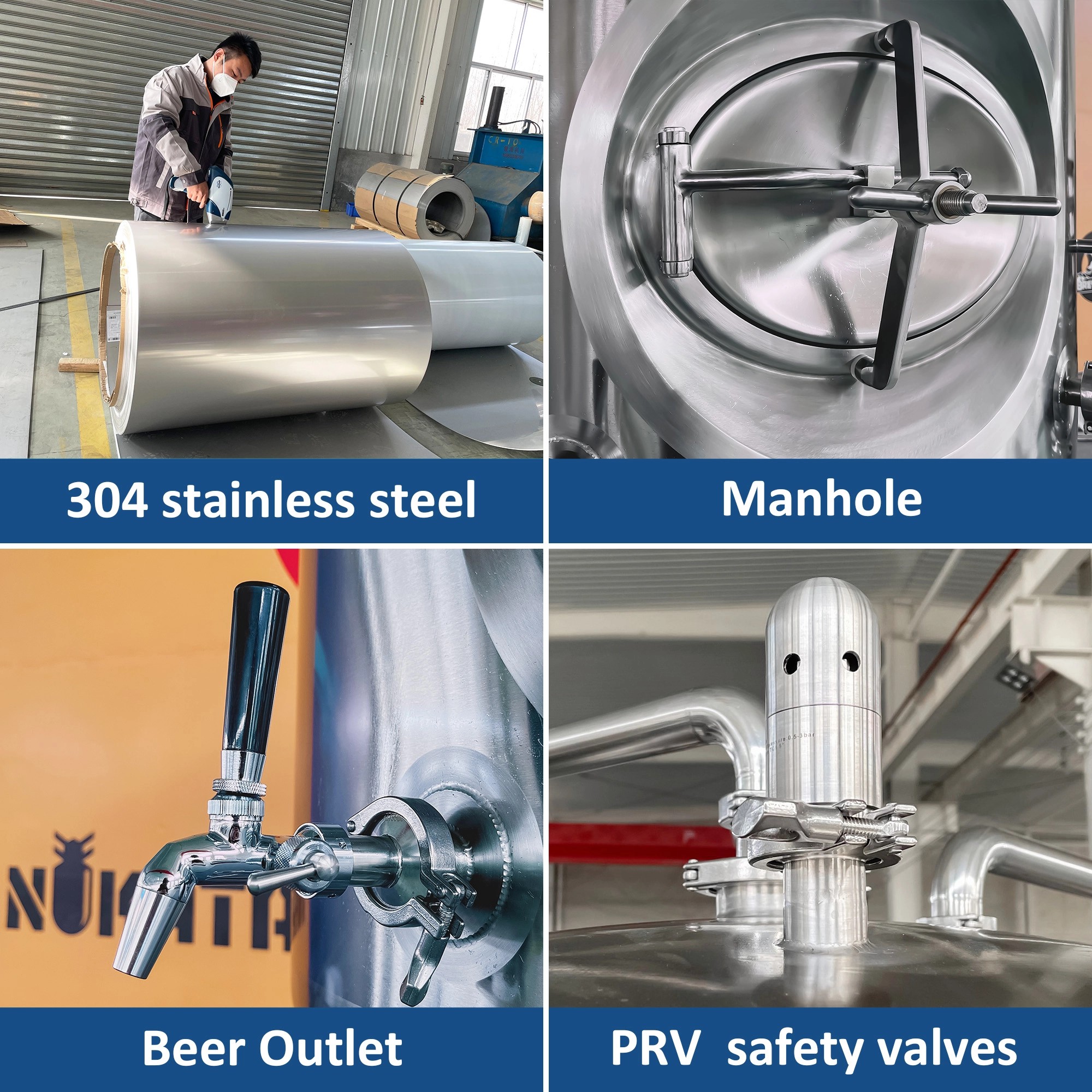

2. Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire;

3. Inner layer=3mm, pickling and passivating treated;

4. outer layer=2mm, Hairline polishing;

5. Dimple glycol cooling jacket;

6. PU Insulation layer=80mm on side and cone bottom;

7. Design pressure 0.3MPa; Working pressure 0.15Mpa;

8. 60°Conical Cone bottom;

9. 4 x heavy duty legs with leveling foot pads;

It comes with:

1. Side manway, shadow-less

2. CIP arm with internal 360°spray ball

3. Lifting lugs

4. Pressure relief valve

5. Pressure Gauge

6. Carbonation fittings

7. Sample valve

8. Kombucha outlet on cone

9. Bottom drain port

10. PT-100 Temperature sensor

11. Complete fittings, valves

You can also upgrade your carbonation tank with below options:

1. Additional CO2 Blow off pipeline

2. Temperature Gauge

3. Glycol water pipelines to fit your brewery layout
